简介
LNMT=Linux+Nginx+MySQL+Tomcat;
Tomcat 服务器是一个免费的开放源代码的Web 应用服务器,属于轻量级应用服务器;
在中小型系统和并发访问用户不是很多的场合下被普遍使用,是开发和调试JSP 程序的首选;
架构需求

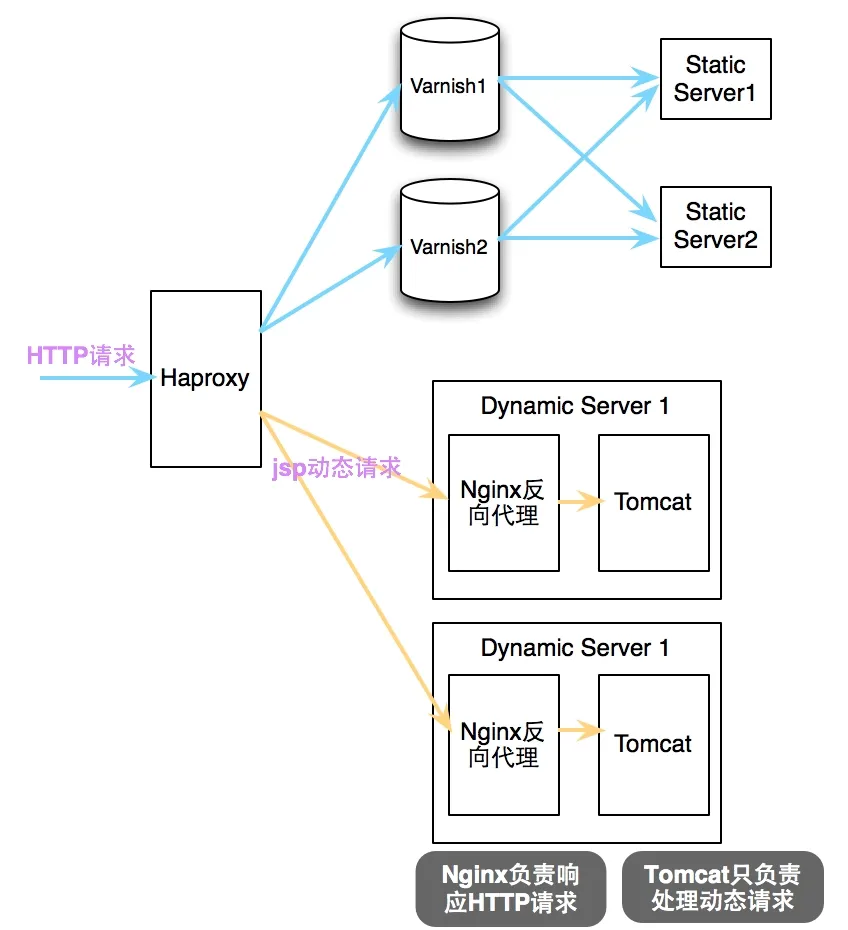

Tomcat实现JSP动态请求解析的基本架构
说明:由后端Tomcat负责解析动态jsp请求,但为了提高响应性能,在同一主机内配置Nginx做反向代理,转发所有请求至tomcat即可;

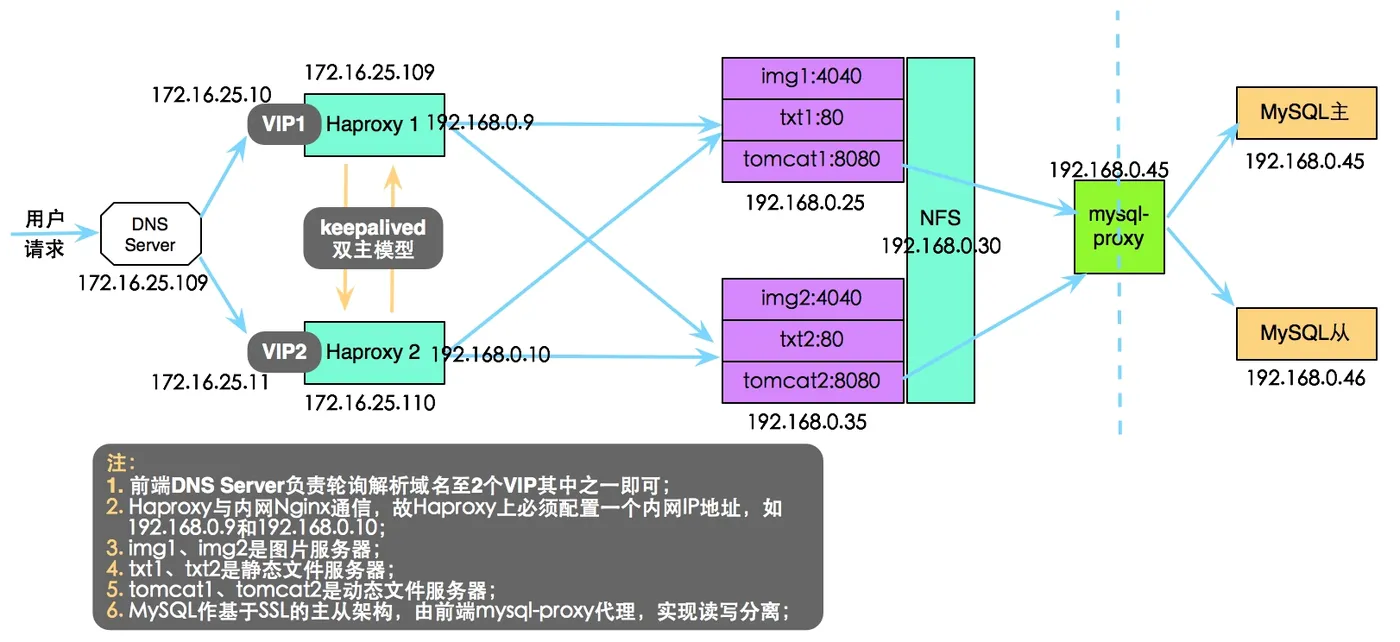

完整的LNMT架构设计
说明:本篇博客主要讲解单台Haproxy到后端多台Tomcat服务器的实现;
安装配置
Tomcat安装配置
安装JDK
1
2
3
4
5
|
# rpm -ivh jdk-7u9-linux-x64.rpm
# vi /etc/profile.d/java.sh
export
JAVA_HOME=
/usr/java/latest
export
PATH=$JAVA_HOME
/bin
:$PATH
# . /etc/profile.d/java.sh
|
安装Tomcat
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
|
# tar xf apache-tomcat-7.0.42.tar.gz -C /usr/local/
# cd /usr/local/
# ln -sv apache-tomcat-7.0.42/ tomcat
# vi /etc/profile.d/tomcat.sh
export
CATALINA_HOME=
/usr/local/tomcat
export
PATH=$CATALINA_HOME
/bin
:$PATH
# . /etc/profile.d/tomcat.sh
# 编写服务脚本
# vi /etc/init.d/tomcat
#!/bin/sh
# Tomcat init script for Linux.
#
# chkconfig: 2345 96 14
# description: The Apache Tomcat servlet/JSP container.
# JAVA_OPTS='-Xms64m -Xmx128m'
JAVA_HOME=
/usr/java/latest
CATALINA_HOME=
/usr/local/tomcat
export
JAVA_HOME CATALINA_HOME
case
$1
in
start)
exec
$CATALINA_HOME
/bin/catalina
.sh start ;;
stop)
exec
$CATALINA_HOME
/bin/catalina
.sh stop;;
restart)
$CATALINA_HOME
/bin/catalina
.sh stop
sleep
2
exec
$CATALINA_HOME
/bin/catalina
.sh start ;;
*)
echo
"Usage: `basename $0` {start|stop|restart}"
exit
1
;;
esac
# chmod +x /etc/init.d/tomcat
|
配置Tomcat
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
|
# cd /usr/local/tomcat/conf
# vi server.xml
<?xml version=
'1.0'
encoding=
'utf-8'
?>
<Server port=
"8005"
shutdown
=
"SHUTDOWN"
>
<Listener className=
"org.apache.catalina.core.AprLifecycleListener"
SSLEngine=
"on"
/>
<Listener className=
"org.apache.catalina.core.JasperListener"
/>
<Listener className=
"org.apache.catalina.core.JreMemoryLeakPreventionListener"
/>
<Listener className=
"org.apache.catalina.mbeans.GlobalResourcesLifecycleListener"
/>
<Listener className=
"org.apache.catalina.core.ThreadLocalLeakPreventionListener"
/>
<GlobalNamingResources>
<Resource name=
"UserDatabase"
auth=
"Container"
type
=
"org.apache.catalina.UserDatabase"
description=
"User database that can be updated and saved"
factory=
"org.apache.catalina.users.MemoryUserDatabaseFactory"
pathname=
"conf/tomcat-users.xml"
/>
<
/GlobalNamingResources
>
<Service name=
"Catalina"
>
<Connector port=
"9000"
protocol=
"HTTP/1.1"
# 配置HTTP连接器监听9000端口
connectionTimeout=
"20000"
redirectPort=
"8443"
/>
<Connector port=
"8009"
protocol=
"AJP/1.3"
redirectPort=
"8443"
/>
<Engine name=
"Catalina"
defaultHost=
"localhost"
>
<Realm className=
"org.apache.catalina.realm.LockOutRealm"
>
<Realm className=
"org.apache.catalina.realm.UserDatabaseRealm"
resourceName=
"UserDatabase"
/>
<
/Realm
>
<Host name=
"xxrenzhe.lnmmp.com"
appBase=
"webapps"
# 新增Host,配置相应的Context
unpackWARs=
"true"
autoDeploy=
"true"
>
<Context path=
""
docBase=
"lnmmpapp"
/>
# 配置的应用程序目录是webapps/lnmmpapp
<Valve className=
"org.apache.catalina.valves.AccessLogValve"
directory=
"logs"
prefix=
"lnmmp_access_log."
suffix=
".txt"
pattern=
"%h %l %u %t "%r" %s %b"
/>
<
/Host
>
<Host name=
"localhost"
appBase=
"webapps"
unpackWARs=
"true"
autoDeploy=
"true"
>
<Valve className=
"org.apache.catalina.valves.AccessLogValve"
directory=
"logs"
prefix=
"localhost_access_log."
suffix=
".txt"
pattern=
"%h %l %u %t "%r" %s %b"
/>
<
/Host
>
<
/Engine
>
<
/Service
>
<
/Server
>
# 创建应用程序相关目录
# cd /usr/local/tomcat/webapps/
# mkdir -pv lnmmpapp/WEB-INF/{classes,lib}
# cd lnmmpapp
# vi index.jsp # 编写首页文件
<%@ page language=
"java"
%>
<html>
<
head
><title>Tomcat1<
/title
><
/head
>
# 在Tomcat2主机上替换为Tomcat2
<body>
<h1><font color=
"red"
>Tomcat1.lnmmp.com<
/font
><
/h1
>
# 在Tomcat2主机上替换为Tomcat2.lnmmp.com,color修改为blue
<table align=
"centre"
border=
"1"
>
<
tr
>
<td>Session ID<
/td
>
<% session.setAttribute(
"lnmmp.com"
,
"lnmmp.com"
); %>
<td><%= session.getId() %><
/td
>
<
/tr
>
<
tr
>
<td>Created on<
/td
>
<td><%= session.getCreationTime() %><
/td
>
<
/tr
>
<
/table
>
<
/body
>
<
/html
>
|
启动Tomcat服务
1
2
|
chkconfig --add tomcat
service tomcat start
|
Nginx配置
Nginx安装详见博文“如何测试Nginx的高性能”
配置Nginx
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
|
# vi /etc/nginx/nginx.conf
worker_processes 2;
error_log
/var/log/nginx/nginx
.error.log;
pid
/var/run/nginx
.pid;
events {
worker_connections 1024;
}
http {
include mime.types;
default_type application
/octet-stream
;
log_format main
'$remote_addr - $remote_user [$time_local] "$request" '
'$status $body_bytes_sent "$http_referer" '
'"$http_user_agent" "$http_x_forwarded_for"'
;
sendfile on;
keepalive_timeout 65;
fastcgi_cache_path
/www/cache
levels=1:2 keys_zone=fcgicache:10m inactive=5m;
server {
# 处理前端发来的图片请求;
listen 4040;
server_name xxrenzhe.lnmmp.com;
access_log
/var/log/nginx/nginx-img
.access.log main;
root
/www/lnmmp
.com;
valid_referers none blocked xxrenzhe.lnmmp.com *.lnmmp.com;
# 配置一定的反盗链策略;
if
($invalid_referer) {
rewrite ^/ http:
//xxrenzhe
.lnmmp.com
/404
.html;
}
}
server {
listen 80;
# 处理前端发来的静态请求;
server_name xxrenzhe.lnmmp.com;
access_log
/var/log/nginx/nginx-static
.access.log main;
location / {
root
/www/lnmmp
.com;
index index.php index.html index.htm;
}
gzip
on;
# 对静态文件开启压缩传输功能;
gzip_comp_level 6;
gzip_buffers 16 8k;
gzip_http_version 1.1;
gzip_types text
/plain
text
/css
application
/x-javascript
text
/xml
application
/xml
;
gzip_disable msie6;
}
server {
listen 8080;
server_name xxrenzhe.lnmmp.com;
access_log
/var/log/nginx/nginx-tomcat
.access.log main;
location / {
proxy_pass http:
//127
.0.0.1:9000;
# 将全部动态请求都转发至后端tomcat
}
}
}
|
启动服务
1
|
service nginx start
|
Haproxy安装配置
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
|
# yum -y install haproxy
# vi /etc/haproxy/haproxy.cfg
global
log 127.0.0.1 local2
chroot
/var/lib/haproxy
pidfile
/var/run/haproxy
.pid
maxconn 4000
user haproxy
group haproxy
daemon
defaults
mode http
log global
option httplog
option dontlognull
option http-server-close
option forwardfor except 127.0.0.0
/8
option redispatch
retries 3
timeout http-request 10s
timeout queue 1m
timeout connect 10s
timeout client 1m
timeout server 1m
timeout http-keep-alive 10s
timeout check 10s
maxconn 30000
listen stats
# 配置haproxy的状态信息页面
mode http
bind 0.0.0.0:1080
stats
enable
stats hide-version
stats uri
/haproxyadmin
?stats
stats realm Haproxy\ Statistics
stats auth admin:admin
stats admin
if
TRUE
frontend http-
in
bind *:80
mode http
log global
option httpclose
option logasap
option dontlognull
capture request header Host len 20
capture request header Referer len 60
acl url_img path_beg -i
/images
acl url_img path_end -i .jpg .jpeg .gif .png
acl url_dynamic path_end -i .jsp .
do
use_backend img_servers
if
url_img
# 图片请求发送至图片服务器;
use_backend dynamic_servers
if
url_dynamic
# JSP动态请求发送至Tomcat服务器;
default_backend static_servers
# 其余静态请求都发送至静态服务器;
backend img_servers
balance roundrobin
server img-srv1 192.168.0.25:4040 check maxconn 6000
server img-srv2 192.168.0.35:4040 check maxconn 6000
backend static_servers
cookie node insert nocache
option httpchk HEAD
/health_check
.html
server static-srv1 192.168.0.25:80 check maxconn 6000 cookie static-srv1
server static-srv2 192.168.0.35:80 check maxconn 6000 cookie static-srv2
backend dynamic_servers
balance roundrobin
server tomcat1 192.168.0.25:8080 check maxconn 1000
server tomcat2 192.168.0.35:8080 check maxconn 1000
|
启动服务
1
|
service haproxy start
|
本地DNS解析设置
1
|
xxrenzhe.lnmmp.com A 172.16.25.109
# 配置为haproxy的IP地址即可
|

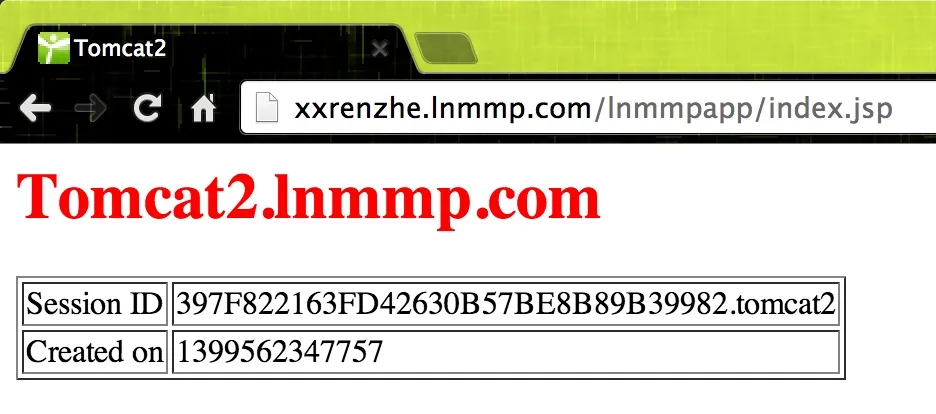

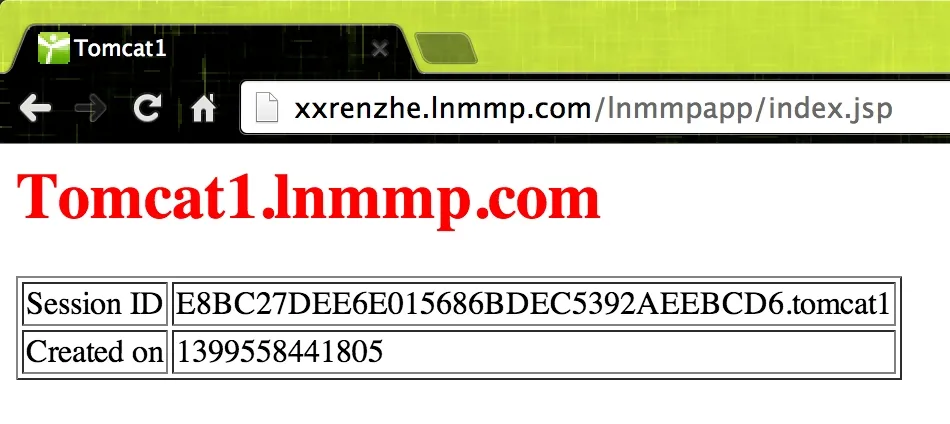

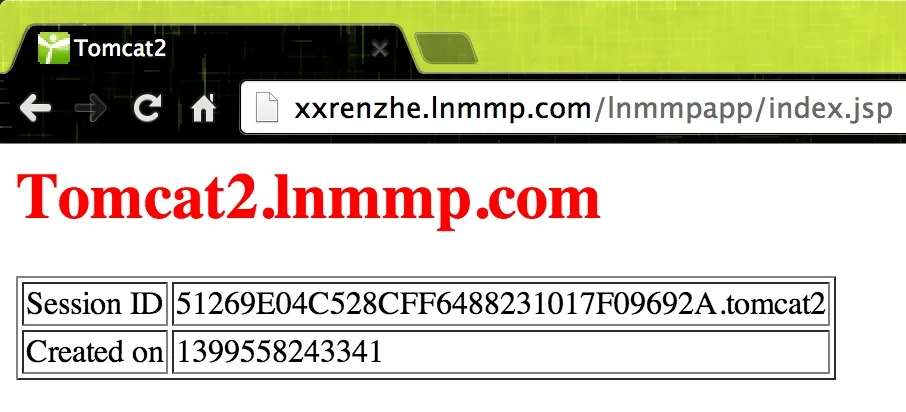

访问验证
说明:由于前端Haproxy调度动态请求是roundrobin算法,故每次刷新都会轮询分配到不同的Tomcat节点上,且每次获得的session都是不一样的;
实现session绑定
将同一用户的请求调度至后端同一台Tomcat上,不至于一刷新就导致session丢失;
修改Tomcat配置
1
2
|
# vi /usr/local/tomcat/conf/server.xml # 修改如下行内容,添加jvmRoute字段
<Engine name=
"Catalina"
defaultHost=
"localhost"
jvmRoute=
"tomcat1"
>
# 在Tomcat2上替换为tomcat2
|
修改Haproxy配置
1
2
3
4
5
6
|
# vi /etc/haproxy/haproxy.cfg # 为后端动态节点添加cookie绑定机制
backend dynamic_servers
cookie node insert nocache
balance roundrobin
server tomcat1 192.168.0.25:8080 check maxconn 1000 cookie tomcat1
server tomcat2 192.168.0.35:8080 check maxconn 1000 cookie tomcat1
|

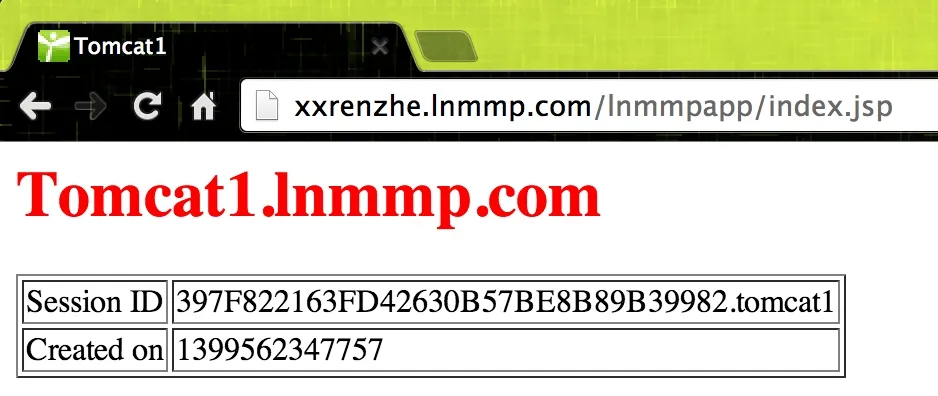

访问验证
说明:当第一次访问成功后,再次刷新并不会改变分配的Tomcat节点和session信息,说明session绑定成功;
实现session保持
Tomcat支持Session集群,可在各Tomcat服务器间复制全部session信息,当后端一台Tomcat服务器宕机后,Haproxy重新调度用户请求后,在其它正常的Tomcat服务上依然存在用户原先的session信息;
Session集群可在Tomcat服务器规模(一般10台以下)不大时使用,否则会导致复制代价过高;
配置实现
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
|
# vi /usr/local/tomcat/conf/server.xml # 完整配置
<?xml version=
'1.0'
encoding=
'utf-8'
?>
<Server port=
"8005"
shutdown
=
"SHUTDOWN"
>
<Listener className=
"org.apache.catalina.core.AprLifecycleListener"
SSLEngine=
"on"
/>
<Listener className=
"org.apache.catalina.core.JasperListener"
/>
<Listener className=
"org.apache.catalina.core.JreMemoryLeakPreventionListener"
/>
<Listener className=
"org.apache.catalina.mbeans.GlobalResourcesLifecycleListener"
/>
<Listener className=
"org.apache.catalina.core.ThreadLocalLeakPreventionListener"
/>
<GlobalNamingResources>
<Resource name=
"UserDatabase"
auth=
"Container"
type
=
"org.apache.catalina.UserDatabase"
description=
"User database that can be updated and saved"
factory=
"org.apache.catalina.users.MemoryUserDatabaseFactory"
pathname=
"conf/tomcat-users.xml"
/>
<
/GlobalNamingResources
>
<Service name=
"Catalina"
>
<Connector port=
"9000"
protocol=
"HTTP/1.1"
connectionTimeout=
"20000"
redirectPort=
"8443"
/>
<Connector port=
"8009"
protocol=
"AJP/1.3"
redirectPort=
"8443"
/>
<Engine name=
"Catalina"
defaultHost=
"localhost"
jvmRoute=
"tomcat1"
>
# 在Tomcat2主机上替换为tomcat2
<Cluster className=
"org.apache.catalina.ha.tcp.SimpleTcpCluster"
# 添加集群相关配置;
channelSendOptions=
"8"
>
<Manager className=
"org.apache.catalina.ha.session.DeltaManager"
# 集群会话管理器选择DeltaManager;
expireSessionsOnShutdown=
"false"
notifyListenersOnReplication=
"true"
/>
<Channel className=
"org.apache.catalina.tribes.group.GroupChannel"
>
# 为集群中的几点定义通信信道;
<Membership className=
"org.apache.catalina.tribes.membership.McastService"
# 定义使用McastService确定集群中的成员
address=
"228.25.25.4"
# 集群内session复制所用的多播地址
port=
"45564"
frequency=
"500"
dropTime=
"3000"
/>
<Receiver className=
"org.apache.catalina.tribes.transport.nio.NioReceiver"
# 定义以NioReceiver方式接收其它节点的数据;
address=
"192.168.0.25"
# 在Tomcat2主机上替换为192.168.0.35
port=
"4000"
autoBind=
"100"
selectorTimeout=
"5000"
maxThreads=
"6"
/>
<Sender className=
"org.apache.catalina.tribes.transport.ReplicationTransmitter"
>
# 定义数据复制的发送器;
<Transport className=
"org.apache.catalina.tribes.transport.nio.PooledParallelSender"
/>
<
/Sender
>
<Interceptor className=
"org.apache.catalina.tribes.group.interceptors.TcpFailureDetector"
/>
<Interceptor className=
"org.apache.catalina.tribes.group.interceptors.MessageDispatch15Interceptor"
/>
<
/Channel
>
<Valve className=
"org.apache.catalina.ha.tcp.ReplicationValve"
filter=
""
/>
<Valve className=
"org.apache.catalina.ha.session.JvmRouteBinderValve"
/>
<Deployer className=
"org.apache.catalina.ha.deploy.FarmWarDeployer"
tempDir=
"/tmp/war-temp/"
deployDir=
"/tmp/war-deploy/"
watchDir=
"/tmp/war-listen/"
watchEnabled=
"false"
/>
<ClusterListener className=
"org.apache.catalina.ha.session.JvmRouteSessionIDBinderListener"
/>
<ClusterListener className=
"org.apache.catalina.ha.session.ClusterSessionListener"
/>
<
/Cluster
>
<Realm className=
"org.apache.catalina.realm.LockOutRealm"
>
<Realm className=
"org.apache.catalina.realm.UserDatabaseRealm"
resourceName=
"UserDatabase"
/>
<
/Realm
>
<Host name=
"xxrenzhe.lnmmp.com"
appBase=
"webapps"
unpackWARs=
"true"
autoDeploy=
"true"
>
<Context path=
""
docBase=
"lnmmpapp"
/>
<Valve className=
"org.apache.catalina.valves.AccessLogValve"
directory=
"logs"
prefix=
"lnmmp_access_log."
suffix=
".txt"
pattern=
"%h %l %u %t "%r" %s %b"
/>
<
/Host
>
<Host name=
"localhost"
appBase=
"webapps"
unpackWARs=
"true"
autoDeploy=
"true"
>
<Valve className=
"org.apache.catalina.valves.AccessLogValve"
directory=
"logs"
prefix=
"localhost_access_log."
suffix=
".txt"
pattern=
"%h %l %u %t "%r" %s %b"
/>
<
/Host
>
<
/Engine
>
<
/Service
>
<
/Server
>
# cd /usr/local/tomcat/webapps/lnmmpapp/WEB-INF/
# cp /usr/local/tomcat/conf/web.xml .
# vi web.xml # 添加如下一行,无需放置于任何容器中
<distributable\>
|
查看日志
1
2
3
4
|
# tailf /usr/local/tomcat/logs/catalina.out
May 08, 2014 11:08:13 PM org.apache.catalina.ha.tcp.SimpleTcpCluster memberAdded
INFO: Replication member added:org.apache.catalina.tribes.membership.MemberImpl[tcp:
//
{192, 168, 0, 35}:4000,{192, 168, 0, 35},4000, alive=1029, securePort=-1, UDP Port=-1,
id
={106 35 -62 -54 -28 61 74 -98 -86 -11 -69 104 28 -114 32 -69 }, payload={},
command
={}, domain={}, ]
# 查看到如上信息,则说明session集群已生效,tomcat1已检测到tomcat2节点的存在
|
访问验证
第一次访问
然后停止tomcat1的nginx服务(service nginx stop),再次访问
说明:虽然因为tomcat1故障,导致用户请求被调度到了tomcat2节点上,但Session ID并未发生改变,即session集群内的所有节点都保存有全局的session信息,很好的实现了用户访问的不中断;,
