我的博客已迁移到xdoujiang.com请去那边和我交流
一、基础环境
1、关闭selinux服务
sed
-i
's/SELINUX=.*/SELINUX=disabled/'
/etc/selinux/config
setenforce 0
2、关闭iptables服务
chkconfig iptables off
iptables -F
/etc/init
.d
/iptables
save
/etc/init
.d
/iptables
stop

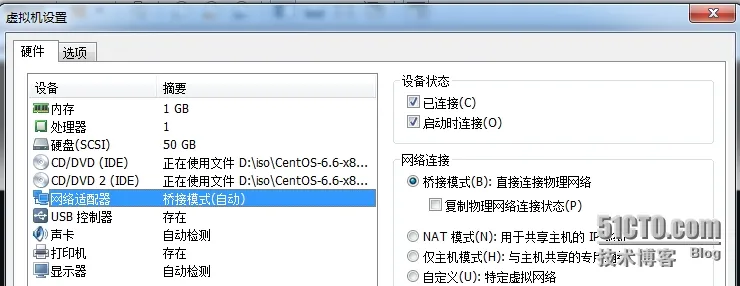

3、serverA桥接模式
|
|
1
|

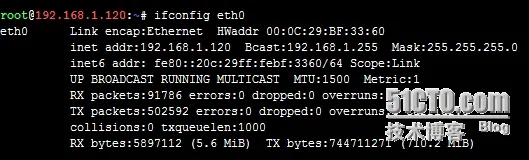

4、服务端serverA=192.168.1.120(我这里只使用了eth0网络接口)
|
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
|
5、之前已经下载好了2张dvd
CentOS-6.6-x86_64-bin-DVD1.iso和CentOS-6.6-x86_64-bin-DVD2.iso
二、安装cobbler(serverA)
1、安装所需要的包
yum -y
install
cobbler debmirror pykickstart openssl fence-agents dnsmasq syslinux
2、先看下cobbler命令有哪些
cobbler
usage
=====
cobbler <distro|profile|system|repo|image|mgmtclass|package|
file
> ...
[add|edit|copy|getks*|list|remove|rename|report] [options|--help]
cobbler <aclsetup|buildiso|
import
|list|replicate|report|reposync|
sync
|validateks|version|signature|get-loaders|hardlink> [options|--help]
3、cobbler check(检查配置)
The following are potential configuration items that you may want to fix:
1)The
'server'
field
in
/etc/cobbler/settings
must be
set
to something other than localhost, or kickstarting features will not work.
This should be a resolvable
hostname
or IP
for
the boot server as reachable by all machines that will use it.
2)For PXE to be functional, the
'next_server'
field
in
/etc/cobbler/settings
must be
set
to something other than 127.0.0.1,
and should match the IP of the boot server on the PXE network.
3)SELinux is enabled. Please review the following wiki page
for
details on ensuring cobbler works correctly
in
your SELinux environment:
https:
//github
.com
/cobbler/cobbler/wiki/Selinux
4)some network boot-loaders are missing from
/var/lib/cobbler/loaders
, you may run
'cobbler get-loaders'
to download them, or,
if
you only want to handle x86
/x86_64
netbooting, you may ensure that you have installed a *recent* version of the syslinux
package installed and can ignore this message entirely. Files
in
this directory, should you want to support all architectures,
should include pxelinux.0, menu.c32, elilo.efi, and yaboot. The
'cobbler get-loaders'
command
is the easiest way to resolve these requirements.
5)change
'disable'
to
'no'
in
/etc/xinetd
.d
/rsync
6)comment out
'dists'
on
/etc/debmirror
.conf
for
proper debian support
7)comment out
'arches'
on
/etc/debmirror
.conf
for
proper debian support
8)The default password used by the sample templates
for
newly installed machines (default_password_crypted
in
/etc/cobbler/settings
) is still
set
to
'cobbler'
and should be changed, try: "openssl
passwd
-1 -salt
'random-phrase-here'
'your-password-here'
" to generate new one
Restart cobblerd and
then
run
'cobbler sync'
to apply changes.
4、下载客户端启动文件
cd
/var/lib/cobbler/loaders
cat
filelist.txt
http:
//dgoodwin
.fedorapeople.org
/loaders/README
http:
//dgoodwin
.fedorapeople.org
/loaders/COPYING
.elilo
http:
//dgoodwin
.fedorapeople.org
/loaders/COPYING
.yaboot
http:
//dgoodwin
.fedorapeople.org
/loaders/COPYING
.syslinux
http:
//dgoodwin
.fedorapeople.org
/loaders/elilo-3
.8-ia64.efi
http:
//dgoodwin
.fedorapeople.org
/loaders/yaboot-1
.3.14-12
http:
//dgoodwin
.fedorapeople.org
/loaders/pxelinux
.0-3.61
http:
//dgoodwin
.fedorapeople.org
/loaders/menu
.c32-3.61
http:
//dgoodwin
.fedorapeople.org
/loaders/grub-0
.97-x86.efi
http:
//dgoodwin
.fedorapeople.org
/loaders/grub-0
.97-x86_64.efi
wget -i filelist.txt
5、修改
/etc/cobbler/settings
配置文件
1)先备份下配置
cp
/etc/cobbler/settings
/etc/cobbler/settings
.bak
2)生成密码
openssl
passwd
-1 -salt
'root'
'redhat'
$1$root$M1uN9dLHipbORRwJW
/xR3/
3)开始修改
sed
-i
's/^server:.*/server: 192.168.1.120/'
/etc/cobbler/settings
sed
-i
's/^next_server:.*/next_server: 192.168.1.120/'
/etc/cobbler/settings
sed
-i
'/default_password_crypted/c\default_password_crypted:\ "$1$root$M1uN9dLHipbORRwJW/xR3/"'
/etc/cobbler/settings
sed
-i
's/^manage_dhcp:.*/manage_dhcp: 1/'
/etc/cobbler/settings
sed
-i
's/^manage_dns:.*/manage_dns: 1/'
/etc/cobbler/settings
sed
-i
's/^manage_tftpd:.*/manage_tftpd: 1/'
/etc/cobbler/settings
sed
-i
's/^restart_dhcp:.*/restart_dhcp: 1/'
/etc/cobbler/settings
sed
-i
's/^restart_dns:.*/restart_dns: 1/'
/etc/cobbler/settings
sed
-i
's/^pxe_just_once:.*/pxe_just_once: 1/'
/etc/cobbler/settings
6、修改
/etc/xinetd
.d
/rsync
配置文件
1)先备份下配置
cp
/etc/xinetd
.d
/rsync
/etc/xinetd
.d
/rsync
.bak
2)开始修改
sed
-i
'/disable/s/yes/no/g'
/etc/xinetd
.d
/rsync
7、修改
/etc/cobbler/modules
.conf配置文件
1)先备份下配置
cp
/etc/cobbler/modules
.conf
/etc/cobbler/modules
.conf.bak
2)开始修改
diff
/etc/cobbler/modules
.conf
/etc/cobbler/modules
.conf.bak
56c56
< module = manage_dnsmasq
---
> module = manage_bind
69c69
< module = manage_dnsmasq
---
> module = manage_isc
8、修改
/etc/cobbler/dnsmasq
.template配置文件
1)先备份下配置
cp
/etc/cobbler/dnsmasq
.template
/etc/cobbler/dnsmasq
.template.bak
2)开始修改
diff
/etc/cobbler/dnsmasq
.template
/etc/cobbler/dnsmasq
.template.bak
11c11
< dhcp-range=192.168.1.140,192.168.1.150
---
> dhcp-range=192.168.1.5,192.168.1.200
9、修改kickstart配置文件
1)进入目录
cd
/var/lib/cobbler/kickstarts
2)复制模板给centos6.6x86_64.cfg
cp
sample_end.ks centos6.6x86_64.cfg
3)修改默认的模板为centos模板
cobbler profile edit --name=CentOS6.6-x86_64 --kickstart=
/var/lib/cobbler/kickstarts/centos6
.6x86_64.cfg
4)具体配置
cat
centos6.6x86_64.cfg
auth --useshadow --enablemd5
bootloader --location=mbr
clearpart --all --initlabel
text
firewall --disabled
firstboot --disable
keyboard us
lang en_US
url --url=$tree
$yum_repo_stanza
$SNIPPET(
'network_config'
)
reboot
rootpw --iscrypted $default_password_crypted
selinux --disabled
skipx
timezone Asia
/shanghai
install
zerombr
part
/boot
--fstype=ext4 --size=200
part swap --fstype=swap --size=2048
part / --fstype=ext4 --size=10000
part
/opt
--fstype=ext4 --grow --size=1
%pre
$SNIPPET(
'log_ks_pre'
)
$SNIPPET(
'kickstart_start'
)
$SNIPPET(
'pre_install_network_config'
)
$SNIPPET(
'pre_anamon'
)
%end
%packages --nobase
wget
vim
openssh-server
$SNIPPET(
'func_install_if_enabled'
)
%end
%post --nochroot
$SNIPPET(
'log_ks_post_nochroot'
)
%end
%post
$SNIPPET(
'log_ks_post'
)
$yum_config_stanza
$SNIPPET(
'post_install_kernel_options'
)
$SNIPPET(
'post_install_network_config'
)
$SNIPPET(
'func_register_if_enabled'
)
$SNIPPET(
'download_config_files'
)
$SNIPPET(
'koan_environment'
)
$SNIPPET(
'redhat_register'
)
$SNIPPET(
'cobbler_register'
)
$SNIPPET(
'post_anamon'
)
$SNIPPET(
'kickstart_done'
)
%end
10、挂载并导入dvd iso
1)挂载第1张dvd
mount
-o loop
/opt/CentOS-6
.6-x86_64-bin-DVD1.iso
/mnt
cobbler
import
--arch=x86_64 --path=
/mnt
--name=centos6.6
umount
/mnt
2)挂载第2张dvd
mount
-o loop
/opt/CentOS-6
.6-x86_64-bin-DVD2.iso
/mnt
cp
-rf
/mnt/Packages/
/var/www/cobbler/ks_mirror/centos6
.6-x86_64/
umount
/mnt
11、创建索引
1)进入目录
cd
/var/www/cobbler/ks_mirror/centos6
.6-x86_64/
2)createrepo创建索引
createrepo -g repodata
/9e2ddcc42b44eb150ebc61dde29c997318d8330b92205b3dbb3a87bcc06d10be-c6-x86_64-comps
.xml .
Spawning worker 0 with 6518 pkgs
Workers Finished
Gathering worker results
Saving Primary metadata
Saving
file
lists metadata
Saving other metadata
Generating sqlite DBs
Sqlite DBs complete
12、设置开机启动
chkconfig httpd on
chkconfig cobblerd on
chkconfig dnsmasq on
13、启动服务
/etc/init
.d
/cobblerd
restart
/etc/init
.d
/dnsmasq
restart
service xinetd restart
/etc/init
.d
/httpd
restart
14、同步
cobbler
sync
15、查看端口是否都开放了(53 67 69 80 873)
netstat
-tupnl
Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address Foreign Address State PID
/Program
name
tcp 0 0 0.0.0.0:53 0.0.0.0:* LISTEN 1002
/dnsmasq
tcp 0 0 0.0.0.0:22 0.0.0.0:* LISTEN 1017
/sshd
tcp 0 0 127.0.0.1:25151 0.0.0.0:* LISTEN 1077
/python2
tcp 0 0 :::53 :::* LISTEN 1002
/dnsmasq
tcp 0 0 :::22 :::* LISTEN 1017
/sshd
tcp 0 0 :::873 :::* LISTEN 1026
/xinetd
tcp 0 0 :::80 :::* LISTEN 1044
/httpd
udp 0 0 0.0.0.0:53 0.0.0.0:* 1002
/dnsmasq
udp 0 0 0.0.0.0:67 0.0.0.0:* 1002
/dnsmasq
udp 0 0 0.0.0.0:69 0.0.0.0:* 1026
/xinetd
udp 0 0 :::53 :::* 1002
/dnsmasq
16、通过命令cobbler setting report来查看下之前修改的配置内容
cobbler setting report
17、查看
cobbler list
distros:
centos6.6-x86_64
profiles:
CentOS6.6-x86_64
systems:
repos:
images:
mgmtclasses:
packages:
files:
18、查看导入的发行版系统信息cobbler distro report
cobbler distro report
Name : centos6.6-x86_64
Architecture : x86_64
TFTP Boot Files : {}
Breed : redhat
Comment :
Fetchable Files : {}
Initrd :
/var/www/cobbler/ks_mirror/centos6
.6-x86_64
/images/pxeboot/initrd
.img
Kernel :
/var/www/cobbler/ks_mirror/centos6
.6-x86_64
/images/pxeboot/vmlinuz
Kernel Options : {}
Kernel Options (Post Install) : {}
Kickstart Metadata : {
'tree'
:
'http://@@http_server@@/cblr/links/centos6.6-x86_64'
}
Management Classes : []
OS Version : rhel6
Owners : [
'admin'
]
Red Hat Management Key : inherit
Red Hat Management Server : inherit
Template Files : {}
19、查看配置信息cobbler profile report
cobbler profile report
Name : centos6.6-x86_64
TFTP Boot Files : {}
Comment :
DHCP Tag : default
Distribution : centos6.6-x86_64
Enable gPXE? : 0
Enable PXE Menu? : 1
Fetchable Files : {}
Kernel Options : {}
Kernel Options (Post Install) : {}
Kickstart :
/var/lib/cobbler/kickstarts/centos6
.6x86_64.cfg
Kickstart Metadata : {}
Management Classes : []
Management Parameters : inherit
Name Servers : []
Name Servers Search Path : []
Owners : [
'admin'
]
Parent Profile :
Proxy :
Red Hat Management Key : inherit
Red Hat Management Server : inherit
Repos : []
Server Override : inherit
Template Files : {}
Virt Auto Boot : 1
Virt Bridge : xenbr0
Virt CPUs : 1
Virt Disk Driver Type : raw
Virt File Size(GB) : 5
Virt Path :
Virt RAM (MB) : 512
Virt Type : kvm
20、查看状态
查看正在安装
cobbler status
ip |target |start |state
192.168.1.148 |profile:CentOS6.6-x86_64|Sun Jul 5 20:50:36 2015|installing (6m 4s)
查看已经安装完成
cobbler status
ip |target |start |state
192.168.1.148 |profile:CentOS6.6-x86_64|Sun Jul 5 20:50:36 2015|finished

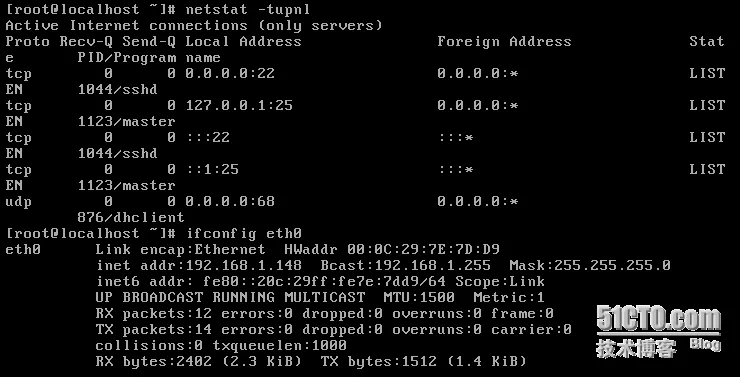

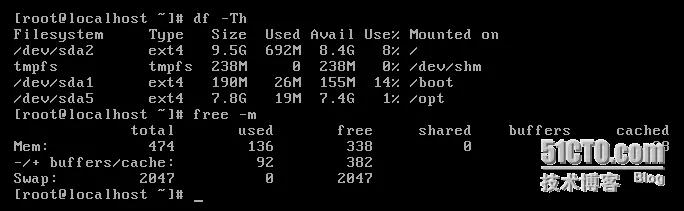

21、查看安装好后的信息
|
|
1
2
|

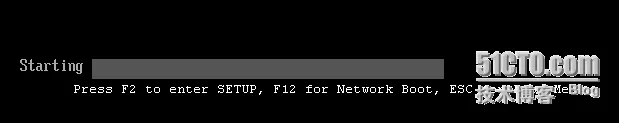

三、客户端也是配置的桥接模式,客户端安装的时候按F12网络引导就OK了,

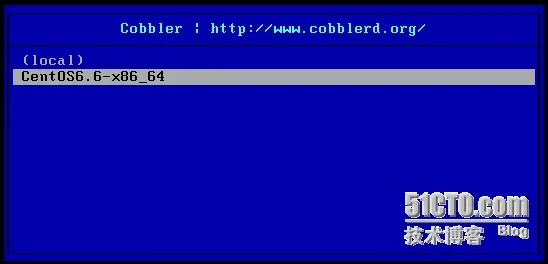

选择相应需要安装的发行版本,回车后就一路安装了.
|
本文转自 xdoujiang 51CTO博客，原文链接：http://blog.51cto.com/7938217/1671122，如需转载请自行联系原作者
