Android开源:数据库ORM框架GreenDao学习心得及使用总结

简介:

   最近在对开发项目的性能进行优化。由于项目里涉及了大量的缓存处理和数据库运用,需要对数据库进行频繁的读写、查询等操作。因此首先想到了对整个项目的数据库框架进行优化。

   原先使用android本身内置的sqllite,也就是用的最基本的SQLiteOpenHelper方法,这种方法对自己来说比较方便易懂。但是在使用过程中感觉很繁琐,从建表到对表的增删改查等操作,如果表对象的属性很多,就需要使用大量的代码来执行建表、插入等。在代码执行中还需要对数据库和游标的进行及时关闭(开启使用,用完关闭),而且还需要部分sql语言,这在开发中产生bug进行调试时尤其不方便。

     目前android经常用的orm框架主要有greenDAO、OrmLite、AndrORM。 综合了网上的各种评价,greenDAO的运行效率最高,内存消耗最少,性能最佳。因此决定采用greenDAO框架,对项目的orm框架进行改进。

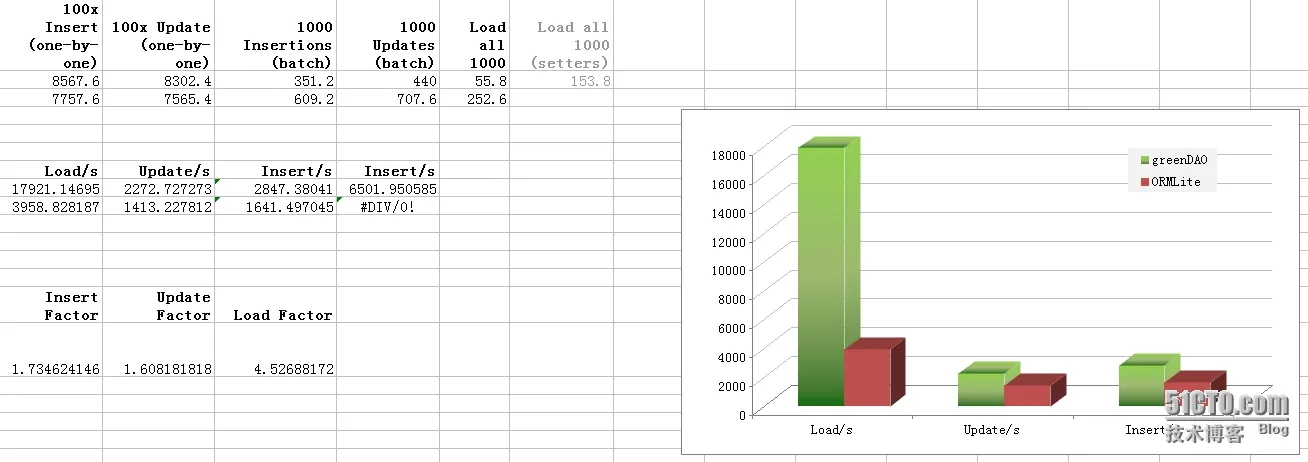

greenDAO与ORMLite性能对比


经过两天的修改,终于将项目里的数据库相关的都优化完了。在这过程中,发现greenDAO的性能确实不错,而且使用相当方便,不再需要涉及到任何的sql语言,可以直接通过对象类进行建表、增删改查等,尤其是api接口又方便易懂。在摸索学习中发现国内相关学习资料实在实在是太少,遂决定在此记录下自己对使用这个orm框架的一些心得和方法总结。


一、greenDAO相关

1.greenDAO官网:http://greendao-orm.com/

2.项目下载地址:https://github.com/greenrobot/greenDAO(或者官网)

greenDAO是一个可以帮助Android开发者快速将Java对象映射到SQLite数据库的表单中的ORM解决方案,通过使用一个简单的面向对象API,开发者可以对Java对象进行存储、更新、删除和查询。

greenDAO的主要设计目标:

   *最大性能(最快的Android ORM)

   *易于使用API

   *高度优化

   *最小内存消耗


二、使用步骤

官方Demo里共有六个工程目录,分别为:

(1).DaoCore:库目录,即jar文件greendao-1.3.0-beta-1.jar的代码;

(2).DaoExample:android范例工程;

(3).DaoExampleGenerator:DaoExample工程的DAO类构造器,java工程;

(4).DaoGenerator:DAO类构造器,java工程;

(5).DaoTest、PerformanceTestOrmLite:其他测试相关的工程

(一)DAO类构造

首先需要新建一个java工程来生成DAO类文件,该工程需要导入greendao-generator.jar和freemarker.jar文件到项目中。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
package  de.greenrobot.daogenerator.gentest;
import  de.greenrobot.daogenerator.DaoGenerator;
import  de.greenrobot.daogenerator.Entity;
import  de.greenrobot.daogenerator.Property;
import  de.greenrobot.daogenerator.Schema;
import  de.greenrobot.daogenerator.ToMany;
/**
  * Generates entities and DAOs for the example project DaoExample.
  *
  * Run it as a Java application (not Android).
  *
  * @author Markus
  */
public  class  ExampleDaoGenerator
{

     public  static  void  main(String[] args)  throws  Exception
     {
         Schema schema =  new  Schema( 3 "de.greenrobot.daoexample" );

         addNote(schema);
         addCustomerOrder(schema);

         new  DaoGenerator().generateAll(schema,  "../DaoExample/src-gen" );
     }

     private  static  void  addNote(Schema schema)
     {
         Entity note = schema.addEntity( "Note" );
         note.addIdProperty();
         note.addStringProperty( "text" ).notNull();
         note.addStringProperty( "comment" );
         note.addDateProperty( "date" );
     }

     private  static  void  addCustomerOrder(Schema schema)
     {
         Entity customer = schema.addEntity( "Customer" );
         customer.addIdProperty();
         customer.addStringProperty( "name" ).notNull();

         Entity order = schema.addEntity( "Order" );
         order.setTableName( "ORDERS" );  // "ORDER" is a reserved keyword
         order.addIdProperty();
         Property orderDate = order.addDateProperty( "date" ).getProperty();
         Property customerId = order.addLongProperty( "customerId" ).notNull().getProperty();
         order.addToOne(customer, customerId);

         ToMany customerToOrders = customer.addToMany(order, customerId);
         customerToOrders.setName( "orders" );
         customerToOrders.orderAsc(orderDate);
     }

}


在main方法中,

1
Schema schema =  new  Schema( 3 "de.greenrobot.daoexample" );

该方法第一个参数用来更新数据库版本号,第二个参数为要生成的DAO类所在包路径。


然后进行建表和设置要生成DAO文件的目标工程的项目路径。

1
2
3
addNote(schema);
addCustomerOrder(schema);
new  DaoGenerator().generateAll(schema,  "../DaoExample/src-gen" );

其中src-gen这个目录名需要在运行前手动创建,否则会报错。


如果运行后出现以下错误,则导入DaoGenerator项目的dao.ftl文件即可(或者直接使用DaoGenerator来生成DAO文件)。

1
2
3
4
5
Exception in thread  "main"  java.io.FileNotFoundException: Template  "dao.ftl"  not found.
     at freemarker.template.Configuration.getTemplate(Configuration.java: 742 )
     at freemarker.template.Configuration.getTemplate(Configuration.java: 665 )
     at de.greenrobot.daogenerator.DaoGenerator.<init>(DaoGenerator.java: 68 )
     at de.greenrobot.daogenerator.gentest.ExampleDaoGenerator.main(ExampleDaoGenerator.java: 41 )


运行后出现以下的提示说明DAO文件自动生成成功了,刷新一下DaoExample项目即可看到。

1
2
3
4
5
6
7
8
9
10
11
12
13
greenDAO Generator
Copyright  2011 - 2013  Markus Junginger, greenrobot.de. Licensed under GPL V3.
This program comes with ABSOLUTELY NO WARRANTY
Processing schema version  3 ...
Written F:\Android_Ex\work_10\DaoExample\src-gen\de\greenrobot\daoexample\NoteDao.java
Written F:\Android_Ex\work_10\DaoExample\src-gen\de\greenrobot\daoexample\Note.java
Written F:\Android_Ex\work_10\DaoExample\src-gen\de\greenrobot\daoexample\CustomerDao.java
Written F:\Android_Ex\work_10\DaoExample\src-gen\de\greenrobot\daoexample\Customer.java
Written F:\Android_Ex\work_10\DaoExample\src-gen\de\greenrobot\daoexample\OrderDao.java
Written F:\Android_Ex\work_10\DaoExample\src-gen\de\greenrobot\daoexample\Order.java
Written F:\Android_Ex\work_10\DaoExample\src-gen\de\greenrobot\daoexample\DaoMaster.java
Written F:\Android_Ex\work_10\DaoExample\src-gen\de\greenrobot\daoexample\DaoSession.java
Processed  3  entities in 204ms


运行后可以看到,DaoExample项目src-gen下面自动生成了8个文件,3个实体对象,3个dao,1个DaoMaster,1个DaoSession.


(二)创建表

1.创建一个实体类

1
Entity note = schema.addEntity( "Note" );

默认表名就是类名,也可以自定义表名

1
dao.setTableName( "NoteList" );

greenDAO会自动根据实体类属性创建表字段,并赋予默认值。例如在数据库方面的表名和列名都来源于实体类名和属性名。默认的数据库名称是大写使用下划线分隔单词,而不是在Java中使用的驼峰式大小写风格。例如,一个名为“CREATIONDATE”属性将成为一个数据库列“CREATION_DATE”。


设置一个自增长ID列为主键:

1
dao.addIdProperty().primaryKey().autoincrement();


设置其他各种类型的属性:

1
2
3
dao.addIntProperty( "cityId" );
dao.addStringProperty( "infoType" ).notNull(); //非null字段
dao.addDoubleProperty( "Id" );

在生成的实体类中,int类型为自动转为long类型。

如果在编译过程中出现以下错误,那么有可能是主键的类型错误所致:

1
java.lang.ClassCastException: java.lang.Integer cannot be cast to java.lang.String


      在使用greenDAO时,一个实体类只能对应一个表,目前没法做到一个表对应多个实体类,或者多个表共用一种对象类型。后续的升级也不会针对这一点进行扩展。


(二)表的增删改查

     增删改查相当方便,完全的面向对象,不需要涉及到任何的sql语言。

1.查询

范例1:查询某个表是否包含某个id:

1
2
3
4
5
6
7
public  boolean  isSaved( int  ID)
{
     QueryBuilder<SaveList> qb = saveListDao.queryBuilder();
     qb.where(Properties.Id.eq(ID));
     qb.buildCount().count();
     return  qb.buildCount().count() >  0  true  false ;
}


范例2:获取整个表的数据集合,一句代码就搞定!

1
2
3
4
public  List<PhotoGalleryDB> getPhotoGallery()
{
     return  photoGalleryDao.loadAll(); // 获取图片相册
}


范例3:通过一个字段值查找对应的另一个字段值(为简便直接使用下面方法,也许有更简单的方法,尚未尝试)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
/** 通过图片id查找其目录id */
public  int  getTypeId( int  picId)
{
     QueryBuilder<PhotoGalleryDB> qb = photoGalleryDao.queryBuilder();
     qb.where(Properties.Id.eq(picId));
     if  (qb.list().size() >  0 )
     {
         return  qb.list().get( 0 ).getTypeId();
     }
     else
     {
         return  - 1 ;
     }
}


范例4:查找所有第一姓名是“Joe”并且以lastname排序。

1
2
3
4
List joes = userDao.queryBuilder()
.where(Properties.FirstName.eq( "Joe" ))
.orderAsc(Properties.LastName)
.list();


范例5:多重条件查询

(1)获取id为cityId并且infotype为HBContant.CITYINFO_SL的数据集合:

1
2
3
4
5
6
7
public  List<CityInfoDB> getSupportingList( int  cityId)
{
     QueryBuilder<CityInfoDB> qb = cityInfoDao.queryBuilder();
     qb.where(qb.and(Properties.CityId.eq(cityId),Properties.InfoType.eq(HBContant.CITYINFO_SL)));
     qb.orderAsc(Properties.Id); // 排序依据
     return  qb.list();
}


(2)获取firstname为“Joe”并且出生于1970年10月以后的所有user集合:

1
2
3
4
5
QueryBuilder qb = userDao.queryBuilder();
qb.where(Properties.FirstName.eq( "Joe" ),
qb.or(Properties.YearOfBirth.gt( 1970 ),
qb.and(Properties.YearOfBirth.eq( 1970 ), Properties.MonthOfBirth.ge( 10 ))));
List youngJoes = qb.list();


范例6:获取某列对象

1
picJsonDao.loadByRowId(picId);



2.增添/插入、修改

插入数据更加简单,也是只要一句代码便能搞定!

1
2
3
4
public  void  addToPhotoTable(Photo p)
{
     photoDao.insert(p);
}


插入时需要new一个新的对象,范例如下:

1
2
3
4
5
6
7
DevOpenHelper helper =  new  DaoMaster.DevOpenHelper( this "notes-db" null );
  db = helper.getWritableDatabase();
  daoMaster =  new  DaoMaster(db);
  daoSession = daoMaster.newSession();
  noteDao = daoSession.getNoteDao();
  Note note =  new  Note( null , noteText, comment,  new  Date());
  noteDao.insert(note);


修改更新:

1
2
photoDao.insertOrReplace(photo);
photoDao.insertInTx(photo);


3.删除:

(1)清空表格数据

1
2
3
4
5
/** 清空相册图片列表的数据 */
public  void  clearPhoto()
{
     photoDao.deleteAll();
}


(2)删除某个对象

1
2
3
4
5
6
public  void  deleteCityInfo( int  cityId)
{
     QueryBuilder<DBCityInfo> qb = cityInfoDao.queryBuilder();
     DeleteQuery<DBCityInfo> bd = qb.where(Properties.CityId.eq(cityId)).buildDelete();
     bd.executeDeleteWithoutDetachingEntities();
}


参考:https://github.com/greenrobot/greenDAO/issues/34


由上可见,使用greenDAO进行数据库的增删改查时及其方便,而且性能极佳。


(三)常用方法笔记

1.在Application实现得到DaoMaster和DaoSession的方法:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
private  static  DaoMaster daoMaster;
private  static  DaoSession daoSession;
/**
  * 取得DaoMaster
  *
  * @param context
  * @return
  */
public  static  DaoMaster getDaoMaster(Context context)
{
     if  (daoMaster ==  null )
     {
         OpenHelper helper =  new  DaoMaster.DevOpenHelper(context, HBContant.DATABASE_NAME,  null );
         daoMaster =  new  DaoMaster(helper.getWritableDatabase());
     }
     return  daoMaster;
}
/**
  * 取得DaoSession
  *
  * @param context
  * @return
  */
public  static  DaoSession getDaoSession(Context context)
{
     if  (daoSession ==  null )
     {
         if  (daoMaster ==  null )
         {
             daoMaster = getDaoMaster(context);
         }
         daoSession = daoMaster.newSession();
     }
     return  daoSession;
}


2.增删改查工具类:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
public  class  DBHelper
{
     private  static  Context mContext;
     private  static  DBHelper instance;

     private  CityInfoDBDao cityInfoDao;

     private  DBHelper()
     {
     }

     public  static  DBHelper getInstance(Context context)
     {
         if  (instance ==  null )
         {
             instance =  new  DBHelper();
             if  (mContext ==  null )
             {
                 mContext = context;
             }

             // 数据库对象
             DaoSession daoSession = HBApplication.getDaoSession(mContext);
             instance.cityInfoDao = daoSession.getCityInfoDBDao();
         }
         return  instance;
     }

     /** 添加数据 */
     public  void  addToCityInfoTable(CityInfo item)
     {
         cityInfoDao.insert(item);
     }

     /** 查询 */
     public  List<EstateLoveListJson> getCityInfoList()
     {
         QueryBuilder<CityInfo> qb = cityInfoDao.queryBuilder();
         return  qb.list();
     }

     /** 查询 */
     public  List<CityInfo> getCityInfo()
     {
         return  cityInfoDao.loadAll(); // 查找图片相册
     }

     /** 查询 */
     public  boolean  isSaved( int  Id)
     {
         QueryBuilder<CityInfo> qb = cityInfoDao.queryBuilder();
         qb.where(Properties.Id.eq(Id));
         qb.buildCount().count();
         return  qb.buildCount().count() >  0  true  false ; // 查找收藏表
     }

     /** 删除 */
     public  void  deleteCityInfoList( int  Id)
     {
         QueryBuilder<CityInfo> qb = cityInfoDao.queryBuilder();
         DeleteQuery<CityInfo> bd = qb.where(Properties.Id.eq(Id)).buildDelete();
         bd.executeDeleteWithoutDetachingEntities();
     }

     /** 删除 */
     public  void  clearCityInfo()
     {
         cityInfoDao.deleteAll();
     }

     /** 通过城市id查找其类型id */
     public  int  getTypeId( int  cityId)
     {
         QueryBuilder<CityInfo> qb = cityInfoDao.queryBuilder();
         qb.where(Properties.Id.eq(cityId));
         if  (qb.list().size() >  0 )
         {
             return  qb.list().get( 0 ).getTypeId();
         }
         else
         {
             return  0 ;
         }
     }

     /** 多重查询 */
     public  List<CityInfo> getIphRegionList( int  cityId)
     {
         QueryBuilder<CityInfoDB> qb = cityInfoDao.queryBuilder();
         qb.where(qb.and(Properties.CityId.eq(cityId), Properties.InfoType.eq(HBContant.CITYINFO_IR)));
         qb.orderAsc(Properties.Id); // 排序依据
         return  qb.list();
     }
}



另外,还有多表关联、惰性加载等功能,待后续研究。





本文转自 glblong 51CTO博客,原文链接:http://blog.51cto.com/glblong/1354953,如需转载请自行联系原作者

目录
相关文章
|
23天前
|
数据库
电子书阅读分享《开源数据库工作室推广计划》
电子书阅读分享《开源数据库工作室推广计划》
12 1
|
25天前
|
SQL 关系型数据库 MySQL
【MySQL】学习如何通过DML更新数据库的数据
【MySQL】学习如何通过DML更新数据库的数据
77 0
|
17天前
|
存储 关系型数据库 MySQL
MySQL技能完整学习列表5、数据库操作——1、创建数据库和表——2、修改表结构(ALTER TABLE)
MySQL技能完整学习列表5、数据库操作——1、创建数据库和表——2、修改表结构(ALTER TABLE)
39 0
|
24天前
|
存储 Java 数据库
JAVAEE框架数据库技术之13_oracle 之PLSQL技术及存储过程和函数(二)
JAVAEE框架数据库技术之13_oracle 之PLSQL技术及存储过程和函数
25 0
|
24天前
|
SQL Oracle 关系型数据库
JAVAEE框架数据库技术之12_oracle常用函数和高级查询子查询
JAVAEE框架数据库技术之12_oracle常用函数和高级查询子查询
54 0
JAVAEE框架数据库技术之12_oracle常用函数和高级查询子查询
|
29天前
|
前端开发 数据库 Python
使用 Python 的 Web 框架(如 Django 或 Flask)来建立后端接口,用于处理用户的请求,从数据库中查找答案并返回给前端界面
【1月更文挑战第13天】使用 Python 的 Web 框架(如 Django 或 Flask)来建立后端接口,用于处理用户的请求,从数据库中查找答案并返回给前端界面
36 7
|
17天前
|
监控 关系型数据库 MySQL
MySQL技能完整学习列表12、性能优化——1、性能指标和监控——2、优化查询和数据库结构——3、硬件和配置优化
MySQL技能完整学习列表12、性能优化——1、性能指标和监控——2、优化查询和数据库结构——3、硬件和配置优化
57 0
|
17天前
|
存储 关系型数据库 MySQL
MySQL技能完整学习列表5、数据库操作——3、索引(Indexing)——4、约束(Constraints)
MySQL技能完整学习列表5、数据库操作——3、索引(Indexing)——4、约束(Constraints)
27 0
|
17天前
|
存储 关系型数据库 MySQL
MySQL技能完整学习列表4、数据库设计——2、数据库规范化(Normalization)——3、实体-关系模型(ER Modeling)
MySQL技能完整学习列表4、数据库设计——2、数据库规范化(Normalization)——3、实体-关系模型(ER Modeling)
18 0
|
17天前
|
存储 关系型数据库 MySQL
MySQL技能完整学习列表4、数据库设计——1、数据类型
MySQL技能完整学习列表4、数据库设计——1、数据类型
9 0

相关产品

  • 云迁移中心
