ExcelReport第一篇：使用ExcelReport导出Excel

2017-01-11 966

版权

本文内容由阿里云实名注册用户自发贡献，版权归原作者所有，阿里云开发者社区不拥有其著作权，亦不承担相应法律责任。具体规则请查看《阿里云开发者社区用户服务协议》和《阿里云开发者社区知识产权保护指引》。如果您发现本社区中有涉嫌抄袭的内容，填写侵权投诉表单进行举报，一经查实，本社区将立刻删除涉嫌侵权内容。

简介：

概述

本篇将通过导出学生成绩的示例演示“使用ExcelReport导出Excel”的步骤。

示例（导出学生成绩明细）

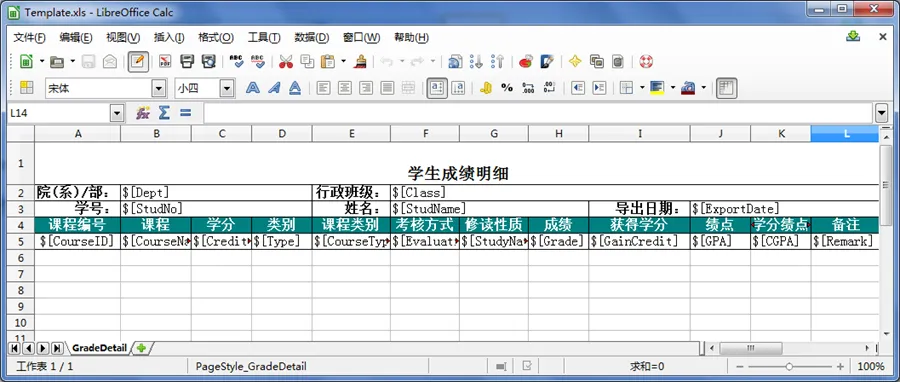

步骤一：设计Excel模板

首先，使用Excel软件设计模板（我没有安装MSOffice，用LibreOffice Calc做的演示）。在模板中要填充数据的位置用$[ParameterName]代替。

步骤二：生成模板填充规则文件

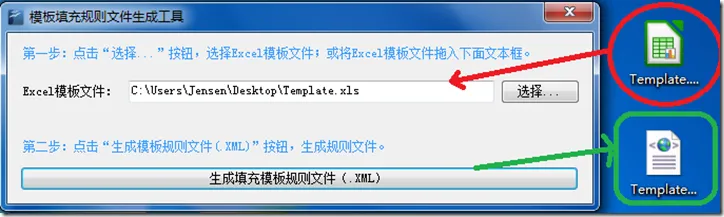

使用模板填充规则文件生成工具（ERTool）为步骤一设计的Excel模板生成填充规则文件。

步骤三：为模板填充数据

实现代码(导出到本地)：


   //实例化一个参数容器，并加载模板填充规则文件
   ParameterCollection collection = new ParameterCollection();
   collection.Load(@"Template\Template.xml");

   //实例化一个元素格式化器列表
   List<ElementFormatter> formatters = new List<ElementFormatter>();
   formatters.Add(new CellFormatter(collection["GradeDetail", "Dept"], "某某学院"));   //添加一个单元格格式化器
   formatters.Add(new CellFormatter(collection["GradeDetail", "Class"], "某某班级"));
   formatters.Add(new CellFormatter(collection["GradeDetail", "StudNo"], "2009*****"));
   formatters.Add(new CellFormatter(collection["GradeDetail", "StudName"], "韩兆新"));
   formatters.Add(new CellFormatter(collection["GradeDetail", "ExportDate"], DateTime.Now));

   List<GradeInfo> gradeInfoList = new List<GradeInfo>();
   gradeInfoList.Add(new GradeInfo() { CGPA = 18, CourseID = "KC-0001", CourseName = "高等数学", CourseType = "理论课", Credit = 6, EvaluationMode = "考试", GainCredit = 6, GPA = 3, Grade = 86, StudyNature = "初修", Type = "必修课" });
   gradeInfoList.Add(new GradeInfo() { CGPA = 2, CourseID = "KC-0002", CourseName = "计算机应用基础", CourseType = "理论课", Credit = 2, EvaluationMode = "考试", GainCredit = 2, GPA = 1, Grade = 93, StudyNature = "初修", Type = "必修课" });
   gradeInfoList.Add(new GradeInfo() { CGPA = 9, CourseID = "KC-0003", CourseName = "C程序设计", CourseType = "理论课", Credit = 3, EvaluationMode = "考试", GainCredit = 3, GPA = 3, Grade = 97, StudyNature = "初修", Type = "必修课", Remark = "备注信息" });

   //添加一个Table格式化器
   formatters.Add(new TableFormatter<GradeInfo>(collection["GradeDetail", "CourseID"].X, gradeInfoList,
       new TableColumnInfo<GradeInfo>(collection["GradeDetail", "CGPA"].Y, t => t.CGPA),
       new TableColumnInfo<GradeInfo>(collection["GradeDetail", "CourseID"].Y, t => t.CourseID),
       new TableColumnInfo<GradeInfo>(collection["GradeDetail", "CourseName"].Y, t => t.CourseName),
       new TableColumnInfo<GradeInfo>(collection["GradeDetail", "CourseType"].Y, t => t.CourseType),
       new TableColumnInfo<GradeInfo>(collection["GradeDetail", "Credit"].Y, t => t.Credit),
       new TableColumnInfo<GradeInfo>(collection["GradeDetail", "EvaluationMode"].Y, t => t.EvaluationMode),
       new TableColumnInfo<GradeInfo>(collection["GradeDetail", "GainCredit"].Y, t => t.GainCredit),
       new TableColumnInfo<GradeInfo>(collection["GradeDetail", "GPA"].Y, t => t.GPA),
       new TableColumnInfo<GradeInfo>(collection["GradeDetail", "Grade"].Y, t => t.Grade),
       new TableColumnInfo<GradeInfo>(collection["GradeDetail", "Remark"].Y, t => t.Remark),
       new TableColumnInfo<GradeInfo>(collection["GradeDetail", "StudyNature"].Y, t => t.StudyNature),
       new TableColumnInfo<GradeInfo>(collection["GradeDetail", "Type"].Y, t => t.Type)
       ));
   //导出文件到本地
   Export.ExportToLocal(@"Template\Template.xls", saveFileDlg.FileName,
       new SheetFormatterContainer("GradeDetail", formatters));


实现代码(导出到Web)：


   //实例化一个参数容器，并加载模板填充规则文件
   ExcelReport.ParameterCollection collection = new ExcelReport.ParameterCollection();
   collection.Load(Server.MapPath(@"Template\Template.xml"));

   //实例化一个元素格式化器列表
   List<ElementFormatter> formatters = new List<ElementFormatter>();
   formatters.Add(new CellFormatter(collection["GradeDetail", "Dept"], "某某学院"));   //添加一个单元格格式化器
   formatters.Add(new CellFormatter(collection["GradeDetail", "Class"], "某某班级"));
   formatters.Add(new CellFormatter(collection["GradeDetail", "StudNo"], "2009*****"));
   formatters.Add(new CellFormatter(collection["GradeDetail", "StudName"], "韩兆新"));
   formatters.Add(new CellFormatter(collection["GradeDetail", "ExportDate"], DateTime.Now));

   List<GradeInfo> gradeInfoList = new List<GradeInfo>();
   gradeInfoList.Add(new GradeInfo() { CGPA = 18, CourseID = "KC-0001", CourseName = "高等数学", CourseType = "理论课", Credit = 6, EvaluationMode = "考试", GainCredit = 6, GPA = 3, Grade = 86, StudyNature = "初修", Type = "必修课" });
   gradeInfoList.Add(new GradeInfo() { CGPA = 2, CourseID = "KC-0002", CourseName = "计算机应用基础", CourseType = "理论课", Credit = 2, EvaluationMode = "考试", GainCredit = 2, GPA = 1, Grade = 93, StudyNature = "初修", Type = "必修课" });
   gradeInfoList.Add(new GradeInfo() { CGPA = 9, CourseID = "KC-0003", CourseName = "C程序设计", CourseType = "理论课", Credit = 3, EvaluationMode = "考试", GainCredit = 3, GPA = 3, Grade = 97, StudyNature = "初修", Type = "必修课", Remark = "备注信息" });

   //添加一个Table格式化器
   formatters.Add(new TableFormatter<GradeInfo>(collection["GradeDetail", "CourseID"].X, gradeInfoList,
       new TableColumnInfo<GradeInfo>(collection["GradeDetail", "CGPA"].Y, t => t.CGPA),
       new TableColumnInfo<GradeInfo>(collection["GradeDetail", "CourseID"].Y, t => t.CourseID),
       new TableColumnInfo<GradeInfo>(collection["GradeDetail", "CourseName"].Y, t => t.CourseName),
       new TableColumnInfo<GradeInfo>(collection["GradeDetail", "CourseType"].Y, t => t.CourseType),
       new TableColumnInfo<GradeInfo>(collection["GradeDetail", "Credit"].Y, t => t.Credit),
       new TableColumnInfo<GradeInfo>(collection["GradeDetail", "EvaluationMode"].Y, t => t.EvaluationMode),
       new TableColumnInfo<GradeInfo>(collection["GradeDetail", "GainCredit"].Y, t => t.GainCredit),
       new TableColumnInfo<GradeInfo>(collection["GradeDetail", "GPA"].Y, t => t.GPA),
       new TableColumnInfo<GradeInfo>(collection["GradeDetail", "Grade"].Y, t => t.Grade),
       new TableColumnInfo<GradeInfo>(collection["GradeDetail", "Remark"].Y, t => t.Remark),
       new TableColumnInfo<GradeInfo>(collection["GradeDetail", "StudyNature"].Y, t => t.StudyNature),
       new TableColumnInfo<GradeInfo>(collection["GradeDetail", "Type"].Y, t => t.Type)
       ));
   //导出文件到Web
   Export.ExportToWeb(Server.MapPath(@"Template\Template.xls"), "GradeDetail",
       new SheetFormatterContainer("GradeDetail", formatters));

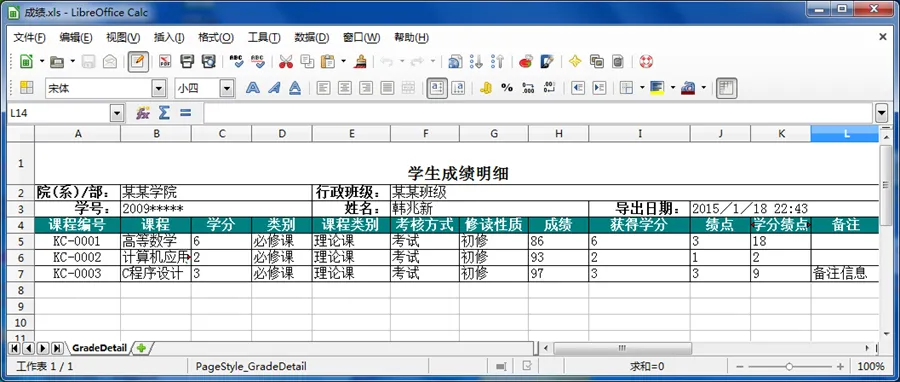

导出文件截图：

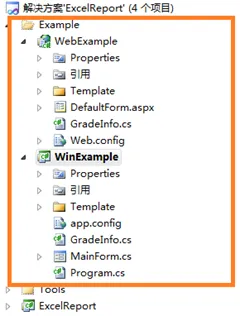

源码下载：

下载地址：https://github.com/hanzhaoxin/ExcelReport

作者：韩兆新

出处： http://hanzhaoxin.cnblogs.com/

本文版权归作者和博客园共有，欢迎转载，但未经作者同意必须保留此段声明，且在文章页面明显位置给出原文连接，否则保留追究法律责任的权利。

分类: [11]我的开源

标签: ExcelReport

本文转自韩兆新博客博客园博客，原文链接：http://www.cnblogs.com/hanzhaoxin/p/4232575.html，如需转载请自行联系原作者
