人人都是 DBA(XIII)索引信息收集脚本汇编

本文涉及的产品
云数据库 RDS SQL Server,独享型 2核4GB
简介:

什么?有个 SQL 执行了 8 秒!

哪里出了问题?臣妾不知道啊,得找 DBA 啊。

DBA 人呢?离职了!!擦!!!

程序员在无处寻求帮助时,就得想办法自救,努力让自己变成 "伪 DBA"。

索引

  1. 找出哪些表的 Index 需要改进
  2. 在指定数据库中查找哪些表的 Index 需要改进
  3. 根据缓存的查询计划判断 SP 是否需要优化
  4. 发现那些 Index 的写远多于读的表
  5. 查看 Index 的 Statistics 最后更新时间
  6. 查看哪些 Index 被修改的最频繁
  7. 查看 Index 碎片化指数
  8. 哪个 Index 上的读操作最活跃
  9. 哪个 Index 上的写操作最活跃
  10. 查看 Index 所使用的 Buffer 数量
  11. 按照 IO Latch 等待请求对索引进行排行

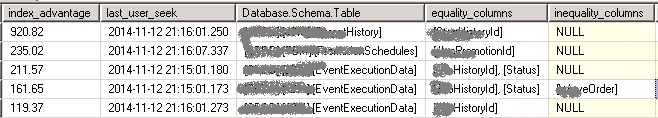

找出哪些表的 Index 需要改进

复制代码
SELECT CONVERT(DECIMAL(18, 2), user_seeks * avg_total_user_cost * (avg_user_impact * 0.01)) AS [index_advantage]
    ,migs.last_user_seek
    ,mid.[statement] AS [Database.Schema.Table]
    ,mid.equality_columns
    ,mid.inequality_columns
    ,mid.included_columns
    ,migs.unique_compiles
    ,migs.user_seeks
    ,migs.avg_total_user_cost
    ,migs.avg_user_impact
FROM sys.dm_db_missing_index_group_stats AS migs WITH (NOLOCK)
INNER JOIN sys.dm_db_missing_index_groups AS mig WITH (NOLOCK) ON migs.group_handle = mig.index_group_handle
INNER JOIN sys.dm_db_missing_index_details AS mid WITH (NOLOCK) ON mig.index_handle = mid.index_handle
ORDER BY index_advantage DESC
OPTION (RECOMPILE);
复制代码

这里查询出的数据,只是说明数据寻址时间有点儿长,不一定就是缺少索引所引起的。

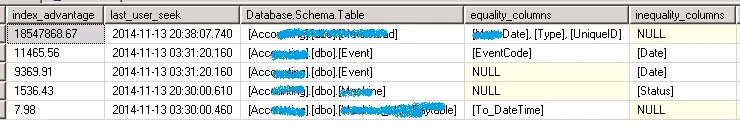

在指定数据库中查找哪些表的 Index 需要改进

复制代码
SELECT DISTINCT CONVERT(DECIMAL(18, 2), user_seeks * avg_total_user_cost * (avg_user_impact * 0.01)) AS [index_advantage]
    ,migs.last_user_seek
    ,mid.[statement] AS [Database.Schema.Table]
    ,mid.equality_columns
    ,mid.inequality_columns
    ,mid.included_columns
    ,migs.unique_compiles
    ,migs.user_seeks
    ,migs.avg_total_user_cost
    ,migs.avg_user_impact
    ,OBJECT_NAME(mid.[object_id]) AS [Table Name]
    ,p.rows AS [Table Rows]
FROM sys.dm_db_missing_index_group_stats AS migs WITH (NOLOCK)
INNER JOIN sys.dm_db_missing_index_groups AS mig WITH (NOLOCK) ON migs.group_handle = mig.index_group_handle
INNER JOIN sys.dm_db_missing_index_details AS mid WITH (NOLOCK) ON mig.index_handle = mid.index_handle
INNER JOIN sys.partitions AS p WITH (NOLOCK) ON p.[object_id] = mid.[object_id]
WHERE mid.database_id = DB_ID()
ORDER BY index_advantage DESC
OPTION (RECOMPILE);
复制代码

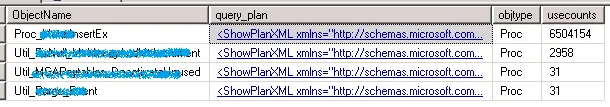

根据缓存的查询计划判断 SP 是否需要优化

复制代码
SELECT TOP (25) OBJECT_NAME(objectid) AS [ObjectName]
    ,query_plan
    ,cp.objtype
    ,cp.usecounts
FROM sys.dm_exec_cached_plans AS cp WITH (NOLOCK)
CROSS APPLY sys.dm_exec_query_plan(cp.plan_handle) AS qp
WHERE CAST(query_plan AS NVARCHAR(MAX)) LIKE N'%MissingIndex%'
    AND dbid = DB_ID()
ORDER BY cp.usecounts DESC
OPTION (RECOMPILE);
复制代码

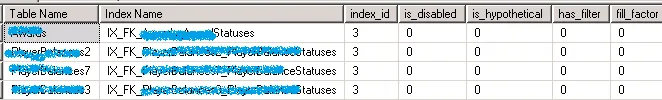

发现那些 Index 的写远多于读的表

复制代码
SELECT OBJECT_NAME(s.[object_id]) AS [Table Name]
    ,i.[name] AS [Index Name]
    ,i.index_id
    ,i.is_disabled
    ,i.is_hypothetical
    ,i.has_filter
    ,i.fill_factor
    ,user_updates AS [Total Writes]
    ,user_seeks + user_scans + user_lookups AS [Total Reads]
    ,user_updates - (user_seeks + user_scans + user_lookups) AS [Difference]
FROM sys.dm_db_index_usage_stats AS s WITH (NOLOCK)
INNER JOIN sys.indexes AS i WITH (NOLOCK) ON s.[object_id] = i.[object_id]
    AND i.index_id = s.index_id
WHERE OBJECTPROPERTY(s.[object_id], 'IsUserTable') = 1
    AND s.database_id = DB_ID()
    AND user_updates > (user_seeks + user_scans + user_lookups)
    AND i.index_id > 1
ORDER BY [Difference] DESC
    ,[Total Writes] DESC
    ,[Total Reads] ASC
OPTION (RECOMPILE);
复制代码

由于对索引的写操作远多于读操作,看起来 Index 的帮助不大,但需要根据业务需求来判断是否能够 Drop 掉该索引。

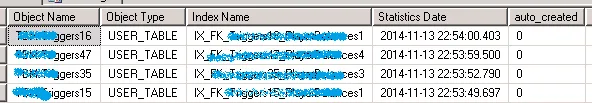

查看 Index 的 Statistics 最后更新时间

复制代码
SELECT SCHEMA_NAME(o.[schema_id]) + N'.' + o.[name] AS [Object Name]
    ,o.type_desc AS [Object Type]
    ,i.[name] AS [Index Name]
    ,STATS_DATE(i.[object_id], i.index_id) AS [Statistics Date]
    ,s.auto_created
    ,s.no_recompute
    ,s.user_created
    ,st.row_count
    ,st.used_page_count
FROM sys.objects AS o WITH (NOLOCK)
INNER JOIN sys.indexes AS i WITH (NOLOCK) ON o.[object_id] = i.[object_id]
INNER JOIN sys.stats AS s WITH (NOLOCK) ON i.[object_id] = s.[object_id]
    AND i.index_id = s.stats_id
INNER JOIN sys.dm_db_partition_stats AS st WITH (NOLOCK) ON o.[object_id] = st.[object_id]
    AND i.[index_id] = st.[index_id]
WHERE o.[type] IN (
        'U'
        ,'V'
        )
    AND st.row_count > 0
ORDER BY STATS_DATE(i.[object_id], i.index_id) DESC
OPTION (RECOMPILE);
复制代码

参考资料:

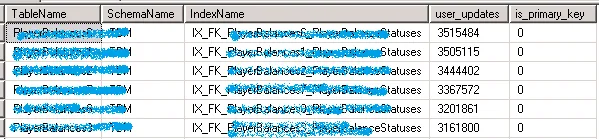

查看哪些 Index 被修改的最频繁

SQL Server 2008 R2

复制代码
SELECT TableName = OBJECT_NAME(s.[object_id])
    ,SchemaName = SCHEMA_NAME(o.[schema_id])
    ,IndexName = i.[name]
    ,user_updates
    ,i.is_primary_key
FROM sys.dm_db_index_usage_stats s
JOIN sys.objects O ON s.[object_id] = O.[object_id]
JOIN sys.indexes i ON s.[object_id] = i.[object_id]
    AND s.index_id = i.index_id
WHERE OBJECTPROPERTY(s.[object_id], 'IsMsShipped') = 0
    AND user_seeks = 0
    AND user_scans = 0
    AND user_lookups = 0
    AND i.NAME IS NOT NULL -- Ignore HEAP indexes.
ORDER BY user_updates DESC
复制代码

The user_updates counter indicates the level of maintenance on the index caused by insert, update, or delete operations on the underlying table or view.

SQL Server 2012

复制代码
SELECT o.[name] AS [Object Name]
    ,o.[object_id]
    ,o.type_desc
    ,s.[name] AS [Statistics Name]
    ,s.stats_id
    ,s.no_recompute
    ,s.auto_created
    ,sp.modification_counter
    ,sp.rows
    ,sp.rows_sampled
    ,sp.last_updated
FROM sys.objects AS o WITH (NOLOCK)
INNER JOIN sys.stats AS s WITH (NOLOCK) ON s.object_id = o.object_id
CROSS APPLY sys.dm_db_stats_properties(s.object_id, s.stats_id) AS sp
WHERE o.type_desc NOT IN (
        N'SYSTEM_TABLE'
        ,N'INTERNAL_TABLE'
        )
    AND sp.modification_counter > 0
ORDER BY sp.modification_counter DESC
    ,o.[name]
OPTION (RECOMPILE);
复制代码

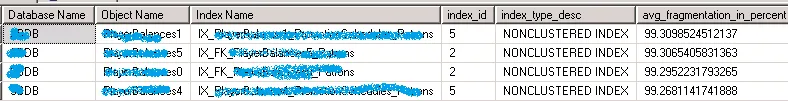

查看 Index 碎片化指数

复制代码
SELECT DB_NAME(ps.database_id) AS [Database Name]
    ,OBJECT_NAME(ps.[object_id]) AS [Object Name]
    ,i.[name] AS [Index Name]
    ,ps.index_id
    ,ps.index_type_desc
    ,ps.avg_fragmentation_in_percent
    ,ps.fragment_count
    ,ps.page_count
    ,i.fill_factor
    ,i.has_filter
    ,i.filter_definition
FROM sys.dm_db_index_physical_stats(DB_ID(), NULL, NULL, NULL, N'LIMITED') AS ps
INNER JOIN sys.indexes AS i WITH (NOLOCK) ON ps.[object_id] = i.[object_id]
    AND ps.index_id = i.index_id
WHERE ps.database_id = DB_ID()
    AND ps.page_count > 2500
ORDER BY ps.avg_fragmentation_in_percent DESC
OPTION (RECOMPILE);
复制代码

参考资料:

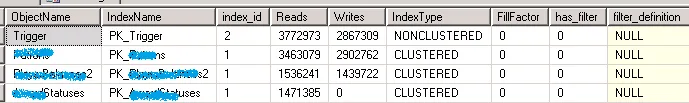

哪个 Index 上的读操作最活跃

复制代码
SELECT OBJECT_NAME(s.[object_id]) AS [ObjectName]
    ,i.[name] AS [IndexName]
    ,i.index_id
    ,user_seeks + user_scans + user_lookups AS [Reads]
    ,s.user_updates AS [Writes]
    ,i.type_desc AS [IndexType]
    ,i.fill_factor AS [FillFactor]
    ,i.has_filter
    ,i.filter_definition
    ,s.last_user_scan
    ,s.last_user_lookup
    ,s.last_user_seek
FROM sys.dm_db_index_usage_stats AS s WITH (NOLOCK)
INNER JOIN sys.indexes AS i WITH (NOLOCK) ON s.[object_id] = i.[object_id]
WHERE OBJECTPROPERTY(s.[object_id], 'IsUserTable') = 1
    AND i.index_id = s.index_id
    AND s.database_id = DB_ID()
ORDER BY user_seeks + user_scans + user_lookups DESC
OPTION (RECOMPILE);
复制代码

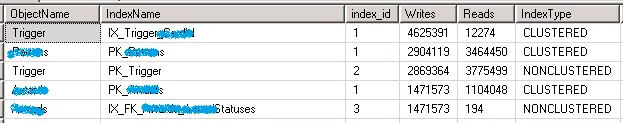

哪个 Index 上的写操作最活跃

复制代码
SELECT OBJECT_NAME(s.[object_id]) AS [ObjectName]
    ,i.[name] AS [IndexName]
    ,i.index_id
    ,s.user_updates AS [Writes]
    ,user_seeks + user_scans + user_lookups AS [Reads]
    ,i.type_desc AS [IndexType]
    ,i.fill_factor AS [FillFactor]
    ,i.has_filter
    ,i.filter_definition
    ,s.last_system_update
    ,s.last_user_update
FROM sys.dm_db_index_usage_stats AS s WITH (NOLOCK)
INNER JOIN sys.indexes AS i WITH (NOLOCK) ON s.[object_id] = i.[object_id]
WHERE OBJECTPROPERTY(s.[object_id], 'IsUserTable') = 1
    AND i.index_id = s.index_id
    AND s.database_id = DB_ID()
ORDER BY s.user_updates DESC
OPTION (RECOMPILE);
复制代码

查看 Index 所使用的 Buffer 数量

复制代码
SELECT TOP 25 obj.[name] AS TableName
    ,i.[name] AS IndexName
    ,i.[type_desc] AS IndexType
    ,count(*) AS Buffered_Page_Count
    ,count(*) * 8192 / (1024 * 1024) AS Buffer_MB
    ,obj.index_id
FROM sys.dm_os_buffer_descriptors AS bd
INNER JOIN (
    SELECT object_name(object_id) AS NAME
        ,index_id
        ,allocation_unit_id
        ,object_id
    FROM sys.allocation_units AS au
    INNER JOIN sys.partitions AS p ON au.container_id = p.hobt_id
        AND (
            au.type = 1
            OR au.type = 3
            )

    UNION ALL

    SELECT object_name(object_id) AS NAME
        ,index_id
        ,allocation_unit_id
        ,object_id
    FROM sys.allocation_units AS au
    INNER JOIN sys.partitions AS p ON au.container_id = p.hobt_id
        AND au.type = 2
    ) AS obj ON bd.allocation_unit_id = obj.allocation_unit_id
LEFT JOIN sys.indexes i ON i.object_id = obj.object_id
    AND i.index_id = obj.index_id
WHERE database_id = db_id()
GROUP BY obj.NAME
    ,obj.index_id
    ,i.[name]
    ,i.[type_desc]
ORDER BY Buffered_Page_Count DESC
复制代码

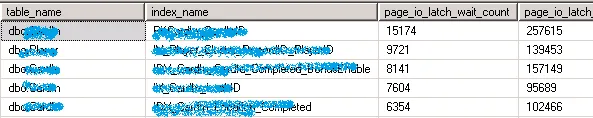

按照 IO Latch 等待请求对索引进行排行

复制代码
SELECT OBJECT_SCHEMA_NAME(ios.object_id) + '.' + OBJECT_NAME(ios.object_id) AS table_name
    ,i.[name] AS index_name
    ,page_io_latch_wait_count
    ,page_io_latch_wait_in_ms
    ,CAST(1. * page_io_latch_wait_in_ms / NULLIF(page_io_latch_wait_count, 0) AS DECIMAL(12, 2)) AS page_io_avg_lock_wait_ms
    ,page_latch_wait_count
    ,page_latch_wait_in_ms
    ,CAST(1. * page_latch_wait_in_ms / NULLIF(page_latch_wait_count, 0) AS DECIMAL(12, 2)) AS page_avg_lock_wait_ms
FROM sys.dm_db_index_operational_stats(DB_ID(), NULL, NULL, NULL) ios
INNER JOIN sys.indexes i ON i.object_id = ios.object_id
    AND i.index_id = ios.index_id
WHERE OBJECTPROPERTY(ios.object_id, 'IsUserTable') = 1
ORDER BY 3 DESC
复制代码



《人人都是 DBA》系列文章索引:

 序号

 名称

1

 人人都是 DBA(I)SQL Server 体系结构

2

 人人都是 DBA(II)SQL Server 元数据

3

 人人都是 DBA(III)SQL Server 调度器

4

 人人都是 DBA(IV)SQL Server 内存管理

5

 人人都是 DBA(V)SQL Server 数据库文件

6

 人人都是 DBA(VI)SQL Server 事务日志

7

 人人都是 DBA(VII)B 树和 B+ 树

8

 人人都是 DBA(VIII)SQL Server 页存储结构

9

 人人都是 DBA(IX)服务器信息收集脚本汇编

10

 人人都是 DBA(X)资源信息收集脚本汇编

11

 人人都是 DBA(XI)I/O 信息收集脚本汇编

12

 人人都是 DBA(XII)查询信息收集脚本汇编

13

 人人都是 DBA(XIII)索引信息收集脚本汇编

14

 人人都是 DBA(XIV)存储过程信息收集脚本汇编

15

 人人都是 DBA(XV)锁信息收集脚本汇编









本文转自匠心十年博客园博客,原文链接:http://www.cnblogs.com/gaochundong/p/everyone_is_a_dba_index_info_collection.html,如需转载请自行联系原作者
