上文讲到了HttpRunTime主要做了三个事情,我们先回忆一下。
第一:雇佣了项目经理(HttpApplication)。
第二:建立了HttpModule列表,项目经理(HttpRunTime)就是按照这个工作列表去工作的。
第三:创建了Context上下文对象(包含了HttpRequest和HttpResponse两大主要对象),并把它转交给了HttpApplication去处理。
下面最重要的是HttpModule到底是个什么东东,HttpApplication又是怎么样按照它的工作列表去工作的。
当一个请求到达HttpModule时,整个Asp.Net系统并没有对这个Http请求做任何的处理,对于一个Http请求,HttpModule是这个请求的必经之路{Asp.Net内部的处理模型是一个管道流,也就是用户发出一个Http请求一定会从HttpModule这个容器中流过},所以我们可以在Http请求真正到达请求处理中心(HttpHandler)之前,添加一些需要的信息在这个Http请求上、或者针对截获的这个Http请求添加一些额外的工作,再或者干脆终止此次Http请求。可见HttpModule就相当于起到一个Filter过滤器的作用。
1、asp.net的HTTP请求处理过程
说明:
(1)、客户端浏览器向服务器发出一个http请求,此请求会被inetinfo.exe进程 截获,然后转交给aspnet_isapi.dll进程,接着它又通过Http Pipeline的管道,传送给aspnet_wp.exe这个进程,接下来就到了.net framework的HttpRunTime处理中心,处理完毕后就发送给用户浏览器。
(2)、当一个 http请求被送入到HttpRuntime之后,这个Http请求会继续被送入到一个被称之为HttpApplication Factory的一个容器当中,而这个容器会给出一个HttpApplication实例来处理传递进来的http请求,而后这个Http请求会依次进入 到如下几个容器中:HttpModule --> HttpHandler Factory --> HttpHandler。当系统内部的HttpHandler的ProcessRequest方法处理完毕之后,整个Http Request就被处理完成了,客户端也就得到相应的东东了。
(3)完整的http请求在asp.net framework中的处理流程:
HttpRequest-->inetinfo.exe->ASPNET_ISAPI.DLL-->Http Pipeline-->ASPNET_WP.EXE-->HttpRuntime-->HttpApplication Factory-->HttpApplication-->HttpModule-->HttpHandler Factory-->HttpHandler-->HttpHandler.ProcessRequest()
也就是说一个HTTP请求在HttpModule容器的传递过程中,会在某一时刻(ResolveRequestCache事件)将这个HTTP请 求传递给HttpHandler容器。在这个事件之后,HttpModule容器会建立一个HttpHandler的入口实例,但是此时并没有将HTTP 请求控制权交出,而是继续触发AcquireRequestState事件以及PreRequestHandlerExcute事件。在 PreRequestHandlerExcute事件之后,HttpModule窗口就会将控制权暂时交给HttpHandler容器,以便进行真正的 HTTP请求处理工作。
而在HttpHandler容器内部会执行ProcessRequest方法来处理HTTP请求。在容器HttpHandler处理完毕整个 HTTP请求之后,会将控制权交还给HttpModule,HttpModule则会继续对处理完毕的HTTP请求信息流进行层层的转交动作,直到返回到 客户端为止。
2、HttpModule的工作原理
HttpModule实现了IHttpModule接口,我们可以定义自己类实现IHttpModule接口,从而把我们自己定义的HttpModule插入到HttpModule集合中让它成为Http请求的必经之路,以此来添加我们的控制。
asp.net自带的HttpModule如下:具体位置在C:\Windows\Microsoft.NET\Framework\v2.0.50727\CONFIG文件中
<httpModules>
<add name=
"OutputCache"
type=
"System.Web.Caching.OutputCacheModule"
/>
<add name=
"Session"
type=
"System.Web.SessionState.SessionStateModule"
/>
<add name=
"WindowsAuthentication"
type=
"System.Web.Security.WindowsAuthenticationModule"
/>
<add name=
"FormsAuthentication"
type=
"System.Web.Security.FormsAuthenticationModule"
/>
<add name=
"PassportAuthentication"
type=
"System.Web.Security.PassportAuthenticationModule"
/>
<add name=
"RoleManager"
type=
"System.Web.Security.RoleManagerModule"
/>
<add name=
"UrlAuthorization"
type=
"System.Web.Security.UrlAuthorizationModule"
/>
<add name=
"FileAuthorization"
type=
"System.Web.Security.FileAuthorizationModule"
/>
<add name=
"AnonymousIdentification"
type=
"System.Web.Security.AnonymousIdentificationModule"
/>
<add name=
"Profile"
type=
"System.Web.Profile.ProfileModule"
/>
<add name=
"ErrorHandlerModule"
type=
"System.Web.Mobile.ErrorHandlerModule, System.Web.Mobile, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a"
/>
<add name=
"ServiceModel"
type=
"System.ServiceModel.Activation.HttpModule, System.ServiceModel, Version=3.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089"
/>
</httpModules>
View Code
|
这里的每个HttpModule在一个Http请求过来时都会流过。
3、我们可以定义自己的HttpModule
要变成HttpModule就必须实现IHttpModule接口,那么我们先来看看IHttpModule接口的内部是什么样的
using
System;
namespace
System.Web
{
public
interface
IHttpModule
{
// 销毁不再被HttpModule使用的资源
void
Dispose();
// 初始化一个Module,为捕获HttpRequest做准备
void
Init(HttpApplication context);
}
}
View Code
|
下面是自己定义的HttpModule
using
System;
using
System.Collections.Generic;
using
System.Linq;
using
System.Web;
namespace
ClassLibrary1
{
public
class
MyHttpModel:IHttpModule
{
public
void
Dispose()
{
throw
new
NotImplementedException();
}
public
void
Init(HttpApplication context)
{
context.BeginRequest+=
new
EventHandler(context_BeginRequest);
context.EndRequest+=
new
EventHandler(context_EndRequest);
}
public
void
context_BeginRequest(
object
sender, EventArgs e)
{
HttpApplication application = sender
as
HttpApplication;
HttpContext context = application.Context;
HttpResponse response = context.Response;
response.Write(
"这是自定义的HttpModel中的BeginRequest事件产生的。"
);
}
public
void
context_EndRequest(
object
sender, EventArgs e)
{
HttpApplication application = sender
as
HttpApplication;
HttpContext context = application.Context;
HttpResponse response = context.Response;
response.Write(
"这是自定义的HttpModel中的EndRequest事件产生的。"
);
}
}
}
View Code
|
置文件如下
<httpModules>
<add name="MyHttpModel" type="ClassLibrary1.MyHttpModel,ClassLibrary1"/>
</httpModules>
请求的Default.aspx.cs文件如下
using
System;
using
System.Collections.Generic;
using
System.Linq;
using
System.Web;
using
System.Web.UI;
using
System.Web.UI.WebControls;
namespace
ClassLibrary1
{
public
partial
class
Default : System.Web.UI.Page
{
protected
void
Page_Load(
object
sender, EventArgs e)
{
Response.Write(
"这是Default.aspx页面请求的内容信息。"
);
}
}
}
View Code
|

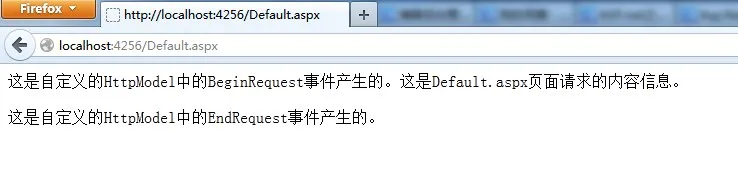

具体运行结果如下:
今天就写到这里吧,文章页有些长了,不过HttpModule还没有介绍完呢,如果您对我的文章感兴趣的话请继续关注我的下篇,下篇我们将继续介绍HttpModule这个东东的。
