项目需求：完成对点的符号化显示，并将点的某些信息显示在点符号的旁边。
设计
调研开始，展示数据前端一般用GraphicsLayer，再结合Graphic，PictureMarkerSymbol与TextSymbol就可以完成此工作。直接上代码
jidianjing_graphicsLayer: null,
jidianjing_text_featureLayer: null,
...
this.graphicsLayer = new GraphicsLayer({
id: "graphicsLayer",
elevationInfo: {
mode: "relative-to-ground",
offset: 3
}
});
...
view.map.add(this.graphicsLayer);
...
let jidianjing_graphics = [];
// 处理Graphics
$.each(result, function (i, item) {
item.widgetModule = 'jidianjingWidgetModule_click';
var stcd = item.STCD;
var stnm = item.STNM;
let tempPoint = new Point({
type: "point",
x: item.LGTD,
y: item.LTTD
});
let normalsymbol = {
type: "picture-marker",
url: 'img/menu/081.png',
width: "18px",
height: "18px"
};
if (!StringUtil.isNull(item.WARN_NAME)) {
normalsymbol = {
type: "picture-marker",
url: 'img/menu/083.png',
width: "28px",
height: "28px"
};
} else if (!StringUtil.isNull(item.LL)) {
normalsymbol = {
type: "picture-marker",
url: 'img/menu/082.png',
width: "28px",
height: "28px"
};
}
let tempPop = new PopupTemplate({
title: '机电井:' + stnm,
content: _self.setjidianjingContentInfo
});
let tempGraphic = new Graphic({
geometry: tempPoint,
attributes: item,
symbol: normalsymbol,
popupTemplate: tempPop
});
let textGraphic = new Graphic({
geometry: tempPoint,
symbol: new TextSymbol({
color: "#FFF",
backgroundColor: new Color('red'),
borderLineColor: new Color("#fff"),
borderLineSize: 2,
haloColor: "black",
haloSize: "1px",
text: '水位:12 水温:11',
font: {
size: 8,
family: "sans-serif"
}
})
});
_self.jidianjing_graphicsLayer.add(tempGraphic);
_self.jidianjing_text_graphicsLayer.add(textGraphic);
...效果
说明

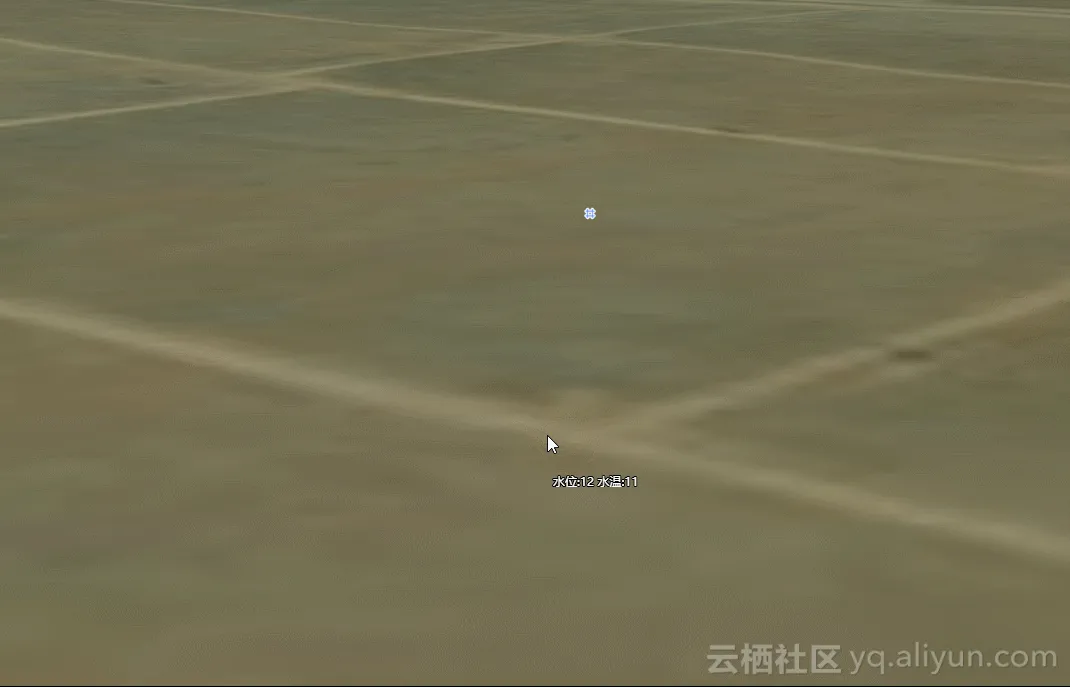

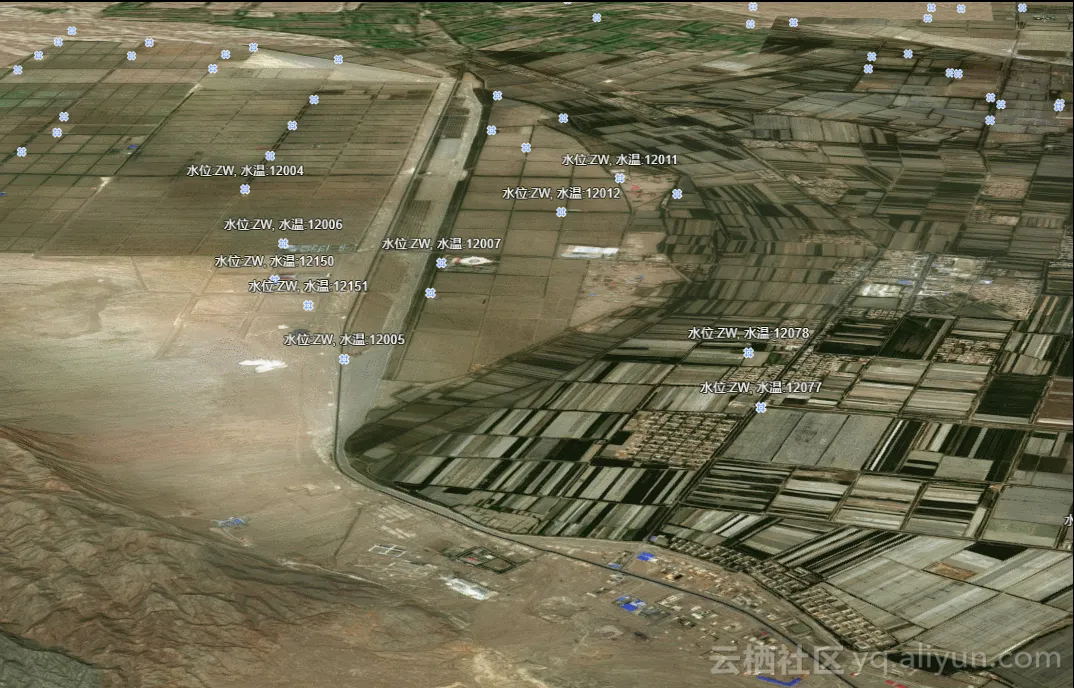

gif图太大，aliyun拒绝了我的上传，所以只能用文字描述；在小比例尺下，符号标注和文字标注之间的距离较小，看着效果还可以，但是有会出现标注覆盖文字或者文字覆盖标注；随着比例尺的放大，符号和标注之间的距离会增大，如第二张图所示。但是拿给项目经理看的时候，不要这种效果，距离和标注与符号之间的距离不能变。so...改改改
新思路-构造FeatureLayer
查看了官网好多例子，发现只有FeatureLayer的标注和符号之间的距离是边的，因为我们拿到的数据是点数据，所以我们可以构造组成FeatureLayer的source,其实就对应ags里的Graphics；还有一个标注LabelClass，这个类就是用来显示标注的。so...又开干了。
jidianjing_featureLayer: null,
...
let tempGraphics = [];
// 处理Graphics
$.each(result, function (i, item) {
item.widgetModule = 'jidianjingWidgetModule_click';
var stcd = item.STCD;
var stnm = item.STNM;
let tempPoint = new Point({
type: "point",
x: item.LGTD,
y: item.LTTD
});
let normalsymbol = {
type: "picture-marker",
url: 'img/menu/081.png',
width: "18px",
height: "18px"
};
if (!StringUtil.isNull(item.WARN_NAME)) {
normalsymbol = {
type: "picture-marker",
url: 'img/menu/083.png',
width: "28px",
height: "28px"
};
} else if (!StringUtil.isNull(item.LL)) {
normalsymbol = {
type: "picture-marker",
url: 'img/menu/082.png',
width: "28px",
height: "28px"
};
}
let tempPop = new PopupTemplate({
title: '机电井:' + stnm,
content: _self.setjidianjingContentInfo
});
let tempGraphic = new Graphic({
geometry: tempPoint,
attributes: item,
symbol: normalsymbol,
popupTemplate: tempPop
});
let textGraphic = new Graphic({
geometry: tempPoint,
symbol: new TextSymbol({
color: "#FFF",
backgroundColor: new Color('red'),
borderLineColor: new Color("#fff"),
borderLineSize: 2,
haloColor: "black",
haloSize: "1px",
text: '水位:12 水温:11',
font: {
size: 8,
family: "sans-serif"
}
})
});
tempGraphics.push(tempGraphic);
...
// popup
let tempPop = new PopupTemplate({
title: '机电井:' + '{STNM}',
content: _self.setjidianjingContentInfo
});
// 标注
var labelClass = new LabelClass({
minScale: 20000,
symbol: {
type: "label-3d",
symbolLayers: [{
type: "text",
material: {
color: "white"
},
size: 10,
halo: {
color: [0, 0, 0, 0.8],
size: 0.5
}
}],
verticalOffset:{
minWorldLength: 20,
}
},
labelPlacement: "above-center",
labelExpression: "水位:[STTP], 水温:[STCD]"
// labelExpressionInfo: {
// expression: "$feature.STNM"
// }
});
// 构建feetureLayer并实现标注
this.jidianjing_text_featureLayer = new FeatureLayer({
id: 'jidianjing_featureLayer',
fields: [{
name: "STCD",
alias: "STCD",
type: "oid"
}, {
name: "LGTD",
alias: "LGTD",
type: "string"
}, {
name: "LTTD",
alias: "LTTD",
type: "string"
}, {
name: "STCD",
alias: "STCD",
type: "string"
}, {
name: "STNM",
alias: "STNM",
type: "string"
}, {
name: "STTP",
alias: "STTP",
type: "string"
}, {
name: "widgetModule",
alias: "widgetModule",
type: "string"
}],
objectIdField: "STCD",
geometryType: "point",
spatialReference: {
wkid: 4326
},
source: tempGraphics, // an array of graphics with geometry and attributes
// popupTemplate and symbol are not required in each graphic
// since those are handled with the popupTemplate and
// renderer properties of the layer
popupTemplate: tempPop,
// renderer: iconSymbolRenderer,
maxScale: 0,
minScale: 0,
labelsVisible: true,
labelingInfo: [labelClass]
});
view.map.add(this.jidianjing_text_featureLayer);
效果
说明

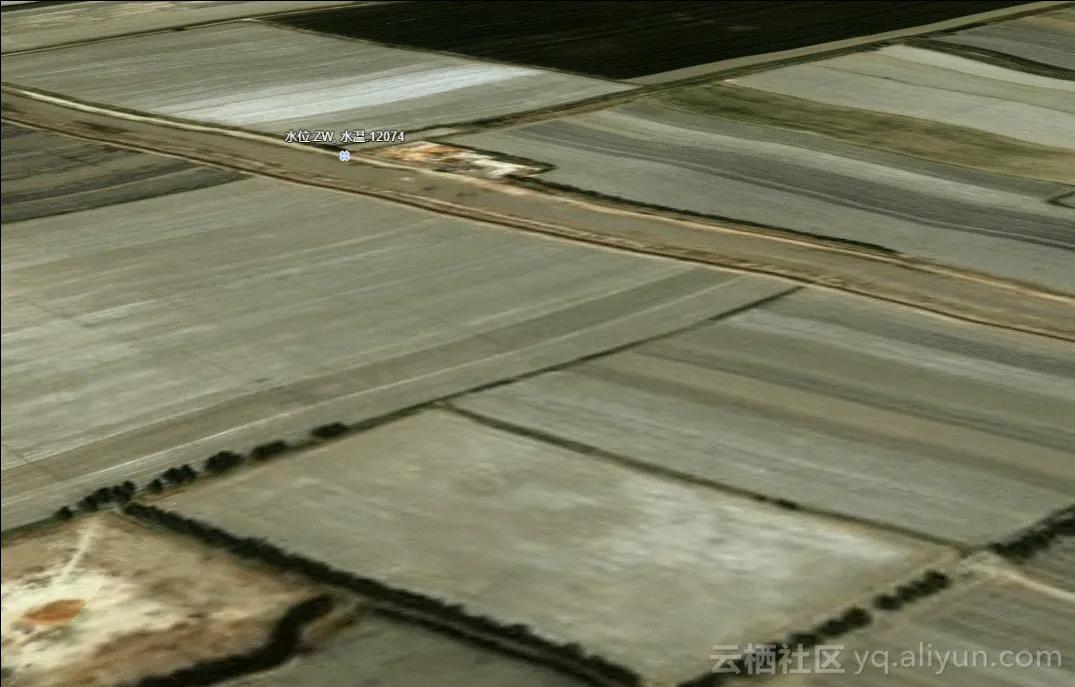

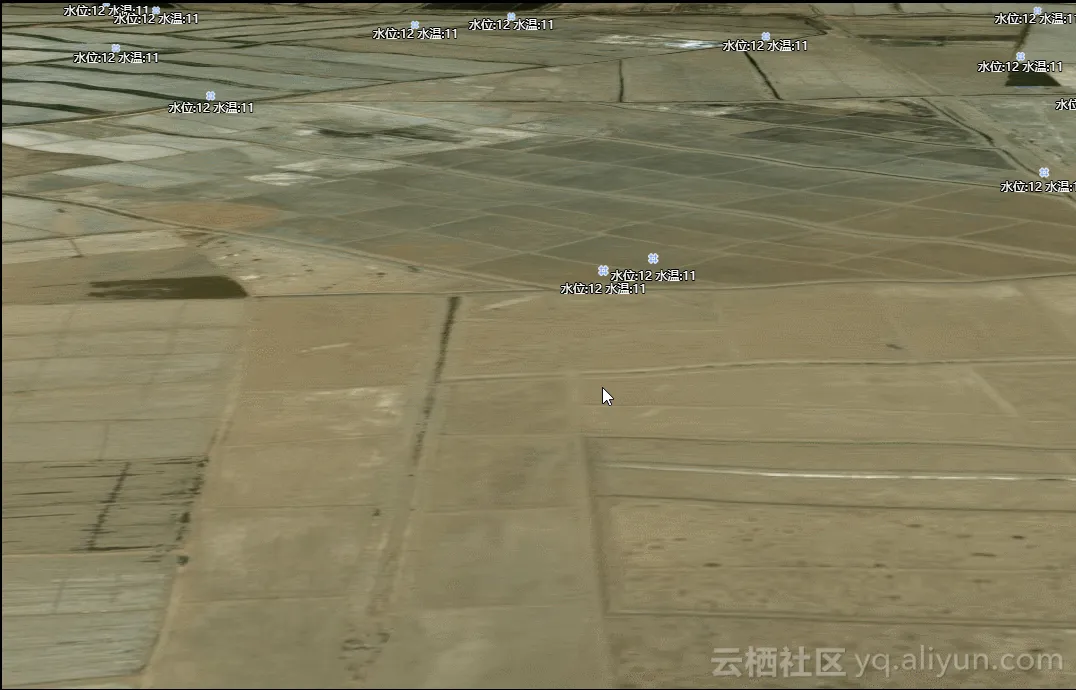

可以在上面两张图中看到，标注和符号的位置一直都是固定的，并没有随着距离的变化而变化；这时候拿给项目经理，就这个效果还算满意。
总结
符号和标注之间的距离在GraphicsLayer和FeatureLayer中的表现是不一样的，所以要根据合适的场景进行选择取舍。另外，GraphicsLayer和FeatureLayer标注换行不能实现，对GraphicsLayer可以采用加多个TextSymbol的GraphicsLayer，设置GraphicsLayer相对地面的高度就可以实现，但是距离永远是个问题，在此给一些朋友一些提醒。
