busybox filesystem httpd php-5.5.31 sqlite3 webserver

/********************************************************************
 *      busybox filesystem httpd php-5.5.31 sqlite3 webserver
 * 声明：
 *     本文主要是记录使用httpd、php5、sqlite3搭建php web服务器。
 *
 *                                 2016-1-24 深圳 南山平山村 曾剑锋
 *******************************************************************/

一、参考文章：
    1. Run busybox httpd with php
        https://box.matto.nl/busyboxphp.html
    2. Sqlite undefined reference to `sqlite3_open' error in Netbeans C++ on Ubuntu, Integrating SQLite into Netbeans C++ Ubuntu
        http://stackoverflow.com/questions/3463438/sqlite-undefined-reference-to-sqlite3-open-error-in-netbeans-c-on-ubuntu-in
    3. 嵌入式WEB服务器移植三部曲之PHP的移植
        http://blog.csdn.net/cos_sin_tan/article/details/7734278
    4. Real210 编译sqlite错误:.//libsqlite3.a(sqlite3.o): In function `unixDlSym’:
        http://www.jyguagua.com/?p=965
    5. 成功移植SQLite3到ARM Linux开发板
        http://www.myir-tech.com/bbs/thread-6189-1-1.html
    6. ARM上linux终端操作SQLITE，退格键问题
        http://www.programgo.com/article/61872541163/
    7. 用busybox做一个简单的文件系统
        http://blog.chinaunix.net/uid-9688646-id-3346880.html
    8. Using SQLite3 with PHP
        http://babbage.cs.qc.cuny.edu/courses/cs903/2013_02/using_sqlite3.html

二、测试busybox httpd：
    1. cat /www/index.html
        <h1>Welcome to Tinyfs</h1>
        <p>zengjf</p>
    2. shell命令：/usr/sbin/httpd -vv -f -h /www/
    3. 查看ARM板IP：
        [zengjf@root www]# ifconfig eth0
        eth0      Link encap:Ethernet  HWaddr 1E:ED:19:27:1A:B3
                  inet addr:10.0.1.52  Bcast:10.0.1.255  Mask:255.255.255.0
                  UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
                  RX packets:39 errors:0 dropped:0 overruns:0 frame:0
                  TX packets:33 errors:0 dropped:0 overruns:0 carrier:0
                  collisions:0 txqueuelen:1000
                  RX bytes:4990 (4.8 KiB)  TX bytes:4050 (3.9 KiB)

        [zengjf@root www]#
    4. PC机浏览器访问：http://10.0.1.52/
        经验证获取到了正确信息，Vim里贴不上图，就不贴图了。
    5. shell响应如下：
        [zengjf@root www]# /usr/sbin/httpd -vv -f -h /www/
        10.0.1.50:55185: url:/
        10.0.1.50:55185: response:200
三、编译、安装、测试php-5.5.31
    1. ./configure -host=arm-linux-gnueabihf -prefix=/usr/local/php -disable-all -enable-pdo -with-sqlite3 -with-sqlite -with-pdo-sqlite -with-zlib -without-iconv
    2. make
        1. 错误
            ext/sqlite3/libsqlite/sqlite3.o: In function `unixDlError':
            /home/Qt/rootfs/busybox/php/php-5.5.31/ext/sqlite3/libsqlite/sqlite3.c:31521: undefined reference to `dlerror'
            ext/sqlite3/libsqlite/sqlite3.o: In function `unixDlClose':
            /home/Qt/rootfs/busybox/php/php-5.5.31/ext/sqlite3/libsqlite/sqlite3.c:31552: undefined reference to `dlclose'
            ext/sqlite3/libsqlite/sqlite3.o: In function `unixDlSym':
            /home/Qt/rootfs/busybox/php/php-5.5.31/ext/sqlite3/libsqlite/sqlite3.c:31548: undefined reference to `dlsym'
            ext/sqlite3/libsqlite/sqlite3.o: In function `unixDlOpen':
            /home/Qt/rootfs/busybox/php/php-5.5.31/ext/sqlite3/libsqlite/sqlite3.c:31507: undefined reference to `dlopen'
            collect2: error: ld returned 1 exit status
            make: *** [sapi/cli/php] Error 1
        2. 解决方法：
            修改Makefile中的：
                EXTRA_LIBS = -lcrypt -lcrypt -lrt -lz -lm -lcrypt -lcrypt
            为：
                EXTRA_LIBS = -lcrypt -lcrypt -lrt -lz -lm -lcrypt -lcrypt -ldl
        3. 效果：
            end_closures.lo Zend/zend_float.lo Zend/zend_string.lo Zend/zend_signal.lo Zend/zend_generators.lo Zend/zend_objects.lo Zend/zend_object_handlers.lo Zend/zend_objects_API.lo Zend/zend_default_classes.lo Zend/zend_execute.lo main/internal_functions_cli.lo sapi/cgi/cgi_main.lo sapi/cgi/fastcgi.lo -lcrypt -lcrypt -lrt -lz -lm -lcrypt -lcrypt -ldl  -o sapi/cgi/php-cgi

            Build complete.
            Don't forget to run 'make test'.
    3. sudo make install
    4. 拷贝PC机/usr/local/php目录下文件到：<filesystem root>/usr/local/php
    5. 配置httpd.conf:
        cat /etc/httpd.conf
            *.php:/usr/local/php/bin/php-cgi
    6. cat /www/test.php
        <?
            phpinfo();
        ?>

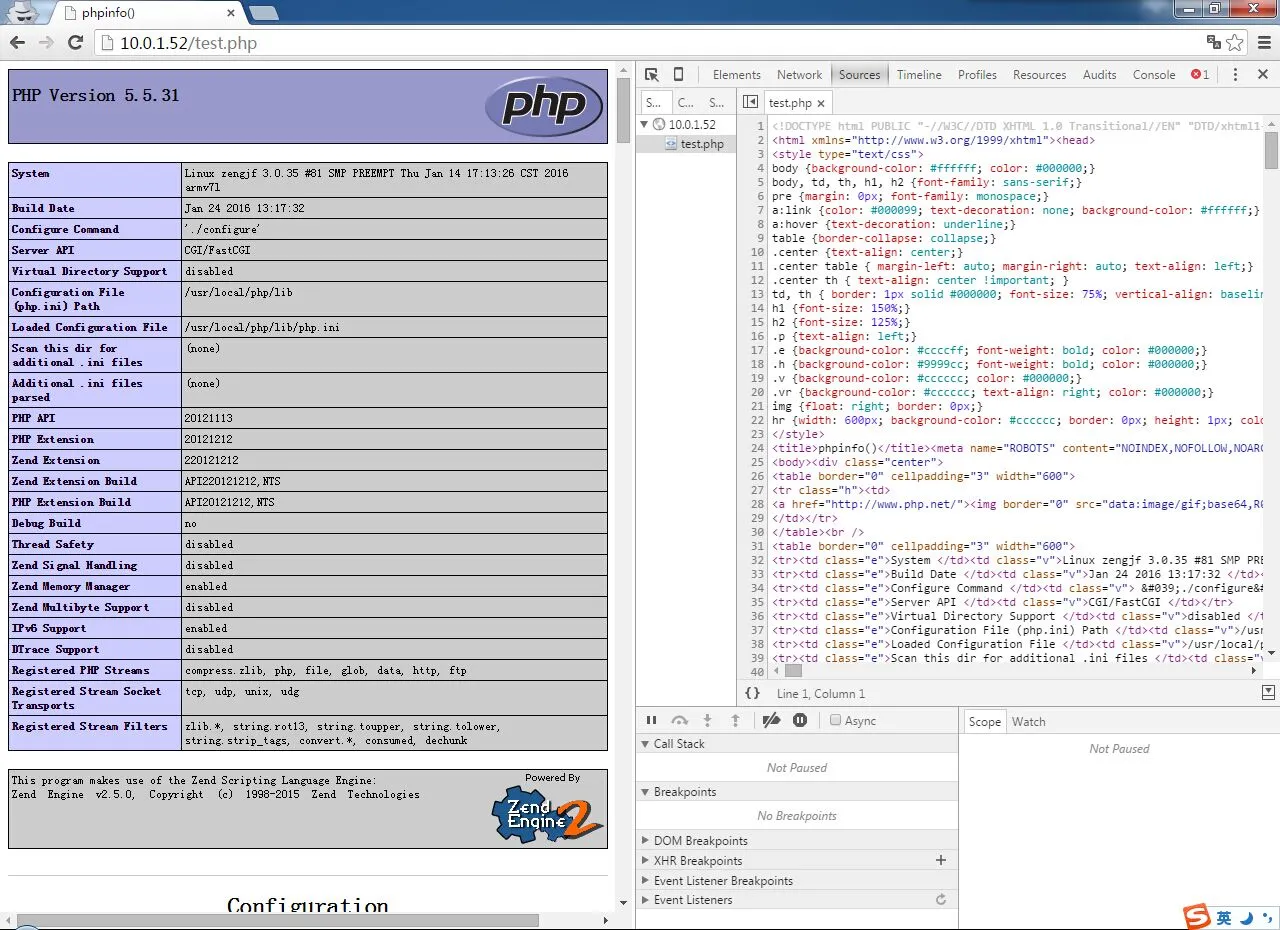

    7. PC机浏览器访问：http://10.0.1.52/test.php
        1. 报错现象：
        This PHP CGI binary was compiled with force-cgi-redirect enabled. This means that a page will only be served up if the REDIRECT_STATUS CGI variable is set, e.g. via an Apache Action directive.
        For more information as to why this behaviour exists, see the manual page for CGI security.
        For more information about changing this behaviour or re-enabling this webserver, consult the installation file that came with this distribution, or visit the manual page.
        2. 解决办法：
            将force-cgi-redirect设置disable。
    8. 查看php.ini位置：
        [zengjf@root /usr/local/php/bin]# ./php-cgi -i | grep ini
        <tr><td class="e">Configuration File (php.ini) Path </td><td class="v">/usr/local/php/lib </td></tr>
        <tr><td class="e">Loaded Configuration File </td><td class="v">/usr/local/php/lib/php.ini </td></tr>
        <tr><td class="e">Scan this dir for additional .ini files </td><td class="v">(none) </td></tr>
        <tr><td class="e">Additional .ini files parsed </td><td class="v">(none) </td></tr>
        <tr><td class="e">user_ini.cache_ttl</td><td class="v">300</td><td class="v">300</td></tr>
        <tr><td class="e">user_ini.filename</td><td class="v">.user.ini</td><td class="v">.user.ini</td></tr>
        <tr><td class="e">Classes </td><td class="v">AppendIterator, ArrayIterator, ArrayObject, BadFunctionCallException, BadMethodCallException, CachingIterator, CallbackFilterIterator, DirectoryIterator, DomainException, EmptyIterator, FilesystemIterator, FilterIterator, GlobIterator, InfiniteIterator, InvalidArgumentException, IteratorIterator, LengthException, LimitIterator, LogicException, MultipleIterator, NoRewindIterator, OutOfBoundsException, OutOfRangeException, OverflowException, ParentIterator, RangeException, RecursiveArrayIterator, RecursiveCachingIterator, RecursiveCallbackFilterIterator, RecursiveDirectoryIterator, RecursiveFilterIterator, RecursiveIteratorIterator, RecursiveRegexIterator, RecursiveTreeIterator, RegexIterator, RuntimeException, SplDoublyLinkedList, SplFileInfo, SplFileObject, SplFixedArray, SplHeap, SplMinHeap, SplMaxHeap, SplObjectStorage, SplPriorityQueue, SplQueue, SplStack, SplTempFileObject, UnderflowException, UnexpectedValueException </td></tr>
    9. 配置php.ini：
        cat /usr/local/php/lib/php.ini
            cgi.force_redirect = 0
            cgi.redirect_status_env ="yes";
    10. PC机浏览器访问：http://10.0.1.52/test.php
        经验证获取到了正确信息，Vim里贴不上图，就不贴图了。
    11. shell响应如下：
        [zengjf@root /usr/local/php/lib]# /usr/sbin/httpd -vv -f -h /www/
        10.0.1.50:58652: url:/
        10.0.1.50:58652: response:200
        10.0.1.50:58656: url:/test.php

四、编译、安装、测试sqlite3：
    1. ./configure --host=arm-linux-gnueabihf --prefix=/usr/local/sqlite
    2. make
    3. sudo make install
        1. 报错：
            libtool: install: /usr/bin/install -c .libs/libsqlite3.a /usr/local/sqlite/lib/libsqlite3.a
            libtool: install: chmod 644 /usr/local/sqlite/lib/libsqlite3.a
            libtool: install: arm-linux-gnueabihf-ranlib /usr/local/sqlite/lib/libsqlite3.a
            ./libtool: line 1720: arm-linux-gnueabihf-ranlib: command not found
            make[1]: *** [install-libLTLIBRARIES] Error 127
            make[1]: Leaving directory `/home/Qt/rootfs/busybox/sqlite/sqlite-autoconf-3100200'
            make: *** [install-am] Error 2
        2. 解决方法：
            是由于使用了sudo，导致环境变丢失，用su切换到root用户，再重新设置环境变量来解决。
    4. 拷贝/usr/local/sqlite中的文件到<filesystem root>下对应的目录。
    5. 建立软链接：ln -s /bin/sqlite3 /bin/sqlite
    6. 不能使用退格键（backspace）：
        1. 错误现象：
            [zengjf@root ~]# sqlite
            SQLite version 3.10.2 2016-01-20 15:27:19
            Enter ".help" for usage hints.
            Connected to a transient in-memory database.
            Use ".open FILENAME" to reopen on a persistent database.
            sqlite> shw^H^H^H^H^H
        2. 解决方法：
            终端执行shell命令：stty erase ^H
    7. 在ARM板上运行效果如下：
        [zengjf@root ~]# sqlite
        SQLite version 3.10.2 2016-01-20 15:27:19
        Enter ".help" for usage hints.
        Connected to a transient in-memory database.
        Use ".open FILENAME" to reopen on a persistent database.
        sqlite> .show
                echo: off
                 eqp: off
          explain: off
             headers: off
                mode: list
           nullvalue: ""
              output: stdout
        colseparator: "|"
        rowseparator: "\n"
               stats: off
               width:
        sqlite> .quit
        [zengjf@root ~]#
    8. cat /www/teatdb.php
        <?
            $db = new SQLite3('my_database') or die('Unable to open database');
            $query = <<<EOD
              CREATE TABLE IF NOT EXISTS users (
                username STRING PRIMARY KEY,
                password STRING)
        EOD;    # 这里一定要顶格
            $db->exec($query) or die('Create db failed');
            $query = <<<EOD
              INSERT INTO users VALUES ( 'zengjf', 'root' )
        EOD;    # 这里一定要顶格
            $db->exec($query) or die("Unable to add user $user");
            $result = $db->query('SELECT * FROM users') or die('Query failed');
            while ($row = $result->fetchArray())
            {
              echo "User: {$row['username']}\nPasswd: {$row['password']}\n";
            }
        ?>
    9. PC机浏览器访问：http://10.0.1.52/testdb.php
        经验证获取到了正确信息，Vim里贴不上图，就不贴图了。
    10. shell响应如下：
        [zengjf@root ~]#
        127.0.0.1:54905: url:/
        127.0.0.1:54905: response:200
        10.0.1.50:51536: url:/testdb.php
    11. 可能错误:
        1. Fatal error: Class 'SQLiteDatabase' not found in /www/testdb.php on line 3
        2. 这是由于移植的sqlite3，可能这里使用的是sqlite的接口，
           使用sqlite3的接口可以避免这个错误。
