1 # neuralnetwork.py
2 # modified by Robin 2015/03/03
3
4 import numpy as np
5 from math import exp, pow
6 from mpl_toolkits.mplot3d import Axes3D
7 import matplotlib.pyplot as plt
8 import sys
9 import copy
10 from scipy.linalg import norm, pinv
11
12 class Layer:
13 '''层'''
14 def __init__(self, w, b, neure_number, transfer_function, layer_index):
15 self.transfer_function = transfer_function
16 self.neure_number = neure_number
17 self.layer_index = layer_index
18 self.w = w
19 self.b = b
20
21 class NetStruct:
22 '''神经网络结构'''
23 def __init__(self, ni, nh, no, active_fun_list):
24 # ni 输入层节点（int）
25 # ni 隐藏层节点（int 或 list）
26 # no 输出层节点（int）
27 # active_fun_list 隐藏层激活函数类型（list）
28 # ==> 1
29 self.neurals = [] # 各层的神经元数目
30 self.neurals.append(ni)
31 if isinstance(nh, list):
32 self.neurals.extend(nh)
33 else:
34 self.neurals.append(nh)
35 self.neurals.append(no)
36 # ==> 2
37 if len(self.neurals)-2 == len(active_fun_list):
38 active_fun_list.append('line')
39 self.active_fun_list = active_fun_list
40 # ==> 3
41 self.layers = [] # 所有的层
42 for i in range(0, len(self.neurals)):
43 if i == 0:
44 self.layers.append(Layer([], [], self.neurals[i], 'none', i))
45 continue
46 f = self.neurals[i - 1]
47 s = self.neurals[i]
48 self.layers.append(Layer(np.random.randn(s, f), np.random.randn(s, 1), self.neurals[i], self.active_fun_list[i-1], i))
49
50 class NeuralNetwork:
51 '''神经网络'''
52 def __init__(self, net_struct, mu = 1e-3, beta = 10, iteration = 100, tol = 0.1):
53 '''初始化'''
54 self.net_struct = net_struct
55 self.mu = mu
56 self.beta = beta
57 self.iteration = iteration
58 self.tol = tol
59
60 def train(self, x, y, method = 'lm'):
61 '''训练'''
62 self.net_struct.x = x
63 self.net_struct.y = y
64 if(method == 'lm'):
65 self.lm()
66
67 def sim(self, x):
68 '''预测'''
69 self.net_struct.x = x
70 self.forward()
71 layer_num = len(self.net_struct.layers)
72 predict = self.net_struct.layers[layer_num - 1].output_val
73 return predict
74
75 def actFun(self, z, active_type = 'sigm'):
76 ''' 激活函数 '''
77 # activ_type: 激活函数类型有 sigm、tanh、radb、line
78 if active_type == 'sigm':
79 f = 1.0 / (1.0 + np.exp(-z))
80 elif active_type == 'tanh':
81 f = (np.exp(z) + np.exp(-z)) / (np.exp(z) + np.exp(-z))
82 elif active_type == 'radb':
83 f = np.exp(-z * z)
84 elif active_type == 'line':
85 f = z
86 return f
87
88 def actFunGrad(self, z, active_type = 'sigm'):
89 '''激活函数的变化（派生）率'''
90 # active_type: 激活函数类型有 sigm、tanh、radb、line
91 y = self.actFun(z, active_type)
92 if active_type == 'sigm':
93 grad = y * (1.0 - y)
94 elif active_type == 'tanh':
95 grad = 1.0 - y * y
96 elif active_type == 'radb':
97 grad = -2.0 * z * y
98 elif active_type == 'line':
99 m = z.shape[0]
100 n = z.shape[1]
101 grad = np.ones((m, n))
102 return grad
103
104 def forward(self):
105 ''' 前向 '''
106 layer_num = len(self.net_struct.layers)
107 for i in range(0, layer_num):
108 if i == 0:
109 curr_layer = self.net_struct.layers[i]
110 curr_layer.input_val = self.net_struct.x
111 curr_layer.output_val = self.net_struct.x
112 continue
113 before_layer = self.net_struct.layers[i - 1]
114 curr_layer = self.net_struct.layers[i]
115 curr_layer.input_val = curr_layer.w.dot(before_layer.output_val) + curr_layer.b
116 curr_layer.output_val = self.actFun(curr_layer.input_val,
117 self.net_struct.active_fun_list[i - 1])
118
119 def backward(self):
120 '''反向'''
121 layer_num = len(self.net_struct.layers)
122 last_layer = self.net_struct.layers[layer_num - 1]
123 last_layer.error = -self.actFunGrad(last_layer.input_val,
124 self.net_struct.active_fun_list[layer_num - 2])
125 layer_index = list(range(1, layer_num - 1))
126 layer_index.reverse()
127 for i in layer_index:
128 curr_layer = self.net_struct.layers[i]
129 curr_layer.error = (last_layer.w.transpose().dot(last_layer.error)) * self.actFunGrad(curr_layer.input_val,self.net_struct.active_fun_list[i - 1])
130 last_layer = curr_layer
131
132 def parDeriv(self):
133 '''标准梯度（求导）'''
134 layer_num = len(self.net_struct.layers)
135 for i in range(1, layer_num):
136 befor_layer = self.net_struct.layers[i - 1]
137 befor_input_val = befor_layer.output_val.transpose()
138 curr_layer = self.net_struct.layers[i]
139 curr_error = curr_layer.error
140 curr_error = curr_error.reshape(curr_error.shape[0]*curr_error.shape[1], 1, order='F')
141 row = curr_error.shape[0]
142 col = befor_input_val.shape[1]
143 a = np.zeros((row, col))
144 num = befor_input_val.shape[0]
145 neure_number = curr_layer.neure_number
146 for i in range(0, num):
147 a[neure_number*i:neure_number*i + neure_number,:] = np.repeat([befor_input_val[i,:]],neure_number,axis = 0)
148 tmp_w_par_deriv = curr_error * a
149 curr_layer.w_par_deriv = np.zeros((num, befor_layer.neure_number * curr_layer.neure_number))
150 for i in range(0, num):
151 tmp = tmp_w_par_deriv[neure_number*i:neure_number*i + neure_number,:]
152 tmp = tmp.reshape(tmp.shape[0] * tmp.shape[1], order='C')
153 curr_layer.w_par_deriv[i, :] = tmp
154 curr_layer.b_par_deriv = curr_layer.error.transpose()
155
156 def jacobian(self):
157 '''雅可比行列式'''
158 layers = self.net_struct.neurals
159 row = self.net_struct.x.shape[1]
160 col = 0
161 for i in range(0, len(layers) - 1):
162 col = col + layers[i] * layers[i + 1] + layers[i + 1]
163 j = np.zeros((row, col))
164 layer_num = len(self.net_struct.layers)
165 index = 0
166 for i in range(1, layer_num):
167 curr_layer = self.net_struct.layers[i]
168 w_col = curr_layer.w_par_deriv.shape[1]
169 b_col = curr_layer.b_par_deriv.shape[1]
170 j[:, index : index + w_col] = curr_layer.w_par_deriv
171 index = index + w_col
172 j[:, index : index + b_col] = curr_layer.b_par_deriv
173 index = index + b_col
174 return j
175
176 def gradCheck(self):
177 '''梯度检查'''
178 W1 = self.net_struct.layers[1].w
179 b1 = self.net_struct.layers[1].b
180 n = self.net_struct.layers[1].neure_number
181 W2 = self.net_struct.layers[2].w
182 b2 = self.net_struct.layers[2].b
183 x = self.net_struct.x
184 p = []
185 p.extend(W1.reshape(1,W1.shape[0]*W1.shape[1],order = 'C')[0])
186 p.extend(b1.reshape(1,b1.shape[0]*b1.shape[1],order = 'C')[0])
187 p.extend(W2.reshape(1,W2.shape[0]*W2.shape[1],order = 'C')[0])
188 p.extend(b2.reshape(1,b2.shape[0]*b2.shape[1],order = 'C')[0])
189 old_p = p
190 jac = []
191 for i in range(0, x.shape[1]):
192 xi = np.array([x[:,i]])
193 xi = xi.transpose()
194 ji = []
195 for j in range(0, len(p)):
196 W1 = np.array(p[0:2*n]).reshape(n,2,order='C')
197 b1 = np.array(p[2*n:2*n+n]).reshape(n,1,order='C')
198 W2 = np.array(p[3*n:4*n]).reshape(1,n,order='C')
199 b2 = np.array(p[4*n:4*n+1]).reshape(1,1,order='C')
200
201 z2 = W1.dot(xi) + b1
202 a2 = self.actFun(z2)
203 z3 = W2.dot(a2) + b2
204 h1 = self.actFun(z3)
205 p[j] = p[j] + 0.00001
206 W1 = np.array(p[0:2*n]).reshape(n,2,order='C')
207 b1 = np.array(p[2*n:2*n+n]).reshape(n,1,order='C')
208 W2 = np.array(p[3*n:4*n]).reshape(1,n,order='C')
209 b2 = np.array(p[4*n:4*n+1]).reshape(1,1,order='C')
210
211 z2 = W1.dot(xi) + b1
212 a2 = self.actFun(z2)
213 z3 = W2.dot(a2) + b2
214 h = self.actFun(z3)
215 g = (h[0][0]-h1[0][0])/0.00001
216 ji.append(g)
217 jac.append(ji)
218 p = old_p
219 return jac
220
221 def jjje(self):
222 '''计算jj与je'''
223 layer_num = len(self.net_struct.layers)
224 e = self.net_struct.y - self.net_struct.layers[layer_num - 1].output_val
225 e = e.transpose()
226 j = self.jacobian()
227 #check gradient
228 #j1 = -np.array(self.gradCheck())
229 #jk = j.reshape(1,j.shape[0]*j.shape[1])
230 #jk1 = j1.reshape(1,j1.shape[0]*j1.shape[1])
231 #plt.plot(jk[0])
232 #plt.plot(jk1[0],'.')
233 #plt.show()
234 jj = j.transpose().dot(j)
235 je = -j.transpose().dot(e)
236 return[jj, je]
237
238 def lm(self):
239 '''Levenberg-Marquardt训练算法'''
240 mu = self.mu
241 beta = self.beta
242 iteration = self.iteration
243 tol = self.tol
244 y = self.net_struct.y
245 layer_num = len(self.net_struct.layers)
246 self.forward()
247 pred = self.net_struct.layers[layer_num - 1].output_val
248 pref = self.perfermance(y, pred)
249 for i in range(0, iteration):

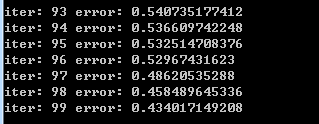

250 print('iter:',i, 'error:', pref)
251 #1) 第一步:
252 if(pref < tol):
253 break
254 #2) 第二步:
255 self.backward()
256 self.parDeriv()
257 [jj, je] = self.jjje()
258 while(1):
259 #3) 第三步:
260 A = jj + mu * np.diag(np.ones(jj.shape[0]))
261 delta_w_b = pinv(A).dot(je)
262 #4) 第四步:
263 old_net_struct = copy.deepcopy(self.net_struct)
264 self.updataNetStruct(delta_w_b)
265 self.forward()
266 pred1 = self.net_struct.layers[layer_num - 1].output_val
267 pref1 = self.perfermance(y, pred1)
268 if (pref1 < pref):
269 mu = mu / beta
270 pref = pref1
271 break
272 mu = mu * beta
273 self.net_struct = copy.deepcopy(old_net_struct)
274
275 def updataNetStruct(self, delta_w_b):
276 '''更新网络权重及阈值'''
277 layer_num = len(self.net_struct.layers)
278 index = 0
279 for i in range(1, layer_num):
280 before_layer = self.net_struct.layers[i - 1]
281 curr_layer = self.net_struct.layers[i]
282 w_num = before_layer.neure_number * curr_layer.neure_number
283 b_num = curr_layer.neure_number
284 w = delta_w_b[index : index + w_num]
285 w = w.reshape(curr_layer.neure_number, before_layer.neure_number, order='C')
286 index = index + w_num
287 b = delta_w_b[index : index + b_num]
288 index = index + b_num
289 curr_layer.w += w
290 curr_layer.b += b
291
292 def perfermance(self, y, pred):
293 '''性能函数'''
294 error = y - pred
295 return norm(error) / len(y)
296
297
298
299 # 以下函数为测试样例
300 def plotSamples(n = 40):
301 x = np.array([np.linspace(0, 3, n)])
302 x = x.repeat(n, axis = 0)
303 y = x.transpose()
304 z = np.zeros((n, n))
305 for i in range(0, x.shape[0]):
306 for j in range(0, x.shape[1]):
307 z[i][j] = sampleFun(x[i][j], y[i][j])
308 fig = plt.figure()
309 ax = fig.gca(projection='3d')
310 surf = ax.plot_surface(x, y, z, cmap='autumn', cstride=2, rstride=2)
311 ax.set_xlabel("X-Label")
312 ax.set_ylabel("Y-Label")
313 ax.set_zlabel("Z-Label")
314 plt.show()
315
316 def sinSamples(n):
317 x = np.array([np.linspace(-0.5, 0.5, n)])
318 #x = x.repeat(n, axis = 0)
319 y = x + 0.2
320 z = np.zeros((n, 1))
321 for i in range(0, x.shape[1]):
322 z[i] = np.sin(x[0][i] * y[0][i])
323 X = np.zeros((n, 2))
324 n = 0
325 for xi, yi in zip(x.transpose(), y.transpose()):
326 X[n][0] = xi
327 X[n][1] = yi
328 n = n + 1
329 # print(x.shape, y.shape)
330 # print(X.shape, z.shape)
331 return X, z.transpose()
332
333 def peaksSamples(n):
334 x = np.array([np.linspace(-3, 3, n)])
335 x = x.repeat(n, axis = 0)
336 y = x.transpose()
337 z = np.zeros((n, n))
338 for i in range(0, x.shape[0]):
339 for j in range(0, x.shape[1]):
340 z[i][j] = sampleFun(x[i][j], y[i][j])
341 X = np.zeros((n*n, 2))
342 x_list = x.reshape(n*n,1 )
343 y_list = y.reshape(n*n,1)
344 z_list = z.reshape(n*n,1)
345 n = 0
346 for xi, yi in zip(x_list, y_list):
347 X[n][0] = xi
348 X[n][1] = yi
349 n = n + 1
350 # print(x.shape, y.shape)
351 # print(X.shape, z.shape, z_list.shape, z_list.transpose().shape)
352 return X,z_list.transpose()
353
354 def sampleFun( x, y):
355 z = 3*pow((1-x),2) * exp(-(pow(x,2)) - pow((y+1),2)) - 10*(x/5 - pow(x, 3) - pow(y, 5)) * exp(-pow(x, 2) - pow(y, 2)) - 1/3*exp(-pow((x+1), 2) - pow(y, 2))
356 return z
357
358
359
360

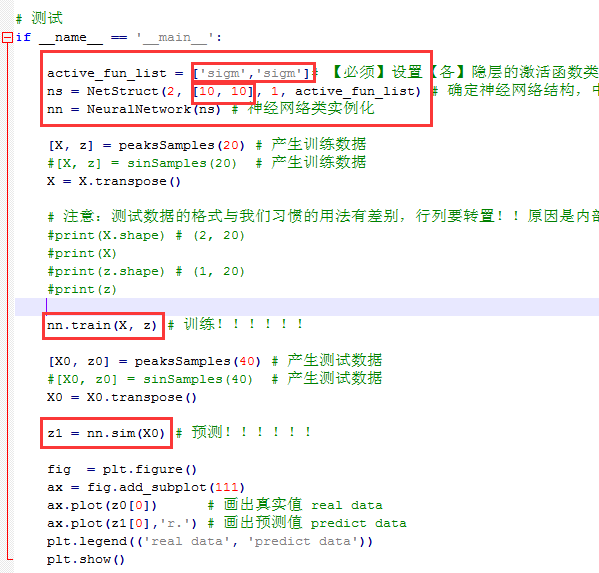

361 # 测试
362 if __name__ == '__main__':
363
364 active_fun_list = ['sigm','sigm','sigm']# 【必须】设置【各】隐层的激活函数类型，可以设置为tanh,radb，tanh,line类型，如果不显式的设置最后一层为line
365 ns = NetStruct(2, [10, 10, 10], 1, active_fun_list) # 确定神经网络结构，中间两个隐层各10个神经元
366 nn = NeuralNetwork(ns) # 神经网络类实例化
367
368 [X, z] = peaksSamples(20) # 产生训练数据
369 #[X, z] = sinSamples(20) # 第二个训练数据
370 X = X.transpose()
371
372 # 注意：测试数据的格式与我们习惯的用法有差别，行列要转置！！原因是内部逻辑采用了矩阵运算？！！！！
373 #print(X.shape) # (2, 20)
374 #print(X)
375 #print(z.shape) # (1, 20)
376 #print(z)
377
378 nn.train(X, z) # 训练！！！！！！
379
380 [X0, z0] = peaksSamples(40) # 产生测试数据
381 #[X0, z0] = sinSamples(40) # 第二个测试数据
382 X0 = X0.transpose()
383
384 z1 = nn.sim(X0) # 预测！！！！！！
385

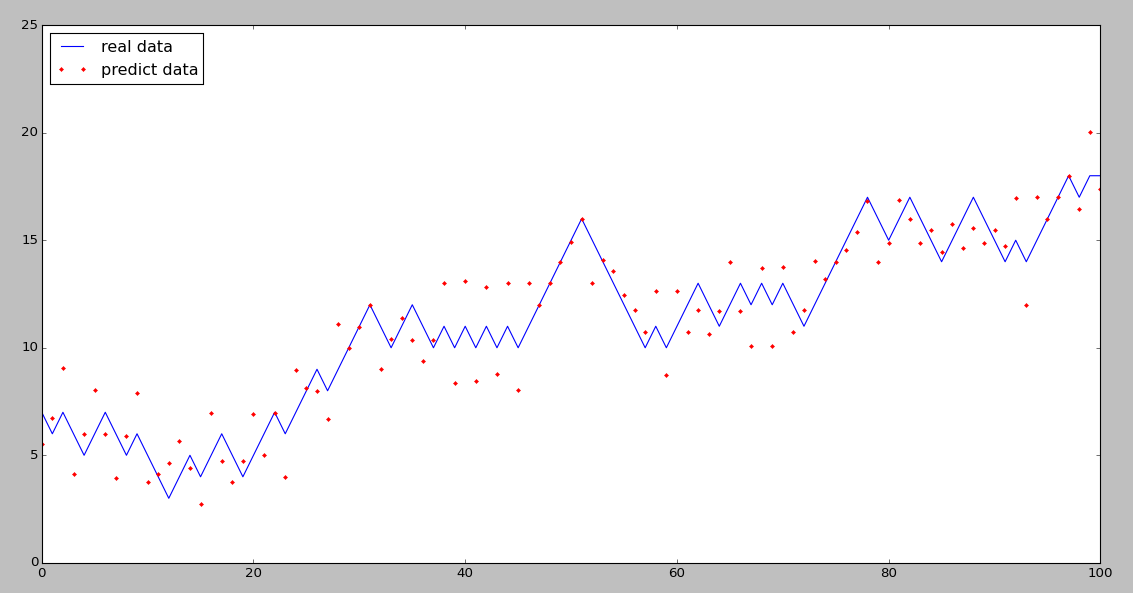

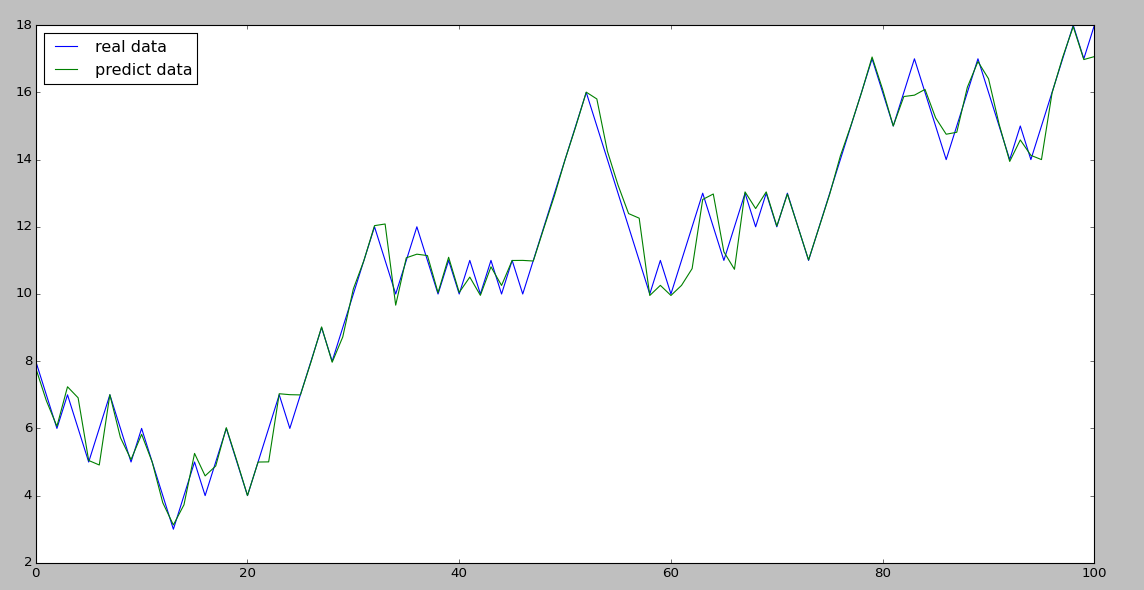

386 fig = plt.figure()
387 ax = fig.add_subplot(111)
388 ax.plot(z0[0]) # 画出真实值 real data
389 ax.plot(z1[0],'r.') # 画出预测值 predict data
390 plt.legend(('real data', 'predict data'))
391 plt.show()
