　　1、准备工作

　　新建一个Silverlight Business Application，首先修改web.config，他自动生成的配置比较省略，我手动加入membership,role,profile的配置，我是ASP.NET MVC的项目中拷贝过来，直接用他的配置也可以，不过手动配置一下连接字符串LocalSqlServer，不然不能运行。

< membership >
< providers >
< clear />
< add name ="AspNetSqlMembershipProvider" type ="System.Web.Security.SqlMembershipProvider" connectionStringName ="ApplicationServices" enablePasswordRetrieval ="false" enablePasswordReset ="true" requiresQuestionAndAnswer ="false" requiresUniqueEmail ="false" maxInvalidPasswordAttempts ="5" minRequiredPasswordLength ="6" minRequiredNonalphanumericCharacters ="0" passwordAttemptWindow ="10" applicationName ="/Vega" />
</ providers >
</ membership >
< profile >
< providers >
< clear />
< add name ="AspNetSqlProfileProvider" type ="System.Web.Profile.SqlProfileProvider" connectionStringName ="ApplicationServices" applicationName ="/" />
</ providers >
< properties >
< add name ="FriendlyName" />
</ properties >
</ profile >
< roleManager enabled ="true" >
< providers >
< clear />
< add name ="AspNetSqlRoleProvider" type ="System.Web.Security.SqlRoleProvider" connectionStringName ="ApplicationServices" applicationName ="/Vega" />
< add name ="AspNetWindowsTokenRoleProvider" type ="System.Web.Security.WindowsTokenRoleProvider" applicationName ="/" />
</ providers >
</ roleManager >

　　我用的连接字符串名字是ApplicationServices，如果没安装ASP.NET的SQL数据，可以用Visual Studio 命令提示(2010) （在开始菜单的Visual Studio Tools里）调出命令提示符输入aspnet_regsql,调出“ASP.NET SQL SERVER安装向导”，而在运行-cmd里因为没有相关环境变量，是调不出安装向导的。

　　新建一个ADO.NET实体数据模型。

　　编译一下，然后新建Domain Service Class，勾上Course，如果不编译，那么数据实体模型是找不到的。我们需要Microsoft Silverlight 4 Toolkit，http://silverlight.codeplex.com/，没安装的话要先安装。

　　2、用户登录和角色

　　用户登录后往往要根据不用角色实现不同的功能导航，所以要修改/Views/Login/LoginStatus.xaml 这个登录状态的用户控件。首先加上管理员的功能面板。

< StackPanel x:Name ="adminControls" Style =" {StaticResource LoginPanelStyle} " >

< TextBlock x:Name ="welcomeAdminText" Style =" {StaticResource WelcomeTextStyle} " VerticalAlignment ="Center" />

< TextBlock Text =" | " Style =" {StaticResource SpacerStyle} " />
< HyperlinkButton TargetName ="ContentFrame" Content ="课程" VerticalAlignment ="Center" Foreground ="White" NavigateUri ="/Courses" />
< TextBlock Text =" | " Style =" {StaticResource SpacerStyle} " />
< HyperlinkButton TargetName ="ContentFrame" Content ="学员" VerticalAlignment ="Center" Foreground ="White" NavigateUri ="/Students" />
< TextBlock Text =" | " Style =" {StaticResource SpacerStyle} " />
< HyperlinkButton TargetName ="ContentFrame" Content ="排课" VerticalAlignment ="Center" Foreground ="White" NavigateUri ="/Schedules" />
< TextBlock Text =" | " Style =" {StaticResource SpacerStyle} " />
< Button x:Name ="adminLogoutButton" Content =" {Binding ApplicationStrings.LogOffButton, Source={StaticResource ResourceWrapper}} "
Click ="LogoutButton_Click"
Style =" {StaticResource LoginRegisterLinkStyle} "
IsEnabled =" {Binding Authentication.IsLoggingOut, Converter={StaticResource NotOperatorValueConverter}} " />
</ StackPanel >

　　然后增加一个状态，叫做adminLoggedIn，在<vsm:VisualStateGroup x:Name="loginStates">代码短里加上adminLoggedIn的代码：

< vsm:VisualState x:Name ="adminLoggedIn" >
< Storyboard >
< ObjectAnimationUsingKeyFrames BeginTime ="00:00:00" Storyboard.TargetName ="logoutControls" Storyboard.TargetProperty ="(UIElement.Visibility)" >
< DiscreteObjectKeyFrame KeyTime ="00:00:00.0000000" >
< DiscreteObjectKeyFrame.Value >
< Visibility > Collapsed </ Visibility >
</ DiscreteObjectKeyFrame.Value >
</ DiscreteObjectKeyFrame >
</ ObjectAnimationUsingKeyFrames >
< ObjectAnimationUsingKeyFrames BeginTime ="00:00:00" Storyboard.TargetName ="loginControls" Storyboard.TargetProperty ="(UIElement.Visibility)" >
< DiscreteObjectKeyFrame KeyTime ="00:00:00.0000000" >
< DiscreteObjectKeyFrame.Value >
< Visibility > Collapsed </ Visibility >
</ DiscreteObjectKeyFrame.Value >
</ DiscreteObjectKeyFrame >
</ ObjectAnimationUsingKeyFrames >
</ Storyboard >
</ vsm:VisualState >

　　不要忘了在其他的状态里加上把adminControls设置为不显示，只有在adminLoggedIn才显示管理员的功能导航。在构造器函数里加上welcomeAdminText的绑定：

public LoginStatus()
{
this .InitializeComponent();

this .welcomeText.SetBinding(TextBlock.TextProperty, WebContext.Current.CreateOneWayBinding( " User.DisplayName " , new StringFormatValueConverter(ApplicationStrings.WelcomeMessage)));
this .welcomeAdminText.SetBinding(TextBlock.TextProperty, WebContext.Current.CreateOneWayBinding( " User.DisplayName " , new StringFormatValueConverter(ApplicationStrings.WelcomeMessage)));
this .authService.LoggedIn += this .Authentication_LoggedIn;
this .authService.LoggedOut += this .Authentication_LoggedOut;
this .UpdateLoginState();
}

　　修改UpdateLoginState函数，判断如果当前用户角色有admin，就显示admin的功能导航按钮：

private void UpdateLoginState()
{
if (WebContext.Current.User.IsAuthenticated)
{
VisualStateManager.GoToState( this , (WebContext.Current.Authentication is WindowsAuthentication) ?
" windowsAuth " :
this .authService.User.IsInRole( " admin " ) ? " adminLoggedIn " : " loggedIn " , true );
}
else
{
VisualStateManager.GoToState( this , " loggedOut " , true );
}
}

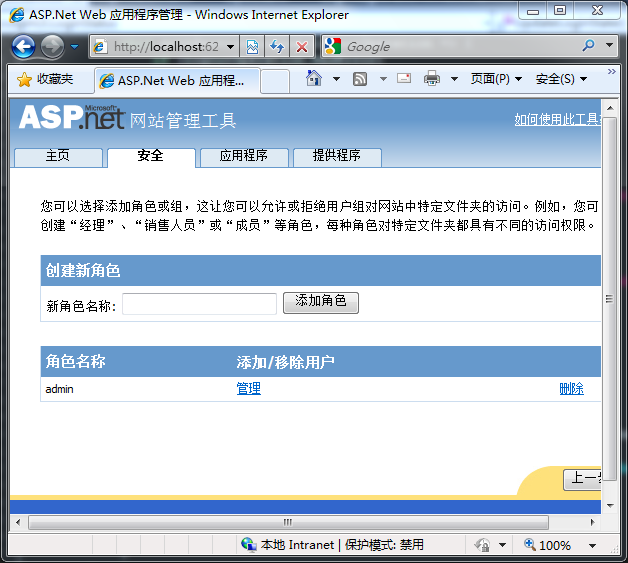

　　通过ASP.NET 网站配置加上个admin角色和用户。

　　好了，用户程序登录之后判断有admin角色，登录后就显示管理员的功能导航了。

　　3、绑定数据源

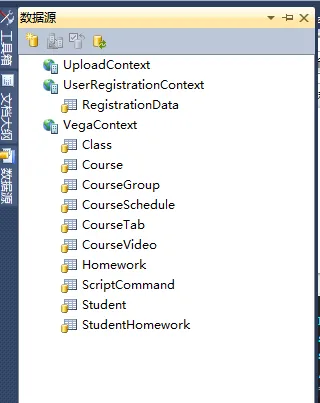

　　新建一个课程页面，在Page页面上加上DomainDataSource，一种办法是通过数据源窗口直接拽页面上去。

　　他会自动帮你建立一个riaDataSource,还有DataGrid。

　　在DataGrid外面加一个BusyIndicator（他是Silverlight Toolkit的控件之一），如果BusyIndicator得IsBusy为Ture，那么会出现一个等待的提示，并且BusyIndicator包含的内容不可操作，所以要把BusyIndicator的IsBusy和DomainDataSource的IsBusy绑定起来： IsBusy="{Binding IsBusy, ElementName=courseDomainDataSource}" 。

　　DataGrid已经和DomainDataSource绑定了，IDE帮我们自动加上代码： ItemsSource="{Binding Data, ElementName=courseDomainDataSource}"。

　　我还要加个简单搜索，通过课程名称模糊搜索，加一个TextBox。

< TextBlock Margin ="0,18,137,0" Text ="课程名称" FontSize ="12" HorizontalAlignment ="Right" Width ="48" Height ="23" VerticalAlignment ="Top" />
< TextBox Margin ="0,15,0,0" x:Name ="tbFilterCourseName" Height ="23" VerticalAlignment ="Top" HorizontalAlignment ="Right" Width ="120" />

　　好了，然后拖一个DataPaper上去实现分页，也和DomainDataSource绑定上 Source="{Binding Data, ElementName=courseDomainDataSource}"。

　　我们还要加上一排CheckBox用于多选，跟ASP.NET的GridView差不多，有一种DataGridTemplateColumn。CheckBox直接绑定实体对象，加上Tag="{Binding}"，然后给CheckBox加上事件，在选中的把绑定的对象加入到一个List里，取消选中的时候在取出来，维护一个要删除对象的列表。

　　　　private IList < Course > deletedCourses = new List < Course > ();

private void CheckBox_Checked( object sender, RoutedEventArgs e)
{
var checkBox = sender as CheckBox;
this .deletedCourses.Add(checkBox.Tag as Course);
}

private void CheckBox_Unchecked( object sender, RoutedEventArgs e)
{
var checkBox = sender as CheckBox;
this .deletedCourses.Remove(checkBox.Tag as Course);
}

　　另外加一个删除全部的按钮。下面是BusyIndicator的全部代码：

< toolkit:BusyIndicator x:Name ="dataBusyIndicator" BusyContent ="载入课程数据" IsBusy =" {Binding IsBusy, ElementName=courseDomainDataSource} " >
< Grid >
< sdk:DataGrid AutoGenerateColumns ="False" ItemsSource =" {Binding Data, ElementName=courseDomainDataSource} " x:Name ="courseDataGrid" RowDetailsVisibilityMode ="VisibleWhenSelected" Margin ="30,47,0,33" IsReadOnly ="True" >
< sdk:DataGrid.Resources >
< DataTemplate x:Name ="CheckBoxCellTemplate" >
< CheckBox VerticalAlignment ="Center" HorizontalAlignment ="Center" Tag =" {Binding} " Checked ="CheckBox_Checked" Unchecked ="CheckBox_Unchecked" />
</ DataTemplate >
</ sdk:DataGrid.Resources >
< sdk:DataGrid.Columns >
< sdk:DataGridTemplateColumn CanUserReorder ="True" CanUserResize ="True" CanUserSort ="True" Width ="30" >
< sdk:DataGridTemplateColumn.CellEditingTemplate >
< StaticResource ResourceKey ="CheckBoxCellTemplate" />
</ sdk:DataGridTemplateColumn.CellEditingTemplate >
</ sdk:DataGridTemplateColumn >
< sdk:DataGridTextColumn x:Name ="courseNameColumn" Binding =" {Binding CourseName} " Header ="课程名称" Width ="SizeToCells" MinWidth ="70" />
< sdk:DataGridTextColumn x:Name ="titleColumn" Binding =" {Binding Title} " Header ="标题" Width ="SizeToCells" MinWidth ="100" />
< sdk:DataGridTextColumn x:Name ="providerColumn" Binding =" {Binding Provider} " Header ="内容提供商" Width ="SizeToCells" MinWidth ="70" />
< sdk:DataGridTextColumn x:Name ="teachersColumn" Binding =" {Binding Teachers} " Header ="主讲老师" Width ="SizeToCells" MinWidth ="70" />
< sdk:DataGridTextColumn x:Name ="publishDateColumn" Binding =" {Binding PublishDate} " Header ="发布时间" Width ="SizeToCells" MinWidth ="70" />
< sdk:DataGridTextColumn x:Name ="createTimeColumn" Binding =" {Binding CreateTime} " Header ="创建时间" Width ="SizeToCells" MinWidth ="70" />
</ sdk:DataGrid.Columns >
</ sdk:DataGrid >
< sdk:DataPager Margin ="30,444,0,10" x:Name ="dataPager1" PageSize ="10" Source =" {Binding Data, ElementName=courseDomainDataSource} " />
< TextBlock Margin ="0,18,137,0" Text ="课程名称" FontSize ="12" HorizontalAlignment ="Right" Width ="48" Height ="23" VerticalAlignment ="Top" />
< TextBox Margin ="0,15,0,0" x:Name ="tbFilterCourseName" Height ="23" VerticalAlignment ="Top" HorizontalAlignment ="Right" Width ="120" />
< Button Content ="删除所选" Height ="23" HorizontalAlignment ="Left" Margin ="30,15,0,0" Name ="button1" VerticalAlignment ="Top" Width ="75" Click ="button1_Click" />
</ Grid >
</ toolkit:BusyIndicator >

　　然后，要把DomainDataSource.FilterDescriptors的筛选和我刚才加的TextBox绑定起来，这样就自动搜索了。

< riaControls:DomainDataSource AutoLoad ="True" Height ="0" LoadedData ="courseDomainDataSource_LoadedData" x:Name ="courseDomainDataSource" QueryName ="GetCoursesQuery" Width ="0" >
< riaControls:DomainDataSource.SortDescriptors >
< riaControls:SortDescriptor Direction ="Descending" PropertyPath ="CourseID" />
</ riaControls:DomainDataSource.SortDescriptors >
< riaControls:DomainDataSource.FilterDescriptors >
< riaControls:FilterDescriptor Operator ="Contains" PropertyPath ="CourseName" IgnoredValue ="" Value =" {Binding Text, ElementName=tbFilterCourseName} " />
</ riaControls:DomainDataSource.FilterDescriptors >
< riaControls:DomainDataSource.DomainContext >
< my1:VegaContext />
</ riaControls:DomainDataSource.DomainContext >
</ riaControls:DomainDataSource >

　　如果不加FilterDescriptors，那么分页的时候报错，因为分页前必须Order，也可以在后台加一个默认排序：

public IQueryable < Course > GetCourses()
{
return this .ObjectContext.Courses.OrderByDescending < Course, int > (c => c.CourseID);
}

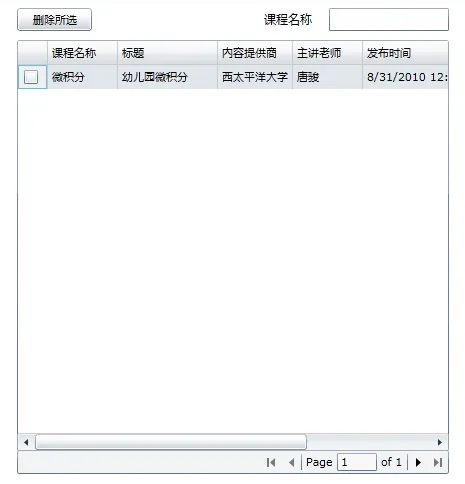

　　效果如下：

　　4、删除全部选择的项目。

　　只需要逐个删除列表中的对象，然后DomainDataSource.SubmitChanges()就行了，很方便吧。

private void button1_Click( object sender, RoutedEventArgs e)
{
var result = MessageBox.Show( " 确定删除该课程?删除后不可恢复! " , " 提示 " , MessageBoxButton.OKCancel);
if (result == MessageBoxResult.OK)
{
foreach (var course in this .deletedCourses)
{
this .courseDomainDataSource.DataView.Remove(course);
}
this .deletedCourses.Clear();
this .courseDomainDataSource.SubmitChanges();
}
}

　　5、上传图片

　　我需要一个上传图片的功能，首先需要后台支持，建一个DomainService专门负责上传。

[EnableClientAccess()]
public class UploadService : DomainService
{
public string Upload( byte [] stream, string extension)
{
var rootPath = HttpContext.Current.Server.MapPath( " /Uploads " );
var datePath = DateTime.Now.ToString( " yyyyMMdd " );
var dirPath = Path.Combine(rootPath, datePath);
if ( ! Directory.Exists(dirPath))
{
Directory.CreateDirectory(dirPath);
}

var fileName = Guid.NewGuid().ToString() + extension;
using (var fileStream = new FileStream(
Path.Combine(dirPath, fileName), FileMode.Create, FileAccess.Write))
{
fileStream.Write(stream, 0 , stream.Length);
fileStream.Flush();
fileStream.Close();
}
return " /Uploads/ " + datePath + " / " + fileName;
}
}

　　代码很简单，就一个方法，将传过来的字节流保存到服务器上，然后返回为这个文件自动生成的路径。

　　在服务器端建一个DomainService后，客户端会自动生成调用的代码，真的很方便。在客户端直接实例化一个Context就能用了 private UploadContext uploadContext = new UploadContext();在Silverlight建一个用户控件，专门负责上传和现实图片。

< UserControl xmlns:toolkit ="http://schemas.microsoft.com/winfx/2006/xaml/presentation/toolkit" x:Class ="Vega.Controls.SelecteImage"
xmlns ="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x ="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:d ="http://schemas.microsoft.com/expression/blend/2008"
xmlns:mc ="http://schemas.openxmlformats.org/markup-compatibility/2006"
mc:Ignorable ="d"
d:DesignHeight ="300" d:DesignWidth ="400" >
< toolkit:BusyIndicator Name ="busyIndicator" >
< StackPanel Margin ="0" Orientation ="Horizontal" >
< Image HorizontalAlignment ="Left" VerticalAlignment ="Top" Source ="/Vega;component/Assets/Icons/picture2.png" MaxWidth ="150" MaxHeight ="150" Name ="image" />
< Button x:Name ="btnSelected" Content ="选择" Margin ="8,0,0,0" HorizontalAlignment ="Left" VerticalAlignment ="Bottom" Click ="btnSelected_Click" />
</ StackPanel >
</ toolkit:BusyIndicator >
</ UserControl >

　　点击选择按钮，出现一个文件选择框，然后将选中文件上传到服务器，将返回的图片路径复制给Image控件：

private void btnSelected_Click( object sender, RoutedEventArgs e)
{
var fileDialog = new OpenFileDialog()
{
Filter = " 图片(.jpg)|*.jpg|图片(.jpeg)|*.jpeg|图片(.png)|*.png " ,
Multiselect = false
};

var result = fileDialog.ShowDialog();
if (result.HasValue && result.Value)
{
var stream = fileDialog.File.OpenRead();
var bytes = new byte [stream.Length];
stream.Read(bytes, 0 , bytes.Length);
this .busyIndicator.IsBusy = true ;
var op = this .uploadContext.Upload(bytes, fileDialog.File.Extension);
op.Completed += (opSender, opE) => {
this .ImageUri = new Uri(op.Value, UriKind.Relative);
this .busyIndicator.IsBusy = false ;
};
}
}

　　然后，我为控件加了一个属性，ImageUrl暴露给外面，提供绑定什么的功能。

public static readonly DependencyProperty ImageUriProperty = DependencyProperty.Register(
" ImageUri " ,
typeof (Uri),
typeof (SelecteImage),
new PropertyMetadata( null , new PropertyChangedCallback(OnImageUriChanged)));

private static void OnImageUriChanged(DependencyObject d, DependencyPropertyChangedEventArgs e)
{
((SelecteImage)d).OnImageUriChanged(e);
}

protected virtual void OnImageUriChanged(DependencyPropertyChangedEventArgs e)
{
if (e.NewValue == null )
{
return ;
}
var uri = (Uri)e.NewValue;
if ( ! uri.IsAbsoluteUri)
{
// Application.Current.Host.Source
var source = Application.Current.Host.Source;
uri = new Uri(String.Format( " {0}://{1}:{2}{3} " ,source.Scheme,source.Host,source.Port,uri.OriginalString), UriKind.Absolute);
}
this .image.Source = new BitmapImage(uri);
}

public Uri ImageUri
{
get { return (Uri)GetValue(ImageUriProperty); }
set { SetValue(ImageUriProperty, value); }
}

　　由于Silverlight中的相对Uri并不是只服务器上的资源，而是指XAP文件中的资源，所以我吧相对地址改为绝对地址。

　　这个图片上传控件就OK乐。

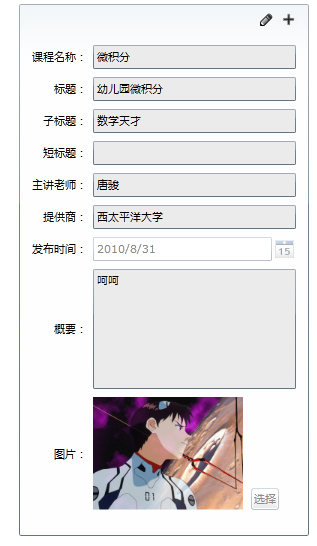

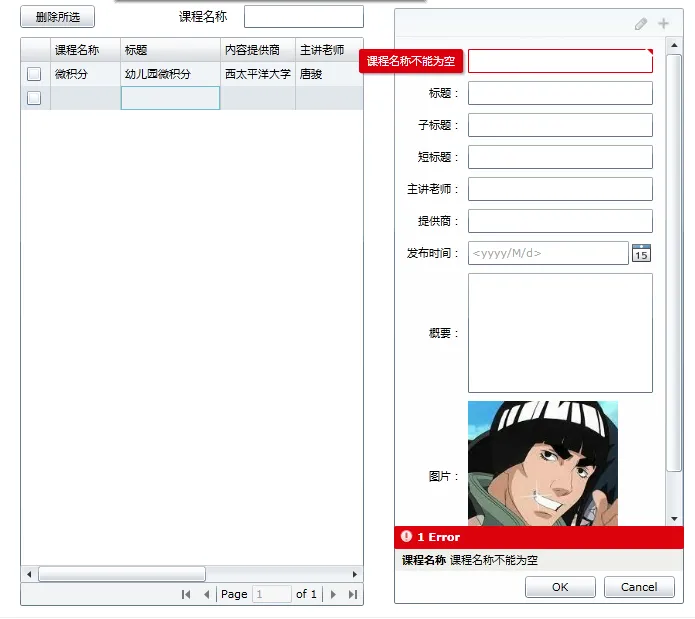

　　6、DataForm，实现新增和编辑

　　首先拖上去一个DataForm控件，然后将DataForm和DomainService绑定起来。ItemsSource="{Binding ElementName=courseDomainDataSource, Path=Data}" CurrentItem="{Binding ElementName=courseDomainDataSource, Path=DataCurrentItem}"，ItemSource绑定的是数据源，CurrentItem绑定时当前项目，如果不绑定ItemSource,只绑定CurrentItem的话就可以用CurrentItem="{Binding ElementName=courseDomainDataSource, Path=Data.CurrentItem}"，不过如果这样的话，就只能编辑不能新增了。DataForm有很多按钮，比如导航的，编辑的，删除的，我只需需要增加和编辑，CommandButtonsVisibility="Add, Edit, Commit, Cancel"，如果需要全部按钮的话CommandButtonsVisibility="All"就行了。

　　另外，外面要重新设置DataForm的字段，把刚才做的上传图片的控件加进入，我需要编辑EditDataTemplate。

< toolkit:BusyIndicator Grid.Column ="1" x:Name ="formBusyIndicator" IsBusy =" {Binding IsBusy, ElementName=courseDomainDataSource} " />
< toolkit:DataForm Grid.Column ="1" Margin ="30,18,30,12" x:Name ="dfCourse" AutoEdit ="False" ItemsSource =" {Binding ElementName=courseDomainDataSource, Path=Data} " CurrentItem =" {Binding CurrentItem} " AutoGenerateFields ="False" AutoCommit ="False" EditEnded ="dfCourse_EditEnded" CommandButtonsVisibility ="Add, Edit, Commit, Cancel" >
< toolkit:DataForm.Resources >
< DataTemplate x:Key ="EditDataTemplate" >
< StackPanel >
< toolkit:DataField Label ="课程名称：" Margin ="0,0,0,8" >
< TextBox Text =" {Binding CourseName, Mode=TwoWay} " />
</ toolkit:DataField >
< toolkit:DataField Label ="标题：" Margin ="0,0,0,8" >
< TextBox Text =" {Binding Title, Mode=TwoWay} " />
</ toolkit:DataField >
< toolkit:DataField Label ="子标题：" Margin ="0,0,0,8" >
< TextBox Text =" {Binding SubTitle, Mode=TwoWay} " />
</ toolkit:DataField >
< toolkit:DataField Label ="短标题：" Margin ="0,0,0,8" >
< TextBox Text =" {Binding ShortTitle, Mode=TwoWay} " />
</ toolkit:DataField >
< toolkit:DataField Label ="主讲老师：" Margin ="0,0,0,8" >
< TextBox Text =" {Binding Teachers, Mode=TwoWay} " />
</ toolkit:DataField >
< toolkit:DataField Label ="提供商：" Margin ="0,0,0,8" >
< TextBox Text =" {Binding Provider, Mode=TwoWay} " />
</ toolkit:DataField >
< toolkit:DataField Label ="发布时间：" Margin ="0,0,0,8" >
< sdk:DatePicker SelectedDate =" {Binding PublishDate, Mode=TwoWay} " />
</ toolkit:DataField >
< toolkit:DataField Label ="概要：" Margin ="0,0,0,8" >
< TextBox Text =" {Binding Summary, Mode=TwoWay} " Height ="120" HorizontalScrollBarVisibility ="Auto" VerticalScrollBarVisibility ="Auto" AcceptsReturn ="True" />
</ toolkit:DataField >
< toolkit:DataField Label ="图片：" Margin ="0,0,0,8" >
< Vega_Controls:SelecteImage ImageUri =" {Binding ThumbUrl, Mode=TwoWay} " Margin ="0" d:LayoutOverrides ="Width, Height" />
</ toolkit:DataField >
</ StackPanel >
</ DataTemplate >
</ toolkit:DataForm.Resources >
< toolkit:DataForm.EditTemplate >
< StaticResource ResourceKey ="EditDataTemplate" />
</ toolkit:DataForm.EditTemplate >
</ toolkit:DataForm >

把SelectImage的ImageUrl属性和实体的属性绑定起来。

　　效果图。

　　最后加上事件，在完成编辑的时候提交更改就好了。

private void dfCourse_EditEnded( object sender, DataFormEditEndedEventArgs e)
{
if (e.EditAction == DataFormEditAction.Commit)
{
var course = (Course) this .courseDataGrid.SelectedItem;
if (course.CourseID == 0 )
{
course.CreateTime = DateTime.Now;
}
this .courseDomainDataSource.SubmitChanges();
}
}

　　最后最后，加上验证。直接修改DomainService.matadata.cs和ASP.NET MVC2集成的验证方式一样，使用Attribute的方式：

[Display(Name = " 课程名称 " )]
[Required(ErrorMessage = " 课程名称不能为空 " )]
public string CourseName { get ; set ; }

　　不过效果好多了

一起谈.NET技术，Silverlight + RIA Service的SUID的实例

1、准备工作

2、用户登录和角色

3、绑定数据源

4、删除全部选择的项目。

5、上传图片

6、DataForm，实现新增和编辑

热门文章

最新文章

相关电子书

相关实验场景

热门

活动广场

任务中心

开发者评测

高校计划

乘风者计划

训练营

阿里云MVP

话题

直播

下载

镜像站

技术资料

插件

一起谈.NET技术，Silverlight + RIA Service的SUID的实例

1、准备工作

2、用户登录和角色

3、绑定数据源

4、删除全部选择的项目。

5、上传图片

6、DataForm，实现新增和编辑

热门文章

最新文章

相关电子书

相关实验场景

　　1、准备工作

　　2、用户登录和角色

　　3、绑定数据源

　　4、删除全部选择的项目。

　　5、上传图片

　　6、DataForm，实现新增和编辑
