STL源码剖析—stl_config

简介: 操作系统:centos 6.4STL源码版本:3.3 前言:    要看一个项目的源码,首先要选中切入点。    那么在sgi stl 标准库中,其切入点是什么呢?    答案是:stl_config.h 文件。

操作系统:centos 6.4
STL源码版本:3.3

前言:
    要看一个项目的源码,首先要选中切入点。
    那么在sgi stl 标准库中,其切入点是什么呢?
    答案是:stl_config.h 文件。

    不同的编译器对C++语言的支持程度不尽相同。为了具备广泛移植能力,SGI STL  定义了一个环境组态文件<stl_config.h>。
其中声明了许多宏定义,在预编译的时候,通过这些宏定义来编译出对于平台的程序。


1,stl_config.h在linux平台下的实现:

    1.1)为了知道linux平台下sgi stl 的宏定义有那些是被定义了的,有个简单,直接的方法,直接输出其宏名字。
        测试代码如下:

#include <iostream>
#include <stdio.h>
using namespace std;


void    test(void)
{
#ifdef _PTHREADS
    cout<<"define __STL_PTHREADS"<<endl;
#endif

# if defined(__sgi) && !defined(__GNUC__)
    cout<<"__sgi begin"<<endl;
# if !defined(_BOOL)
        cout<<"__STL_NEED_BOOL"<<endl;
# endif
# if !defined(_TYPENAME_IS_KEYWORD)
         cout<<"__STL_NEED_TYPENAME"<<endl;
# endif
# ifdef _PARTIAL_SPECIALIZATION_OF_CLASS_TEMPLATES
        cout<<"__STL_CLASS_PARTIAL_SPECIALIZATION"<<endl;
# endif
# ifdef _MEMBER_TEMPLATES
        cout<<"__STL_MEMBER_TEMPLATES"<<endl;
# endif
# if !defined(_EXPLICIT_IS_KEYWORD)
        cout<<"__STL_NEED_EXPLICIT"<<endl;
# endif
# ifdef __EXCEPTIONS
        cout<<"__STL_USE_EXCEPTIONS"<<endl;
# endif
# if (_COMPILER_VERSION >= 721) && defined(_NAMESPACES)
        cout<<"__STL_USE_NAMESPACES"<<endl;
# endif
# if !defined(_NOTHREADS) && !defined(__STL_PTHREADS)
        cout<<"__STL_SGI_THREADS"<<endl;
# endif
    cout<<"__sgi end"<<endl<<endl;
# endif

# ifdef __GNUC__
    cout<<"__GNUC__ begin"<<endl;
# include <_G_config.h>
# if __GNUC__ < 2 || (__GNUC__ == 2 && __GNUC_MINOR__ < 8)
        cout<<"__STL_STATIC_TEMPLATE_MEMBER_BUG"<<endl;
        cout<<"__STL_NEED_TYPENAME"<<endl;
        cout<<"__STL_NEED_EXPLICIT"<<endl;
# else
        cout<<"__STL_CLASS_PARTIAL_SPECIALIZATION"<<endl;
        cout<<"__STL_FUNCTION_TMPL_PARTIAL_ORDER"<<endl;
        cout<<"__STL_EXPLICIT_FUNCTION_TMPL_ARGS"<<endl;
        cout<<"__STL_MEMBER_TEMPLATES"<<endl;
# endif
    /* glibc pre 2.0 is very buggy. We have to disable thread for it.
       It should be upgraded to glibc 2.0 or later. */
# if !defined(_NOTHREADS) && __GLIBC__ >= 2 && defined(_G_USING_THUNKS)
        cout<<"__STL_PTHREADS"<<endl;
# endif
# ifdef __EXCEPTIONS
        cout<<"__STL_USE_EXCEPTIONS"<<endl;
# endif
    cout<<"__GNUC__ end"<<endl<<endl;
# endif

# if defined(__SUNPRO_CC)
    cout<<"__SUNPRO_CC begin"<<endl;
    cout<<"__STL_NEED_BOOL"<<endl;
    cout<<"__STL_NEED_TYPENAME"<<endl;
    cout<<"__STL_NEED_EXPLICIT"<<endl;
    cout<<"__STL_USE_EXCEPTIONS"<<endl;
    cout<<"__SUNPRO_CC end"<<endl<<endl;
# endif

# if defined(__COMO__)
    cout<<"__COMO__ begin"<<endl;
    cout<<"__STL_MEMBER_TEMPLATES"<<endl;
    cout<<"__STL_CLASS_PARTIAL_SPECIALIZATION"<<endl;
    cout<<"__STL_USE_EXCEPTIONS"<<endl;
    cout<<"__STL_USE_NAMESPACES"<<endl;
    cout<<"__COMO__ end"<<endl<<endl;
# endif

# if defined(_MSC_VER)
cout<<"_MSC_VER begin"<<endl;
# if _MSC_VER > 1000
        cout<<"include <yvals.h>"<<endl;
# else
        cout<<"__STL_NEED_BOOL"<<endl;
# endif
        cout<<"__STL_NO_DRAND48"<<endl;
        cout<<"__STL_NEED_TYPENAME"<<endl;
# if _MSC_VER < 1100
        cout<<"__STL_NEED_EXPLICIT"<<endl;
# endif
        cout<<"__STL_NON_TYPE_TMPL_PARAM_BUG"<<endl;
        cout<<"__SGI_STL_NO_ARROW_OPERATOR"<<endl;
# ifdef _CPPUNWIND
        cout<<"__STL_USE_EXCEPTIONS"<<endl;
# endif
# ifdef _MT
        cout<<"__STL_WIN32THREADS"<<endl;
# endif
    cout<<"_MSC_VER end"<<endl<<endl;
# endif

# if defined(__BORLANDC__)
    cout<<"__BORLANDC__ begin"<<endl;
    cout<<"__STL_NO_DRAND48"<<endl;
    cout<<"__STL_NEED_TYPENAME"<<endl;
    cout<<"__STL_LIMITED_DEFAULT_TEMPLATES"<<endl;
    cout<<"__SGI_STL_NO_ARROW_OPERATOR"<<endl;
    cout<<"__STL_NON_TYPE_TMPL_PARAM_BUG"<<endl;
# ifdef _CPPUNWIND
        cout<<"__STL_USE_EXCEPTIONS"<<endl;
# endif
# ifdef __MT__
        cout<<"__STL_WIN32THREADS"<<endl;
# endif
    cout<<"__BORLANDC__ end"<<endl<<endl;
# endif


# if defined(__STL_NEED_BOOL)
    cout<<"__STL_NEED_BOOL begin"<<endl;
    cout<<"typedef int bool;"<<endl;
    cout<<"define true 1"<<endl;
    cout<<"define false 0"<<endl;
    cout<<"__STL_NEED_BOOL end"<<endl<<endl;
# endif

# ifdef __STL_NEED_TYPENAME
    cout<<"define typename"<<endl;
# endif

# ifdef __STL_NEED_EXPLICIT
    cout<<"define explicit"<<endl;
# endif

# ifdef __STL_EXPLICIT_FUNCTION_TMPL_ARGS
    cout<<"__STL_NULL_TMPL_ARGS <>"<<endl;
# else
    cout<<"__STL_NULL_TMPL_ARGS"<<endl;
# endif

# ifdef __STL_CLASS_PARTIAL_SPECIALIZATION
    cout<<"__STL_TEMPLATE_NULL template<>"<<endl;
# else
    cout<<"__STL_TEMPLATE_NULL"<<endl;
# endif

// __STL_NO_NAMESPACES is a hook so that users can disable namespaces
// without having to edit library headers.
# if defined(__STL_USE_NAMESPACES) && !defined(__STL_NO_NAMESPACES)
    cout<<"__STL_USE_NAMESPACES begin"<<endl;
    cout<<"__STD std"<<endl;
    cout<<"__STL_BEGIN_NAMESPACE namespace std {"<<endl;
    cout<<"__STL_END_NAMESPACE }"<<endl;
    cout<<"__STL_USE_NAMESPACE_FOR_RELOPS"<<endl;
    cout<<"__STL_BEGIN_RELOPS_NAMESPACE namespace std {"<<endl;
    cout<<"__STL_END_RELOPS_NAMESPACE }"<<endl;
    cout<<"__STD_RELOPS std"<<endl;
    cout<<"__STL_USE_NAMESPACES end"<<endl<<endl;
# else
    cout<<"! __STL_USE_NAMESPACES begin"<<endl;
    cout<<"__STD "<<endl;
    cout<<"__STL_BEGIN_NAMESPACE "<<endl;
    cout<<"__STL_END_NAMESPACE "<<endl;
    cout<<"__STL_USE_NAMESPACE_FOR_RELOPS"<<endl;
    cout<<"__STL_BEGIN_RELOPS_NAMESPACE "<<endl;
    cout<<"__STL_END_RELOPS_NAMESPACE "<<endl;
    cout<<"__STD_RELOPS "<<endl;
    cout<<"! __STL_USE_NAMESPACES end"<<endl<<endl;
# endif

# ifdef __STL_USE_EXCEPTIONS
    cout<<"__STL_USE_EXCEPTIONS begin"<<endl;
    cout<<"__STL_TRY try"<<endl;
    cout<<"__STL_CATCH_ALL catch(...)"<<endl;
    cout<<"__STL_RETHROW throw"<<endl;
    cout<<"__STL_NOTHROW throw()"<<endl;
    cout<<"__STL_UNWIND(action) catch(...) { action; throw; }"<<endl;
    cout<<"__STL_USE_EXCEPTIONS end"<<endl<<endl;
# else
    cout<<"! __STL_USE_EXCEPTIONS begin"<<endl;
    cout<<"__STL_TRY "<<endl;
    cout<<"__STL_CATCH_ALL if (false)"<<endl;
    cout<<"__STL_RETHROW "<<endl;
    cout<<"__STL_NOTHROW "<<endl;
    cout<<"__STL_UNWIND(action) "<<endl;
    cout<<"! __STL_USE_EXCEPTIONS end"<<endl<<endl;
# endif

#ifdef __STL_ASSERTIONS
# include <stdio.h>
    cout<<"__stl_assert(expr) \
    if (!(expr)) { fprintf(stderr, \"%s:%d STL assertion failure: %s\n\", \
             __FILE__, __LINE__, # expr); abort(); }"<<endl;
#else
    cout<<"__stl_assert(expr)"<<endl;
#endif


}

int main(void)
{
    test();

    return 0;
}

运行结果:

[root@localhost stlsource]# g++ -o lconfig1 lconfig1.cpp
[root@localhost stlsource]# ./lconfig1
__GNUC__ begin
__STL_CLASS_PARTIAL_SPECIALIZATION
__STL_FUNCTION_TMPL_PARTIAL_ORDER
__STL_EXPLICIT_FUNCTION_TMPL_ARGS
__STL_MEMBER_TEMPLATES
__STL_PTHREADS
__STL_USE_EXCEPTIONS
__GNUC__ end

__STL_NULL_TMPL_ARGS
__STL_TEMPLATE_NULL
! __STL_USE_NAMESPACES begin
__STD
__STL_BEGIN_NAMESPACE
__STL_END_NAMESPACE
__STL_USE_NAMESPACE_FOR_RELOPS
__STL_BEGIN_RELOPS_NAMESPACE
__STL_END_RELOPS_NAMESPACE
__STD_RELOPS
! __STL_USE_NAMESPACES end

! __STL_USE_EXCEPTIONS begin
__STL_TRY
__STL_CATCH_ALL if (false)
__STL_RETHROW
__STL_NOTHROW
__STL_UNWIND(action)
! __STL_USE_EXCEPTIONS end

__stl_assert(expr)

   1.2)通过以上的测试,可以得到在linux平台下,stl_config.h 的实现定义如下:
        为了缩小篇幅,把相关的版权信息的屏蔽了。

#ifndef __STL_CONFIG_H
# define __STL_CONFIG_H


# ifdef __GNUC__
# include <_G_config.h>
# define __STL_CLASS_PARTIAL_SPECIALIZATION
# define __STL_FUNCTION_TMPL_PARTIAL_ORDER
# define __STL_EXPLICIT_FUNCTION_TMPL_ARGS
# define __STL_MEMBER_TEMPLATES
# define __STL_PTHREADS
# define __STL_USE_EXCEPTIONS
# endif


# define __STL_NULL_TMPL_ARGS
# define __STL_TEMPLATE_NULL


# define __STD
# define __STL_BEGIN_NAMESPACE
# define __STL_END_NAMESPACE
# undef __STL_USE_NAMESPACE_FOR_RELOPS
# define __STL_BEGIN_RELOPS_NAMESPACE
# define __STL_END_RELOPS_NAMESPACE
# define __STD_RELOPS


# define __STL_TRY
# define __STL_CATCH_ALL if (false)
# define __STL_RETHROW
# define __STL_NOTHROW
# define __STL_UNWIND(action)


# define __stl_assert(expr)

#endif /* __STL_CONFIG_H */

// Local Variables:
// mode:C++
// End:

2,对stl_config.h中的宏的详解
    2.1)__STL_STATIC_TEMPLATE_MEMBER_BUG

    1. 如果编译器不支持static members of template classes(模板类静态成员),
    2. //       则定义__STL_STATIC_TEMPLATE_MEMBER_BUG
#include<iostream>
using namespace std;

template <typename T>
class testClass {
public:
    static int _data;
};
//只对成员实现特化,记得加上template<>
template<>
int testClass<int>::_data=1;

template<>
int testClass<char>::_data=2;

int main()
{
    cout<<testClass<int>::_data<<endl;
    cout<<testClass<char>::_data<<endl;

    testClass<int> Obji1,Obji2;
    testClass<char> Objc1,Objc2;

    cout<<Obji1._data<<endl;
    cout<<Obji2._data<<endl;
    cout<<Objc1._data<<endl;
    cout<<Objc2._data<<endl;

    Obji1._data=3;
    Objc1._data=4;

    cout<<Obji1._data<<endl;
    cout<<Obji2._data<<endl;
    cout<<Objc1._data<<endl;
    cout<<Objc2._data<<endl;
}

运行结果:

[root@localhost stlsource]# ./lconfig3
1
2
1
1
2
2
3
3
4
4

   2.2)__STL_CLASS_PARTIAL_SPECIALIZATION

    1. 如果编译器支持partial specialization of class templates(局部特殊化的类模板),
    2. //       则定义__STL_CLASS_PARTIAL_SPECIALIZATION
    3. //       参考文献: http://msdn.microsoft.com/en-us/library/9w7t3kf1(v=VS.71).aspx
#include<iostream>
using namespace std;

template <class I,class O>
struct testClass
{
    testClass() {cout<<"I,O"<<endl;}
};
//对类实现偏特化
template <class T>
struct testClass<T*,T*>
{
    testClass() {cout<<"T*,T*"<<endl;}
};
//对类实现偏特化
template<class T>
struct testClass<const T*,T*>
{
    testClass(){ cout<<"const T*,T*"<<endl;}
};

int main()
{
    testClass<int,char> obj1;
    testClass<int*,int*> obj2;
    testClass<const int*,int*> obj3;
}

运行结果:

[root@localhost stlsource]# ./lconfig5
I,O
T*,T*
const T*,T*

    2.3)__STL_FUNCTION_TMPL_PARTIAL_ORDER

    1. 如果编译器支持partial ordering of function templates(部分排序函数模板),
    2. //       则定义__STL_FUNCTION_TMPL_PARTIAL_ORDER
    3. //       参考资料: http://msdn.microsoft.com/zh-cn/library/zaycz069.aspx
#include<iostream>
using namespace std;

class alloc{
};

template <class T,class Alloc=alloc>
class vector{
public:
    void swap(vector<T,Alloc>&) {cout<<"swap()"<<endl;}
};
//本来是#ifdef__STL_FUNCION_TMPL_PARTIAL_ORDER,但是貌似不支持
#ifndef __STL_FUNCION_TMPL_PARTIAL_ORDER
template <class T,class Alloc>
inline void swap(vector<T,Alloc>& x,vector<T,Alloc>& y)
{
    x.swap(y);
}
#endif // __STL_FUNCION_TMPL_PARTIAL_ORDER

int main()
{
    vector<int>x,y;
    swap(x,y);
}

运行结果:

[root@localhost stlsource]# ./lconfig6
swap()

    2.4)__STL_EXPLICIT_FUNCTION_TMPL_ARGS
        整个 SGI STL  内都没有用到此一常数定义

    1. 如果编译器支持calling a function template by providing its template
    2. //       arguments explicitly(显式指定调用模板函数的模板参数)

    2.5)__STL_MEMBER_TEMPLATES

  1. 如果编译器支持template members of classes(类模板成员),
  2. //       则定义__STL_MEMBER_TEMPLATES
#include<iostream>
#include<typeinfo>
using namespace std;

class alloc{
};
//类模板
template <typename T,typename Alloc=alloc>
class vector{
public:
    typedef T value_type;
    typedef value_type* iterator;
//函数模板
    template <typename I>
    void insert(iterator position,I first,I last)
    {
        cout<<"insert()"<<endl;
        cout<<typeid(I).name()<<endl;
    }
};

int main()
{
    int ia[5]={0,1,2,3,4};
    vector<int> x;
    vector<int>::iterator ite;
    x.insert(ite,*ia,*(ia+5));
}

运行结果:

[root@localhost stlsource]# ./lconfig8
insert()
i

    2.6)__STL_LIMITED_DEFAULT_TEMPLATES

    1. 如果编译器不能根据前一个模板参数设定后面的默认模板参数,
    2. //       则定义__STL_LIMITED_DEFAULT_TEMPLATES
#include<iostream>
#include<cstddef>
using namespace std;

class alloc{};

template <typename T,class Alloc=alloc,size_t Bufsiz=0>
class deque{
public:
    deque(){cout<<"deque"<<endl;}
};

template <typename T,class Sequence=deque<T> >
class stack{
public:
    stack(){ cout<<"stack"<<endl;}
private:
    Sequence c;//调用deque的构造函数初始化
};

int main()
{
    stack<int> x;
}

  运行结果:

[root@localhost stlsource]# ./lconfig10
deque
stack

      2.7)__STL_NON_TYPE_TMPL_PARAM_BUG

    1. 如果编译器处理模板函数的non-type模板参数类型推断有困难,
    2. //       则定义__STL_NON_TYPE_TMPL_PARAM_BUG



#include<iostream>
#include<cstddef>
using namespace std;

class alloc{};

inline size_t __deque_buf_size(size_t n,size_t sz)
{
    return n!=0?n:(sz<512?size_t(512/sz):size_t(1));
}

template <class T,class Ref,class Ptr,size_t Bufsiz>
struct __deque_iterator{
    typedef __deque_iterator<T,T&,T*,Bufsiz> iterator;
    typedef __deque_iterator<T,const T&,const T*,Bufsiz> const_iterator;
    static size_t buffer_size() {return __deque_buf_size(Bufsiz,sizeof(T));}
};

template <class T,class Alloc=alloc,size_t Bufsiz=0>
class deque
{
public:
    typedef __deque_iterator<T,T&,T*,Bufsiz> iterator;
};

int main()
{
    cout<<deque<int>::iterator::buffer_size()<<endl;
    cout<<deque<int,alloc,64>::iterator::buffer_size()<<endl;
}

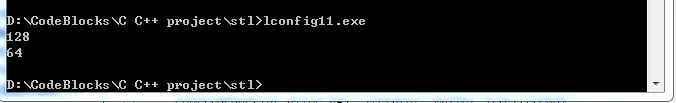

  运行结果:



     2.8)__STL_NULL_TMPL_ARGS(bound friend template friend)

<stl_config.h>定义__STL_NULL_TMPL_ARGS如下:

#ifdef __STL_NULL_TMPL_ARGS
# define __STL_NULL_TMPL_ARGS <>
#else
# define __STL_NULL_TMPL_ARGS
#endif

  这个组态常量常常出现在类似这样的场合(class template的friend函数声明)。

// in <stl_stack.h>
template<class T,class Sequence=deque<T> >
class stack{
    friend bool operator==___STL_NULL_TMPL_ARGS(const stack &,const stack&);
    friend bool operator< __STL_NULL_TMPL_ARGS(const stack&,const stack&);
    ...
};

展开后就变成了:

template<class T,class Sequence=deque<T> >
class stack{
    friend bool operator== <>(const stack &,const stack&);
    friend bool operator<  <>(const stack&,const stack&);
    ...
};

  这种奇特的语法是为了实现所谓的 bound friend templates,也就是说class template的某个具现体(instantiation)与其friend function template的某个具现体有一对一的关系。下面是测试程序:

#include<iostream>
#include<cstddef>
using namespace std;

class alloc{};

template<class T,class Alloc=alloc,size_t BufSiz=0>
class deque
{
public:
    deque(){cout<<"deque"<<endl;}
};
//类模板与友元的一对一关系需要前置声明
template<class T,class Sequence>
class stack;

template<class T,class Sequence>
bool operator==(const stack<T,Sequence>& x,const stack<T,Sequence>& y);

template<class T,class Sequence>
bool operator<(const stack<T,Sequence>& x,const stack<T,Sequence>& y);

template<class T,class Sequence=deque<T> >
class stack
{
    //friend bool operator==<T>(const stack<T>&,const stack<T>&);
    //friend bool operator< <T>(const stack<T>&,const stack<T>&);
    //下面的都是等价于上面的
    //friend bool operator== <T>(const stack&,const stack&);
    //friend bool operator< <T>(const stack&,const stack&);

    friend bool operator== <>(const stack&,const stack&);
    friend bool operator< <>(const stack&,const stack&);
public:
    stack(){cout<<"stack"<<endl;}
private:
    Sequence c;
};

template<class T,class Sequence>
bool operator==(const stack<T,Sequence> &x,const stack<T,Sequence> &y)
{
    return cout<<"operator=="<<'\t';
}

template<class T,class Sequence>
bool operator<(const stack<T,Sequence> &x,const stack<T,Sequence> &y)
{
    return cout<<"operator<"<<'\t';
}

int main()
{
    stack<int> x;
    stack<int> y;
    cout<<(x==y)<<endl;
    cout<<(x<y)<<endl;

    stack<char> y1;
//    cout<<(x==y1)<<endl;
 //   cout<<(x<y1)<<endl;
}

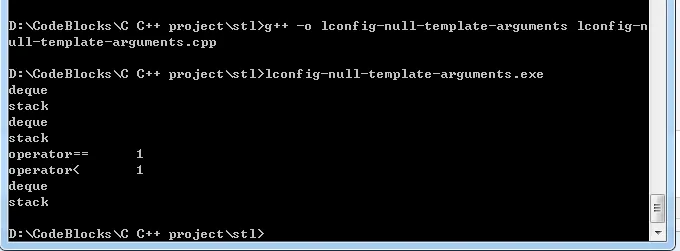

  运行结果:



    2.9)__STL_TEMPLATE_NULL(class template explicit specialization)


<stl_config.h>定义了一个__STL_TEMPLATE_NULL如下:

#ifdef __STL_CLASS_PAPTIAL_SPECIALIZATION
#define __STL_TEMPLATE_NULL template<>
#else
#define __STL_TEMPLATE_NULL
#endif

  这个组态常量常常出现在类似这样的场合:

//in <type_traits.h>
template <class type> struct  _type_traits {...};
__STL_TEMPLATE_NULL struct _type_traits<char> {};

//in <stl_hash_fun.h>
template <class key> struct hash{};
__STL_TEMPLATE_NULL struct hash<char> {};
__STL_TEMPLATE_NULL struct hash<unsigned char> {};

  展开后:

//in <type_traits.h>
template <class type> struct  _type_traits {...};
template<> struct _type_traits<char> {};

//in <stl_hash_fun.h>
template <class key> struct hash{};
template<> struct hash<char> {};
template<> struct hash<unsigned char> {};

  这就是所谓的class template explicit specialization。

下面是一个测试程序:

#include<iostream>
//不能使用 using namespace std 这会将标准库中的hash引入,然后通不过
using std::cout;
using std::endl;

//貌似我使用g++编译,定义为空不能通过
//#define __STL_TEMPLATE_NULL
#define __STL_TEMPLATE_NULL template<>

template <class key>
struct hash
{
    //重载函数调用运算符
    void operator()()
    {
        cout<<"hash<T>"<<endl;
    }
};

template<>
struct hash<char>
{
    void operator()()
    {
        cout<<"hash<char>"<<endl;
    }
};

__STL_TEMPLATE_NULL
struct hash<unsigned char>
{
    void operator()()
    {
        cout<<"hash<unsigned char"<<endl;
    }
};

int main()
{
    hash<long> t1;
    hash<char> t2;
    hash<unsigned char> t3;

    t1();//函数对象和函数指针类似,可以作为可调用对象
    t2();
    t3();
}

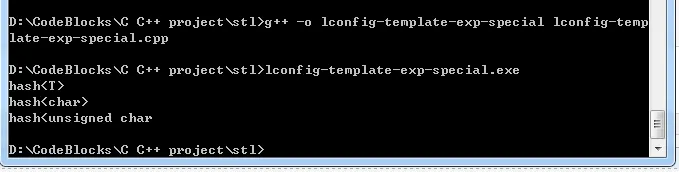

  运行结果:



版权声明:本文内容由阿里云实名注册用户自发贡献,版权归原作者所有,阿里云开发者社区不拥有其著作权,亦不承担相应法律责任。具体规则请查看《阿里云开发者社区用户服务协议》和《阿里云开发者社区知识产权保护指引》。如果您发现本社区中有涉嫌抄袭的内容,填写侵权投诉表单进行举报,一经查实,本社区将立刻删除涉嫌侵权内容。

分享:
开发与运维
使用钉钉扫一扫加入圈子
+ 订阅

集结各类场景实战经验,助你开发运维畅行无忧

其他文章
最新文章
相关文章
