原创转载请注明出处有误请指出


一、前言

叶金荣老师分享了一篇文章如下:
https://mp.weixin.qq.com/s/09DJCyMq8kBn4mlezgzUgg
这里只研究下锁的模式,借用叶老师的表和语句

mysql> select * from t1;
+----+----+----+----+
| c1 | c2 | c3 | c4 |
+----+----+----+----+
|  0 |  0 |  0 |  0 |
|  1 |  1 |  1 |  0 |
|  3 |  3 |  3 |  0 |
|  4 |  2 |  2 |  0 |
|  6 |  8 |  5 |  0 |
|  7 |  6 |  6 | 10 |
| 10 | 10 |  4 |  0 |
+----+----+----+----+
CREATE TABLE `t1` (
  `c1` int(10) unsigned NOT NULL DEFAULT '0',
  `c2` int(10) unsigned NOT NULL DEFAULT '0',
  `c3` int(10) unsigned NOT NULL DEFAULT '0',
  `c4` int(10) unsigned NOT NULL DEFAULT '0',
  PRIMARY KEY (`c1`),
  KEY `c2` (`c2`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8

二、RR模式下的锁模式

我们先来看看下面两个语句的执行计划

mysql> desc  update t1 set c4=123 where c2>=8;
+----+-------------+-------+------------+-------+---------------+------+---------+-------+------+----------+------------------------------+
| id | select_type | table | partitions | type  | possible_keys | key  | key_len | ref   | rows | filtered | Extra                        |
+----+-------------+-------+------------+-------+---------------+------+---------+-------+------+----------+------------------------------+
|  1 | UPDATE      | t1    | NULL       | range | c2            | c2   | 4       | const |    2 |   100.00 | Using where; Using temporary |
+----+-------------+-------+------------+-------+---------------+------+---------+-------+------+----------+------------------------------+
mysql> desc  update t1 set c4=123 where c2>=6;
+----+-------------+-------+------------+-------+---------------+---------+---------+------+------+----------+------------------------------+
| id | select_type | table | partitions | type  | possible_keys | key     | key_len | ref  | rows | filtered | Extra                        |
+----+-------------+-------+------------+-------+---------------+---------+---------+------+------+----------+------------------------------+
|  1 | UPDATE      | t1    | NULL       | index | c2            | PRIMARY | 4       | NULL |    7 |   100.00 | Using where; Using temporary |
+----+-------------+-------+------------+-------+---------------+---------+---------+------+------+----------+------------------------------+

下面两个语句的执行计划不一致,主要注意
type:index和range
key:PRIMARY和c2

我们先要清楚type:index和range的区别
这里借用我以前写的一篇文章
http://blog.itpub.net/7728585/viewspace-2139010/

  1. type:index 不使用索引B+树结构,只使用索引叶子结点链表结构进行扫描,我们知道在索引的叶子结点有一个叶子结点之间的双向指针,
    并且叶子结点的数据是排序好的。他和ALL的方式类似,访问效率并不高,其主要的应用场景为用于避免order by使用using filesort
    也就是避免排序。他是一种访问数据的方式,和range、const、ref、eq_ref等一样。
  2. type:range 显然用于范围查询比如> between 等,其访问方式是考虑到索引的B+树结构的,需要通过根结点-->分支节点-->叶子结点的顺序访问
    其实const、ref、eq_ref等一样也需要这样的定位过程。

我大概画一个图,示意图而已,但是足以解释我的意思


剩下我们需要考虑RR模式下,如下语句有哪些所结构:

mysql> desc  update t1 set c4=123 where c2>=6;
+----+-------------+-------+------------+-------+---------------+---------+---------+------+------+----------+------------------------------+
| id | select_type | table | partitions | type  | possible_keys | key     | key_len | ref  | rows | filtered | Extra                        |
+----+-------------+-------+------------+-------+---------------+---------+---------+------+------+----------+------------------------------+
|  1 | UPDATE      | t1    | NULL       | index | c2            | PRIMARY | 4       | NULL |    7 |   100.00 | Using where; Using temporary |
+----+-------------+-------+------------+-------+---------------+---------+---------+------+------+----------+------------------------------+
RECORD LOCKS space id 532 page no 3 n bits 80 index PRIMARY of table `test`.`t1` trx id 348084 lock_mode X(LOCK_X)
Record lock, heap no 1 PHYSICAL RECORD: n_fields 1; compact format; info bits 0
 0: len 8; hex 73757072656d756d; asc supremum;;
Record lock, heap no 2 PHYSICAL RECORD: n_fields 6; compact format; info bits 0
 0: len 4; hex 00000000; asc     ;;
 1: len 6; hex 000000054abd; asc     J ;;
 2: len 7; hex ba00000e180110; asc        ;;
 3: len 4; hex 00000000; asc     ;;
 4: len 4; hex 00000000; asc     ;;
 5: len 4; hex 00000000; asc     ;;
Record lock, heap no 3 PHYSICAL RECORD: n_fields 6; compact format; info bits 0
 0: len 4; hex 00000001; asc     ;;
 1: len 6; hex 000000054abd; asc     J ;;
 2: len 7; hex ba00000e18011d; asc        ;;
 3: len 4; hex 00000001; asc     ;;
 4: len 4; hex 00000001; asc     ;;
 5: len 4; hex 00000000; asc     ;;
Record lock, heap no 4 PHYSICAL RECORD: n_fields 6; compact format; info bits 0
 0: len 4; hex 00000003; asc     ;;
 1: len 6; hex 000000054abd; asc     J ;;
 2: len 7; hex ba00000e18012a; asc       *;;
 3: len 4; hex 00000003; asc     ;;
 4: len 4; hex 00000003; asc     ;;
 5: len 4; hex 00000000; asc     ;;
Record lock, heap no 5 PHYSICAL RECORD: n_fields 6; compact format; info bits 0
 0: len 4; hex 00000004; asc     ;;
 1: len 6; hex 000000054abd; asc     J ;;
 2: len 7; hex ba00000e180137; asc       7;;
 3: len 4; hex 00000002; asc     ;;
 4: len 4; hex 00000002; asc     ;;
 5: len 4; hex 00000000; asc     ;;
Record lock, heap no 6 PHYSICAL RECORD: n_fields 6; compact format; info bits 0
 0: len 4; hex 00000006; asc     ;;
 1: len 6; hex 000000054fb4; asc     O ;;
 2: len 7; hex 3300000c430b49; asc 3   C I;;
 3: len 4; hex 00000008; asc     ;;
 4: len 4; hex 00000005; asc     ;;
 5: len 4; hex 0000007b; asc    {;;
Record lock, heap no 7 PHYSICAL RECORD: n_fields 6; compact format; info bits 0
 0: len 4; hex 00000007; asc     ;;
 1: len 6; hex 000000054fb4; asc     O ;;
 2: len 7; hex 3300000c430b6b; asc 3   C k;;
 3: len 4; hex 00000006; asc     ;;
 4: len 4; hex 00000006; asc     ;;
 5: len 4; hex 0000007b; asc    {;;
Record lock, heap no 8 PHYSICAL RECORD: n_fields 6; compact format; info bits 0
 0: len 4; hex 0000000a; asc     ;;
 1: len 6; hex 000000054fb4; asc     O ;;
 2: len 7; hex 3300000c430b8d; asc 3   C  ;;
 3: len 4; hex 0000000a; asc     ;;
 4: len 4; hex 00000004; asc     ;;
 5: len 4; hex 0000007b; asc    {;;

我们这里先不考虑表级意向锁,只考虑这里打印出来的锁结构
行锁为:lock_mode X(LOCK_X)|LOCK_ORDINARY(next key lock)
同时我们注意到 0: len 8; hex 73757072656d756d; asc supremum

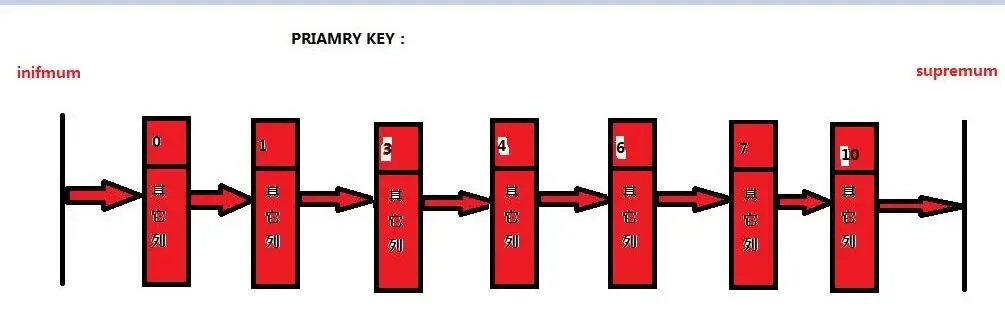

那么我们用一张图来表示


实际上我们从图中可以看出这种情况下RR模式下是主键上所有的行都加上了NEXT_KEY LOCK,所以你其他任何DML操作都会锁定

那么如下语句的锁结构呢?

mysql> desc  update t1 set c4=123 where c2>=8;
+----+-------------+-------+------------+-------+---------------+------+---------+-------+------+----------+------------------------------+
| id | select_type | table | partitions | type  | possible_keys | key  | key_len | ref   | rows | filtered | Extra                        |
+----+-------------+-------+------------+-------+---------------+------+---------+-------+------+----------+------------------------------+
|  1 | UPDATE      | t1    | NULL       | range | c2            | c2   | 4       | const |    2 |   100.00 | Using where; Using temporary |
+----+-------------+-------+------------+-------+---------------+------+---------+-------+------+----------+------------------------------+
1 row in set (0.01 sec)

如下:

-----TRX NO:348661 LOCK STRUCT(1)(Add by gaopeng)
TABLE LOCK table `test`.`t1` trx id 348661 lock mode IX
-----TRX NO:348661 LOCK STRUCT(1)(Add by gaopeng)
RECORD LOCKS space id 532 page no 4 n bits 80 index c2 of table `test`.`t1` trx id 348661 lock_mode X(LOCK_X)
Record lock, heap no 1 PHYSICAL RECORD: n_fields 1; compact format; info bits 0
 0: len 8; hex 73757072656d756d; asc supremum;;
Record lock, heap no 6 PHYSICAL RECORD: n_fields 2; compact format; info bits 0
 0: len 4; hex 00000008; asc     ;;
 1: len 4; hex 00000006; asc     ;;
Record lock, heap no 8 PHYSICAL RECORD: n_fields 2; compact format; info bits 0
 0: len 4; hex 0000000a; asc     ;;
 1: len 4; hex 0000000a; asc     ;;

-----TRX NO:348661 LOCK STRUCT(1)(Add by gaopeng)
RECORD LOCKS space id 532 page no 3 n bits 80 index PRIMARY of table `test`.`t1` trx id 348661 lock_mode X(LOCK_X) locks rec but not gap(LOCK_REC_NOT_GAP)
Record lock, heap no 6 PHYSICAL RECORD: n_fields 6; compact format; info bits 0
 0: len 4; hex 00000006; asc     ;;
 1: len 6; hex 0000000551f5; asc     Q ;;
 2: len 7; hex 71000002700ad1; asc q   p  ;;
 3: len 4; hex 00000008; asc     ;;
 4: len 4; hex 00000005; asc     ;;
 5: len 4; hex 0000007b; asc    {;;
Record lock, heap no 8 PHYSICAL RECORD: n_fields 6; compact format; info bits 0
 0: len 4; hex 0000000a; asc     ;;
 1: len 6; hex 0000000551f5; asc     Q ;;
 2: len 7; hex 71000002700af3; asc q   p  ;;
 3: len 4; hex 0000000a; asc     ;;
 4: len 4; hex 00000004; asc     ;;
 5: len 4; hex 0000007b; asc    {;;

我们可以清晰的观察到INDEX c2上包含
lock_mode X(LOCK_X)|LOCK_ORDINARY(next key lock)
其行包含了 C2:8/C1:6 C2:10/C2:10 还包含 supremum
同时传递到了主键PRIMARY锁结构为
lock_mode X(LOCK_X)|rec but not gap(LOCK_REC_NOT_GAP)

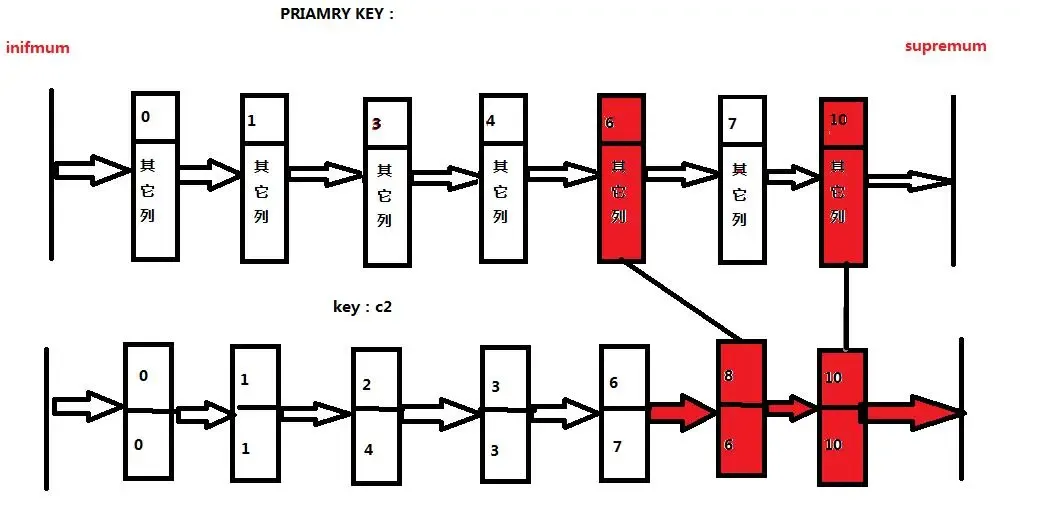

也就是主键上只是锁定了C1:6 C1:10这两行,并且不是gap lock,如果需要画图就是如下:



我们可以发现锁定的范围小了很多很多,这种情况如下语句:
select * from t1 where c1 = 7 for update;
(这里叶老师写的c2=7不知道是不是写错了)
是可以完成的,因为不会落到PRIMARY的锁定范围内。

三、RC模式下的锁定模式

这里只是看看RC模式的锁定结构如下:

mysql> desc  update t1 set c4=123 where c2>=6;
+----+-------------+-------+------------+-------+---------------+---------+---------+------+------+----------+------------------------------+
| id | select_type | table | partitions | type  | possible_keys | key     | key_len | ref  | rows | filtered | Extra                        |
+----+-------------+-------+------------+-------+---------------+---------+---------+------+------+----------+------------------------------+
|  1 | UPDATE      | t1    | NULL       | index | c2            | PRIMARY | 4       | NULL |    7 |   100.00 | Using where; Using temporary |
+----+-------------+-------+------------+-------+---------------+---------+---------+------+------+----------+------------------------------+
1 row in set (0.22 sec)
-----TRX NO:348596 LOCK STRUCT(1)(Add by gaopeng)
RECORD LOCKS space id 532 page no 3 n bits 80 index PRIMARY of table `test`.`t1` trx id 348596 lock_mode X(LOCK_X) locks rec but not gap(LOCK_REC_NOT_GAP)
Record lock, heap no 6 PHYSICAL RECORD: n_fields 6; compact format; info bits 0
 0: len 4; hex 00000006; asc     ;;
 1: len 6; hex 0000000551b4; asc     Q ;;
 2: len 7; hex 3300000c430c03; asc 3   C  ;;
 3: len 4; hex 00000008; asc     ;;
 4: len 4; hex 00000005; asc     ;;
 5: len 4; hex 0000007b; asc    {;;
Record lock, heap no 7 PHYSICAL RECORD: n_fields 6; compact format; info bits 0
 0: len 4; hex 00000007; asc     ;;
 1: len 6; hex 0000000551b4; asc     Q ;;
 2: len 7; hex 3300000c430c25; asc 3   C %;;
 3: len 4; hex 00000006; asc     ;;
 4: len 4; hex 00000006; asc     ;;
 5: len 4; hex 0000007b; asc    {;;
Record lock, heap no 8 PHYSICAL RECORD: n_fields 6; compact format; info bits 0
 0: len 4; hex 0000000a; asc     ;;
 1: len 6; hex 0000000551b4; asc     Q ;;
 2: len 7; hex 3300000c430c47; asc 3   C G;;
 3: len 4; hex 0000000a; asc     ;;
 4: len 4; hex 00000004; asc     ;;
 5: len 4; hex 0000007b; asc    {;;

我们可以清晰的看到RC模式下不考虑隐含锁的情况下只是锁定了PRIMARY的相应的行:
lock_mode X(LOCK_X) locks|rec but not gap(LOCK_REC_NOT_GAP)
注意这里NOT GAP

四、总结

就如叶老师所说,执行计划居然影响了锁的范围,听起来不可能但是他确实就是,所以大家RR模式下应该注意这一点,
同时这里RC模式下

 update t1 set c4=123 where c2>=6;

不堵塞实际上是SEMI UPDATE的功劳,如果RR模式下开启参数innodb_locks_unsafe_for_binlog也不会堵塞
但是至少大家应该如叶老师所说的那么去做,特别是RR模式下。
这里再次感谢叶金荣老师给我们带来这么有趣的案例。
