WPF界面设计技巧(2)—自定义漂亮的按钮样式

简介: 原文:WPF界面设计技巧(2)—自定义漂亮的按钮样式  上次做了个很酷的不规则窗体,这次我们来弄点好看的按钮出来,此次将采用纯代码来设计按钮样式,不需要 Microsoft Expression Design 辅助了。
+关注继续查看
原文:WPF界面设计技巧(2)—自定义漂亮的按钮样式



上次做了个很酷的不规则窗体,这次我们来弄点好看的按钮出来,此次将采用纯代码来设计按钮样式,不需要 Microsoft Expression Design 辅助了。



首先打开 Microsoft Visual Studio 2008 ,新建一个WPF项目,在上面随便放几个按钮:





然后给各个按钮设置不同的背景颜色:





设置好之后就是这样啦:





然后我们就开始在 App.xaml 文件中定义按钮样式了:





定义的样式代码如下:



Code
<Application x:Class="WPFButton.App"
    xmlns
="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x
="http://schemas.microsoft.com/winfx/2006/xaml"
    StartupUri
="Window1.xaml">

<Application.Resources>

<!--定义按钮样式-->

<Style TargetType="Button">

<Setter Property="Foreground" Value="Black"/>

<!--修改模板属性-->

<Setter Property="Template">

<Setter.Value>

<!--控件模板-->

<ControlTemplate TargetType="Button">

<!--背景色-->

<Border x:Name="back" Opacity="0.8" CornerRadius="3">

<Border.BitmapEffect>

<OuterGlowBitmapEffect Opacity="0.7" GlowSize="0" GlowColor="{Binding RelativeSource={RelativeSource TemplatedParent}, Path=(Button.Background).(SolidColorBrush.Color)}" />

</Border.BitmapEffect>

<Border.Background>

<LinearGradientBrush StartPoint="0,0" EndPoint="0,1.5">

<GradientBrush.GradientStops>

<GradientStopCollection>

<GradientStop Color="{Binding RelativeSource={RelativeSource TemplatedParent}, Path=(Button.Background).(SolidColorBrush.Color)}" Offset="0"/>

<GradientStop Color="{Binding RelativeSource={RelativeSource TemplatedParent}, Path=(Button.Background).(SolidColorBrush.Color)}" Offset="0.4"/>

<GradientStop Color="#FFF" Offset="1"/>

</GradientStopCollection>

</GradientBrush.GradientStops>

</LinearGradientBrush>

</Border.Background>

<!--前景色及边框-->

<Border x:Name="fore" BorderThickness="1" CornerRadius="3" BorderBrush="#5555">

<Border.Background>

<LinearGradientBrush StartPoint="0,0" EndPoint="0,1">

<GradientBrush.GradientStops>

<GradientStopCollection>

<GradientStop Color="#6FFF" Offset="0.5"/>

<GradientStop Color="#1111" Offset="0.51"/>

</GradientStopCollection>

</GradientBrush.GradientStops>

</LinearGradientBrush>

</Border.Background>

<!--按钮内容-->

<ContentPresenter x:Name="content" HorizontalAlignment="Center" VerticalAlignment="Center" Content="{TemplateBinding  Content}">

<ContentPresenter.BitmapEffect>

<DropShadowBitmapEffect Color="#000" Direction="-90" ShadowDepth="2" Softness="0.1" Opacity="0.3" />

</ContentPresenter.BitmapEffect>

</ContentPresenter>

</Border>

</Border>

<!--触发器-->

<ControlTemplate.Triggers>

<!--鼠标移入移出-->

<Trigger Property="IsMouseOver" Value="True">

<Trigger.EnterActions>

<BeginStoryboard>

<Storyboard>

<DoubleAnimation To="6" Duration="0:0:0.2" Storyboard.TargetName="back" Storyboard.TargetProperty="(Border.BitmapEffect).(OuterGlowBitmapEffect.GlowSize)" />

<ColorAnimation To="#AFFF" BeginTime="0:0:0.2" Duration="0:0:0.2" Storyboard.TargetName="fore" Storyboard.TargetProperty="(Border.Background).(LinearGradientBrush.GradientStops)[0].(GradientStop.Color)" />

<ColorAnimation To="#3FFF" BeginTime="0:0:0.2" Duration="0:0:0.2" Storyboard.TargetName="fore" Storyboard.TargetProperty="(Border.Background).(LinearGradientBrush.GradientStops)[1].(GradientStop.Color)" />

</Storyboard>

</BeginStoryboard>

</Trigger.EnterActions>

<Trigger.ExitActions>

<BeginStoryboard>

<Storyboard>

<DoubleAnimation Duration="0:0:0.2" Storyboard.TargetName="back" Storyboard.TargetProperty="(Border.BitmapEffect).(OuterGlowBitmapEffect.GlowSize)" />

<ColorAnimation Duration="0:0:0.2" Storyboard.TargetName="fore" Storyboard.TargetProperty="(Border.Background).(LinearGradientBrush.GradientStops)[0].(GradientStop.Color)" />

<ColorAnimation Duration="0:0:0.2" Storyboard.TargetName="fore" Storyboard.TargetProperty="(Border.Background).(LinearGradientBrush.GradientStops)[1].(GradientStop.Color)" />

</Storyboard>

</BeginStoryboard>

</Trigger.ExitActions>

</Trigger>

<!--按钮按下弹起-->

<Trigger Property="IsPressed" Value="True">

<Trigger.EnterActions>

<BeginStoryboard>

<Storyboard>

<DoubleAnimation To="3" Duration="0:0:0.1" Storyboard.TargetName="back" Storyboard.TargetProperty="(Border.BitmapEffect).(OuterGlowBitmapEffect.GlowSize)" />

<ColorAnimation To="#3AAA" Duration="0:0:0.1" Storyboard.TargetName="fore" Storyboard.TargetProperty="(Border.Background).(LinearGradientBrush.GradientStops)[0].(GradientStop.Color)" />

<ColorAnimation To="#2111" Duration="0:0:0.1" Storyboard.TargetName="fore" Storyboard.TargetProperty="(Border.Background).(LinearGradientBrush.GradientStops)[1].(GradientStop.Color)" />

</Storyboard>

</BeginStoryboard>

</Trigger.EnterActions>

<Trigger.ExitActions>

<BeginStoryboard>

<Storyboard>

<DoubleAnimation Duration="0:0:0.1" Storyboard.TargetName="back" Storyboard.TargetProperty="(Border.BitmapEffect).(OuterGlowBitmapEffect.GlowSize)" />

<ColorAnimation Duration="0:0:0.1" Storyboard.TargetName="fore" Storyboard.TargetProperty="(Border.Background).(LinearGradientBrush.GradientStops)[0].(GradientStop.Color)" />

<ColorAnimation Duration="0:0:0.1" Storyboard.TargetName="fore" Storyboard.TargetProperty="(Border.Background).(LinearGradientBrush.GradientStops)[1].(GradientStop.Color)" />

</Storyboard>

</BeginStoryboard>

</Trigger.ExitActions>

</Trigger>

<!--按钮失效-->

<Trigger Property="IsEnabled" Value="False">

<Setter Property="Foreground" Value="#B444"/>

<Trigger.EnterActions>

<BeginStoryboard>

<Storyboard>

<DoubleAnimation To="0" Duration="0:0:0.3" Storyboard.TargetName="back" Storyboard.TargetProperty="(Border.BitmapEffect).(OuterGlowBitmapEffect.GlowSize)" />

<DoubleAnimation To="1" Duration="0:0:0.1" Storyboard.TargetName="content" Storyboard.TargetProperty="(ContentPresenter.BitmapEffect).(DropShadowBitmapEffect.Opacity)" />

<DoubleAnimation To="-135" Duration="0:0:0.1" Storyboard.TargetName="content" Storyboard.TargetProperty="(ContentPresenter.BitmapEffect).(DropShadowBitmapEffect.Direction)" />

<ColorAnimation To="#FFF" Duration="0:0:0.3" Storyboard.TargetName="content" Storyboard.TargetProperty="(ContentPresenter.BitmapEffect).(DropShadowBitmapEffect.Color)" />

<ColorAnimation To="#D555" Duration="0:0:0.3" Storyboard.TargetName="fore" Storyboard.TargetProperty="(Border.BorderBrush).(SolidColorBrush.Color)" />

<ColorAnimation To="#CEEE" Duration="0:0:0.3" Storyboard.TargetName="fore" Storyboard.TargetProperty="(Border.Background).(LinearGradientBrush.GradientStops)[0].(GradientStop.Color)" />

<ColorAnimation To="#CDDD" Duration="0:0:0.3" Storyboard.TargetName="fore" Storyboard.TargetProperty="(Border.Background).(LinearGradientBrush.GradientStops)[1].(GradientStop.Color)" />

</Storyboard>

</BeginStoryboard>

</Trigger.EnterActions>

<Trigger.ExitActions>

<BeginStoryboard>

<Storyboard>

<DoubleAnimation Duration="0:0:0.1" Storyboard.TargetName="back" Storyboard.TargetProperty="(Border.BitmapEffect).(OuterGlowBitmapEffect.GlowSize)" />

<DoubleAnimation Duration="0:0:0.1" Storyboard.TargetName="content" Storyboard.TargetProperty="(ContentPresenter.BitmapEffect).(DropShadowBitmapEffect.Opacity)" />

<DoubleAnimation Duration="0:0:0.1" Storyboard.TargetName="content" Storyboard.TargetProperty="(ContentPresenter.BitmapEffect).(DropShadowBitmapEffect.Direction)" />

<ColorAnimation Duration="0:0:0.1" Storyboard.TargetName="content" Storyboard.TargetProperty="(ContentPresenter.BitmapEffect).(DropShadowBitmapEffect.Color)" />

<ColorAnimation Duration="0:0:0.1" Storyboard.TargetName="fore" Storyboard.TargetProperty="(Border.BorderBrush).(SolidColorBrush.Color)" />

<ColorAnimation Duration="0:0:0.1" Storyboard.TargetName="fore" Storyboard.TargetProperty="(Border.Background).(LinearGradientBrush.GradientStops)[0].(GradientStop.Color)" />

<ColorAnimation Duration="0:0:0.1" Storyboard.TargetName="fore" Storyboard.TargetProperty="(Border.Background).(LinearGradientBrush.GradientStops)[1].(GradientStop.Color)" />

</Storyboard>

</BeginStoryboard>

</Trigger.ExitActions>

</Trigger>

</ControlTemplate.Triggers>

</ControlTemplate>

</Setter.Value>

</Setter>

</Style>

</Application.Resources>
</Application>



看了先不要头大,我们先看看最终效果,然后回过头来再解释代码:





这是常规样式





这个是鼠标移到上面时的样式







这个是鼠标点击时的样式





还有就是按钮失效时的样式





效果还算不错吧,下面来讲解代码喽,头晕的同学可以现在就收拾东西回家了哈。





我们先来看这个命名为“back”的 Border 元素,它用它的 Background 属性充当了整个按钮的背景色。





<Border.Background>

<LinearGradientBrush StartPoint="0,0" EndPoint="0,1.5">

<GradientBrush.GradientStops>

<GradientStopCollection>

<GradientStop Color="{Binding RelativeSource={RelativeSource TemplatedParent}, Path=(Button.Background).(SolidColorBrush.Color)}" Offset="0"/>

<GradientStop Color="{Binding RelativeSource={RelativeSource TemplatedParent}, Path=(Button.Background).(SolidColorBrush.Color)}" Offset="0.4"/>

<GradientStop Color="#FFF" Offset="1"/>

</GradientStopCollection>

</GradientBrush.GradientStops>

</LinearGradientBrush>

</Border.Background>



其背景所用的是一个渐变笔刷,起始值和中间值都是引用的按钮本身的背景色,就是我们之前设置过的颜色啦,终止值是白色,这样通过位置调整,我们可以在按钮最下部产生一些向白色的过度色彩效果。





<Border.BitmapEffect>

<OuterGlowBitmapEffect Opacity="0.7" GlowSize="0" GlowColor="{Binding RelativeSource={RelativeSource TemplatedParent}, Path=(Button.Background).(SolidColorBrush.Color)}" />

</Border.BitmapEffect>



它的 BitmapEffect 属性我们设置了一个大小为 0 的外发光效果,平常是看不见这效果的,在这里预先设置好,是为了在鼠标移入、按下时实现动画使用。





再来看看这个命名为“fore”的 Border 元素,它实现的是按钮的边框和高亮反光效果,我为它设置了一个半透明的黑色1像素边框,使得这个边框的色彩可以和背景色混合起来。





                                <Border.Background>

<LinearGradientBrush StartPoint="0,0" EndPoint="0,1">

<GradientBrush.GradientStops>

<GradientStopCollection>

<GradientStop Color="#6FFF" Offset="0.5"/>

<GradientStop Color="#1111" Offset="0.51"/>

</GradientStopCollection>

</GradientBrush.GradientStops>

</LinearGradientBrush>

</Border.Background>



它的背景同样采用的渐变笔刷,起始值和终止值的位置几乎贴在一起,从而形成比较鲜明的反光度对比。





ContentPresenter 元素用于呈现按钮原本的内容,对于按钮来说就是按钮上的文字了,当然也可能会存在图片或其它东西。





                                    <ContentPresenter.BitmapEffect>

<DropShadowBitmapEffect Color="#000" Direction="-90" ShadowDepth="2" Softness="0.1" Opacity="0.3" />

</ContentPresenter.BitmapEffect>



我为之加了一个不太明显的阴影滤镜以增强显示效果。

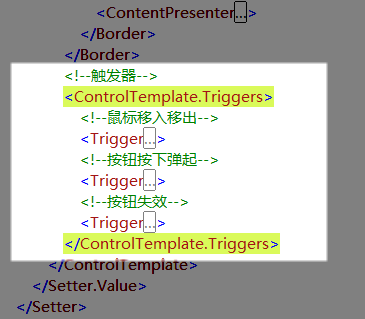

剩下的就是些可爱又该死的 Trigger ,我们通过这些触发器来改变按钮在不同状态时的外观。





                            <!--鼠标移入移出-->

<Trigger Property="IsMouseOver" Value="True">

<Trigger.EnterActions>

<BeginStoryboard>

<Storyboard>

<DoubleAnimation To="6" Duration="0:0:0.2" Storyboard.TargetName="back" Storyboard.TargetProperty="(Border.BitmapEffect).(OuterGlowBitmapEffect.GlowSize)" />

<ColorAnimation To="#AFFF" BeginTime="0:0:0.2" Duration="0:0:0.2" Storyboard.TargetName="fore" Storyboard.TargetProperty="(Border.Background).(LinearGradientBrush.GradientStops)[0].(GradientStop.Color)" />

<ColorAnimation To="#3FFF" BeginTime="0:0:0.2" Duration="0:0:0.2" Storyboard.TargetName="fore" Storyboard.TargetProperty="(Border.Background).(LinearGradientBrush.GradientStops)[1].(GradientStop.Color)" />

</Storyboard>

</BeginStoryboard>

</Trigger.EnterActions>

<Trigger.ExitActions>

<BeginStoryboard>

<Storyboard>

<DoubleAnimation Duration="0:0:0.2" Storyboard.TargetName="back" Storyboard.TargetProperty="(Border.BitmapEffect).(OuterGlowBitmapEffect.GlowSize)" />

<ColorAnimation Duration="0:0:0.2" Storyboard.TargetName="fore" Storyboard.TargetProperty="(Border.Background).(LinearGradientBrush.GradientStops)[0].(GradientStop.Color)" />

<ColorAnimation Duration="0:0:0.2" Storyboard.TargetName="fore" Storyboard.TargetProperty="(Border.Background).(LinearGradientBrush.GradientStops)[1].(GradientStop.Color)" />

</Storyboard>

</BeginStoryboard>

</Trigger.ExitActions>

</Trigger>



在鼠标移入按钮时,我依次创建了改变外发光效果大小、改变上部反光区域颜色、改变下部反光区域颜色的动画,这里的要点就在于“Storyboard.TargetProperty="(Border.Background).(LinearGradientBrush.GradientStops)[1].(GradientStop.Color)"”属性设置语句,琢磨一下你就能看出这是对属性路径的描述,只不过它们写起来和看起来都很让人生气。





                            <!--按钮按下弹起-->

<Trigger Property="IsPressed" Value="True">

<Trigger.EnterActions>

<BeginStoryboard>

<Storyboard>

<DoubleAnimation To="3" Duration="0:0:0.1" Storyboard.TargetName="back" Storyboard.TargetProperty="(Border.BitmapEffect).(OuterGlowBitmapEffect.GlowSize)" />

<ColorAnimation To="#3AAA" Duration="0:0:0.1" Storyboard.TargetName="fore" Storyboard.TargetProperty="(Border.Background).(LinearGradientBrush.GradientStops)[0].(GradientStop.Color)" />

<ColorAnimation To="#2111" Duration="0:0:0.1" Storyboard.TargetName="fore" Storyboard.TargetProperty="(Border.Background).(LinearGradientBrush.GradientStops)[1].(GradientStop.Color)" />

</Storyboard>

</BeginStoryboard>

</Trigger.EnterActions>

<Trigger.ExitActions>

<BeginStoryboard>

<Storyboard>

<DoubleAnimation Duration="0:0:0.1" Storyboard.TargetName="back" Storyboard.TargetProperty="(Border.BitmapEffect).(OuterGlowBitmapEffect.GlowSize)" />

<ColorAnimation Duration="0:0:0.1" Storyboard.TargetName="fore" Storyboard.TargetProperty="(Border.Background).(LinearGradientBrush.GradientStops)[0].(GradientStop.Color)" />

<ColorAnimation Duration="0:0:0.1" Storyboard.TargetName="fore" Storyboard.TargetProperty="(Border.Background).(LinearGradientBrush.GradientStops)[1].(GradientStop.Color)" />

</Storyboard>

</BeginStoryboard>

</Trigger.ExitActions>

</Trigger>



按下和弹起按钮时,我们做了相似的动画改变,与前面相比只是数值略微不同。





                            <!--按钮失效-->

<Trigger Property="IsEnabled" Value="False">

<Setter Property="Foreground" Value="#B444"/>

<Trigger.EnterActions>

<BeginStoryboard>

<Storyboard>

<DoubleAnimation To="0" Duration="0:0:0.3" Storyboard.TargetName="back" Storyboard.TargetProperty="(Border.BitmapEffect).(OuterGlowBitmapEffect.GlowSize)" />

<DoubleAnimation To="1" Duration="0:0:0.1" Storyboard.TargetName="content" Storyboard.TargetProperty="(ContentPresenter.BitmapEffect).(DropShadowBitmapEffect.Opacity)" />

<DoubleAnimation To="-135" Duration="0:0:0.1" Storyboard.TargetName="content" Storyboard.TargetProperty="(ContentPresenter.BitmapEffect).(DropShadowBitmapEffect.Direction)" />

<ColorAnimation To="#FFF" Duration="0:0:0.3" Storyboard.TargetName="content" Storyboard.TargetProperty="(ContentPresenter.BitmapEffect).(DropShadowBitmapEffect.Color)" />

<ColorAnimation To="#D555" Duration="0:0:0.3" Storyboard.TargetName="fore" Storyboard.TargetProperty="(Border.BorderBrush).(SolidColorBrush.Color)" />

<ColorAnimation To="#CEEE" Duration="0:0:0.3" Storyboard.TargetName="fore" Storyboard.TargetProperty="(Border.Background).(LinearGradientBrush.GradientStops)[0].(GradientStop.Color)" />

<ColorAnimation To="#CDDD" Duration="0:0:0.3" Storyboard.TargetName="fore" Storyboard.TargetProperty="(Border.Background).(LinearGradientBrush.GradientStops)[1].(GradientStop.Color)" />

</Storyboard>

</BeginStoryboard>

</Trigger.EnterActions>

<Trigger.ExitActions>

<BeginStoryboard>

<Storyboard>

<DoubleAnimation Duration="0:0:0.1" Storyboard.TargetName="back" Storyboard.TargetProperty="(Border.BitmapEffect).(OuterGlowBitmapEffect.GlowSize)" />

<DoubleAnimation Duration="0:0:0.1" Storyboard.TargetName="content" Storyboard.TargetProperty="(ContentPresenter.BitmapEffect).(DropShadowBitmapEffect.Opacity)" />

<DoubleAnimation Duration="0:0:0.1" Storyboard.TargetName="content" Storyboard.TargetProperty="(ContentPresenter.BitmapEffect).(DropShadowBitmapEffect.Direction)" />

<ColorAnimation Duration="0:0:0.1" Storyboard.TargetName="content" Storyboard.TargetProperty="(ContentPresenter.BitmapEffect).(DropShadowBitmapEffect.Color)" />

<ColorAnimation Duration="0:0:0.1" Storyboard.TargetName="fore" Storyboard.TargetProperty="(Border.BorderBrush).(SolidColorBrush.Color)" />

<ColorAnimation Duration="0:0:0.1" Storyboard.TargetName="fore" Storyboard.TargetProperty="(Border.Background).(LinearGradientBrush.GradientStops)[0].(GradientStop.Color)" />

<ColorAnimation Duration="0:0:0.1" Storyboard.TargetName="fore" Storyboard.TargetProperty="(Border.Background).(LinearGradientBrush.GradientStops)[1].(GradientStop.Color)" />

</Storyboard>

</BeginStoryboard>

</Trigger.ExitActions>

</Trigger>



当按钮失效时,我要改变很多东西,首先将文字颜色设为灰色,然后依次创建了改变外发光效果大小、改变内容阴影效果不透明度、改变内容阴影效果角度、改变内容阴影效果颜色、改变按钮边框颜色、改变上部反光区域颜色、改变下部反光区域颜色的动画。



这里将先前对内容应用的阴影效果彻底改变,使之产生凹陷的效果。





好了,到这里就下课啦,文章有点冗长了,但应该对新手很有帮助,老鸟估计现在已经梦游仙境了吧。



源文件下载
