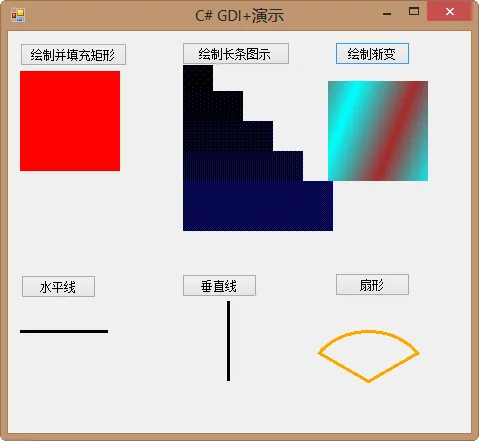

C# GDI+简单绘图演示

 1 using System;
 2 using System.Collections.Generic;
 3 using System.ComponentModel;
 4 using System.Data;
 5 using System.Drawing;
 6 using System.Linq;
 7 using System.Text;
 8 using System.Threading.Tasks;
 9 using System.Windows.Forms;
10 using System.Drawing.Drawing2D;
11
12 namespace WindowsFormsApplication3
13 {
14     public partial class Form1 : Form
15     {
16         public Form1()
17         {
18             InitializeComponent();
19         }
20
21         private void button1_Click(object sender, EventArgs e)
22         {
23             Graphics ghs = this.CreateGraphics();
24             Brush mybs = new SolidBrush(Color.Red);
25             Rectangle rt = new Rectangle(12, 40, 100, 100);
26             ghs.FillRectangle(mybs, rt);
27         }
28
29         private void button2_Click(object sender, EventArgs e)
30         {
31             Graphics ghs = this.CreateGraphics();
32             for (int i = 1; i < 6; i++)
33             {
34                 HatchStyle hs = (HatchStyle)(5 + i);
35                 HatchBrush hb = new HatchBrush(hs, Color.Blue);
36                 Rectangle rtl = new Rectangle(175, 30 * i, 30 * i, 50);
37                 ghs.FillRectangle(hb, rtl);
38             }
39         }
40
41         private void button3_Click(object sender, EventArgs e)
42         {
43             Point p1 = new Point(300, 30);
44             Point p2 = new Point(350, 50);
45             LinearGradientBrush lgb = new LinearGradientBrush(p1, p2, Color.Brown, Color.Cyan);
46             Graphics ghs = this.CreateGraphics();
47             lgb.WrapMode = WrapMode.TileFlipX;
48             ghs.FillRectangle(lgb, 320, 50, 100, 100);
49         }
50
51         private void button4_Click(object sender, EventArgs e)
52         {
53             Pen blackPen = new Pen(Color.Black, 3);
54             Point point1 = new Point(12, 300);
55             Point point2 = new Point(100, 300);
56             Graphics g = this.CreateGraphics();
57             g.DrawLine(blackPen, point1, point2);
58         }
59
60         private void button5_Click(object sender, EventArgs e)
61         {
62             Graphics graphics = this.CreateGraphics();
63             Pen myPen = new Pen(Color.Black, 3);
64             Point point1 = new Point(220, 270);
65             Point point2 = new Point(220, 350);
66             graphics.DrawLine(myPen, point1, point2);
67         }
68
69         private void button6_Click(object sender, EventArgs e)
70         {
71             Graphics ghs = this.CreateGraphics();
72             Pen myPen = new Pen(Color.Orange, 3);
73             ghs.DrawPie(myPen,300,300,120,100, 210,120);
74         }
75     }
76 }
