ALICloudDB for PostgreSQL 试用报告 - 2 教你RDS PG的水平分库

2015-12-20 5335
版权
版权声明：
本文内容由阿里云实名注册用户自发贡献，版权归原作者所有，阿里云开发者社区不拥有其著作权，亦不承担相应法律责任。具体规则请查看《 阿里云开发者社区用户服务协议》和 《阿里云开发者社区知识产权保护指引》。如果您发现本社区中有涉嫌抄袭的内容，填写 侵权投诉表单进行举报，一经查实，本社区将立刻删除涉嫌侵权内容。
本文涉及的产品
云数据库 RDS SQL Server，基础系列 2核4GB
推荐场景：
SQL Server性能诊断案例分析
云原生数据库 PolarDB 分布式版，标准版 2核8GB
推荐场景：
使用PolarDB-X与Flink搭建实时数据大屏
RDS SQL Server Serverless，2-4RCU 50GB 3个月
推荐场景：
简介：

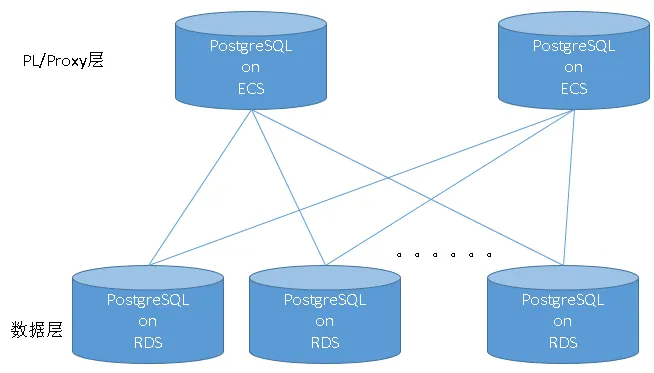

使用pl/proxy 做分布式处理的性能。
大家可供参考，注意目前plproxy不支持跨库关联，仅仅是函数代理。
如果要做跨库事务需要结合PostgreSQL的prepared transaction(分布式事务/2PC)来实现，
如果要做跨库关联，可以用PostgreSQL的外部表，例如在每个节点上都建立其他节点需要关联的表的外部表，这样也可以做关联。
plproxy支持run on all,any,NR,HASH四种方式。
接下来我会一一测试 。




部署ECS：
安装PostgreSQL 9.4.3，略。
安装plproxy，可参考









   cd plproxy








   export PATH=/opt/pgsql/bin:$PATH








   gmake








   gmake install



















   psql








   create extension plproxy;

在plproxy代理节点部署数据库密码文件：
编辑密码文件，免输入密码。(主机名和密码以模糊化，一共有16台RDS)






    # vi ~/.pgpass








    xxxx.pg.rds.aliyuncs.com:3433:*:digoal:xxxx








    xxxx.pg.rds.aliyuncs.com:3433:*:digoal:xxxx








    xxxx.pg.rds.aliyuncs.com:3433:*:digoal:xxxx








    xxxx.pg.rds.aliyuncs.com:3433:*:digoal:xxxx








    xxxx.pg.rds.aliyuncs.com:3433:*:digoal:xxxx








    xxxx.pg.rds.aliyuncs.com:3433:*:digoal:xxxx








    xxxx.pg.rds.aliyuncs.com:3433:*:digoal:xxxx








    xxxx.pg.rds.aliyuncs.com:3433:*:digoal:xxxx








    xxxx.pg.rds.aliyuncs.com:3433:*:digoal:xxxx








    xxxx.pg.rds.aliyuncs.com:3433:*:digoal:xxxx








    xxxx.pg.rds.aliyuncs.com:3433:*:renny:xxxx








    xxxx.pg.rds.aliyuncs.com:3433:*:postgres:xxxx








    xxxx.pg.rds.aliyuncs.com:3433:*:dbnosql:xxxx








    xxxx.pg.rds.aliyuncs.com:3433:*:dbuser:xxxx








    xxxx.pg.rds.aliyuncs.com:3433:*:dbuser:xxxx








    xxxx.pg.rds.aliyuncs.com:3433:*:dbuser:xxxx



















    chmod 400 ~/.pgpass
创建server，用于部署plproxy前期管理远程数据库。






    create extension dblink;



















    CREATE SERVER p0 FOREIGN DATA WRAPPER dblink_fdw OPTIONS (host 'xxxx1.pg.rds.aliyuncs.com', dbname 'postgres', port '3433');








    CREATE SERVER p1 FOREIGN DATA WRAPPER dblink_fdw OPTIONS (host 'xxxx2.pg.rds.aliyuncs.com', dbname 'postgres', port '3433');








    CREATE SERVER p2 FOREIGN DATA WRAPPER dblink_fdw OPTIONS (host 'xxxx3.pg.rds.aliyuncs.com', dbname 'postgres', port '3433');








    CREATE SERVER p3 FOREIGN DATA WRAPPER dblink_fdw OPTIONS (host 'xxxx4.pg.rds.aliyuncs.com', dbname 'postgres', port '3433');








    CREATE SERVER p4 FOREIGN DATA WRAPPER dblink_fdw OPTIONS (host 'xxxx5.pg.rds.aliyuncs.com', dbname 'postgres', port '3433');








    CREATE SERVER p5 FOREIGN DATA WRAPPER dblink_fdw OPTIONS (host 'xxxx6.pg.rds.aliyuncs.com', dbname 'postgres', port '3433');








    CREATE SERVER p6 FOREIGN DATA WRAPPER dblink_fdw OPTIONS (host 'xxxx7.pg.rds.aliyuncs.com', dbname 'postgres', port '3433');








    CREATE SERVER p7 FOREIGN DATA WRAPPER dblink_fdw OPTIONS (host 'xxxx8.pg.rds.aliyuncs.com', dbname 'postgres', port '3433');








    CREATE SERVER p8 FOREIGN DATA WRAPPER dblink_fdw OPTIONS (host 'xxxx9.pg.rds.aliyuncs.com', dbname 'postgres', port '3433');








    CREATE SERVER p9 FOREIGN DATA WRAPPER dblink_fdw OPTIONS (host 'xxxx10.pg.rds.aliyuncs.com', dbname 'postgres', port '3433');








    CREATE SERVER p10 FOREIGN DATA WRAPPER dblink_fdw OPTIONS (host 'xxxx11.pg.rds.aliyuncs.com', dbname 'postgres', port '3433');








    CREATE SERVER p11 FOREIGN DATA WRAPPER dblink_fdw OPTIONS (host 'xxxx12.pg.rds.aliyuncs.com', dbname 'postgres', port '3433');








    CREATE SERVER p12 FOREIGN DATA WRAPPER dblink_fdw OPTIONS (host 'xxxx13.pg.rds.aliyuncs.com', dbname 'postgres', port '3433');








    CREATE SERVER p13 FOREIGN DATA WRAPPER dblink_fdw OPTIONS (host 'xxxx14.pg.rds.aliyuncs.com', dbname 'postgres', port '3433');








    CREATE SERVER p14 FOREIGN DATA WRAPPER dblink_fdw OPTIONS (host 'xxxx15.pg.rds.aliyuncs.com', dbname 'postgres', port '3433');








    CREATE SERVER p15 FOREIGN DATA WRAPPER dblink_fdw OPTIONS (host 'xxxx16.pg.rds.aliyuncs.com', dbname 'postgres', port '3433');

创建user mapping






    CREATE USER MAPPING FOR public SERVER p0 OPTIONS (user 'digoal');








    CREATE USER MAPPING FOR public SERVER p1 OPTIONS (user 'digoal');








    CREATE USER MAPPING FOR public SERVER p2 OPTIONS (user 'digoal');








    CREATE USER MAPPING FOR public SERVER p3 OPTIONS (user 'digoal');








    CREATE USER MAPPING FOR public SERVER p4 OPTIONS (user 'digoal');








    CREATE USER MAPPING FOR public SERVER p5 OPTIONS (user 'digoal');








    CREATE USER MAPPING FOR public SERVER p6 OPTIONS (user 'digoal');








    CREATE USER MAPPING FOR public SERVER p7 OPTIONS (user 'digoal');








    CREATE USER MAPPING FOR public SERVER p8 OPTIONS (user 'digoal');








    CREATE USER MAPPING FOR public SERVER p9 OPTIONS (user 'digoal');








    CREATE USER MAPPING FOR public SERVER p10 OPTIONS (user 'renny');








    CREATE USER MAPPING FOR public SERVER p11 OPTIONS (user 'postgres');








    CREATE USER MAPPING FOR public SERVER p12 OPTIONS (user 'dbnosql');








    CREATE USER MAPPING FOR public SERVER p13 OPTIONS (user 'dbuser');








    CREATE USER MAPPING FOR public SERVER p14 OPTIONS (user 'dbuser');








    CREATE USER MAPPING FOR public SERVER p15 OPTIONS (user 'dbuser');

创建一个不报错的dblink建立函数，方便管理用：






    create or replace function new_dblink_connect(text,text) returns void as $$








    declare








    begin








      perform dblink_connect($1,$2);








      exception








        when SQLSTATE '42710' then








          return;








        when others then








          raise;








    end;








    $$ language plpgsql;

在16台数据节点分别创建2个数据库，一共32个数据库(db0,db16; db1,db17;, ..... db15,db31;)，将用于演示数据节点扩容。






    do language plpgsql $$








    declare








    begin








      for i in 0..15 loop








        perform new_dblink_connect('p'||i||'_conn', 'p'||i);








        perform dblink_exec('p'||i||'_conn', 'create database db'||i, false);








        perform dblink_exec('p'||i||'_conn', 'create database db'||(i+16), false);








        perform dblink_disconnect('p'||i||'_conn');








      end loop;








    end;








    $$;

修改server到对应的32个DB。






    alter server p0 options (set dbname 'db0');








    alter server p1 options (set dbname 'db1');








    alter server p2 options (set dbname 'db2');








    alter server p3 options (set dbname 'db3');








    alter server p4 options (set dbname 'db4');








    alter server p5 options (set dbname 'db5');








    alter server p6 options (set dbname 'db6');








    alter server p7 options (set dbname 'db7');








    alter server p8 options (set dbname 'db8');








    alter server p9 options (set dbname 'db9');








    alter server p10 options (set dbname 'db10');








    alter server p11 options (set dbname 'db11');








    alter server p12 options (set dbname 'db12');








    alter server p13 options (set dbname 'db13');








    alter server p14 options (set dbname 'db14');








    alter server p15 options (set dbname 'db15');

新建剩余的DB。每个+16得到新的DB号。






    CREATE SERVER p16 FOREIGN DATA WRAPPER dblink_fdw OPTIONS (host 'xxxx1.pg.rds.aliyuncs.com', dbname 'db16', port '3433');








    CREATE SERVER p17 FOREIGN DATA WRAPPER dblink_fdw OPTIONS (host 'xxxx2.pg.rds.aliyuncs.com', dbname 'db17', port '3433');








    CREATE SERVER p18 FOREIGN DATA WRAPPER dblink_fdw OPTIONS (host 'xxxx3.pg.rds.aliyuncs.com', dbname 'db18', port '3433');








    CREATE SERVER p19 FOREIGN DATA WRAPPER dblink_fdw OPTIONS (host 'xxxx4.pg.rds.aliyuncs.com', dbname 'db19', port '3433');








    CREATE SERVER p20 FOREIGN DATA WRAPPER dblink_fdw OPTIONS (host 'xxxx5.pg.rds.aliyuncs.com', dbname 'db20', port '3433');








    CREATE SERVER p21 FOREIGN DATA WRAPPER dblink_fdw OPTIONS (host 'xxxx6.pg.rds.aliyuncs.com', dbname 'db21', port '3433');








    CREATE SERVER p22 FOREIGN DATA WRAPPER dblink_fdw OPTIONS (host 'xxxx7.pg.rds.aliyuncs.com', dbname 'db22', port '3433');








    CREATE SERVER p23 FOREIGN DATA WRAPPER dblink_fdw OPTIONS (host 'xxxx8.pg.rds.aliyuncs.com', dbname 'db23', port '3433');








    CREATE SERVER p24 FOREIGN DATA WRAPPER dblink_fdw OPTIONS (host 'xxxx9.pg.rds.aliyuncs.com', dbname 'db24', port '3433');








    CREATE SERVER p25 FOREIGN DATA WRAPPER dblink_fdw OPTIONS (host 'xxxx10.pg.rds.aliyuncs.com', dbname 'db25', port '3433');








    CREATE SERVER p26 FOREIGN DATA WRAPPER dblink_fdw OPTIONS (host 'xxxx11.pg.rds.aliyuncs.com', dbname 'db26', port '3433');








    CREATE SERVER p27 FOREIGN DATA WRAPPER dblink_fdw OPTIONS (host 'xxxx12.pg.rds.aliyuncs.com', dbname 'db27', port '3433');








    CREATE SERVER p28 FOREIGN DATA WRAPPER dblink_fdw OPTIONS (host 'xxxx13.pg.rds.aliyuncs.com', dbname 'db28', port '3433');








    CREATE SERVER p29 FOREIGN DATA WRAPPER dblink_fdw OPTIONS (host 'xxxx14.pg.rds.aliyuncs.com', dbname 'db29', port '3433');








    CREATE SERVER p30 FOREIGN DATA WRAPPER dblink_fdw OPTIONS (host 'xxxx15.pg.rds.aliyuncs.com', dbname 'db30', port '3433');








    CREATE SERVER p31 FOREIGN DATA WRAPPER dblink_fdw OPTIONS (host 'xxxx16.pg.rds.aliyuncs.com', dbname 'db31', port '3433');

创建user mapping






    CREATE USER MAPPING FOR public SERVER p16 OPTIONS (user 'digoal');








    CREATE USER MAPPING FOR public SERVER p17 OPTIONS (user 'digoal');








    CREATE USER MAPPING FOR public SERVER p18 OPTIONS (user 'digoal');








    CREATE USER MAPPING FOR public SERVER p19 OPTIONS (user 'digoal');








    CREATE USER MAPPING FOR public SERVER p20 OPTIONS (user 'digoal');








    CREATE USER MAPPING FOR public SERVER p21 OPTIONS (user 'digoal');








    CREATE USER MAPPING FOR public SERVER p22 OPTIONS (user 'digoal');








    CREATE USER MAPPING FOR public SERVER p23 OPTIONS (user 'digoal');








    CREATE USER MAPPING FOR public SERVER p24 OPTIONS (user 'digoal');








    CREATE USER MAPPING FOR public SERVER p25 OPTIONS (user 'digoal');








    CREATE USER MAPPING FOR public SERVER p26 OPTIONS (user 'renny');








    CREATE USER MAPPING FOR public SERVER p27 OPTIONS (user 'postgres');








    CREATE USER MAPPING FOR public SERVER p28 OPTIONS (user 'dbnosql');








    CREATE USER MAPPING FOR public SERVER p29 OPTIONS (user 'dbuser');








    CREATE USER MAPPING FOR public SERVER p30 OPTIONS (user 'dbuser');








    CREATE USER MAPPING FOR public SERVER p31 OPTIONS (user 'dbuser');

增加一个application_name的参数，用于分辨节点：






    alter server p0 options (add application_name '0');








    alter server p1 options (add application_name '1');








    alter server p2 options (add application_name '2');








    alter server p3 options (add application_name '3');








    alter server p4 options (add application_name '4');








    alter server p5 options (add application_name '5');








    alter server p6 options (add application_name '6');








    alter server p7 options (add application_name '7');








    alter server p8 options (add application_name '8');








    alter server p9 options (add application_name '9');








    alter server p10 options (add application_name '10');








    alter server p11 options (add application_name '11');








    alter server p12 options (add application_name '12');








    alter server p13 options (add application_name '13');








    alter server p14 options (add application_name '14');








    alter server p15 options (add application_name '15');








    alter server p16 options (add application_name '16');








    alter server p17 options (add application_name '17');








    alter server p18 options (add application_name '18');








    alter server p19 options (add application_name '19');








    alter server p20 options (add application_name '20');








    alter server p21 options (add application_name '21');








    alter server p22 options (add application_name '22');








    alter server p23 options (add application_name '23');








    alter server p24 options (add application_name '24');








    alter server p25 options (add application_name '25');








    alter server p26 options (add application_name '26');








    alter server p27 options (add application_name '27');








    alter server p28 options (add application_name '28');








    alter server p29 options (add application_name '29');








    alter server p30 options (add application_name '30');








    alter server p31 options (add application_name '31');

在16台数据节点的32个数据库，每个RDS跑两个数据库。(db0,db16; db1,db17;, ..... db15,db31;)：
1. 创建schema: digoal；
2. 创建动态函数，用于plproxy测试动态查询。







    do language plpgsql $$








    declare








      v_sql text;








    begin








      v_sql := 'CREATE OR REPLACE FUNCTION digoal.dy(sql text)








         RETURNS SETOF record








         LANGUAGE plpgsql








         STRICT








        AS $function$








          declare








            rec record;








          begin








            for rec in execute sql loop








              return next rec;








            end loop;








            return;








          end;








        $function$;';



















      for i in 0..31 loop








        perform new_dblink_connect('p'||i||'_conn', 'p'||i);








        perform dblink_exec('p'||i||'_conn', 'create schema digoal', false);








        perform dblink_exec('p'||i||'_conn', v_sql, false);








        perform dblink_disconnect('p'||i||'_conn');








      end loop;








    end;








    $$;

创建plproxy使用的集群，注意顺序：






    CREATE SERVER rds_pg_cluster FOREIGN DATA WRAPPER plproxy options(












     connection_lifetime '1800',








     disable_binary  '0',












    p0 'host=xxxx1.pg.rds.aliyuncs.com dbname=db0 port=3433 user=digoal keepalives_idle=30 keepalives_interval=10 keepalives_count=10 application_name=0',








    p1 'host=xxxx2.pg.rds.aliyuncs.com dbname=db1 port=3433 user=digoal keepalives_idle=30 keepalives_interval=10 keepalives_count=10 application_name=1',








    p2 'host=xxxx3.pg.rds.aliyuncs.com dbname=db2 port=3433 user=digoal keepalives_idle=30 keepalives_interval=10 keepalives_count=10 application_name=2',








    p3 'host=xxxx4.pg.rds.aliyuncs.com dbname=db3 port=3433 user=digoal keepalives_idle=30 keepalives_interval=10 keepalives_count=10 application_name=3',








    p4 'host=xxxx5.pg.rds.aliyuncs.com dbname=db4 port=3433 user=digoal keepalives_idle=30 keepalives_interval=10 keepalives_count=10 application_name=4',








    p5 'host=xxxx6.pg.rds.aliyuncs.com dbname=db5 port=3433 user=digoal keepalives_idle=30 keepalives_interval=10 keepalives_count=10 application_name=5',








    p6 'host=xxxx7.pg.rds.aliyuncs.com dbname=db6 port=3433 user=digoal keepalives_idle=30 keepalives_interval=10 keepalives_count=10 application_name=6',








    p7 'host=xxxx8.pg.rds.aliyuncs.com dbname=db7 port=3433 user=digoal keepalives_idle=30 keepalives_interval=10 keepalives_count=10 application_name=7',








    p8 'host=xxxx9.pg.rds.aliyuncs.com dbname=db8 port=3433 user=digoal keepalives_idle=30 keepalives_interval=10 keepalives_count=10 application_name=8',








    p9 'host=xxxx10.pg.rds.aliyuncs.com dbname=db9 port=3433 user=digoal keepalives_idle=30 keepalives_interval=10 keepalives_count=10 application_name=9',








    p10 'host=xxxx11.pg.rds.aliyuncs.com dbname=db10 port=3433 user=renny keepalives_idle=30 keepalives_interval=10 keepalives_count=10 application_name=10',








    p11 'host=xxxx12.pg.rds.aliyuncs.com dbname=db11 port=3433 user=postgres keepalives_idle=30 keepalives_interval=10 keepalives_count=10 application_name=11',








    p12 'host=xxxx13.pg.rds.aliyuncs.com dbname=db12 port=3433 user=dbnosql keepalives_idle=30 keepalives_interval=10 keepalives_count=10 application_name=12',








    p13 'host=xxxx14.pg.rds.aliyuncs.com dbname=db13 port=3433 user=dbuser keepalives_idle=30 keepalives_interval=10 keepalives_count=10 application_name=13',








    p14 'host=xxxx15.pg.rds.aliyuncs.com dbname=db14 port=3433 user=dbuser keepalives_idle=30 keepalives_interval=10 keepalives_count=10 application_name=14',








    p15 'host=xxxx16.pg.rds.aliyuncs.com dbname=db15 port=3433 user=dbuser keepalives_idle=30 keepalives_interval=10 keepalives_count=10 application_name=15',








    p16 'host=xxxx1.pg.rds.aliyuncs.com dbname=db16 port=3433 user=digoal keepalives_idle=30 keepalives_interval=10 keepalives_count=10 application_name=16',








    p17 'host=xxxx2.pg.rds.aliyuncs.com dbname=db17 port=3433 user=digoal keepalives_idle=30 keepalives_interval=10 keepalives_count=10 application_name=17',








    p18 'host=xxxx3.pg.rds.aliyuncs.com dbname=db18 port=3433 user=digoal keepalives_idle=30 keepalives_interval=10 keepalives_count=10 application_name=18',








    p19 'host=xxxx4.pg.rds.aliyuncs.com dbname=db19 port=3433 user=digoal keepalives_idle=30 keepalives_interval=10 keepalives_count=10 application_name=19',








    p20 'host=xxxx5.pg.rds.aliyuncs.com dbname=db20 port=3433 user=digoal keepalives_idle=30 keepalives_interval=10 keepalives_count=10 application_name=20',








    p21 'host=xxxx6.pg.rds.aliyuncs.com dbname=db21 port=3433 user=digoal keepalives_idle=30 keepalives_interval=10 keepalives_count=10 application_name=21',








    p22 'host=xxxx7.pg.rds.aliyuncs.com dbname=db22 port=3433 user=digoal keepalives_idle=30 keepalives_interval=10 keepalives_count=10 application_name=22',








    p23 'host=xxxx8.pg.rds.aliyuncs.com dbname=db23 port=3433 user=digoal keepalives_idle=30 keepalives_interval=10 keepalives_count=10 application_name=23',








    p24 'host=xxxx9.pg.rds.aliyuncs.com dbname=db24 port=3433 user=digoal keepalives_idle=30 keepalives_interval=10 keepalives_count=10 application_name=24',








    p25 'host=xxxx10.pg.rds.aliyuncs.com dbname=db25 port=3433 user=digoal keepalives_idle=30 keepalives_interval=10 keepalives_count=10 application_name=25',








    p26 'host=xxxx11.pg.rds.aliyuncs.com dbname=db26 port=3433 user=renny keepalives_idle=30 keepalives_interval=10 keepalives_count=10 application_name=26',








    p27 'host=xxxx12.pg.rds.aliyuncs.com dbname=db27 port=3433 user=postgres keepalives_idle=30 keepalives_interval=10 keepalives_count=10 application_name=27',








    p28 'host=xxxx13.pg.rds.aliyuncs.com dbname=db28 port=3433 user=dbnosql keepalives_idle=30 keepalives_interval=10 keepalives_count=10 application_name=28',








    p29 'host=xxxx14.pg.rds.aliyuncs.com dbname=db29 port=3433 user=dbuser keepalives_idle=30 keepalives_interval=10 keepalives_count=10 application_name=29',








    p30 'host=xxxx15.pg.rds.aliyuncs.com dbname=db30 port=3433 user=dbuser keepalives_idle=30 keepalives_interval=10 keepalives_count=10 application_name=30',








    p31 'host=xxxx16.pg.rds.aliyuncs.com dbname=db31 port=3433 user=dbuser keepalives_idle=30 keepalives_interval=10 keepalives_count=10 application_name=31'








    );



















    CREATE USER MAPPING FOR public SERVER rds_pg_cluster;

执行动态SQL的代理函数：






    CREATE OR REPLACE FUNCTION dy(sql text)








     RETURNS SETOF record








     LANGUAGE plproxy








     STRICT








    AS $function$








      cluster 'rds_pg_cluster';








      run on all;








      target digoal.dy;








    $function$;
例子(IP已隐去部分)：






    postgres=# select * from dy('select inet_server_addr(),inet_server_port(),inet_client_addr(),inet_client_port(),count(*) from pg_stat_activity group by 1,2,3,4') as t(c1 inet,c2 int,c3 inet,c4 int,cnt int8) order by 1,2;








          c1       |  c2  |       c3       |  c4   | cnt








    ---------------+------+----------------+-------+-----








     10.151. | 3012 | 10.172. | 48477 |   2

 10.151. | 3012 | 10.172. | 48493 |   2

 10.151. | 3013 | 10.172. | 27255 |   3

 10.151. | 3013 | 10.172. | 27239 |   3

 10.151. | 3014 | 10.172. | 64573 |   2

 10.151. | 3014 | 10.172. | 64557 |   2

 10.151. | 3004 | 10.172. | 63958 |   2

 10.151. | 3004 | 10.172. | 63974 |   2

 10.151. | 3009 | 10.172. | 34966 |   3

 10.151. | 3009 | 10.172. | 34982 |   3

 10.151. | 3010 | 10.172. | 24074 |   2

 10.151. | 3010 | 10.172. | 24058 |   2

 10.151. | 3009 | 10.172. | 56821 |   2

 10.151. | 3009 | 10.172. | 56837 |   2

 10.151. | 3011 | 10.172. | 29265 |   3

 10.151. | 3011 | 10.172. | 29249 |   3

 10.151. | 3012 | 10.172. | 14945 |   2

 10.151. | 3012 | 10.172. | 14961 |   2

 10.151. | 3008 | 10.172. | 24139 |   2

 10.151. | 3008 | 10.172. | 24155 |   2

 10.151. | 3003 | 10.172. |  9419 |   2

 10.151. | 3003 | 10.172. |  9435 |   2

 10.151. | 3004 | 10.172. | 35252 |   2

 10.151. | 3004 | 10.172. | 35236 |   2

 10.151. | 3004 | 10.172. | 47530 |   2

 10.151. | 3004 | 10.172. | 47546 |   2

 10.151. | 3006 | 10.172. | 33434 |   2

 10.151. | 3006 | 10.172. | 33418 |   2

 10.151. | 3006 | 10.172. | 56858 |   2

 10.151. | 3006 | 10.172. | 56842 |   2

 10.151. | 3010 | 10.172. | 46645 |   2

 10.151. | 3010 | 10.172. | 46629 |   2

(32 rows)
16个RDS，server IP有8个。

使用dblink在所有节点创建以下dy_ddl实体函数，用于执行DDL：






    do language plpgsql $$








    declare








      v_sql text;








    begin








      v_sql := 'CREATE OR REPLACE FUNCTION digoal.dy_ddl(sql text)








         RETURNS VOID








         LANGUAGE plpgsql








         STRICT








        AS $function$








          declare








          begin








            execute sql;








            return;








          exception when others then return;








          end;








        $function$;';



















      for i in 0..31 loop








        perform new_dblink_connect('p'||i||'_conn', 'p'||i);








        perform dblink_exec('p'||i||'_conn', v_sql, false);








        perform dblink_disconnect('p'||i||'_conn');








      end loop;








    end;








    $$;

创建plproxy函数，代理DDL语句：






    CREATE OR REPLACE FUNCTION dy_ddl(sql text)








     RETURNS setof void








     LANGUAGE plproxy








     STRICT








    AS $function$








      cluster 'rds_pg_cluster';








      run on all;








      target digoal.dy_ddl;








    $function$;

利用这个plproxy代理DDL函数在所有节点创建test表:






    postgres=# select dy_ddl('create table test(id int)');








     dy_ddl








    --------

















     ......








    (32 rows)








    Time: 35.683 ms

查询刚刚创建的test表:






    postgres=# select * from dy('select id from test') as t(id int);








     id








    ----








    (0 rows)








    Time: 2.958 ms

删除test表：






    select dy_ddl('drop table test');
接下来部署测试用例：
使用dblink，连接到不同的db创建测试表：






    do language plpgsql $$








    declare








      v_sql text;








    begin








      for i in 0..31 loop








        perform new_dblink_connect('p'||i||'_conn', 'p'||i);








        v_sql := 'create table digoal.userinfo(dbid int default '||i||',userid int,info text)';








        perform dblink_exec('p'||i||'_conn', v_sql, false);

















        v_sql := 'create table digoal.session (dbid int default '||i||',userid int,last_login timestamp)';








        perform dblink_exec('p'||i||'_conn', v_sql, false);

















        v_sql := 'create table digoal.login_log (dbid int default '||i||',userid int,db_user name,client_addr inet,








                           client_port int,server_addr inet,server_port int,login_time timestamp)';








        perform dblink_exec('p'||i||'_conn', v_sql, false);



















        v_sql := 'create table digoal.tbl_small (userid int primary key,info text)';








        perform dblink_exec('p'||i||'_conn', v_sql, false);



















        perform dblink_disconnect('p'||i||'_conn');








      end loop;








    end;








    $$;

生成测试数据，每个库200万数据(每个RDS 400万)，一共6400万用户数据：
创建实体函数：






    do language plpgsql $$








    declare








      v_sql text;








    begin








      v_sql := 'CREATE OR REPLACE FUNCTION digoal.dy_generate_test_ddl()








         RETURNS VOID








         LANGUAGE plpgsql








         STRICT








        AS $function$








          declare








            node int;








    	sql text;








          begin








            select application_name::int into node from pg_stat_activity where pid=pg_backend_pid();








    	sql := $a$insert into digoal.userinfo select $a$||node||$a$,generate_series($a$||node||$a$,32000000,32)$a$;








    	execute sql;








    	sql := $a$insert into digoal.session select dbid,userid from digoal.userinfo$a$;








    	execute sql;








            return;








          exception when others then return;








          end;








        $function$;';



















      for i in 0..31 loop








        perform new_dblink_connect('p'||i||'_conn', 'p'||i);








        perform dblink_exec('p'||i||'_conn', v_sql, false);








        perform dblink_disconnect('p'||i||'_conn');








      end loop;








    end;








    $$;

创建代理函数：






    CREATE OR REPLACE FUNCTION dy_generate_test_ddl()








     RETURNS setof void








     LANGUAGE plproxy








     STRICT








    AS $function$








      cluster 'rds_pg_cluster';








      run on all;








      target digoal.dy_generate_test_ddl;








    $function$;

调用代理函数，生成测试数据：






    select dy_generate_test_ddl();
创建主键：






    select dy_ddl('alter table digoal.userinfo add constraint pk_userinfo primary key (userid)');








    select dy_ddl('alter table digoal.session add constraint pk_session primary key (userid)');

生成用于run on any测试的小表数据（每个节点的数据量为50万）：






    select dy_ddl('insert into digoal.tbl_small select generate_series(1,500000)');
在psql中观察进度：






    select * from dy('select application_name::int,query,now()-query_start from pg_stat_activity where state=$$active$$ andid<>pg_backend_pid()') as t(c1 int,c2 text,c3 interval)  where c2 ~ 'dy_' order by 1;








    \watch 1

创建实体测试函数以及对应的代理函数：
基于主键的查询, run on NR






    select dy_ddl('








    CREATE OR REPLACE FUNCTION digoal.query_pk(IN i_userid int, OUT dbid int, OUT userid int, OUT info text)








         RETURNS record








         LANGUAGE plpgsql








         STRICT








        AS $function$








          declare








          begin








            select t.dbid,t.userid,t.info into dbid,userid,info from digoal.userinfo t where t.userid=i_userid;








            return;








          end;








        $function$








    ');



















    CREATE OR REPLACE FUNCTION query_pk(IN i_userid int, OUT dbid int, OUT userid int, OUT info text)








     RETURNS setof record








     LANGUAGE plproxy








     STRICT








    AS $function$








      cluster 'rds_pg_cluster';








      run on i_userid;








      target digoal.query_pk;








    $function$;

插入, run on NR






    select dy_ddl('








    CREATE OR REPLACE FUNCTION digoal.insert_log(IN i_userid int)








         RETURNS void








         LANGUAGE plpgsql








         STRICT








        AS $function$








          declare








          begin








            set synchronous_commit=off;








            insert into digoal.login_log (userid,db_user,client_addr,client_port,server_addr,server_port,login_time)








    	    values (i_userid,current_user,inet_client_addr(),inet_client_port(),inet_server_addr(),inet_server_port(),now());








          end;








        $function$








    ');



















    CREATE OR REPLACE FUNCTION insert_log(IN i_userid int)








     RETURNS void








     LANGUAGE plproxy








     STRICT








    AS $function$








      cluster 'rds_pg_cluster';








      run on i_userid;








      target digoal.insert_log;








    $function$;

基于主键的查询+插入, run on NR






    select dy_ddl('








    CREATE OR REPLACE FUNCTION digoal.query_insert(IN i_userid int, OUT dbid int, OUT userid int, OUT info text)








         RETURNS record








         LANGUAGE plpgsql








         STRICT








        AS $function$








          declare








          begin








            set synchronous_commit=off;








            select t.dbid,t.userid,t.info into dbid,userid,info from digoal.userinfo t where t.userid=i_userid;








            insert into digoal.login_log (userid,db_user,client_addr,client_port,server_addr,server_port,login_time)








    	    values (i_userid,current_user,inet_client_addr(),inet_client_port(),inet_server_addr(),inet_server_port(),now());








            return;








          end;








        $function$








    ');



















    CREATE OR REPLACE FUNCTION query_insert(IN i_userid int, OUT dbid int, OUT userid int, OUT info text)








     RETURNS setof record








     LANGUAGE plproxy








     STRICT








    AS $function$








      cluster 'rds_pg_cluster';








      run on i_userid;








      target digoal.query_insert;








    $function$;

基于主键的更新, run on NR






    select dy_ddl('








    CREATE OR REPLACE FUNCTION digoal.update_pk(IN i_userid int)








         RETURNS void








         LANGUAGE plpgsql








         STRICT








        AS $function$








          declare








          begin








            set synchronous_commit=off;








            update digoal.session t set last_login=now() where t.userid=i_userid;








          end;








        $function$








    ');



















    CREATE OR REPLACE FUNCTION update_pk(IN i_userid int)








     RETURNS void








     LANGUAGE plproxy








     STRICT








    AS $function$








      cluster 'rds_pg_cluster';








      run on i_userid;








      target digoal.update_pk;








    $function$;

基于主键的查询+更新+插入, run on NR






    select dy_ddl('








    CREATE OR REPLACE FUNCTION digoal.query_update_insert(IN i_userid int, OUT dbid int, OUT userid int, OUT info text)








         RETURNS record








         LANGUAGE plpgsql








         STRICT








        AS $function$








          declare








          begin








            set synchronous_commit=off;








            select t.dbid,t.userid,t.info into dbid,userid,info from digoal.userinfo t where t.userid=i_userid;








            insert into digoal.login_log (userid,db_user,client_addr,client_port,server_addr,server_port,login_time)








    	    values (i_userid,current_user,inet_client_addr(),inet_client_port(),inet_server_addr(),inet_server_port(),now());








            update digoal.session t set last_login=now() where t.userid=i_userid;








            return;








          end;








        $function$








    ');



















    CREATE OR REPLACE FUNCTION query_update_insert(IN i_userid int, OUT dbid int, OUT userid int, OUT info text)








     RETURNS setof record








     LANGUAGE plproxy








     STRICT








    AS $function$








      cluster 'rds_pg_cluster';








      run on i_userid;








      target digoal.query_update_insert;








    $function$;

count汇聚, run on ALL






    select sum(cnt) from (select cnt from dy('select count(*) from digoal.login_log') as t(cnt int8)) t;








    select sum(cnt) from (select cnt from dy('select count(*) from digoal.userinfo') as t(cnt int8)) t;

全量复制数据, run on ANY






    select dy_ddl('








    CREATE OR REPLACE FUNCTION digoal.query_smalltbl(IN i_userid int, OUT userid int, OUT info text)








         RETURNS record








         LANGUAGE plpgsql








         STRICT








        AS $function$








          declare








          begin








            select t.userid,t.info into userid,info from digoal.tbl_small t where t.userid=i_userid;








            return;








          end;








        $function$








    ');



















    CREATE OR REPLACE FUNCTION query_smalltbl(IN i_userid int, OUT userid int, OUT info text)








     RETURNS setof record








     LANGUAGE plproxy








     STRICT








    AS $function$








      cluster 'rds_pg_cluster';








      run on ANY;








      target digoal.query_smalltbl;








    $function$;

测试：






    postgres=# select (query_pk(id)).* from generate_series(0,63) t(id) order by dbid;








     dbid | userid | info








    ------+--------+------








        0 |     32 |








        0 |      0 |








        1 |     33 |








        1 |      1 |








        2 |      2 |








        2 |     34 |








    ......








       31 |     31 |








       31 |     63 |








    (64 rows)

测试基于主键的查询：










      vi test.sql








     \setrandom id 0 32000000








     select query_pk(:id);
















     pgbench -M prepared -n -r -f ./test.sql -P 1 -c 45 -j 45 -T 30








     progress: 1.0 s, 10954.4 tps, lat 3.687 ms stddev 5.910








     progress: 2.0 s, 20403.0 tps, lat 2.008 ms stddev 0.553








     progress: 3.0 s, 20725.8 tps, lat 1.977 ms stddev 0.479








     progress: 4.0 s, 20365.1 tps, lat 2.012 ms stddev 0.527








     progress: 5.0 s, 20135.4 tps, lat 2.035 ms stddev 0.617








     progress: 6.0 s, 20722.6 tps, lat 1.977 ms stddev 0.450








     progress: 7.0 s, 20424.4 tps, lat 2.006 ms stddev 0.504








     progress: 8.0 s, 20631.0 tps, lat 1.985 ms stddev 0.507








     progress: 9.0 s, 20270.0 tps, lat 2.021 ms stddev 0.493








     progress: 10.0 s, 20190.1 tps, lat 2.030 ms stddev 0.492












    ......

测试插入：










     vi test.sql








     \setrandom id 0 32000000








     select insert_log(:id);
















     pgbench -M prepared -n -r -f ./test.sql -P 1 -c 45 -j 45 -T 30








     progress: 1.0 s, 11763.3 tps, lat 3.505 ms stddev 5.379








     progress: 2.0 s, 21192.4 tps, lat 1.980 ms stddev 0.748








     progress: 3.0 s, 21406.8 tps, lat 1.961 ms stddev 0.492








     progress: 4.0 s, 21471.7 tps, lat 1.954 ms stddev 0.484








     progress: 5.0 s, 21095.4 tps, lat 1.989 ms stddev 0.718








     progress: 6.0 s, 21494.3 tps, lat 1.953 ms stddev 0.458








     progress: 7.0 s, 21553.9 tps, lat 1.947 ms stddev 0.480








     progress: 8.0 s, 21600.1 tps, lat 1.942 ms stddev 0.471








     progress: 9.0 s, 21665.0 tps, lat 1.937 ms stddev 0.465








     progress: 10.0 s, 21635.1 tps, lat 1.940 ms stddev 0.495












    ......

测试基于主键的查询+插入










     vi test.sql








     \setrandom id 0 32000000








     select query_insert(:id);
















     pgbench -M prepared -n -r -f ./test.sql -P 1 -c 45 -j 45 -T 30








     progress: 1.0 s, 8624.2 tps, lat 4.604 ms stddev 7.918








     progress: 2.0 s, 19089.2 tps, lat 2.042 ms stddev 0.521








     progress: 3.0 s, 19272.3 tps, lat 2.022 ms stddev 0.579








     progress: 4.0 s, 19403.2 tps, lat 2.008 ms stddev 0.470








     progress: 5.0 s, 19129.1 tps, lat 2.037 ms stddev 0.485








     progress: 6.0 s, 19166.5 tps, lat 2.033 ms stddev 0.476








     progress: 7.0 s, 19490.7 tps, lat 1.999 ms stddev 0.455








     progress: 8.0 s, 19135.0 tps, lat 2.037 ms stddev 1.044








     progress: 9.0 s, 19213.7 tps, lat 2.029 ms stddev 0.529








     progress: 10.0 s, 19217.0 tps, lat 2.027 ms stddev 0.788












    ......

测试基于主键的更新










     vi test.sql








     \setrandom id 0 32000000








     select update_pk(:id);
















     pgbench -M prepared -n -r -f ./test.sql -P 1 -c 45 -j 45 -T 30








     progress: 1.0 s, 3490.1 tps, lat 11.086 ms stddev 11.913








     progress: 2.0 s, 5397.6 tps, lat 7.047 ms stddev 9.854








     progress: 15.6 s, 97.1 tps, lat 26.561 ms stddev 523.168








     progress: 15.6 s, 4886.8 tps, lat 8266.126 ms stddev 6532.652








     progress: 15.6 s, 9123.2 tps, lat 2978.012 ms stddev 5564.965








     progress: 15.7 s, 4682.6 tps, lat 4.406 ms stddev 3.083








     progress: 15.7 s, 6713.8 tps, lat 5.121 ms stddev 4.762








     progress: 15.7 s, 4390.4 tps, lat 8.206 ms stddev 8.209








     progress: 15.7 s, 9268.3 tps, lat 7.934 ms stddev 7.146








     progress: 15.7 s, 6483.0 tps, lat 5.530 ms stddev 6.171








     progress: 15.7 s, 11795.5 tps, lat 7.822 ms stddev 8.948








     progress: 15.7 s, 9453.8 tps, lat 3.019 ms stddev 2.223








     progress: 15.7 s, 10840.1 tps, lat 3.939 ms stddev 3.238








     progress: 15.7 s, 4992.6 tps, lat 6.111 ms stddev 7.013












    ......

测试基于主键的查询+更新+插入：










     vi test.sql








     \setrandom id 0 32000000








     select query_update_insert(:id);
















     pgbench -M prepared -n -r -f ./test.sql -P 1 -c 45 -j 45 -T 30








     progress: 1.0 s, 4175.8 tps, lat 10.137 ms stddev 14.241








     progress: 2.0 s, 7094.9 tps, lat 5.901 ms stddev 9.459








     progress: 16.6 s, 236.7 tps, lat 87.273 ms stddev 1079.575








     progress: 16.6 s, 8608.3 tps, lat 4727.488 ms stddev 6682.745








     progress: 16.6 s, 10468.6 tps, lat 2716.975 ms stddev 5595.314








     progress: 16.7 s, 14217.1 tps, lat 2218.013 ms stddev 5155.964








     progress: 16.7 s, 10531.9 tps, lat 3.388 ms stddev 2.354








     progress: 16.7 s, 8932.4 tps, lat 3.128 ms stddev 1.638








     progress: 16.7 s, 9434.0 tps, lat 3.413 ms stddev 2.440








     progress: 16.7 s, 8694.5 tps, lat 4.435 ms stddev 4.919








     progress: 16.7 s, 9926.1 tps, lat 4.536 ms stddev 5.436








     progress: 16.7 s, 10110.3 tps, lat 4.008 ms stddev 3.918








     progress: 16.7 s, 8655.8 tps, lat 4.170 ms stddev 5.261








     progress: 16.7 s, 8436.7 tps, lat 2.633 ms stddev 1.674








     progress: 16.7 s, 7747.6 tps, lat 3.145 ms stddev 2.134








     progress: 16.7 s, 6092.3 tps, lat 7.418 ms stddev 9.344












    ......

测试聚合










     postgres=# select sum(cnt) from (select cnt from dy('select count(*) from digoal.login_log') as t(cnt int8)) t;








        sum








     ---------








      7445856








     (1 row)








     Time: 53.389 ms
















     postgres=# select sum(cnt) from (select cnt from dy('select count(*) from digoal.userinfo') as t(cnt int8)) t;








        sum








     ----------








      32000001








     (1 row)








     Time: 196.146 ms

测试run on any










     vi test.sql








     \setrandom id 0 32000000








     select query_smalltbl(:id);












    pgbench -M prepared -n -r -f ./test.sql -P 1 -c 45 -j 45 -T 30












     progress: 1.0 s, 12066.0 tps, lat 3.342 ms stddev 5.300








     progress: 2.0 s, 20631.4 tps, lat 1.937 ms stddev 0.712








     progress: 3.0 s, 20776.5 tps, lat 1.924 ms stddev 0.584








     progress: 4.0 s, 20498.0 tps, lat 1.950 ms stddev 0.828








     progress: 5.0 s, 20785.4 tps, lat 1.923 ms stddev 0.490








     progress: 6.0 s, 20200.4 tps, lat 1.979 ms stddev 1.027








     progress: 7.0 s, 20957.9 tps, lat 1.907 ms stddev 0.460








     progress: 8.0 s, 21111.2 tps, lat 1.893 ms stddev 0.452








     progress: 9.0 s, 20940.5 tps, lat 1.908 ms stddev 0.461








     progress: 10.0 s, 20540.5 tps, lat 1.946 ms stddev 0.673

对比6400万数据在单一节点的性能提升，因为单节点下6400万数据已经远超出内存，同时RDS限制了IOPS，所以单节点下6400万数据的性能是很差的。
下篇再提供单RDS下的数据。

问题：（注意，以下这些问题现在阿里云RDS PG已经解决了，以下是公测时遇到的问题。）
1. 偶尔会遇到中间件这层连接不通的问题(内网，不是外网)，再次执行又能通讯。例如:






    ERROR:  could not establish connection








    DETAIL:  could not connect to server: Connection timed out








            Is the server running on host "xxxx.pg.rds.aliyuncs.com" (100.99.xxx.xxx) and accepting








            TCP/IP connections on port 3433?























     Client 30 aborted in state 1: ERROR:  PL/Proxy function public.query_pk(1): [db1] PQconnectPoll: could not connect to server: Connection timed out








             Is the server running on host "xxxx.pg.rds.aliyuncs.com" (100.98.xxx.xxx) and accepting








             TCP/IP connections on port 3433?

2. 超时, 通过增加集群连接参数 keepalives_idle=30 keepalives_interval=10 keepalives_count=10






    ERROR:  PL/Proxy function public.dy_generate_test_ddl(0): [db11] PQconsumeInput: server closed the connection unexpectedly








            This probably means the server terminated abnormally








            before or while processing the request.

3. 尊敬的用户，您的RDS（实例名：rdxxxxxxx1，连接地址：）发生主备切换，请将您的应用程序重连，确保使用正常，如果您的应用程序有自动重连机制请忽略此邮件，谢谢。
   不知道是不是因为负载引起的切换，如果是的话，可能主机并未按照负载峰值来估算跑多少实例，导致超跑了。
   另外一种原因可能是超资源使用被主动KILL了？（这样就有点暴力了）
   不管怎么样，个人认为只有故障才是切换的理由。

4. 因为RDS限制了最大连接数是100，而且还为超级用户保留了5个连接，然后我这里每个RDS上有两个数据节点库，所以在使用plproxy 测试时，最多能用的连接数是95/2=47.5。
超出将报错如下：
Client 46 aborted in state 1: ERROR:  PL/Proxy function public.query_pk(1): [db4] PQconnectPoll: FATAL:  remaining connection slots are reserved for non-replication superuser connections
所以我这里测试只用45个连接，实际上对单个库，如果响应较慢，那么同一时间最多可能会用掉90个连接。

5. 本次测试更新性能的硬伤是在RDS的 IOPS和shared_buffers上，如果要上比较高并发的带数据更新需求的业务，建议购买足够的IOPS和内存的RDS，以获得好的性能。以下是一台性能较好的服务器下的benchmark数据，仅供参考：

阿里云RDS监控平台的数据，我的控制台只有5个实例，不过基本上已经能够反映所有实例的情况了：
单个实例的数据基本上在shared buffer中，所以数据盘的IOPS是很小的。
测试写，更新时xlog的IOPS很高，基本已经到大顶峰，但是使用了异步提交，所以影响较小。
单个实例在500MB左右。

[参考]
文章标签：
云原生数据库 PolarDB
云数据库 RDS MySQL 版
关系型数据库
RDS
SQL
PostgreSQL
数据库
关键词：
云数据库 RDS MySQL 版postgresql
云数据库 RDS MySQL 版pg
PostgreSQL pg
云数据库 RDS postgresql
PostgreSQL rds
相关实践学习
使用PolarDB和ECS搭建门户网站
本场景主要介绍基于PolarDB和ECS实现搭建门户网站。
阿里云数据库产品家族及特性
阿里云智能数据库产品团队一直致力于不断健全产品体系，提升产品性能，打磨产品功能，从而帮助客户实现更加极致的弹性能力、具备更强的扩展能力、并利用云设施进一步降低企业成本。以云原生+分布式为核心技术抓手，打造以自研的在线事务型(OLTP)数据库Polar DB和在线分析型(OLAP)数据库Analytic DB为代表的新一代企业级云原生数据库产品体系， 结合NoSQL数据库、数据库生态工具、云原生智能化数据库管控平台，为阿里巴巴经济体以及各个行业的企业客户和开发者提供从公共云到混合云再到私有云的完整解决方案，提供基于云基础设施进行数据从处理、到存储、再到计算与分析的一体化解决方案。本节课带你了解阿里云数据库产品家族及特性。
德哥
目录
相关文章
qhhf_地道酬勤
|
2月前
|
存储 关系型数据库 MySQL
一个项目用5款数据库？MySQL、PostgreSQL、ClickHouse、MongoDB区别，适用场景
一个项目用5款数据库？MySQL、PostgreSQL、ClickHouse、MongoDB——特点、性能、扩展性、安全性、适用场景比较
qhhf_地道酬勤
372 0
叫个什么名字
|
3月前
|
NoSQL 关系型数据库 MySQL
微服务架构下的数据库选择：MySQL、PostgreSQL 还是 NoSQL？
在微服务架构中，数据库的选择至关重要。不同类型的数据库适用于不同的需求和场景。在本文章中，我们将深入探讨传统的关系型数据库（如 MySQL 和 PostgreSQL）与现代 NoSQL 数据库的优劣势，并分析在微服务架构下的最佳实践。
叫个什么名字
420 9
众所周知
|
1月前
|
存储 关系型数据库 MySQL
MySQL vs. PostgreSQL：选择适合你的开源数据库
在众多开源数据库中，MySQL和PostgreSQL无疑是最受欢迎的两个。它们都有着强大的功能、广泛的社区支持和丰富的生态系统。然而，它们在设计理念、性能特点、功能特性等方面存在着显著的差异。本文将从这三个方面对MySQL和PostgreSQL进行比较，以帮助您选择更适合您需求的开源数据库。
众所周知
137 4
刘大猫.
|
1月前
|
关系型数据库 MySQL PostgreSQL
postgresql和mysql中的limit使用方法
postgresql和mysql中的limit使用方法
刘大猫.
48 1
糜终
|
3月前
|
Oracle NoSQL 关系型数据库
主流数据库对比：MySQL、PostgreSQL、Oracle和Redis的优缺点分析
主流数据库对比：MySQL、PostgreSQL、Oracle和Redis的优缺点分析
糜终
547 2
qhhf_地道酬勤
|
2月前
|
存储 关系型数据库 MySQL
四种数据库对比MySQL、PostgreSQL、ClickHouse、MongoDB——特点、性能、扩展性、安全性、适用场景
四种数据库对比 MySQL、PostgreSQL、ClickHouse、MongoDB——特点、性能、扩展性、安全性、适用场景
qhhf_地道酬勤
281 0
游客mldfis24krfue
|
4月前
|
关系型数据库 MySQL Linux
在Linux中，如何配置数据库服务器（如MySQL或PostgreSQL）？
在Linux中，如何配置数据库服务器（如MySQL或PostgreSQL）？
游客mldfis24krfue
175 2
土木林森
|
4月前
|
SQL 关系型数据库 MySQL
SQL Server、MySQL、PostgreSQL：主流数据库SQL语法异同比较——深入探讨数据类型、分页查询、表创建与数据插入、函数和索引等关键语法差异，为跨数据库开发提供实用指导
【8月更文挑战第31天】SQL Server、MySQL和PostgreSQL是当今最流行的关系型数据库管理系统，均使用SQL作为查询语言，但在语法和功能实现上存在差异。本文将比较它们在数据类型、分页查询、创建和插入数据以及函数和索引等方面的异同，帮助开发者更好地理解和使用这些数据库。尽管它们共用SQL语言，但每个系统都有独特的语法规则，了解这些差异有助于提升开发效率和项目成功率。
土木林森
445 0
蓝易云
|
4月前
|
关系型数据库 MySQL 数据库
postgresql使用mysql_fdw连接mysql
通过以上步骤，你可以在PostgreSQL中访问和查询远程MySQL服务器的数据，这对于数据集成和多数据库管理非常有用。
蓝易云
277 0
william.zhang(张)
|
4月前
|
关系型数据库 MySQL 数据库
探究数据库开源协议：PostgreSQL vs MySQL
探究数据库开源协议：PostgreSQL vs MySQL
william.zhang(张)
271 0
数据库

关系型数据库

热门文章

最新文章

  • 1
    什么场景应该用 MongoDB ？
  • 2
    PostgreSQL 如何实现批量更新、删除、插入
  • 3
    PostgreSQL upsert功能(insert on conflict do)的用法
  • 4
    Linux 性能诊断 perf使用指南
  • 5
    PostgreSQL 9种索引的原理和应用场景
  • 6
    PostgreSQL 如何潇洒的处理每天上百TB的数据增量
  • 7
    Jedis常见异常汇总
  • 8
    PostgreSQL 百亿数据 秒级响应 正则及模糊查询
  • 9
    时序数据库分析 - TimescaleDB时序数据库介绍
  • 10
    MongoDB 存储引擎 WiredTiger 原理解析
  • 1
    卓越效能，极简运维，体验Serverless高可用架构，完成任务可领取转轮日历！
    19
  • 2
    数据库数据恢复—ORACLE常见故障的数据恢复方案
    24
  • 3
    【赵渝强老师】PostgreSQL的控制文件
    40
  • 4
    PolarDB 分布式版 V2.0，安全可靠的集中分布式一体化数据库管理软件
    46
  • 5
    数据库数据恢复—MYSQL数据库文件损坏的数据恢复案例
    22
  • 6
    MySQL常见函数第二期，你都用过哪些呢 ？
    37
  • 7
    MySQL进阶突击系列(02)一条更新SQL执行过程 | 讲透undoLog、redoLog、binLog日志三宝
    35
  • 8
    【赵渝强老师】PostgreSQL的服务器日志文件
    28
  • 9
    MySQL常见函数第一期，你都用过哪些呢 ？
    39
  • 10
    【赵渝强老师】PostgreSQL的WAL预写日志文件
    24

    • 相关产品

  • 云数据库 RDS
    文档详情 产品详情
  • 云数据库 RDS PostgreSQL 版
    文档详情 产品详情
  • 云数据库 RDS MySQL 版
    文档详情 产品详情

    • 相关课程

    更多
  • MySQL企业常见架构与调优经验分享
  • 云数据库MySQL版快速上手教程
  • 阿里云云原生数据仓库AnalyticDB MySQL版 使用教程
  • MySQL实战进阶
  • 数据库及SQL/MySQL基础
  • 云数据库MySQL快速入门

    • 相关电子书

    更多
  • One Box： 解读事务与分析一体化数据库 HybridDB for MySQL
  • One Box：解读事务与分析一体化数据库HybridDB for MySQL
  • 如何支撑HTAP场景-HybridDB for MySQL系统架构和技术演进

    • 相关实验场景

    更多
  • 使用ECS和RDS搭建个人博客
  • MySQL引擎及架构优化
  • 基于EBS部署高性能的MySQL服务
  • PolarDB for PostgreSQL 闪回特性体验
  • 5分钟上手Flink MySQL连接器
  • 云端MySQL的安装及应用

    • 推荐镜像

    更多
  • mysql
  • postgresql
  • oceanbase
    • 下一篇
    阿里云无影云电脑免费试用，最长可试用3个月
