使用的数据集
花分类数据集：
百度云链接下载: https://pan.baidu.com/s/1QLCTA4sXnQAw_yvxPj9szg
提取码:58p0

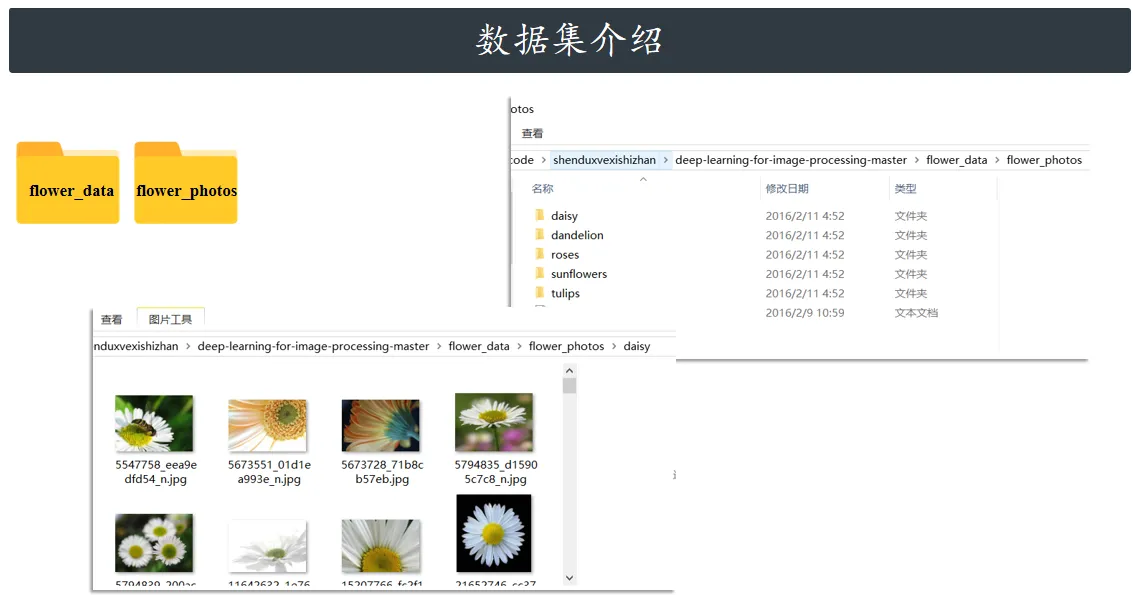

下载好之后，解压到flower_data文件夹下，此时flower_data\flower_photos下就是放的我们的数据
集，我们看一下原始的数据是什么样子的：
分类类别：共包含 5 类花卉，对应 5 个文件夹： daisy（雏菊） dandelion（蒲公英） roses（玫
瑰） sunflowers（向日葵） tulips（郁金香）

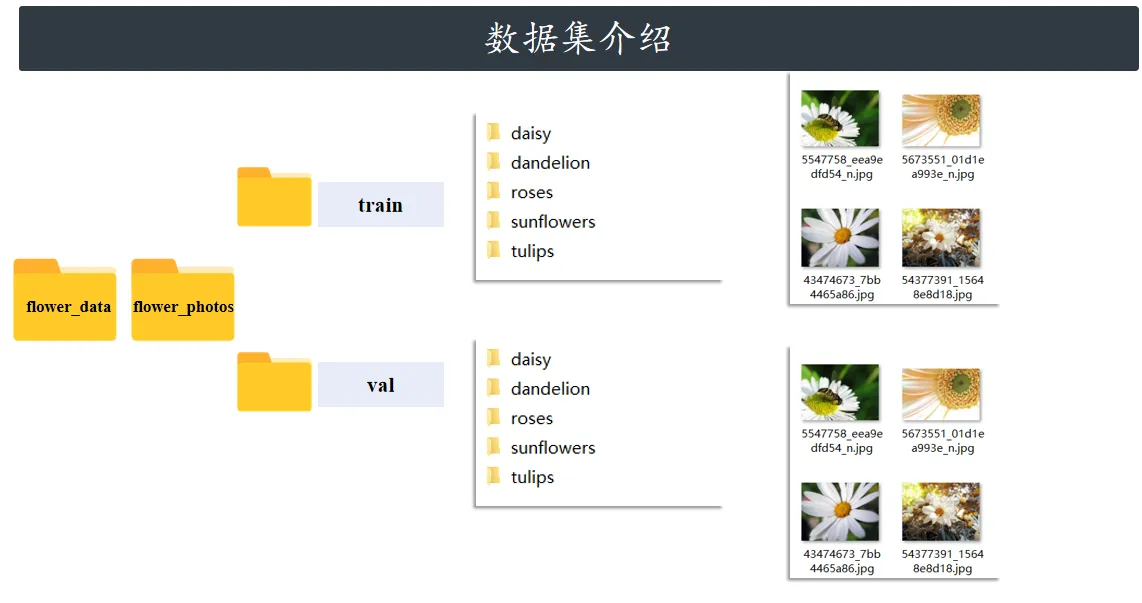

跑过一些项目的应该都有印象，比如YOLO等，他们的数据集的放置是有要求的一般情况下都是分
成两个，一个是train文件夹，train文件夹下是各种分类的文件夹（每个文件夹的名字是类报名）。
另外一个是val文件夹，val文件夹下是各种分类的文件夹（每个文件夹的名字是类报名）。一般是
按照8：2的比例去分这两个数据集的。这里的话可以用AI写代码整理，但是别忘记了检查一下。
训练集的路径：D:\vscode\shenduxvexishizhan\CNN\flower_data\train
验证集的路径是：D:\vscode\shenduxvexishizhan\CNN\flower_data\val
Alexnet
AlexNet创新点
（1）AlexNet首次成功使用了8层深度网络（5个卷积层 + 3个全连接层），比之前的网络深得多。
（2）首次在深层网络中大规模且成功地使用了（ReLU）作为激活函数，取代了传统的 Sigmoid
或 Tanh 函数。
（3）引入GPU 加速训练 (GPU Acceleration)，Dropout 正则化 (Dropout Regularization)，数据增
强 (Data 局部响应归一化（LRN）和重叠池化（Overlapping Pooling）Augmentation)

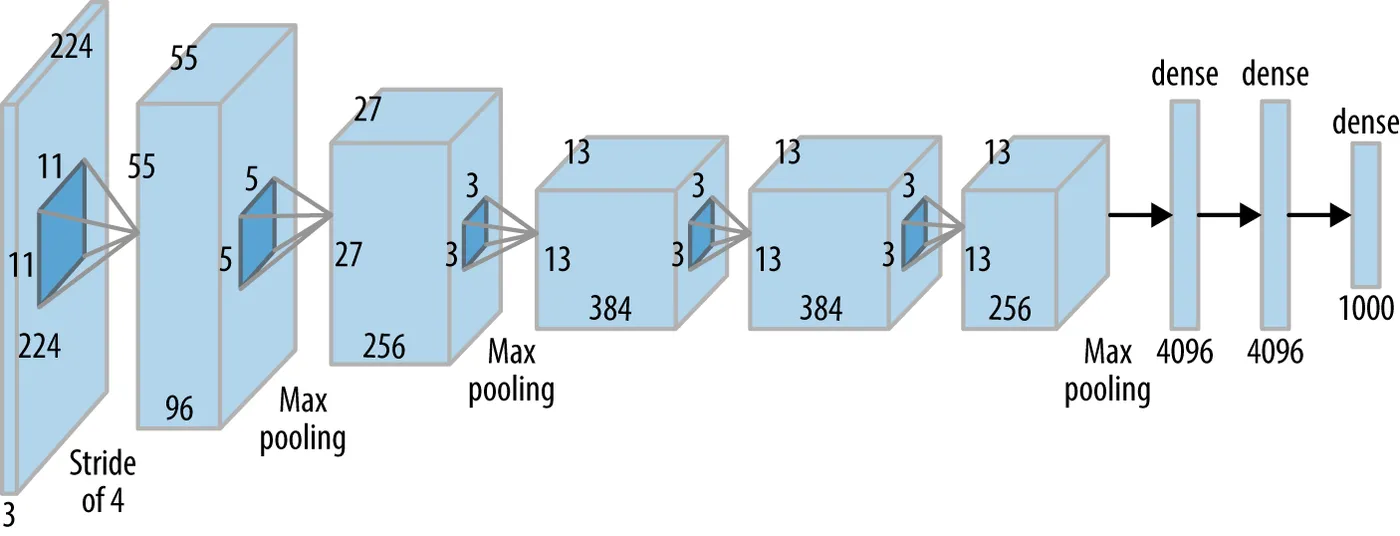

网络结构
| 层类型 | 具体参数 | 输入尺寸 | 输出尺寸 | 作用 |
| 卷积层 1 | Conv2d (3→48, 11×11, 步长 4, 填充 2) | [3,224,224] | [48,55,55] | 提取基础纹理特征 |
| 池化层 1 | MaxPool2d (3×3, 步长 2) | [48,55,55] | [48,27,27] | 降维 + 增强鲁棒性 |
| 卷积层 2 | Conv2d (48→128, 5×5, 填充 2) | [48,27,27] | [128,27,27] | 提取更复杂特征 |
| 池化层 2 | MaxPool2d (3×3, 步长 2) | [128,27,27] | [128,13,13] | 继续降维 |
| 卷积层 3 | Conv2d (128→192, 3×3, 填充 1) | [128,13,13] | [192,13,13] | 特征细化 |
| 卷积层 4 | Conv2d (192→192, 3×3, 填充 1) | [192,13,13] | [192,13,13] | 特征细化 |
| 卷积层 5 | Conv2d (192→128, 3×3, 填充 1) | [192,13,13] | [128,13,13] | 特征压缩 |
| 池化层 3 | MaxPool2d (3×3, 步长 2) | [128,13,13] | [128,6,6] | 最终降维 |
| 全连接层 1 | Linear(128×6×6 → 2048) | 4608 | 2048 | 特征映射到高维空间 |
| 全连接层 2 | Linear(2048 → 2048) | 2048 | 2048 | 特征变换 |
| 全连接层 3 | Linear(2048 → num_classes) | 2048 | num_classes | 最终分类 |
model.py
import torch.nn as nn import torch class AlexNet(nn.Module): def __init__(self, num_classes=1000, init_weights=False): super(AlexNet, self).__init__() self.features = nn.Sequential( nn.Conv2d(3, 48, kernel_size=11, stride=4, padding=2), # input[3, 224, 224] output[48, 55, 55] nn.ReLU(inplace=True), nn.MaxPool2d(kernel_size=3, stride=2), # output[48, 27, 27] nn.Conv2d(48, 128, kernel_size=5, padding=2), # output[128, 27, 27] nn.ReLU(inplace=True), nn.MaxPool2d(kernel_size=3, stride=2), # output[128, 13, 13] nn.Conv2d(128, 192, kernel_size=3, padding=1), # output[192, 13, 13] nn.ReLU(inplace=True), nn.Conv2d(192, 192, kernel_size=3, padding=1), # output[192, 13, 13] nn.ReLU(inplace=True), nn.Conv2d(192, 128, kernel_size=3, padding=1), # output[128, 13, 13] nn.ReLU(inplace=True), nn.MaxPool2d(kernel_size=3, stride=2), # output[128, 6, 6] ) self.classifier = nn.Sequential( nn.Dropout(p=0.5), nn.Linear(128 * 6 * 6, 2048), nn.ReLU(inplace=True), nn.Dropout(p=0.5), nn.Linear(2048, 2048), nn.ReLU(inplace=True), nn.Linear(2048, num_classes), ) if init_weights: self._initialize_weights() def forward(self, x): x = self.features(x) x = torch.flatten(x, start_dim=1) x = self.classifier(x) return x def _initialize_weights(self): for m in self.modules(): if isinstance(m, nn.Conv2d): nn.init.kaiming_normal_(m.weight, mode='fan_out', nonlinearity='relu') if m.bias is not None: nn.init.constant_(m.bias, 0) elif isinstance(m, nn.Linear): nn.init.normal_(m.weight, 0, 0.01) nn.init.constant_(m.bias, 0) # 测试模型前向传播 if __name__ == "__main__": # 创建模型实例 model = AlexNet(num_classes=1000, init_weights=True) # 生成随机输入（batch_size=4, 3通道, 224×224） input_tensor = torch.randn(4, 3, 224, 224) # 前向传播 output = model(input_tensor) # 打印输出形状 print(f"输入形状: {input_tensor.shape}") print(f"输出形状: {output.shape}") # 应输出 [4, 1000] # 打印模型参数量 total_params = sum(p.numel() for p in model.parameters()) trainable_params = sum(p.numel() for p in model.parameters() if p.requires_grad) print(f"总参数量: {total_params/1e6:.2f}M") print(f"可训练参数量: {trainable_params/1e6:.2f}M")

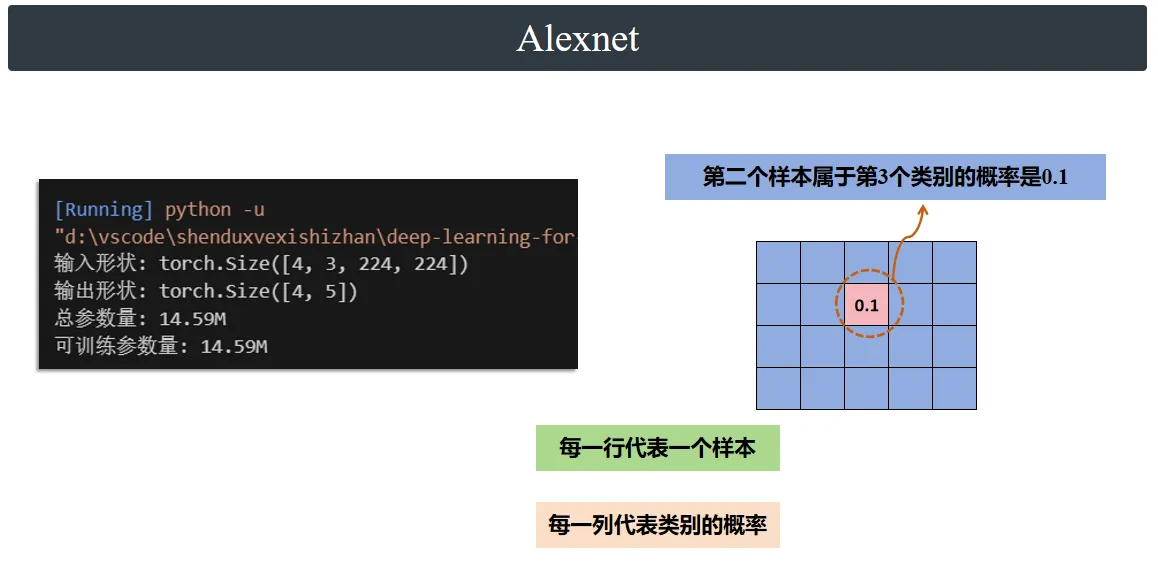

模型的输入是【B，3，224，224】代表B张图片，输出是【B，5】代表B个样本，每个类别的概
率。在实际的项目中，这是最简单，也是最核心的部分。简单是因为，所有神经网络的本质都是为
了提取特征的，所有我们很多时候不需要知道，其是怎么实现的，只需要知道，网络的输入和输出
就行。最核心是因为，往往特征提取的好坏直接决定了训练效果的好坏。
图解处理和图像增强：
在验证的时候是不需要数据增强的
data_transform = { "train": transforms.Compose([transforms.RandomResizedCrop(224), transforms.RandomHorizontalFlip(), transforms.ToTensor(), transforms.Normalize((0.5, 0.5, 0.5), (0.5, 0.5, 0.5))]), "val": transforms.Compose([transforms.Resize((224, 224)), # cannot 224, must (224, 224) transforms.ToTensor(), transforms.Normalize((0.5, 0.5, 0.5), (0.5, 0.5, 0.5))])}
train.py
import os import sys import json import torch import torch.nn as nn from torchvision import transforms, datasets, utils import matplotlib.pyplot as plt import numpy as np import torch.optim as optim from tqdm import tqdm from model import AlexNet def main(): device = torch.device("cuda:0" if torch.cuda.is_available() else "cpu") print("using {} device.".format(device)) data_transform = { "train": transforms.Compose([transforms.RandomResizedCrop(224), transforms.RandomHorizontalFlip(), transforms.ToTensor(), transforms.Normalize((0.5, 0.5, 0.5), (0.5, 0.5, 0.5))]), "val": transforms.Compose([transforms.Resize((224, 224)), # cannot 224, must (224, 224) transforms.ToTensor(), transforms.Normalize((0.5, 0.5, 0.5), (0.5, 0.5, 0.5))])} data_root = os.path.abspath(os.path.join(os.getcwd(), "../..")) # get data root path image_path = os.path.join(data_root, "data_set", "flower_data") # flower data set path assert os.path.exists(image_path), "{} path does not exist.".format(image_path) train_dataset = datasets.ImageFolder(root=os.path.join(image_path, "train"), transform=data_transform["train"]) train_num = len(train_dataset) # {'daisy':0, 'dandelion':1, 'roses':2, 'sunflower':3, 'tulips':4} flower_list = train_dataset.class_to_idx cla_dict = dict((val, key) for key, val in flower_list.items()) # write dict into json file json_str = json.dumps(cla_dict, indent=4) with open('class_indices.json', 'w') as json_file: json_file.write(json_str) batch_size = 32 nw = min([os.cpu_count(), batch_size if batch_size > 1 else 0, 8]) # number of workers print('Using {} dataloader workers every process'.format(nw)) train_loader = torch.utils.data.DataLoader(train_dataset, batch_size=batch_size, shuffle=True, num_workers=nw) validate_dataset = datasets.ImageFolder(root=os.path.join(image_path, "val"), transform=data_transform["val"]) val_num = len(validate_dataset) validate_loader = torch.utils.data.DataLoader(validate_dataset, batch_size=4, shuffle=False, num_workers=nw) print("using {} images for training, {} images for validation.".format(train_num, val_num)) # test_data_iter = iter(validate_loader) # test_image, test_label = test_data_iter.next() # # def imshow(img): # img = img / 2 + 0.5 # unnormalize # npimg = img.numpy() # plt.imshow(np.transpose(npimg, (1, 2, 0))) # plt.show() # # print(' '.join('%5s' % cla_dict[test_label[j].item()] for j in range(4))) # imshow(utils.make_grid(test_image)) net = AlexNet(num_classes=5, init_weights=True) net.to(device) loss_function = nn.CrossEntropyLoss() # pata = list(net.parameters()) optimizer = optim.Adam(net.parameters(), lr=0.0002) epochs = 10 save_path = './AlexNet.pth' best_acc = 0.0 train_steps = len(train_loader) for epoch in range(epochs): # train net.train() running_loss = 0.0 train_bar = tqdm(train_loader, file=sys.stdout) for step, data in enumerate(train_bar): images, labels = data optimizer.zero_grad() outputs = net(images.to(device)) loss = loss_function(outputs, labels.to(device)) loss.backward() optimizer.step() # print statistics running_loss += loss.item() train_bar.desc = "train epoch[{}/{}] loss:{:.3f}".format(epoch + 1, epochs, loss) # validate net.eval() acc = 0.0 # accumulate accurate number / epoch with torch.no_grad(): val_bar = tqdm(validate_loader, file=sys.stdout) for val_data in val_bar: val_images, val_labels = val_data outputs = net(val_images.to(device)) predict_y = torch.max(outputs, dim=1)[1] acc += torch.eq(predict_y, val_labels.to(device)).sum().item() val_accurate = acc / val_num print('[epoch %d] train_loss: %.3f val_accuracy: %.3f' % (epoch + 1, running_loss / train_steps, val_accurate)) if val_accurate > best_acc: best_acc = val_accurate torch.save(net.state_dict(), save_path) print('Finished Training') if __name__ == '__main__': main()

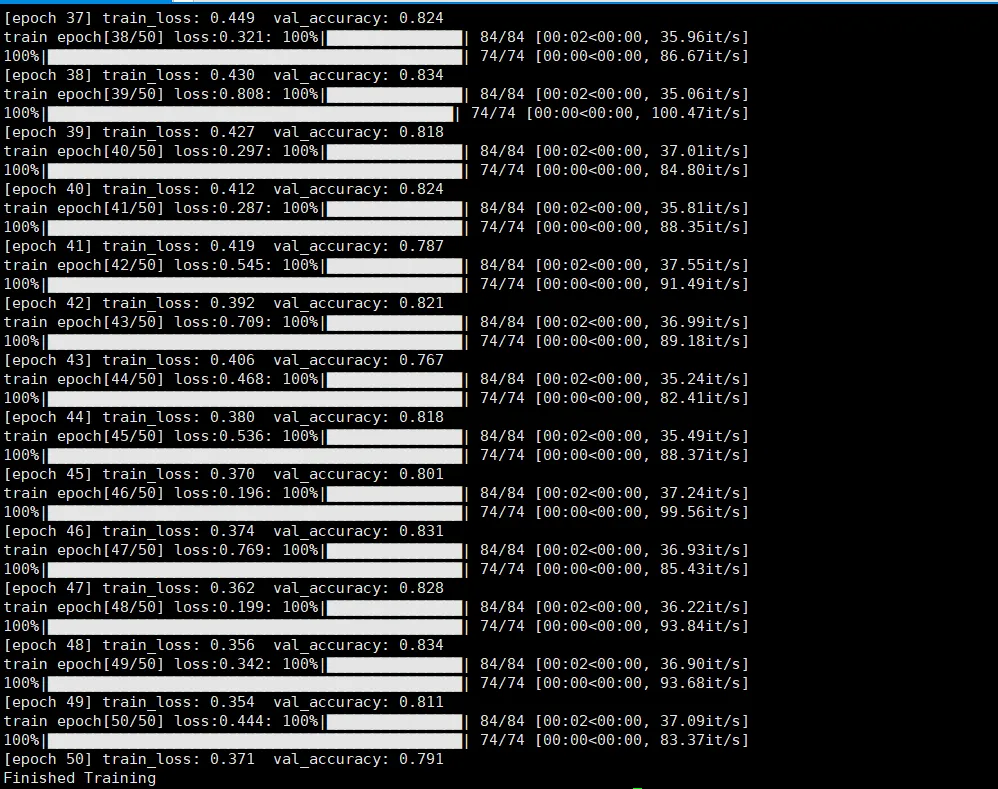

训练结果：
训练50代的效果如下：验证集的准确度大致可以稳定在0.8左右
预训练模型完成训练
加载预训练权重： 导入 ImageNet 上训练好的 AlexNet 权重。
修改分类器： 由于你的任务是 5 类花卉分类，需要替换 AlexNet 原本的 1000 类输出层，以匹配你的 num_classes=5。
设置学习率/冻结层： 通常对预训练模型使用更小的学习率，或者冻结特征提取层（features）的参数，只训练分类器（classifier）的参数。
import os import sys import json import torch import torch.nn as nn from torchvision import transforms, datasets, models # 导入 models import torch.optim as optim from tqdm import tqdm from model import AlexNet # 假设这是你自定义的 AlexNet 类 def main(): device = torch.device("cuda:0" if torch.cuda.is_available() else "cpu") print("using {} device.".format(device)) # ... (数据加载和处理部分保持不变) ... # ------------------ 【修改开始】模型加载与设置 ------------------ # 1. 实例化 AlexNet 模型 # 如果使用你自定义的 AlexNet 类，这里加载预训练权重（需要文件支持） net = AlexNet(num_classes=1000, init_weights=False) # 实例化1000类模型 # 假设你的预训练权重是 'alexnet_imagenet.pth' # weights_path = "./alexnet_imagenet.pth" # assert os.path.exists(weights_path), f"Pretrained weights file: '{weights_path}' not found." # net.load_state_dict(torch.load(weights_path), strict=False) # strict=False 如果你的类和权重不完全匹配 # 或者：使用官方预训练模型（更简单） net = models.alexnet(weights=models.AlexNet_Weights.IMAGENET1K_V1) # 2. 替换分类器 (迁移学习的关键) in_features = net.classifier[6].in_features # 官方 AlexNet 的最后一个 Linear 层是第 6 个模块 (索引从 0 开始) # 替换为 5 个类别的输出 net.classifier[6] = nn.Linear(in_features, 5) net.to(device) loss_function = nn.CrossEntropyLoss() # 3. 设置微调学习率（通常更小） # 只训练分类器参数，使用更高的学习率： # optimizer = optim.Adam(net.classifier.parameters(), lr=0.001) # 或者，微调所有参数，使用更小的学习率： optimizer = optim.Adam(net.parameters(), lr=0.00005) # 降低学习率进行微调 # ------------------ 【修改结束】模型加载与设置 ------------------ epochs = 50 save_path = './AlexNet.pth' best_acc = 0.0 train_steps = len(train_loader) for epoch in range(epochs): # train net.train() running_loss = 0.0 train_bar = tqdm(train_loader, file=sys.stdout) for step, data in enumerate(train_bar): images, labels = data optimizer.zero_grad() outputs = net(images.to(device)) loss = loss_function(outputs, labels.to(device)) loss.backward() optimizer.step() # print statistics running_loss += loss.item() train_bar.desc = "train epoch[{}/{}] loss:{:.3f}".format(epoch + 1, epochs, loss) # validate net.eval() acc = 0.0 # accumulate accurate number / epoch with torch.no_grad(): val_bar = tqdm(validate_loader, file=sys.stdout) for val_data in val_bar: val_images, val_labels = val_data outputs = net(val_images.to(device)) predict_y = torch.max(outputs, dim=1)[1] acc += torch.eq(predict_y, val_labels.to(device)).sum().item() val_accurate = acc / val_num print('[epoch %d] train_loss: %.3f val_accuracy: %.3f' % (epoch + 1, running_loss / train_steps, val_accurate)) if val_accurate > best_acc: best_acc = val_accurate torch.save(net.state_dict(), save_path) print('Finished Training') if __name__ == '__main__': main()

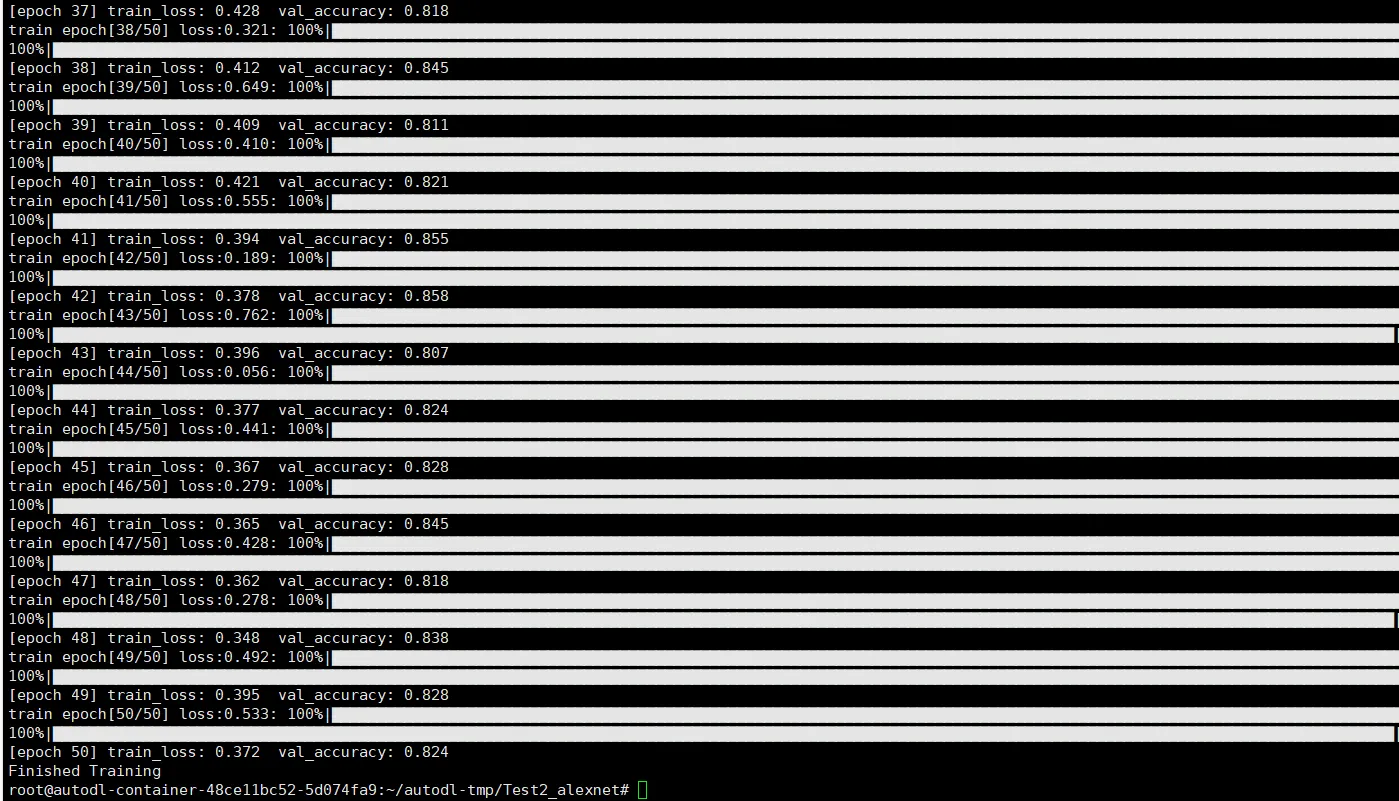

训练效果：
我们应该可以直观的感受到，这种方式的训练速度更快，效果更好
