public class MessageListenerImpl implements MessageListener {
    @Override
    public Action consume(Message message, ConsumeContext context) {
        //处理消息
        doConsumeMessage(message);
        //方式1：返回 Action.ReconsumeLater，消息将重试
        return Action.ReconsumeLater;
        //方式2：返回 null，消息将重试
        return null;
        //方式3：直接抛出异常， 消息将重试
        throw new RuntimeException("Consumer Message exceotion");
    }
}

public class MessageListenerImpl implements MessageListener {
    @Override
    public Action consume(Message message, ConsumeContext context) {
        try {
            doConsumeMessage(message);
        } catch (Throwable e) {
            //捕获消费逻辑中的所有异常，并返回 Action.CommitMessage;
            return Action.CommitMessage;
        }
        //消息处理正常，直接返回 Action.CommitMessage;
        return Action.CommitMessage;
    }
}

Properties properties = new Properties();
//配置对应 Group ID 的最大消息重试次数为 20 次
properties.put(PropertyKeyConst.MaxReconsumeTimes,"20");
Consumer consumer =ONSFactory.createConsumer(properties);

public class MessageListenerImpl implements MessageListener {
    @Override
    public Action consume(Message message, ConsumeContext context) {
        //获取消息的重试次数
        System.out.println(message.getReconsumeTimes());
        return Action.CommitMessage;
    }
}

Message message = new Message();
message.setKey("ORDERID_100");
SendResult sendResult = producer.send(message);

consumer.subscribe("ons_test", "*", new MessageListener() {
    public Action consume(Message message, ConsumeContext context) {
        String key = message.getKey()
        // 根据业务唯一标识的 key 做幂等处理
    }
});

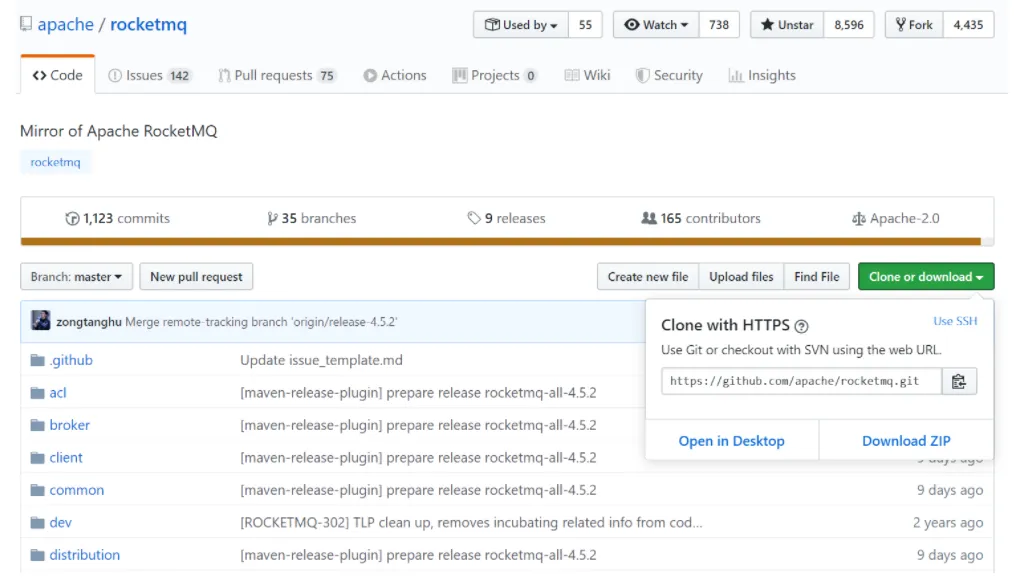

clean install -Dmaven.test.skip=true

The Name Server boot success. serializeType=JSON

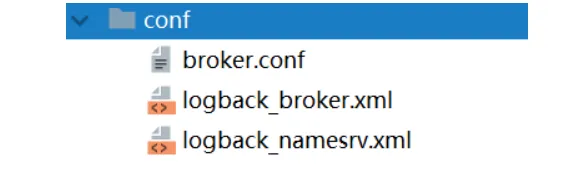

brokerClusterName = DefaultCluster
brokerName = broker-a
brokerId = 0
# namesrvAddr地址
namesrvAddr=127.0.0.1:9876
deleteWhen = 04
fileReservedTime = 48
brokerRole = ASYNC_MASTER

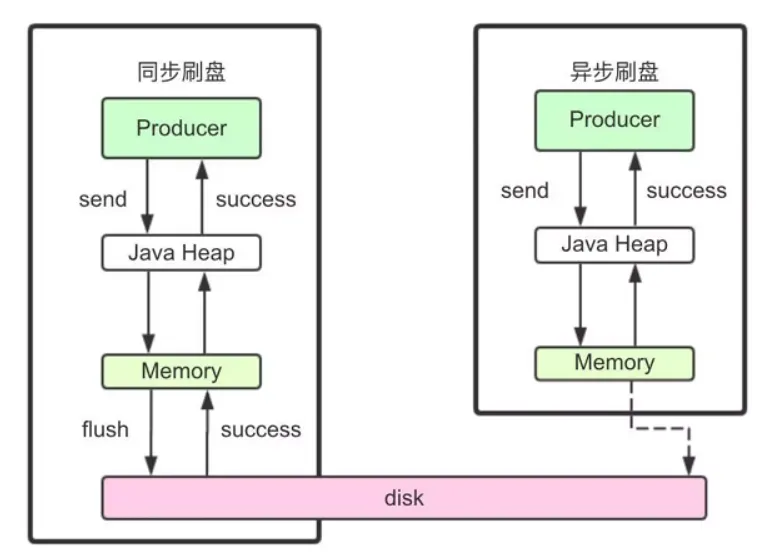

flushDiskType = ASYNC_FLUSH
autoCreateTopicEnable=true

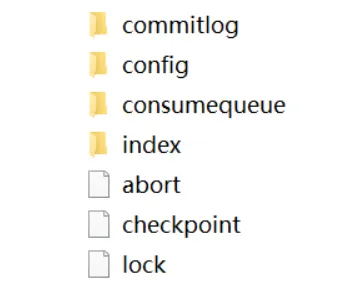

# 存储路径
storePathRootDir=E:\\RocketMQ\\data\\rocketmq\\dataDir
# commitLog路径
storePathCommitLog=E:\\RocketMQ\\data\\rocketmq\\dataDir\\commitlog
# 消息队列存储路径
storePathConsumeQueue=E:\\RocketMQ\\data\\rocketmq\\dataDir\\consumequeue
# 消息索引存储路径
storePathIndex=E:\\RocketMQ\\data\\rocketmq\\dataDir\\index
# checkpoint文件路径
storeCheckpoint=E:\\RocketMQ\\data\\rocketmq\\dataDir\\checkpoint
# abort文件存储路径
abortFile=E:\\RocketMQ\\data\\rocketmq\\dataDir\\abort

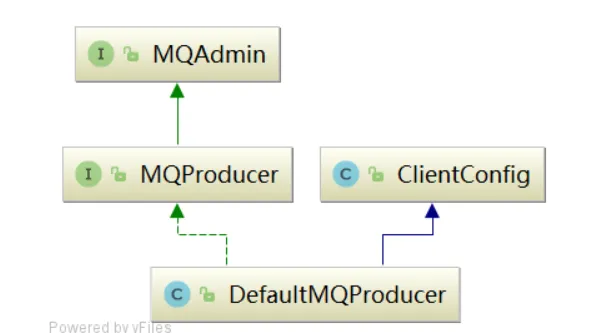

DefaultMQProducer producer = new DefaultMQProducer("please_rename_unique_group_name");
producer.setNamesrvAddr("127.0.0.1:9876");

DefaultMQPushConsumer consumer = new DefaultMQPushConsumer("please_rename_unique_group_name_4");
consumer.setNamesrvAddr("127.0.0.1:9876");

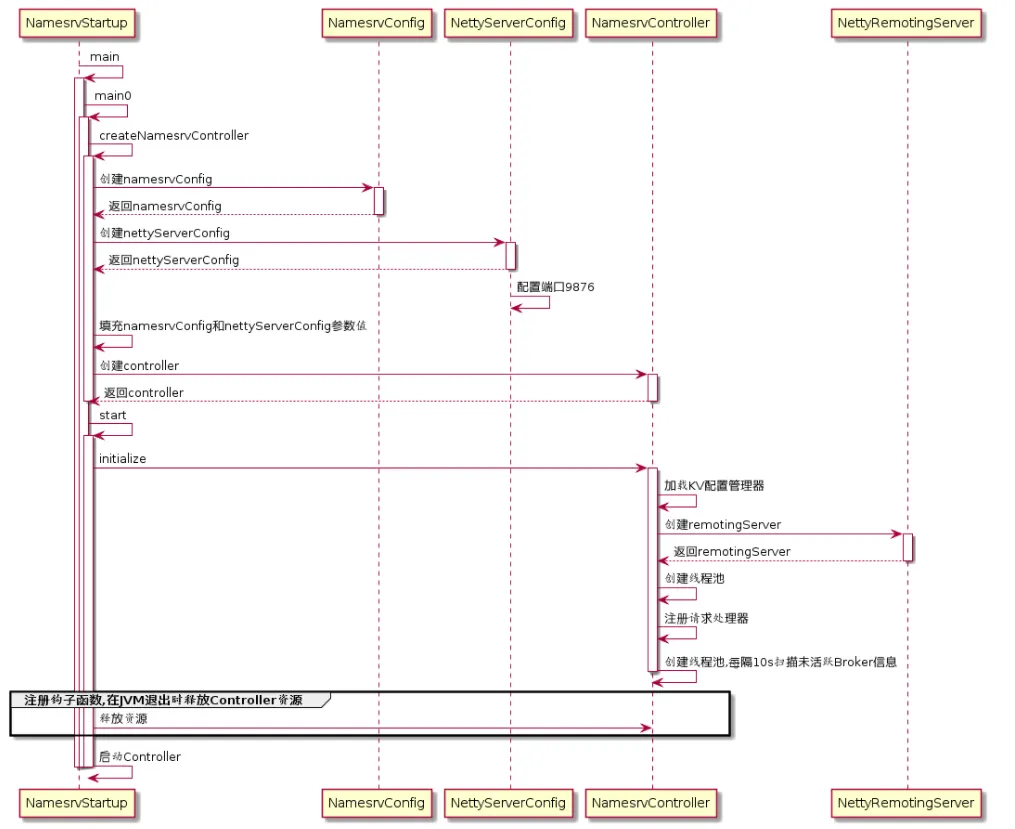

//创建NamesrvConfig
final NamesrvConfig namesrvConfig = new NamesrvConfig();
//创建NettyServerConfig
final NettyServerConfig nettyServerConfig = new NettyServerConfig();
//设置启动端口号
nettyServerConfig.setListenPort(9876);
//解析启动-c参数
if (commandLine.hasOption('c')) {
    String file = commandLine.getOptionValue('c');
    if (file != null) {
        InputStream in = new BufferedInputStream(new FileInputStream(file));
        properties = new Properties();
        properties.load(in);
        MixAll.properties2Object(properties, namesrvConfig);
        MixAll.properties2Object(properties, nettyServerConfig);
        namesrvConfig.setConfigStorePath(file);
        System.out.printf("load config properties file OK, %s%n", file);
        in.close();
    }
}
//解析启动-p参数
if (commandLine.hasOption('p')) {
    InternalLogger console = InternalLoggerFactory.getLogger(LoggerName.NAMESRV_CONSOLE_NAME);
    MixAll.printObjectProperties(console, namesrvConfig);
    MixAll.printObjectProperties(console, nettyServerConfig);
    System.exit(0);
}
//将启动参数填充到namesrvConfig,nettyServerConfig
MixAll.properties2Object(ServerUtil.commandLine2Properties(commandLine), namesrvConfig);
//创建NameServerController
final NamesrvController controller = new NamesrvController(namesrvConfig, nettyServerConfig);

private String rocketmqHome = System.getProperty(MixAll.ROCKETMQ_HOME_PROPERTY, System.getenv(MixAll.ROCKETMQ_HOME_ENV));
private String kvConfigPath = System.getProperty("user.home") + File.separator + "namesrv" + File.separator + "kvConfig.json";
private String configStorePath = System.getProperty("user.home") + File.separator + "namesrv" + File.separator + "namesrv.properties";
private String productEnvName = "center";
private boolean clusterTest = false;
private boolean orderMessageEnable = false;

private int listenPort = 8888;
private int serverWorkerThreads = 8;
private int serverCallbackExecutorThreads = 0;
private int serverSelectorThreads = 3;
private int serverOnewaySemaphoreValue = 256;
private int serverAsyncSemaphoreValue = 64;
private int serverChannelMaxIdleTimeSeconds = 120;
private int serverSocketSndBufSize = NettySystemConfig.socketSndbufSize;
private int serverSocketRcvBufSize = NettySystemConfig.socketRcvbufSize;
private boolean serverPooledByteBufAllocatorEnable = true;
private boolean useEpollNativeSelector = false;

public boolean initialize() {
    //加载KV配置
    this.kvConfigManager.load();
    //创建NettyServer网络处理对象
    this.remotingServer = new NettyRemotingServer(this.nettyServerConfig, this.brokerHousekeepingService);

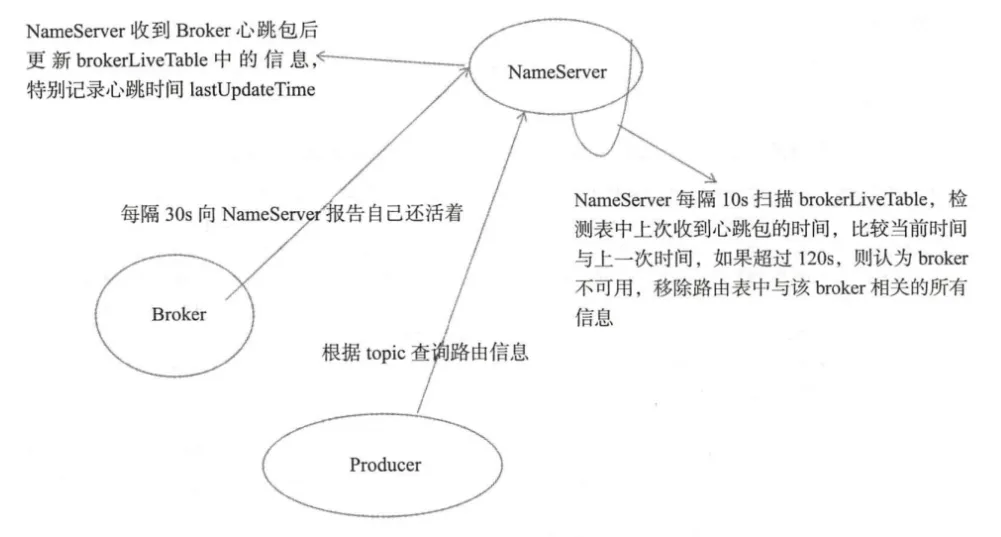

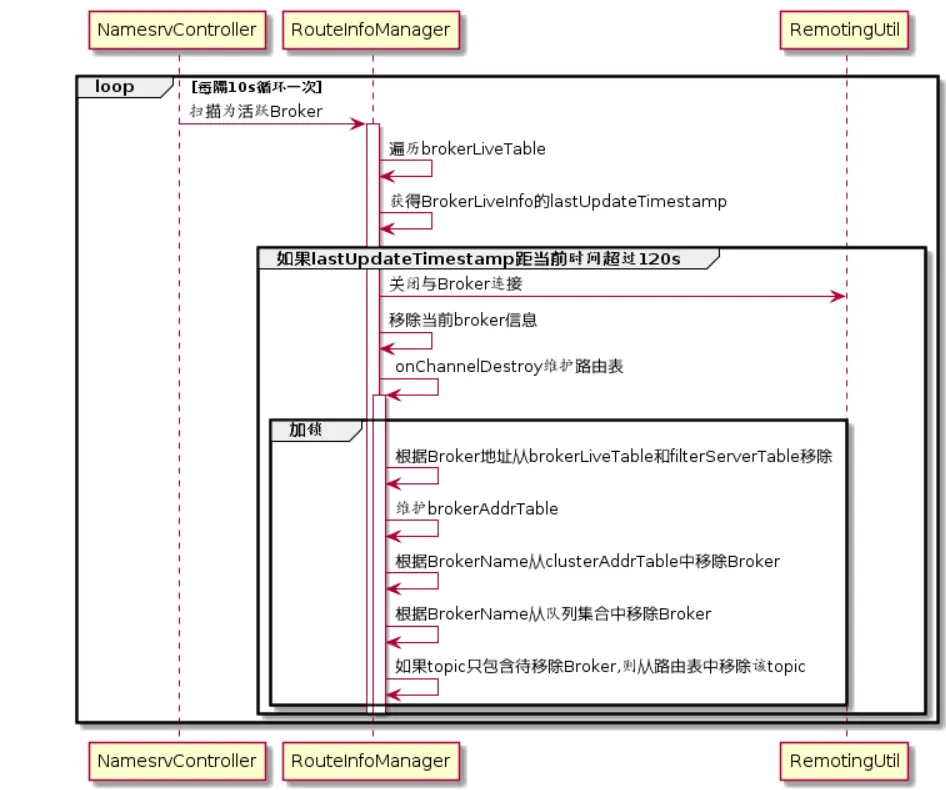

    //开启定时任务:每隔10s扫描一次Broker,移除不活跃的Broker
    this.remotingExecutor =
        Executors.newFixedThreadPool(nettyServerConfig.getServerWorkerThreads(), new ThreadFactoryImpl("RemotingExecutorThread_"));
    this.registerProcessor();
    this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {
        @Override
        public void run() {
            NamesrvController.this.routeInfoManager.scanNotActiveBroker();
        }
    }, 5, 10, TimeUnit.SECONDS);
    //开启定时任务:每隔10min打印一次KV配置
    this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {
        @Override
        public void run() {
            NamesrvController.this.kvConfigManager.printAllPeriodically();
        }
    }, 1, 10, TimeUnit.MINUTES);
    return true;
}

//注册JVM钩子函数代码
Runtime.getRuntime().addShutdownHook(new ShutdownHookThread(log, new Callable<Void>() {
    @Override
    public Void call() throws Exception {
        //释放资源
        controller.shutdown();
        return null;
    }
}));

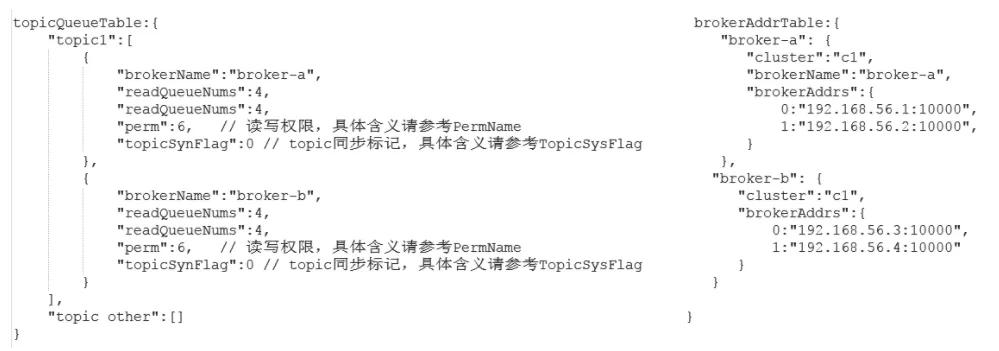

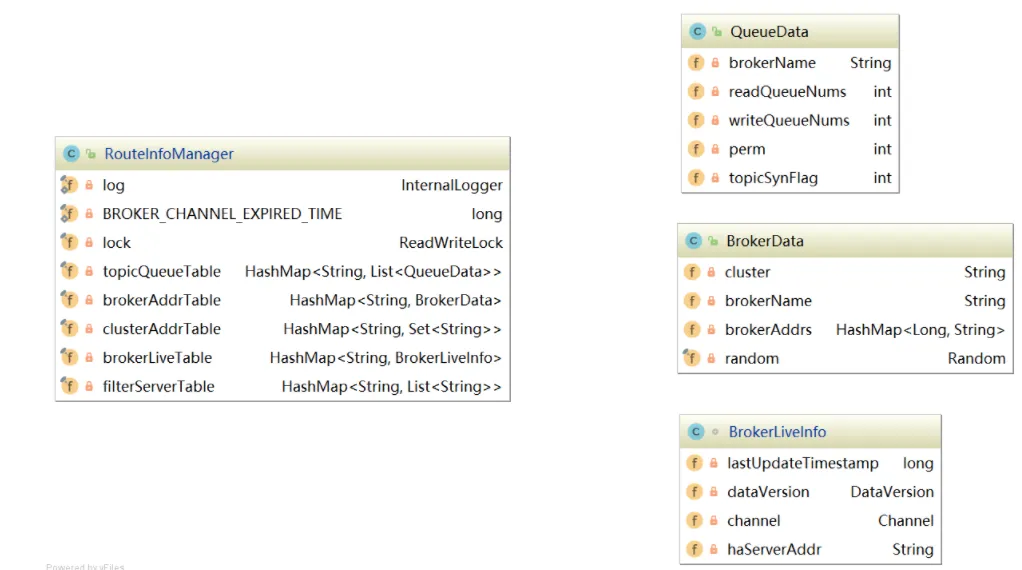

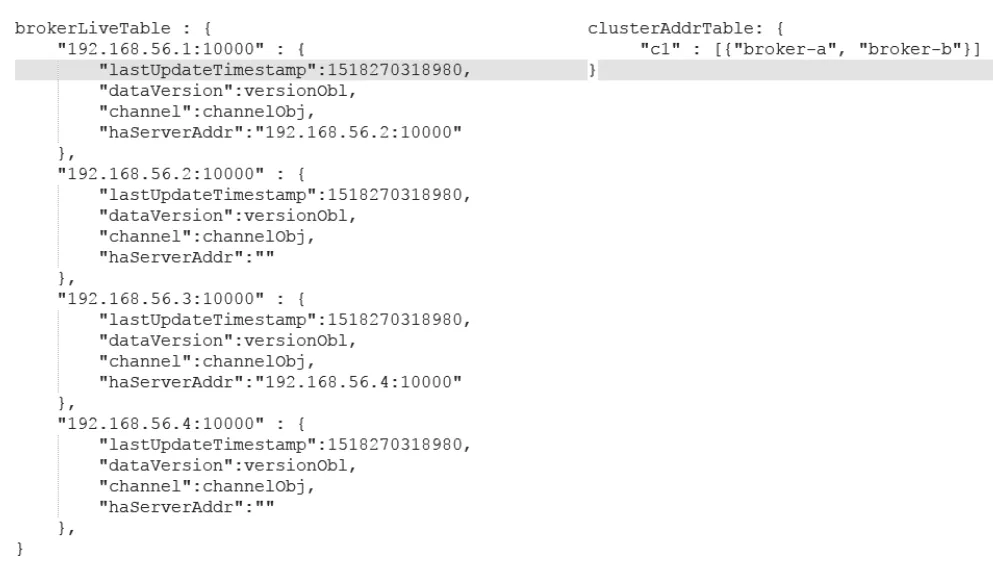

private final HashMap<String/* topic */, List<QueueData>> topicQueueTable;
private final HashMap<String/* brokerName */, BrokerData> brokerAddrTable;
private final HashMap<String/* clusterName */, Set<String/* brokerName */>> clusterAddrTable;
private final HashMap<String/* brokerAddr */, BrokerLiveInfo> brokerLiveTable;
private final HashMap<String/* brokerAddr */, List<String>/* Filter Server */> filterServerTable;

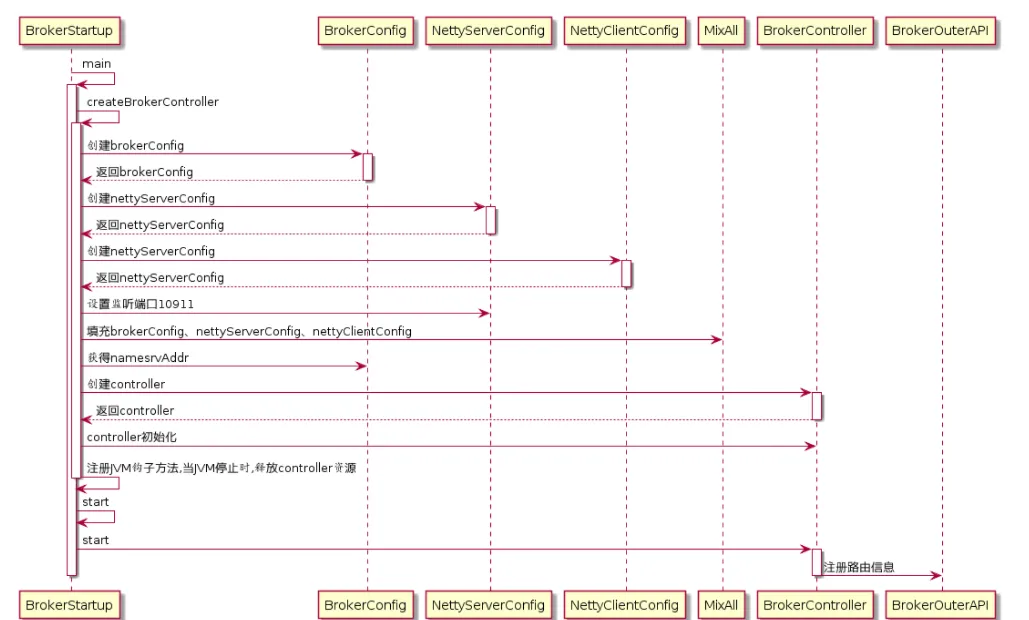

//注册Broker信息
this.registerBrokerAll(true, false, true);
//每隔30s上报Broker信息到NameServer
this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {
    @Override
    public void run() {
        try {
            BrokerController.this.registerBrokerAll(true, false, brokerConfig.isForceRegister());
        } catch (Throwable e) {
            log.error("registerBrokerAll Exception", e);
        }
    }
}, 1000 * 10, Math.max(10000, Math.min(brokerConfig.getRegisterNameServerPeriod(), 60000)),
                                                  TimeUnit.MILLISECONDS);

//获得nameServer地址信息
List<String> nameServerAddressList = this.remotingClient.getNameServerAddressList();
//遍历所有nameserver列表
if (nameServerAddressList != null && nameServerAddressList.size() > 0) {
    //封装请求头
    final RegisterBrokerRequestHeader requestHeader = new RegisterBrokerRequestHeader();
    requestHeader.setBrokerAddr(brokerAddr);
    requestHeader.setBrokerId(brokerId);
    requestHeader.setBrokerName(brokerName);
    requestHeader.setClusterName(clusterName);
    requestHeader.setHaServerAddr(haServerAddr);
    requestHeader.setCompressed(compressed);
    //封装请求体
    RegisterBrokerBody requestBody = new RegisterBrokerBody();
    requestBody.setTopicConfigSerializeWrapper(topicConfigWrapper);
    requestBody.setFilterServerList(filterServerList);
    final byte[] body = requestBody.encode(compressed);
    final int bodyCrc32 = UtilAll.crc32(body);
    requestHeader.setBodyCrc32(bodyCrc32);
    final CountDownLatch countDownLatch = new CountDownLatch(nameServerAddressList.size());
    for (final String namesrvAddr : nameServerAddressList) {
        brokerOuterExecutor.execute(new Runnable() {
            @Override
            public void run() {
                try {
                    //分别向NameServer注册
                    RegisterBrokerResult result = registerBroker(namesrvAddr,oneway, timeoutMills,requestHeader,body);
                    if (result != null) {
                        registerBrokerResultList.add(result);
                    }
                    log.info("register broker[{}]to name server {} OK", brokerId, namesrvAddr);
                } catch (Exception e) {
                    log.warn("registerBroker Exception, {}", namesrvAddr, e);
                } finally {
                    countDownLatch.countDown();
                }
            }
        });
    }
    try {
        countDownLatch.await(timeoutMills, TimeUnit.MILLISECONDS);
    } catch (InterruptedException e) {
    }
}

if (oneway) {
    try {
        this.remotingClient.invokeOneway(namesrvAddr, request, timeoutMills);
    } catch (RemotingTooMuchRequestException e) {
        // Ignore
    }
    return null;
}
RemotingCommand response = this.remotingClient.invokeSync(namesrvAddr, request, timeoutMills);

//判断是注册Broker信息
case RequestCode.REGISTER_BROKER:
    Version brokerVersion = MQVersion.value2Version(request.getVersion());
    if (brokerVersion.ordinal() >= MQVersion.Version.V3_0_11.ordinal()) {
        return this.registerBrokerWithFilterServer(ctx, request);
    } else {
        //注册Broker信息
        return this.registerBroker(ctx, request);
    }

RegisterBrokerResult result = this.namesrvController.getRouteInfoManager().registerBroker(
    requestHeader.getClusterName(),
    requestHeader.getBrokerAddr(),
    requestHeader.getBrokerName(),
    requestHeader.getBrokerId(),
    requestHeader.getHaServerAddr(),
    topicConfigWrapper,
    null,
    ctx.channel()
);

//加锁
this.lock.writeLock().lockInterruptibly();
//维护clusterAddrTable
Set<String> brokerNames = this.clusterAddrTable.get(clusterName);
if (null == brokerNames) {
    brokerNames = new HashSet<String>();
    this.clusterAddrTable.put(clusterName, brokerNames);
}
brokerNames.add(brokerName);

//维护brokerAddrTable
BrokerData brokerData = this.brokerAddrTable.get(brokerName);
//第一次注册,则创建brokerData
if (null == brokerData) {
    registerFirst = true;
    brokerData = new BrokerData(clusterName, brokerName, new HashMap<Long, String>());
    this.brokerAddrTable.put(brokerName, brokerData);
}
//非第一次注册,更新Broker
Map<Long, String> brokerAddrsMap = brokerData.getBrokerAddrs();
Iterator<Entry<Long, String>> it = brokerAddrsMap.entrySet().iterator();
while (it.hasNext()) {
    Entry<Long, String> item = it.next();
    if (null != brokerAddr && brokerAddr.equals(item.getValue()) && brokerId != item.getKey()) {
        it.remove();
    }
}
String oldAddr = brokerData.getBrokerAddrs().put(brokerId, brokerAddr);
registerFirst = registerFirst || (null == oldAddr);

//维护topicQueueTable
if (null != topicConfigWrapper && MixAll.MASTER_ID == brokerId) {
    if (this.isBrokerTopicConfigChanged(brokerAddr, topicConfigWrapper.getDataVersion()) ||
        registerFirst) {
        ConcurrentMap<String, TopicConfig> tcTable = topicConfigWrapper.getTopicConfigTable();
        if (tcTable != null) {
            for (Map.Entry<String, TopicConfig> entry : tcTable.entrySet()) {
                this.createAndUpdateQueueData(brokerName, entry.getValue());
            }
        }
    }
}

private void createAndUpdateQueueData(final String brokerName, final TopicConfig topicConfig) {
    //创建QueueData
    QueueData queueData = new QueueData();
    queueData.setBrokerName(brokerName);
    queueData.setWriteQueueNums(topicConfig.getWriteQueueNums());
    queueData.setReadQueueNums(topicConfig.getReadQueueNums());
    queueData.setPerm(topicConfig.getPerm());
    queueData.setTopicSynFlag(topicConfig.getTopicSysFlag());
    //获得topicQueueTable中队列集合
    List<QueueData> queueDataList = this.topicQueueTable.get(topicConfig.getTopicName());
    //topicQueueTable为空,则直接添加queueData到队列集合
    if (null == queueDataList) {
        queueDataList = new LinkedList<QueueData>();
        queueDataList.add(queueData);
        this.topicQueueTable.put(topicConfig.getTopicName(), queueDataList);
        log.info("new topic registered, {} {}", topicConfig.getTopicName(), queueData);
    } else {
        //判断是否是新的队列
        boolean addNewOne = true;
        Iterator<QueueData> it = queueDataList.iterator();
        while (it.hasNext()) {
            QueueData qd = it.next();
            //如果brokerName相同,代表不是新的队列
            if (qd.getBrokerName().equals(brokerName)) {
                if (qd.equals(queueData)) {
                    addNewOne = false;
            } else {
                        log.info("topic changed, {} OLD: {} NEW: {}", topicConfig.getTopicName(), qd,
                            queueData);
                        it.remove();
                    }
                }
            }
        //如果是新的队列,则添加队列到queueDataList
        if (addNewOne) {
            queueDataList.add(queueData);
        }
    }
}

//维护brokerLiveTable
BrokerLiveInfo prevBrokerLiveInfo = this.brokerLiveTable.put(brokerAddr,new BrokerLiveInfo(
    System.currentTimeMillis(),
    topicConfigWrapper.getDataVersion(),
    channel,
    haServerAddr));

//维护filterServerList
if (filterServerList != null) {
    if (filterServerList.isEmpty()) {
        this.filterServerTable.remove(brokerAddr);
    } else {
        this.filterServerTable.put(brokerAddr, filterServerList);
    }
}
if (MixAll.MASTER_ID != brokerId) {
    String masterAddr = brokerData.getBrokerAddrs().get(MixAll.MASTER_ID);
    if (masterAddr != null) {
        BrokerLiveInfo brokerLiveInfo = this.brokerLiveTable.get(masterAddr);
        if (brokerLiveInfo != null) {
            result.setHaServerAddr(brokerLiveInfo.getHaServerAddr());
            result.setMasterAddr(masterAddr);
        }
    }
}

//每隔10s扫描一次为活跃Broker
this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {
    @Override
    public void run() {
        NamesrvController.this.routeInfoManager.scanNotActiveBroker();
    }
}, 5, 10, TimeUnit.SECONDS);

public void scanNotActiveBroker() {
    //获得brokerLiveTable
    Iterator<Entry<String, BrokerLiveInfo>> it = this.brokerLiveTable.entrySet().iterator();
    //遍历brokerLiveTable
    while (it.hasNext()) {
        Entry<String, BrokerLiveInfo> next = it.next();
        long last = next.getValue().getLastUpdateTimestamp();
        //如果收到心跳包的时间距当时时间是否超过120s
        if ((last + BROKER_CHANNEL_EXPIRED_TIME) < System.currentTimeMillis()) {
            //关闭连接
            RemotingUtil.closeChannel(next.getValue().getChannel());
            //移除broker
            it.remove();
            //维护路由表
            this.onChannelDestroy(next.getKey(), next.getValue().getChannel());
        }
    }
}

//申请写锁,根据brokerAddress从brokerLiveTable和filterServerTable移除
this.lock.writeLock().lockInterruptibly();
this.brokerLiveTable.remove(brokerAddrFound);
this.filterServerTable.remove(brokerAddrFound);

//维护brokerAddrTable
String brokerNameFound = null;
boolean removeBrokerName = false;
Iterator<Entry<String, BrokerData>> itBrokerAddrTable =this.brokerAddrTable.entrySet().iterator();
//遍历brokerAddrTable
while (itBrokerAddrTable.hasNext() && (null == brokerNameFound)) {
    BrokerData brokerData = itBrokerAddrTable.next().getValue();
    //遍历broker地址
    Iterator<Entry<Long, String>> it = brokerData.getBrokerAddrs().entrySet().iterator();
    while (it.hasNext()) {
        Entry<Long, String> entry = it.next();
        Long brokerId = entry.getKey();
        String brokerAddr = entry.getValue();
        //根据broker地址移除brokerAddr
        if (brokerAddr.equals(brokerAddrFound)) {
            brokerNameFound = brokerData.getBrokerName();
            it.remove();
            log.info("remove brokerAddr[{}, {}] from brokerAddrTable, because channel destroyed",
                brokerId, brokerAddr);
            break;
        }
    }
    //如果当前主题只包含待移除的broker,则移除该topic
    if (brokerData.getBrokerAddrs().isEmpty()) {
        removeBrokerName = true;
        itBrokerAddrTable.remove();
        log.info("remove brokerName[{}] from brokerAddrTable, because channel destroyed",
            brokerData.getBrokerName());
    }
}

//维护clusterAddrTable
if (brokerNameFound != null && removeBrokerName) {
    Iterator<Entry<String, Set<String>>> it = this.clusterAddrTable.entrySet().iterator();
    //遍历clusterAddrTable
    while (it.hasNext()) {
        Entry<String, Set<String>> entry = it.next();
        //获得集群名称
        String clusterName = entry.getKey();
        //获得集群中brokerName集合
        Set<String> brokerNames = entry.getValue();
        //从brokerNames中移除brokerNameFound
        boolean removed = brokerNames.remove(brokerNameFound);
        if (removed) {
            log.info("remove brokerName[{}], clusterName[{}] from clusterAddrTable, because channel destroyed",
                brokerNameFound, clusterName);
            if (brokerNames.isEmpty()) {
                log.info("remove the clusterName[{}] from clusterAddrTable, because channel destroyed and no broker in this cluster",
                    clusterName);
                //如果集群中不包含任何broker,则移除该集群
                it.remove();
            }
            break;
        }
    }
}

//维护topicQueueTable队列
if (removeBrokerName) {
    //遍历topicQueueTable
    Iterator<Entry<String, List<QueueData>>> itTopicQueueTable =
        this.topicQueueTable.entrySet().iterator();
    while (itTopicQueueTable.hasNext()) {
        Entry<String, List<QueueData>> entry = itTopicQueueTable.next();
        //主题名称
        String topic = entry.getKey();
        //队列集合
        List<QueueData> queueDataList = entry.getValue();
        //遍历该主题队列
        Iterator<QueueData> itQueueData = queueDataList.iterator();
        while (itQueueData.hasNext()) {
            //从队列中移除为活跃broker信息
            QueueData queueData = itQueueData.next();
            if (queueData.getBrokerName().equals(brokerNameFound)) {
                itQueueData.remove();
                log.info("remove topic[{} {}], from topicQueueTable, because channel destroyed",
                    topic, queueData);
            }
        }
        //如果该topic的队列为空,则移除该topic
        if (queueDataList.isEmpty()) {
            itTopicQueueTable.remove();
            log.info("remove topic[{}] all queue, from topicQueueTable, because channel destroyed",
                topic);
        }
    }
}

//释放写锁
finally {
    this.lock.writeLock().unlock();
}

public RemotingCommand getRouteInfoByTopic(ChannelHandlerContext ctx,
    RemotingCommand request) throws RemotingCommandException {
    final RemotingCommand response = RemotingCommand.createResponseCommand(null);
    final GetRouteInfoRequestHeader requestHeader =
        (GetRouteInfoRequestHeader) request.decodeCommandCustomHeader(GetRouteInfoRequestHeader.class);
    //调用RouteInfoManager的方法,从路由表topicQueueTable、brokerAddrTable、filterServerTable中分别填充TopicRouteData的List<QueueData>、List<BrokerData>、filterServer
    TopicRouteData topicRouteData = this.namesrvController.getRouteInfoManager().pickupTopicRouteData(requestHeader.getTopic());
    //如果找到主题对应你的路由信息并且该主题为顺序消息，则从NameServer KVConfig中获取关于顺序消息相关的配置填充路由信息
    if (topicRouteData != null) {
        if (this.namesrvController.getNamesrvConfig().isOrderMessageEnable()) {
            String orderTopicConf =
                this.namesrvController.getKvConfigManager().getKVConfig(NamesrvUtil.NAMESPACE_ORDER_TOPIC_CONFIG,
                    requestHeader.getTopic());
            topicRouteData.setOrderTopicConf(orderTopicConf);
        }
        byte[] content = topicRouteData.encode();
        response.setBody(content);
        response.setCode(ResponseCode.SUCCESS);
        response.setRemark(null);
        return response;
    }
    response.setCode(ResponseCode.TOPIC_NOT_EXIST);
    response.setRemark("No topic route info in name server for the topic: " + requestHeader.getTopic()
        + FAQUrl.suggestTodo(FAQUrl.APPLY_TOPIC_URL));
    return response;
}

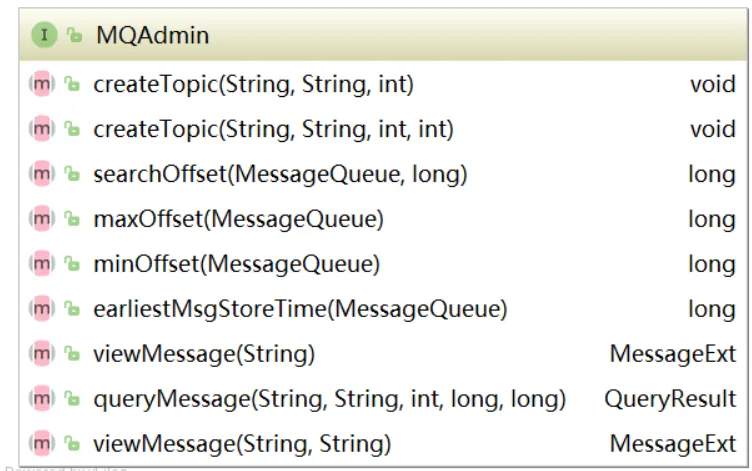

* ```java
  //创建主题
  void createTopic(final String key, final String newTopic, final int queueNum) throws MQClientException;
  ```
* ```java
  //根据时间戳从队列中查找消息偏移量
  long searchOffset(final MessageQueue mq, final long timestamp)
  ```
* ```java
  //查找消息队列中最大的偏移量
  long maxOffset(final MessageQueue mq) throws MQClientException;
  ```
* ```java
  //查找消息队列中最小的偏移量
  long minOffset(final MessageQueue mq)
  ```
* ```java
  //根据偏移量查找消息
  MessageExt viewMessage(final String offsetMsgId) throws RemotingException, MQBrokerException,
          InterruptedException, MQClientException;
  ```
* ```java
  //根据条件查找消息
  QueryResult queryMessage(final String topic, final String key, final int maxNum, final long begin,
          final long end) throws MQClientException, InterruptedException;
  ```
* ```java
  //根据消息ID和主题查找消息
  MessageExt viewMessage(String topic,String msgId) throws RemotingException, MQBrokerException, InterruptedException, MQClientException;
  ```

* ```java

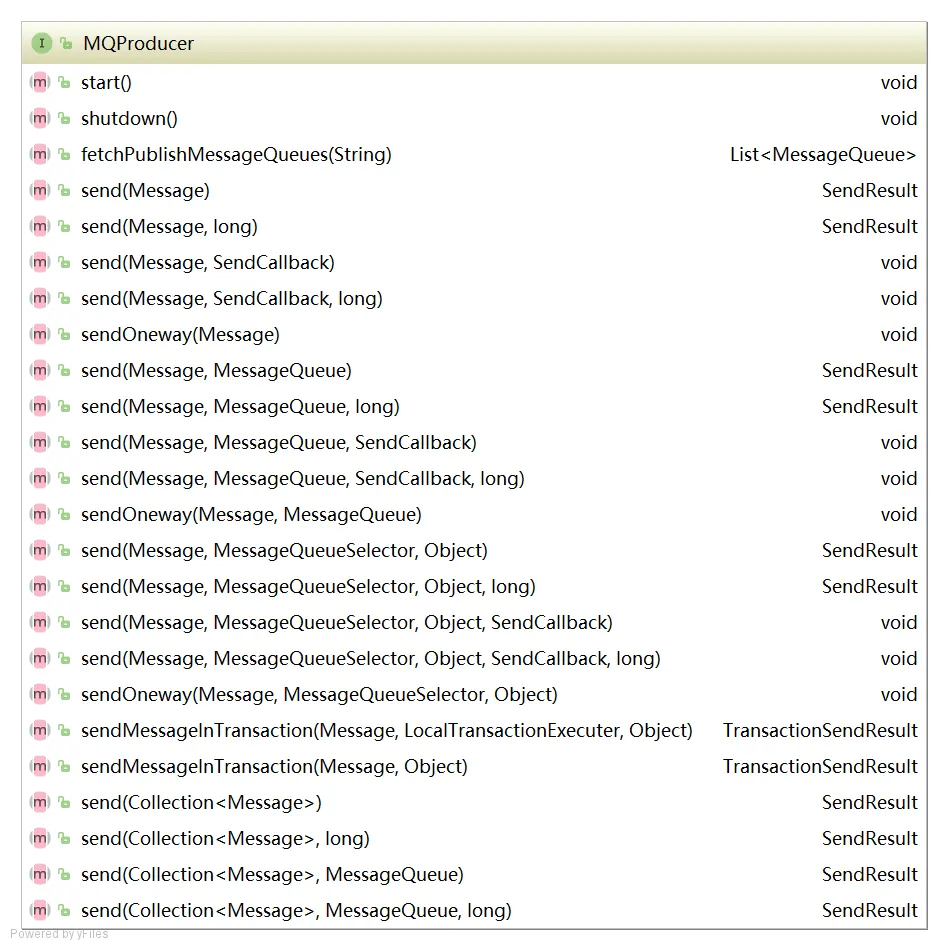

  //启动
  void start() throws MQClientException;
  ```
* ```java
  //关闭
  void shutdown();
  ```
* ```java
  //查找该主题下所有消息
  List<MessageQueue> fetchPublishMessageQueues(final String topic) throws MQClientException;
  ```
* ```java
  //同步发送消息
  SendResult send(final Message msg) throws MQClientException, RemotingException, MQBrokerException,
          InterruptedException;
  ```
* ```java
  //同步超时发送消息
  SendResult send(final Message msg, final long timeout) throws MQClientException,
          RemotingException, MQBrokerException, InterruptedException;
  ```
* ```java
  //异步发送消息
  void send(final Message msg, final SendCallback sendCallback) throws MQClientException,
          RemotingException, InterruptedException;
  ```
* ```java
  //异步超时发送消息
  void send(final Message msg, final SendCallback sendCallback, final long timeout)
      throws MQClientException, RemotingException, InterruptedException;
  ```
* ```java
  //发送单向消息
  void sendOneway(final Message msg) throws MQClientException, RemotingException,
      InterruptedException;
  ```
* ```java
  //选择指定队列同步发送消息
  SendResult send(final Message msg, final MessageQueue mq) throws MQClientException,
      RemotingException, MQBrokerException, InterruptedException;
  ```
* ```java
  //选择指定队列异步发送消息
  void send(final Message msg, final MessageQueue mq, final SendCallback sendCallback)
      throws MQClientException, RemotingException, InterruptedException;
  ```
* ```java
  //选择指定队列单项发送消息
  void sendOneway(final Message msg, final MessageQueue mq) throws MQClientException,
      RemotingException, InterruptedException;
  ```
* ```java

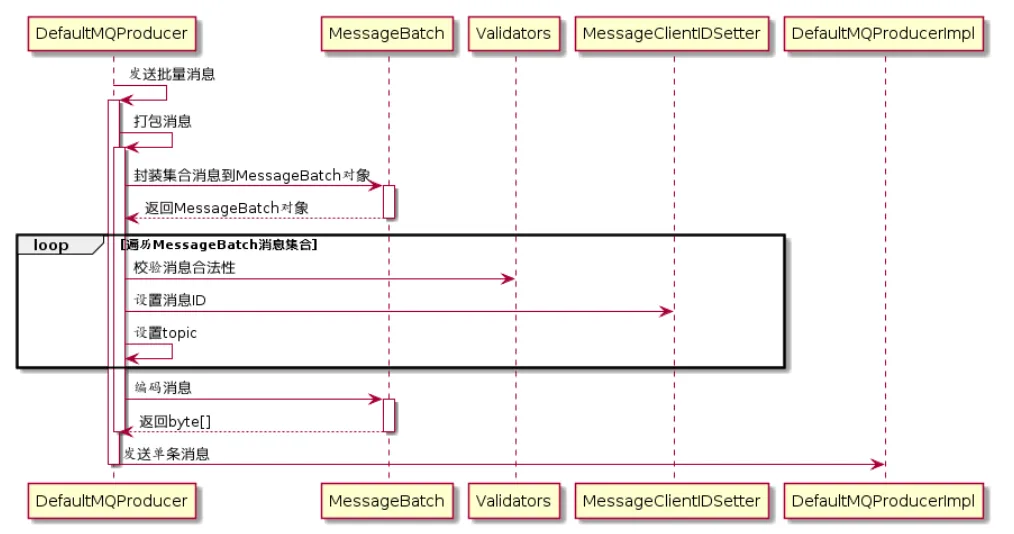

  //批量发送消息
  SendResult send(final Collection<Message> msgs) throws MQClientException, RemotingException, MQBrokerException,InterruptedException;
  ```

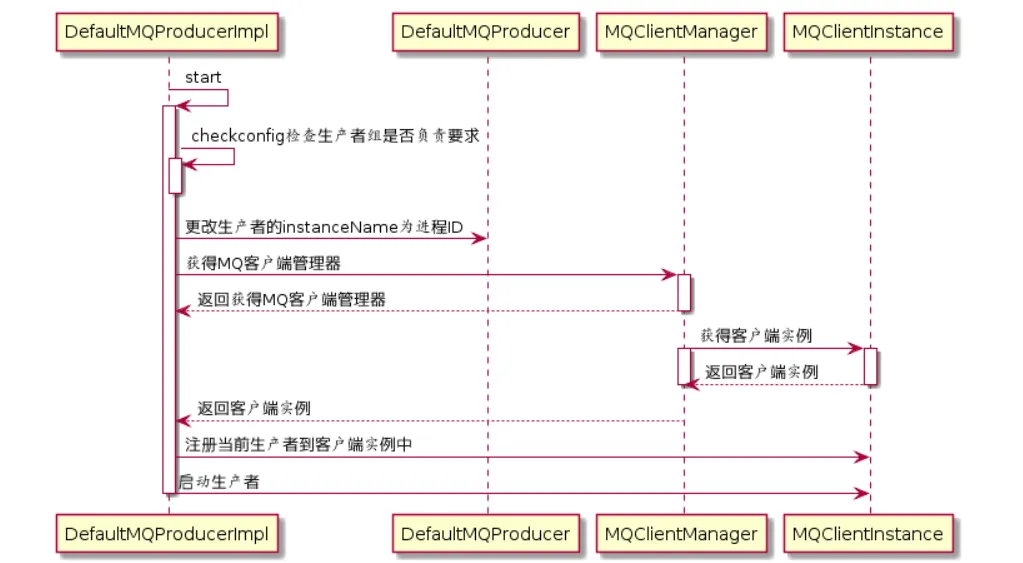

//检查生产者组是否满足要求
this.checkConfig();
//更改当前instanceName为进程ID
if (!this.defaultMQProducer.getProducerGroup().equals(MixAll.CLIENT_INNER_PRODUCER_GROUP)) {
    this.defaultMQProducer.changeInstanceNameToPID();
}
//获得MQ客户端实例
this.mQClientFactory = MQClientManager.getInstance().getAndCreateMQClientInstance(this.defaultMQProducer, rpcHook);

public MQClientInstance getAndCreateMQClientInstance(final ClientConfig clientConfig,
                                                     RPCHook rpcHook) {
    //构建客户端ID
    String clientId = clientConfig.buildMQClientId();
    //根据客户端ID或者客户端实例
    MQClientInstance instance = this.factoryTable.get(clientId);
    //实例如果为空就创建新的实例,并添加到实例表中
    if (null == instance) {
        instance =
            new MQClientInstance(clientConfig.cloneClientConfig(),
                this.factoryIndexGenerator.getAndIncrement(), clientId, rpcHook);
        MQClientInstance prev = this.factoryTable.putIfAbsent(clientId, instance);
        if (prev != null) {
            instance = prev;
            log.warn("Returned Previous MQClientInstance for clientId:[{}]", clientId);
        } else {
            log.info("Created new MQClientInstance for clientId:[{}]", clientId);
        }
    }
    return instance;
}

//注册当前生产者到到MQClientInstance管理中,方便后续调用网路请求
boolean registerOK = mQClientFactory.registerProducer(this.defaultMQProducer.getProducerGroup(), this);
if (!registerOK) {
    this.serviceState = ServiceState.CREATE_JUST;
    throw new MQClientException("The producer group[" + this.defaultMQProducer.getProducerGroup()
        + "] has been created before, specify another name please." + FAQUrl.suggestTodo(FAQUrl.GROUP_NAME_DUPLICATE_URL),
        null);
}
//启动生产者
if (startFactory) {
    mQClientFactory.start();
}

//发送消息
public SendResult send(Message msg) {
    return send(msg, this.defaultMQProducer.getSendMsgTimeout());
}

//发送消息,默认超时时间为3s
public SendResult send(Message msg,long timeout){
    return this.sendDefaultImpl(msg, CommunicationMode.SYNC, null, timeout);
}

//校验消息
Validators.checkMessage(msg, this.defaultMQProducer);

public static void checkMessage(Message msg, DefaultMQProducer defaultMQProducer)
    throws MQClientException {
    //判断是否为空
    if (null == msg) {
        throw new MQClientException(ResponseCode.MESSAGE_ILLEGAL, "the message is null");
    }
    // 校验主题
    Validators.checkTopic(msg.getTopic());

    // 校验消息体
    if (null == msg.getBody()) {
        throw new MQClientException(ResponseCode.MESSAGE_ILLEGAL, "the message body is null");
    }
    if (0 == msg.getBody().length) {
        throw new MQClientException(ResponseCode.MESSAGE_ILLEGAL, "the message body length is zero");
    }
    if (msg.getBody().length > defaultMQProducer.getMaxMessageSize()) {
        throw new MQClientException(ResponseCode.MESSAGE_ILLEGAL,
            "the message body size over max value, MAX: " + defaultMQProducer.getMaxMessageSize());
    }
}

private TopicPublishInfo tryToFindTopicPublishInfo(final String topic) {
    //从缓存中获得主题的路由信息
    TopicPublishInfo topicPublishInfo = this.topicPublishInfoTable.get(topic);
    //路由信息为空,则从NameServer获取路由
    if (null == topicPublishInfo || !topicPublishInfo.ok()) {
        this.topicPublishInfoTable.putIfAbsent(topic, new TopicPublishInfo());
        this.mQClientFactory.updateTopicRouteInfoFromNameServer(topic);
        topicPublishInfo = this.topicPublishInfoTable.get(topic);
    }
    if (topicPublishInfo.isHaveTopicRouterInfo() || topicPublishInfo.ok()) {
        return topicPublishInfo;
    } else {
        //如果未找到当前主题的路由信息,则用默认主题继续查找
        this.mQClientFactory.updateTopicRouteInfoFromNameServer(topic, true, this.defaultMQProducer);
        topicPublishInfo = this.topicPublishInfoTable.get(topic);
        return topicPublishInfo;
    }
}

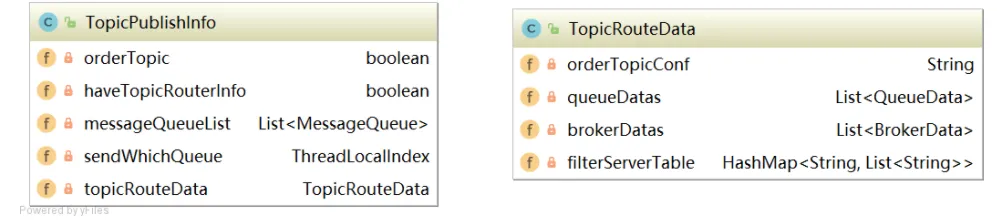

public class TopicPublishInfo {
    private boolean orderTopic = false; //是否是顺序消息
    private boolean haveTopicRouterInfo = false;
    private List<MessageQueue> messageQueueList = new ArrayList<MessageQueue>();    //该主题消息队列
    private volatile ThreadLocalIndex sendWhichQueue = new ThreadLocalIndex();//每选择一次消息队列,该值+1
    private TopicRouteData topicRouteData;//关联Topic路由元信息
}

TopicRouteData topicRouteData;
//使用默认主题从NameServer获取路由信息
if (isDefault && defaultMQProducer != null) {
    topicRouteData = this.mQClientAPIImpl.getDefaultTopicRouteInfoFromNameServer(defaultMQProducer.getCreateTopicKey(),
        1000 * 3);
    if (topicRouteData != null) {
        for (QueueData data : topicRouteData.getQueueDatas()) {
            int queueNums = Math.min(defaultMQProducer.getDefaultTopicQueueNums(), data.getReadQueueNums());
            data.setReadQueueNums(queueNums);
            data.setWriteQueueNums(queueNums);
        }
    }
} else {
    //使用指定主题从NameServer获取路由信息
    topicRouteData = this.mQClientAPIImpl.getTopicRouteInfoFromNameServer(topic, 1000 * 3);
}

//判断路由是否需要更改
TopicRouteData old = this.topicRouteTable.get(topic);
boolean changed = topicRouteDataIsChange(old, topicRouteData);
if (!changed) {
    changed = this.isNeedUpdateTopicRouteInfo(topic);
} else {
    log.info("the topic[{}] route info changed, old[{}] ,new[{}]", topic, old, topicRouteData);
}

if (changed) {
    //将topicRouteData转换为发布队列
    TopicPublishInfo publishInfo = topicRouteData2TopicPublishInfo(topic, topicRouteData);
    publishInfo.setHaveTopicRouterInfo(true);
    //遍历生产
    Iterator<Entry<String, MQProducerInner>> it = this.producerTable.entrySet().iterator();
    while (it.hasNext()) {
        Entry<String, MQProducerInner> entry = it.next();
        MQProducerInner impl = entry.getValue();
        if (impl != null) {
            //生产者不为空时,更新publishInfo信息
            impl.updateTopicPublishInfo(topic, publishInfo);
        }
    }
}

public static TopicPublishInfo topicRouteData2TopicPublishInfo(final String topic, final TopicRouteData route) {
        //创建TopicPublishInfo对象
        TopicPublishInfo info = new TopicPublishInfo();
        //关联topicRoute
        info.setTopicRouteData(route);
        //顺序消息,更新TopicPublishInfo
        if (route.getOrderTopicConf() != null && route.getOrderTopicConf().length() > 0) {
            String[] brokers = route.getOrderTopicConf().split(";");
            for (String broker : brokers) {
                String[] item = broker.split(":");
                int nums = Integer.parseInt(item[1]);
                for (int i = 0; i < nums; i++) {
                    MessageQueue mq = new MessageQueue(topic, item[0], i);
                    info.getMessageQueueList().add(mq);
                }
            }
            info.setOrderTopic(true);
        } else {
            //非顺序消息更新TopicPublishInfo
            List<QueueData> qds = route.getQueueDatas();
            Collections.sort(qds);
            //遍历topic队列信息
            for (QueueData qd : qds) {
                //是否是写队列
                if (PermName.isWriteable(qd.getPerm())) {
                    BrokerData brokerData = null;
                    //遍历写队列Broker
                    for (BrokerData bd : route.getBrokerDatas()) {
                        //根据名称获得读队列对应的Broker
                        if (bd.getBrokerName().equals(qd.getBrokerName())) {
                        brokerData = bd;
                        break;
                    }
                }
                if (null == brokerData) {
                    continue;
                }
                if (!brokerData.getBrokerAddrs().containsKey(MixAll.MASTER_ID)) {
                    continue;
                }
                //封装TopicPublishInfo写队列
                for (int i = 0; i < qd.getWriteQueueNums(); i++) {
                    MessageQueue mq = new MessageQueue(topic, qd.getBrokerName(), i);
                    info.getMessageQueueList().add(mq);
                }
            }
        }
        info.setOrderTopic(false);
    }
    //返回TopicPublishInfo对象
    return info;
}

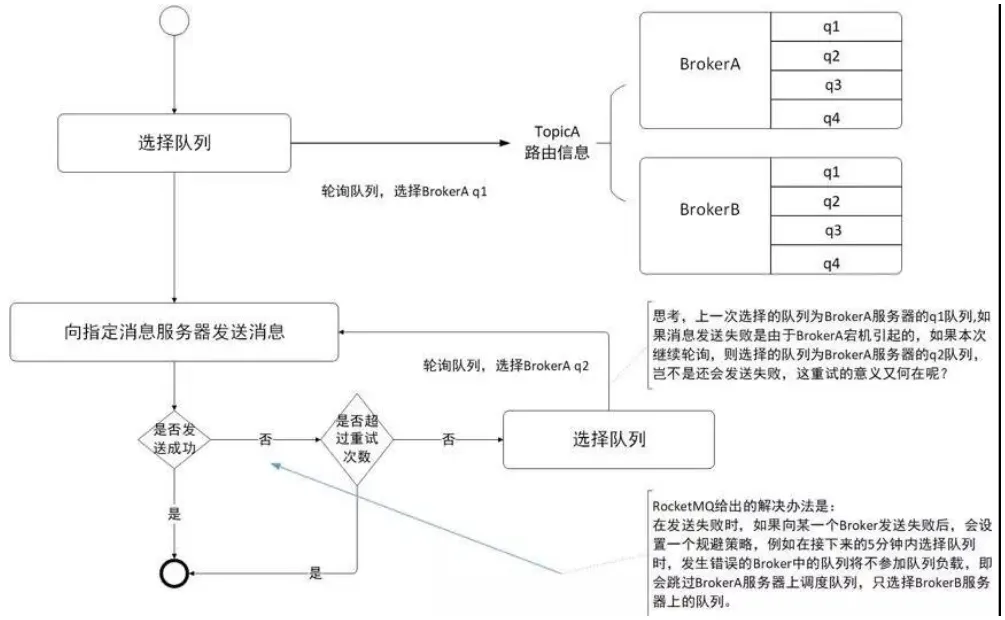

public MessageQueue selectOneMessageQueue(final String lastBrokerName) {
    //第一次选择队列
    if (lastBrokerName == null) {
        return selectOneMessageQueue();
    } else {
        //sendWhichQueue
        int index = this.sendWhichQueue.getAndIncrement();
        //遍历消息队列集合
        for (int i = 0; i < this.messageQueueList.size(); i++) {
            //sendWhichQueue自增后取模
            int pos = Math.abs(index++) % this.messageQueueList.size();
            if (pos < 0)
                pos = 0;
            //规避上次Broker队列
            MessageQueue mq = this.messageQueueList.get(pos);
            if (!mq.getBrokerName().equals(lastBrokerName)) {
                return mq;
            }
        }
        //如果以上情况都不满足,返回sendWhichQueue取模后的队列
        return selectOneMessageQueue();
    }
}

//第一次选择队列
public MessageQueue selectOneMessageQueue() {
    //sendWhichQueue自增
    int index = this.sendWhichQueue.getAndIncrement();
    //对队列大小取模
    int pos = Math.abs(index) % this.messageQueueList.size();
    if (pos < 0)
        pos = 0;
    //返回对应的队列
    return this.messageQueueList.get(pos);
}

public MessageQueue selectOneMessageQueue(final TopicPublishInfo tpInfo, final String lastBrokerName) {
    //Broker故障延迟机制
    if (this.sendLatencyFaultEnable) {
        try {
            //对sendWhichQueue自增
            int index = tpInfo.getSendWhichQueue().getAndIncrement();
            //对消息队列轮询获取一个队列
            for (int i = 0; i < tpInfo.getMessageQueueList().size(); i++) {
                int pos = Math.abs(index++) % tpInfo.getMessageQueueList().size();
                if (pos < 0)
                    pos = 0;
                MessageQueue mq = tpInfo.getMessageQueueList().get(pos);
                //验证该队列是否可用
                if (latencyFaultTolerance.isAvailable(mq.getBrokerName())) {
                    //可用
                    if (null == lastBrokerName || mq.getBrokerName().equals(lastBrokerName))
                        return mq;
                }
            }
            //从规避的Broker中选择一个可用的Broker
            final String notBestBroker = latencyFaultTolerance.pickOneAtLeast();
            //获得Broker的写队列集合
            int writeQueueNums = tpInfo.getQueueIdByBroker(notBestBroker);
            if (writeQueueNums > 0) {
                //获得一个队列,指定broker和队列ID并返回
                final MessageQueue mq = tpInfo.selectOneMessageQueue();
                if (notBestBroker != null) {
                    mq.setBrokerName(notBestBroker);
                    mq.setQueueId(tpInfo.getSendWhichQueue().getAndIncrement() % writeQueueNums);
                }
                return mq;
            } else {
                latencyFaultTolerance.remove(notBestBroker);
            }
        } catch (Exception e) {
            log.error("Error occurred when selecting message queue", e);
        }
        return tpInfo.selectOneMessageQueue();
    }
    return tpInfo.selectOneMessageQueue(lastBrokerName);
}

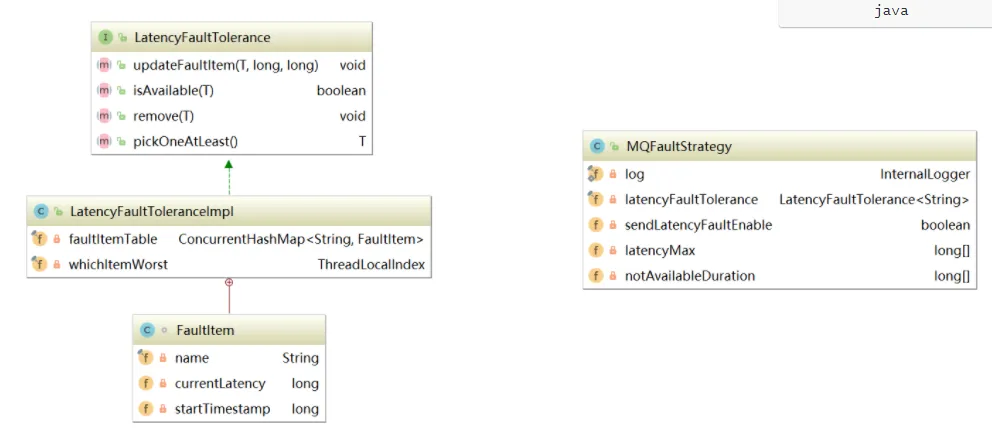

public interface LatencyFaultTolerance<T> {
    //更新失败条目
    void updateFaultItem(final T name, final long currentLatency, final long notAvailableDuration);
    //判断Broker是否可用
    boolean isAvailable(final T name);
    //移除Fault条目
    void remove(final T name);
    //尝试从规避的Broker中选择一个可用的Broker
    T pickOneAtLeast();
}

class FaultItem implements Comparable<FaultItem> {
    //条目唯一键,这里为brokerName
    private final String name;
    //本次消息发送延迟
    private volatile long currentLatency;
    //故障规避开始时间
    private volatile long startTimestamp;
}

public class MQFaultStrategy {
   //根据currentLatency本地消息发送延迟,从latencyMax尾部向前找到第一个比currentLatency小的索引,如果没有找到,返回0
    private long[] latencyMax = {50L, 100L, 550L, 1000L, 2000L, 3000L, 15000L};
    //根据这个索引从notAvailableDuration取出对应的时间,在该时长内,Broker设置为不可用
    private long[] notAvailableDuration = {0L, 0L, 30000L, 60000L, 120000L, 180000L, 600000L};
}

sendResult = this.sendKernelImpl(msg,
                                 mq,
                                 communicationMode,
                                 sendCallback,
                                 topicPublishInfo,
                                 timeout - costTime);
endTimestamp = System.currentTimeMillis();
this.updateFaultItem(mq.getBrokerName(), endTimestamp - beginTimestampPrev, false);
如果上述发送过程出现异常，则调用DefaultMQProducerImpl#updateFaultItem
public void updateFaultItem(final String brokerName, final long currentLatency, boolean isolation) {
    //参数一：broker名称
    //参数二:本次消息发送延迟时间
    //参数三:是否隔离
    this.mqFaultStrategy.updateFaultItem(brokerName, currentLatency, isolation);
}

public void updateFaultItem(final String brokerName, final long currentLatency, boolean isolation) {
    if (this.sendLatencyFaultEnable) {
        //计算broker规避的时长
        long duration = computeNotAvailableDuration(isolation ? 30000 : currentLatency);
        //更新该FaultItem规避时长
        this.latencyFaultTolerance.updateFaultItem(brokerName, currentLatency, duration);
    }
}

private long computeNotAvailableDuration(final long currentLatency) {
    //遍历latencyMax
    for (int i = latencyMax.length - 1; i >= 0; i--) {
        //找到第一个比currentLatency的latencyMax值
        if (currentLatency >= latencyMax[i])
            return this.notAvailableDuration[i];
    }
    //没有找到则返回0
    return 0;
}

public void updateFaultItem(final String name, final long currentLatency, final long notAvailableDuration) {
    //获得原FaultItem
    FaultItem old = this.faultItemTable.get(name);
    //为空新建faultItem对象,设置规避时长和开始时间
    if (null == old) {
        final FaultItem faultItem = new FaultItem(name);
        faultItem.setCurrentLatency(currentLatency);
        faultItem.setStartTimestamp(System.currentTimeMillis() + notAvailableDuration);
        old = this.faultItemTable.putIfAbsent(name, faultItem);
        if (old != null) {
            old.setCurrentLatency(currentLatency);
            old.setStartTimestamp(System.currentTimeMillis() + notAvailableDuration);
        }
    } else {
        //更新规避时长和开始时间
        old.setCurrentLatency(currentLatency);
        old.setStartTimestamp(System.currentTimeMillis() + notAvailableDuration);
    }
}

private SendResult sendKernelImpl(
    final Message msg,  //待发送消息
    final MessageQueue mq,  //消息发送队列
    final CommunicationMode communicationMode,      //消息发送内模式
    final SendCallback sendCallback,    pp  //异步消息回调函数
    final TopicPublishInfo topicPublishInfo,    //主题路由信息
    final long timeout  //超时时间
    )

//获得broker网络地址信息
String brokerAddr = this.mQClientFactory.findBrokerAddressInPublish(mq.getBrokerName());
if (null == brokerAddr) {
    //没有找到从NameServer更新broker网络地址信息
    tryToFindTopicPublishInfo(mq.getTopic());
    brokerAddr = this.mQClientFactory.findBrokerAddressInPublish(mq.getBrokerName());
}
//为消息分类唯一ID
if (!(msg instanceof MessageBatch)) {
    MessageClientIDSetter.setUniqID(msg);
}
boolean topicWithNamespace = false;
if (null != this.mQClientFactory.getClientConfig().getNamespace()) {
    msg.setInstanceId(this.mQClientFactory.getClientConfig().getNamespace());
    topicWithNamespace = true;
}
//消息大小超过4K,启用消息压缩
int sysFlag = 0;
boolean msgBodyCompressed = false;
if (this.tryToCompressMessage(msg)) {
    sysFlag |= MessageSysFlag.COMPRESSED_FLAG;
    msgBodyCompressed = true;
}
//如果是事务消息,设置消息标记MessageSysFlag.TRANSACTION_PREPARED_TYPE
final String tranMsg = msg.getProperty(MessageConst.PROPERTY_TRANSACTION_PREPARED);
if (tranMsg != null && Boolean.parseBoolean(tranMsg)) {
    sysFlag |= MessageSysFlag.TRANSACTION_PREPARED_TYPE;
}
//如果注册了消息发送钩子函数,在执行消息发送前的增强逻辑
if (this.hasSendMessageHook()) {
    context = new SendMessageContext();
    context.setProducer(this);
    context.setProducerGroup(this.defaultMQProducer.getProducerGroup());
    context.setCommunicationMode(communicationMode);
    context.setBornHost(this.defaultMQProducer.getClientIP());
    context.setBrokerAddr(brokerAddr);
    context.setMessage(msg);
    context.setMq(mq);
    context.setNamespace(this.defaultMQProducer.getNamespace());
    String isTrans = msg.getProperty(MessageConst.PROPERTY_TRANSACTION_PREPARED);
    if (isTrans != null && isTrans.equals("true")) {
        context.setMsgType(MessageType.Trans_Msg_Half);
    }
    if (msg.getProperty("__STARTDELIVERTIME") != null || msg.getProperty(MessageConst.PROPERTY_DELAY_TIME_LEVEL) != null) {
        context.setMsgType(MessageType.Delay_Msg);
    }
    this.executeSendMessageHookBefore(context);
}

public interface SendMessageHook {
    String hookName();
    void sendMessageBefore(final SendMessageContext context);
    void sendMessageAfter(final SendMessageContext context);
}

//构建消息发送请求包
SendMessageRequestHeader requestHeader = new SendMessageRequestHeader();
//生产者组
requestHeader.setProducerGroup(this.defaultMQProducer.getProducerGroup());
//主题
requestHeader.setTopic(msg.getTopic());
//默认创建主题Key
requestHeader.setDefaultTopic(this.defaultMQProducer.getCreateTopicKey());
//该主题在单个Broker默认队列树
requestHeader.setDefaultTopicQueueNums(this.defaultMQProducer.getDefaultTopicQueueNums());
//队列ID
requestHeader.setQueueId(mq.getQueueId());
//消息系统标记
requestHeader.setSysFlag(sysFlag);
//消息发送时间
requestHeader.setBornTimestamp(System.currentTimeMillis());
//消息标记
requestHeader.setFlag(msg.getFlag());
//消息扩展信息
requestHeader.setProperties(MessageDecoder.messageProperties2String(msg.getProperties()));
//消息重试次数
requestHeader.setReconsumeTimes(0);
requestHeader.setUnitMode(this.isUnitMode());
//是否是批量消息等
requestHeader.setBatch(msg instanceof MessageBatch);
if (requestHeader.getTopic().startsWith(MixAll.RETRY_GROUP_TOPIC_PREFIX)) {
    String reconsumeTimes = MessageAccessor.getReconsumeTime(msg);
    if (reconsumeTimes != null) {
        requestHeader.setReconsumeTimes(Integer.valueOf(reconsumeTimes));
        MessageAccessor.clearProperty(msg, MessageConst.PROPERTY_RECONSUME_TIME);
    }
    String maxReconsumeTimes = MessageAccessor.getMaxReconsumeTimes(msg);
    if (maxReconsumeTimes != null) {
        requestHeader.setMaxReconsumeTimes(Integer.valueOf(maxReconsumeTimes));
        MessageAccessor.clearProperty(msg, MessageConst.PROPERTY_MAX_RECONSUME_TIMES);
    }
}
case ASYNC:     //异步发送
    Message tmpMessage = msg;
    boolean messageCloned = false;
    if (msgBodyCompressed) {
        //If msg body was compressed, msgbody should be reset using prevBody.
        //Clone new message using commpressed message body and recover origin massage.
        //Fix bug:https://github.com/apache/rocketmq-externals/issues/66
        tmpMessage = MessageAccessor.cloneMessage(msg);
        messageCloned = true;
        msg.setBody(prevBody);
    }
    if (topicWithNamespace) {
        if (!messageCloned) {
            tmpMessage = MessageAccessor.cloneMessage(msg);
            messageCloned = true;
        }
        msg.setTopic(NamespaceUtil.withoutNamespace(msg.getTopic(),
                                                    this.defaultMQProducer.getNamespace()));
    }
        long costTimeAsync = System.currentTimeMillis() - beginStartTime;
        if (timeout < costTimeAsync) {
            throw new RemotingTooMuchRequestException("sendKernelImpl call timeout");
        }
        sendResult = this.mQClientFactory.getMQClientAPIImpl().sendMessage(
                    brokerAddr,
                    mq.getBrokerName(),
                    tmpMessage,
                    requestHeader,
                    timeout - costTimeAsync,
                    communicationMode,
                    sendCallback,
                    topicPublishInfo,
                    this.mQClientFactory,
                    this.defaultMQProducer.getRetryTimesWhenSendAsyncFailed(),
                    context,
                    this);
        break;
case ONEWAY:
case SYNC:      //同步发送
    long costTimeSync = System.currentTimeMillis() - beginStartTime;
        if (timeout < costTimeSync) {
            throw new RemotingTooMuchRequestException("sendKernelImpl call timeout");
        }
        sendResult = this.mQClientFactory.getMQClientAPIImpl().sendMessage(
            brokerAddr,
            mq.getBrokerName(),
            msg,
            requestHeader,
            timeout - costTimeSync,
            communicationMode,
            context,
            this);
        break;
    default:
        assert false;
        break;
}
//如果注册了钩子函数,则发送完毕后执行钩子函数
if (this.hasSendMessageHook()) {
    context.setSendResult(sendResult);
    this.executeSendMessageHookAfter(context);
}

public SendResult send(Collection<Message> msgs)
    throws MQClientException, RemotingException, MQBrokerException, InterruptedException {
    //压缩消息集合成一条消息,然后发送出去
    return this.defaultMQProducerImpl.send(batch(msgs));
}

private MessageBatch batch(Collection<Message> msgs) throws MQClientException {
    MessageBatch msgBatch;
    try {
        //将集合消息封装到MessageBatch
        msgBatch = MessageBatch.generateFromList(msgs);
        //遍历消息集合,检查消息合法性,设置消息ID,设置Topic
        for (Message message : msgBatch) {
            Validators.checkMessage(message, this);
            MessageClientIDSetter.setUniqID(message);
            message.setTopic(withNamespace(message.getTopic()));
        }
        //压缩消息,设置消息body
        msgBatch.setBody(msgBatch.encode());
    } catch (Exception e) {
        throw new MQClientException("Failed to initiate the MessageBatch", e);
    }
    //设置msgBatch的topic
    msgBatch.setTopic(withNamespace(msgBatch.getTopic()));
    return msgBatch;
}

//判断Broker角色如果是从节点,则无需写入
if (BrokerRole.SLAVE == this.messageStoreConfig.getBrokerRole()) {
        long value = this.printTimes.getAndIncrement();
        if ((value % 50000) == 0) {
            log.warn("message store is slave mode, so putMessage is forbidden ");
        }
    return new PutMessageResult(PutMessageStatus.SERVICE_NOT_AVAILABLE, null);
}
//判断当前写入状态如果是正在写入,则不能继续
if (!this.runningFlags.isWriteable()) {
        long value = this.printTimes.getAndIncrement();
        return new PutMessageResult(PutMessageStatus.SERVICE_NOT_AVAILABLE, null);
} else {
    this.printTimes.set(0);
}
//判断消息主题长度是否超过最大限制
if (msg.getTopic().length() > Byte.MAX_VALUE) {
    log.warn("putMessage message topic length too long " + msg.getTopic().length());
    return new PutMessageResult(PutMessageStatus.MESSAGE_ILLEGAL, null);
}
//判断消息属性长度是否超过限制
if (msg.getPropertiesString() != null && msg.getPropertiesString().length() > Short.MAX_VALUE) {
    log.warn("putMessage message properties length too long " + msg.getPropertiesString().length());
    return new PutMessageResult(PutMessageStatus.PROPERTIES_SIZE_EXCEEDED, null);
}
//判断系统PageCache缓存去是否占用
if (this.isOSPageCacheBusy()) {
    return new PutMessageResult(PutMessageStatus.OS_PAGECACHE_BUSY, null);
}
//将消息写入CommitLog文件
PutMessageResult result = this.commitLog.putMessage(msg);

//记录消息存储时间
msg.setStoreTimestamp(beginLockTimestamp);
//判断如果mappedFile如果为空或者已满,创建新的mappedFile文件
if (null == mappedFile || mappedFile.isFull()) {
    mappedFile = this.mappedFileQueue.getLastMappedFile(0);
}
//如果创建失败,直接返回
if (null == mappedFile) {
    log.error("create mapped file1 error, topic: " + msg.getTopic() + " clientAddr: " + msg.getBornHostString());
    beginTimeInLock = 0;
    return new PutMessageResult(PutMessageStatus.CREATE_MAPEDFILE_FAILED, null);
}
//写入消息到mappedFile中
result = mappedFile.appendMessage(msg, this.appendMessageCallback);

//获得文件的写入指针
int currentPos = this.wrotePosition.get();
//如果指针大于文件大小则直接返回
if (currentPos < this.fileSize) {
    //通过writeBuffer.slice()创建一个与MappedFile共享的内存区,并设置position为当前指针
    ByteBuffer byteBuffer = writeBuffer != null ? writeBuffer.slice() : this.mappedByteBuffer.slice();
    byteBuffer.position(currentPos);
    AppendMessageResult result = null;
    if (messageExt instanceof MessageExtBrokerInner) {
        //通过回调方法写入
        result = cb.doAppend(this.getFileFromOffset(), byteBuffer, this.fileSize - currentPos, (MessageExtBrokerInner) messageExt);
    } else if (messageExt instanceof MessageExtBatch) {
        result = cb.doAppend(this.getFileFromOffset(), byteBuffer, this.fileSize - currentPos, (MessageExtBatch) messageExt);
    } else {
        return new AppendMessageResult(AppendMessageStatus.UNKNOWN_ERROR);
    }
    this.wrotePosition.addAndGet(result.getWroteBytes());
    this.storeTimestamp = result.getStoreTimestamp();
    return result;
}

//文件写入位置
long wroteOffset = fileFromOffset + byteBuffer.position();
//设置消息ID
this.resetByteBuffer(hostHolder, 8);
String msgId = MessageDecoder.createMessageId(this.msgIdMemory, msgInner.getStoreHostBytes(hostHolder), wroteOffset);
//获得该消息在消息队列中的偏移量
keyBuilder.setLength(0);
keyBuilder.append(msgInner.getTopic());
keyBuilder.append('-');
keyBuilder.append(msgInner.getQueueId());
String key = keyBuilder.toString();
Long queueOffset = CommitLog.this.topicQueueTable.get(key);
if (null == queueOffset) {
    queueOffset = 0L;
    CommitLog.this.topicQueueTable.put(key, queueOffset);
}
//获得消息属性长度
final byte[] propertiesData =msgInner.getPropertiesString() == null ? null : msgInner.getPropertiesString().getBytes(MessageDecoder.CHARSET_UTF8);
final int propertiesLength = propertiesData == null ? 0 : propertiesData.length;
if (propertiesLength > Short.MAX_VALUE) {
    log.warn("putMessage message properties length too long. length={}", propertiesData.length);
    return new AppendMessageResult(AppendMessageStatus.PROPERTIES_SIZE_EXCEEDED);
}
//获得消息主题大小
final byte[] topicData = msgInner.getTopic().getBytes(MessageDecoder.CHARSET_UTF8);
final int topicLength = topicData.length;
//获得消息体大小
final int bodyLength = msgInner.getBody() == null ? 0 : msgInner.getBody().length;
//计算消息总长度
final int msgLen = calMsgLength(bodyLength, topicLength, propertiesLength);

protected static int calMsgLength(int bodyLength, int topicLength, int propertiesLength) {
    final int msgLen = 4 //TOTALSIZE
        + 4 //MAGICCODE
        + 4 //BODYCRC
        + 4 //QUEUEID
        + 4 //FLAG
        + 8 //QUEUEOFFSET
        + 8 //PHYSICALOFFSET
        + 4 //SYSFLAG
        + 8 //BORNTIMESTAMP
        + 8 //BORNHOST
        + 8 //STORETIMESTAMP
        + 8 //STOREHOSTADDRESS
        + 4 //RECONSUMETIMES
        + 8 //Prepared Transaction Offset
        + 4 + (bodyLength > 0 ? bodyLength : 0) //BODY
        + 1 + topicLength //TOPIC
        + 2 + (propertiesLength > 0 ? propertiesLength : 0) //propertiesLength
        + 0;
    return msgLen;
}

//消息长度不能超过4M
if (msgLen > this.maxMessageSize) {
    CommitLog.log.warn("message size exceeded, msg total size: " + msgLen + ", msg body size: " + bodyLength
        + ", maxMessageSize: " + this.maxMessageSize);
    return new AppendMessageResult(AppendMessageStatus.MESSAGE_SIZE_EXCEEDED);
}
//消息是如果没有足够的存储空间则新创建CommitLog文件
if ((msgLen + END_FILE_MIN_BLANK_LENGTH) > maxBlank) {
    this.resetByteBuffer(this.msgStoreItemMemory, maxBlank);
    // 1 TOTALSIZE
    this.msgStoreItemMemory.putInt(maxBlank);
    // 2 MAGICCODE
    this.msgStoreItemMemory.putInt(CommitLog.BLANK_MAGIC_CODE);
    // 3 The remaining space may be any value
    // Here the length of the specially set maxBlank
    final long beginTimeMills = CommitLog.this.defaultMessageStore.now();
    byteBuffer.put(this.msgStoreItemMemory.array(), 0, maxBlank);
    return new AppendMessageResult(AppendMessageStatus.END_OF_FILE, wroteOffset, maxBlank, msgId, msgInner.getStoreTimestamp(),
        queueOffset, CommitLog.this.defaultMessageStore.now() - beginTimeMills);
}
//将消息存储到ByteBuffer中,返回AppendMessageResult
final long beginTimeMills = CommitLog.this.defaultMessageStore.now();
// Write messages to the queue buffer
byteBuffer.put(this.msgStoreItemMemory.array(), 0, msgLen);
AppendMessageResult result = new AppendMessageResult(AppendMessageStatus.PUT_OK, wroteOffset,
                                                     msgLen, msgId,msgInner.getStoreTimestamp(),
                                                     queueOffset,
                                                     CommitLog.this.defaultMessageStore.now()
                                                     -beginTimeMills);
switch (tranType) {
    case MessageSysFlag.TRANSACTION_PREPARED_TYPE:
    case MessageSysFlag.TRANSACTION_ROLLBACK_TYPE:
        break;
    case MessageSysFlag.TRANSACTION_NOT_TYPE:
    case MessageSysFlag.TRANSACTION_COMMIT_TYPE:
        //更新消息队列偏移量
        CommitLog.this.topicQueueTable.put(key, ++queueOffset);
        break;
    default:
        break;
}

//释放锁
putMessageLock.unlock();

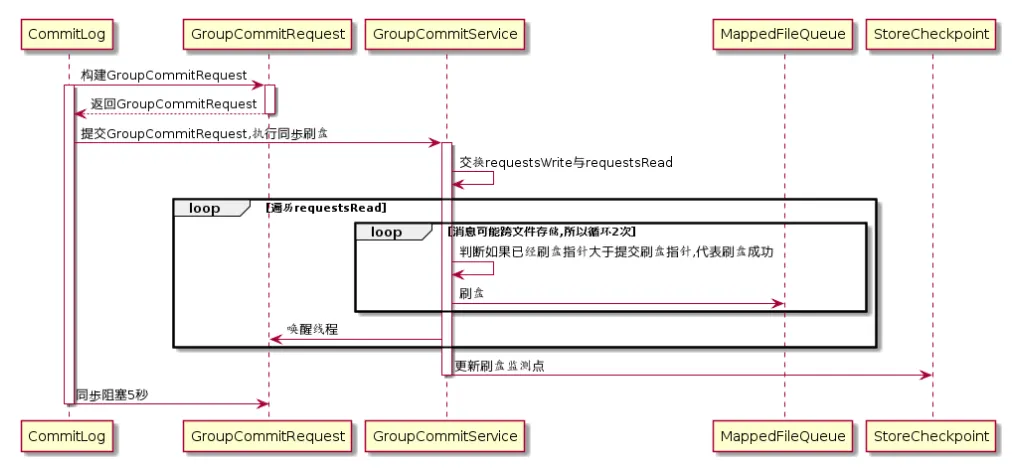

//刷盘
handleDiskFlush(result, putMessageResult, msg);
//执行HA主从同步
handleHA(result, putMessageResult, msg);

public MappedFile getMappedFileByTime(final long timestamp) {
    Object[] mfs = this.copyMappedFiles(0);

    if (null == mfs)
        return null;
    //遍历MappedFile文件数组
    for (int i = 0; i < mfs.length; i++) {
        MappedFile mappedFile = (MappedFile) mfs[i];
        //MappedFile文件的最后修改时间大于指定时间戳则返回该文件
        if (mappedFile.getLastModifiedTimestamp() >= timestamp) {
            return mappedFile;
        }
    }
    return (MappedFile) mfs[mfs.length - 1];
}

public MappedFile findMappedFileByOffset(final long offset, final boolean returnFirstOnNotFound) {
    try {
        //获得第一个MappedFile文件
        MappedFile firstMappedFile = this.getFirstMappedFile();
        //获得最后一个MappedFile文件
        MappedFile lastMappedFile = this.getLastMappedFile();
        //第一个文件和最后一个文件均不为空,则进行处理
        if (firstMappedFile != null && lastMappedFile != null) {
            if (offset < firstMappedFile.getFileFromOffset() ||
                offset >= lastMappedFile.getFileFromOffset() + this.mappedFileSize) {
            } else {
                //获得文件索引
                int index = (int) ((offset / this.mappedFileSize)
                                   - (firstMappedFile.getFileFromOffset() / this.mappedFileSize));
                MappedFile targetFile = null;
                try {
                    //根据索引返回目标文件
                    targetFile = this.mappedFiles.get(index);
                } catch (Exception ignored) {
                }
                if (targetFile != null && offset >= targetFile.getFileFromOffset()
                    && offset < targetFile.getFileFromOffset() + this.mappedFileSize) {
                    return targetFile;
                }
                for (MappedFile tmpMappedFile : this.mappedFiles) {
                    if (offset >= tmpMappedFile.getFileFromOffset()
                        && offset < tmpMappedFile.getFileFromOffset() + this.mappedFileSize) {
                        return tmpMappedFile;
                    }
                }
            }
            if (returnFirstOnNotFound) {
                return firstMappedFile;
            }
        }
    } catch (Exception e) {
        log.error("findMappedFileByOffset Exception", e);
    }
    return null;
}

public long getMinOffset() {
    if (!this.mappedFiles.isEmpty()) {
        try {
            return this.mappedFiles.get(0).getFileFromOffset();
        } catch (IndexOutOfBoundsException e) {
            //continue;
        } catch (Exception e) {
            log.error("getMinOffset has exception.", e);
        }
    }
    return -1;
}

public long getMaxOffset() {
    MappedFile mappedFile = getLastMappedFile();
    if (mappedFile != null) {
        return mappedFile.getFileFromOffset() + mappedFile.getReadPosition();
    }
    return 0;
}

public long getMaxWrotePosition() {
    MappedFile mappedFile = getLastMappedFile();
    if (mappedFile != null) {
        return mappedFile.getFileFromOffset() + mappedFile.getWrotePosition();
    }
    return 0;
}

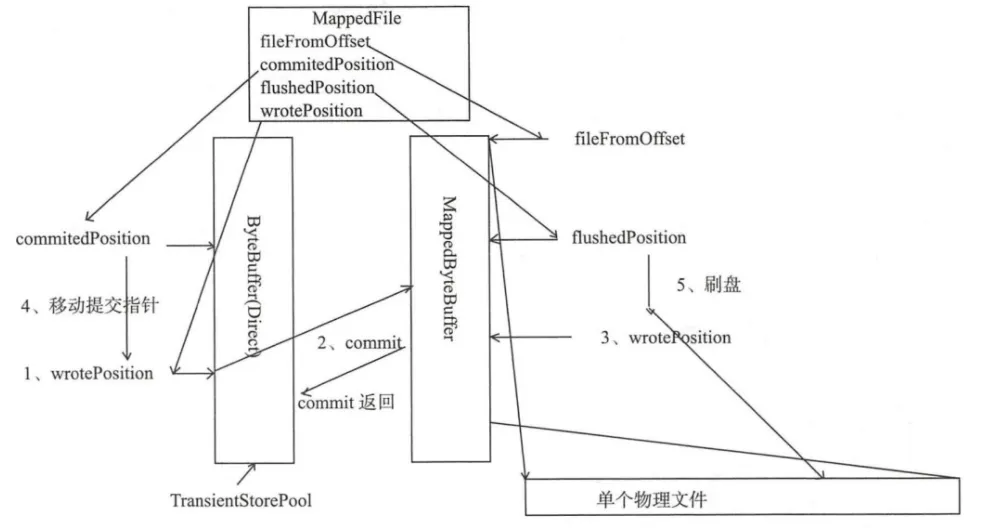

int OS_PAGE_SIZE = 1024 * 4;        //操作系统每页大小,默认4K
AtomicLong TOTAL_MAPPED_VIRTUAL_MEMORY = new AtomicLong(0); //当前JVM实例中MappedFile虚拟内存
AtomicInteger TOTAL_MAPPED_FILES = new AtomicInteger(0);    //当前JVM实例中MappedFile对象个数
AtomicInteger wrotePosition = new AtomicInteger(0); //当前文件的写指针
AtomicInteger committedPosition = new AtomicInteger(0); //当前文件的提交指针
AtomicInteger flushedPosition = new AtomicInteger(0);   //刷写到磁盘指针
int fileSize;   //文件大小
FileChannel fileChannel;    //文件通道
ByteBuffer writeBuffer = null;  //堆外内存ByteBuffer
TransientStorePool transientStorePool = null;   //堆外内存池
String fileName;    //文件名称
long fileFromOffset;    //该文件的处理偏移量
File file;  //物理文件
MappedByteBuffer mappedByteBuffer;  //物理文件对应的内存映射Buffer
volatile long storeTimestamp = 0;   //文件最后一次内容写入时间
boolean firstCreateInQueue = false; //是否是MappedFileQueue队列中第一个文件

private void init(final String fileName, final int fileSize) throws IOException {
    this.fileName = fileName;
    this.fileSize = fileSize;
    this.file = new File(fileName);
    this.fileFromOffset = Long.parseLong(this.file.getName());
    boolean ok = false;

    ensureDirOK(this.file.getParent());
    try {
        this.fileChannel = new RandomAccessFile(this.file, "rw").getChannel();
        this.mappedByteBuffer = this.fileChannel.map(MapMode.READ_WRITE, 0, fileSize);
        TOTAL_MAPPED_VIRTUAL_MEMORY.addAndGet(fileSize);
        TOTAL_MAPPED_FILES.incrementAndGet();
        ok = true;
    } catch (FileNotFoundException e) {
        log.error("create file channel " + this.fileName + " Failed. ", e);
        throw e;
    } catch (IOException e) {
        log.error("map file " + this.fileName + " Failed. ", e);
        throw e;
    } finally {
        if (!ok && this.fileChannel != null) {
            this.fileChannel.close();
        }
    }
}

public void init(final String fileName, final int fileSize,
    final TransientStorePool transientStorePool) throws IOException {
    init(fileName, fileSize);
    this.writeBuffer = transientStorePool.borrowBuffer();   //初始化writeBuffer
    this.transientStorePool = transientStorePool;
}

public int commit(final int commitLeastPages) {
    if (writeBuffer == null) {
        //no need to commit data to file channel, so just regard wrotePosition as committedPosition.
        return this.wrotePosition.get();
    }
    //判断是否满足提交条件
    if (this.isAbleToCommit(commitLeastPages)) {
        if (this.hold()) {
            commit0(commitLeastPages);
            this.release();
        } else {
            log.warn("in commit, hold failed, commit offset = " + this.committedPosition.get());
        }
    }
    // 所有数据提交后,清空缓冲区
    if (writeBuffer != null && this.transientStorePool != null && this.fileSize == this.committedPosition.get()) {
        this.transientStorePool.returnBuffer(writeBuffer);
        this.writeBuffer = null;
    }
    return this.committedPosition.get();
}

protected boolean isAbleToCommit(final int commitLeastPages) {
    //已经刷盘指针
    int flush = this.committedPosition.get();
    //文件写指针
    int write = this.wrotePosition.get();
    //写满刷盘
    if (this.isFull()) {
        return true;
    }
    if (commitLeastPages > 0) {
        //文件内容达到commitLeastPages页数,则刷盘
        return ((write / OS_PAGE_SIZE) - (flush / OS_PAGE_SIZE)) >= commitLeastPages;
    }
    return write > flush;
}

protected void commit0(final int commitLeastPages) {
    //写指针
    int writePos = this.wrotePosition.get();
    //上次提交指针
    int lastCommittedPosition = this.committedPosition.get();
    if (writePos - this.committedPosition.get() > 0) {
        try {
            //复制共享内存区域
            ByteBuffer byteBuffer = writeBuffer.slice();
            //设置提交位置是上次提交位置
            byteBuffer.position(lastCommittedPosition);
            //最大提交数量
            byteBuffer.limit(writePos);
            //设置fileChannel位置为上次提交位置
            this.fileChannel.position(lastCommittedPosition);
            //将lastCommittedPosition到writePos的数据复制到FileChannel中
            this.fileChannel.write(byteBuffer);
            //重置提交位置
            this.committedPosition.set(writePos);
        } catch (Throwable e) {
            log.error("Error occurred when commit data to FileChannel.", e);
        }
    }
}

public int flush(final int flushLeastPages) {
    //数据达到刷盘条件
    if (this.isAbleToFlush(flushLeastPages)) {
        //加锁，同步刷盘
        if (this.hold()) {
            //获得读指针
            int value = getReadPosition();
            try {
                //数据从writeBuffer提交数据到fileChannel再刷新到磁盘
                if (writeBuffer != null || this.fileChannel.position() != 0) {
                    this.fileChannel.force(false);
                } else {
                    //从mmap刷新数据到磁盘
                    this.mappedByteBuffer.force();
                }
            } catch (Throwable e) {
                log.error("Error occurred when force data to disk.", e);
            }
            //更新刷盘位置
            this.flushedPosition.set(value);
            this.release();
        } else {
            log.warn("in flush, hold failed, flush offset = " + this.flushedPosition.get());
            this.flushedPosition.set(getReadPosition());
        }
    }
    return this.getFlushedPosition();
}

public int getReadPosition() {
    //如果writeBuffer为空,刷盘的位置就是应该等于上次commit的位置,如果为空则为mmap的写指针
    return this.writeBuffer == null ? this.wrotePosition.get() : this.committedPosition.get();
}

public SelectMappedBufferResult selectMappedBuffer(int pos) {
    //获得最大可读指针
    int readPosition = getReadPosition();
    //pos小于最大可读指针,并且大于0
    if (pos < readPosition && pos >= 0) {
        if (this.hold()) {
            //复制mappedByteBuffer读共享区
            ByteBuffer byteBuffer = this.mappedByteBuffer.slice();
            //设置读指针位置
            byteBuffer.position(pos);
            //获得可读范围
            int size = readPosition - pos;
            //设置最大刻度范围
            ByteBuffer byteBufferNew = byteBuffer.slice();
            byteBufferNew.limit(size);
            return new SelectMappedBufferResult(this.fileFromOffset + pos, byteBufferNew, size, this);
        }
    }
    return null;
}

public void shutdown(final long intervalForcibly) {
    if (this.available) {
        //关闭MapedFile
        this.available = false;
        //设置当前关闭时间戳
        this.firstShutdownTimestamp = System.currentTimeMillis();
        //释放资源
        this.release();
    } else if (this.getRefCount() > 0) {
        if ((System.currentTimeMillis() - this.firstShutdownTimestamp) >= intervalForcibly) {
            this.refCount.set(-1000 - this.getRefCount());
            this.release();
        }
    }
}

private final int poolSize;     //availableBuffers个数
private final int fileSize;     //每隔ByteBuffer大小
private final Deque<ByteBuffer> availableBuffers;   //ByteBuffer容器。双端队列

public void init() {
    //创建poolSize个堆外内存
    for (int i = 0; i < poolSize; i++) {
        ByteBuffer byteBuffer = ByteBuffer.allocateDirect(fileSize);
        final long address = ((DirectBuffer) byteBuffer).address();
        Pointer pointer = new Pointer(address);
        //使用com.sun.jna.Library类库将该批内存锁定,避免被置换到交换区,提高存储性能
        LibC.INSTANCE.mlock(pointer, new NativeLong(fileSize));
        availableBuffers.offer(byteBuffer);
    }
}

//设置CommitLog内存中最大偏移量
this.reputMessageService.setReputFromOffset(maxPhysicalPosInLogicQueue);
//启动
this.reputMessageService.start();

public void run() {
    DefaultMessageStore.log.info(this.getServiceName() + " service started");
    //每隔1毫秒就继续尝试推送消息到消息消费队列和索引文件
    while (!this.isStopped()) {
        try {
            Thread.sleep(1);
            this.doReput();
        } catch (Exception e) {
            DefaultMessageStore.log.warn(this.getServiceName() + " service has exception. ", e);
        }
    }
    DefaultMessageStore.log.info(this.getServiceName() + " service end");
}

//从result中循环遍历消息,一次读一条,创建DispatherRequest对象。
for (int readSize = 0; readSize < result.getSize() && doNext; ) {
    DispatchRequest dispatchRequest =                               DefaultMessageStore.this.commitLog.checkMessageAndReturnSize(result.getByteBuffer(), false, false);
    int size = dispatchRequest.getBufferSize() == -1 ? dispatchRequest.getMsgSize() : dispatchRequest.getBufferSize();
    if (dispatchRequest.isSuccess()) {
        if (size > 0) {
            DefaultMessageStore.this.doDispatch(dispatchRequest);
        }
    }
}

//从result中循环遍历消息,一次读一条,创建DispatherRequest对象。
for (int readSize = 0; readSize < result.getSize() && doNext; ) {
    DispatchRequest dispatchRequest =                               DefaultMessageStore.this.commitLog.checkMessageAndReturnSize(result.getByteBuffer(), false, false);
    int size = dispatchRequest.getBufferSize() == -1 ? dispatchRequest.getMsgSize() : dispatchRequest.getBufferSize();
    if (dispatchRequest.isSuccess()) {
        if (size > 0) {
            DefaultMessageStore.this.doDispatch(dispatchRequest);
        }
    }
}

class CommitLogDispatcherBuildConsumeQueue implements CommitLogDispatcher {
    @Override
    public void dispatch(DispatchRequest request) {
        final int tranType = MessageSysFlag.getTransactionValue(request.getSysFlag());
        switch (tranType) {
            case MessageSysFlag.TRANSACTION_NOT_TYPE:
            case MessageSysFlag.TRANSACTION_COMMIT_TYPE:
                //消息分发
                DefaultMessageStore.this.putMessagePositionInfo(request);
                break;
            case MessageSysFlag.TRANSACTION_PREPARED_TYPE:
            case MessageSysFlag.TRANSACTION_ROLLBACK_TYPE:
                break;
        }
    }
}

public void putMessagePositionInfo(DispatchRequest dispatchRequest) {
    //获得消费队列
    ConsumeQueue cq = this.findConsumeQueue(dispatchRequest.getTopic(), dispatchRequest.getQueueId());
    //消费队列分发消息
    cq.putMessagePositionInfoWrapper(dispatchRequest);
}

//依次将消息偏移量、消息长度、tag写入到ByteBuffer中
this.byteBufferIndex.flip();
this.byteBufferIndex.limit(CQ_STORE_UNIT_SIZE);
this.byteBufferIndex.putLong(offset);
this.byteBufferIndex.putInt(size);
this.byteBufferIndex.putLong(tagsCode);
//获得内存映射文件
MappedFile mappedFile = this.mappedFileQueue.getLastMappedFile(expectLogicOffset);
if (mappedFile != null) {
    //将消息追加到内存映射文件,异步输盘
    return mappedFile.appendMessage(this.byteBufferIndex.array());
}

class CommitLogDispatcherBuildIndex implements CommitLogDispatcher {
    @Override
    public void dispatch(DispatchRequest request) {
        if (DefaultMessageStore.this.messageStoreConfig.isMessageIndexEnable()) {
            DefaultMessageStore.this.indexService.buildIndex(request);
        }
    }
}

public void buildIndex(DispatchRequest req) {
    //获得索引文件
    IndexFile indexFile = retryGetAndCreateIndexFile();
    if (indexFile != null) {
        //获得文件最大物理偏移量
        long endPhyOffset = indexFile.getEndPhyOffset();
        DispatchRequest msg = req;
        String topic = msg.getTopic();
        String keys = msg.getKeys();
        //如果该消息的物理偏移量小于索引文件中的最大物理偏移量,则说明是重复数据,忽略本次索引构建
        if (msg.getCommitLogOffset() < endPhyOffset) {
            return;
        }
        final int tranType = MessageSysFlag.getTransactionValue(msg.getSysFlag());
        switch (tranType) {
            case MessageSysFlag.TRANSACTION_NOT_TYPE:
            case MessageSysFlag.TRANSACTION_PREPARED_TYPE:
            case MessageSysFlag.TRANSACTION_COMMIT_TYPE:
                break;
            case MessageSysFlag.TRANSACTION_ROLLBACK_TYPE:
                return;
        }

        //如果消息ID不为空,则添加到Hash索引中
        if (req.getUniqKey() != null) {
            indexFile = putKey(indexFile, msg, buildKey(topic, req.getUniqKey()));
            if (indexFile == null) {
                return;
            }
        }
        //构建索引key,RocketMQ支持为同一个消息建立多个索引,多个索引键空格隔开.
        if (keys != null && keys.length() > 0) {
            String[] keyset = keys.split(MessageConst.KEY_SEPARATOR);
            for (int i = 0; i < keyset.length; i++) {
                String key = keyset[i];
                if (key.length() > 0) {
                    indexFile = putKey(indexFile, msg, buildKey(topic, key));
                    if (indexFile == null) {
                        return;
                    }
                }
            }
        }
    } else {
        log.error("build index error, stop building index");
    }
}

//判断临时文件是否存在
boolean lastExitOK = !this.isTempFileExist();
//根据临时文件判断当前Broker是否异常退出
private boolean isTempFileExist() {
    String fileName = StorePathConfigHelper
        .getAbortFile(this.messageStoreConfig.getStorePathRootDir());
    File file = new File(fileName);
    return file.exists();
}

//加载延时队列
if (null != scheduleMessageService) {
    result = result && this.scheduleMessageService.load();
}
// 加载CommitLog文件
result = result && this.commitLog.load();
// 加载消费队列文件
result = result && this.loadConsumeQueue();
if (result) {
    //加载存储监测点,监测点主要记录CommitLog文件、ConsumerQueue文件、Index索引文件的刷盘点
    this.storeCheckpoint =new StoreCheckpoint(StorePathConfigHelper.getStoreCheckpoint(this.messageStoreConfig.getStorePathRootDir()));
    //加载index文件
    this.indexService.load(lastExitOK);
    //根据Broker是否异常退出,执行不同的恢复策略
    this.recover(lastExitOK);
}

//指向CommitLog文件目录
File dir = new File(this.storePath);
//获得文件数组
File[] files = dir.listFiles();
if (files != null) {
    // 文件排序
    Arrays.sort(files);
    //遍历文件
    for (File file : files) {
        //如果文件大小和配置文件不一致,退出
        if (file.length() != this.mappedFileSize) {

            return false;
        }
        try {
            //创建映射文件
            MappedFile mappedFile = new MappedFile(file.getPath(), mappedFileSize);
            mappedFile.setWrotePosition(this.mappedFileSize);
            mappedFile.setFlushedPosition(this.mappedFileSize);
            mappedFile.setCommittedPosition(this.mappedFileSize);
            //将映射文件添加到队列
            this.mappedFiles.add(mappedFile);
            log.info("load " + file.getPath() + " OK");
        } catch (IOException e) {
            log.error("load file " + file + " error", e);
            return false;
        }
    }
}
return true;

//执行消费队列目录
File dirLogic = new File(StorePathConfigHelper.getStorePathConsumeQueue(this.messageStoreConfig.getStorePathRootDir()));
//遍历消费队列目录
File[] fileTopicList = dirLogic.listFiles();
if (fileTopicList != null) {
    for (File fileTopic : fileTopicList) {
        //获得子目录名称,即topic名称
        String topic = fileTopic.getName();
        //遍历子目录下的消费队列文件
        File[] fileQueueIdList = fileTopic.listFiles();
        if (fileQueueIdList != null) {
            //遍历文件
            for (File fileQueueId : fileQueueIdList) {
                //文件名称即队列ID
                int queueId;
                try {
                    queueId = Integer.parseInt(fileQueueId.getName());
                } catch (NumberFormatException e) {
                    continue;
                }
                //创建消费队列并加载到内存
                ConsumeQueue logic = new ConsumeQueue(
                    topic,
                    queueId,
                    StorePathConfigHelper.getStorePathConsumeQueue(this.messageStoreConfig.getStorePathRootDir()),
            this.getMessageStoreConfig().getMapedFileSizeConsumeQueue(),
                    this);
                this.putConsumeQueue(topic, queueId, logic);
                if (!logic.load()) {
                    return false;
                }
            }
        }
    }
}
log.info("load logics queue all over, OK");
return true;

public boolean load(final boolean lastExitOK) {
    //索引文件目录
    File dir = new File(this.storePath);
    //遍历索引文件
    File[] files = dir.listFiles();
    if (files != null) {
        //文件排序
        Arrays.sort(files);
        //遍历文件
        for (File file : files) {
            try {
                //加载索引文件
                IndexFile f = new IndexFile(file.getPath(), this.hashSlotNum, this.indexNum, 0, 0);
                f.load();
                if (!lastExitOK) {
                    //索引文件上次的刷盘时间小于该索引文件的消息时间戳,该文件将立即删除
                    if (f.getEndTimestamp() > this.defaultMessageStore.getStoreCheckpoint()
                        .getIndexMsgTimestamp()) {
                        f.destroy(0);
                        continue;
                    }
                }
                //将索引文件添加到队列
                log.info("load index file OK, " + f.getFileName());
                this.indexFileList.add(f);
            } catch (IOException e) {
                log.error("load file {} error", file, e);
                return false;
            } catch (NumberFormatException e) {
                log.error("load file {} error", file, e);
            }
        }
    }
    return true;
}

private void recover(final boolean lastExitOK) {
    //获得最大的物理便宜消费队列
    long maxPhyOffsetOfConsumeQueue = this.recoverConsumeQueue();
    if (lastExitOK) {
        //正常恢复
        this.commitLog.recoverNormally(maxPhyOffsetOfConsumeQueue);
    } else {
        //异常恢复
        this.commitLog.recoverAbnormally(maxPhyOffsetOfConsumeQueue);
    }
    //在CommitLog中保存每个消息消费队列当前的存储逻辑偏移量
    this.recoverTopicQueueTable();
}

public void recoverTopicQueueTable() {
    HashMap<String/* topic-queueid */, Long/* offset */> table = new HashMap<String, Long>(1024);
    //CommitLog最小偏移量
    long minPhyOffset = this.commitLog.getMinOffset();
    //遍历消费队列,将消费队列保存在CommitLog中
    for (ConcurrentMap<Integer, ConsumeQueue> maps : this.consumeQueueTable.values()) {
        for (ConsumeQueue logic : maps.values()) {
            String key = logic.getTopic() + "-" + logic.getQueueId();
            table.put(key, logic.getMaxOffsetInQueue());
            logic.correctMinOffset(minPhyOffset);
        }
    }
    this.commitLog.setTopicQueueTable(table);
}

public void recoverNormally(long maxPhyOffsetOfConsumeQueue) {

    final List<MappedFile> mappedFiles = this.mappedFileQueue.getMappedFiles();
    if (!mappedFiles.isEmpty()) {
         //Broker正常停止再重启时,从倒数第三个开始恢复,如果不足3个文件,则从第一个文件开始恢复。
        int index = mappedFiles.size() - 3;
        if (index < 0)
            index = 0;
        MappedFile mappedFile = mappedFiles.get(index);
        ByteBuffer byteBuffer = mappedFile.sliceByteBuffer();
        long processOffset = mappedFile.getFileFromOffset();
        //代表当前已校验通过的offset
        long mappedFileOffset = 0;
        while (true) {
            //查找消息
            DispatchRequest dispatchRequest = this.checkMessageAndReturnSize(byteBuffer, checkCRCOnRecover);
            //消息长度
            int size = dispatchRequest.getMsgSize();
            //查找结果为true,并且消息长度大于0,表示消息正确.mappedFileOffset向前移动本消息长度
            if (dispatchRequest.isSuccess() && size > 0) {
                mappedFileOffset += size;
            }
            //如果查找结果为true且消息长度等于0,表示已到该文件末尾,如果还有下一个文件,则重置processOffset和MappedFileOffset重复查找下一个文件,否则跳出循环。
            else if (dispatchRequest.isSuccess() && size == 0) {
              index++;
              if (index >= mappedFiles.size()) {
                  // Current branch can not happen
                  break;
              } else {
                  //取出每个文件
                  mappedFile = mappedFiles.get(index);
                  byteBuffer = mappedFile.sliceByteBuffer();
                  processOffset = mappedFile.getFileFromOffset();
                  mappedFileOffset = 0;

                }
            }
            // 查找结果为false，表明该文件未填满所有消息，跳出循环，结束循环
            else if (!dispatchRequest.isSuccess()) {
                log.info("recover physics file end, " + mappedFile.getFileName());
                break;
            }
        }
        //更新MappedFileQueue的flushedWhere和committedWhere指针
        processOffset += mappedFileOffset;
        this.mappedFileQueue.setFlushedWhere(processOffset);
        this.mappedFileQueue.setCommittedWhere(processOffset);
        //删除offset之后的所有文件
        this.mappedFileQueue.truncateDirtyFiles(processOffset);

        if (maxPhyOffsetOfConsumeQueue >= processOffset) {
            this.defaultMessageStore.truncateDirtyLogicFiles(processOffset);
        }
    } else {
        this.mappedFileQueue.setFlushedWhere(0);
        this.mappedFileQueue.setCommittedWhere(0);
        this.defaultMessageStore.destroyLogics();
    }
}

public void truncateDirtyFiles(long offset) {
    List<MappedFile> willRemoveFiles = new ArrayList<MappedFile>();
    //遍历目录下文件
    for (MappedFile file : this.mappedFiles) {
        //文件尾部的偏移量
        long fileTailOffset = file.getFileFromOffset() + this.mappedFileSize;
        //文件尾部的偏移量大于offset
        if (fileTailOffset > offset) {
            //offset大于文件的起始偏移量
            if (offset >= file.getFileFromOffset()) {
                //更新wrotePosition、committedPosition、flushedPosistion
                file.setWrotePosition((int) (offset % this.mappedFileSize));
                file.setCommittedPosition((int) (offset % this.mappedFileSize));
                file.setFlushedPosition((int) (offset % this.mappedFileSize));
            } else {
                //offset小于文件的起始偏移量,说明该文件是有效文件后面创建的,释放mappedFile占用内存,删除文件
                file.destroy(1000);
                willRemoveFiles.add(file);
            }
        }
    }
    this.deleteExpiredFile(willRemoveFiles);
}

if (!mappedFiles.isEmpty()) {
    // Looking beginning to recover from which file
    int index = mappedFiles.size() - 1;
    MappedFile mappedFile = null;
    for (; index >= 0; index--) {
        mappedFile = mappedFiles.get(index);
        //判断消息文件是否是一个正确的文件
        if (this.isMappedFileMatchedRecover(mappedFile)) {
            log.info("recover from this mapped file " + mappedFile.getFileName());
            break;
        }
    }
    //根据索引取出mappedFile文件
    if (index < 0) {
        index = 0;
        mappedFile = mappedFiles.get(index);
    }
    //...验证消息的合法性,并将消息转发到消息消费队列和索引文件

}else{
    //未找到mappedFile,重置flushWhere、committedWhere都为0，销毁消息队列文件
    this.mappedFileQueue.setFlushedWhere(0);
    this.mappedFileQueue.setCommittedWhere(0);
    this.defaultMessageStore.destroyLogics();
}

//刷盘服务
final GroupCommitService service = (GroupCommitService) this.flushCommitLogService;
if (messageExt.isWaitStoreMsgOK()) {
    //封装刷盘请求
    GroupCommitRequest request = new GroupCommitRequest(result.getWroteOffset() + result.getWroteBytes());
    //提交刷盘请求
    service.putRequest(request);
    //线程阻塞5秒，等待刷盘结束
    boolean flushOK = request.waitForFlush(this.defaultMessageStore.getMessageStoreConfig().getSyncFlushTimeout());
    if (!flushOK) {
        putMessageResult.setPutMessageStatus(PutMessageStatus.FLUSH_DISK_TIMEOUT);
    }

long nextOffset;    //刷盘点偏移量
CountDownLatch countDownLatch = new CountDownLatch(1);  //倒计树锁存器
volatile boolean flushOK = false;   //刷盘结果;默认为false

public void run() {
    CommitLog.log.info(this.getServiceName() + " service started");
    while (!this.isStopped()) {
        try {
            //线程等待10ms
            this.waitForRunning(10);
            //执行提交
            this.doCommit();
        } catch (Exception e) {
            CommitLog.log.warn(this.getServiceName() + " service has exception. ", e);
        }
    }
    ...
}

private void doCommit() {
    //加锁
    synchronized (this.requestsRead) {
        if (!this.requestsRead.isEmpty()) {
            //遍历requestsRead
            for (GroupCommitRequest req : this.requestsRead) {
                // There may be a message in the next file, so a maximum of
                // two times the flush
                boolean flushOK = false;
                for (int i = 0; i < 2 && !flushOK; i++) {
                    flushOK = CommitLog.this.mappedFileQueue.getFlushedWhere() >= req.getNextOffset();
                    //刷盘
                    if (!flushOK) {
                        CommitLog.this.mappedFileQueue.flush(0);
                    }
                }
                //唤醒发送消息客户端
                req.wakeupCustomer(flushOK);
            }

            //更新刷盘监测点
            long storeTimestamp = CommitLog.this.mappedFileQueue.getStoreTimestamp();
            if (storeTimestamp > 0) {               CommitLog.this.defaultMessageStore.getStoreCheckpoint().setPhysicMsgTimestamp(storeTimestamp);
            }

            this.requestsRead.clear();
        } else {
            // Because of individual messages is set to not sync flush, it
            // will come to this process
            CommitLog.this.mappedFileQueue.flush(0);
        }
    }
}

//间隔时间,默认200ms
int interval = CommitLog.this.defaultMessageStore.getMessageStoreConfig().getCommitIntervalCommitLog();
//一次提交的至少页数
int commitDataLeastPages = CommitLog.this.defaultMessageStore.getMessageStoreConfig().getCommitCommitLogLeastPages();
//两次真实提交的最大间隔,默认200ms
int commitDataThoroughInterval =
CommitLog.this.defaultMessageStore.getMessageStoreConfig().getCommitCommitLogThoroughInterval();
//上次提交间隔超过commitDataThoroughInterval,则忽略提交commitDataThoroughInterval参数,直接提交
long begin = System.currentTimeMillis();
if (begin >= (this.lastCommitTimestamp + commitDataThoroughInterval)) {
    this.lastCommitTimestamp = begin;
    commitDataLeastPages = 0;
}
//执行提交操作,将待提交数据提交到物理文件的内存映射区
boolean result = CommitLog.this.mappedFileQueue.commit(commitDataLeastPages);
long end = System.currentTimeMillis();
if (!result) {
    this.lastCommitTimestamp = end; // result = false means some data committed.
    //now wake up flush thread.
    //唤醒刷盘线程
    flushCommitLogService.wakeup();
}
if (end - begin > 500) {
    log.info("Commit data to file costs {} ms", end - begin);
}
this.waitForRunning(interval);

//表示await方法等待,默认false
boolean flushCommitLogTimed = CommitLog.this.defaultMessageStore.getMessageStoreConfig().isFlushCommitLogTimed();
//线程执行时间间隔
int interval = CommitLog.this.defaultMessageStore.getMessageStoreConfig().getFlushIntervalCommitLog();
//一次刷写任务至少包含页数
int flushPhysicQueueLeastPages = CommitLog.this.defaultMessageStore.getMessageStoreConfig().getFlushCommitLogLeastPages();
//两次真实刷写任务最大间隔
int flushPhysicQueueThoroughInterval =
CommitLog.this.defaultMessageStore.getMessageStoreConfig().getFlushCommitLogThoroughInterval();
...
//距离上次提交间隔超过flushPhysicQueueThoroughInterval,则本次刷盘任务将忽略flushPhysicQueueLeastPages,直接提交
long currentTimeMillis = System.currentTimeMillis();
if (currentTimeMillis >= (this.lastFlushTimestamp + flushPhysicQueueThoroughInterval)) {
    this.lastFlushTimestamp = currentTimeMillis;
    flushPhysicQueueLeastPages = 0;
    printFlushProgress = (printTimes++ % 10) == 0;
}
...
//执行一次刷盘前,先等待指定时间间隔
if (flushCommitLogTimed) {
    Thread.sleep(interval);
} else {
    this.waitForRunning(interval);
}
...
long begin = System.currentTimeMillis();
//刷写磁盘
CommitLog.this.mappedFileQueue.flush(flushPhysicQueueLeastPages);
long storeTimestamp = CommitLog.this.mappedFileQueue.getStoreTimestamp();
if (storeTimestamp > 0) {
//更新存储监测点文件的时间戳
CommitLog.this.defaultMessageStore.getStoreCheckpoint().setPhysicMsgTimestamp(storeTimestamp);
