🔥 内容介绍
一、四旋翼无人机轨迹跟踪的重要性与挑战
- 重要性：四旋翼无人机凭借其灵活的机动性和广泛的应用场景，在航拍、物流配送、农业植保、电力巡检等众多领域发挥着关键作用。在这些应用中，精确的轨迹跟踪能力是确保无人机完成任务的核心要素。例如，在电力巡检中，无人机需要沿着预设的输电线路轨迹飞行，以便清晰拍摄线路设备，及时发现潜在故障；在物流配送里，准确按照规划轨迹飞行能保证货物准确送达目的地。
- 挑战：四旋翼无人机是一个高度非线性、强耦合的复杂系统。其四个旋翼产生的升力不仅决定了无人机的垂直运动，还会对其姿态（俯仰、滚转、偏航）产生影响，各运动状态之间相互关联。此外，飞行过程中会受到多种外界干扰，如气流变化、阵风等，这些干扰增加了实现精确轨迹跟踪的难度。传统的控制方法难以应对这种复杂的系统动态和干扰，因此需要更有效的控制策略。
二、四旋翼无人机的离散化建模
四、基于增量 PID 的轨迹跟踪实现
- 跟踪原理：在四旋翼无人机轨迹跟踪过程中，将期望轨迹按照离散时间步进行划分，每个时刻的期望位置、姿态等信息作为参考输入。增量 PID 控制器实时计算无人机实际状态与期望状态的误差，根据上述增量 PID 算法计算出控制量增量，通过调整四个旋翼的转速来改变无人机的受力和力矩，从而调整其运动状态，使其逐渐逼近期望轨迹。例如，当无人机的实际位置偏离期望轨迹时，增量 PID 控制器会根据位置误差计算出相应的控制量增量，增加或减少旋翼升力，使无人机回到期望轨迹上。
- 优势与效果：基于增量 PID 的控制策略结合四旋翼无人机的离散化建模，能够较好地应对无人机系统的非线性和强耦合特性。离散化建模为增量 PID 控制器提供了适合数字处理的系统模型，而增量 PID 控制器能够根据实时误差快速调整控制输入，有效抑制外界干扰对轨迹跟踪的影响，实现较为精确的轨迹跟踪效果。同时，增量 PID 算法相对简单，计算量小，适合在无人机搭载的有限计算资源平台上运行，保证了控制的实时性。

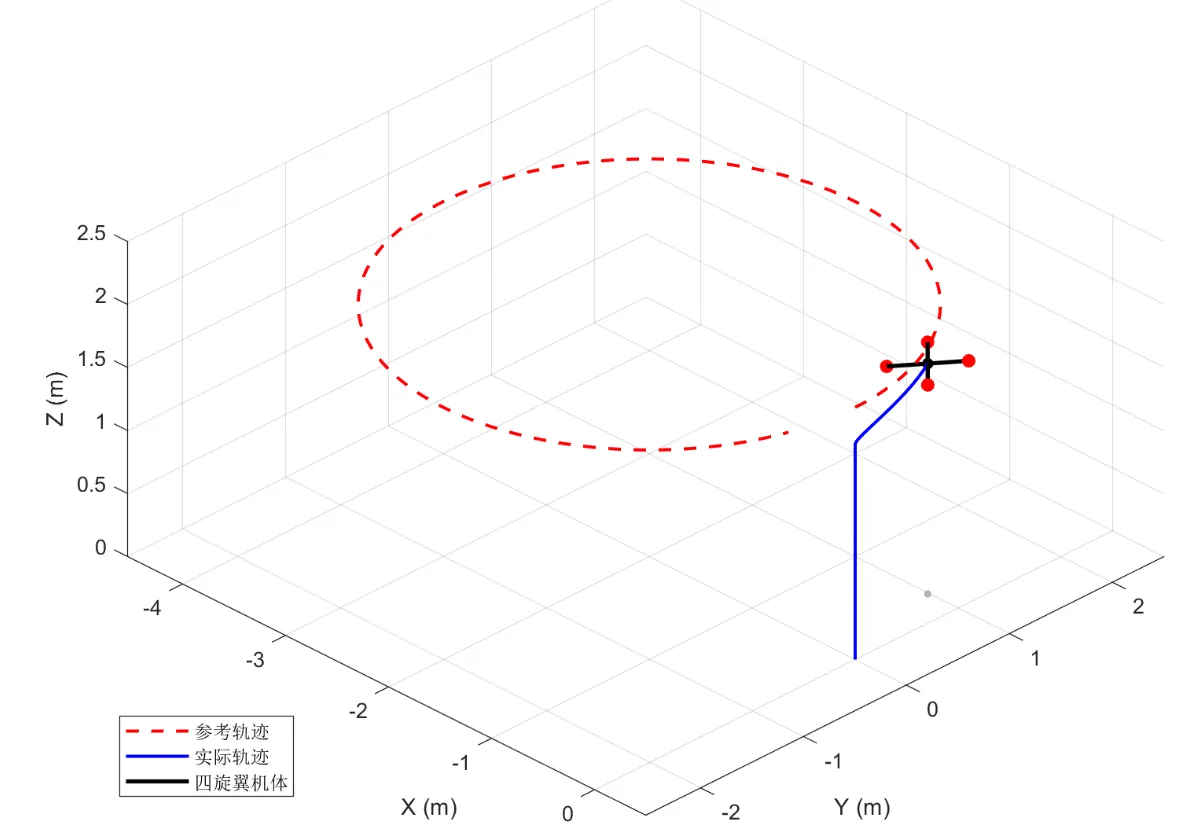

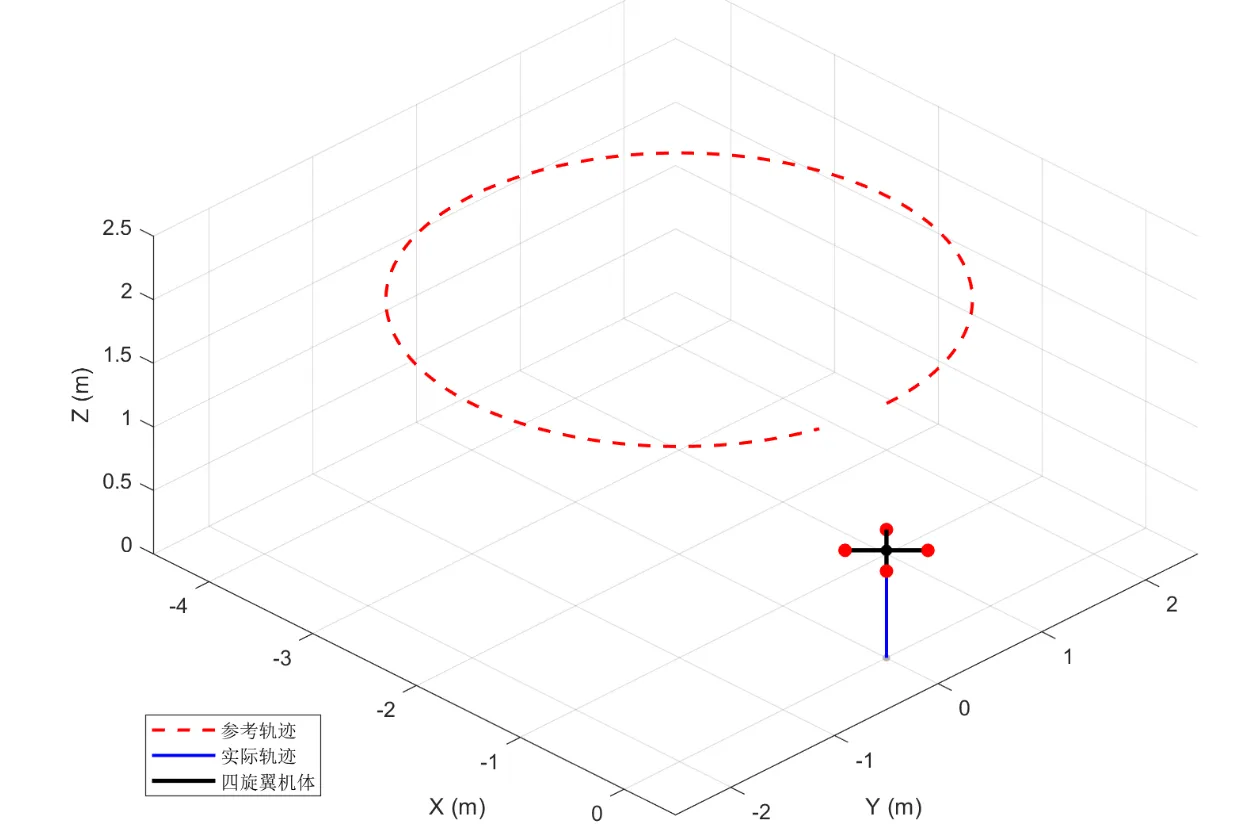

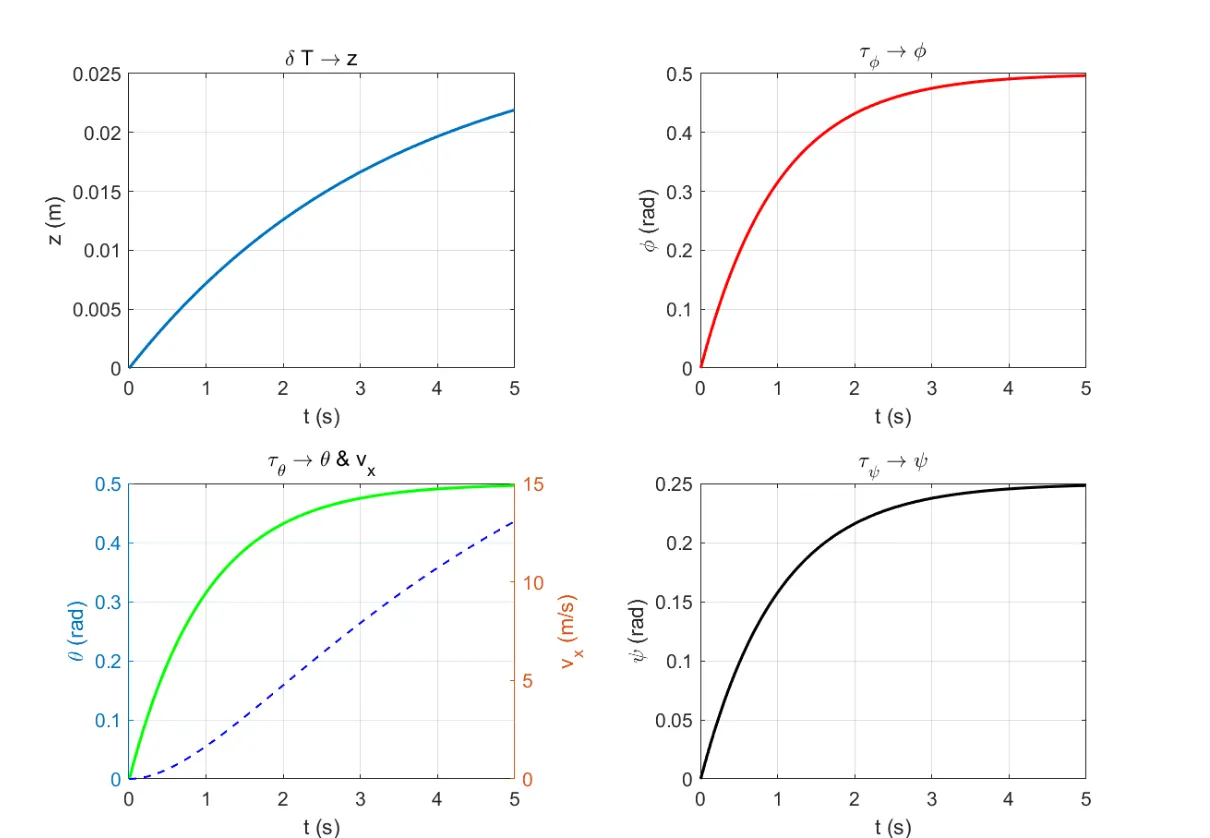

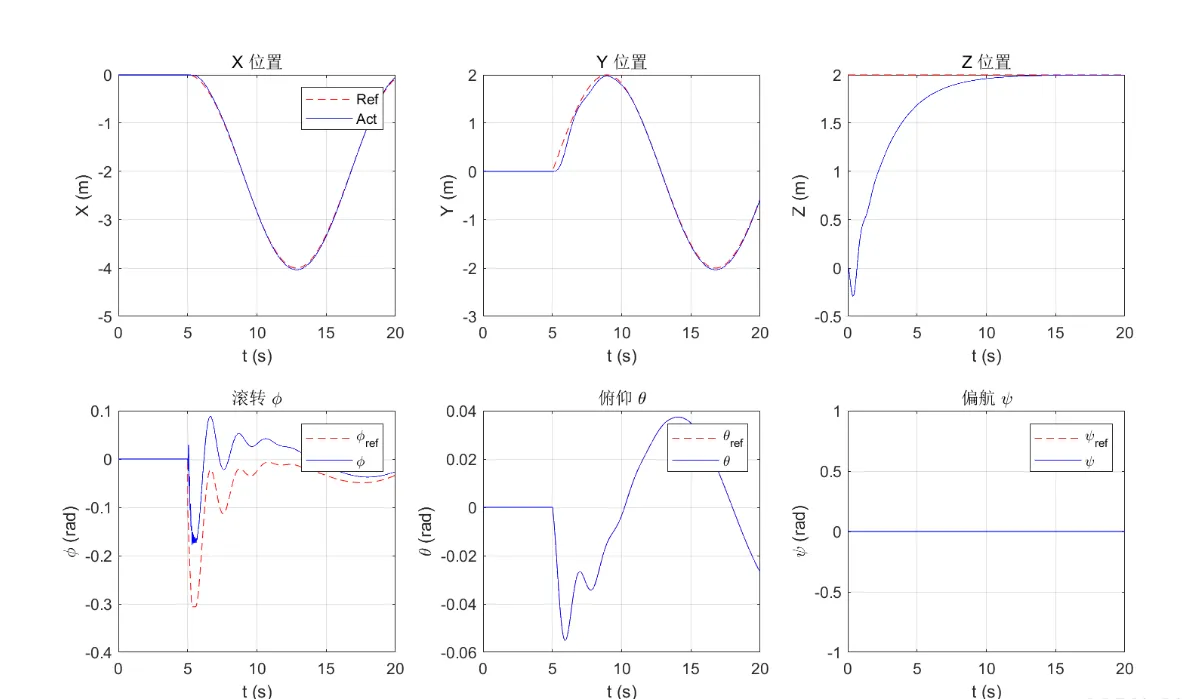

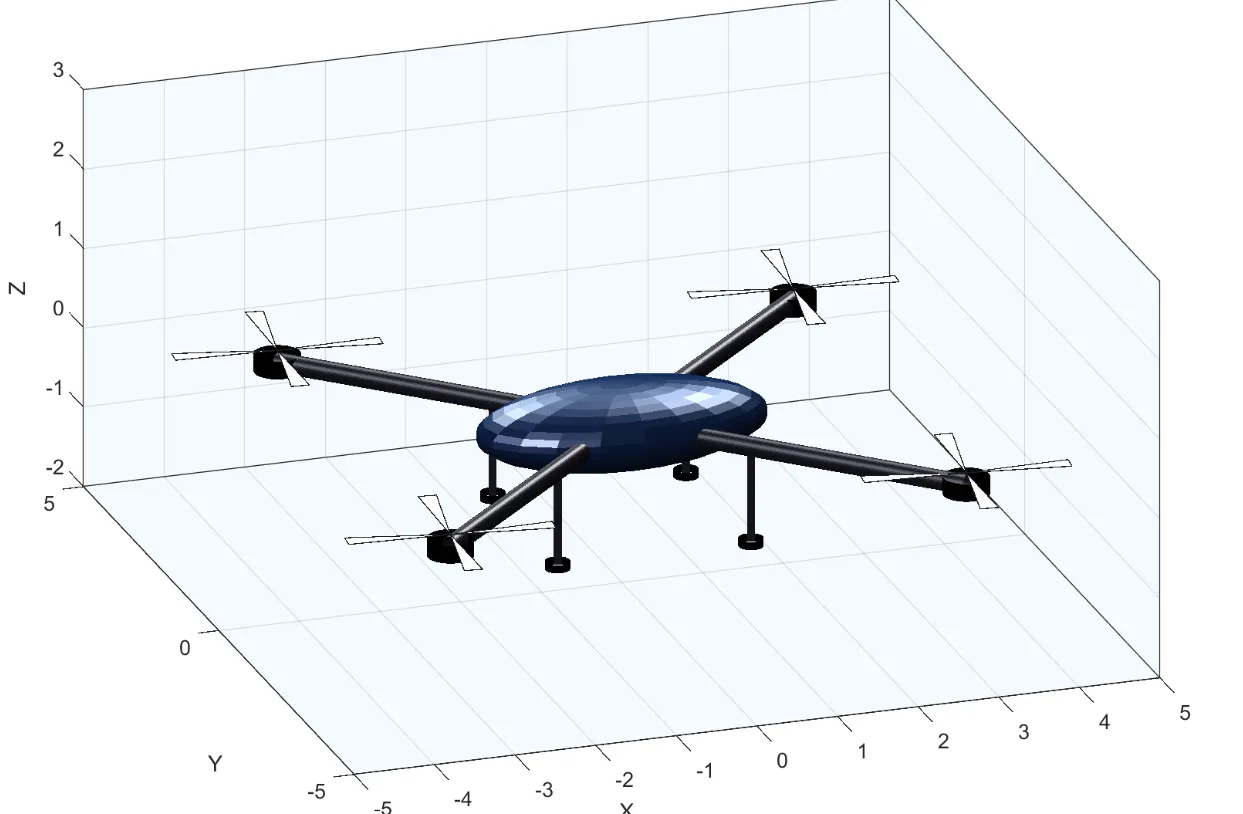

⛳️ 运行结果
📣 部分代码
function x_dot=EOMs(in)
% Forces and Moments, and Equations of Motion
% *** QUANTITY ****** UNITS *********************************************
% *** mass -> {slugs}
% *** length -> {ft}
% *** area -> {ft^2}
% *** velocity -> {ft/s}
% *** acceleration-> {ft/s^2}
% *** density -> {slugs/ft^3}
% *** force -> {lbf}
% *** moments -> {lbf-ft}
% *** angles -> {radians} (calculations)
% *** velocity -> {ft/s}
% *** ang. vel. -> {rad/s}
% *** ang. accel. -> {rad/s^2}
% ***********************************************************************
global maneuver alpha_dot
% maneuver is a parameter that sets version to sim (glide or turn)
%x_dot=zeros(12,1);
% extract inputs from input vector
T = in(1); % Thrust
de = in(2); % Elevator Deflection (down is +) {deg}
drt = in(3); % Rudder Deflection {deg}
da = in(4); % Aileron Deflection (deg)
% extract states from input vector
V = in(5); % Velocity {ft/s}
gamma = in(6); % Flight path angle {rad}
alpha = in(7); % Angle of attack {rad}
q = in(8); % Pitch Rate {rad/s}
p = in(9); % Roll Rate {rad/s}
mu = in(10); % Bank Angle (About Velocity Vector) {rad}
beta = in(11); % Sideslip Angle {rad}
r = in(12); % Yaw Rate {rad/s}
chi = in(13); % Heading angle {rads}
north = in(14); % North Position {ft}
east = in(15); % East Position {ft}
h = in(16); % Altitude {ft}
% extract simulation time{sec} from input(used to calculate windup thrust)
tm = in(17);
% DEFINE ANY NEEDED TERMS THAT APPEAR IN THE E.O.M.'S
% Define and/or Calculate Necessary Constants
d2r =pi/180; %Convert Degrees to Rads -- Although it s already
%coded in Matlab (DEG2RAD) - Checked
r2d =180/pi; %Convert Rads to Degrees -- Although it s already
%coded in Matlab (RAD2DEG) - Checked
rho =.0023081; %Air Density (Slugs per ft^3) - Checked
g =32.17; %Gravity - Checked
m =.487669; %Slugs - Empty Mass of A/C (w/o fuel)(7.117 Kg empty)
Iyy =1.5523; %Inertias Experimentally determined using Empty Mass
Ixx =1.9480; %Inertia Units are (slugs*ft^2) - Checked
Izz =1.9166; % - Checked
Ixz =0; %Assumed zero due to symmetric aircraft - Assumed
S =10.56; %Square Feet - Wing Area Converted from
%Manuf 1520 sq in area - Checked (also Matches DigDat)
CLow =.421; %from Look up table for Eppler 193 at AoA=0,
%DigDat = .421, Line # 277 - Checked CL column
CLaw =4.59; %Coef of Lift for finite wing = Cla/(1+ (Cla/(pi*ARw*e)
%DigDat = 4.59, Line #276-277, CLA column- Checked
CDminw =.011; %DigDat Min Drag of Wing at AoA = -6 deg,
%Dig Dat Line# 274- Checked
ARw =7.9456; %Aspect Ratio AR = (b^2)/S- Checked
e = .75; %Span efficiency factor -estimation- Checked
Kw = 1/(pi*ARw*e); % = 1/(pi*AR*e)- Checked
Cmw =-0.005; %DigDat = AoA =0, Line #277- Checked
cgw =-.416; %Distance Aero Center is back from CG, 5 Inches
c =1.3333; %Feet - Root Chord of Wing (16")- Checked
b =9.16; %Feet - Span (110")- Checked
lambda =.72955; %Taper Ratio from S=(Cr*(1+Lambda)*b)/2- Checked
CLat =.76; %Dig Dat, Line #346, CLA Column- Checked
CDmint =.002; %Dig Dat, Line #345, at AoA = -2 deg
Kt =.446; %=1/(pi*e*AR) =SET SAME AS WING OR DIGDAT From BLAKE
it =2*d2r; %Tail incidence 2 degrees
Te =.422; %Blake from DigDat
nt =1; %Blake from DigDat
St =S; %Horiz Tail Area Square Feet=Reference Area = Wing Area
cgt =3.5; %Distance tail Aero Center back from A/C CG,
%42 inches - Measured
CLavt =.0969; %Dig Dat Line #190
CDminvt =.001; %Dig Dat Line #409, AOA = -10 deg, Column CD
Svt =S; %Vert Tail Area Square Feet = Reference Area = Wing Area
Tr =.434; %Blake from DigDat
nvt =nt; %Same as Hori Tail
cgvt =cgt; %Same as Hori tail
Cmaf =.114; %Dig Dat, Line#209, at AoA = 0
CDf =.005; %Dig Dat, Line#209, at AoA = 0
Cnda = -0.0128; %per rad DigDat
Clda = 0.244; %per rad DigDat
% Define/calculate any needed coefficients, forces, etc.
CLw =CLow+CLaw*alpha;
CDw =CDminw+Kw*CLw^2;
E =2*(CLow+CLaw*(alpha-alpha_dot*(cgt+cgw)/V))/(pi*ARw);
alphat =alpha+it+Te*de+q*cgt/V-E;
CLt =CLat*alphat;
CDt =CDmint+Kt*CLt^2;
Cmf =Cmaf*alpha;
CDvt =CDminvt;
Clp =-1/12*CLaw*(1+3*lambda)/(1+lambda);
Clb =-.1;
Clr =.01;
qb =.5*rho*V^2;
Lw =qb*S*CLw;
Dw =qb*S*CDw;
Mw =qb*S*c*Cmw;
Lt =nt*qb*St*CLt;
Dt =nt*qb*St*CDt;
Df =qb*S*CDf;
Mf =qb*S*c*Cmf;
Dvt =nt*qb*Svt*CDvt;
% Calculate Forces and Moments
% Lift
L =Lw+Lt*cos(E-q*cgt/V)-(Dt+Dvt)*sin(E-q*cgt/V);
% Drag
D =Dw+(Dt+Dvt)*cos(E-q*cgt/V)+Lt*sin(E-q*cgt/V)+Df;
% Side Force
Y =nvt*qb*Svt*CLavt*(-beta+Tr*drt+r*cgvt/V);
% Pitch Moment
Mc =Lw*cgw*cos(alpha)+Dw*cgw*sin(alpha)+Mw-Lt*cgt*...
cos(alpha-E+q*cgt/V)-(Dt+Dvt)*cgt*sin(alpha-E+q*cgt/V)+Mf;
% Yaw Moment
Nc =-qb*nvt*Svt*CLavt*(-beta+Tr*drt+r*cgvt/V)*cgvt+(-qb*S*b*Cnda*da);
% Roll Moment
Lc =qb*S*b^2/(2*V)*(Clp*p+2*V/b*Clb*beta+Clr*drt+Clda*da*2*V/b);
% -=-=-=-=-=- NONLINEAR 6-DOF EQUATION OF MOTION (EOMs) -=-=-=-=-=-=-=-=-
%
% These are the state derivative equations; the comment names the state,
% but the equation is for its derivative (rate)
%
% The equations are arranged by aircraft mode
%
% NOTE: These assume that Ixz=0, if not, then eq's need to be modified
% Longitudinal (phugoid and short period): V, gamma, q, alpha
% Phugoid: V, gamma
% Velocity
x_dot =1/m*(-D*cos(beta)+Y*sin(beta)+T*cos(beta)*cos(alpha))-...
g*sin(gamma);
% Flight Path Angle
gamma_dot =1/(m*V)*(-D*sin(beta)*sin(mu)-Y*sin(mu)*cos(beta)...
+L*cos(mu)+T*(cos(mu)*sin(alpha)+sin(mu)*sin(beta)*cos(alpha)))...
-g/V*cos(gamma);
% Short Period: alpha, q
% Angle of Attach
alpha_dot =q-tan(beta)*(p*cos(alpha)+r*sin(alpha))-1/(m*V*cos(beta))...
*(L+T*sin(alpha))+g*cos(gamma)*cos(mu)/(V*cos(beta));
% Pitch Rate
q_dot =Mc/Iyy+1/Iyy*(Izz*p*r-Ixx*r*p);
% Lateral (roll) - Directional (yaw): p, mu, beta, r
% Roll: p, mu
% Roll Rate
p_dot =Lc/Ixx+1/Ixx*(Iyy*r*q-Izz*q*r);
% Bank Angle (about velocity vector)
mu_dot =1/cos(beta)*(p*cos(alpha)+r*sin(alpha))+1/(m*V)*(D*sin(beta)...
*cos(mu)*tan(gamma)+Y*tan(gamma)*cos(mu)*cos(beta)+L*(tan(beta)+...
tan(gamma)*sin(mu))+T*(sin(alpha)*tan(gamma)*sin(mu)+sin(alpha)*...
tan(beta)-cos(alpha)*tan(gamma)*cos(mu)*sin(beta)))-...
g/V*cos(gamma)*cos(mu)*tan(beta);
% Dutch Roll: beta, r
% Side Slip Angle
beta_dot =-r*cos(alpha)+p*sin(alpha)+1/(m*V)*(D*sin(beta)+Y*cos...
(beta)-T*sin(beta)*cos(alpha))+g/V*cos(gamma)*sin(mu);
% Yaw Rate
r_dot =Nc/Izz+1/Izz*(Ixx*p*q-Iyy*p*q);
% Heading Angle (from North)
chi_dot =1/(m*V*cos(gamma))*(D*sin(beta)*cos(mu)+Y*cos(mu)*cos(beta)...
+L*sin(mu)+T*(sin(mu)*sin(alpha)-cos(mu)*sin(beta)*cos(alpha)));
% Kinematic Equations
% North Position
n_dot =V*cos(gamma)*cos(chi);
% East Position
e_dot =V*cos(gamma)*sin(chi);
% Altitude
h_dot =V*sin(gamma);
% Pack derivatives into output vector x_dot
x_dot(1) = V_dot;
x_dot(2) = gamma_dot;
x_dot(3) = alpha_dot;
x_dot(4) = q_dot;
x_dot(5) = p_dot;
x_dot(6) = mu_dot;
x_dot(7) = beta_dot;
x_dot(8) = r_dot;
x_dot(9) = chi_dot;
x_dot(10) = n_dot;
x_dot(11) = e_dot;
x_dot(12) = h_dot;
end
🔗 参考文献
[1]张伟,张三乐,宋小康,等.四旋翼无人机的运动控制与轨迹规划[J].西安文理学院学报(自然科学版), 2023, 26(4):40-48.DOI:10.3969/j.issn.1008-5564.2023.04.007.
