一、分布式架构下的权限体系核心痛点

随着微服务架构的普及，单体应用中耦合的权限模块被彻底拆分，传统基于Session的权限方案面临无法逾越的瓶颈：

多服务重复开发权限逻辑，维护成本指数级上升，权限规则难以统一
跨服务、跨域场景下Session共享方案兼容性差，存在严重的安全隐患
第三方应用接入时，用户密码直接暴露给客户端，无法实现细粒度的权限管控
多端应用（Web、移动端、小程序）接入时，无法实现统一的身份认证与权限管理

统一认证授权体系正是为解决上述痛点而生，而OAuth2.0作为行业公认的开放授权标准，是构建分布式统一权限体系的核心基石。

二、核心概念底层逻辑与易混淆点辨析

2.1 两个核心概念的本质区分

很多开发者在落地时的核心误区，是混淆了认证与授权的边界，二者是完全独立的两个流程：

认证(Authentication) ：验证用户身份的合法性，解决「你是谁」的问题，核心是身份校验
授权(Authorization) ：验证用户对资源的访问权限，解决「你能做什么」的问题，核心是权限管控

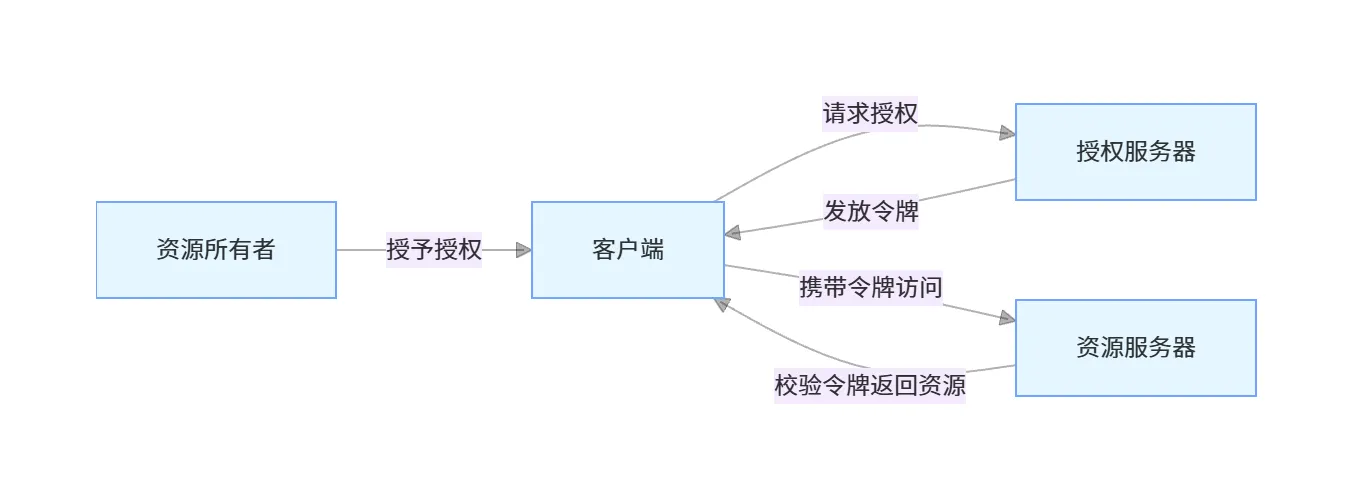

2.2 OAuth2.0的核心设计与角色定义

OAuth2.0是基于令牌的开放授权协议框架，其核心设计思想是解耦认证与授权，让第三方应用无需获取用户账号密码，即可获得用户指定资源的有限访问权限。

协议定义了四个不可拆分的核心角色，所有流程均围绕这四个角色展开：

资源所有者(Resource Owner) ：能够授予资源访问权限的实体，通常是终端用户
客户端(Client) ：请求访问资源的应用，需经过资源所有者授权，才能访问对应资源
授权服务器(Authorization Server) ：负责验证资源所有者身份，完成授权后发放令牌的核心服务
资源服务器(Resource Server) ：存储受保护资源的服务，校验令牌合法性后，提供对应资源访问能力

2.3 OAuth2.0授权模式与适用场景

基于RFC6749规范与OAuth2.1最新安全标准，不同授权模式的安全等级与适用场景有明确边界，废弃高风险模式，仅保留生产环境可用的安全模式：

授权模式	核心流程	适用场景	安全等级
授权码模式+PKCE	先获取授权码，再通过授权码换取令牌，PKCE防止授权码拦截	前端单页应用、移动端应用等公共客户端	极高
授权码模式	先获取授权码，再通过授权码换取令牌，全程不暴露用户密码	服务端渲染的Web应用、机密客户端	高
客户端模式	客户端直接以自身身份向授权服务器申请令牌，无用户参与	服务间通信、系统内部接口调用	中

❝
注：OAuth2.1规范已正式废弃密码模式与简化模式，二者存在严重的密码泄露、令牌窃听风险，生产环境禁止使用。

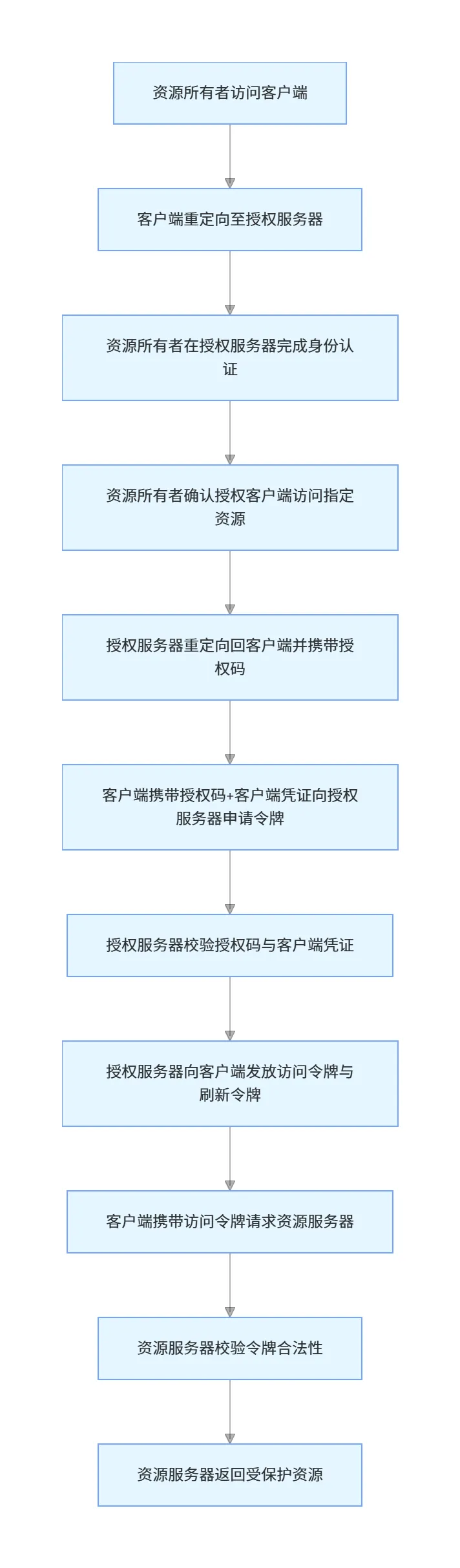

授权码模式完整流程

2.4 高频易混淆概念辨析

OAuth2.0 vs JWTOAuth2.0是授权协议框架，定义了授权的流程与规范；JWT是一种轻量级的令牌格式，定义了令牌的结构与编码方式。二者不是竞争关系，JWT可以作为OAuth2.0协议中令牌的载体。
OAuth2.0 vs SSOSSO是单点登录的业务效果，即用户一次登录即可访问多个相互信任的应用系统；OAuth2.0是实现SSO的技术方案之一，CAS、SAML等协议也可实现SSO。
访问令牌(Access Token) vs 刷新令牌(Refresh Token)访问令牌是资源服务器校验访问权限的唯一凭证，生命周期短，通常15分钟，直接暴露在网络请求中；刷新令牌用于令牌过期后重新获取访问令牌，生命周期长，通常7天，仅在与授权服务器交互时使用，不暴露给资源服务器，极大降低令牌泄露风险。

三、分布式统一认证授权架构设计

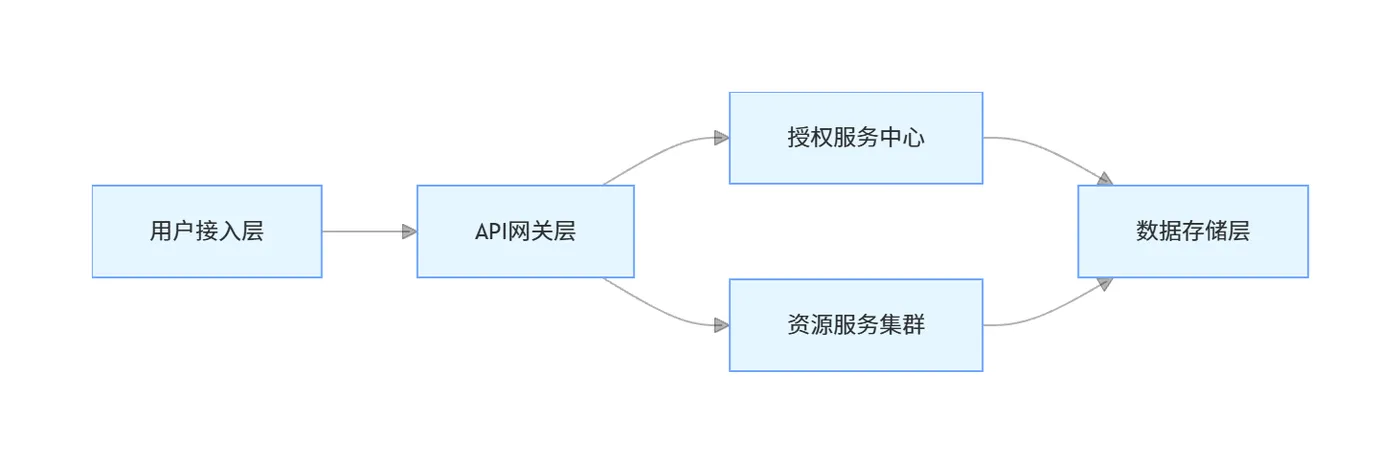

3.1 整体架构分层设计

基于微服务架构的最佳实践，统一认证授权架构采用分层设计，实现职责解耦、高可用、可扩展的核心目标：

各层核心职责：

用户接入层：面向多端用户的入口，包括Web端、移动端、小程序、第三方应用等
API网关层：全局流量入口，负责令牌透传、路由转发、限流熔断、跨域处理、统一日志等
授权服务中心：架构核心，负责用户身份认证、授权管理、令牌发放与校验、客户端管理等
资源服务集群：各业务微服务，即受保护的资源服务器，负责本地细粒度权限校验
数据存储层：存储用户信息、角色权限数据、OAuth2.0客户端数据、令牌数据等

3.2 权限模型设计

采用RBAC（基于角色的访问控制）模型作为核心权限模型，实现用户与权限的解耦，支持灵活的权限管控：

用户与角色是多对多关系
角色与权限是多对多关系
权限分为菜单权限、按钮权限、接口权限三类
支持数据权限的扩展，通过权限表达式实现细粒度数据管控

四、全链路架构落地实战

4.1 技术栈选型

所有组件均采用以下版本，基于JDK17构建，技术栈如下：

核心框架：Spring Boot 3.2.4
安全框架：Spring Security 6.2.3
授权服务：Spring Authorization Server 1.2.3
持久层框架：MyBatis Plus 3.5.6
数据库：MySQL 8.0
接口文档：SpringDoc OpenAPI 3 2.5.0
工具类：Spring Core、FastJSON2、Guava
项目管理：Maven

4.2 数据库表结构设计

以下SQL脚本基于MySQL 8.0编写，完整覆盖RBAC模型与OAuth2.0客户端存储需求：

CREATE DATABASE IF NOT EXISTS distributed_auth DEFAULT CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci; USE distributed_auth; -- 用户表 DROP TABLE IF EXISTS sys_user; CREATE TABLE sys_user ( id BIGINT NOT NULL AUTO_INCREMENT COMMENT '主键ID', username VARCHAR(64) NOT NULL COMMENT '用户名', password VARCHAR(128) NOT NULL COMMENT '密码(BCrypt加密)', real_name VARCHAR(32) DEFAULT NULL COMMENT '真实姓名', mobile VARCHAR(11) DEFAULT NULL COMMENT '手机号', email VARCHAR(64) DEFAULT NULL COMMENT '邮箱', status TINYINT NOT NULL DEFAULT 1 COMMENT '状态 0-禁用 1-启用', create_time DATETIME NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间', update_time DATETIME NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '更新时间', deleted TINYINT NOT NULL DEFAULT 0 COMMENT '逻辑删除 0-未删除 1-已删除', PRIMARY KEY (id), UNIQUE KEY uk_username (username), KEY idx_mobile (mobile), KEY idx_status (status) ) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci COMMENT='系统用户表'; -- 角色表 DROP TABLE IF EXISTS sys_role; CREATE TABLE sys_role ( id BIGINT NOT NULL AUTO_INCREMENT COMMENT '主键ID', role_code VARCHAR(64) NOT NULL COMMENT '角色编码', role_name VARCHAR(32) NOT NULL COMMENT '角色名称', role_desc VARCHAR(256) DEFAULT NULL COMMENT '角色描述', status TINYINT NOT NULL DEFAULT 1 COMMENT '状态 0-禁用 1-启用', create_time DATETIME NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间', update_time DATETIME NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '更新时间', deleted TINYINT NOT NULL DEFAULT 0 COMMENT '逻辑删除 0-未删除 1-已删除', PRIMARY KEY (id), UNIQUE KEY uk_role_code (role_code) ) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci COMMENT='系统角色表'; -- 权限表 DROP TABLE IF EXISTS sys_permission; CREATE TABLE sys_permission ( id BIGINT NOT NULL AUTO_INCREMENT COMMENT '主键ID', parent_id BIGINT NOT NULL DEFAULT 0 COMMENT '父权限ID', permission_code VARCHAR(128) NOT NULL COMMENT '权限编码', permission_name VARCHAR(64) NOT NULL COMMENT '权限名称', permission_type TINYINT NOT NULL COMMENT '权限类型 1-菜单 2-按钮 3-接口', path VARCHAR(256) DEFAULT NULL COMMENT '路由路径', url VARCHAR(256) DEFAULT NULL COMMENT '接口地址', method VARCHAR(16) DEFAULT NULL COMMENT '请求方法', sort INT NOT NULL DEFAULT 0 COMMENT '排序', status TINYINT NOT NULL DEFAULT 1 COMMENT '状态 0-禁用 1-启用', create_time DATETIME NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间', update_time DATETIME NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '更新时间', deleted TINYINT NOT NULL DEFAULT 0 COMMENT '逻辑删除 0-未删除 1-已删除', PRIMARY KEY (id), UNIQUE KEY uk_permission_code (permission_code), KEY idx_parent_id (parent_id) ) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci COMMENT='系统权限表'; -- 用户角色关联表 DROP TABLE IF EXISTS sys_user_role; CREATE TABLE sys_user_role ( id BIGINT NOT NULL AUTO_INCREMENT COMMENT '主键ID', user_id BIGINT NOT NULL COMMENT '用户ID', role_id BIGINT NOT NULL COMMENT '角色ID', create_time DATETIME NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间', PRIMARY KEY (id), UNIQUE KEY uk_user_role (user_id,role_id), KEY idx_user_id (user_id), KEY idx_role_id (role_id) ) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci COMMENT='用户角色关联表'; -- 角色权限关联表 DROP TABLE IF EXISTS sys_role_permission; CREATE TABLE sys_role_permission ( id BIGINT NOT NULL AUTO_INCREMENT COMMENT '主键ID', role_id BIGINT NOT NULL COMMENT '角色ID', permission_id BIGINT NOT NULL COMMENT '权限ID', create_time DATETIME NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间', PRIMARY KEY (id), UNIQUE KEY uk_role_permission (role_id,permission_id), KEY idx_role_id (role_id), KEY idx_permission_id (permission_id) ) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci COMMENT='角色权限关联表'; -- OAuth2.0客户端注册表(Spring Authorization Server官方标准结构) DROP TABLE IF EXISTS oauth2_registered_client; CREATE TABLE oauth2_registered_client ( id VARCHAR(100) NOT NULL COMMENT '主键ID', client_id VARCHAR(100) NOT NULL COMMENT '客户端ID', client_id_issued_at TIMESTAMP NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '客户端签发时间', client_secret VARCHAR(200) DEFAULT NULL COMMENT '客户端密钥', client_secret_expires_at TIMESTAMP NULL DEFAULT NULL COMMENT '客户端密钥过期时间', client_name VARCHAR(200) NOT NULL COMMENT '客户端名称', client_authentication_methods VARCHAR(1000) NOT NULL COMMENT '客户端认证方式', authorization_grant_types VARCHAR(1000) NOT NULL COMMENT '授权类型', redirect_uris VARCHAR(1000) DEFAULT NULL COMMENT '重定向地址', post_logout_redirect_uris VARCHAR(1000) DEFAULT NULL COMMENT '登出重定向地址', scopes VARCHAR(1000) NOT NULL COMMENT '授权范围', client_settings VARCHAR(2000) NOT NULL COMMENT '客户端配置', token_settings VARCHAR(2000) NOT NULL COMMENT '令牌配置', PRIMARY KEY (id), UNIQUE KEY uk_client_id (client_id) ) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci COMMENT='OAuth2.0客户端注册表'; -- 初始化数据 -- 初始化管理员用户用户名:admin 密码:Admin@123456 INSERT INTO sys_user (username, password, real_name, status) VALUES ('admin', '$2a$10$7JB720yubVSZvUI0rEqK/.VqGOZTH.ulu33dHOiBE8ByOhJIrdAu', '系统管理员', 1); -- 初始化管理员角色 INSERT INTO sys_role (role_code, role_name, role_desc) VALUES ('admin', '超级管理员', '系统最高权限角色'); -- 初始化用户角色关联 INSERT INTO sys_user_role (user_id, role_id) VALUES (1, 1); -- 初始化接口权限 INSERT INTO sys_permission (parent_id, permission_code, permission_name, permission_type, url, method) VALUES (0, 'system:user:info', '用户信息查询', 3, '/api/user/info', 'GET'); -- 初始化角色权限关联 INSERT INTO sys_role_permission (role_id, permission_id) VALUES (1, 1); -- 初始化OAuth2.0客户端客户端ID:demo-client 客户端密钥:demo-secret@123456 INSERT INTO oauth2_registered_client (id, client_id, client_secret, client_name, client_authentication_methods, authorization_grant_types, redirect_uris, scopes, client_settings, token_settings) VALUES ('1', 'demo-client', '$2a$10$kU9Y8xVQw8aQZ7xX6zW5eO9L8K7J6H5G4F3D2S1A0S9D8F7G6H5J', '演示客户端', 'client_secret_basic', 'authorization_code,refresh_token,client_credentials', 'http://127.0.0.1:8080/login/oauth2/code/demo-client', 'openid,profile', '{"require-authorization-consent":true,"require-proof-key":false}', '{"access-token-time-to-live":900,"refresh-token-time-to-live":604800,"token-format":"jwt","id-token-signature-algorithm":"RS256"}');

4.3 授权服务器项目搭建

4.3.1 pom.xml核心依赖

<?xml version="1.0" encoding="UTF-8"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <parent> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-parent</artifactId> <version>3.2.4</version> <relativePath/> </parent> <groupId>com.jam.demo</groupId> <artifactId>auth-server</artifactId> <version>0.0.1-SNAPSHOT</version> <name>auth-server</name> <description>分布式权限授权服务器</description> <properties> <java.version>17</java.version> <spring-authorization-server.version>1.2.3</spring-authorization-server.version> <mybatis-plus.version>3.5.6</mybatis-plus.version> <springdoc.version>2.5.0</springdoc.version> <guava.version>32.1.3-jre</guava.version> <fastjson2.version>2.0.49</fastjson2.version> </properties> <dependencies> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> </dependency> <dependency> <groupId>org.springframework.security</groupId> <artifactId>spring-security-oauth2-authorization-server</artifactId> <version>${spring-authorization-server.version}</version> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-jdbc</artifactId> </dependency> <dependency> <groupId>com.baomidou</groupId> <artifactId>mybatis-plus-boot-starter</artifactId> <version>${mybatis-plus.version}</version> </dependency> <dependency> <groupId>com.mysql</groupId> <artifactId>mysql-connector-j</artifactId> <scope>runtime</scope> </dependency> <dependency> <groupId>org.springdoc</groupId> <artifactId>springdoc-openapi-starter-webmvc-ui</artifactId> <version>${springdoc.version}</version> </dependency> <dependency> <groupId>org.projectlombok</groupId> <artifactId>lombok</artifactId> <version>1.18.30</version> <scope>provided</scope> </dependency> <dependency> <groupId>com.google.guava</groupId> <artifactId>guava</artifactId> <version>${guava.version}</version> </dependency> <dependency> <groupId>com.alibaba.fastjson2</groupId> <artifactId>fastjson2</artifactId> <version>${fastjson2.version}</version> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-test</artifactId> <scope>test</scope> </dependency> </dependencies> <build> <plugins> <plugin> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-maven-plugin</artifactId> <configuration> <excludes> <exclude> <groupId>org.projectlombok</groupId> <artifactId>lombok</artifactId> </exclude> </excludes> </configuration> </plugin> </plugins> </build> </project>

4.3.2 配置文件application.yml

server: port: 9000 spring: application: name: auth-server datasource: driver-class-name: com.mysql.cj.jdbc.Driver url: jdbc:mysql://127.0.0.1:3306/distributed_auth?useUnicode=true&characterEncoding=utf8&useSSL=false&serverTimezone=Asia/Shanghai&allowPublicKeyRetrieval=true username: root password: root security: oauth2: authorizationserver: issuer: http://127.0.0.1:9000 mybatis-plus: mapper-locations: classpath*:/mapper/**/*.xml configuration: map-underscore-to-camel-case: true log-impl: org.apache.ibatis.logging.stdout.StdOutImpl global-config: db-config: id-type: auto logic-delete-field: deleted logic-delete-value: 1 logic-not-delete-value: 0 springdoc: swagger-ui: path: /swagger-ui.html api-docs: path: /v3/api-docs

4.3.3 核心实体类

package com.jam.demo.entity; import com.baomidou.mybatisplus.annotation.IdType; import com.baomidou.mybatisplus.annotation.TableId; import com.baomidou.mybatisplus.annotation.TableLogic; import com.baomidou.mybatisplus.annotation.TableName; import lombok.Data; import lombok.EqualsAndHashCode; import java.io.Serializable; import java.time.LocalDateTime; /** * 系统用户实体类 * @author ken */ @Data @EqualsAndHashCode(callSuper = false) @TableName("sys_user") public class SysUser implements Serializable { private static final long serialVersionUID = 1L; @TableId(type = IdType.AUTO) private Long id; private String username; private String password; private String realName; private String mobile; private String email; private Integer status; private LocalDateTime createTime; private LocalDateTime updateTime; @TableLogic private Integer deleted; }

package com.jam.demo.entity; import com.baomidou.mybatisplus.annotation.IdType; import com.baomidou.mybatisplus.annotation.TableId; import com.baomidou.mybatisplus.annotation.TableLogic; import com.baomidou.mybatisplus.annotation.TableName; import lombok.Data; import lombok.EqualsAndHashCode; import java.io.Serializable; import java.time.LocalDateTime; /** * 系统角色实体类 * @author ken */ @Data @EqualsAndHashCode(callSuper = false) @TableName("sys_role") public class SysRole implements Serializable { private static final long serialVersionUID = 1L; @TableId(type = IdType.AUTO) private Long id; private String roleCode; private String roleName; private String roleDesc; private Integer status; private LocalDateTime createTime; private LocalDateTime updateTime; @TableLogic private Integer deleted; }

package com.jam.demo.entity; import com.baomidou.mybatisplus.annotation.IdType; import com.baomidou.mybatisplus.annotation.TableId; import com.baomidou.mybatisplus.annotation.TableLogic; import com.baomidou.mybatisplus.annotation.TableName; import lombok.Data; import lombok.EqualsAndHashCode; import java.io.Serializable; import java.time.LocalDateTime; /** * 系统权限实体类 * @author ken */ @Data @EqualsAndHashCode(callSuper = false) @TableName("sys_permission") public class SysPermission implements Serializable { private static final long serialVersionUID = 1L; @TableId(type = IdType.AUTO) private Long id; private Long parentId; private String permissionCode; private String permissionName; private Integer permissionType; private String path; private String url; private String method; private Integer sort; private Integer status; private LocalDateTime createTime; private LocalDateTime updateTime; @TableLogic private Integer deleted; }

4.3.4 Mapper层

package com.jam.demo.mapper; import com.baomidou.mybatisplus.core.mapper.BaseMapper; import com.jam.demo.entity.SysPermission; import com.jam.demo.entity.SysRole; import com.jam.demo.entity.SysUser; import org.apache.ibatis.annotations.Param; import java.util.List; /** * 系统用户Mapper接口 * @author ken */ public interface SysUserMapper extends BaseMapper<SysUser> { /** * 根据用户ID查询角色列表 * @param userId 用户ID * @return 角色列表 */ List<SysRole> selectRolesByUserId(@Param("userId") Long userId); /** * 根据用户ID查询权限编码列表 * @param userId 用户ID * @return 权限编码列表 */ List<String> selectPermissionCodesByUserId(@Param("userId") Long userId); }

package com.jam.demo.mapper; import com.baomidou.mybatisplus.core.mapper.BaseMapper; import com.jam.demo.entity.SysRole; import org.apache.ibatis.annotations.Param; import java.util.List; /** * 系统角色Mapper接口 * @author ken */ public interface SysRoleMapper extends BaseMapper<SysRole> { /** * 根据权限ID查询角色列表 * @param permissionId 权限ID * @return 角色列表 */ List<SysRole> selectRolesByPermissionId(@Param("permissionId") Long permissionId); }

package com.jam.demo.mapper; import com.baomidou.mybatisplus.core.mapper.BaseMapper; import com.jam.demo.entity.SysPermission; /** * 系统权限Mapper接口 * @author ken */ public interface SysPermissionMapper extends BaseMapper<SysPermission> { }

4.3.5 Service层

package com.jam.demo.service; import com.baomidou.mybatisplus.extension.service.IService; import com.jam.demo.entity.SysUser; /** * 系统用户服务接口 * @author ken */ public interface SysUserService extends IService<SysUser> { /** * 根据用户名查询用户 * @param username 用户名 * @return 用户实体 */ SysUser getUserByUsername(String username); }

package com.jam.demo.service.impl; import com.baomidou.mybatisplus.core.conditions.query.LambdaQueryWrapper; import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl; import com.jam.demo.entity.SysUser; import com.jam.demo.mapper.SysUserMapper; import com.jam.demo.service.SysUserService; import lombok.RequiredArgsConstructor; import lombok.extern.slf4j.Slf4j; import org.springframework.stereotype.Service; import org.springframework.util.StringUtils; /** * 系统用户服务实现类 * @author ken */ @Slf4j @Service @RequiredArgsConstructor public class SysUserServiceImpl extends ServiceImpl<SysUserMapper, SysUser> implements SysUserService { private final SysUserMapper sysUserMapper; @Override public SysUser getUserByUsername(String username) { if (!StringUtils.hasText(username)) { return null; } LambdaQueryWrapper<SysUser> queryWrapper = new LambdaQueryWrapper<SysUser>() .eq(SysUser::getUsername, username) .eq(SysUser::getStatus, 1); return this.getOne(queryWrapper); } }

4.3.6 自定义用户信息加载服务

package com.jam.demo.security; import com.jam.demo.entity.SysUser; import com.jam.demo.mapper.SysUserMapper; import com.jam.demo.service.SysUserService; import lombok.RequiredArgsConstructor; import lombok.extern.slf4j.Slf4j; import org.springframework.security.core.authority.SimpleGrantedAuthority; import org.springframework.security.core.userdetails.User; import org.springframework.security.core.userdetails.UserDetails; import org.springframework.security.core.userdetails.UserDetailsService; import org.springframework.security.core.userdetails.UsernameNotFoundException; import org.springframework.stereotype.Service; import org.springframework.util.ObjectUtils; import org.springframework.util.StringUtils; import java.util.List; import java.util.stream.Collectors; /** * 自定义用户详情服务 * @author ken */ @Slf4j @Service @RequiredArgsConstructor public class CustomUserDetailsService implements UserDetailsService { private final SysUserService sysUserService; private final SysUserMapper sysUserMapper; @Override public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException { if (!StringUtils.hasText(username)) { throw new UsernameNotFoundException("用户名不能为空"); } SysUser sysUser = sysUserService.getUserByUsername(username); if (ObjectUtils.isEmpty(sysUser)) { throw new UsernameNotFoundException("用户不存在"); } List<String> permissionCodes = sysUserMapper.selectPermissionCodesByUserId(sysUser.getId()); List<SimpleGrantedAuthority> authorities = permissionCodes.stream() .filter(StringUtils::hasText) .map(SimpleGrantedAuthority::new) .collect(Collectors.toList()); return User.withUsername(sysUser.getUsername()) .password(sysUser.getPassword()) .authorities(authorities) .accountExpired(false) .accountLocked(sysUser.getStatus() != 1) .credentialsExpired(false) .disabled(sysUser.getStatus() != 1) .build(); } }

4.3.7 RSA密钥工具类

package com.jam.demo.util; import lombok.extern.slf4j.Slf4j; import java.security.KeyPair; import java.security.KeyPairGenerator; import java.security.NoSuchAlgorithmException; import java.security.interfaces.RSAPrivateKey; import java.security.interfaces.RSAPublicKey; /** * RSA密钥工具类 * @author ken */ @Slf4j public class RsaKeyUtil { private RsaKeyUtil() { } /** * 生成RSA密钥对 * @return RSA密钥对 * @throws NoSuchAlgorithmException 算法不存在异常 */ public static KeyPair generateRsaKeyPair() throws NoSuchAlgorithmException { KeyPairGenerator keyPairGenerator = KeyPairGenerator.getInstance("RSA"); keyPairGenerator.initialize(2048); return keyPairGenerator.generateKeyPair(); } /** * 获取RSA公钥 * @param keyPair 密钥对 * @return RSA公钥 */ public static RSAPublicKey getPublicKey(KeyPair keyPair) { return (RSAPublicKey) keyPair.getPublic(); } /** * 获取RSA私钥 * @param keyPair 密钥对 * @return RSA私钥 */ public static RSAPrivateKey getPrivateKey(KeyPair keyPair) { return (RSAPrivateKey) keyPair.getPrivate(); } }

4.3.8 授权服务器核心配置

package com.jam.demo.config; import com.jam.demo.util.RsaKeyUtil; import lombok.RequiredArgsConstructor; import org.springframework.context.annotation.Bean; import org.springframework.context.annotation.Configuration; import org.springframework.core.Ordered; import org.springframework.core.annotation.Order; import org.springframework.jdbc.core.JdbcTemplate; import org.springframework.security.config.Customizer; import org.springframework.security.config.annotation.web.builders.HttpSecurity; import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity; import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder; import org.springframework.security.crypto.password.PasswordEncoder; import org.springframework.security.oauth2.core.AuthorizationGrantType; import org.springframework.security.oauth2.core.ClientAuthenticationMethod; import org.springframework.security.oauth2.jwt.JwtDecoder; import org.springframework.security.oauth2.jwt.NimbusJwtEncoder; import org.springframework.security.oauth2.server.authorization.JdbcOAuth2AuthorizationConsentService; import org.springframework.security.oauth2.server.authorization.JdbcOAuth2AuthorizationService; import org.springframework.security.oauth2.server.authorization.OAuth2AuthorizationConsentService; import org.springframework.security.oauth2.server.authorization.OAuth2AuthorizationService; import org.springframework.security.oauth2.server.authorization.client.JdbcRegisteredClientRepository; import org.springframework.security.oauth2.server.authorization.client.RegisteredClientRepository; import org.springframework.security.oauth2.server.authorization.config.annotation.web.configuration.OAuth2AuthorizationServerConfiguration; import org.springframework.security.oauth2.server.authorization.config.annotation.web.configurers.OAuth2AuthorizationServerConfigurer; import org.springframework.security.oauth2.server.authorization.settings.AuthorizationServerSettings; import org.springframework.security.oauth2.server.authorization.token.JwtEncodingContext; import org.springframework.security.oauth2.server.authorization.token.JwtGenerator; import org.springframework.security.oauth2.server.authorization.token.OAuth2TokenCustomizer; import org.springframework.security.oauth2.server.authorization.token.OAuth2TokenGenerator; import org.springframework.security.web.SecurityFilterChain; import org.springframework.security.web.authentication.LoginUrlAuthenticationEntryPoint; import java.security.KeyPair; import java.security.NoSuchAlgorithmException; import java.security.interfaces.RSAPrivateKey; import java.security.interfaces.RSAPublicKey; import java.util.UUID; import com.nimbusds.jose.jwk.JWKSet; import com.nimbusds.jose.jwk.RSAKey; import com.nimbusds.jose.jwk.source.ImmutableJWKSet; import com.nimbusds.jose.jwk.source.JWKSource; import com.nimbusds.jose.proc.SecurityContext; /** * 授权服务器配置类 * @author ken */ @Configuration @EnableWebSecurity @RequiredArgsConstructor public class AuthorizationServerConfig { private final JdbcTemplate jdbcTemplate; /** * 授权服务器安全过滤链 * @param http HttpSecurity对象 * @return SecurityFilterChain对象 * @throws Exception 异常 */ @Bean @Order(Ordered.HIGHEST_PRECEDENCE) public SecurityFilterChain authorizationServerSecurityFilterChain(HttpSecurity http) throws Exception { OAuth2AuthorizationServerConfiguration.applyDefaultSecurity(http); http.getConfigurer(OAuth2AuthorizationServerConfigurer.class) .oidc(Customizer.withDefaults()); http.exceptionHandling(exceptions -> exceptions .authenticationEntryPoint(new LoginUrlAuthenticationEntryPoint("/login")) ).oauth2ResourceServer(resourceServer -> resourceServer .jwt(Customizer.withDefaults()) ); return http.build(); } /** * 默认安全过滤链 * @param http HttpSecurity对象 * @return SecurityFilterChain对象 * @throws Exception 异常 */ @Bean public SecurityFilterChain defaultSecurityFilterChain(HttpSecurity http) throws Exception { http.authorizeHttpRequests(authorize -> authorize .requestMatchers("/swagger-ui/**", "/v3/api-docs/**", "/actuator/**").permitAll() .anyRequest().authenticated() ).formLogin(Customizer.withDefaults()); return http.build(); } /** * 密码编码器 * @return PasswordEncoder对象 */ @Bean public PasswordEncoder passwordEncoder() { return new BCryptPasswordEncoder(); } /** * 客户端存储仓库 * @return RegisteredClientRepository对象 */ @Bean public RegisteredClientRepository registeredClientRepository() { return new JdbcRegisteredClientRepository(jdbcTemplate); } /** * 授权服务 * @param registeredClientRepository 客户端存储仓库 * @return OAuth2AuthorizationService对象 */ @Bean public OAuth2AuthorizationService oAuth2AuthorizationService(RegisteredClientRepository registeredClientRepository) { return new JdbcOAuth2AuthorizationService(jdbcTemplate, registeredClientRepository); } /** * 授权同意服务 * @param registeredClientRepository 客户端存储仓库 * @return OAuth2AuthorizationConsentService对象 */ @Bean public OAuth2AuthorizationConsentService oAuth2AuthorizationConsentService(RegisteredClientRepository registeredClientRepository) { return new JdbcOAuth2AuthorizationConsentService(jdbcTemplate, registeredClientRepository); } /** * JWK源 * @return JWKSource对象 * @throws NoSuchAlgorithmException 算法不存在异常 */ @Bean public JWKSource<SecurityContext> jwkSource() throws NoSuchAlgorithmException { KeyPair keyPair = RsaKeyUtil.generateRsaKeyPair(); RSAPublicKey publicKey = RsaKeyUtil.getPublicKey(keyPair); RSAPrivateKey privateKey = RsaKeyUtil.getPrivateKey(keyPair); RSAKey rsaKey = new RSAKey.Builder(publicKey) .privateKey(privateKey) .keyID(UUID.randomUUID().toString()) .build(); JWKSet jwkSet = new JWKSet(rsaKey); return new ImmutableJWKSet<>(jwkSet); } /** * JWT解码器 * @param jwkSource JWK源 * @return JwtDecoder对象 */ @Bean public JwtDecoder jwtDecoder(JWKSource<SecurityContext> jwkSource) { return OAuth2AuthorizationServerConfiguration.jwtDecoder(jwkSource); } /** * JWT生成器 * @param jwkSource JWK源 * @param jwtCustomizer JWT自定义器 * @return OAuth2TokenGenerator对象 */ @Bean public OAuth2TokenGenerator<?> jwtGenerator(JWKSource<SecurityContext> jwkSource, OAuth2TokenCustomizer<JwtEncodingContext> jwtCustomizer) { NimbusJwtEncoder jwtEncoder = new NimbusJwtEncoder(jwkSource); JwtGenerator generator = new JwtGenerator(jwtEncoder); generator.setJwtCustomizer(jwtCustomizer); return generator; } /** * JWT自定义器，扩展JWT载荷 * @return OAuth2TokenCustomizer对象 */ @Bean public OAuth2TokenCustomizer<JwtEncodingContext> jwtCustomizer() { return context -> { if (context.getTokenType().getValue().equals("access_token")) { context.getClaims().claim("client_id", context.getRegisteredClient().getClientId()); } }; } /** * 授权服务器设置 * @return AuthorizationServerSettings对象 */ @Bean public AuthorizationServerSettings authorizationServerSettings() { return AuthorizationServerSettings.builder().build(); } }

4.3.9 启动类

package com.jam.demo; import org.mybatis.spring.annotation.MapperScan; import org.springframework.boot.SpringApplication; import org.springframework.boot.autoconfigure.SpringBootApplication; /** * 授权服务器启动类 * @author ken */ @SpringBootApplication @MapperScan("com.jam.demo.mapper") public class AuthServerApplication { public static void main(String[] args) { SpringApplication.run(AuthServerApplication.class, args); } }

4.4 资源服务器项目搭建

4.4.1 pom.xml核心依赖

<?xml version="1.0" encoding="UTF-8"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <parent> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-parent</artifactId> <version>3.2.4</version> <relativePath/> </parent> <groupId>com.jam.demo</groupId> <artifactId>resource-server</artifactId> <version>0.0.1-SNAPSHOT</version> <name>resource-server</name> <description>分布式权限资源服务器</description> <properties> <java.version>17</java.version> <mybatis-plus.version>3.5.6</mybatis-plus.version> <springdoc.version>2.5.0</springdoc.version> <guava.version>32.1.3-jre</guava.version> <fastjson2.version>2.0.49</fastjson2.version> </properties> <dependencies> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-oauth2-resource-server</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-jdbc</artifactId> </dependency> <dependency> <groupId>com.baomidou</groupId> <artifactId>mybatis-plus-boot-starter</artifactId> <version>${mybatis-plus.version}</version> </dependency> <dependency> <groupId>com.mysql</groupId> <artifactId>mysql-connector-j</artifactId> <scope>runtime</scope> </dependency> <dependency> <groupId>org.springdoc</groupId> <artifactId>springdoc-openapi-starter-webmvc-ui</artifactId> <version>${springdoc.version}</version> </dependency> <dependency> <groupId>org.projectlombok</groupId> <artifactId>lombok</artifactId> <version>1.18.30</version> <scope>provided</scope> </dependency> <dependency> <groupId>com.google.guava</groupId> <artifactId>guava</artifactId> <version>${guava.version}</version> </dependency> <dependency> <groupId>com.alibaba.fastjson2</groupId> <artifactId>fastjson2</artifactId> <version>${fastjson2.version}</version> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-test</artifactId> <scope>test</scope> </dependency> </dependencies> <build> <plugins> <plugin> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-maven-plugin</artifactId> <configuration> <excludes> <exclude> <groupId>org.projectlombok</groupId> <artifactId>lombok</artifactId> </exclude> </excludes> </configuration> </plugin> </plugins> </build> </project>

4.4.2 配置文件application.yml

server: port: 8080 spring: application: name: resource-server datasource: driver-class-name: com.mysql.cj.jdbc.Driver url: jdbc:mysql://127.0.0.1:3306/distributed_auth?useUnicode=true&characterEncoding=utf8&useSSL=false&serverTimezone=Asia/Shanghai&allowPublicKeyRetrieval=true username: root password: root security: oauth2: resourceserver: jwt: issuer-uri: http://127.0.0.1:9000 mybatis-plus: mapper-locations: classpath*:/mapper/**/*.xml configuration: map-underscore-to-camel-case: true global-config: db-config: id-type: auto logic-delete-field: deleted logic-delete-value: 1 logic-not-delete-value: 0 springdoc: swagger-ui: path: /swagger-ui.html api-docs: path: /v3/api-docs

4.4.3 资源服务器核心配置

package com.jam.demo.config; import lombok.RequiredArgsConstructor; import org.springframework.context.annotation.Bean; import org.springframework.context.annotation.Configuration; import org.springframework.security.config.annotation.method.configuration.EnableMethodSecurity; import org.springframework.security.config.annotation.web.builders.HttpSecurity; import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity; import org.springframework.security.config.http.SessionCreationPolicy; import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder; import org.springframework.security.crypto.password.PasswordEncoder; import org.springframework.security.web.SecurityFilterChain; /** * 资源服务器配置类 * @author ken */ @Configuration @EnableWebSecurity @EnableMethodSecurity @RequiredArgsConstructor public class ResourceServerConfig { /** * 资源服务器安全过滤链 * @param http HttpSecurity对象 * @return SecurityFilterChain对象 * @throws Exception 异常 */ @Bean public SecurityFilterChain resourceServerSecurityFilterChain(HttpSecurity http) throws Exception { http.authorizeHttpRequests(authorize -> authorize .requestMatchers("/swagger-ui/**", "/v3/api-docs/**").permitAll() .anyRequest().authenticated() ).oauth2ResourceServer(resourceServer -> resourceServer .jwt(jwt -> jwt.jwtAuthenticationConverter(new CustomJwtAuthenticationConverter())) ).sessionManagement(session -> session .sessionCreationPolicy(SessionCreationPolicy.STATELESS) ).csrf(csrf -> csrf.disable()); return http.build(); } /** * 密码编码器 * @return PasswordEncoder对象 */ @Bean public PasswordEncoder passwordEncoder() { return new BCryptPasswordEncoder(); } }

4.4.4 自定义JWT认证转换器

package com.jam.demo.config; import org.springframework.core.convert.converter.Converter; import org.springframework.security.authentication.AbstractAuthenticationToken; import org.springframework.security.core.GrantedAuthority; import org.springframework.security.core.authority.SimpleGrantedAuthority; import org.springframework.security.oauth2.jwt.Jwt; import org.springframework.security.oauth2.server.resource.authentication.JwtAuthenticationToken; import org.springframework.security.oauth2.server.resource.authentication.JwtGrantedAuthoritiesConverter; import java.util.Collection; import java.util.stream.Collectors; import java.util.stream.Stream; /** * 自定义JWT认证转换器 * @author ken */ public class CustomJwtAuthenticationConverter implements Converter<Jwt, AbstractAuthenticationToken> { private final JwtGrantedAuthoritiesConverter defaultGrantedAuthoritiesConverter = new JwtGrantedAuthoritiesConverter(); @Override public AbstractAuthenticationToken convert(Jwt jwt) { Collection<GrantedAuthority> authorities = Stream.concat( defaultGrantedAuthoritiesConverter.convert(jwt).stream(), jwt.getClaimAsStringList("authorities").stream().map(SimpleGrantedAuthority::new) ).collect(Collectors.toSet()); return new JwtAuthenticationToken(jwt, authorities, jwt.getSubject()); } }

4.4.5 用户信息接口

package com.jam.demo.controller; import com.jam.demo.entity.SysUser; import com.jam.demo.service.SysUserService; import io.swagger.v3.oas.annotations.Operation; import io.swagger.v3.oas.annotations.tags.Tag; import lombok.RequiredArgsConstructor; import lombok.extern.slf4j.Slf4j; import org.springframework.security.access.prepost.PreAuthorize; import org.springframework.security.core.Authentication; import org.springframework.web.bind.annotation.GetMapping; import org.springframework.web.bind.annotation.RequestMapping; import org.springframework.web.bind.annotation.RestController; /** * 用户信息控制器 * @author ken */ @Slf4j @RestController @RequestMapping("/api/user") @RequiredArgsConstructor @Tag(name = "用户信息接口", description = "用户信息相关接口") public class UserController { private final SysUserService sysUserService; /** * 获取当前登录用户信息 * @param authentication 认证信息 * @return 用户实体 */ @GetMapping("/info") @Operation(summary = "获取用户信息", description = "获取当前登录用户的详细信息") @PreAuthorize("hasAuthority('system:user:info')") public SysUser getUserInfo(Authentication authentication) { String username = authentication.getName(); return sysUserService.getUserByUsername(username); } }

4.4.6 启动类

package com.jam.demo; import org.mybatis.spring.annotation.MapperScan; import org.springframework.boot.SpringApplication; import org.springframework.boot.autoconfigure.SpringBootApplication; /** * 资源服务器启动类 * @author ken */ @SpringBootApplication @MapperScan("com.jam.demo.mapper") public class ResourceServerApplication { public static void main(String[] args) { SpringApplication.run(ResourceServerApplication.class, args); } }

4.5 全流程调用示例

获取授权码浏览器访问地址：

http://127.0.0.1:9000/oauth2/authorize?response_type=code&client_id=demo-client&scope=openid profile&redirect_uri=http://127.0.0.1:8080/login/oauth2/code/demo-client

跳转至登录页面，输入用户名admin，密码Admin@123456，完成登录后确认授权，浏览器会重定向至配置的地址，携带授权码参数code。

通过授权码获取令牌使用Postman或curl发送POST请求：

curl --location --request POST 'http://127.0.0.1:9000/oauth2/token' \ --header 'Authorization: Basic ZGVtby1jbGllbnQ6ZGVtby1zZWNyZXRAMTIzNDU2' \ --header 'Content-Type: application/x-www-form-urlencoded' \ --data-urlencode 'grant_type=authorization_code' \ --data-urlencode 'code=上一步获取的授权码' \ --data-urlencode 'redirect_uri=http://127.0.0.1:8080/login/oauth2/code/demo-client'

请求成功后，返回访问令牌与刷新令牌：

{ "access_token": "eyJraWQiOiI4N2YwYjE5OC0zYjUxLTRkYjgtOGYwOC0wYjE5OGM3YjUxNDQiLCJhbGciOiJSUzI1NiJ9...", "refresh_token": "MlU5aDdYb1k5aDdYb1k5aDdYb1k5aDdYb1k5aDdYb1k", "scope": "openid profile", "token_type": "Bearer", "expires_in": 900 }

携带令牌访问资源接口

curl --location --request GET 'http://127.0.0.1:8080/api/user/info' \ --header 'Authorization: Bearer 上一步获取的access_token'

请求成功后，返回用户信息。

通过刷新令牌重新获取访问令牌

curl --location --request POST 'http://127.0.0.1:9000/oauth2/token' \ --header 'Authorization: Basic ZGVtby1jbGllbnQ6ZGVtby1zZWNyZXRAMTIzNDU2' \ --header 'Content-Type: application/x-www-form-urlencoded' \ --data-urlencode 'grant_type=refresh_token' \ --data-urlencode 'refresh_token=上一步获取的refresh_token'

五、生产环境最佳实践与安全加固

5.1 令牌安全管理

访问令牌必须设置短时效，建议15分钟以内，刷新令牌设置长时效，建议7天以内
刷新令牌必须实现一次性使用机制，使用后立即失效，防止重放攻击
JWT必须使用非对称加密算法RS256，禁止使用对称加密算法HS256
JWT载荷中禁止存放敏感信息，如用户密码、手机号等，仅存放必要的身份标识
令牌必须通过HTTPS传输，禁止在HTTP协议下传输，防止令牌被窃听

5.2 客户端安全管控

公共客户端（前端、移动端）必须使用授权码模式+PKCE，禁止使用客户端密钥
机密客户端（后端服务）的客户端密钥必须使用高强度随机字符串，定期轮换
严格限制redirect_uri的范围，禁止使用通配符，防止授权码被恶意拦截
客户端必须开启授权确认机制，防止用户被诱导授权

5.3 权限管控最佳实践

严格遵循最小权限原则，为每个客户端、每个用户分配最小必要的权限
采用RBAC+ABAC混合权限模型，实现细粒度的接口权限与数据权限管控
资源服务器必须做本地权限校验，不能完全依赖授权服务器的令牌校验
权限变更必须实时生效，支持动态权限刷新机制

5.4 安全防护与审计

对授权端点、令牌端点添加限流、防暴力破解机制，防止恶意攻击
所有认证、授权、令牌发放、资源访问操作必须记录完整的审计日志，便于追溯
开启CSRF防护，防止跨站请求伪造攻击
定期进行安全漏洞扫描与渗透测试，及时修复安全隐患

六、常见问题与踩坑指南

令牌校验失败核心原因包括：授权服务器与资源服务器的issuer配置不一致、公钥私钥不匹配、令牌已过期、签名算法不支持、系统时间不同步。解决方法：逐一校验配置项，确保issuer地址完全一致，使用非对称加密时公钥配置正确，同步服务器系统时间。
权限注解不生效核心原因包括：未开启@EnableMethodSecurity注解、用户权限未正确加载到SecurityContext中、AOP代理配置错误。解决方法：在配置类上添加@EnableMethodSecurity注解，校验JWT转换器中权限的加载逻辑，确保Spring AOP正常代理。
跨域配置不生效核心原因：Spring Security的过滤链优先级高于Spring MVC的跨域配置，仅配置WebMvcConfigurer的跨域规则无效。解决方法：在SecurityFilterChain中统一配置CORS规则，确保跨域配置在Spring Security中生效。
授权码模式重定向报错核心原因：客户端配置的redirect_uri与请求中的redirect_uri不完全一致，包括协议、域名、端口、路径的差异，或包含多余参数。解决方法：确保请求中的redirect_uri与数据库中配置的redirect_uri完全一致，禁止使用通配符。
JWT载荷过大导致请求头溢出核心原因：JWT中存放了过多的权限信息、用户信息，导致请求头超出服务器的最大限制。解决方法：JWT中仅存放用户ID等必要标识，权限信息在资源服务器中通过用户ID实时查询，减少载荷体积。
