🔥 内容介绍
一、背景
（一）机器人位姿估计与地标定位的重要性
在机器人导航与自主探索任务中，准确的位姿估计（确定机器人在环境中的位置和姿态）以及地标定位（识别并确定环境中标志性物体的位置）至关重要。例如，在室内服务机器人场景下，机器人需要实时知晓自身位置与姿态，以便高效地完成清洁、配送等任务；同时，地标定位能帮助机器人构建环境地图，实现更好的路径规划与场景理解。在工业机器人领域，精确的位姿估计与地标定位是确保机器人准确执行装配、焊接等操作的基础。
（二）单一传感器的局限性
- 里程计：里程计通过测量机器人轮子的转动来推算机器人的位移和姿态变化。虽然它能够提供高频的位姿信息，但随着时间推移，其误差会逐渐累积。例如，轮子与地面的滑动、摩擦力变化等因素都会导致里程计的推算结果与实际位姿产生偏差，长时间运行后，这种偏差可能变得非常大，从而使机器人对自身位姿的估计严重偏离实际情况。
- 激光雷达：激光雷达通过发射激光束并测量反射光的时间来获取环境的距离信息，进而生成点云数据。它可以提供高精度的环境感知，用于地标定位以及辅助位姿估计。然而，激光雷达的数据采集频率相对较低，且在一些特殊环境下（如恶劣天气、镜面反射表面等），其测量精度会受到影响。此外，单纯依靠激光雷达进行位姿估计，在数据处理和计算上可能面临较大挑战，特别是在复杂环境中，点云数据的匹配和分析可能变得十分复杂。
（三）传感器融合的优势
为了克服单一传感器的局限性，将里程计和激光雷达数据进行融合是一种有效的解决方案。里程计的高频数据可以提供机器人位姿的短期变化趋势，而激光雷达的高精度测量能够修正里程计累积的误差。通过融合这两种传感器的数据，可以获得更准确、可靠的机器人位姿估计和地标定位结果，提高机器人在各种环境下的导航与探索能力。

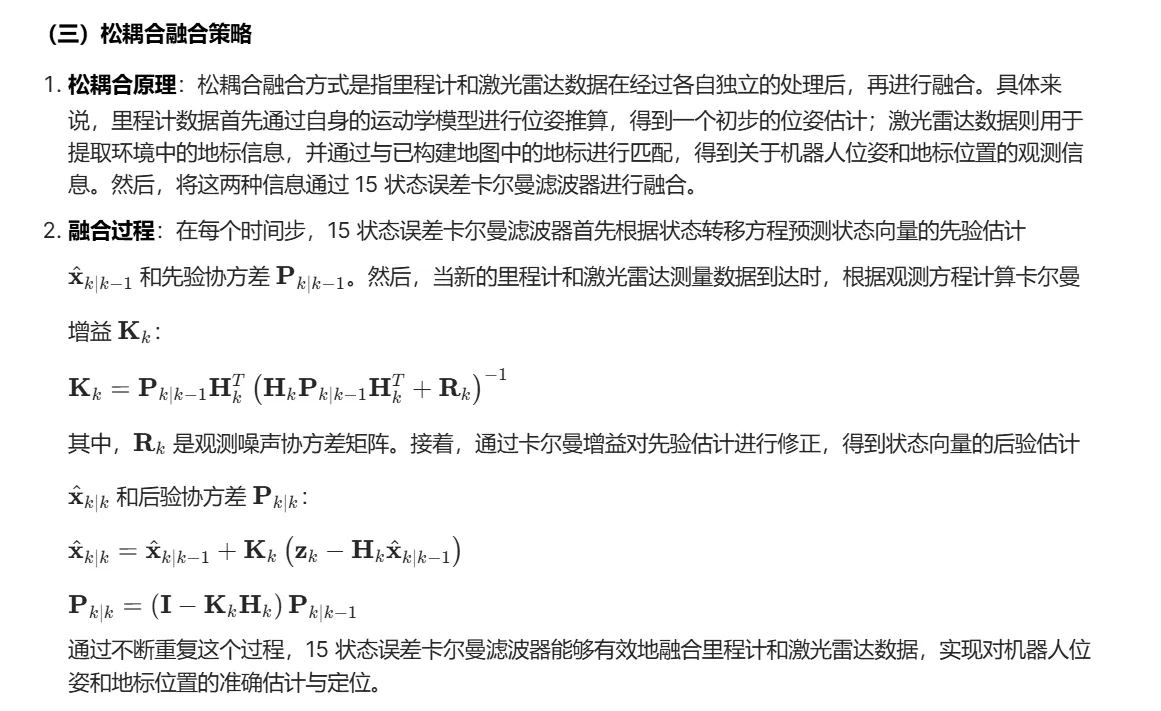

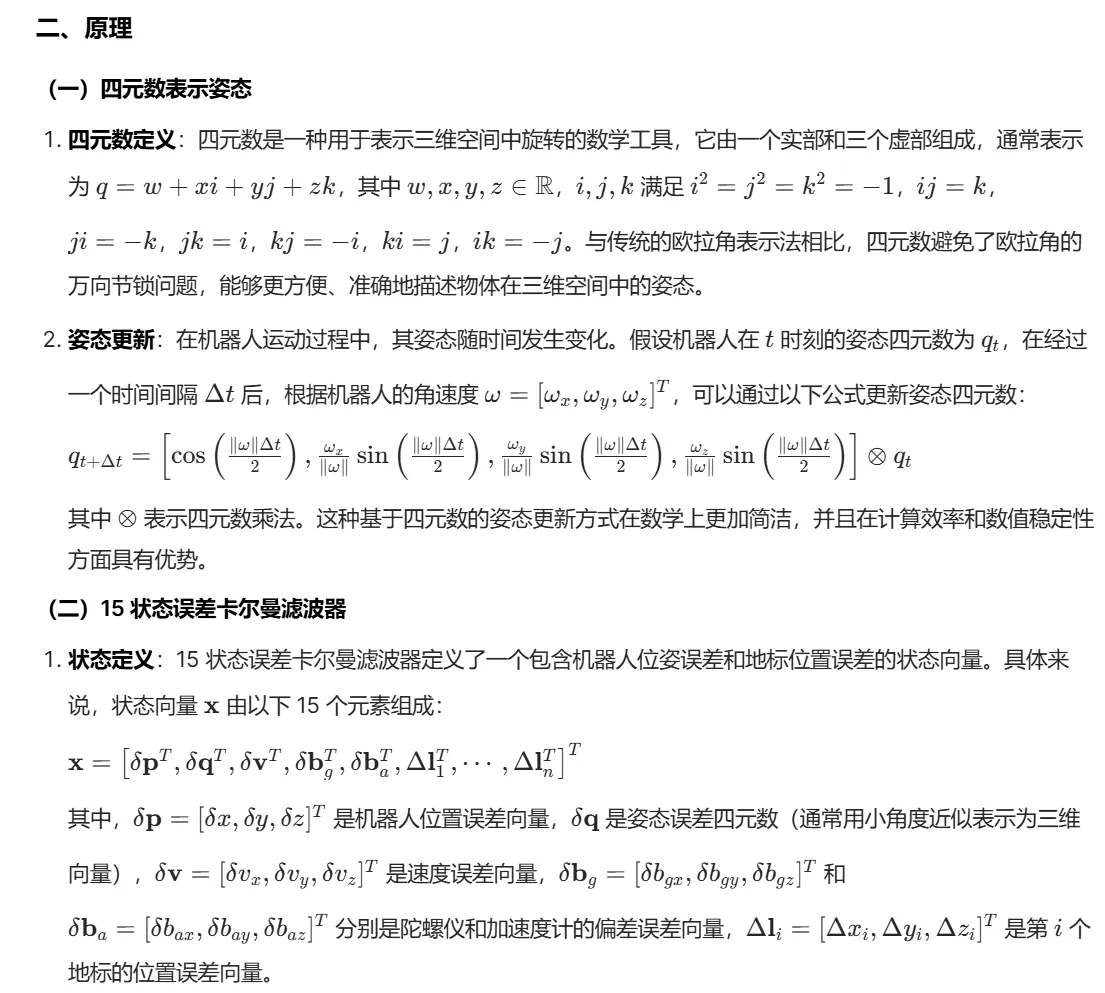

⛳️ 运行结果

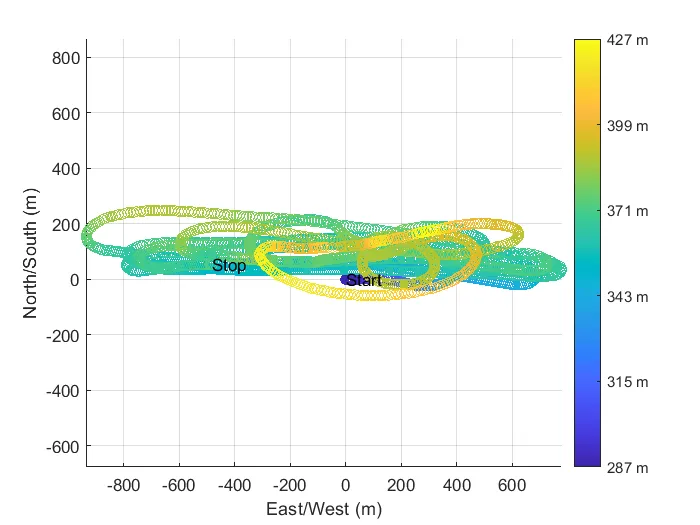

📣 部分代码
start_lon = gps_pos_lla(1,2)*ones(drl,1);
start_lat = gps_pos_lla(1,1)*ones(drl,1);
lla_east = (gps_pos_lla(:,2)-start_lon);
lla_north = (gps_pos_lla(:,1)-start_lat);
start_lon_est = pos_ins(1,2)*ones(drl,1);
start_lat_est = pos_ins(1,1)*ones(drl,1);
pos_east = (pos_ins(:,2)-start_lon_est);
pos_north = (pos_ins(:,1)-start_lat_est);
% Plot Figure 7.2: Attitude Estimates
figure; % ('rend','painters','pos',[10 150 900 600])
set(gcf,'Name','Trajectory Estimation ');
gps_alt = gps_pos_lla(:,3);
zmin=min(gps_alt);
zmax=max(gps_alt);
map=colormap;
color_steps=size(map,1);
colorbar('Ticks',[0,0.2,0.4,0.6,0.8,1],...
'TickLabels',{strcat(num2str(zmin+(zmax-zmin)*0/10,3),' m'),...
strcat(num2str(zmin+(zmax-zmin)*2/10,3),' m')...
,strcat(num2str(zmin+(zmax-zmin)*4/10,3),' m'),...
strcat(num2str(zmin+(zmax-zmin)*6/10,3),' m'),...
strcat(num2str(zmin+(zmax-zmin)*8/10,3),' m'),...
strcat(num2str(zmin+(zmax-zmin)*10/10,3),' m')}); hold on;
hold on
for i=1:color_steps
ind=find(gps_alt<zmin+i*(zmax-zmin)/color_steps & gps_alt>=zmin+(i-1)*(zmax-zmin)/color_steps);
plot((R_0/cos(start_lat(1)))*lla_east(ind),R_0*lla_north(ind),'o','Color',map(i,:));
end
text((R_0/cos(start_lat(1)))*lla_east(1),R_0*lla_north(1),'Start');
text((R_0/cos(start_lat(1)))*lla_east(end)+1,R_0*lla_north(end),'Stop');
xlabel('East/West (m)');ylabel('North/South (m)'); grid on; axis equal;
garyfyFigure
figure; %('rend','painters','pos',[10 150 900 600]);%(gcf+1)
set(gcf,'Name','NED position Estimation Comparison');
subplot(311)
h1 = plot(t,R_0*lla_north,'b-',t,R_0*pos_north,'r-');hold on;grid on;
xlabel('time (sec)');
ylabel('North/South (m)');
set(h1,'LineWidth',1);
subplot(312)
h1 = plot(t,(R_0/cos(start_lat(1)))*lla_east,'b-',t,(R_0/cos(start_lat(1)))*pos_east,'r-');hold on;grid on;
xlabel('time (sec)');
ylabel('East/West (m)');
set(h1,'LineWidth',1);
subplot(313)
h1 = plot(t,gps_pos_lla(:,3),'b-',t, pos_ins(:,3),'r-');hold on;grid on;
xlabel('time (sec)');
ylabel('altitude(m)');
set(h1,'LineWidth',1);
figure; %('rend','painters','pos',[10 150 900 600]);%(gcf+1)
set(gcf,'Name','NED position Error');
subplot(311)
h1 = plot(t,R_0*lla_north-R_0*pos_north,'r-');hold on;grid on;
xlabel('time (sec)');
ylabel('North/South (m)');
set(h1,'LineWidth',1);
subplot(312)
h1 = plot(t,(R_0/cos(start_lat(1)))*lla_east-(R_0/cos(start_lat(1)))*pos_east,'r-');hold on;grid on;
xlabel('time (sec)');
ylabel('East/West (m)');
set(h1,'LineWidth',1);
subplot(313)
h1 = plot(t,gps_pos_lla(:,3) - pos_ins(:,3),'r-');hold on;grid on;
xlabel('time (sec)');
ylabel('altitude(m)');
set(h1,'LineWidth',1);
figure; %('rend','painters','pos',[10 150 900 600]);%(gcf+1)
set(gcf,'Name','NED Velocity Estimation Comparison');
ax1 = subplot(311);
plot(t,gps_vel_ned(:,1),'k-',t,vel_ins(:,1),'r--','linewidth',2);
%legend('GPS measured','Estimate');
%xlabel('time (min)');
ylabel('V_N (m/s)');
grid on;
ax2 = subplot(312);
plot(t,gps_vel_ned(:,2),'k-',t,vel_ins(:,2),'r--','linewidth',2);
%legend('GPS measured','Estimate');
%xlabel('time (min)');
ylabel('V_E (m/s)');
grid on;
ax3 = subplot(313);
plot(t,gps_vel_ned(:,3),'k-',t,vel_ins(:,3),'r--','linewidth',2);
legend('True','Estimate');
ylim([-20 20]);
xlabel('time (sec)');
ylabel('V_D (m/s)');
grid on;
linkaxes([ax1,ax2,ax3],'x')
figure; %('rend','painters','pos',[10 150 900 600]);%(gcf+1)
set(gcf,'Name','NED Velocity Error');
ax1 = subplot(311);
plot(t,gps_vel_ned(:,1)-vel_ins(:,1),'r--','linewidth',2);
%legend('GPS measured','Estimate');
%xlabel('time (min)');
ylabel('V_N (m/s)');
grid on;
ax2 = subplot(312);
plot(t,gps_vel_ned(:,2)-vel_ins(:,2),'r--','linewidth',2);
%legend('GPS measured','Estimate');
%xlabel('time (min)');
ylabel('V_E (m/s)');
grid on;
ax3 = subplot(313);
plot(t,gps_vel_ned(:,3)-vel_ins(:,3),'r--','linewidth',2);
legend('Error');
ylim([-20 20]);
xlabel('time (sec)');
ylabel('V_D (m/s)');
grid on;
linkaxes([ax1,ax2,ax3],'x')
yaw_est_d = wrapTo180(eul_ins(:,3)*r2d);
figure;%('rend','painters','pos',[10 150 900 600]);
set(gcf,'Name','atitude Estimation Comparison');
subplot(311)
plot(t,roll,'k-',t,eul_ins(:,1)*r2d,'r--','linewidth',2);
%xlabel('time (min)');
ylabel('\phi (deg)');
grid on;
subplot(312)
plot(t,pitch,'k-',t,eul_ins(:,2)*r2d,'r--','linewidth',2);
%xlabel('time (min)');
ylabel('\theta (deg)');
grid on;
subplot(313)
plot(t,wrapTo180(yaw),'k-',t,wrapTo180(eul_ins(:,3)*r2d),'r--','linewidth',2);
legend('True','Estimate');
% title('Euler angle');
xlabel('time (sec)');
ylabel('\psi (deg)');
grid on;
figure; % ('rend','painters','pos',[10 150 900 600]);
set(gcf,'Name','atittude Estimation 3-\simga bound');
%temp = wrapTo180(eul_ins(:,3)*r2d)-wrapTo180(yaw);
temp = wrapTo180(eul_ins(:,3)*r2d-yaw);
%temp(find(abs(temp) > 20)) = NaN;
yaw_err = temp; clear temp;
subplot(311)
hold on;
plot(t,eul_ins(:,1)*r2d-roll,'r--','LineWidth',2);
h3 = plot(t,3*sqrt(Ppsi(:,1))*r2d,'k-','LineWidth',2);
h4 = plot(t,-3*sqrt(Ppsi(:,1))*r2d,'k-','LineWidth',2);
h3.Color(4) = 0.3;
h4.Color(4) = 0.3;
legend('\Delta \phi (deg)','3-\sigma bound'); grid on;
ylim([-10 10]);
subplot(312)
hold on;
plot(t,eul_ins(:,2)*r2d-pitch,'r--','LineWidth',2);
h3 = plot(t,3*sqrt(Ppsi(:,2))*r2d,'k-','LineWidth',2);
h4 = plot(t,-3*sqrt(Ppsi(:,2))*r2d,'k-','LineWidth',2);
h3.Color(4) = 0.3;
h4.Color(4) = 0.3;
legend('\Delta \theta (deg)','3-\sigma bound'); grid on;
ylim([-10 10]);
subplot(313)
hold on;
plot(t,yaw_err,'r--','LineWidth',2);
h3 = plot(t,3*sqrt(Ppsi(:,3))*r2d,'k-','LineWidth',2);
h4 = plot(t,-3*sqrt(Ppsi(:,3))*r2d,'k-','LineWidth',2);
h3.Color(4) = 0.3;
h4.Color(4) = 0.3;
legend('\Delta \psi (deg)','3-\sigma bound'); grid on;
ylim([-10 10]);xlabel('time (sec)');
%suptitle('Attitude Estimate error and its 3\sigma Bounds (deg)')
% % Plot Figure 7.3: Sensor Bias Estimates
% Nav_accelBias = data.NavFilter.AccelBias_mss(:,timesection)';
% Nav_gyroBias = data.NavFilter.GyroBias_rads(:,timesection)';
figure('rend','painters');
set(gcf,'Name','Accel and gyro bias Estimation');
subplot(321)
h1 = plot(t,accelBias(:,1)*(1000/g),'r',t,accel_bias_true(:,1)*(1000/g),'b');hold on;grid on;%estimate
title('Accelerometer Bias Estimates');
ylabel('b_{a_1}(milli-g)');
%axis([t(1)/60 14 -300 300]);
set(h1,'LineWidth',2);
subplot(323)
h2 = plot(t,accelBias(:,2)*(1000/g),'r',t,accel_bias_true(:,2)*(1000/g),'b');hold on;grid on;
ylabel('b_{a_2} (milli-g)');
%axis([t(1)/60 14 -300 300]);
set(h2,'LineWidth',2);
subplot(325)
h3 = plot(t,accelBias(:,3)*(1000/g),'r',t,accel_bias_true(:,3)*(1000/g),'b');hold on;grid on;
ylabel('b_{a_3} Bias(milli-g)');
xlabel('Time (sec)');
%axis([t(1)/60 14 -300 300]);
set(h3,'LineWidth',2);
subplot(322)
h4 = plot(t,gyroBias(:,1)*r2d,'r',t,gyro_bias_true(:,1)*r2d,'b');hold on;grid on;
title('Gyro Bias Estimates');
ylabel('b_{g_1} (deg/s)');
set(h4,'LineWidth',2);
%axis([t(1)/60 14 -10 10]);
subplot(324)
h5 = plot(t,gyroBias(:,2)*r2d,'r',t,gyro_bias_true(:,2)*r2d,'b');hold on;grid on;
ylabel('b_{g_2} (deg/s)');
set(h5,'LineWidth',2);
%axis([t(1)/60 14 -10 10]);
subplot(326)
h6 = plot(t,gyroBias(:,3)*r2d,'r',t,gyro_bias_true(:,3)*r2d,'b');hold on;grid on;
ylabel('b_{g_3} (deg/s)');
xlabel('Time (sec)');
set(h6,'LineWidth',2);
