install polardb-x by pxd

好习惯，附上之前 9 篇

CentOS 7.9 环境安装 PolarDB-X 数据库: https://developer.aliyun.com/article/1704678
银河麒麟V10操作系统安装 Polardb-X 数据库: https://developer.aliyun.com/article/1704731
欧拉 openEuler 20.03 操作系统安装 Polardb-X 数据库: https://developer.aliyun.com/article/1704866
PolarDB-X 集中式三节点高可用集群部署 & Java 场景 CRUD 应用: https://developer.aliyun.com/article/1705878
Ubuntu 18.04.6 操作系统安装 Polardb-X 数据库: https://developer.aliyun.com/article/1706016
ARM 欧拉 openEuler 20.03 操作系统安装 Polardb-X 数据库: https://developer.aliyun.com/article/1706028
Debian 10 操作系统安装 Polardb-X 数据库: https://developer.aliyun.com/article/1706119
Docker 安装 Polardb-X 数据库容器教程: https://developer.aliyun.com/article/1706151
K8S 部署阿里云 PolarDB-X 集群（企业版、标准版）minikube 教程: https://developer.aliyun.com/article/1706585

参考

通过 PXD 部署 PolarDB-X 集群: https://doc.polardbx.com/zh/quickstart/topics/quickstart-pxd-cluster.html

1. env

这里拿 1 台机器来测试，多台机器同理

basic env

root@iZbp1b2hnsd51fdnun2vwzZ:~# cat /etc/issue
Ubuntu 24.04.3 LTS \n \l

root@iZbp1b2hnsd51fdnun2vwzZ:~# free -h
               total        used        free      shared  buff/cache   available
Mem:           7.5Gi       766Mi       4.4Gi       1.9Mi       2.6Gi       6.7Gi
Swap:          4.0Gi        67Mi       3.9Gi
root@iZbp1b2hnsd51fdnun2vwzZ:~#
root@iZbp1b2hnsd51fdnun2vwzZ:~# lscpu |grep "^CPU(s):"
CPU(s):                               4
root@iZbp1b2hnsd51fdnun2vwzZ:~#
root@iZbp1b2hnsd51fdnun2vwzZ:~# nproc
4
root@iZbp1b2hnsd51fdnun2vwzZ:~#
root@iZbp1b2hnsd51fdnun2vwzZ:~# uname -a
Linux iZbp1b2hnsd51fdnun2vwzZ 6.8.0-88-generic #89-Ubuntu SMP PREEMPT_DYNAMIC Sat Oct 11 01:02:46 UTC 2025 x86_64 x86_64 x86_64 GNU/Linux
root@iZbp1b2hnsd51fdnun2vwzZ:~#
root@iZbp1b2hnsd51fdnun2vwzZ:~# hostnamectl
 Static hostname: iZbp1b2hnsd51fdnun2vwzZ
       Icon name: computer-vm
         Chassis: vm 🖴
      Machine ID: 288205f3ac2746c996481c00e4b807a0
         Boot ID: bbaa83d0b0de4c8180d1a1d0d51cf923
  Virtualization: kvm
Operating System: Ubuntu 24.04.3 LTS
          Kernel: Linux 6.8.0-88-generic
    Architecture: x86-64
 Hardware Vendor: Alibaba Cloud
  Hardware Model: Alibaba Cloud ECS
Firmware Version: 2.0.0
   Firmware Date: Tue 2024-04-23
    Firmware Age: 1y 8month 4w 1d
root@iZbp1b2hnsd51fdnun2vwzZ:~#
root@iZbp1b2hnsd51fdnun2vwzZ:~# hostname -i
172.16.0.2
root@iZbp1b2hnsd51fdnun2vwzZ:~#
root@iZbp1b2hnsd51fdnun2vwzZ:~# hostname -f
iZbp1b2hnsd51fdnun2vwzZ
root@iZbp1b2hnsd51fdnun2vwzZ:~# cat  /etc/hosts
127.0.0.1 localhost

# The following lines are desirable for IPv6 capable hosts
::1     ip6-localhost ip6-loopback
fe00::0 ip6-localnet
ff00::0 ip6-mcastprefix
ff02::1 ip6-allnodes
ff02::2 ip6-allrouters

172.16.0.2 iZbp1b2hnsd51fdnun2vwzZ

root@iZbp1b2hnsd51fdnun2vwzZ:~#

install docker

集群模式下，docker engine 版本需要大于等于 18.04，小于等于 28.x

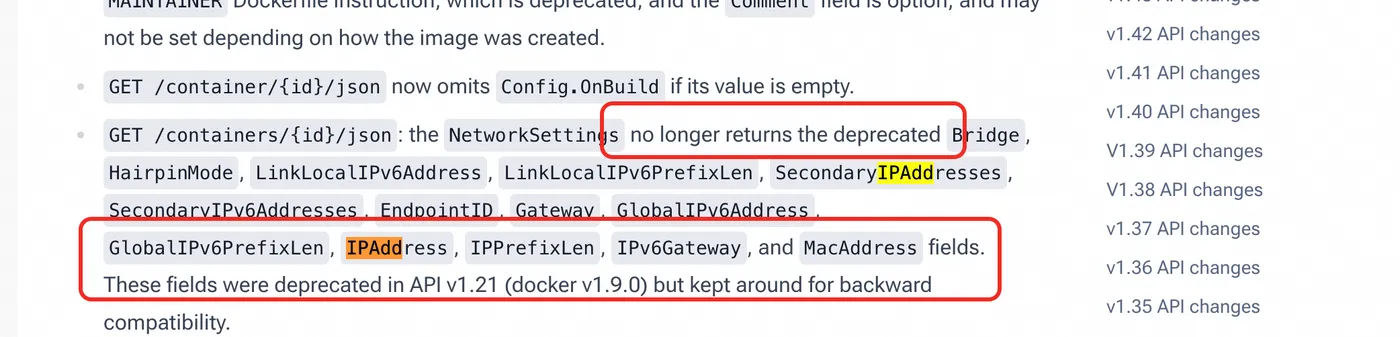

目前还不能安装 docker 最新 29.x 版本，因为 docker 从29.x 版本开始，docker api 版本升级为 1.52 不再支持返回 IPAddress，刚好 pxd 0.7.1 版本及以下版本需要这个字段

aly dz 大佬说 pxd 要再发个版本适配最新版 docker 了

root@iZbp1b2hnsd51fdnun2vwzZ:~# cat /etc/apt/sources.list.d/docker.list
deb [arch=amd64 signed-by=/etc/apt/keyrings/docker.gpg] https://mirrors.aliyun.com/docker-ce/linux/ubuntu   questing stable
root@iZbp1b2hnsd51fdnun2vwzZ:~#

root@iZbp1b2hnsd51fdnun2vwzZ:~# cat install_docker_v28.sh
apt install docker-ce=5:28.5.2-1~ubuntu.25.10~questing docker-ce-cli=5:28.5.2-1~ubuntu.25.10~questing
root@iZbp1b2hnsd51fdnun2vwzZ:~#
root@iZbp1b2hnsd51fdnun2vwzZ:~# sh install_docker_v28.sh
root@iZbp1b2hnsd51fdnun2vwzZ:~# docker version
Client: Docker Engine - Community
 Version:           28.5.2
 API version:       1.51
 Go version:        go1.25.3
 Git commit:        ecc6942
 Built:             Wed Nov  5 14:43:19 2025
 OS/Arch:           linux/amd64
 Context:           default

Server: Docker Engine - Community
 Engine:
  Version:          28.5.2
  API version:      1.51 (minimum version 1.24)
  Go version:       go1.25.3
  Git commit:       89c5e8f
  Built:            Wed Nov  5 14:43:19 2025
  OS/Arch:          linux/amd64
  Experimental:     false
 containerd:
  Version:          v2.2.1
  GitCommit:        dea7da592f5d1d2b7755e3a161be07f43fad8f75
 runc:
  Version:          1.3.4
  GitCommit:        v1.3.4-0-gd6d73eb8
 docker-init:
  Version:          0.19.0
  GitCommit:        de40ad0
root@iZbp1b2hnsd51fdnun2vwzZ:~#

install python3.7

root@iZbp1b2hnsd51fdnun2vwzZ:~# apt install -y vim wget gcc make zip zlib* libffi-dev
root@iZbp1b2hnsd51fdnun2vwzZ:~# wget https://repo.huaweicloud.com/python/3.7.3/Python-3.7.3.tgz
root@iZbp1b2hnsd51fdnun2vwzZ:~# mkdir /usr/local/python37
root@iZbp1b2hnsd51fdnun2vwzZ:~# tar -zxf Python-3.7.3.tgz
root@iZbp1b2hnsd51fdnun2vwzZ:~# cd Python-3.7.3/
root@iZbp1b2hnsd51fdnun2vwzZ:~# ./configure --prefix=/usr/local/python37 --enable-optimizations --with-openssl=/usr --with-system-ffi --enable-loadable-sqlite-extensions
root@iZbp1b2hnsd51fdnun2vwzZ:~# make -j4
root@iZbp1b2hnsd51fdnun2vwzZ:~# make install -j4
root@iZbp1b2hnsd51fdnun2vwzZ:~# /usr/local/python37/bin/python3.7 -V
root@iZbp1b2hnsd51fdnun2vwzZ:~# /usr/local/python37/bin/pip3.7 -V

qc@iZbp1b2hnsd51fdnun2vwzZ:~$ cat <<EOF>> ~/.bashrc

alias python37="/usr/local/python37/bin/python3.7"
alias pip37="/usr/local/python37/bin/pip3.7"
EOF
qc@iZbp1b2hnsd51fdnun2vwzZ:~$ source ~/.bashrc

qc@iZbp1b2hnsd51fdnun2vwzZ:~$ python37 -V
Python 3.7.3
qc@iZbp1b2hnsd51fdnun2vwzZ:~$ pip37 -V
pip 19.0.3 from /usr/local/python37/lib/python3.7/site-packages/pip (python 3.7)
qc@iZbp1b2hnsd51fdnun2vwzZ:~$

config ssh remote

因为只有本地一台机器，所以免密自己

su - qc
ssh-keygen -t rsa
ssh-copy-id qc@172.16.0.2

before install pxd

qc@iZbp1b2hnsd51fdnun2vwzZ:~$ python37 -m venv venv
qc@iZbp1b2hnsd51fdnun2vwzZ:~$ source venv/bin/activate
(venv) qc@iZbp1b2hnsd51fdnun2vwzZ:~$ python -V
Python 3.7.3
(venv) qc@iZbp1b2hnsd51fdnun2vwzZ:~$ pip -V
pip 19.0.3 from /usr/local/python37/lib/python3.7/site-packages/pip (python 3.7)
(venv) qc@iZbp1b2hnsd51fdnun2vwzZ:~$

(venv) qc@iZbp1b2hnsd51fdnun2vwzZ:~$ mkdir ~/.pip
(venv) qc@iZbp1b2hnsd51fdnun2vwzZ:~$ cat ~/.pip/pip.conf
[global]
index-url=http://mirrors.cloud.aliyuncs.com/pypi/simple/

[install]
trusted-host=mirrors.cloud.aliyuncs.com

(venv) qc@iZbp1b2hnsd51fdnun2vwzZ:~$

(venv) qc@iZbp1b2hnsd51fdnun2vwzZ:~$ pip install --upgrade pip
(venv) qc@iZbp1b2hnsd51fdnun2vwzZ:~$ pip -V
pip 24.0 from /home/qc/venv/lib/python3.7/site-packages/pip (python 3.7)
(venv) qc@iZbp1b2hnsd51fdnun2vwzZ:~$

install pxd

(venv) qc@iZbp1b2hnsd51fdnun2vwzZ:~$ pip install pxd
(venv) qc@iZbp1b2hnsd51fdnun2vwzZ:~$ pip list
Package            Version
------------------ ---------
asttokens          2.4.1
bcrypt             4.2.1
certifi            2021.5.30
cffi               1.15.1
charset-normalizer 2.0.4
click              8.0.1
colorama           0.4.4
cryptography       45.0.7
docker             5.0.0
humanfriendly      10.0
icontract          2.7.2
idna               3.2
importlib-metadata 6.7.0
packaging          24.0
paramiko           2.12.0
pip                24.0
pxd                0.7.1
pycparser          2.21
pycryptodomex      3.10.1
PyMySQL            1.0.2
PyNaCl             1.5.0
PyYAML             5.4.1
requests           2.26.0
retrying           1.3.3
setuptools         40.8.0
six                1.16.0
spur               0.3.20
spurplus           2.3.4
temppathlib        1.2.0
typing_extensions  4.7.1
urllib3            1.26.6
websocket-client   1.2.1
zipp               3.15.0

[notice] A new release of pip is available: 24.0 -> 25.3
[notice] To update, run: pip install --upgrade pip
(venv) qc@iZbp1b2hnsd51fdnun2vwzZ:~$
(venv) qc@iZbp1b2hnsd51fdnun2vwzZ:~$ pxd version
/home/qc/venv/lib/python3.7/site-packages/paramiko/transport.py:33: CryptographyDeprecationWarning: Python 3.7 is no longer supported by the Python core team and support for it is deprecated in cryptography. The next release of cryptography will remove support for Python 3.7.
  from cryptography.hazmat.backends import default_backend
/home/qc/venv/lib/python3.7/site-packages/paramiko/pkey.py:82: CryptographyDeprecationWarning: TripleDES has been moved to cryptography.hazmat.decrepit.ciphers.algorithms.TripleDES and will be removed from cryptography.hazmat.primitives.ciphers.algorithms in 48.0.0.
  "cipher": algorithms.TripleDES,
/home/qc/venv/lib/python3.7/site-packages/paramiko/transport.py:253: CryptographyDeprecationWarning: TripleDES has been moved to cryptography.hazmat.decrepit.ciphers.algorithms.TripleDES and will be removed from cryptography.hazmat.primitives.ciphers.algorithms in 48.0.0.
  "class": algorithms.TripleDES,
pxd version: 0.7.1
commit id: 93fbbe8
(venv) qc@iZbp1b2hnsd51fdnun2vwzZ:~$

2. setup polardb-x 企业版 cluster by pxd

配置文件

(venv) qc@iZbp1b2hnsd51fdnun2vwzZ:~/pxd$ cat pxd-com.yaml
version: v1
type: polardbx
cluster:
  name: pxc_test_aly
  gms:
    image: polardbx-opensource-registry.cn-beijing.cr.aliyuncs.com/polardbx/polardbx-engine:v2.4.2_8.4.19
    host_group: [172.16.0.2]
  cn:
    image: polardbx-opensource-registry.cn-beijing.cr.aliyuncs.com/polardbx/polardbx-sql:v2.4.2_5.4.19
    replica: 1
    nodes:
      - host: 172.16.0.2
    resources:
      mem_limit: 1G
  dn:
    image: polardbx-opensource-registry.cn-beijing.cr.aliyuncs.com/polardbx/polardbx-engine:v2.4.2_8.4.19
    replica: 1
    nodes:
      - host_group: [172.16.0.2]
    resources:
      mem_limit: 1G
  cdc:
    image: polardbx-opensource-registry.cn-beijing.cr.aliyuncs.com/polardbx/polardbx-cdc:v2.4.2_5.4.19
    replica: 1
    nodes:
      - host: 172.16.0.2
    resources:
      mem_limit: 1G
(venv) qc@iZbp1b2hnsd51fdnun2vwzZ:~/pxd$

编写启动脚本

(venv) qc@iZbp1b2hnsd51fdnun2vwzZ:~/pxd$ cat create-com.sh

pxd create -f ./pxd-com.yaml  -repo="polardbx-opensource-registry.cn-beijing.cr.aliyuncs.com/polardbx/"

(venv) qc@iZbp1b2hnsd51fdnun2vwzZ:~/pxd$

启动企业版集群

(venv) qc@iZbp1b2hnsd51fdnun2vwzZ:~/pxd$ sh create-com.sh
/home/qc/venv/lib/python3.7/site-packages/paramiko/transport.py:33: CryptographyDeprecationWarning: Python 3.7 is no longer supported by the Python core team and support for it is deprecated in cryptography. The next release of cryptography will remove support for Python 3.7.
  from cryptography.hazmat.backends import default_backend
/home/qc/venv/lib/python3.7/site-packages/paramiko/pkey.py:82: CryptographyDeprecationWarning: TripleDES has been moved to cryptography.hazmat.decrepit.ciphers.algorithms.TripleDES and will be removed from cryptography.hazmat.primitives.ciphers.algorithms in 48.0.0.
  "cipher": algorithms.TripleDES,
/home/qc/venv/lib/python3.7/site-packages/paramiko/transport.py:253: CryptographyDeprecationWarning: TripleDES has been moved to cryptography.hazmat.decrepit.ciphers.algorithms.TripleDES and will be removed from cryptography.hazmat.primitives.ciphers.algorithms in 48.0.0.
  "class": algorithms.TripleDES,
/home/qc/venv/lib/python3.7/site-packages/deployer
yaml file: ./pxd-com.yaml.bak-aly
Processing  [------------------------------------]    0%    pre check
Processing  [##----------------------------------]    7%    generate topology
Processing  [#####-------------------------------]   14%    check docker engine version
Processing  [#######-----------------------------]   21%    pull images
Pull image: polardbx-opensource-registry.cn-beijing.cr.aliyuncs.com/polardbx/polardbx-engine:v2.4.2_8.4.19 at 172.16.0.2

... 此处省略一大部分内容

e3172cab5c41:Extracting [============================>                      ]  69.63MB/122.9MB
e3172cab5c41:Extracting [==========================================>        ]  105.3MB/122.9MB
e3172cab5c41:Extracting [==================================================>]  122.9MB/122.9MB
e3172cab5c41:Pull complete
095a75859683:Extracting [==================================================>]     236B/236B
095a75859683:Extracting [==================================================>]     236B/236B
095a75859683:Pull complete
Digest: sha256:a137cec08150c7f6920abdcaa739b923cfdac0d7f274d96ef99d3e4cafcba7cd
Status: Downloaded newer image for polardbx-opensource-registry.cn-beijing.cr.aliyuncs.com/polardbx/polardbx-cdc:v2.4.2_5.4.19
Processing  [##########--------------------------]   28%    create gms node
Processing  [############------------------------]   35%    create gms db and tables
Processing  [###############---------------------]   42%    create PolarDB-X root account
Processing  [##################------------------]   50%    create dn
Processing  [####################----------------]   57%    register dn to gms
Processing  [#######################-------------]   64%    create cn
Processing  [#########################-----------]   71%    wait cn ready
Processing  [############################--------]   78%    create cdc containers
Processing  [##############################------]   85%    create columnar containers
Processing  [#################################---]   92%    wait PolarDB-X ready
Processing  [####################################]  100%


PolarDB-X cluster create successfully, you can try it out now.
Connect PolarDB-X using the following command:

    mysql -h172.16.0.2 -P60731 -upolardbx_root -pNRJAaNga
(venv) qc@iZbp1b2hnsd51fdnun2vwzZ:~/pxd$

连接测试

(venv) qc@iZbp1b2hnsd51fdnun2vwzZ:~/pxd$ mysql -h172.16.0.2 -P60731 -upolardbx_root -pNRJAaNga
mysql: [Warning] Using a password on the command line interface can be insecure.
Welcome to the MySQL monitor.  Commands end with ; or \g.
Your MySQL connection id is 73
Server version: 8.0.3 Tddl Server (ALIBABA)

Copyright (c) 2000, 2025, Oracle and/or its affiliates.

Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

mysql> select version();
+---------------------------+
| VERSION()                 |
+---------------------------+
| 8.0.3-PXC-5.4.19-20250825 |
+---------------------------+
1 row in set (0.00 sec)

mysql> select * from information_schema.schemata;
+--------------+--------------------+----------------------------+------------------------+----------+--------------------+
| CATALOG_NAME | SCHEMA_NAME        | DEFAULT_CHARACTER_SET_NAME | DEFAULT_COLLATION_NAME | SQL_PATH | DEFAULT_ENCRYPTION |
+--------------+--------------------+----------------------------+------------------------+----------+--------------------+
| def          | information_schema | utf8mb4                    | utf8mb4_general_ci     | NULL     | NO                 |
+--------------+--------------------+----------------------------+------------------------+----------+--------------------+
1 row in set (0.03 sec)

mysql> show master status ;
+---------------+----------+--------------+------------------+-------------------+
| FILE          | POSITION | BINLOG_DO_DB | BINLOG_IGNORE_DB | EXECUTED_GTID_SET |
+---------------+----------+--------------+------------------+-------------------+
| binlog.000001 |     5098 |              |                  |                   |
+---------------+----------+--------------+------------------+-------------------+
1 row in set (0.58 sec)

mysql> show storage ;
+-------------------+------------------+------------+-----------+----------+-------------+--------+-----------+-------+--------+
| STORAGE_INST_ID   | LEADER_NODE      | IS_HEALTHY | INST_KIND | DB_COUNT | GROUP_COUNT | STATUS | DELETABLE | DELAY | ACTIVE |
+-------------------+------------------+------------+-----------+----------+-------------+--------+-----------+-------+--------+
| pxc_test_aly-dn-0 | 172.16.0.2:14818 | true       | MASTER    | 1        | 2           | 0      | false     | null  | null   |
| pxc_test_aly-gms  | 172.16.0.2:17029 | true       | META_DB   | 2        | 2           | 0      | false     | null  | null   |
+-------------------+------------------+------------+-----------+----------+-------------+--------+-----------+-------+--------+
2 rows in set (0.00 sec)

mysql> show mpp ;
+--------------+------------------+------+--------+
| ID           | NODE             | ROLE | LEADER |
+--------------+------------------+------+--------+
| pxc_test_aly | 172.16.0.2:60731 | W    | Y      |
+--------------+------------------+------+--------+
1 row in set (0.00 sec)

mysql>

mysql> create database polarx_example partition_mode='partitioning';
Query OK, 1 row affected (0.39 sec)

mysql> use polarx_example;
Database changed
mysql> create table example (
    ->   `id` bigint(11) auto_increment NOT NULL,
    ->   `name` varchar(255) DEFAULT NULL,
    ->   `score` bigint(11) DEFAULT NULL,
    ->   primary key (`id`)
    -> ) engine=InnoDB default charset=utf8
    -> partition by hash(id)
    -> partitions 8;
Query OK, 0 rows affected (1.13 sec)

mysql> insert into example values(null,'lily',375),(null,'lisa',400),(null,'ljh',500);
Query OK, 3 rows affected (0.05 sec)

mysql> select * from example;
+----+------+-------+
| id | name | score |
+----+------+-------+
|  1 | lily |   375 |
|  2 | lisa |   400 |
|  3 | ljh  |   500 |
+----+------+-------+
3 rows in set (0.03 sec)

mysql> show topology from example;
+------+-----------------------------+--------------------+----------------+-------------------+-----------------------+-------------------+-------------------+
| ID   | GROUP_NAME                  | TABLE_NAME         | PARTITION_NAME | SUBPARTITION_NAME | PHY_DB_NAME           | DN_ID             | STORAGE_POOL_NAME |
+------+-----------------------------+--------------------+----------------+-------------------+-----------------------+-------------------+-------------------+
|    0 | POLARX_EXAMPLE_P00000_GROUP | example_NGE9_00000 | p1             |                   | polarx_example_p00000 | pxc_test_aly-dn-0 | _default          |
|    1 | POLARX_EXAMPLE_P00000_GROUP | example_NGE9_00001 | p2             |                   | polarx_example_p00000 | pxc_test_aly-dn-0 | _default          |
|    2 | POLARX_EXAMPLE_P00000_GROUP | example_NGE9_00002 | p3             |                   | polarx_example_p00000 | pxc_test_aly-dn-0 | _default          |
|    3 | POLARX_EXAMPLE_P00000_GROUP | example_NGE9_00003 | p4             |                   | polarx_example_p00000 | pxc_test_aly-dn-0 | _default          |
|    4 | POLARX_EXAMPLE_P00000_GROUP | example_NGE9_00004 | p5             |                   | polarx_example_p00000 | pxc_test_aly-dn-0 | _default          |
|    5 | POLARX_EXAMPLE_P00000_GROUP | example_NGE9_00005 | p6             |                   | polarx_example_p00000 | pxc_test_aly-dn-0 | _default          |
|    6 | POLARX_EXAMPLE_P00000_GROUP | example_NGE9_00006 | p7             |                   | polarx_example_p00000 | pxc_test_aly-dn-0 | _default          |
|    7 | POLARX_EXAMPLE_P00000_GROUP | example_NGE9_00007 | p8             |                   | polarx_example_p00000 | pxc_test_aly-dn-0 | _default          |
+------+-----------------------------+--------------------+----------------+-------------------+-----------------------+-------------------+-------------------+
8 rows in set (0.00 sec)

mysql>

check cluster

(venv) qc@iZbp1b2hnsd51fdnun2vwzZ:~/pxd$ pxd list
/home/qc/venv/lib/python3.7/site-packages/paramiko/transport.py:33: CryptographyDeprecationWarning: Python 3.7 is no longer supported by the Python core team and support for it is deprecated in cryptography. The next release of cryptography will remove support for Python 3.7.
  from cryptography.hazmat.backends import default_backend
/home/qc/venv/lib/python3.7/site-packages/paramiko/pkey.py:82: CryptographyDeprecationWarning: TripleDES has been moved to cryptography.hazmat.decrepit.ciphers.algorithms.TripleDES and will be removed from cryptography.hazmat.primitives.ciphers.algorithms in 48.0.0.
  "cipher": algorithms.TripleDES,
/home/qc/venv/lib/python3.7/site-packages/paramiko/transport.py:253: CryptographyDeprecationWarning: TripleDES has been moved to cryptography.hazmat.decrepit.ciphers.algorithms.TripleDES and will be removed from cryptography.hazmat.primitives.ciphers.algorithms in 48.0.0.
  "class": algorithms.TripleDES,
/home/qc/venv/lib/python3.7/site-packages/deployer
NAME                          CN        DN        CDC       STATUS
pxc_test_aly                  1         1         1         running
(venv) qc@iZbp1b2hnsd51fdnun2vwzZ:~/pxd$

delete cluster

必须授权，否则待会 delete 会报错

(venv) qc@iZbp1b2hnsd51fdnun2vwzZ:~/pxd$ sudo chown -R qc: /home/qc/

(venv) qc@iZbp1b2hnsd51fdnun2vwzZ:~$ pxd delete pxc_test_aly
(venv) qc@iZbp1b2hnsd51fdnun2vwzZ:~$ pxd list
/home/qc/venv/lib/python3.7/site-packages/paramiko/transport.py:33: CryptographyDeprecationWarning: Python 3.7 is no longer supported by the Python core team and support for it is deprecated in cryptography. The next release of cryptography will remove support for Python 3.7.
  from cryptography.hazmat.backends import default_backend
/home/qc/venv/lib/python3.7/site-packages/paramiko/pkey.py:82: CryptographyDeprecationWarning: TripleDES has been moved to cryptography.hazmat.decrepit.ciphers.algorithms.TripleDES and will be removed from cryptography.hazmat.primitives.ciphers.algorithms in 48.0.0.
  "cipher": algorithms.TripleDES,
/home/qc/venv/lib/python3.7/site-packages/paramiko/transport.py:253: CryptographyDeprecationWarning: TripleDES has been moved to cryptography.hazmat.decrepit.ciphers.algorithms.TripleDES and will be removed from cryptography.hazmat.primitives.ciphers.algorithms in 48.0.0.
  "class": algorithms.TripleDES,
/home/qc/venv/lib/python3.7/site-packages/deployer
NAME                          CN        DN        CDC       STATUS
(venv) qc@iZbp1b2hnsd51fdnun2vwzZ:~$

3. setup polardb-x 标准版 cluster by pxd

编写配置文件和启动脚本

(venv) qc@iZbp1b2hnsd51fdnun2vwzZ:~/pxd$ cat create-std.sh

pxd create -f ./pxd-std.yaml  -repo="polardbx-opensource-registry.cn-beijing.cr.aliyuncs.com/polardbx/"

(venv) qc@iZbp1b2hnsd51fdnun2vwzZ:~/pxd$ cat pxd-std.yaml
version: v1
type: polardbx
cluster:
  name: pxc_test_standard
  dn:
    image: polardbx-opensource-registry.cn-beijing.cr.aliyuncs.com/polardbx/polardbx-engine:v2.4.2_8.4.19
    replica: 1
    nodes:
      - host_group: [172.16.0.2]
    resources:
      mem_limit: 2G
(venv) qc@iZbp1b2hnsd51fdnun2vwzZ:~/pxd$

启动标准版 polardb-x

(venv) qc@iZbp1b2hnsd51fdnun2vwzZ:~/pxd$ sh create-std.sh
/home/qc/venv/lib/python3.7/site-packages/paramiko/transport.py:33: CryptographyDeprecationWarning: Python 3.7 is no longer supported by the Python core team and support for it is deprecated in cryptography. The next release of cryptography will remove support for Python 3.7.
  from cryptography.hazmat.backends import default_backend
/home/qc/venv/lib/python3.7/site-packages/paramiko/pkey.py:82: CryptographyDeprecationWarning: TripleDES has been moved to cryptography.hazmat.decrepit.ciphers.algorithms.TripleDES and will be removed from cryptography.hazmat.primitives.ciphers.algorithms in 48.0.0.
  "cipher": algorithms.TripleDES,
/home/qc/venv/lib/python3.7/site-packages/paramiko/transport.py:253: CryptographyDeprecationWarning: TripleDES has been moved to cryptography.hazmat.decrepit.ciphers.algorithms.TripleDES and will be removed from cryptography.hazmat.primitives.ciphers.algorithms in 48.0.0.
  "class": algorithms.TripleDES,
/home/qc/venv/lib/python3.7/site-packages/deployer
yaml file: ./pxd-std.yaml
Processing  [------------------------------------]    0%    pre check
Processing  [##----------------------------------]    7%    generate topology
Processing  [#####-------------------------------]   14%    check docker engine version
Processing  [#######-----------------------------]   21%    pull images
Pull image: polardbx-opensource-registry.cn-beijing.cr.aliyuncs.com/polardbx/polardbx-engine:v2.4.2_8.4.19 at 172.16.0.2


v2.4.2_8.4.19:Pulling from polardbx/polardbx-engine
Digest: sha256:ec0c8df5a017e7074929e31e185dad7d5aa31c5b2073fe38473ee29ec690c04a
Status: Image is up to date for polardbx-opensource-registry.cn-beijing.cr.aliyuncs.com/polardbx/polardbx-engine:v2.4.2_8.4.19
Pull image: polardbx-opensource-registry.cn-beijing.cr.aliyuncs.com/polardbx/xstore-tools:latest at 172.16.0.2


latest:Pulling from polardbx/xstore-tools
Digest: sha256:e7d6b7697a0de92db2a032064130c6ff605e576ce4b5830990f145da07745ea2
Status: Image is up to date for polardbx-opensource-registry.cn-beijing.cr.aliyuncs.com/polardbx/xstore-tools:latest
Processing  [##################------------------]   50%    create dn
Processing  [#################################---]   92%    wait PolarDB-X ready
Processing  [####################################]  100%


PolarDB-X cluster create successfully, you can try it out now.
Connect PolarDB-X using the following command:

    mysql -h172.16.0.2 -P15197 -uadmin -pbBREONPu
(venv) qc@iZbp1b2hnsd51fdnun2vwzZ:~/pxd$

连接测试

(venv) qc@iZbp1b2hnsd51fdnun2vwzZ:~/pxd$ mysql -h172.16.0.2 -P15197 -uadmin -pbBREONPu
mysql: [Warning] Using a password on the command line interface can be insecure.
Welcome to the MySQL monitor.  Commands end with ; or \g.
Your MySQL connection id is 25
Server version: 8.0.32-X-Cluster-8.4.19-20250825 Source distribution

Copyright (c) 2000, 2025, Oracle and/or its affiliates.

Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

mysql>

mysql> select version();
+----------------------------------+
| version()                        |
+----------------------------------+
| 8.0.32-X-Cluster-8.4.19-20250825 |
+----------------------------------+
1 row in set (0.00 sec)

mysql> select host,user from mysql.user;
+-----------+------------------+
| host      | user             |
+-----------+------------------+
| %         | admin            |
| localhost | mysql.infoschema |
| localhost | mysql.session    |
| localhost | mysql.sys        |
| localhost | root             |
+-----------+------------------+
5 rows in set (0.00 sec)

mysql> select * from information_schema.schemata;
+--------------+--------------------+----------------------------+------------------------+----------+--------------------+
| CATALOG_NAME | SCHEMA_NAME        | DEFAULT_CHARACTER_SET_NAME | DEFAULT_COLLATION_NAME | SQL_PATH | DEFAULT_ENCRYPTION |
+--------------+--------------------+----------------------------+------------------------+----------+--------------------+
| def          | mysql              | utf8mb3                    | utf8mb3_general_ci     |     NULL | NO                 |
| def          | information_schema | utf8mb3                    | utf8mb3_general_ci     |     NULL | NO                 |
| def          | performance_schema | utf8mb4                    | utf8mb4_0900_ai_ci     |     NULL | NO                 |
| def          | __recycle_bin__    | utf8mb4                    | utf8mb4_0900_ai_ci     |     NULL | NO                 |
| def          | sys                | utf8mb4                    | utf8mb4_0900_ai_ci     |     NULL | NO                 |
+--------------+--------------------+----------------------------+------------------------+----------+--------------------+
5 rows in set (0.01 sec)

mysql> show master status ;
+------------------+----------+--------------+------------------+------------------------------------------+
| File             | Position | Binlog_Do_DB | Binlog_Ignore_DB | Executed_Gtid_Set                        |
+------------------+----------+--------------+------------------+------------------------------------------+
| mysql_bin.000001 |     1032 |              |                  | 56e21f50-f66d-11f0-8dfb-00163e20cb2a:1-2 |
+------------------+----------+--------------+------------------+------------------------------------------+
1 row in set (0.00 sec)

mysql>

检查集群

(venv) qc@iZbp1b2hnsd51fdnun2vwzZ:~/pxd$ pxd list
/home/qc/venv/lib/python3.7/site-packages/paramiko/transport.py:33: CryptographyDeprecationWarning: Python 3.7 is no longer supported by the Python core team and support for it is deprecated in cryptography. The next release of cryptography will remove support for Python 3.7.
  from cryptography.hazmat.backends import default_backend
/home/qc/venv/lib/python3.7/site-packages/paramiko/pkey.py:82: CryptographyDeprecationWarning: TripleDES has been moved to cryptography.hazmat.decrepit.ciphers.algorithms.TripleDES and will be removed from cryptography.hazmat.primitives.ciphers.algorithms in 48.0.0.
  "cipher": algorithms.TripleDES,
/home/qc/venv/lib/python3.7/site-packages/paramiko/transport.py:253: CryptographyDeprecationWarning: TripleDES has been moved to cryptography.hazmat.decrepit.ciphers.algorithms.TripleDES and will be removed from cryptography.hazmat.primitives.ciphers.algorithms in 48.0.0.
  "class": algorithms.TripleDES,
/home/qc/venv/lib/python3.7/site-packages/deployer
NAME                          CN        DN        CDC       STATUS
pxc_test_standard             0         1         0         running
(venv) qc@iZbp1b2hnsd51fdnun2vwzZ:~/pxd$

删除集群

必须授权，否则待会 delete 会报错权限不足

(venv) qc@iZbp1b2hnsd51fdnun2vwzZ:~/pxd$ sudo chown -R qc: /home/qc/

(venv) qc@iZbp1b2hnsd51fdnun2vwzZ:~/pxd$ pxd delete pxc_test_standard
/home/qc/venv/lib/python3.7/site-packages/paramiko/transport.py:33: CryptographyDeprecationWarning: Python 3.7 is no longer supported by the Python core team and support for it is deprecated in cryptography. The next release of cryptography will remove support for Python 3.7.
  from cryptography.hazmat.backends import default_backend
/home/qc/venv/lib/python3.7/site-packages/paramiko/pkey.py:82: CryptographyDeprecationWarning: TripleDES has been moved to cryptography.hazmat.decrepit.ciphers.algorithms.TripleDES and will be removed from cryptography.hazmat.primitives.ciphers.algorithms in 48.0.0.
  "cipher": algorithms.TripleDES,
/home/qc/venv/lib/python3.7/site-packages/paramiko/transport.py:253: CryptographyDeprecationWarning: TripleDES has been moved to cryptography.hazmat.decrepit.ciphers.algorithms.TripleDES and will be removed from cryptography.hazmat.primitives.ciphers.algorithms in 48.0.0.
  "class": algorithms.TripleDES,
/home/qc/venv/lib/python3.7/site-packages/deployer
Prepare to delete PolarDB-X cluster: pxc_test_standard
stop and remove container: pxc_test_standard-dn-0-Cand-15197, id: 8bb20f6c2e at 172.16.0.2
container: 8bb20f6c2e is not existing at 172.16.0.2.
(venv) qc@iZbp1b2hnsd51fdnun2vwzZ:~/pxd$
(venv) qc@iZbp1b2hnsd51fdnun2vwzZ:~/pxd$ pxd list
/home/qc/venv/lib/python3.7/site-packages/paramiko/transport.py:33: CryptographyDeprecationWarning: Python 3.7 is no longer supported by the Python core team and support for it is deprecated in cryptography. The next release of cryptography will remove support for Python 3.7.
  from cryptography.hazmat.backends import default_backend
/home/qc/venv/lib/python3.7/site-packages/paramiko/pkey.py:82: CryptographyDeprecationWarning: TripleDES has been moved to cryptography.hazmat.decrepit.ciphers.algorithms.TripleDES and will be removed from cryptography.hazmat.primitives.ciphers.algorithms in 48.0.0.
  "cipher": algorithms.TripleDES,
/home/qc/venv/lib/python3.7/site-packages/paramiko/transport.py:253: CryptographyDeprecationWarning: TripleDES has been moved to cryptography.hazmat.decrepit.ciphers.algorithms.TripleDES and will be removed from cryptography.hazmat.primitives.ciphers.algorithms in 48.0.0.
  "class": algorithms.TripleDES,
/home/qc/venv/lib/python3.7/site-packages/deployer
NAME                          CN        DN        CDC       STATUS
(venv) qc@iZbp1b2hnsd51fdnun2vwzZ:~/pxd$

在此感谢阿里云数据库迪哲大佬支持，20260120晚上帮忙排查问题（docker 最新版本 29.x 开始，api 版本升级至 1.52 不再支持返回容器的 IPAddress）


Docker API 1.52 版本不再返回 NetworkSettings.IPAddress 字段，导致报错: https://docs.docker.com/reference/api/engine/version-history/#v152-api-changes

我们下期见，拜拜！

PXD 部署阿里云 PolarDB-X 集群（企业版、标准版）教程

install polardb-x by pxd

1. env

2. setup polardb-x 企业版 cluster by pxd

3. setup polardb-x 标准版 cluster by pxd

PolarDB 分布式版

热门文章

最新文章

相关电子书

PXD 部署 阿里云 PolarDB-X 集群（企业版、标准版）教程

install polardb-x by pxd

1. env

2. setup polardb-x 企业版 cluster by pxd

3. setup polardb-x 标准版 cluster by pxd

PolarDB 分布式版

热门文章

最新文章

相关电子书

PXD 部署阿里云 PolarDB-X 集群（企业版、标准版）教程
