springboot：2.2.2
alibaba.dubbo：2.0.0
zkclinet：0.10
JDK：1.8
1.创建父工程
Idea或Eclipse创建普通Maven工程，GAV定义随意，也可以参考我的
G：com.youzha
A：Dubbo_Soul
V：1.0-SNAPSHOT
父pom完整文件(该文件包括三个子module，在之后创建)
<?xml version="1.0" encoding="UTF-8"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <groupId>com.youzha</groupId> <artifactId>Dubbo_Soul</artifactId> <packaging>pom</packaging> <version>1.0-SNAPSHOT</version> <modules> <module>Dubbo_Provider</module> <module>Dubbo_Consumer</module> <module>Dubbo_Api</module> </modules> <parent> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-parent</artifactId> <version>2.2.2.RELEASE</version> </parent> <properties> <!--1.0版本增加--> <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding> <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding> <java.version>1.8</java.version> <boot.dubbo.version>2.0.0</boot.dubbo.version> <zkclient.version>0.10</zkclient.version> <!--1.0版本结束--> </properties> <dependencyManagement> <dependencies> <!--1.0 开始--> <dependency> <groupId>com.alibaba.spring.boot</groupId> <artifactId>dubbo-spring-boot-starter</artifactId> <version>${boot.dubbo.version}</version> </dependency> <!-- ZooKeeper client --> <dependency> <groupId>com.101tec</groupId> <artifactId>zkclient</artifactId> <version>${zkclient.version}</version> </dependency> <!--1.0结束--> </dependencies> </dependencyManagement> </project>
2.创建共用Dubbo_Api
2.1 pom
<?xml version="1.0" encoding="UTF-8"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"> <parent> <artifactId>Dubbo_Soul</artifactId> <groupId>com.youzha</groupId> <version>1.0-SNAPSHOT</version> </parent> <modelVersion>4.0.0</modelVersion> <artifactId>Dubbo_Api</artifactId> <dependencies> <dependency> <groupId>org.projectlombok</groupId> <artifactId>lombok</artifactId> <version>1.16.20</version> </dependency> </dependencies> </project>
2.2 创建共用资源
整体目录结构：
|── com.youzha.dubbo

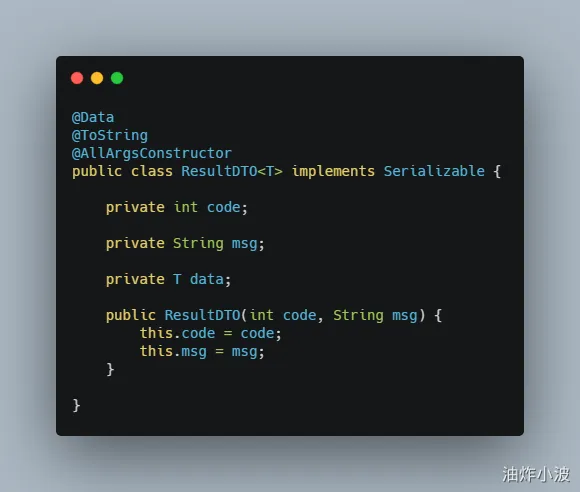

|── dto 封装共用返回Result

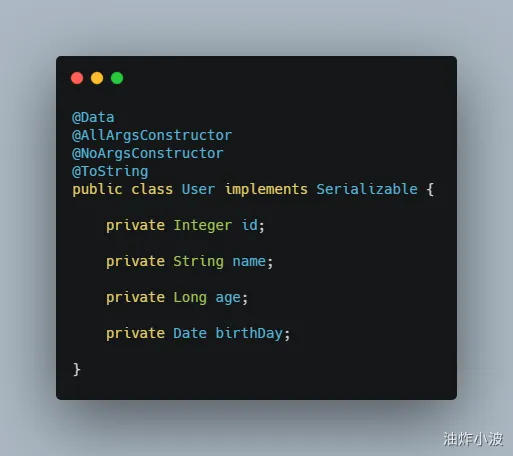

|── entity 共用参数，返回Body

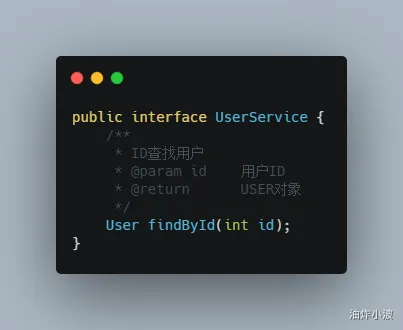

|── service 暴露Service，提供给第三方使用
3.创建提供者Dubbo_Provider
3.1 pom
<?xml version="1.0" encoding="UTF-8"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"> <parent> <artifactId>Dubbo_Soul</artifactId> <groupId>com.youzha</groupId> <version>1.0-SNAPSHOT</version> </parent> <modelVersion>4.0.0</modelVersion> <artifactId>Dubbo_Provider</artifactId> <dependencies> <dependency> <groupId>com.youzha</groupId> <artifactId>Dubbo_Api</artifactId> <version>1.0-SNAPSHOT</version> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> </dependency> <!--com.dubbo-springBoot依赖 --> <dependency> <groupId>com.alibaba.spring.boot</groupId> <artifactId>dubbo-spring-boot-starter</artifactId> </dependency> <dependency> <groupId>com.101tec</groupId> <artifactId>zkclient</artifactId> </dependency> </dependencies> <build> <plugins> <plugin> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-maven-plugin</artifactId> </plugin> </plugins> </build> </project>
3.2 Service
需要注意的是，这里的@Service引自：import com.alibaba.dubbo.config.annotation.Service;，标注其为一个Dubbo的Service，而下面的@Component才是将其注入成一个Spring Bean。
import com.alibaba.dubbo.config.annotation.Service; import com.youzha.dubbo.entity.User; import com.youzha.dubbo.service.UserService; import lombok.extern.slf4j.Slf4j; import org.springframework.stereotype.Component; import java.util.Date; /** * @author youzhaxiaobo * @version 1.0 * @date 2020/7/1 19:06 * @Desc */ @Slf4j @Service @Component public class UserServiceImpl implements UserService { @Override public User findById(int id) { if(id < 0) { log.info("非法请求，ID:{}", id); return null; } User user = new User(1, "youzha", 1L, new Date()); log.info("提供者返回数据:{}", user.toString()); return user; } }
3.3 Controller
这里的Controller模拟多个服务，除提供Dubbo接口外，自身还提供Http接口。
import com.youzha.dubbo.dto.ResultDTO; import lombok.extern.slf4j.Slf4j; import org.springframework.http.MediaType; import org.springframework.web.bind.annotation.GetMapping; import org.springframework.web.bind.annotation.RequestMapping; import org.springframework.web.bind.annotation.RequestParam; import org.springframework.web.bind.annotation.RestController; /** * @author youzhaxiaobo * @version 1.0 * @date 2020/7/4 0004 13:52 * @Desc */ @Slf4j @RestController @RequestMapping("/provider") public class ProviderController { @GetMapping(value = "/hello", produces = MediaType.APPLICATION_JSON_VALUE) public ResultDTO getUserById(@RequestParam("id") int id) { log.info("id=" + id); if (id > 0) { return new ResultDTO(-1, "获取失败"); } return new ResultDTO(200, "获取成功"); } }
3.4 启动类Application
import com.alibaba.dubbo.config.spring.context.annotation.EnableDubbo; import org.springframework.boot.SpringApplication; import org.springframework.boot.autoconfigure.SpringBootApplication; /** * @author youzhaxiaobo * @version 1.0 * @date 2020/7/1 19:15 * @Desc */ @EnableDubbo @SpringBootApplication public class DubboProviderApplication { public static void main(String[] args) { SpringApplication.run(DubboProviderApplication.class, args); } }
3.5 配置文件
server: port: 9091 spring: main: allow-bean-definition-overriding: true dubbo: application: name: dubbo-consumer id: dubbo-consumer registry: address: zookeeper://127.0.0.1:2181 protocol: name: dubbo port: 20883 scan: base-packages: com.youzha.dubbo.service logging: level: root: info org.springframework.boot: info org.apache.ibatis: info org.dromara.soul.bonuspoint: info org.dromara.soul.lottery: info org.dromara.soul: info
4.创建消费者Dubbo_Consumer
4.1 pom
<?xml version="1.0" encoding="UTF-8"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"> <parent> <artifactId>Dubbo_Soul</artifactId> <groupId>com.youzha</groupId> <version>1.0-SNAPSHOT</version> </parent> <modelVersion>4.0.0</modelVersion> <artifactId>Dubbo_Consumer</artifactId> <dependencies> <dependency> <groupId>com.youzha</groupId> <artifactId>Dubbo_Api</artifactId> <version>1.0-SNAPSHOT</version> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> </dependency> <!--com.dubbo-springBoot依赖 --> <dependency> <groupId>com.alibaba.spring.boot</groupId> <artifactId>dubbo-spring-boot-starter</artifactId> </dependency> <dependency> <groupId>com.101tec</groupId> <artifactId>zkclient</artifactId> </dependency> </dependencies> <build> <plugins> <plugin> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-maven-plugin</artifactId> </plugin> </plugins> </build> </project>
4.2 Service
4.2.1 定义Sevice
这个Service是我们自己业务所需，只是在这个Service中的某些数据我们要调用Provider服务而已，这个和Provider提供的service本身没有直接关系，也不需要保持方法名，入参的完全一致，只是引用。
public interface RemoteUserService { /** * ID查找用户 * @param id 用户ID * @return USER对象 */ User findById(int id); }
4.2.2 定义ServiceImpl
import com.alibaba.dubbo.config.annotation.Reference; import com.youzha.dubbo.entity.User; import com.youzha.dubbo.service.RemoteUserService; import com.youzha.dubbo.service.UserService; import org.springframework.stereotype.Service; /** * @author youzhaxiaobo * @version 1.0 * @date 2020/7/1 19:06 * @Desc */ @Service public class UserServiceImpl implements RemoteUserService { @Reference private UserService userService; @Override public User findById(int id) { return userService.findById(id); } }
说明：
- 实现是的我们自身的业务接口
- 通过dubbo的@Reference注解，注入Provider的Service【而提供者是通过dubbo的@Service注解暴露，暴露和注入都在zookeeper获取】
4.3 Controller
@Slf4j @RestController @RequestMapping("/consumer") public class ConsumerController { @Autowired private RemoteUserService userService; @GetMapping(value = "/getUserById", produces = MediaType.APPLICATION_JSON_VALUE) public ResultDTO getUserById(@RequestParam("id") int id) { log.info("id=" + id); User user = userService.findById(id); log.info("消费者获取用户，信息为:{}", user); if(null == user) { return new ResultDTO(-1, "获取失败"); } return new ResultDTO(200, "获取成功", user); } }
4.4 启动类Application
@EnableDubbo @SpringBootApplication public class DubboConsumerApplication { public static void main(String[] args) { SpringApplication.run(DubboConsumerApplication.class, args); } }
4.5 配置文件
server: port: 9092 spring: main: allow-bean-definition-overriding: true dubbo: application: name: dubbo-consumer id: dubbo-consumer registry: address: zookeeper://127.0.0.1:2181 protocol: name: dubbo port: 20883 scan: base-packages: com.youzha.dubbo.service logging: level: root: info org.springframework.boot: info org.apache.ibatis: info org.dromara.soul.bonuspoint: info org.dromara.soul.lottery: info org.dromara.soul: info
5.验证
5.1 运行zookeeper
当然前提是需要安装zk，配置文件也可以看到我这里启动的本地zk（如果你使用的其他地址的zk，替换上图zk的地址即可），如果没有可以参考这个附件：

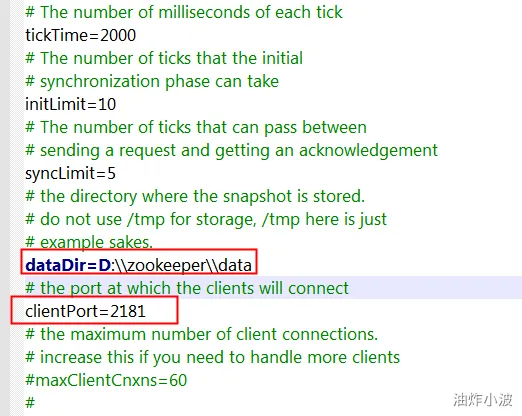

运行前你需要解压打开：zookeeper-3.4.14\conf\zoo.cfg，确保对应的dataDir在你本地存在，如果是Linux系统换成对应的路径即可，下图示例：Windows本地
进入：zookeeper-3.4.14\bin，
如果你和我一样是Windows环境测试，双击：zkServer.cmd，

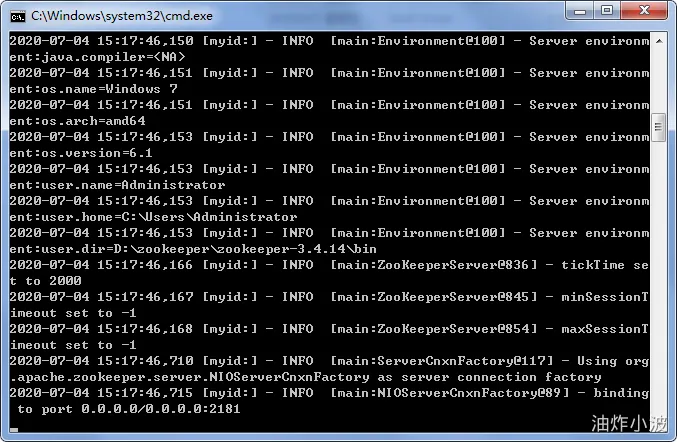

如果你是Linux环境，启动zkServer.sh，二者效果完全一致，启动后类似下图则表示启动完成：
5.2 启动提供者
直接启动对应的启动类Application即可。
5.3 启动消费者
直接启动对应的启动类Application即可。
5.4 请求验证

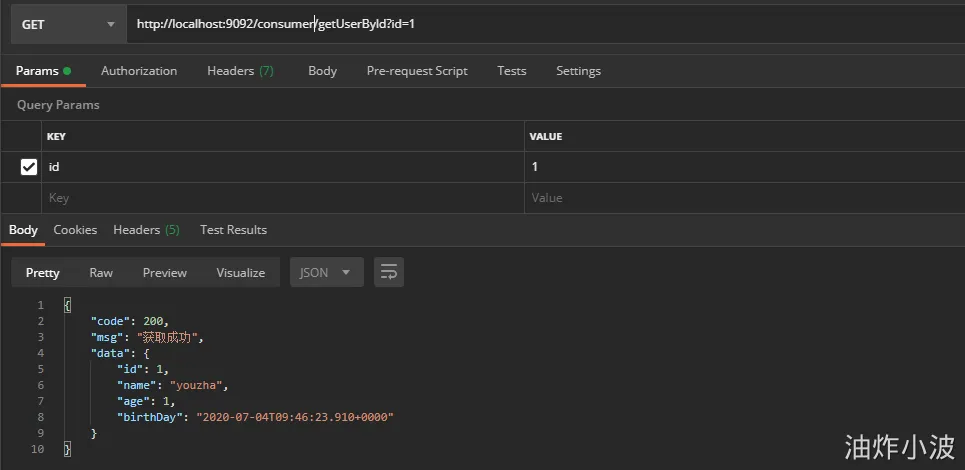

postman发送地址请求：http://localhost:9092/consumer/getUserById?id=1

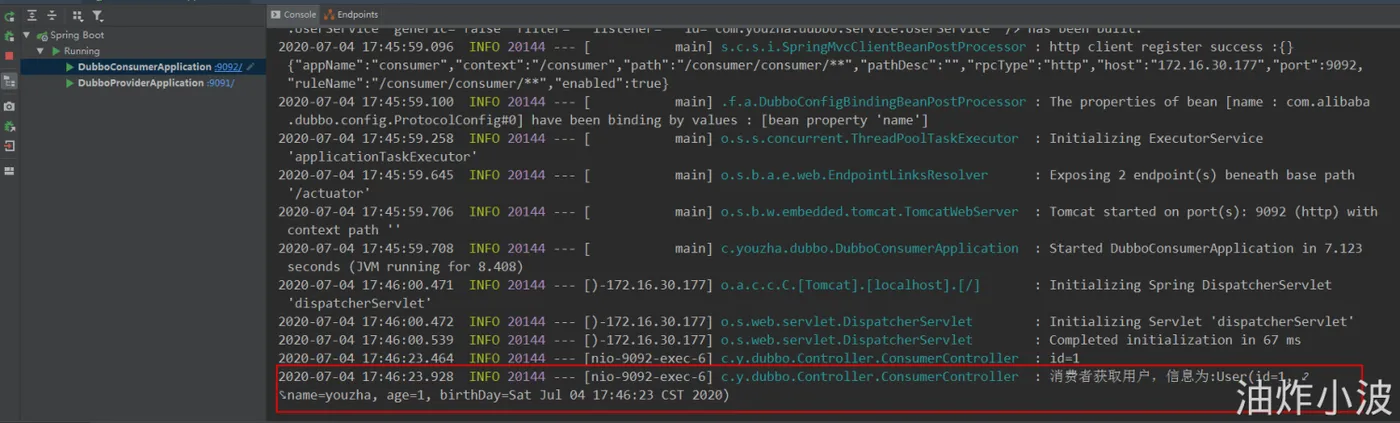

查看消费者日志：

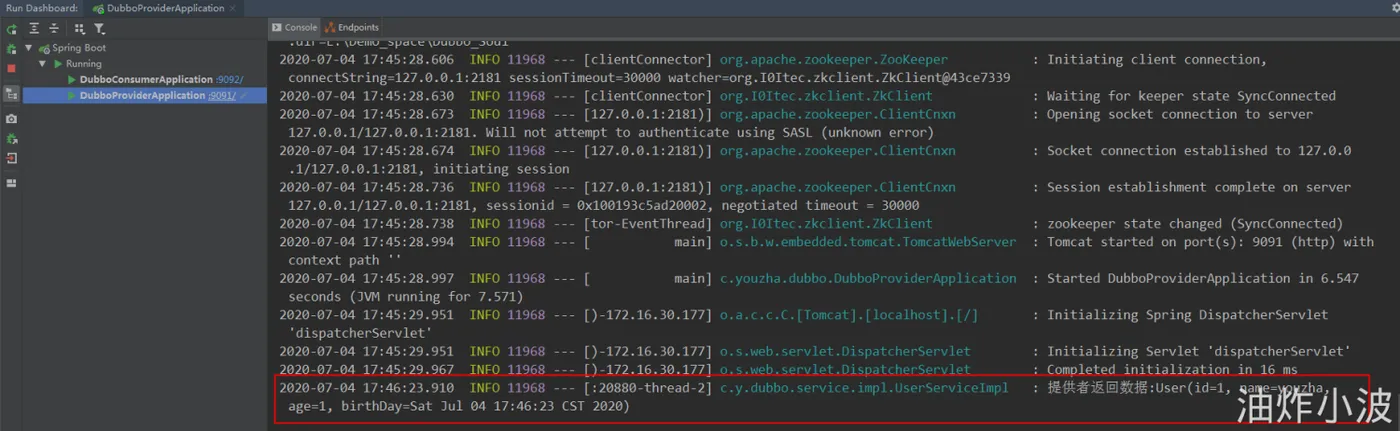

查看提供者日志：
6.总结
如果你在本章节，运行并未出现上述效果，可能是哪里出错了，我们在接下来的网关接入，一样比对着可以修复，你可以百度自行解决当前问题，也可直接进入下一章节，进行网关接入，一起验证。
