一、大模型怎么识别图片？图片怎么token化？
图片识别的核心原理

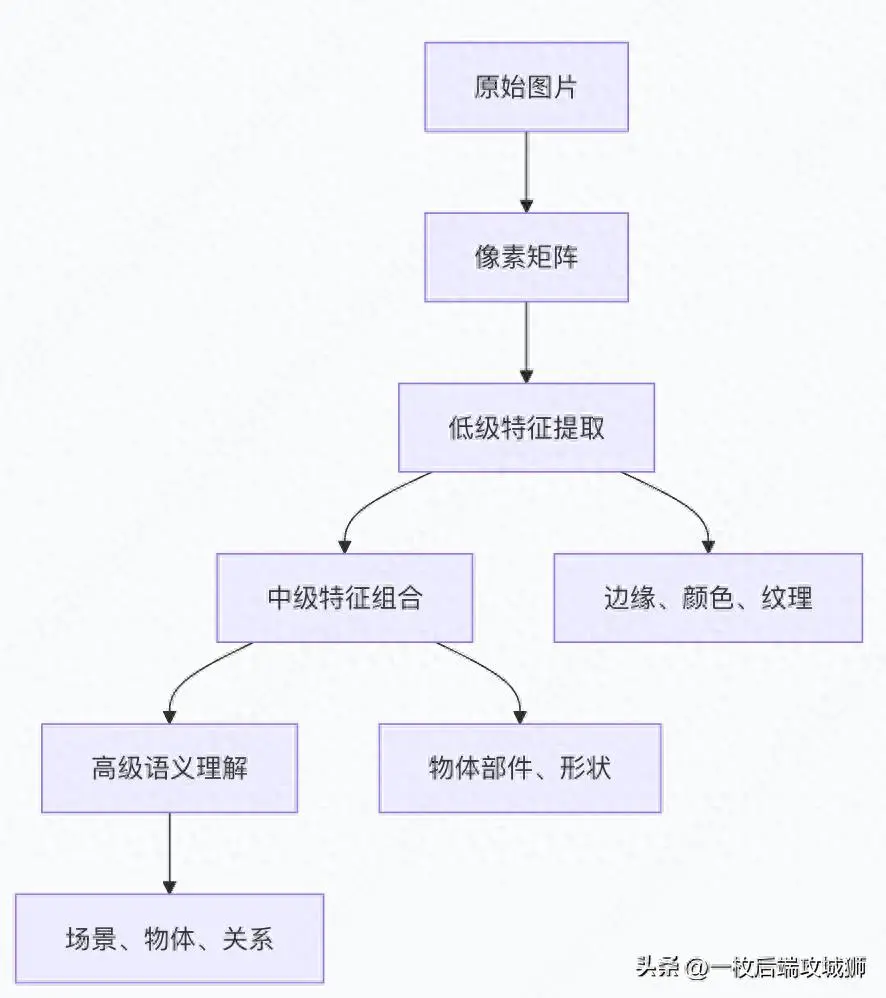

从像素到理解：视觉特征的层次化提取
图片token化：将视觉信息"语言化"
传统方法 vs 现代方法
# 图片token化的不同策略对比 image_tokenization_methods = { "传统CNN方法": { "过程": "卷积层提取特征 → 全连接层分类", "token化": "没有明确的token概念", "局限性": "缺乏位置信息，难以处理复杂关系" }, "Vision Transformer方法": { "过程": "分块 → 线性投影 → 位置编码 → Transformer", "token化": "每个图像块成为一个token", "优势": "保持空间关系，可扩展性强" }, "VQ-VAE方法": { "过程": "编码 → 离散化 → 解码", "token化": "使用码本中的离散索引作为token", "应用": "DALL-E第一代使用" } }
Vision Transformer的图片token化详解
分块处理过程：
import torch import torch.nn as nn import numpy as np class ImageToTokens(nn.Module): """将图片转换为token序列""" def __init__(self, image_size=224, patch_size=16, hidden_dim=768): super().__init__() self.image_size = image_size self.patch_size = patch_size self.hidden_dim = hidden_dim # 计算patch数量 self.num_patches = (image_size // patch_size) ** 2 # 将patch投影到嵌入空间 self.patch_embedding = nn.Conv2d( in_channels=3, # RGB通道 out_channels=hidden_dim, kernel_size=patch_size, stride=patch_size ) # 位置编码 self.position_embeddings = nn.Parameter( torch.randn(1, self.num_patches + 1, hidden_dim) ) # [CLS] token self.cls_token = nn.Parameter(torch.randn(1, 1, hidden_dim)) def forward(self, x): """ 输入: [batch_size, 3, 224, 224] 输出: [batch_size, num_tokens, hidden_dim] """ batch_size = x.shape[0] # 1. 分块并嵌入 # [batch, 3, 224, 224] -> [batch, 768, 14, 14] x = self.patch_embedding(x) # 展平空间维度: [batch, 768, 14, 14] -> [batch, 768, 196] x = x.flatten(2) # 转置: [batch, 768, 196] -> [batch, 196, 768] x = x.transpose(1, 2) # 2. 添加[CLS] token cls_tokens = self.cls_token.expand(batch_size, -1, -1) x = torch.cat([cls_tokens, x], dim=1) # [batch, 197, 768] # 3. 添加位置编码 x = x + self.position_embeddings return x # 使用示例 tokenizer = ImageToTokens() image = torch.randn(2, 3, 224, 224) # 2张224x224的RGB图片 tokens = tokenizer(image) print(f"输入图片形状: {image.shape}") print(f"输出token形状: {tokens.shape}") # [2, 197, 768]
生动比喻：拼图游戏理解法
- 原始图片：完整的拼图画面
- 分块处理：把拼图拆成16x16的小块
- 线性投影：为每个小块拍"身份证照片"（特征提取）
- 位置编码：记录每个小块在拼图中的原始位置
- Transformer处理：让所有小块相互交流，重建完整画面
视觉编码器的完整流程
class VisionEncoder(nn.Module): """完整的视觉编码器""" def __init__(self, config): super().__init__() self.tokenizer = ImageToTokens( image_size=config.image_size, patch_size=config.patch_size, hidden_dim=config.hidden_dim ) # Transformer编码器层 self.transformer_layers = nn.ModuleList([ TransformerLayer(config) for _ in range(config.num_layers) ]) self.layer_norm = nn.LayerNorm(config.hidden_dim) def forward(self, images): # 图片转换为token tokens = self.tokenizer(images) # 通过Transformer层 for layer in self.transformer_layers: tokens = layer(tokens) # 最终归一化 tokens = self.layer_norm(tokens) return tokens class TransformerLayer(nn.Module): """标准的Transformer编码器层""" def __init__(self, config): super().__init__() self.attention = nn.MultiheadAttention( config.hidden_dim, config.num_heads, batch_first=True ) self.mlp = nn.Sequential( nn.Linear(config.hidden_dim, config.mlp_dim), nn.GELU(), nn.Linear(config.mlp_dim, config.hidden_dim) ) self.norm1 = nn.LayerNorm(config.hidden_dim) self.norm2 = nn.LayerNorm(config.hidden_dim) def forward(self, x): # 自注意力 residual = x x = self.norm1(x) attn_output, _ = self.attention(x, x, x) x = residual + attn_output # 前馈网络 residual = x x = self.norm2(x) ff_output = self.mlp(x) x = residual + ff_output return x
二、怎么根据文字生成图片？
文本到图像的生成范式演进
1. 自回归方法：DALL-E 1的原理
VQ-VAE + Transformer架构
class DALL_E_Like_Model(nn.Module): """类似DALL-E 1的自回归生成模型""" def __init__(self, vocab_size, text_vocab_size, hidden_dim): super().__init__() # 视觉部分：VQ-VAE self.vq_vae = VQVAE(vocab_size=vocab_size) # 文本编码器 self.text_encoder = TextEncoder(vocab_size=text_vocab_size) # 自回归Transformer self.transformer = TransformerDecoder( vocab_size=vocab_size, hidden_dim=hidden_dim ) def forward(self, text_tokens, image_tokens=None): # 编码文本 text_embeddings = self.text_encoder(text_tokens) if image_tokens is not None: # 训练时：预测下一个图像token logits = self.transformer(image_tokens, text_embeddings) return logits else: # 推理时：自回归生成图像tokens return self.generate_autoregressive(text_embeddings) def generate_autoregressive(self, text_embeddings, max_length=256): """自回归生成图像tokens""" batch_size = text_embeddings.shape[0] generated_tokens = torch.zeros(batch_size, 1, dtype=torch.long) for i in range(max_length): # 预测下一个token logits = self.transformer(generated_tokens, text_embeddings) next_token = torch.argmax(logits[:, -1:], dim=-1) # 添加到生成序列 generated_tokens = torch.cat([generated_tokens, next_token], dim=1) # 如果生成了结束token，提前终止 if (next_token == self.end_token).all(): break return generated_tokens class VQVAE(nn.Module): """向量量化变分自编码器""" def __init__(self, vocab_size, hidden_dim=256): super().__init__() self.encoder = Encoder(hidden_dim) self.decoder = Decoder(hidden_dim) # 码本：将连续特征映射到离散token self.codebook = nn.Embedding(vocab_size, hidden_dim) self.vocab_size = vocab_size def encode(self, x): # 编码为连续特征 z = self.encoder(x) # 向量量化：找到码本中最接近的向量 z_flat = z.view(-1, z.shape[-1]) distances = torch.cdist(z_flat, self.codebook.weight) indices = torch.argmin(distances, dim=-1) # 使用码本中的向量 z_q = self.codebook(indices).view(z.shape) return z_q, indices def decode(self, indices): # 从离散token重建图像 z_q = self.codebook(indices) return self.decoder(z_q)
2. 扩散模型方法：现代主流技术

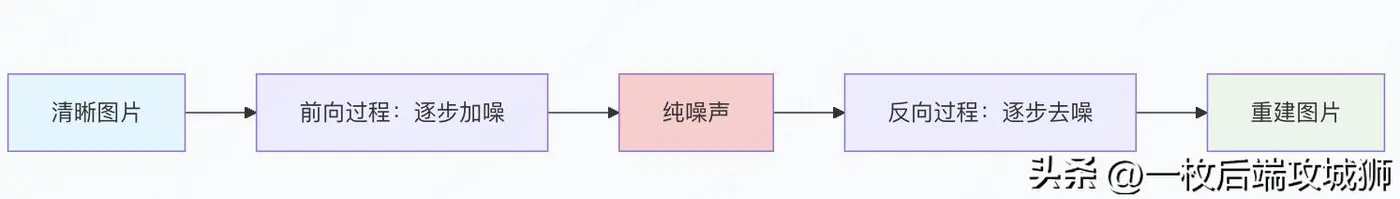

扩散模型基本原理
Stable Diffusion架构详解
class StableDiffusionModel: """Stable Diffusion核心组件""" def __init__(self): self.text_encoder = CLIPTextModel() # 文本编码器 self.vae = AutoencoderKL() # 变分自编码器，处理图像压缩 self.unet = UNet2DConditionModel() # U-Net，去噪网络 def text_to_image(self, prompt, num_inference_steps=50, guidance_scale=7.5): """ 文本到图像生成流程 """ # 1. 文本编码 text_embeddings = self.encode_text(prompt) # 2. 初始化潜空间噪声 latents = torch.randn((1, 4, 64, 64)) # 压缩的潜表示 # 3. 扩散过程（去噪） latents = self.diffusion_denoise(latents, text_embeddings, num_inference_steps, guidance_scale) # 4. 解码潜空间到像素空间 image = self.vae.decode(latents) return image def encode_text(self, prompt): """使用CLIP编码文本""" inputs = self.tokenizer(prompt, return_tensors="pt", padding=True) text_embeddings = self.text_encoder(**inputs).last_hidden_state return text_embeddings def diffusion_denoise(self, latents, text_embeddings, steps, guidance_scale): """扩散模型去噪过程""" # 调度器，控制噪声调度 scheduler = self.scheduler scheduler.set_timesteps(steps) # 无分类器引导：同时计算有条件和无条件预测 uncond_embeddings = self.encode_text("") # 空文本 text_embeddings = torch.cat([uncond_embeddings, text_embeddings]) for t in scheduler.timesteps: # 扩展潜空间以进行无分类器引导 latent_model_input = torch.cat([latents] * 2) latent_model_input = scheduler.scale_model_input(latent_model_input, t) # 预测噪声 noise_pred = self.unet(latent_model_input, t, encoder_hidden_states=text_embeddings).sample # 分离有条件和无条件预测 noise_pred_uncond, noise_pred_text = noise_pred.chunk(2) # 无分类器引导 noise_pred = noise_pred_uncond + guidance_scale * \ (noise_pred_text - noise_pred_uncond) # 更新潜空间 latents = scheduler.step(noise_pred, t, latents).prev_sample return latents
U-Net去噪网络结构
class UNet2DConditionModel(nn.Module): """条件U-Net，用于扩散模型去噪""" def __init__(self): super().__init__() # 编码器（下采样） self.down_blocks = nn.ModuleList([ DownBlock2D(3, 64), # 64x64 DownBlock2D(64, 128), # 32x32 DownBlock2D(128, 256), # 16x16 DownBlock2D(256, 512) # 8x8 ]) # 中间块 self.mid_block = MidBlock2D(512) # 解码器（上采样） self.up_blocks = nn.ModuleList([ UpBlock2D(512, 256), # 16x16 UpBlock2D(256, 128), # 32x32 UpBlock2D(128, 64), # 64x64 UpBlock2D(64, 3) # 128x128 ]) # 时间步嵌入 self.time_embedding = TimestepEmbedding(512) # 文本条件嵌入 self.text_embedding = TextEmbedding(512) def forward(self, x, timestep, encoder_hidden_states): """ x: 噪声潜变量 [batch, channels, height, width] timestep: 时间步 encoder_hidden_states: 文本嵌入 [batch, seq_len, hidden_dim] """ # 时间步嵌入 t_emb = self.time_embedding(timestep) # 文本条件嵌入 text_emb = self.text_embedding(encoder_hidden_states) # 编码器路径 skip_connections = [] for down_block in self.down_blocks: x = down_block(x, t_emb, text_emb) skip_connections.append(x) # 中间块 x = self.mid_block(x, t_emb, text_emb) # 解码器路径（使用跳跃连接） for up_block in self.up_blocks: skip = skip_connections.pop() x = up_block(x, skip, t_emb, text_emb) return x
3. 生成过程的生动比喻
雕塑家的创作过程
- 文本提示：雕塑的设计蓝图
- 初始噪声：原始的石料
- 扩散过程：雕塑家逐步凿去多余部分
- U-Net：雕塑家的手艺和经验
- 文本引导：按照蓝图不断调整雕刻方向
- 最终图像：完成的雕塑作品
三、生成图片过程中怎么优化图片？
1. 采样策略优化
不同采样器对比
# 扩散模型采样策略对比 sampling_strategies = { "DDPM": { "类型": "随机采样", "特点": "完全随机过程，质量高但速度慢", "步骤": "1000步", "适用场景": "追求最高质量" }, "DDIM": { "类型": "确定性采样", "特点": "确定性过程，可插值，速度快", "步骤": "20-50步", "适用场景": "快速生成，可控性强" }, "DPM-Solver": { "类型": "快速求解器", "特点": "数学优化，极少步数高质量", "步骤": "10-20步", "适用场景": "生产环境，效率优先" }, "PLMS": { "类型": "伪线性多步", "特点": "平衡质量和速度", "步骤": "20-30步", "适用场景": "通用场景" } } class SamplerOptimizer: """采样优化器""" def __init__(self, sampler_type="DDIM"): self.sampler_type = sampler_type self.setup_sampler() def setup_sampler(self): if self.sampler_type == "DDIM": self.sampler = DDIMSampler( num_train_timesteps=1000, beta_start=0.0001, beta_end=0.02 ) elif self.sampler_type == "DPM_Solver": self.sampler = DPMSolverSampler( num_train_timesteps=1000, thresholding=True # 防止数值不稳定 ) def optimize_sampling(self, model, latents, text_embeddings, steps=20): """优化采样过程""" return self.sampler.sample( model=model, latents=latents, text_embeddings=text_embeddings, num_inference_steps=steps, guidance_scale=7.5 )
2. 提示工程优化
提示词优化策略
class PromptOptimizer: """提示词优化器""" def __init__(self): self.templates = self.load_templates() self.quality_boosters = [ "masterpiece", "best quality", "4K", "ultra detailed", "sharp focus", "professional photography" ] self.style_modifiers = { "realistic": ["photorealistic", "realistic", "natural lighting"], "artistic": ["painting", "oil on canvas", "artistic"], "anime": ["anime style", "Japanese animation", "cel shading"] } def optimize_prompt(self, base_prompt, style="realistic", quality="high"): """优化提示词""" optimized = base_prompt # 添加质量提升词 if quality == "high": optimized += ", " + ", ".join(self.quality_boosters[:3]) # 添加风格修饰词 if style in self.style_modifiers: optimized += ", " + ", ".join(self.style_modifiers[style]) # 负面提示词（不希望出现的元素） negative_prompt = "blurry, low quality, distorted, ugly" return optimized, negative_prompt def create_composition_prompt(self, subject, environment, lighting, mood): """构建构图提示词""" template = "{subject} in {environment}, {lighting} lighting, {mood} mood" return template.format( subject=subject, environment=environment, lighting=lighting, mood=mood ) # 使用示例 optimizer = PromptOptimizer() base_prompt = "a beautiful landscape with mountains" optimized_prompt, negative = optimizer.optimize_prompt( base_prompt, style="realistic", quality="high" ) print(f"优化后提示: {optimized_prompt}") print(f"负面提示: {negative}")
3. 生成后处理优化
超分辨率增强
class ImagePostProcessor: """图像后处理器""" def __init__(self): self.upscaler = RealESRGANModel() # 超分模型 self.face_enhancer = GFPGANModel() # 人脸增强 self.color_corrector = ColorCorrector() def enhance_image(self, image, target_size=(1024, 1024), enhance_faces=True): """增强图像质量""" # 1. 超分辨率放大 if image.size != target_size: image = self.upscale_image(image, target_size) # 2. 人脸增强（如果检测到人脸） if enhance_faces and self.detect_faces(image): image = self.enhance_faces(image) # 3. 颜色校正 image = self.color_corrector.adjust_contrast(image) image = self.color_corrector.white_balance(image) # 4. 锐化 image = self.sharpen_image(image) return image def upscale_image(self, image, target_size): """超分辨率放大""" # 使用Real-ESRGAN或类似模型 upscaled = self.upscaler.upscale(image, scale=4) # 4倍放大 # 调整到目标尺寸 if upscaled.size != target_size: upscaled = upscaled.resize(target_size, Image.LANCZOS) return upscaled def enhance_faces(self, image): """增强人脸细节""" return self.face_enhancer.enhance(image) def sharpen_image(self, image): """锐化图像""" import PIL.ImageFilter as Filter return image.filter(Filter.SHARPEN)
4. 多阶段生成优化

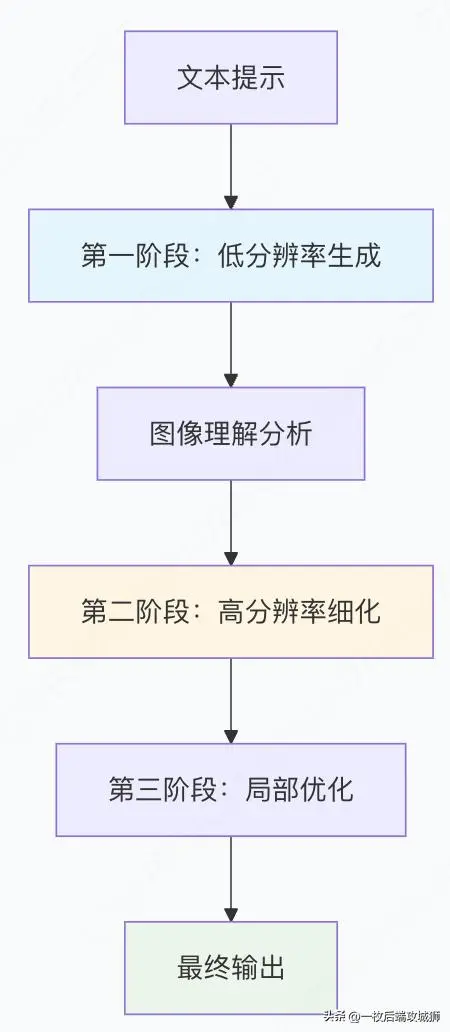

从粗到细的生成策略
class MultiStageGenerator: """多阶段图像生成器""" def __init__(self): self.low_res_model = None # 低分辨率快速模型 self.high_res_model = None # 高分辨率精细模型 self.refinement_model = None # 局部优化模型 def generate_with_refinement(self, prompt, initial_size=256, final_size=1024): """多阶段生成优化""" # 阶段1：快速低分辨率生成 print("阶段1: 快速构图生成...") low_res_image = self.low_res_model.generate( prompt, size=initial_size, num_steps=20 # 较少步数快速生成 ) # 分析生成结果 analysis = self.analyze_image_composition(low_res_image) # 阶段2：高分辨率细化 print("阶段2: 高分辨率细化...") high_res_image = self.high_res_model.generate( prompt, init_image=low_res_image, # 使用低分辨率结果作为初始化 strength=0.7, # 保持主要构图 size=final_size, num_steps=30 ) # 阶段3：局部优化 print("阶段3: 局部优化...") if analysis["needs_face_enhancement"]: high_res_image = self.enhance_facial_details(high_res_image) if analysis["needs_texture_refinement"]: high_res_image = self.refine_textures(high_res_image) return high_res_image def analyze_image_composition(self, image): """分析图像构图和质量""" analysis = { "composition_score": self.evaluate_composition(image), "needs_face_enhancement": self.detect_faces(image), "needs_texture_refinement": self.assess_texture_quality(image), "color_balance": self.analyze_color_balance(image) } return analysis
5. 基于反馈的迭代优化
class IterativeRefinement: """基于反馈的迭代优化""" def __init__(self, quality_criteria): self.quality_criteria = quality_criteria self.feedback_history = [] def generate_with_feedback(self, prompt, max_iterations=3): """带反馈的迭代生成""" best_image = None best_score = 0 for iteration in range(max_iterations): print(f"迭代 {iteration + 1}/{max_iterations}") # 生成候选图像 candidate = self.generate_candidate(prompt, iteration) # 质量评估 score, feedback = self.evaluate_quality(candidate, prompt) # 记录反馈 self.feedback_history.append({ 'iteration': iteration, 'image': candidate, 'score': score, 'feedback': feedback }) # 更新最佳结果 if score > best_score: best_image = candidate best_score = score # 如果质量足够好，提前终止 if score > self.quality_criteria["satisfactory_threshold"]: break return best_image, self.feedback_history def evaluate_quality(self, image, prompt): """评估图像质量""" scores = {} # 文本-图像对齐度 scores['alignment'] = self.evaluate_text_image_alignment(image, prompt) # 美学质量 scores['aesthetic'] = self.evaluate_aesthetic_quality(image) # 技术质量 scores['technical'] = self.evaluate_technical_quality(image) # 综合评分 total_score = ( scores['alignment'] * 0.4 + scores['aesthetic'] * 0.4 + scores['technical'] * 0.2 ) # 生成反馈 feedback = self.generate_feedback(scores) return total_score, feedback def generate_feedback(self, scores): """根据评分生成改进反馈""" feedback = [] if scores['alignment'] < 0.7: feedback.append("图像与文本描述的对齐度需要提高") if scores['aesthetic'] < 0.6: feedback.append("美学质量有待提升，考虑调整构图或色彩") if scores['technical'] < 0.8: feedback.append("存在技术问题，如图像模糊或伪影") return feedback
四、完整流程总结与技术展望

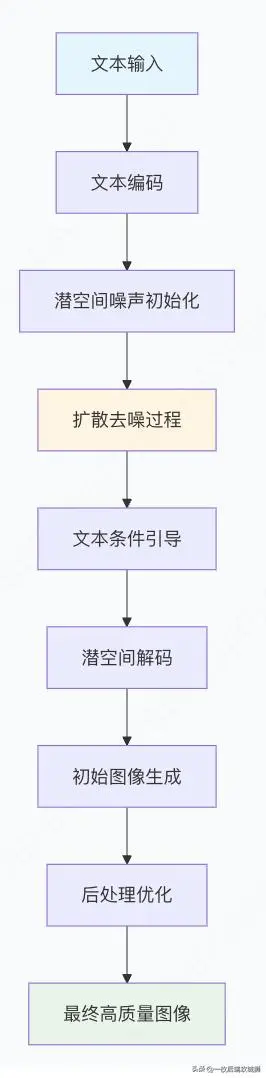

图像生成完整流程整合
关键技术突破总结
1.表示学习的革命
- 图片token化：将连续视觉空间离散化，使图像能够用"视觉语言"描述
- 跨模态对齐：在统一语义空间中对齐文本和视觉概念
2.生成范式的进化
# 生成技术演进里程碑 generation_milestones = { "2014": "GANs - 生成对抗网络", "2017": "VAEs - 变分自编码器", "2020": "VQ-VAE - 离散表示学习", "2021": "扩散模型 - 去噪生成范式", "2022": "潜空间扩散 - 效率突破", "2023": "多模态统一 - 文本到一切" }
3.优化技术的成熟
- 采样加速：从1000步到10步的质量生成
- 控制增强：从随机生成到精确控制
- 质量提升：从模糊到照片级真实感
实际应用代码示例
class CompleteImageGenerationPipeline: """完整的图像生成流水线""" def __init__(self, model_name="stable-diffusion-v1-5"): self.model = StableDiffusionPipeline.from_pretrained(model_name) self.optimizer = PromptOptimizer() self.post_processor = ImagePostProcessor() self.refinement = IterativeRefinement() def generate_high_quality_image(self, prompt, size=(1024, 1024), style="realistic", iterations=2): """生成高质量图像""" # 1. 提示词优化 optimized_prompt, negative_prompt = self.optimizer.optimize_prompt( prompt, style=style, quality="high" ) # 2. 多阶段生成 final_image = None for i in range(iterations): print(f"生成迭代 {i+1}/{iterations}") # 生成基础图像 image = self.model( prompt=optimized_prompt, negative_prompt=negative_prompt, height=size[1], width=size[0], num_inference_steps=30, guidance_scale=7.5 ).images[0] # 后处理优化 enhanced_image = self.post_processor.enhance_image(image, size) # 评估并决定是否继续 if i == 0 or self.is_improvement(enhanced_image, final_image): final_image = enhanced_image return final_image def is_improvement(self, new_image, old_image): """判断新图像是否比旧图像有改进""" if old_image is None: return True # 简单的质量比较（实际中会用更复杂的指标） new_score = self.assess_image_quality(new_image) old_score = self.assess_image_quality(old_image) return new_score > old_score def assess_image_quality(self, image): """评估图像质量""" # 使用CLIP评估文本-图像对齐 # 使用美学评估模型评估美学质量 # 使用技术指标评估清晰度等 return 0.8 # 简化返回
未来发展方向
1.技术前沿
- 3D生成：从文本直接生成3D模型和场景
- 视频生成：时序一致的视频内容创作
- 交互式生成：实时调整和编辑生成过程
2.应用拓展
- 个性化创作：基于用户风格的定制化生成
- 产业应用：设计、广告、教育、医疗等领域
- 无障碍创作：让非专业人士也能进行高质量创作
3.挑战与机遇
- 可控性：更精确的内容控制
- 效率：实时生成能力
- 伦理：版权、真实性、偏见等问题
总结：视觉创造的新纪元
图像生成技术的发展标志着AI从"理解"到"创造"的重大跨越。通过：
- 视觉语言的建立（图片token化）
- 生成范式的革新（扩散模型）
- 优化技术的成熟（采样、提示、后处理）
我们现在能够用自然语言描述就能生成高质量的视觉内容。这不仅改变了内容创作的方式，更重新定义了人类与机器的创造性合作关系。
正如摄影术的发明让每个人都能成为"画家"，AI图像生成技术正在让每个人都能成为"视觉创作者"。这不仅是技术的进步，更是人类表达能力的一次重大解放。
