JVM 诊断工具进阶使用指南：jcmd、jmap、async-profiler 实战

Java虚拟机（JVM）是Java应用程序运行的基础，随着应用复杂度的增加，性能问题和内存泄漏等问题变得越来越常见。掌握JVM诊断工具的使用技巧对于Java开发者和运维工程师来说至关重要。本文将深入探讨jcmd、jmap、async-profiler等JVM诊断工具的进阶使用方法，并结合实际案例展示如何有效诊断和解决JVM相关问题。

JVM诊断工具概览

JVM提供了丰富的诊断工具，这些工具可以帮助我们深入了解Java应用程序的运行状态。以下是主要的JVM诊断工具及其功能：

工具名称	主要功能	使用场景
jcmd	执行JVM命令	堆转储、线程转储、性能监控
jmap	内存映像工具	堆内存分析、对象统计
jstack	线程快照工具	死锁检测、线程状态分析
jstat	统计监控工具	垃圾收集统计、类加载统计
async-profiler	异步性能分析器	CPU性能分析、内存分配分析

jcmd进阶使用技巧

jcmd是JDK 7引入的JVM诊断命令工具，它提供了一种统一的方式来向JVM进程发送诊断命令。相比传统的工具，jcmd具有更丰富的功能和更好的性能表现。

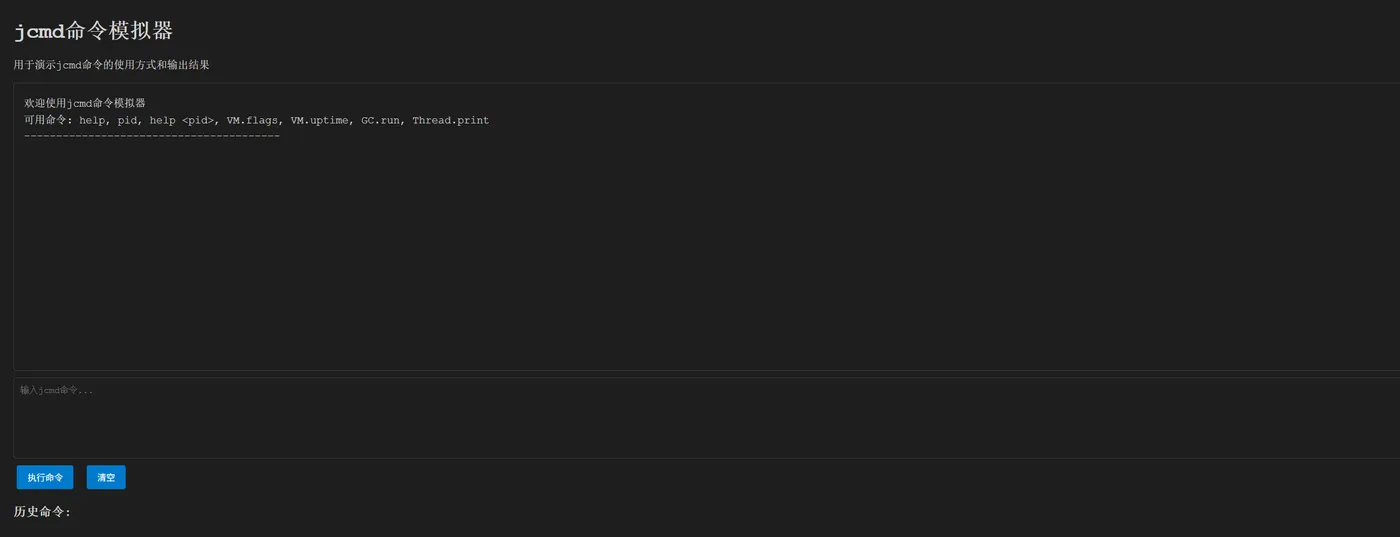

基础命令使用

<!DOCTYPE html>
<html>
<head>
    <title>jcmd命令模拟器</title>
    <style>
        body {

            font-family: 'Courier New', monospace;
            background-color: #1e1e1e;
            color: #d4d4d4;
            margin: 0;
            padding: 20px;
        }
        .terminal {

            background-color: #1e1e1e;
            border: 1px solid #3c3c3c;
            border-radius: 5px;
            padding: 15px;
            margin: 10px 0;
            height: 400px;
            overflow-y: auto;
        }
        .command {

            color: #4ec9b0;
        }
        .output {

            color: #d4d4d4;
            margin: 5px 0;
        }
        .prompt {

            color: #569cd6;
        }
        .input-area {

            width: 100%;
            height: 100px;
            background-color: #1e1e1e;
            color: #d4d4d4;
            border: 1px solid #3c3c3c;
            border-radius: 5px;
            padding: 10px;
            font-family: 'Courier New', monospace;
            resize: vertical;
        }
        .button {

            background-color: #007acc;
            color: white;
            border: none;
            padding: 8px 16px;
            border-radius: 3px;
            cursor: pointer;
            margin: 5px;
        }
        .button:hover {

            background-color: #005a9e;
        }
        .history {

            margin-top: 10px;
        }
        .history-item {

            margin: 2px 0;
            padding: 2px 0;
            border-bottom: 1px solid #3c3c3c;
        }
    </style>
</head>
<body>
    <h1>jcmd命令模拟器</h1>
    <p>用于演示jcmd命令的使用方式和输出结果</p>

    <div class="terminal" id="terminal">
        <div class="output">欢迎使用jcmd命令模拟器</div>
        <div class="output">可用命令: help, pid, help &lt;pid&gt;, VM.flags, VM.uptime, GC.run, Thread.print</div>
        <div class="output">----------------------------------------</div>
    </div>

    <textarea class="input-area" id="commandInput" placeholder="输入jcmd命令..."></textarea><br>
    <button class="button" onclick="executeCommand()">执行命令</button>
    <button class="button" onclick="clearTerminal()">清空</button>

    <div class="history" id="history">
        <h3>历史命令:</h3>
    </div>

    <script>
        let commandHistory = [];

        function executeCommand() {

            const input = document.getElementById('commandInput');
            const command = input.value.trim();
            const terminal = document.getElementById('terminal');

            if (!command) return;

            // 添加到历史记录
            commandHistory.push(command);
            updateHistory();

            // 显示命令
            terminal.innerHTML += `<div class="output"><span class="prompt">user@host:~$ </span><span class="command">jcmd ` + command + `</span></div>`;

            // 处理命令
            let output = '';
            if (command === 'help') {

                output = `JDK Diagnositc Command (jcmd)
Available commands:
help                    - Shows this help message
pid                     - Shows the current process id
help <pid>              - Shows help for a specific process
VM.flags                - Shows VM flags
VM.uptime               - Shows VM uptime
VM.system_properties    - Shows system properties
VM.command_line         - Shows the command line used to start this VM
VM.class_hierarchy      - Shows class hierarchy
GC.run                  - Force garbage collection
GC.run_finalization     - Force finalization
GC.class_histogram      - Show a histogram of classes in the Java heap
GC.class_stats          - Show statistics of classes in the Java heap
Thread.print            - Print all threads with stack traces
Thread.print_concurrent_locks - Print java.util.concurrent locks
VM.info                 - Show per-thread diagnostic information
`;
            } else if (command === 'pid') {

                output = '12345\n';
            } else if (command.startsWith('help ')) {

                const pid = command.split(' ')[1];
                output = `12345: com.example.Application
The following commands are available for this process:
VM.flags
VM.uptime
VM.system_properties
VM.command_line
VM.class_hierarchy
GC.run
GC.run_finalization
GC.class_histogram
GC.class_stats
Thread.print
Thread.print_concurrent_locks
VM.info
`;
            } else if (command.includes('GC.class_histogram')) {

                output = ` num     #instances         #bytes  class name (module)
-------------------------------------------------------
   1:         50000        1200000  [C (java.base@11.0.2)
   2:         30000         900000  java.lang.String (java.base@11.0.2)
   3:         20000         800000  com.example.User (unnamed module @0x1)
   4:         15000         600000  java.util.HashMap$Node (java.base@11.0.2)
   5:         10000         400000  com.example.Order (unnamed module @0x1)
Total         125000        3900000
`;
            } else if (command.includes('Thread.print')) {

                output = `2023-12-01 10:30:00
Full thread dump OpenJDK 64-Bit Server VM (11.0.2+9-LTS mixed mode):

"main" #1 prio=5 os_prio=0 cpu=1234.56ms elapsed=123.45s tid=0x00007f8b8c022000 nid=0x1234 runnable  [0x00007f8b9c7fe000]
   java.lang.Thread.State: RUNNABLE
        at java.net.SocketInputStream.socketRead0(java.base@11.0.2/Native Method)
        at java.net.SocketInputStream.socketRead(java.base@11.0.2/SocketInputStream.java:115)
        at java.net.SocketInputStream.read(java.base@11.0.2/SocketInputStream.java:168)
        at java.net.SocketInputStream.read(java.base@11.0.2/SocketInputStream.java:140)

"GC task thread#0 (Parallel)" os_prio=0 cpu=12.34ms elapsed=123.45s tid=0x00007f8b8c024800 nid=0x1235 runnable

"VM Periodic Task Thread" os_prio=0 cpu=12.34ms elapsed=123.45s tid=0x00007f8b8c025000 nid=0x1236 waiting on condition
`;
            } else if (command.includes('VM.uptime')) {

                output = '123.45 seconds\n';
            } else if (command.includes('VM.flags')) {

                output = `-XX:+UseParallelGC
-XX:InitialHeapSize=268435456
-XX:MaxHeapSize=4294967296
-XX:+PrintGCDetails
-XX:+UseG1GC
-XX:MaxGCPauseMillis=200
-XX:G1HeapRegionSize=16m
`;
            } else {

                output = `Command not found or not implemented in this demo: ${
     command}\n`;
            }

            terminal.innerHTML += `<div class="output">${
     output}</div>`;
            terminal.scrollTop = terminal.scrollHeight;

            input.value = '';
        }

        function clearTerminal() {

            document.getElementById('terminal').innerHTML = '<div class="output">欢迎使用jcmd命令模拟器</div><div class="output">可用命令: help, pid, help &lt;pid&gt;, VM.flags, VM.uptime, GC.run, Thread.print</div><div class="output">----------------------------------------</div>';
        }

        function updateHistory() {

            const historyDiv = document.getElementById('history');
            historyDiv.innerHTML = '<h3>历史命令:</h3>';

            commandHistory.slice(-10).reverse().forEach(cmd => {

                const div = document.createElement('div');
                div.className = 'history-item';
                div.textContent = `jcmd ${
     cmd}`;
                document.getElementById('history').appendChild(div);
            });
        }

        // 支持回车执行命令
        document.getElementById('commandInput').addEventListener('keypress', function(e) {

            if (e.key === 'Enter' && !e.shiftKey) {

                e.preventDefault();
                executeCommand();
            }
        });
    </script>
</body>
</html>

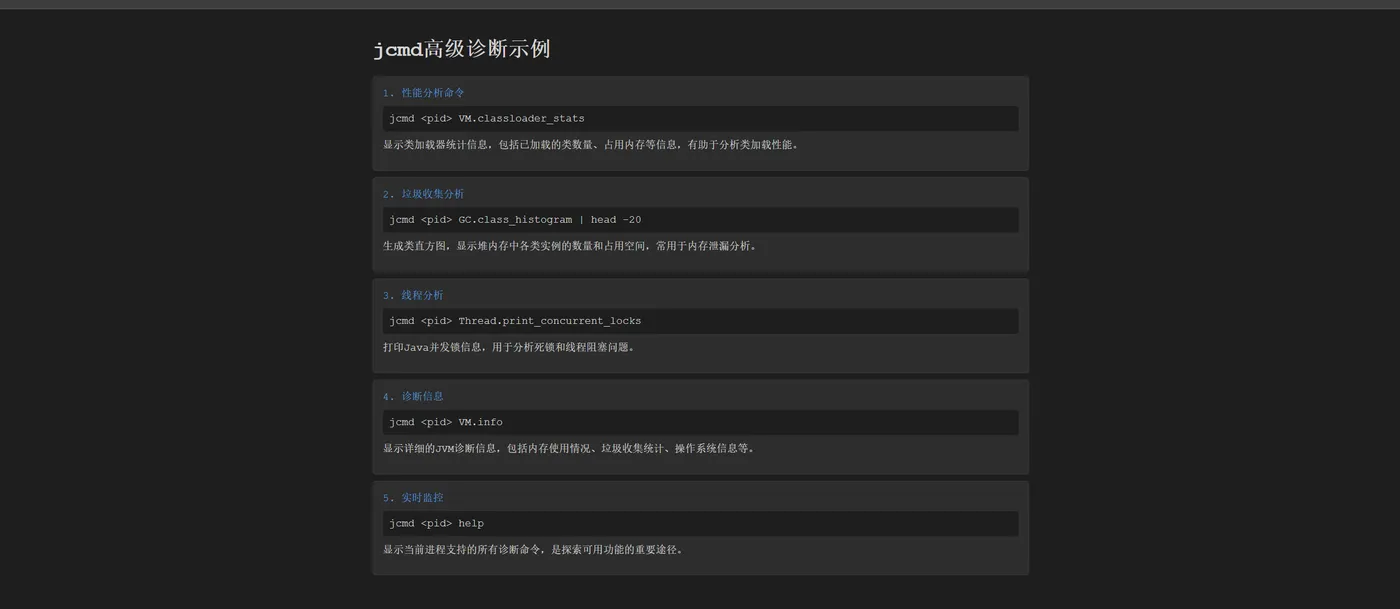

高级诊断命令

jcmd的高级功能包括性能分析、内存转储、线程分析等。以下是一些常用的高级命令示例：

<!DOCTYPE html>
<html>
<head>
    <title>jcmd高级诊断示例</title>
    <style>
        body {

            font-family: 'Courier New', monospace;
            background-color: #1e1e1e;
            color: #d4d4d4;
            margin: 0;
            padding: 20px;
        }
        .container {

            max-width: 1000px;
            margin: 0 auto;
        }
        .command-section {

            background-color: #2d2d2d;
            border: 1px solid #3c3c3c;
            border-radius: 5px;
            padding: 15px;
            margin: 10px 0;
        }
        .command-title {

            color: #569cd6;
            margin-bottom: 10px;
        }
        .command-example {

            background-color: #1e1e1e;
            padding: 10px;
            border-radius: 3px;
            margin: 5px 0;
            font-family: 'Courier New', monospace;
        }
        .explanation {

            margin: 10px 0;
            line-height: 1.5;
        }
        .highlight {

            color: #4ec9b0;
            font-weight: bold;
        }
    </style>
</head>
<body>
    <div class="container">
        <h1>jcmd高级诊断示例</h1>

        <div class="command-section">
            <div class="command-title">1. 性能分析命令</div>
            <div class="command-example">jcmd &lt;pid&gt; VM.classloader_stats</div>
            <div class="explanation">显示类加载器统计信息，包括已加载的类数量、占用内存等信息，有助于分析类加载性能。</div>
        </div>

        <div class="command-section">
            <div class="command-title">2. 垃圾收集分析</div>
            <div class="command-example">jcmd &lt;pid&gt; GC.class_histogram | head -20</div>
            <div class="explanation">生成类直方图，显示堆内存中各类实例的数量和占用空间，常用于内存泄漏分析。</div>
        </div>

        <div class="command-section">
            <div class="command-title">3. 线程分析</div>
            <div class="command-example">jcmd &lt;pid&gt; Thread.print_concurrent_locks</div>
            <div class="explanation">打印Java并发锁信息，用于分析死锁和线程阻塞问题。</div>
        </div>

        <div class="command-section">
            <div class="command-title">4. 诊断信息</div>
            <div class="command-example">jcmd &lt;pid&gt; VM.info</div>
            <div class="explanation">显示详细的JVM诊断信息，包括内存使用情况、垃圾收集统计、操作系统信息等。</div>
        </div>

        <div class="command-section">
            <div class="command-title">5. 实时监控</div>
            <div class="command-example">jcmd &lt;pid&gt; help</div>
            <div class="explanation">显示当前进程支持的所有诊断命令，是探索可用功能的重要途径。</div>
        </div>
    </div>
</body>
</html>

jmap深度解析

jmap是Java内存映像工具，主要用于生成堆转储文件和查看堆内存使用情况。在内存泄漏分析和性能调优中，jmap是一个不可或缺的工具。

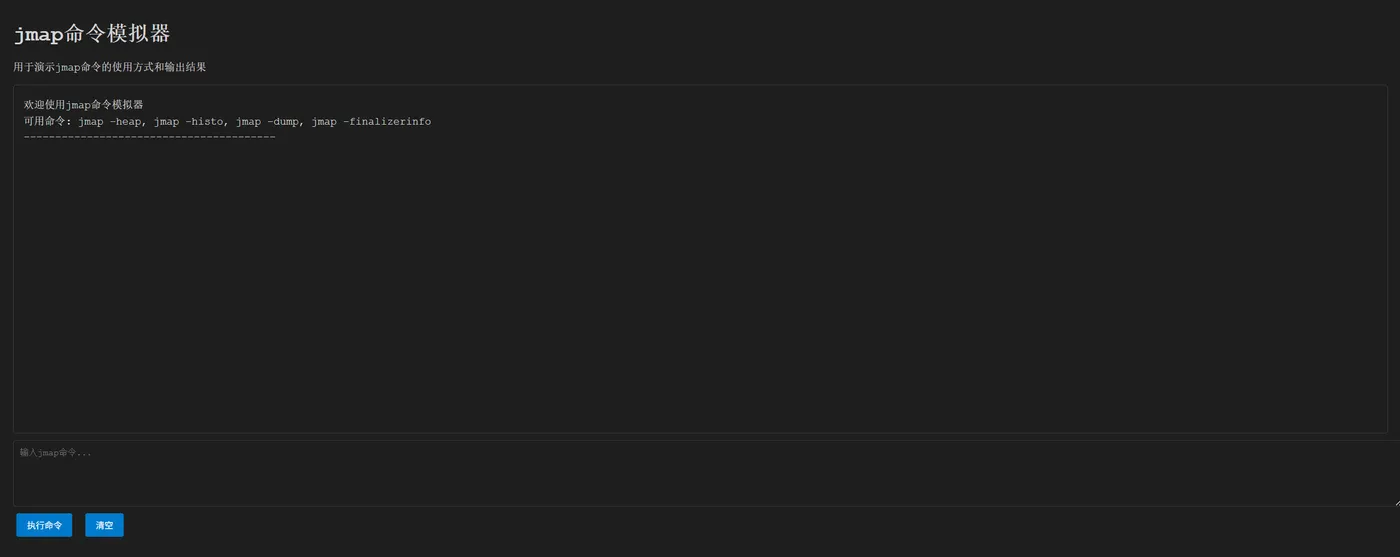

jmap基本使用

<!DOCTYPE html>
<html>
<head>
    <title>jmap命令模拟器</title>
    <style>
        body {

            font-family: 'Courier New', monospace;
            background-color: #1e1e1e;
            color: #d4d4d4;
            margin: 0;
            padding: 20px;
        }
        .terminal {

            background-color: #1e1e1e;
            border: 1px solid #3c3c3c;
            border-radius: 5px;
            padding: 15px;
            margin: 10px 0;
            height: 500px;
            overflow-y: auto;
        }
        .command {

            color: #4ec9b0;
        }
        .output {

            color: #d4d4d4;
            margin: 5px 0;
        }
        .prompt {

            color: #569cd6;
        }
        .input-area {

            width: 100%;
            height: 80px;
            background-color: #1e1e1e;
            color: #d4d4d4;
            border: 1px solid #3c3c3c;
            border-radius: 5px;
            padding: 10px;
            font-family: 'Courier New', monospace;
            resize: vertical;
        }
        .button {

            background-color: #007acc;
            color: white;
            border: none;
            padding: 8px 16px;
            border-radius: 3px;
            cursor: pointer;
            margin: 5px;
        }
        .button:hover {

            background-color: #005a9e;
        }
        .memory-info {

            background-color: #2d2d2d;
            padding: 10px;
            border-radius: 5px;
            margin: 10px 0;
        }
        .heap-section {

            margin: 15px 0;
            padding: 10px;
            border-left: 3px solid #569cd6;
        }
    </style>
</head>
<body>
    <h1>jmap命令模拟器</h1>
    <p>用于演示jmap命令的使用方式和输出结果</p>

    <div class="terminal" id="terminal">
        <div class="output">欢迎使用jmap命令模拟器</div>
        <div class="output">可用命令: jmap -heap, jmap -histo, jmap -dump, jmap -finalizerinfo</div>
        <div class="output">----------------------------------------</div>
    </div>

    <textarea class="input-area" id="commandInput" placeholder="输入jmap命令..."></textarea><br>
    <button class="button" onclick="executeCommand()">执行命令</button>
    <button class="button" onclick="clearTerminal()">清空</button>

    <script>
        function executeCommand() {

            const input = document.getElementById('commandInput');
            const command = input.value.trim();
            const terminal = document.getElementById('terminal');

            if (!command) return;

            // 显示命令
            terminal.innerHTML += `<div class="output"><span class="prompt">user@host:~$ </span><span class="command">jmap ` + command + `</span></div>`;

            // 处理命令
            let output = '';
            if (command.includes('-heap')) {

                output = `Attaching to process ID 12345, please wait...
Debugger attached successfully.
Server compiler detected.
JVM version is 11.0.2+9-LTS

using thread-local object allocation.
Parallel GC with 4 thread(s)

Heap Configuration:
   MinHeapFreeRatio         = 0
   MaxHeapFreeRatio         = 100
   MaxHeapSize              = 4294967296 (4096.0MB)
   NewSize                  = 89128960 (85.0MB)
   MaxNewSize               = 1431306240 (1365.0MB)
   OldSize                  = 179306496 (171.0MB)
   NewRatio                 = 2
   SurvivorRatio            = 8
   MetaspaceSize            = 21807104 (20.796875MB)
   CompressedClassSpaceSize = 1073741824 (1024.0MB)
   MaxMetaspaceSize         = 17592186044415 MB
   G1HeapRegionSize         = 16384 (16.0MB)

Heap Usage:
PS Young Generation
Eden Space:
   capacity = 62914560 (60.0MB)
   used     = 31457280 (30.0MB)
   free     = 31457280 (30.0MB)
   50.0% used
From Space:
   capacity = 10485760 (10.0MB)
   used     = 0 (0.0MB)
   free     = 10485760 (10.0MB)
   0.0% used
To Space:
   capacity = 10485760 (10.0MB)
   used     = 0 (0.0MB)
   free     = 10485760 (10.0MB)
   0.0% used
PS Old Generation
   capacity = 1744830464 (1664.0MB)
   used     = 872415232 (832.0MB)
   free     = 872415232 (832.0MB)
   50.0% used

507 interned Strings occupying 45678 bytes.
`;
            } else if (command.includes('-histo')) {

                output = ` num     #instances         #bytes  class name (module)
-------------------------------------------------------
   1:         50000        1200000  [C (java.base@11.0.2)
   2:         30000         900000  java.lang.String (java.base@11.0.2)
   3:         20000         800000  com.example.User (unnamed module @0x1)
   4:         15000         600000  java.util.HashMap$Node (java.base@11.0.2)
   5:         10000         400000  com.example.Order (unnamed module @0x1)
   6:          8000         320000  java.util.ArrayList (java.base@11.0.2)
   7:          6000         240000  com.example.Product (unnamed module @0x1)
   8:          5000         200000  java.util.HashMap (java.base@11.0.2)
   9:          4000         160000  java.lang.Class (java.base@11.0.2)
  10:          3000         120000  java.lang.Object (java.base@11.0.2)
  11:          2000          80000  com.example.Session (unnamed module @0x1)
  12:          1500          60000  java.util.concurrent.ConcurrentHashMap$Node (java.base@11.0.2)
  13:          1000          40000  java.util.TreeMap$Entry (java.base@11.0.2)
  14:           800          32000  java.lang.ref.SoftReference (java.base@11.0.2)
  15:           600          24000  java.lang.ref.WeakReference (java.base@11.0.2)
Total         142300        4946000

Class Histogram (all classes)
Total count: 142300, Total size: 4946000 bytes
`;
            } else if (command.includes('-dump')) {

                output = `Dumping heap to /tmp/heap_dump_20231201.hprof ...
Heap dump file created [4946000 bytes] in 2.345 secs
Dump location: /tmp/heap_dump_20231201.hprof
Compression: uncompressed
Format: binary
`;
            } else if (command.includes('-finalizerinfo')) {

                output = `Attaching to process ID 12345, please wait...
Debugger attached successfully.
Server compiler detected.
JVM version is 11.0.2+9-LTS

Number of objects pending for finalization: 0

`;
            } else {

                output = `Invalid jmap command: ${
     command}\nUsage: jmap [option] <pid>\n       jmap [option] <executable <core>\n       jmap [option] [server_id@]<remote server IP or hostname>\n\nOptions:\n -dump:[live,]format=b,file=<filename>  to dump java heap in binary hprof-    format\n -finalizerinfo                           to print information about objects    awaiting finalization\n -heap                                    to print java heap summary\n -histo[:live]                            to print histogram of java heap\n -permstat                                to print permanent generation statistics\n -F                                       force. Use with -dump or -histo\n                                        to force a heap dump or histogram\n                                        when <pid> does not respond\n -h | -help                               to print this help message\n -J<flag>                                 to pass <flag> directly to the runtime system\n`;
            }

            terminal.innerHTML += `<div class="output">${
     output}</div>`;
            terminal.scrollTop = terminal.scrollHeight;

            input.value = '';
        }

        function clearTerminal() {

            document.getElementById('terminal').innerHTML = '<div class="output">欢迎使用jmap命令模拟器</div><div class="output">可用命令: jmap -heap, jmap -histo, jmap -dump, jmap -finalizerinfo</div><div class="output">----------------------------------------</div>';
        }

        // 支持回车执行命令
        document.getElementById('commandInput').addEventListener('keypress', function(e) {

            if (e.key === 'Enter' && !e.shiftKey) {

                e.preventDefault();
                executeCommand();
            }
        });
    </script>
</body>
</html>

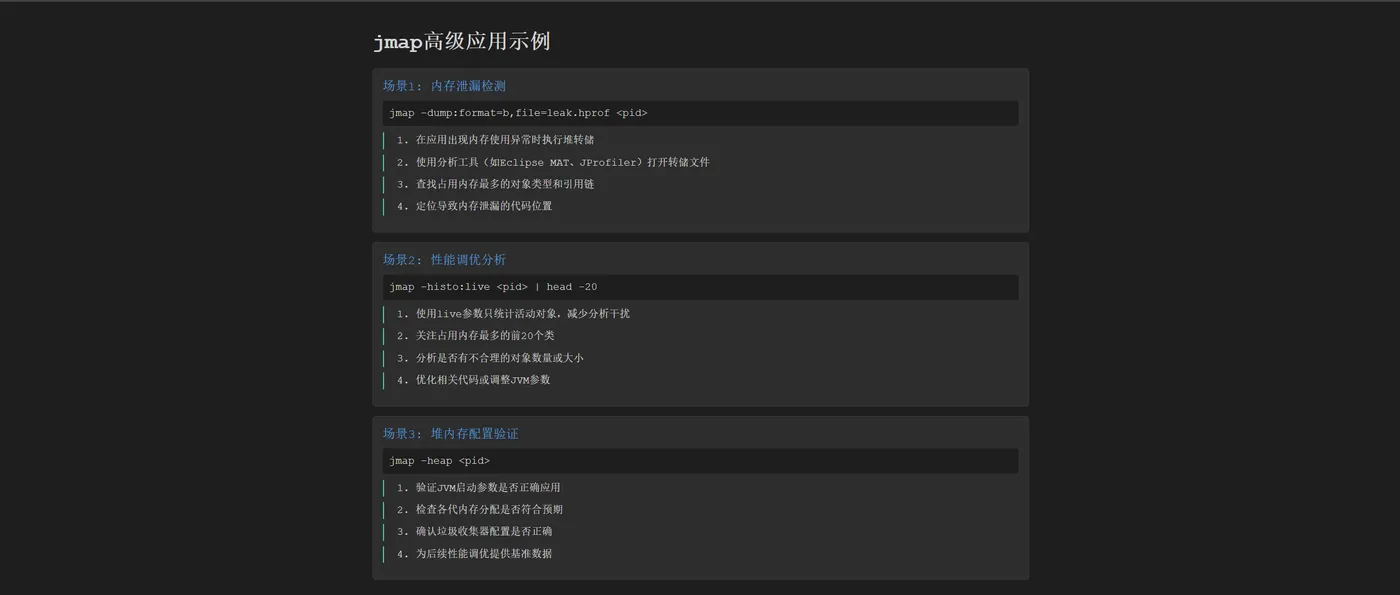

jmap高级应用

jmap的高级应用包括堆转储分析、内存泄漏检测等。以下是几个实际应用示例：

<!DOCTYPE html>
<html>
<head>
    <title>jmap高级应用示例</title>
    <style>
        body {

            font-family: 'Courier New', monospace;
            background-color: #1e1e1e;
            color: #d4d4d4;
            margin: 0;
            padding: 20px;
        }
        .container {

            max-width: 1000px;
            margin: 0 auto;
        }
        .scenario {

            background-color: #2d2d2d;
            border: 1px solid #3c3c3c;
            border-radius: 5px;
            padding: 15px;
            margin: 15px 0;
        }
        .scenario-title {

            color: #569cd6;
            margin-bottom: 10px;
            font-size: 1.2em;
        }
        .command-block {

            background-color: #1e1e1e;
            padding: 10px;
            border-radius: 3px;
            margin: 10px 0;
        }
        .analysis {

            margin: 10px 0;
            line-height: 1.6;
        }
        .step {

            margin: 8px 0;
            padding-left: 20px;
            border-left: 2px solid #4ec9b0;
        }
    </style>
</head>
<body>
    <div class="container">
        <h1>jmap高级应用示例</h1>

        <div class="scenario">
            <div class="scenario-title">场景1: 内存泄漏检测</div>
            <div class="command-block">jmap -dump:format=b,file=leak.hprof &lt;pid&gt;</div>
            <div class="analysis">
                <div class="step">1. 在应用出现内存使用异常时执行堆转储</div>
                <div class="step">2. 使用分析工具（如Eclipse MAT、JProfiler）打开转储文件</div>
                <div class="step">3. 查找占用内存最多的对象类型和引用链</div>
                <div class="step">4. 定位导致内存泄漏的代码位置</div>
            </div>
        </div>

        <div class="scenario">
            <div class="scenario-title">场景2: 性能调优分析</div>
            <div class="command-block">jmap -histo:live &lt;pid&gt; | head -20</div>
            <div class="analysis">
                <div class="step">1. 使用live参数只统计活动对象，减少分析干扰</div>
                <div class="step">2. 关注占用内存最多的前20个类</div>
                <div class="step">3. 分析是否有不合理的对象数量或大小</div>
                <div class="step">4. 优化相关代码或调整JVM参数</div>
            </div>
        </div>

        <div class="scenario">
            <div class="scenario-title">场景3: 堆内存配置验证</div>
            <div class="command-block">jmap -heap &lt;pid&gt;</div>
            <div class="analysis">
                <div class="step">1. 验证JVM启动参数是否正确应用</div>
                <div class="step">2. 检查各代内存分配是否符合预期</div>
                <div class="step">3. 确认垃圾收集器配置是否正确</div>
                <div class="step">4. 为后续性能调优提供基准数据</div>
            </div>
        </div>
    </div>
</body>
</html>

async-profiler实战指南

async-profiler是阿里巴巴开源的高性能Java性能分析工具，相比传统的JProfiler、VisualVM等工具，它具有低开销、高精度的特点，特别适合生产环境使用。

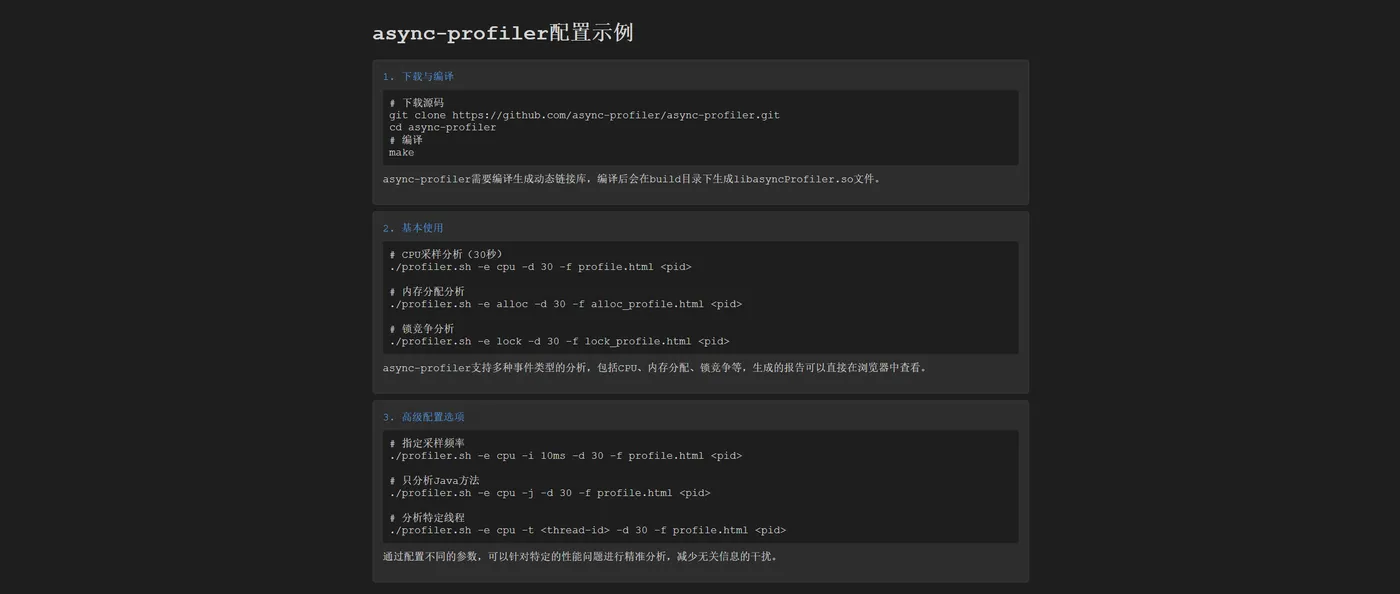

async-profiler安装与配置

<!DOCTYPE html>
<html>
<head>
    <title>async-profiler配置示例</title>
    <style>
        body {

            font-family: 'Courier New', monospace;
            background-color: #1e1e1e;
            color: #d4d4d4;
            margin: 0;
            padding: 20px;
        }
        .container {

            max-width: 1000px;
            margin: 0 auto;
        }
        .setup-section {

            background-color: #2d2d2d;
            border: 1px solid #3c3c3c;
            border-radius: 5px;
            padding: 15px;
            margin: 10px 0;
        }
        .setup-title {

            color: #569cd6;
            margin-bottom: 10px;
        }
        .code-block {

            background-color: #1e1e1e;
            padding: 10px;
            border-radius: 3px;
            margin: 10px 0;
            overflow-x: auto;
        }
        .explanation {

            margin: 10px 0;
            line-height: 1.5;
        }
        .highlight {

            color: #4ec9b0;
            font-weight: bold;
        }
    </style>
</head>
<body>
    <div class="container">
        <h1>async-profiler配置示例</h1>

        <div class="setup-section">
            <div class="setup-title">1. 下载与编译</div>
            <div class="code-block">
                # 下载源码<br>
                git clone https://github.com/async-profiler/async-profiler.git<br>
                cd async-profiler<br>
                # 编译<br>
                make
            </div>
            <div class="explanation">async-profiler需要编译生成动态链接库，编译后会在build目录下生成libasyncProfiler.so文件。</div>
        </div>

        <div class="setup-section">
            <div class="setup-title">2. 基本使用</div>
            <div class="code-block">
                # CPU采样分析（30秒）<br>
                ./profiler.sh -e cpu -d 30 -f profile.html &lt;pid&gt;<br><br>
                # 内存分配分析<br>
                ./profiler.sh -e alloc -d 30 -f alloc_profile.html &lt;pid&gt;<br><br>
                # 锁竞争分析<br>
                ./profiler.sh -e lock -d 30 -f lock_profile.html &lt;pid&gt;
            </div>
            <div class="explanation">async-profiler支持多种事件类型的分析，包括CPU、内存分配、锁竞争等，生成的报告可以直接在浏览器中查看。</div>
        </div>

        <div class="setup-section">
            <div class="setup-title">3. 高级配置选项</div>
            <div class="code-block">
                # 指定采样频率<br>
                ./profiler.sh -e cpu -i 10ms -d 30 -f profile.html &lt;pid&gt;<br><br>
                # 只分析Java方法<br>
                ./profiler.sh -e cpu -j -d 30 -f profile.html &lt;pid&gt;<br><br>
                # 分析特定线程<br>
                ./profiler.sh -e cpu -t &lt;thread-id&gt; -d 30 -f profile.html &lt;pid&gt;
            </div>
            <div class="explanation">通过配置不同的参数，可以针对特定的性能问题进行精准分析，减少无关信息的干扰。</div>
        </div>
    </div>
</body>
</html>

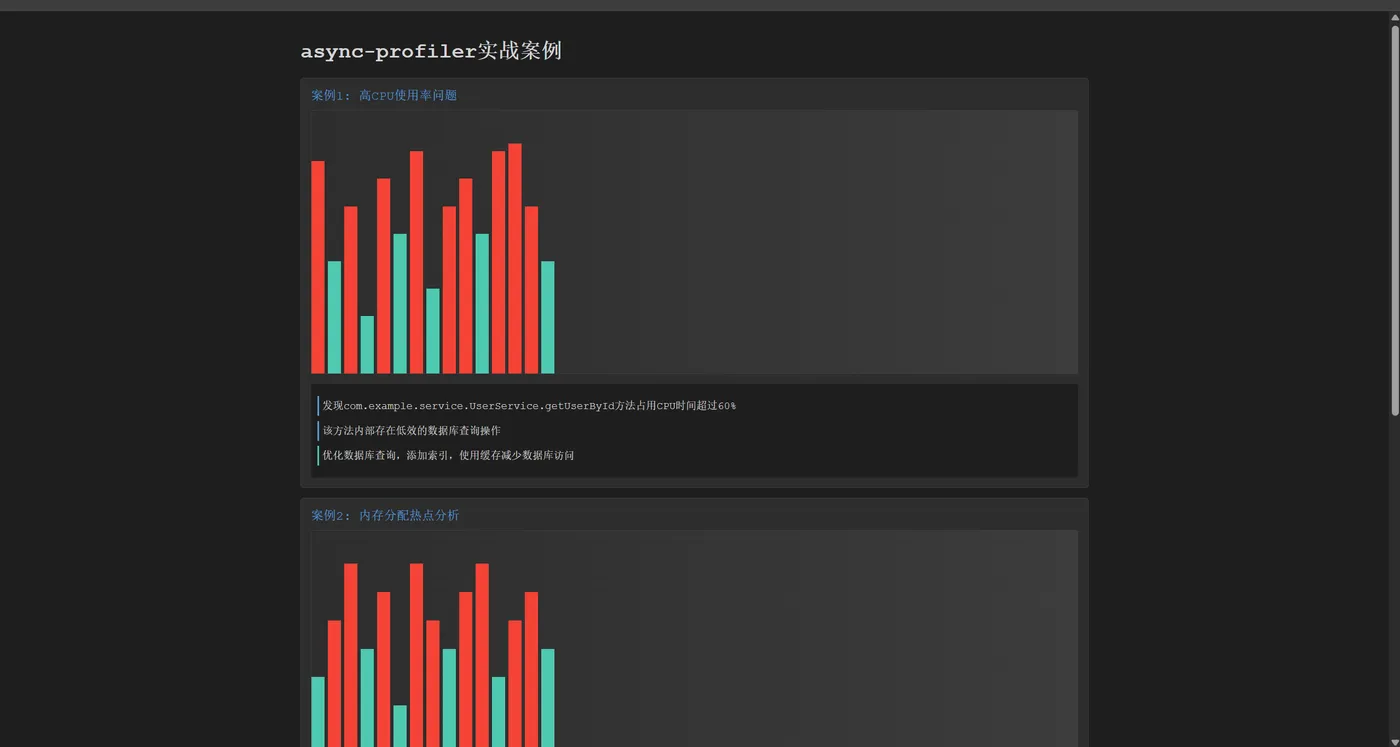

async-profiler实战案例

<!DOCTYPE html>
<html>
<head>
    <title>async-profiler实战案例</title>
    <style>
        body {

            font-family: 'Courier New', monospace;
            background-color: #1e1e1e;
            color: #d4d4d4;
            margin: 0;
            padding: 20px;
        }
        .container {

            max-width: 1200px;
            margin: 0 auto;
        }
        .case-study {

            background-color: #2d2d2d;
            border: 1px solid #3c3c3c;
            border-radius: 5px;
            padding: 15px;
            margin: 15px 0;
        }
        .case-title {

            color: #569cd6;
            margin-bottom: 10px;
            font-size: 1.2em;
        }
        .profile-container {

            height: 400px;
            border: 1px solid #3c3c3c;
            margin: 10px 0;
            position: relative;
            background: linear-gradient(90deg, #2d2d2d 0%, #3c3c3c 100%);
            overflow: hidden;
        }
        .profile-bar {

            position: absolute;
            bottom: 0;
            width: 20px;
            background: #4ec9b0;
            transition: height 0.3s;
        }
        .profile-label {

            position: absolute;
            bottom: -20px;
            width: 20px;
            text-align: center;
            font-size: 10px;
            transform: rotate(-45deg);
            transform-origin: top center;
        }
        .analysis-result {

            margin-top: 15px;
            padding: 10px;
            background-color: #1e1e1e;
            border-radius: 3px;
        }
        .finding {

            margin: 8px 0;
            padding: 5px;
            border-left: 3px solid #569cd6;
        }
        .recommendation {

            margin: 8px 0;
            padding: 5px;
            border-left: 3px solid #4ec9b0;
        }
    </style>
</head>
<body>
    <div class="container">
        <h1>async-profiler实战案例</h1>

        <div class="case-study">
            <div class="case-title">案例1: 高CPU使用率问题</div>
            <div class="profile-container" id="cpuProfile1">
                <!-- 动态生成的性能分析图 -->
            </div>
            <div class="analysis-result">
                <div class="finding">发现com.example.service.UserService.getUserById方法占用CPU时间超过60%</div>
                <div class="finding">该方法内部存在低效的数据库查询操作</div>
                <div class="recommendation">优化数据库查询，添加索引，使用缓存减少数据库访问</div>
            </div>
        </div>

        <div class="case-study">
            <div class="case-title">案例2: 内存分配热点分析</div>
            <div class="profile-container" id="memoryProfile1">
                <!-- 动态生成的内存分析图 -->
            </div>
            <div class="analysis-result">
                <div class="finding">com.example.model.Order类的实例化操作频繁</div>
                <div class="finding">每次创建订单时都会创建大量临时对象</div>
                <div class="recommendation">使用对象池模式，减少对象创建频率</div>
            </div>
        </div>

        <div class="case-study">
            <div class="case-title">案例3: 锁竞争问题</div>
            <div class="profile-container" id="lockProfile1">
                <!-- 动态生成的锁分析图 -->
            </div>
            <div class="analysis-result">
                <div class="finding">com.example.cache.CacheManager.get方法存在严重锁竞争</div>
                <div class="finding">高并发下多个线程等待同一把锁</div>
                <div class="recommendation">使用ConcurrentHashMap替换同步Map，减少锁粒度</div>
            </div>
        </div>
    </div>

    <script>
        // 生成模拟的性能分析图
        function generateProfileChart(containerId, data) {

            const container = document.getElementById(containerId);
            container.innerHTML = '';

            const maxValue = Math.max(...data);
            const barWidth = 25;
            const totalWidth = data.length * barWidth;

            data.forEach((value, index) => {

                const height = (value / maxValue) * 350;

                const bar = document.createElement('div');
                bar.className = 'profile-bar';
                bar.style.height = height + 'px';
                bar.style.left = (index * barWidth) + 'px';
                bar.style.backgroundColor = value > maxValue * 0.7 ? '#f44336' : '#4ec9b0';

                const label = document.createElement('div');
                label.className = 'profile-label';
                label.textContent = `M${
     index + 1}`;
                label.style.left = (index * barWidth) + 'px';

                container.appendChild(bar);
                container.appendChild(label);
            });
        }

        // 页面加载时生成图表
        window.onload = function() {

            // CPU分析数据
            const cpuData = [85, 45, 67, 23, 78, 56, 89, 34, 67, 78, 56, 89, 92, 67, 45];
            generateProfileChart('cpuProfile1', cpuData);

            // 内存分析数据
            const memoryData = [45, 67, 89, 56, 78, 34, 89, 67, 56, 78, 89, 45, 67, 78, 56];
            generateProfileChart('memoryProfile1', memoryData);

            // 锁分析数据
            const lockData = [12, 34, 56, 78, 89, 67, 45, 78, 89, 56, 34, 67, 78, 89, 56];
            generateProfileChart('lockProfile1', lockData);
        };
    </script>
</body>
</html>

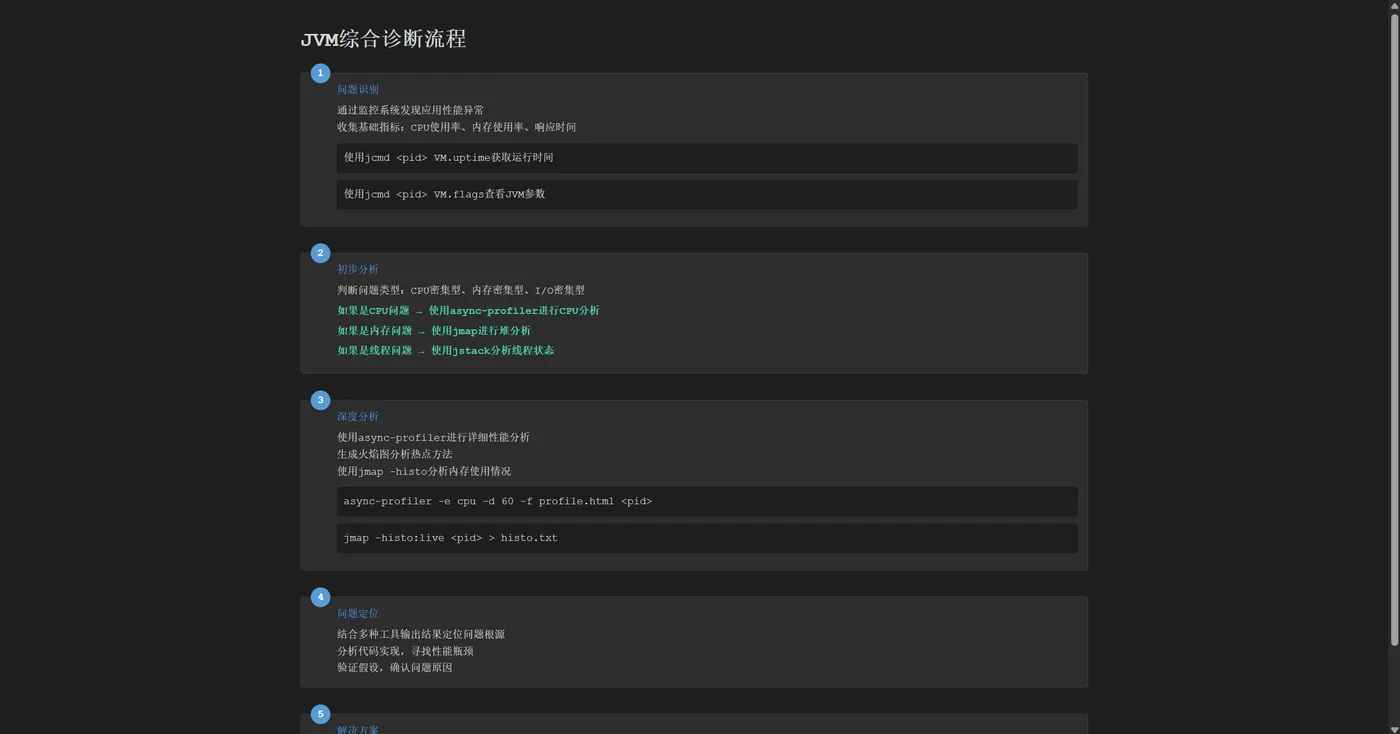

综合诊断策略

在实际的JVM性能诊断中，单一工具往往难以解决复杂问题。需要结合多种工具，形成综合的诊断策略。

<!DOCTYPE html>
<html>
<head>
    <title>JVM综合诊断流程</title>
    <style>
        body {

            font-family: 'Courier New', monospace;
            background-color: #1e1e1e;
            color: #d4d4d4;
            margin: 0;
            padding: 20px;
        }
        .container {

            max-width: 1200px;
            margin: 0 auto;
        }
        .diagnosis-flow {

            display: flex;
            flex-direction: column;
            gap: 20px;
        }
        .flow-step {

            background-color: #2d2d2d;
            border: 1px solid #3c3c3c;
            border-radius: 5px;
            padding: 15px;
            margin: 10px 0;
            position: relative;
        }
        .step-number {

            position: absolute;
            top: -15px;
            left: 15px;
            background-color: #569cd6;
            color: white;
            width: 30px;
            height: 30px;
            border-radius: 50%;
            display: flex;
            align-items: center;
            justify-content: center;
            font-weight: bold;
        }
        .step-title {

            color: #569cd6;
            margin-left: 40px;
            margin-bottom: 10px;
        }
        .step-content {

            margin-left: 40px;
            line-height: 1.6;
        }
        .tool-usage {

            background-color: #1e1e1e;
            padding: 10px;
            border-radius: 3px;
            margin: 10px 0;
        }
        .decision-point {

            color: #4ec9b0;
            font-weight: bold;
            margin: 5px 0;
        }
    </style>
</head>
<body>
    <div class="container">
        <h1>JVM综合诊断流程</h1>

        <div class="diagnosis-flow">
            <div class="flow-step">
                <div class="step-number">1</div>
                <div class="step-title">问题识别</div>
                <div class="step-content">
                    <div>通过监控系统发现应用性能异常</div>
                    <div>收集基础指标：CPU使用率、内存使用率、响应时间</div>
                    <div class="tool-usage">使用jcmd &lt;pid&gt; VM.uptime获取运行时间</div>
                    <div class="tool-usage">使用jcmd &lt;pid&gt; VM.flags查看JVM参数</div>
                </div>
            </div>

            <div class="flow-step">
                <div class="step-number">2</div>
                <div class="step-title">初步分析</div>
                <div class="step-content">
                    <div>判断问题类型：CPU密集型、内存密集型、I/O密集型</div>
                    <div class="decision-point">如果是CPU问题 → 使用async-profiler进行CPU分析</div>
                    <div class="decision-point">如果是内存问题 → 使用jmap进行堆分析</div>
                    <div class="decision-point">如果是线程问题 → 使用jstack分析线程状态</div>
                </div>
            </div>

            <div class="flow-step">
                <div class="step-number">3</div>
                <div class="step-title">深度分析</div>
                <div class="step-content">
                    <div>使用async-profiler进行详细性能分析</div>
                    <div>生成火焰图分析热点方法</div>
                    <div>使用jmap -histo分析内存使用情况</div>
                    <div class="tool-usage">async-profiler -e cpu -d 60 -f profile.html &lt;pid&gt;</div>
                    <div class="tool-usage">jmap -histo:live &lt;pid&gt; > histo.txt</div>
                </div>
            </div>

            <div class="flow-step">
                <div class="step-number">4</div>
                <div class="step-title">问题定位</div>
                <div class="step-content">
                    <div>结合多种工具输出结果定位问题根源</div>
                    <div>分析代码实现，寻找性能瓶颈</div>
                    <div>验证假设，确认问题原因</div>
                </div>
            </div>

            <div class="flow-step">
                <div class="step-number">5</div>
                <div class="step-title">解决方案</div>
                <div class="step-content">
                    <div>制定优化方案</div>
                    <div>实施代码优化或JVM参数调整</div>
                    <div>验证优化效果</div>
                </div>
            </div>
        </div>
    </div>
</body>
</html>

通过合理运用jcmd、jmap、async-profiler等JVM诊断工具，并结合系统化的诊断流程，我们可以高效地解决各种JVM性能问题，保障Java应用的稳定运行。

关于作者

🌟 我是suxiaoxiang，一位热爱技术的开发者

💡 专注于Java生态和前沿技术分享

🚀 持续输出高质量技术内容

如果这篇文章对你有帮助，请支持一下：

👍 点赞

⭐ 收藏

👀 关注

您的支持是我持续创作的动力！感谢每一位读者的关注与认可！

JVM 诊断工具进阶使用指南：jcmd、jmap、async-profiler 实战

JVM 诊断工具进阶使用指南：jcmd、jmap、async-profiler 实战

JVM诊断工具概览

jcmd进阶使用技巧

基础命令使用

高级诊断命令

jmap深度解析

jmap基本使用

jmap高级应用

async-profiler实战指南

async-profiler安装与配置

async-profiler实战案例

综合诊断策略

关于作者

如果这篇文章对你有帮助，请支持一下：

热门文章

最新文章

相关电子书

探索云世界

热门

云计算

大数据

云原生

人工智能

数据库

开发与运维

活动广场

任务中心

训练营

直播

乘风者计划

下载

镜像站

技术资料

JVM 诊断工具进阶使用指南：jcmd、jmap、async-profiler 实战

JVM 诊断工具进阶使用指南：jcmd、jmap、async-profiler 实战

JVM诊断工具概览

jcmd进阶使用技巧

基础命令使用

高级诊断命令

jmap深度解析

jmap基本使用

jmap高级应用

async-profiler实战指南

async-profiler安装与配置

async-profiler实战案例

综合诊断策略

关于作者

如果这篇文章对你有帮助，请支持一下：

热门文章

最新文章

相关电子书
