一、什么是MoE架构？
核心定义
MoE是混合专家系统的缩写，是一种通过组合多个"专家"网络来构建更大模型的技术。每个专家都是相对较小的神经网络，而门控网络负责根据输入动态选择最相关的专家。
生动比喻：医院专科会诊系统
- 传统大模型：像全科神医
- 一个人掌握所有医学知识
- 每次看病都动用全部知识
- 成长困难：要学新知识就得重新学习所有内容
- MoE架构：像现代化医院
- 心脏科、神经科、骨科等各领域专家
- 根据病情分诊到最合适的专家
- 新专家可以随时加入，不影响其他科室

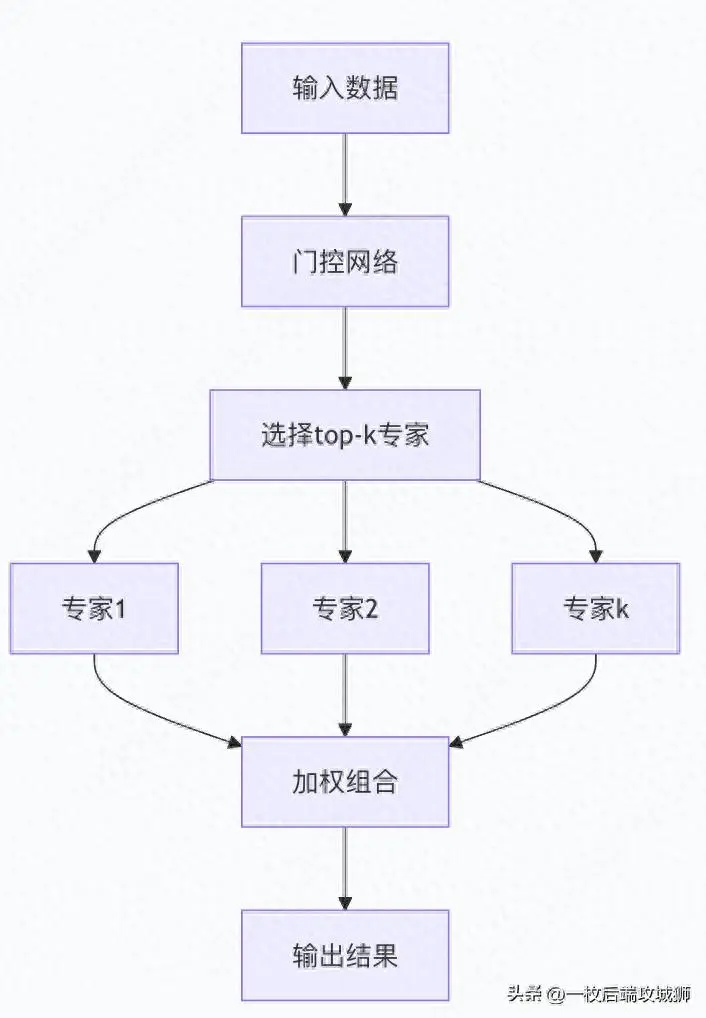

MoE的基本工作原理
代码实现基础MoE层
import torch import torch.nn as nn import torch.nn.functional as F class MoELayer(nn.Module): def __init__(self, input_dim, output_dim, num_experts, k=2): super().__init__() self.num_experts = num_experts self.k = k # 每次激活的专家数量 # 创建专家网络 self.experts = nn.ModuleList([ nn.Linear(input_dim, output_dim) for _ in range(num_experts) ]) # 门控网络 self.gate = nn.Linear(input_dim, num_experts) def forward(self, x): batch_size, seq_len, hidden_dim = x.shape # 门控网络计算每个专家的权重 gate_scores = self.gate(x) # [batch_size, seq_len, num_experts] # 选择top-k专家 topk_weights, topk_indices = torch.topk( gate_scores, self.k, dim=-1 ) topk_weights = F.softmax(topk_weights, dim=-1) # 初始化输出 output = torch.zeros_like(x) # 对每个选中的专家计算贡献 for i in range(self.k): expert_mask = topk_indices == i expert_output = self.experts[i](x) # 加权累加 weight = topk_weights[:, :, i:i+1] output += expert_output * weight return output # 使用示例 moe_layer = MoELayer( input_dim=512, output_dim=512, num_experts=8, k=2 )
二、MoE架构的优点与全链路优势
MoE的核心优势
1.计算效率的革命
数学表达：
传统模型计算量: O(N) # N为参数量 MoE模型计算量: O(N/k × k) = O(N) # 但常数项更小 实际效果: 总参数↑，激活参数→
2.专家专业化
每个专家可以专注于不同的数据模式或任务领域：
# 专家专业化的直观示例 def visualize_expert_specialization(): experts_specialization = { "expert_1": "处理数学推理和逻辑", "expert_2": "处理文学创作和修辞", "expert_3": "处理科学知识和事实", "expert_4": "处理编程代码", "expert_5": "处理多语言理解", "expert_6": "处理常识推理", "expert_7": "处理创造性思维", "expert_8": "处理分析性思考" } return experts_specialization
全链路优势分析
阶段1：模型设计与训练
训练效率提升：
# 传统模型 vs MoE模型训练对比 class TrainingComparison: def __init__(self): self.traditional_model = { "total_params": "175B", "active_params": "175B", # 所有参数都激活 "training_memory": "极高", "training_speed": "慢" } self.moe_model = { "total_params": "1.7T", # 10倍参数量 "active_params": "~20B", # 每次只激活少量专家 "training_memory": "中等", # 类似20B模型 "training_speed": "较快" # 并行训练专家 }
负载均衡技术：
class LoadBalancingLoss: """ MoE训练中的负载均衡损失，确保专家利用率均衡 """ def __init__(self, num_experts, importance_weight=0.01): self.num_experts = num_experts self.importance_weight = importance_weight def __call__(self, gate_scores, expert_usage): # 计算专家利用率方差 usage_variance = torch.var(expert_usage) # 计算重要性损失（防止门控网络总是选择相同专家） importance = gate_scores.sum(dim=0) importance_loss = torch.var(importance) return self.importance_weight * (usage_variance + importance_loss) # 在训练循环中使用 def moe_training_step(model, batch, load_balance_loss): outputs = model(batch) task_loss = outputs.loss # 获取门控网络输出和专家使用情况 gate_scores = outputs.gate_scores expert_usage = outputs.expert_usage # 计算负载均衡损失 balance_loss = load_balance_loss(gate_scores, expert_usage) # 总损失 total_loss = task_loss + balance_loss return total_loss
阶段2：推理与部署
推理成本优化：
# 推理时资源需求对比 inference_comparison = { "traditional_gpt3": { "parameters": "175B", "gpu_memory": "350GB+", # 假设2字节/参数 "inference_speed": "较慢", "cost_per_token": "高" }, "moe_model": { "total_parameters": "1.7T", "active_parameters": "20B", # 每次激活2个专家 "gpu_memory": "40GB", # 大幅减少 "inference_speed": "较快", "cost_per_token": "低" } }
动态专家选择：
class SmartMoEInference: """ 智能MoE推理，根据输入内容选择最相关专家 """ def __init__(self, moe_model, tokenizer): self.model = moe_model self.tokenizer = tokenizer self.expert_profiles = self.analyze_expert_specialization() def analyze_expert_specialization(self): """分析每个专家的专业领域""" # 通过分析训练数据中每个专家处理的内容 # 建立专家能力画像 profiles = {} for i in range(self.model.num_experts): profiles[i] = { "strengths": ["math", "code", "creative", ...], # 专业领域 "confidence_threshold": 0.3, # 激活阈值 "performance_metrics": {...} } return profiles def route_to_experts(self, input_text): """智能路由到相关专家""" # 分析输入内容 content_analysis = self.analyze_content(input_text) # 基于内容分析选择最相关的专家 relevant_experts = self.select_relevant_experts(content_analysis) return relevant_experts def generate(self, prompt, max_experts=2): """使用智能专家选择的生成""" relevant_experts = self.route_to_experts(prompt) # 限制使用的专家数量 selected_experts = relevant_experts[:max_experts] # 使用选中的专家进行生成 output = self.model.generate( prompt, active_experts=selected_experts ) return output
阶段3：持续学习与更新
模块化更新优势：
class MoEContinuousLearning: """ MoE模型的持续学习能力 """ def __init__(self, base_model): self.model = base_model def add_new_expert(self, new_domain_data): """添加处理新领域数据的专家""" # 1. 训练新专家 new_expert = self.train_expert_on_new_domain(new_domain_data) # 2. 添加到模型（不影响现有专家） self.model.add_expert(new_expert) # 3. 微调门控网络学习何时使用新专家 self.finetune_gating_network() def update_expert(self, expert_id, update_data): """更新特定专家""" # 只更新单个专家，不影响其他专家 self.model.experts[expert_id].train_on_data(update_data) def expert_ablation_study(self): """专家贡献度分析""" contributions = {} for i, expert in enumerate(self.model.experts): # 临时禁用该专家，观察性能变化 original_performance = self.evaluate_model() disabled_performance = self.evaluate_without_expert(i) contributions[i] = original_performance - disabled_performance return contributions

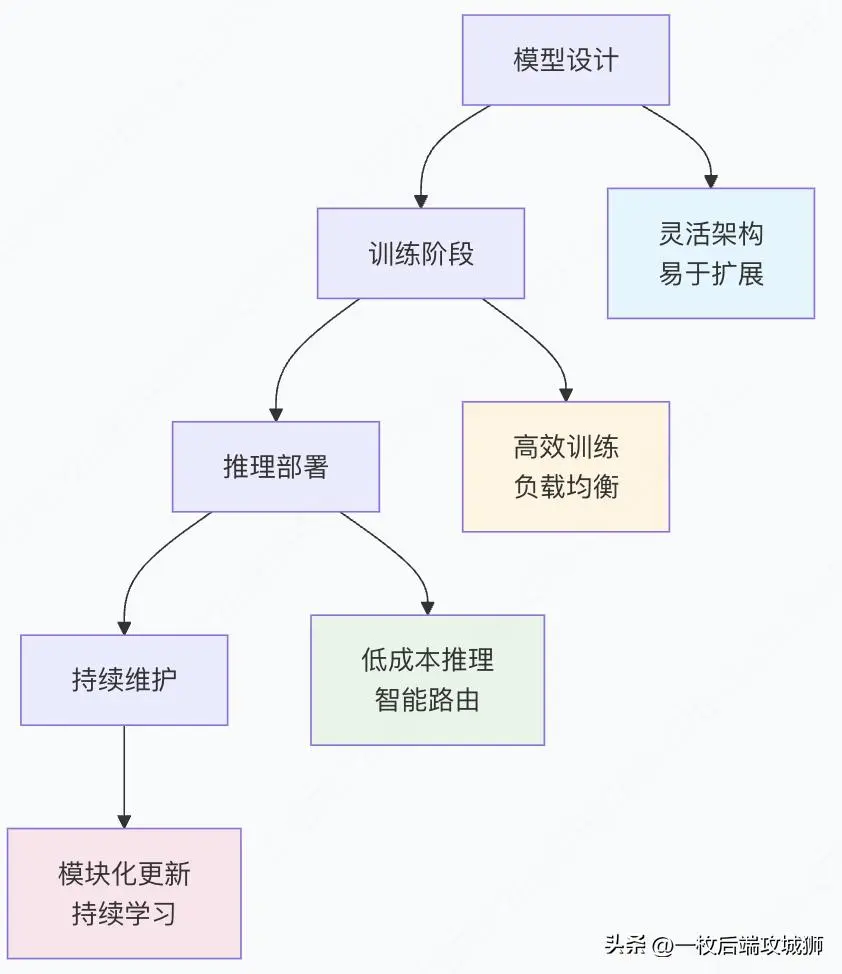

全链路优势总结
三、采用MoE架构的大模型
主流MoE模型概览
1.Google的MoE先驱
Switch Transformer：
# Switch Transformer配置 switch_transformer_config = { "model_name": "Switch Transformer", "release_date": "2021", "total_parameters": "1.6T", "active_parameters": "7B per token", "num_experts": 2048, "experts_used": 1, # Switch: 每次只使用1个专家 "key_innovation": "简化路由，每次只选1个专家", "performance": "在相同计算预算下，比T5快7倍" } # Switch Transformer的核心创新 class SwitchTransformerLayer(nn.Module): def __init__(self, d_model, d_ff, num_experts): super().__init__() # 使用Switch注意力：每个token路由到单个专家 self.switch_layer = SwitchLinear(d_model, d_ff, num_experts) def forward(self, x): # 每个输入token独立选择最适合的专家 return self.switch_layer(x)
GLaM模型：
glam_config = { "model_name": "GLaM", "total_parameters": "1.2T", "active_parameters": "96B per token", "num_experts": 64, "experts_used": 2, "specialization": "每个专家专注不同主题领域", "performance": "在29个NLP任务中超越GPT-3" }
2.开源社区的MoE模型
Mixtral 8x7B：
mixtral_config = { "model_name": "Mixtral 8x7B", "developer": "Mistral AI", "total_parameters": "47B", # 8个专家×7B，但实际有效参数量 "active_parameters": "13B", # 每次激活2个专家 "num_experts": 8, "experts_used": 2, "context_length": "32K", "key_features": [ "开源可用", "多语言支持", "代码能力优秀", "推理成本相当于13B模型" ] } # Mixtral的架构特点 class MixtralArchitecture: def __init__(self): self.base_model = "Mistral 7B" self.moe_layers = [4, 8, 16, 20, 24, 28] # 在这些层使用MoE self.expert_architecture = { "type": "前馈网络专家", "size": "与Mistral 7B的FFN相同", "activation": "SiLU" }
DeepSeek-MoE：
deepseek_moe_config = { "model_name": "DeepSeek-MoE", "total_parameters": "16B", "active_parameters": "2.8B", "num_experts": 64, "experts_used": 4, "compression_ratio": "5.7x", # 参数压缩比 "innovation": "细粒度专家设计" }
3.商业化MoE模型
GPT-4的推测架构：
# 基于公开信息的推测 gpt4_moe_speculation = { "model_name": "GPT-4", "total_parameters": "~1.8T", "active_parameters": "~100B per token", "num_experts": "8-16", "architecture": "混合专家Transformer", "evidence": [ "不同回答风格显示专家专业化", "计算成本远低于同等参数量的稠密模型", "多模态能力可能对应不同专家组" ] }
MoE模型对比表格
模型 |
总参数量 |
激活参数量 |
专家数量 |
使用专家数 |
主要特点 |
Switch Transformer |
1.6T |
7B |
2048 |
1 |
简化路由，高效训练 |
GLaM |
1.2T |
96B |
64 |
2 |
主题专家专业化 |
Mixtral 8x7B |
47B |
13B |
8 |
2 |
开源，性能优秀 |
DeepSeek-MoE |
16B |
2.8B |
64 |
4 |
高压缩比，细粒度专家 |
GPT-4(推测) |
~1.8T |
~100B |
8-16 |
2-4 |
多模态，商业化 |

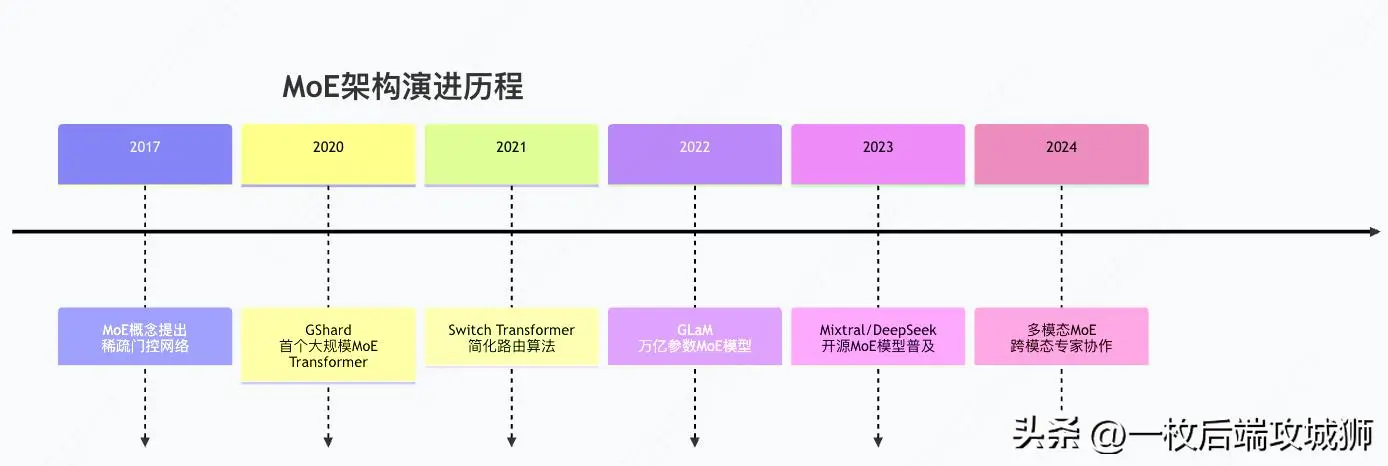

MoE架构的演进趋势
四、MoE实践指南与代码示例
完整的MoE Transformer实现
import torch import torch.nn as nn from transformers import GPT2Config, GPT2Model class MoETransformerBlock(nn.Module): """MoE Transformer块""" def __init__(self, config, moe_config): super().__init__() self.config = config self.moe_config = moe_config # 自注意力层 self.self_attention = nn.MultiheadAttention( config.n_embd, config.n_head, batch_first=True ) self.attention_norm = nn.LayerNorm(config.n_embd) # MoE前馈层 self.moe_ffn = MoEFeedForward( config.n_embd, config.n_embd * 4, # 扩展维度 moe_config.num_experts, moe_config.experts_used ) self.ffn_norm = nn.LayerNorm(config.n_embd) def forward(self, x, attention_mask=None): # 自注意力 residual = x x = self.attention_norm(x) attn_output, _ = self.self_attention(x, x, x, attn_mask=attention_mask) x = residual + attn_output # MoE前馈 residual = x x = self.ffn_norm(x) ff_output, expert_usage = self.moe_ffn(x) x = residual + ff_output return x, expert_usage class MoEFeedForward(nn.Module): """MoE前馈网络""" def __init__(self, d_model, d_ff, num_experts, experts_used): super().__init__() self.num_experts = num_experts self.experts_used = experts_used # 专家网络 self.experts = nn.ModuleList([ nn.Sequential( nn.Linear(d_model, d_ff), nn.GELU(), nn.Linear(d_ff, d_model) ) for _ in range(num_experts) ]) # 门控网络 self.gate = nn.Linear(d_model, num_experts) # 负载均衡统计 self.register_buffer('expert_usage', torch.zeros(num_experts)) def forward(self, x): batch_size, seq_len, d_model = x.shape # 门控计算 gate_logits = self.gate(x) # [batch_size, seq_len, num_experts] # 选择top-k专家 topk_weights, topk_indices = torch.topk( gate_logits, self.experts_used, dim=-1 ) topk_weights = torch.softmax(topk_weights, dim=-1) # 初始化输出 output = torch.zeros_like(x) # 更新专家使用统计 expert_usage = torch.zeros(self.num_experts, device=x.device) # 对每个位置计算专家输出 for i in range(self.experts_used): # 创建当前专家的mask expert_mask = topk_indices == i # 计算当前专家的输出 expert_output = self.experts[i](x) # 加权累加 weight = topk_weights[:, :, i:i+1] output += expert_output * weight * expert_mask.float() # 更新使用统计 expert_usage[i] += expert_mask.sum().item() # 归一化使用统计 expert_usage = expert_usage / (batch_size * seq_len) self.expert_usage = 0.9 * self.experty_usage + 0.1 * expert_usage return output, expert_usage class MoEGPT2(nn.Module): """基于GPT2的MoE模型""" def __init__(self, config, moe_config): super().__init__() self.config = config self.moe_config = moe_config # 词嵌入 self.wte = nn.Embedding(config.vocab_size, config.n_embd) self.wpe = nn.Embedding(config.n_positions, config.n_embd) # MoE Transformer层 self.layers = nn.ModuleList([ MoETransformerBlock(config, moe_config) for _ in range(config.n_layer) ]) # 输出层 self.ln_f = nn.LayerNorm(config.n_embd) self.head = nn.Linear(config.n_embd, config.vocab_size, bias=False) def forward(self, input_ids, attention_mask=None): batch_size, seq_len = input_ids.shape # 位置编码 position_ids = torch.arange(seq_len, dtype=torch.long, device=input_ids.device) position_ids = position_ids.unsqueeze(0).expand(batch_size, -1) # 输入嵌入 inputs_embeds = self.wte(input_ids) position_embeds = self.wpe(position_ids) hidden_states = inputs_embeds + position_embeds # 通过MoE层 expert_usage_history = [] for layer in self.layers: hidden_states, expert_usage = layer(hidden_states, attention_mask) expert_usage_history.append(expert_usage) # 输出投影 hidden_states = self.ln_f(hidden_states) logits = self.head(hidden_states) return logits, expert_usage_history # 配置示例 gpt2_config = GPT2Config( vocab_size=50257, n_embd=768, n_layer=12, n_head=12, n_positions=1024 ) moe_config = type('MoEConfig', (), { 'num_experts': 8, 'experts_used': 2 })() # 创建MoE模型 model = MoEGPT2(gpt2_config, moe_config)
训练优化技巧
class MoETrainingOptimizer: """MoE模型训练优化""" def __init__(self, model, learning_rate=1e-4): self.model = model # 不同部分使用不同学习率 self.optimizer = torch.optim.AdamW([ {'params': model.wte.parameters(), 'lr': learning_rate}, {'params': model.wpe.parameters(), 'lr': learning_rate}, {'params': [p for n, p in model.named_parameters() if 'experts' in n], 'lr': learning_rate * 2}, {'params': [p for n, p in model.named_parameters() if 'gate' in n], 'lr': learning_rate * 5}, ]) def load_balancing_loss(self, expert_usage_history): """计算负载均衡损失""" total_loss = 0 for expert_usage in expert_usage_history: # 鼓励均匀使用专家 usage_mean = expert_usage.mean() usage_std = expert_usage.std() balance_loss = usage_std / (usage_mean + 1e-6) total_loss += balance_loss return total_loss def training_step(self, batch, balance_weight=0.01): input_ids, labels = batch # 前向传播 logits, expert_usage_history = self.model(input_ids) # 任务损失 task_loss = F.cross_entropy( logits.view(-1, logits.size(-1)), labels.view(-1) ) # 负载均衡损失 balance_loss = self.load_balancing_loss(expert_usage_history) # 总损失 total_loss = task_loss + balance_weight * balance_loss # 反向传播 self.optimizer.zero_grad() total_loss.backward() self.optimizer.step() return { 'total_loss': total_loss.item(), 'task_loss': task_loss.item(), 'balance_loss': balance_loss.item() }
总结：MoE架构的革命性意义

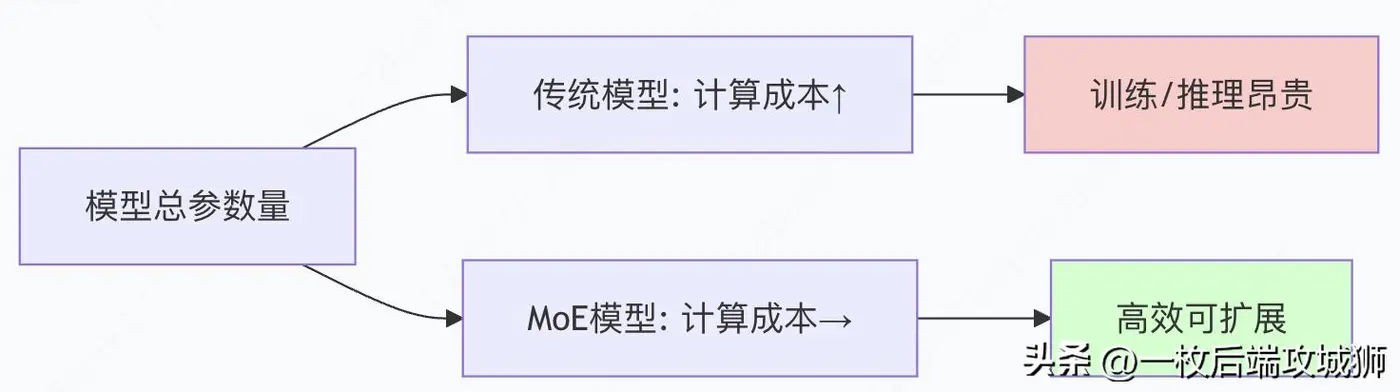

技术突破的核心价值
关键成功因素
- 稀疏激活：保持计算效率的同时大幅增加参数量
- 专家专业化：每个专家专注特定领域，提升整体能力
- 模块化设计：支持灵活扩展和更新
- 智能路由：动态选择最适合的专家组合
未来发展方向
- 更细粒度专家：从层级别到神经元级别的MoE
- 跨模态专家：处理文本、图像、音频的多模态MoE
- 动态专家数量：根据任务复杂度自动调整激活专家数
- 联邦MoE：分布式专家网络，保护数据隐私
实践建议
对于不同场景的MoE采用策略：
场景 |
建议 |
理由 |
研究实验 |
从小规模MoE开始(4-8专家) |
快速验证，调试路由机制 |
生产部署 |
选择成熟开源MoE(Mixtral) |
稳定性验证，社区支持 |
资源受限 |
高压缩比MoE(DeepSeek-MoE) |
平衡性能与成本 |
前沿探索 |
自定义MoE架构 |
针对特定任务优化 |
MoE架构不仅解决了大模型的规模扩展问题，更重要的是为AI系统提供了一种模块化、专业化、可演进的智能构建范式。这不仅是技术的进步，更是AI工程范式的革命，为构建真正通用、高效、可持续的人工智能系统奠定了坚实基础。
