1. 引言：高可用性的业务价值
在当今数字化时代，数据库高可用性不再是"锦上添花"，而是业务连续性的"生命线"。对于Java开发者而言，理解MySQL高可用架构意味着：
- 业务连续性：保证7×24小时服务不中断
- 数据安全：防止单点故障导致数据丢失
- 性能扩展：支撑业务快速增长的数据访问需求
- 故障恢复：快速从各类故障中恢复服务
// 高可用缺失的代价 - 电商平台场景 @Service public class OrderService { public void createOrder(OrderDTO order) { try { // 数据库宕机时，整个交易链路中断 orderDAO.insert(order); inventoryDAO.deduct(order.getItems()); paymentService.process(order); } catch (DatabaseConnectionException e) { // 直接影响营收和用户体验 throw new BusinessException("系统繁忙，请稍后重试"); } } }
2. 高可用基础概念
2.1 可用性指标与SLA
2.2 高可用核心要素
- 冗余性：消除单点故障
- 监控性：实时检测组件状态
- 故障转移：自动切换备用系统
- 数据一致性：保证主从数据同步
- 可恢复性：快速从故障中恢复
3. 基于复制的高可用架构
3.1 主从复制架构

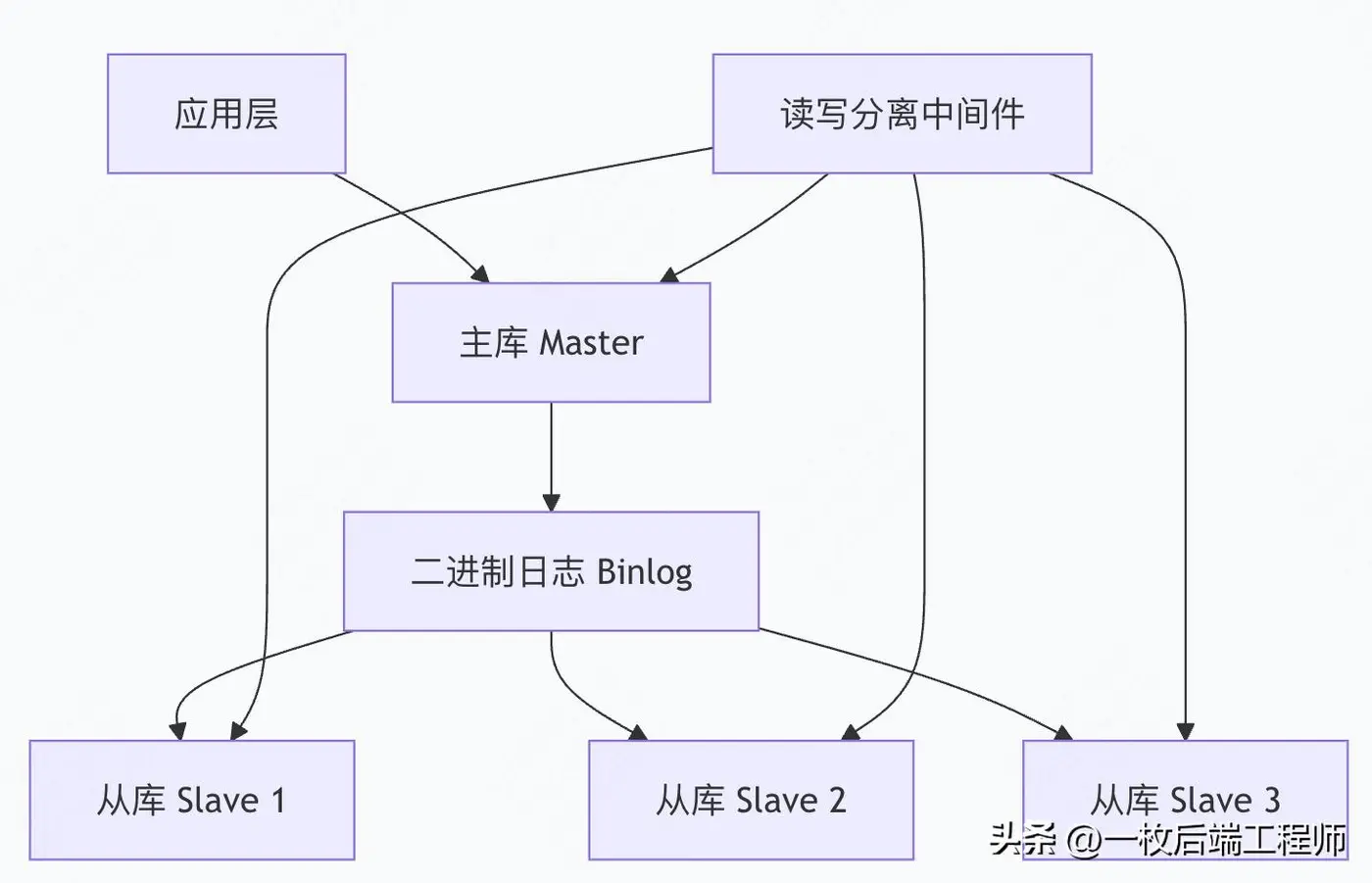

3.1.1 基础架构设计
3.1.2 复制模式深度解析
public class ReplicationModeAnalysis { /** * 异步复制 - 性能优先 */ public void asyncReplication() { // 主库提交事务后立即返回，不等待从库确认 // 优点：性能最佳 // 缺点：可能丢失数据（主库宕机时） } /** * 半同步复制 - 平衡选择 */ public void semiSyncReplication() { // 主库提交事务时，至少等待一个从库确认 // 优点：保证数据至少有一个副本 // 缺点：性能略有下降 } /** * 全同步复制 - 数据安全优先 */ public void fullSyncReplication() { // 主库提交事务时，等待所有从库确认 // 优点：数据最安全 // 缺点：性能影响较大 } } // 半同步复制配置示例 @Configuration public class SemiSyncConfig { @Bean public CommandLineRunner setupSemiSync(DataSource dataSource) { return args -> { JdbcTemplate jdbc = new JdbcTemplate(dataSource); // 主库配置 jdbc.execute("INSTALL PLUGIN rpl_semi_sync_master SONAME 'semisync_master.so'"); jdbc.execute("SET GLOBAL rpl_semi_sync_master_enabled = 1"); jdbc.execute("SET GLOBAL rpl_semi_sync_master_timeout = 1000"); // 1秒超时 // 从库配置 jdbc.execute("INSTALL PLUGIN rpl_semi_sync_slave SONAME 'semisync_slave.so'"); jdbc.execute("SET GLOBAL rpl_semi_sync_slave_enabled = 1"); }; } }
3.2 主主复制架构
3.2.1 双主模式设计
-- 节点A配置 (server-id=1) [mysqld] server-id = 1 log-bin = mysql-bin auto_increment_increment = 2 auto_increment_offset = 1 replicate-do-db = business_db -- 节点B配置 (server-id=2) [mysqld] server-id = 2 log-bin = mysql-bin auto_increment_increment = 2 auto_increment_offset = 2 replicate-do-db = business_db
3.2.2 数据冲突解决策略
@Service public class DualMasterConflictResolver { /** * 自增ID冲突避免 - 奇偶分配 */ public class IdGenerator { private final long nodeId; // 1 或 2 public Long generateId() { // 节点1生成奇数ID：1, 3, 5, 7... // 节点2生成偶数ID：2, 4, 6, 8... String sql = "SELECT business_seq.nextval * 2 - ? FROM dual"; return jdbcTemplate.queryForObject(sql, Long.class, nodeId); } } /** * 数据冲突检测与处理 */ @Transactional public void handleDataConflict(String businessKey, Object newData) { // 1. 检查最后更新时间 Timestamp lastUpdate = getLastUpdateTime(businessKey); // 2. 基于时间戳的冲突解决 if (isNewerData(lastUpdate, newData.getUpdateTime())) { updateData(businessKey, newData); } else { log.warn("数据冲突，忽略旧数据更新: {}", businessKey); // 可选的冲突解决策略： // - 记录冲突日志 // - 通知管理员 // - 业务特定解决逻辑 } } }
4. MySQL Group Replication

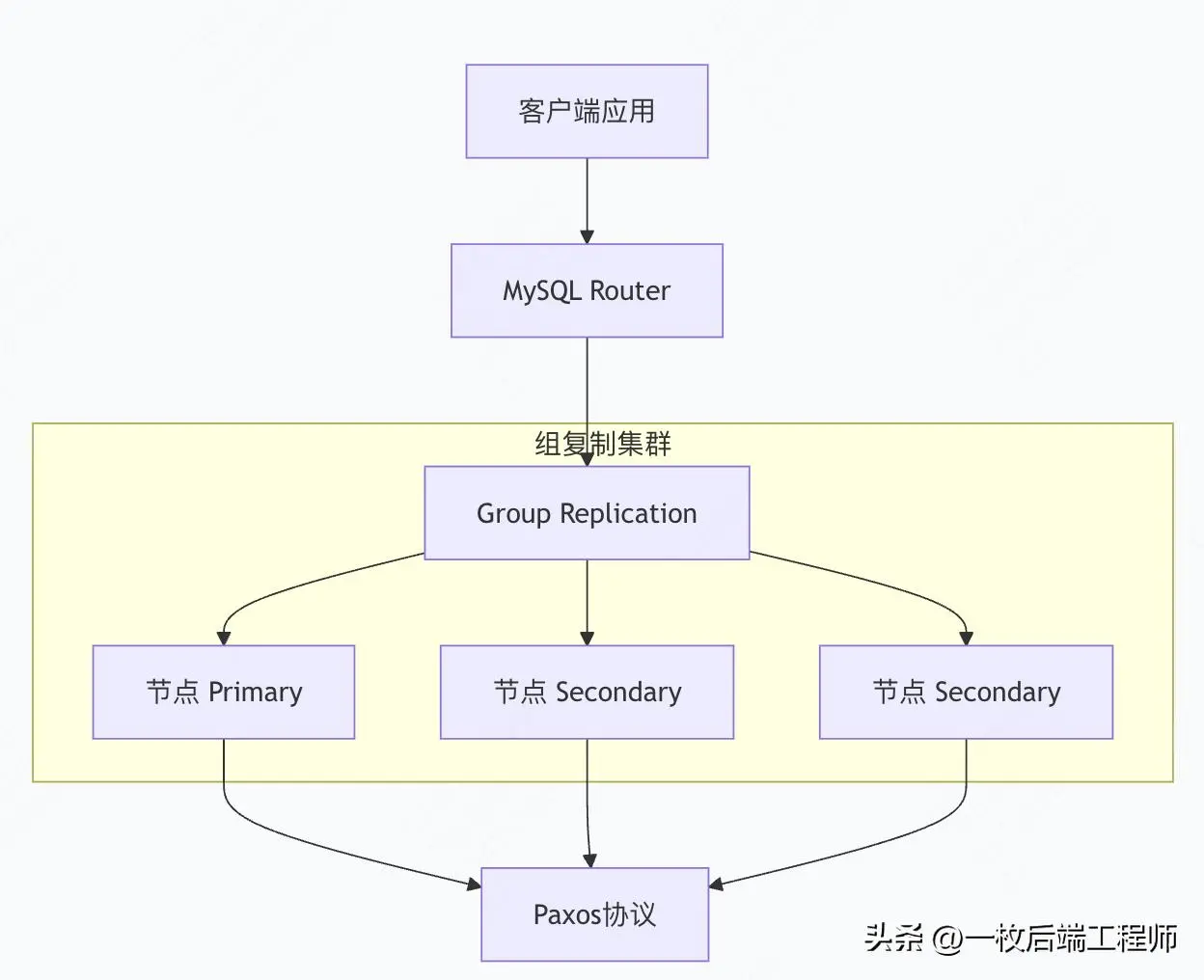

4.1 组复制原理架构
4.2 组复制配置实战
4.2.1 集群初始化
# 节点1 - 引导节点 mysqld --defaults-file=node1.cnf --initialize-insecure mysqld --defaults-file=node1.cnf & mysql -h 127.0.0.1 -P 3306 -u root -p # MySQL中执行： SET SQL_LOG_BIN=0; CREATE USER replication@'%' IDENTIFIED BY 'password'; GRANT REPLICATION SLAVE ON *.* TO replication@'%'; FLUSH PRIVILEGES; SET SQL_LOG_BIN=1; INSTALL PLUGIN group_replication SONAME 'group_replication.so'; SET GLOBAL group_replication_bootstrap_group=ON; START GROUP_REPLICATION; SET GLOBAL group_replication_bootstrap_group=OFF;
4.2.2 节点加入集群
-- 节点2加入集群 INSTALL PLUGIN group_replication SONAME 'group_replication.so'; SET GLOBAL group_replication_group_seeds = "node1:33061,node2:33061,node3:33061"; START GROUP_REPLICATION USER='replication', PASSWORD='password'; -- 验证集群状态 SELECT * FROM performance_schema.replication_group_members;
4.2.3 Java应用集成
@Configuration public class GroupReplicationConfig { @Bean @Primary public DataSource groupReplicationDataSource() { MysqlDataSource dataSource = new MysqlDataSource(); // 配置多节点连接 dataSource.setUrl("jdbc:mysql:replication://" + "node1:3306,node2:3306,node3:3306/business_db?" + "loadBalanceStrategy=random&" + "autoReconnect=true&" + "failOverReadOnly=false"); dataSource.setUser("app_user"); dataSource.setPassword("secure_password"); return dataSource; } @Bean public GroupReplicationHealthCheck healthCheck() { return new GroupReplicationHealthCheck(); } } @Component public class GroupReplicationHealthCheck { @Autowired private DataSource dataSource; public Health checkHealth() { try { JdbcTemplate jdbc = new JdbcTemplate(dataSource); // 检查集群成员状态 List<Map<String, Object>> members = jdbc.queryForList( "SELECT member_id, member_host, member_state " + "FROM performance_schema.replication_group_members" ); long healthyMembers = members.stream() .filter(m -> "ONLINE".equals(m.get("member_state"))) .count(); if (healthyMembers >= 2) { return Health.up() .withDetail("activeMembers", healthyMembers) .build(); } else { return Health.down() .withDetail("activeMembers", healthyMembers) .build(); } } catch (Exception e) { return Health.down(e).build(); } } }
5. InnoDB Cluster全面解析

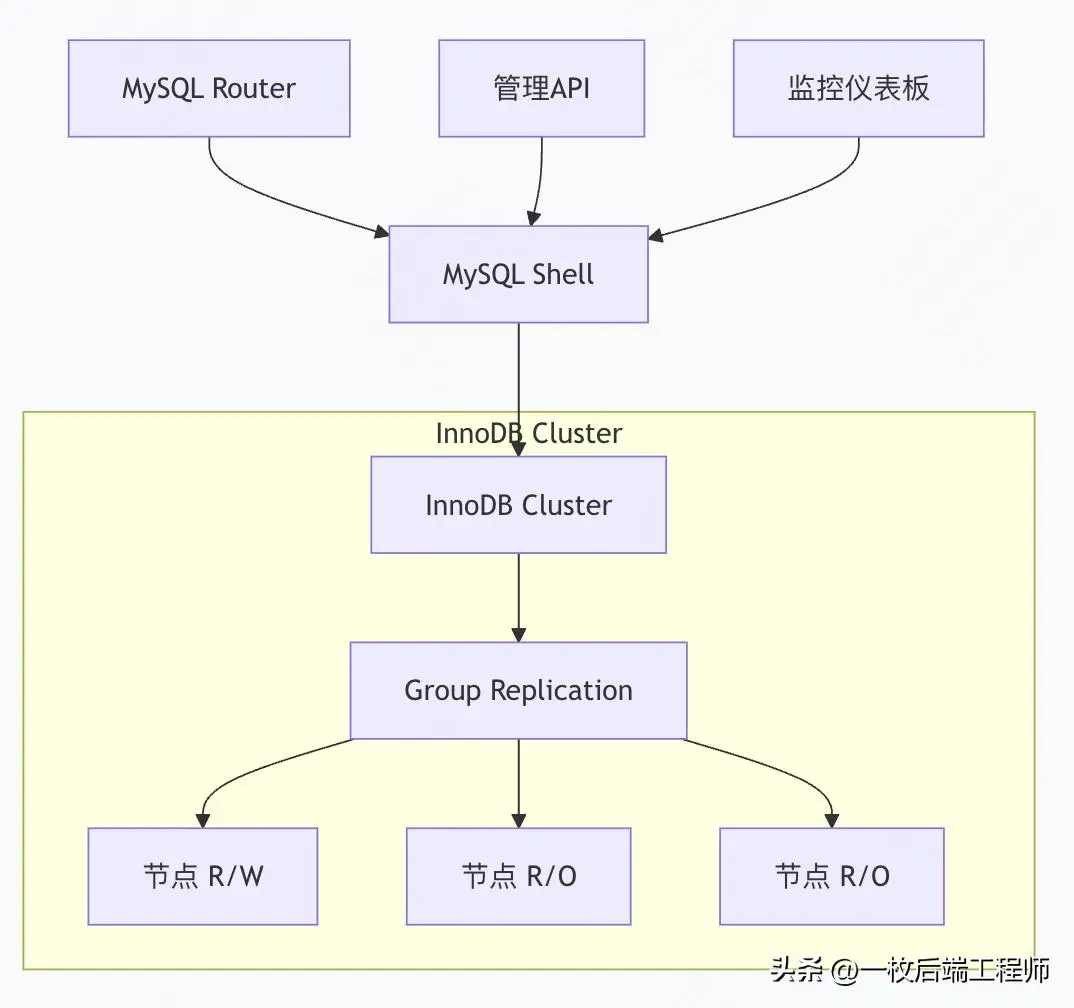

5.1 架构组件详解
5.2 集群部署与管理
5.2.1 使用MySQL Shell部署
// 使用MySQL Shell配置InnoDB Cluster // 连接到种子节点 \connect root@node1:3306 // 创建集群 var cluster = dba.createCluster('production_cluster') // 添加实例 cluster.addInstance('root@node2:3306', {password: 'password'}) cluster.addInstance('root@node3:3306', {password: 'password'}) // 检查集群状态 cluster.status() // 配置MySQL Router // 在应用服务器安装并配置Router mysqlrouter --bootstrap root@node1:3306 --directory /opt/mysqlrouter --user=mysqlrouter
5.2.2 集群运维命令
-- 查看集群状态 SELECT * FROM performance_schema.replication_group_members; -- 检查集群健康度 SELECT * FROM mysql_innodb_cluster_metadata.instances; -- 手动故障转移 -- 在MySQL Shell中执行： cluster.setPrimaryInstance('node2:3306') -- 移除故障节点 cluster.removeInstance('node3:3306')
5.3 Java应用适配
@Configuration @EnableConfigurationProperties(ClusterProperties.class) public class InnoDBClusterConfig { @Bean @Primary public DataSource innodbClusterDataSource(ClusterProperties properties) { MysqlDataSource dataSource = new MysqlDataSource(); // 使用MySQL Router作为接入点 dataSource.setUrl("jdbc:mysql://router-host:6446/business_db?" + "loadBalanceAutoCommitStatementThreshold=5&" + "retriesAllDown=10&" + "secondsBeforeRetryMaster=30&" + "initialTimeout=2"); dataSource.setUser(properties.getUsername()); dataSource.setPassword(properties.getPassword()); return new LazyConnectionDataSourceProxy(dataSource); } @Bean public ClusterAwareTransactionManager transactionManager(DataSource dataSource) { return new ClusterAwareTransactionManager(dataSource); } } @Component public class ClusterAwareTransactionManager extends DataSourceTransactionManager { public ClusterAwareTransactionManager(DataSource dataSource) { super(dataSource); } @Override protected void doBegin(Object transaction, TransactionDefinition definition) { try { super.doBegin(transaction, definition); } catch (CannotGetJdbcConnectionException e) { // 处理集群节点故障 handleClusterFailure(e); throw e; } } private void handleClusterFailure(CannotGetJdbcConnectionException e) { // 记录故障、告警、尝试重连等 log.error("数据库集群连接失败", e); alertService.sendClusterAlert(e.getMessage()); } }
6. 高可用架构模式对比
6.1 架构选型矩阵
架构模式 |
数据一致性 |
自动故障转移 |
性能影响 |
复杂度 |
适用场景 |
主从复制 |
最终一致 |
需要外部工具 |
低 |
低 |
读扩展、备份 |
主主复制 |
冲突风险 |
需要外部工具 |
中 |
中 |
写扩展、跨地域 |
MHA |
强一致 |
自动 |
中 |
中 |
传统业务系统 |
Group Replication |
强一致 |
自动 |
中高 |
高 |
金融、交易系统 |
InnoDB Cluster |
强一致 |
自动 |
中高 |
高 |
云原生、容器化 |
6.2 性能基准测试
@SpringBootTest public class HighAvailabilityBenchmark { @Autowired private DataSource dataSource; @Test public void benchmarkWritePerformance() { JdbcTemplate jdbc = new JdbcTemplate(dataSource); // 测试不同复制模式下的写性能 long startTime = System.currentTimeMillis(); for (int i = 0; i < 1000; i++) { jdbc.update("INSERT INTO test_table VALUES (?, ?)", i, "test_data"); } long duration = System.currentTimeMillis() - startTime; System.out.println("写入1000条记录耗时: " + duration + "ms"); } @Test public void testFailoverTime() throws InterruptedException { // 模拟主节点故障，测量故障转移时间 failPrimaryNode(); long startTime = System.currentTimeMillis(); boolean recovered = waitForRecovery(30); // 30秒超时 long failoverTime = System.currentTimeMillis() - startTime; assertThat(recovered).isTrue(); System.out.println("故障转移时间: " + failoverTime + "ms"); } }
7. 故障转移与恢复策略
7.1 自动故障转移设计
@Component public class AutomaticFailoverManager { @Autowired private HealthCheckService healthCheck; @Autowired private ClusterConfigManager configManager; @Scheduled(fixedRate = 5000) // 每5秒检查一次 public void monitorClusterHealth() { ClusterHealth health = healthCheck.checkClusterHealth(); if (health.getStatus() == HealthStatus.DEGRADED) { handleDegradedCluster(health); } else if (health.getStatus() == HealthStatus.DOWN) { initiateFailover(health); } } private void initiateFailover(ClusterHealth health) { log.warn("检测到集群故障，开始故障转移"); try { // 1. 停止应用写入 trafficManager.blockWrites(); // 2. 选举新的主节点 String newPrimary = electNewPrimary(health); // 3. 重新配置集群 configManager.promoteToPrimary(newPrimary); // 4. 更新应用配置 configManager.updateDataSourceConfig(newPrimary); // 5. 恢复应用写入 trafficManager.resumeWrites(); log.info("故障转移完成，新主节点: {}", newPrimary); } catch (Exception e) { log.error("故障转移失败", e); alertService.sendCriticalAlert("自动故障转移失败，需要手动干预"); } } private String electNewPrimary(ClusterHealth health) { // 基于GTID位置、机器配置、负载等选举新主节点 return health.getAvailableNodes().stream() .max(Comparator.comparing(Node::getReplicationLag) .thenComparing(Node::getPerformanceScore)) .orElseThrow(() -> new IllegalStateException("无可用节点")) .getHost(); } }
7.2 数据一致性保障
@Service public class DataConsistencyService { /** * 在故障转移前后保证数据一致性 */ @Transactional public void processWithConsistencyGuarantee(BusinessOperation operation) { // 1. 记录操作开始 String operationId = recordOperationStart(operation); try { // 2. 执行业务操作 executeBusinessOperation(operation); // 3. 确认操作完成 markOperationCompleted(operationId); } catch (Exception e) { // 4. 记录操作失败 markOperationFailed(operationId, e.getMessage()); throw e; } } /** * 故障恢复后的一致性检查 */ public void verifyDataConsistencyAfterFailover() { List<String> pendingOperations = findPendingOperations(); for (String opId : pendingOperations) { try { // 重新执行或补偿未完成的操作 compensateOperation(opId); } catch (Exception e) { log.error("操作补偿失败: {}", opId, e); // 记录人工干预需要的异常 } } } }
8. 监控与告警体系
8.1 全方位监控指标
# Prometheus监控配置 scrape_configs: - job_name: 'mysql_cluster' static_configs: - targets: ['node1:9104', 'node2:9104', 'node3:9104'] metrics_path: /metrics params: collect[]: - group_replication - innodb - replication - engine_innodb_status # 关键告警规则 groups: - name: mysql_cluster_alerts rules: - alert: MySQLClusterMemberDown expr: mysql_group_replication_member_status != 1 for: 1m labels: severity: critical annotations: summary: "MySQL集群节点异常" - alert: MySQLReplicationLagHigh expr: mysql_replication_slave_lag_seconds > 30 for: 2m labels: severity: warning
8.2 Java应用监控集成
@Component public class ClusterMetricsExporter { @Autowired private DataSource dataSource; @Autowired private MeterRegistry meterRegistry; private final Gauge replicationLag; private final Counter failoverCount; public ClusterMetricsExporter() { // 注册自定义指标 this.replicationLag = Gauge.builder("mysql.replication.lag.seconds") .description("复制延迟秒数") .register(meterRegistry); this.failoverCount = Counter.builder("mysql.failover.count") .description("故障转移次数") .register(meterRegistry); } @Scheduled(fixedRate = 10000) public void updateMetrics() { try { JdbcTemplate jdbc = new JdbcTemplate(dataSource); // 监控复制延迟 Long lag = jdbc.queryForObject( "SELECT seconds_behind_master FROM information_schema.slave_status", Long.class); replicationLag.set(lag != null ? lag : 0); // 监控集群状态 Integer memberCount = jdbc.queryForObject( "SELECT COUNT(*) FROM performance_schema.replication_group_members WHERE member_state = 'ONLINE'", Integer.class); Gauge.builder("mysql.cluster.online.members") .description("在线集群成员数") .register(meterRegistry) .set(memberCount); } catch (Exception e) { log.warn("集群指标收集失败", e); } } }
9. 生产环境最佳实践
9.1 容量规划与性能优化
# 高可用环境优化配置 [mysqld] # 组复制优化 group_replication_flow_control_mode = "QUOTA" group_replication_member_expel_timeout = 5 # InnoDB优化 innodb_buffer_pool_size = 16G innodb_log_file_size = 2G innodb_flush_log_at_trx_commit = 2 # 复制优化 slave_parallel_workers = 8 slave_parallel_type = LOGICAL_CLOCK # 连接管理 max_connections = 1000 thread_cache_size = 100
9.2 备份与灾难恢复
@Service public class DisasterRecoveryService { /** * 跨地域灾备策略 */ public void setupCrossRegionDR() { // 1. 主集群：上海 // 2. 同城灾备：上海另一个可用区 // 3. 异地灾备：北京 } /** * 定期灾备演练 */ @Scheduled(cron = "0 0 2 * * SUN") // 每周日凌晨2点 public void performDisasterRecoveryDrill() { log.info("开始灾备演练"); try { // 1. 切换到灾备站点 switchToDRSite(); // 2. 验证应用功能 verifyApplicationFunctionality(); // 3. 切换回主站点 switchBackToPrimary(); log.info("灾备演练完成"); } catch (Exception e) { log.error("灾备演练失败", e); alertService.sendDRDrillAlert(e.getMessage()); } } /** * 数据备份验证 */ public boolean verifyBackupIntegrity(String backupId) { // 验证备份文件的完整性和可恢复性 return backupVerifier.verifyBackup(backupId); } }
10. 云原生高可用架构
10.1 Kubernetes中的MySQL高可用
# mysql-cluster-statefulset.yaml apiVersion: apps/v1 kind: StatefulSet metadata: name: mysql-cluster spec: serviceName: mysql replicas: 3 selector: matchLabels: app: mysql template: metadata: labels: app: mysql spec: containers: - name: mysql image: mysql:8.0 env: - name: MYSQL_ROOT_PASSWORD valueFrom: secretKeyRef: name: mysql-secret key: root-password ports: - containerPort: 3306 volumeMounts: - name: mysql-data mountPath: /var/lib/mysql - name: mysql-config mountPath: /etc/mysql/conf.d livenessProbe: exec: command: ["mysqladmin", "ping", "-h", "localhost"] initialDelaySeconds: 30 periodSeconds: 10 readinessProbe: exec: command: ["mysql", "-h", "localhost", "-u", "root", "-p${MYSQL_ROOT_PASSWORD}", "-e", "SELECT 1"] initialDelaySeconds: 5 periodSeconds: 5 volumeClaimTemplates: - metadata: name: mysql-data spec: accessModes: [ "ReadWriteOnce" ] storageClassName: "fast-ssd" resources: requests: storage: 100Gi
10.2 服务网格集成
@Configuration public class ServiceMeshIntegration { @Bean public DataSource meshAwareDataSource() { // 在服务网格环境中，通过服务发现连接数据库集群 return new MeshAwareDataSource(); } } @Component public class DatabaseCircuitBreaker { @Autowired private CircuitBreakerRegistry circuitBreakerRegistry; public <T> T executeWithCircuitBreaker(Supplier<T> databaseOperation) { CircuitBreaker circuitBreaker = circuitBreakerRegistry .circuitBreaker("database"); return circuitBreaker.executeSupplier(databaseOperation); } public void handleDatabaseOutage() { // 数据库不可用时的降级策略 // 1. 返回缓存数据 // 2. 使用只读副本 // 3. 返回默认值并记录补偿操作 } }
11. 总结
MySQL高可用架构是一个多层次、多维度的系统工程，需要从数据层、应用层到基础设施层的全面考虑：
- 架构选型：根据业务需求选择合适的HA方案
- 数据安全：保证故障场景下的数据一致性
- 自动运维：实现故障自动检测和转移
- 性能保障：在HA基础上保证系统性能
- 监控告警：建立全方位的监控体系
通过系统化的高可用架构设计，可以为业务提供坚实的数据基础保障，支撑企业在数字化时代的快速发展。
