1. RPC基础概念

1.1 什么是RPC

RPC（Remote Procedure Call）远程过程调用是一种计算机通信协议，允许程序调用另一个地址空间（通常是共享网络的另一台机器上）的过程或函数，而程序员无需显式编码这个远程调用的细节。

1.2 RPC在微服务架构中的价值

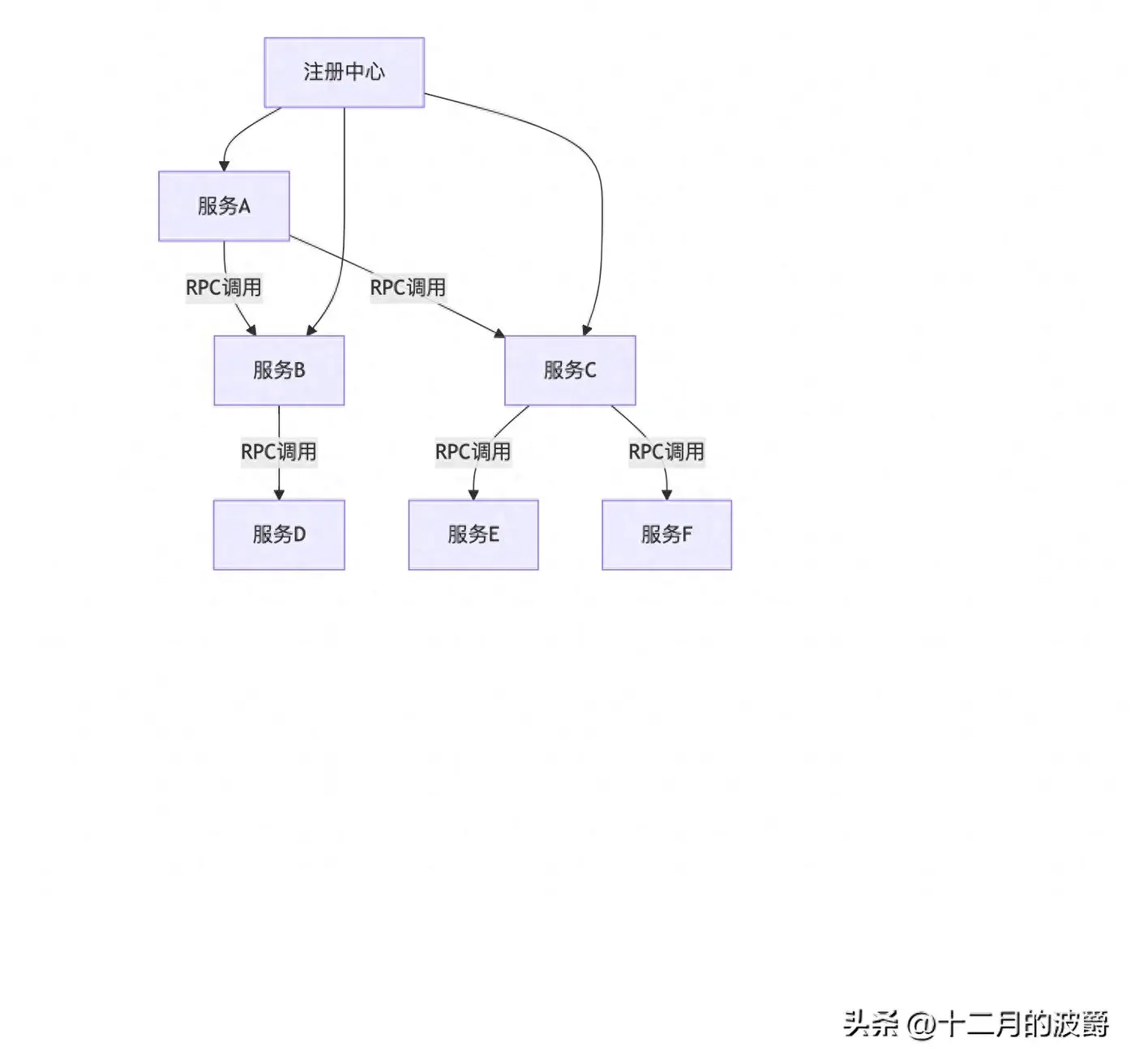

在微服务架构中，服务之间的通信模式如下：

RPC的核心价值体现在：

位置透明：调用者无需关心服务实例的具体位置
协议统一：统一的调用方式和数据格式
高效通信：相比RESTful API，性能更高
服务治理：内置负载均衡、熔断、降级等能力

1.3 RPC vs RESTful API

特性	RPC	RESTful API
通信协议	通常基于TCP	基于HTTP/HTTPS
性能	更高，二进制协议	相对较低，文本协议
服务发现	内置	需要额外组件
数据格式	Protobuf、Thrift等	JSON、XML
适用场景	内部服务调用	对外API开放

2. RPC核心架构

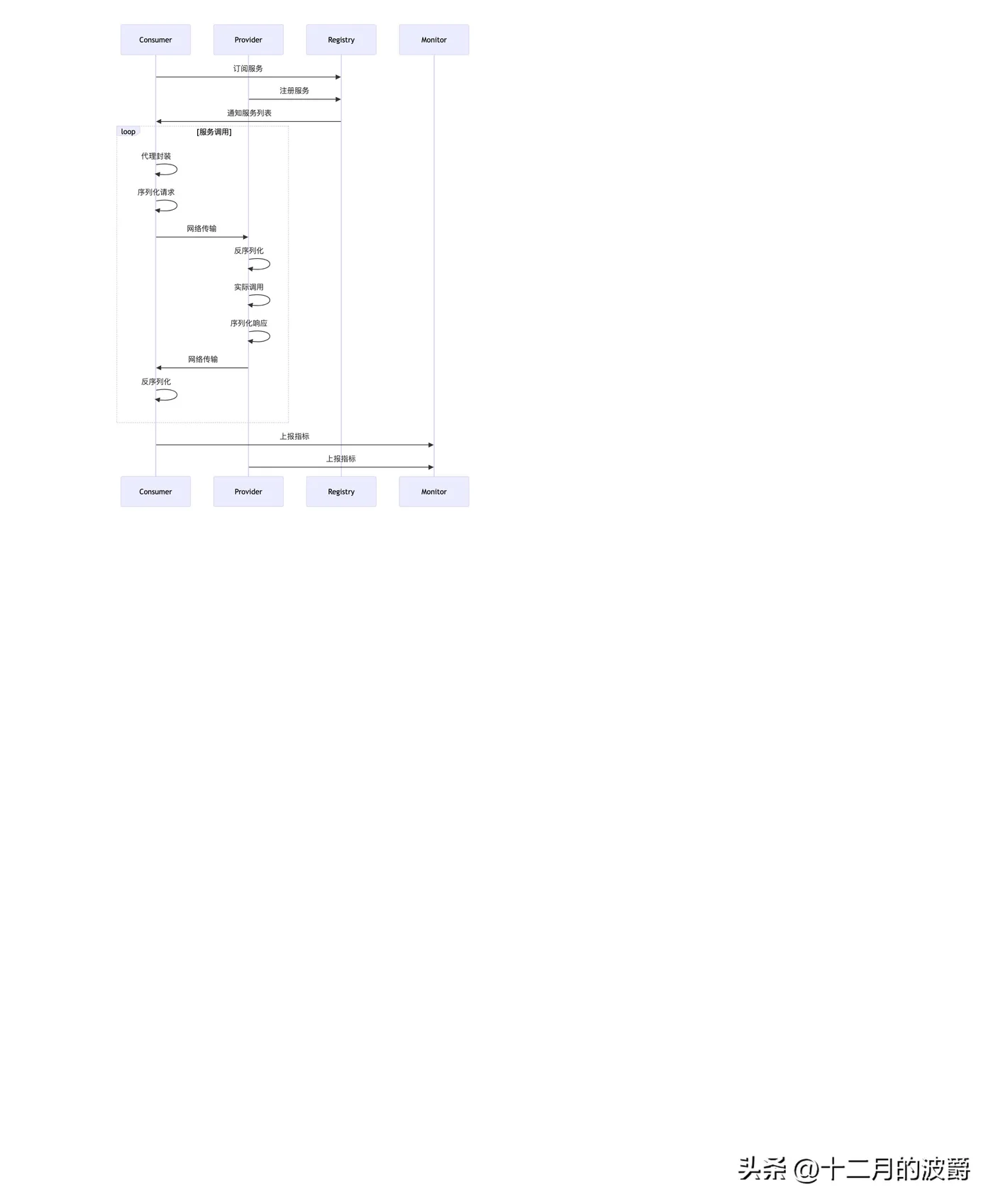

2.1 RPC调用流程

2.2 RPC核心组件

组件	职责	关键技术
客户端代理	封装远程调用，实现本地接口	动态代理、AOP
序列化	对象与二进制数据转换	Protobuf、Kryo、Hessian
网络传输	数据传输	Netty、Mina、HTTP2
服务发现	服务地址管理	ZooKeeper、Nacos、Consul
负载均衡	请求分发	轮询、权重、一致性哈希
容错处理	故障恢复	重试、熔断、降级

3. Dubbo框架深度实践

3.1 环境准备与配置

Maven依赖配置

<properties>
    <dubbo.version>3.2.0</dubbo.version>
    <nacos.version>2.2.0</nacos.version>
</properties>
<dependencies>
    <!-- Dubbo Spring Boot Starter -->
    <dependency>
        <groupId>org.apache.dubbo</groupId>
        <artifactId>dubbo-spring-boot-starter</artifactId>
        <version>${dubbo.version}</version>
    </dependency>

    <!-- Dubbo Registry Nacos -->
    <dependency>
        <groupId>org.apache.dubbo</groupId>
        <artifactId>dubbo-registry-nacos</artifactId>
        <version>${dubbo.version}</version>
    </dependency>

    <!-- Dubbo Protocol Tripple -->
    <dependency>
        <groupId>org.apache.dubbo</groupId>
        <artifactId>dubbo-rpc-triple</artifactId>
        <version>${dubbo.version}</version>
    </dependency>

    <!-- Nacos Client -->
    <dependency>
        <groupId>com.alibaba.nacos</groupId>
        <artifactId>nacos-client</artifactId>
        <version>${nacos.version}</version>
    </dependency>

    <!-- 序列化 -->
    <dependency>
        <groupId>org.apache.dubbo</groupId>
        <artifactId>dubbo-serialization-kryo</artifactId>
        <version>${dubbo.version}</version>
    </dependency>
</dependencies>

应用配置

# application.yaml
dubbo:
  application:
    name: order-service
    qos-enable: false
  protocol:
    name: tri
    port: 50051
  registry:
    address: nacos://127.0.0.1:8848
    parameters:
      namespace: dev
  config-center:
    address: nacos://127.0.0.1:8848
  metadata-report:
    address: nacos://127.0.0.1:8848
  consumer:
    check: false
    timeout: 3000
    retries: 2
    loadbalance: roundrobin
  provider:
    timeout: 5000
    retries: 0
    loadbalance: consistent
    filter: -exception
  monitor:
    protocol: registry
spring:
  application:
    name: order-service

3.2 服务定义与实现

服务接口定义

// 基础DTO对象
@Data
@Builder
@NoArgsConstructor
@AllArgsConstructor
public class OrderDTO implements Serializable {
    private static final long serialVersionUID = 1L;

    private String orderId;
    private String userId;
    private BigDecimal amount;
    private OrderStatus status;
    private LocalDateTime createTime;
    private List<OrderItemDTO> items;
}
@Data
@Builder
@NoArgsConstructor
@AllArgsConstructor
public class OrderItemDTO implements Serializable {
    private String productId;
    private String productName;
    private Integer quantity;
    private BigDecimal price;
}
// 服务接口
public interface OrderService {

    /**
     * 创建订单
     */
    OrderResult createOrder(CreateOrderRequest request);

    /**
     * 根据ID查询订单
     */
    OrderDTO getOrderById(String orderId);

    /**
     * 根据用户ID查询订单列表
     */
    List<OrderDTO> getOrdersByUserId(String userId, int page, int size);

    /**
     * 取消订单
     */
    boolean cancelOrder(String orderId, String reason);

    /**
     * 支付订单
     */
    PaymentResult payOrder(String orderId, PaymentRequest request);
}
// 请求响应对象
@Data
@Builder
@NoArgsConstructor
@AllArgsConstructor
public class CreateOrderRequest implements Serializable {
    private String userId;
    private List<OrderItemRequest> items;
    private String address;
    private String remark;
}
@Data
@Builder
@NoArgsConstructor
@AllArgsConstructor
public class OrderResult implements Serializable {
    private boolean success;
    private String orderId;
    private String message;
    private OrderDTO order;
}
@Data
@Builder
@NoArgsConstructor
@AllArgsConstructor
public class PaymentResult implements Serializable {
    private boolean success;
    private String paymentId;
    private String transactionNo;
    private BigDecimal amount;
    private LocalDateTime payTime;
    private String message;
}

服务提供者实现

// 服务实现
@Service
@DubboService(
    version = "1.0.0",
    interfaceClass = OrderService.class,
    timeout = 3000,
    retries = 0,
    loadbalance = "roundrobin",
    cluster = "failfast",
    filter = {"exception", "metrics"}
)
@Slf4j
public class OrderServiceImpl implements OrderService {

    @Autowired
    private OrderRepository orderRepository;

    @DubboReference(
        version = "1.0.0",
        check = false,
        timeout = 2000,
        retries = 2
    )
    private InventoryService inventoryService;

    @DubboReference(
        version = "1.0.0",
        check = false,
        timeout = 5000
    )
    private PaymentService paymentService;

    @Override
    public OrderResult createOrder(CreateOrderRequest request) {
        log.info("开始创建订单, 用户: {}", request.getUserId());

        try {
            // 1. 参数校验
            validateCreateRequest(request);

            // 2. 检查库存
            checkInventory(request.getItems());

            // 3. 生成订单
            Order order = buildOrder(request);

            // 4. 扣减库存
            deductInventory(order);

            // 5. 保存订单
            order = orderRepository.save(order);

            log.info("订单创建成功, 订单ID: {}", order.getOrderId());

            return OrderResult.builder()
                    .success(true)
                    .orderId(order.getOrderId())
                    .order(convertToDTO(order))
                    .message("订单创建成功")
                    .build();

        } catch (BusinessException e) {
            log.error("订单创建业务异常", e);
            return OrderResult.builder()
                    .success(false)
                    .message(e.getMessage())
                    .build();
        } catch (Exception e) {
            log.error("订单创建系统异常", e);
            return OrderResult.builder()
                    .success(false)
                    .message("系统异常，请稍后重试")
                    .build();
        }
    }

    @Override
    public OrderDTO getOrderById(String orderId) {
        log.debug("查询订单详情, 订单ID: {}", orderId);

        Order order = orderRepository.findById(orderId)
                .orElseThrow(() -> new OrderNotFoundException("订单不存在: " + orderId));

        return convertToDTO(order);
    }

    @Override
    public List<OrderDTO> getOrdersByUserId(String userId, int page, int size) {
        log.debug("查询用户订单列表, 用户: {}, 分页: {}/{}", userId, page, size);

        Pageable pageable = PageRequest.of(page, size, Sort.by("createTime").descending());
        Page<Order> orders = orderRepository.findByUserId(userId, pageable);

        return orders.getContent().stream()
                .map(this::convertToDTO)
                .collect(Collectors.toList());
    }

    @Override
    public boolean cancelOrder(String orderId, String reason) {
        log.info("取消订单, 订单ID: {}, 原因: {}", orderId, reason);

        Order order = orderRepository.findById(orderId)
                .orElseThrow(() -> new OrderNotFoundException("订单不存在"));

        if (order.getStatus() != OrderStatus.CREATED) {
            throw new BusinessException("当前状态不允许取消订单");
        }

        order.setStatus(OrderStatus.CANCELLED);
        order.setCancelReason(reason);
        order.setCancelTime(LocalDateTime.now());

        orderRepository.save(order);

        // 恢复库存
        restoreInventory(order);

        log.info("订单取消成功, 订单ID: {}", orderId);
        return true;
    }

    @Override
    public PaymentResult payOrder(String orderId, PaymentRequest request) {
        log.info("订单支付, 订单ID: {}, 支付方式: {}", orderId, request.getPayMethod());

        Order order = orderRepository.findById(orderId)
                .orElseThrow(() -> new OrderNotFoundException("订单不存在"));

        if (order.getStatus() != OrderStatus.CREATED) {
            throw new BusinessException("当前状态不允许支付");
        }

        // 调用支付服务
        PaymentResult paymentResult = paymentService.processPayment(
            buildPaymentRequest(order, request));

        if (paymentResult.isSuccess()) {
            // 更新订单状态
            order.setStatus(OrderStatus.PAID);
            order.setPayTime(LocalDateTime.now());
            orderRepository.save(order);

            log.info("订单支付成功, 订单ID: {}, 支付流水: {}",
                    orderId, paymentResult.getTransactionNo());
        }

        return paymentResult;
    }

    private void checkInventory(List<OrderItemRequest> items) {
        for (OrderItemRequest item : items) {
            InventoryCheckResult result = inventoryService.checkInventory(
                item.getProductId(), item.getQuantity());

            if (!result.isAvailable()) {
                throw new InventoryException("商品库存不足: " + item.getProductId());
            }
        }
    }

    private void deductInventory(Order order) {
        for (OrderItem item : order.getItems()) {
            boolean success = inventoryService.deductInventory(
                item.getProductId(), item.getQuantity());

            if (!success) {
                throw new InventoryException("库存扣减失败: " + item.getProductId());
            }
        }
    }

    private void restoreInventory(Order order) {
        for (OrderItem item : order.getItems()) {
            try {
                inventoryService.restoreInventory(item.getProductId(), item.getQuantity());
            } catch (Exception e) {
                log.warn("库存恢复失败, 商品: {}, 数量: {}",
                        item.getProductId(), item.getQuantity(), e);
            }
        }
    }

    private Order buildOrder(CreateOrderRequest request) {
        Order order = new Order();
        order.setOrderId(generateOrderId());
        order.setUserId(request.getUserId());
        order.setAmount(calculateTotalAmount(request.getItems()));
        order.setStatus(OrderStatus.CREATED);
        order.setCreateTime(LocalDateTime.now());
        order.setAddress(request.getAddress());
        order.setRemark(request.getRemark());

        List<OrderItem> items = request.getItems().stream()
                .map(this::buildOrderItem)
                .collect(Collectors.toList());
        order.setItems(items);

        return order;
    }

    private OrderDTO convertToDTO(Order order) {
        return OrderDTO.builder()
                .orderId(order.getOrderId())
                .userId(order.getUserId())
                .amount(order.getAmount())
                .status(order.getStatus())
                .createTime(order.getCreateTime())
                .items(order.getItems().stream()
                        .map(this::convertItemToDTO)
                        .collect(Collectors.toList()))
                .build();
    }

    private String generateOrderId() {
        return "ORD" + System.currentTimeMillis() +
               String.format("%04d", ThreadLocalRandom.current().nextInt(1000));
    }

    // 其他辅助方法...
}

3.3 服务消费者实现

消费者配置与调用

@RestController
@RequestMapping("/api/orders")
@Slf4j
public class OrderController {

    @DubboReference(
        version = "1.0.0",
        check = false,
        timeout = 3000,
        retries = 2,
        loadbalance = "roundrobin",
        cluster = "failover",
        mock = "com.example.service.OrderServiceMock"
    )
    private OrderService orderService;

    @PostMapping
    public ResponseEntity<OrderResult> createOrder(@RequestBody @Valid CreateOrderRequest request) {
        log.info("接收到创建订单请求, 用户: {}", request.getUserId());

        OrderResult result = orderService.createOrder(request);

        if (result.isSuccess()) {
            return ResponseEntity.ok(result);
        } else {
            return ResponseEntity.badRequest().body(result);
        }
    }

    @GetMapping("/{orderId}")
    public ResponseEntity<OrderDTO> getOrder(@PathVariable String orderId) {
        log.debug("查询订单详情, 订单ID: {}", orderId);

        try {
            OrderDTO order = orderService.getOrderById(orderId);
            return ResponseEntity.ok(order);
        } catch (OrderNotFoundException e) {
            return ResponseEntity.notFound().build();
        }
    }

    @GetMapping("/user/{userId}")
    public ResponseEntity<List<OrderDTO>> getUserOrders(
            @PathVariable String userId,
            @RequestParam(defaultValue = "0") int page,
            @RequestParam(defaultValue = "20") int size) {

        log.debug("查询用户订单列表, 用户: {}, 分页: {}/{}", userId, page, size);

        List<OrderDTO> orders = orderService.getOrdersByUserId(userId, page, size);
        return ResponseEntity.ok(orders);
    }

    @PostMapping("/{orderId}/cancel")
    public ResponseEntity<Boolean> cancelOrder(
            @PathVariable String orderId,
            @RequestParam String reason) {

        log.info("取消订单, 订单ID: {}, 原因: {}", orderId, reason);

        boolean result = orderService.cancelOrder(orderId, reason);
        return ResponseEntity.ok(result);
    }

    @PostMapping("/{orderId}/pay")
    public ResponseEntity<PaymentResult> payOrder(
            @PathVariable String orderId,
            @RequestBody PaymentRequest request) {

        log.info("订单支付, 订单ID: {}, 支付方式: {}", orderId, request.getPayMethod());

        PaymentResult result = orderService.payOrder(orderId, request);
        return ResponseEntity.ok(result);
    }
}
// 服务降级Mock实现
@Component
@Slf4j
public class OrderServiceMock implements OrderService {

    @Override
    public OrderResult createOrder(CreateOrderRequest request) {
        log.warn("OrderService降级: createOrder被调用");
        return OrderResult.builder()
                .success(false)
                .message("订单服务暂时不可用，请稍后重试")
                .build();
    }

    @Override
    public OrderDTO getOrderById(String orderId) {
        log.warn("OrderService降级: getOrderById被调用");
        throw new ServiceDegradationException("订单服务暂时不可用");
    }

    @Override
    public List<OrderDTO> getOrdersByUserId(String userId, int page, int size) {
        log.warn("OrderService降级: getOrdersByUserId被调用");
        return Collections.emptyList();
    }

    @Override
    public boolean cancelOrder(String orderId, String reason) {
        log.warn("OrderService降级: cancelOrder被调用");
        return false;
    }

    @Override
    public PaymentResult payOrder(String orderId, PaymentRequest request) {
        log.warn("OrderService降级: payOrder被调用");
        return PaymentResult.builder()
                .success(false)
                .message("支付服务暂时不可用")
                .build();
    }
}

4. 高级特性与自定义扩展

4.1 自定义Filter实现

/**
 * 监控Filter - 记录RPC调用指标
 */
@Activate(group = {CommonConstants.PROVIDER, CommonConstants.CONSUMER})
@Slf4j
public class MetricsFilter implements Filter {

    @Autowired
    private MeterRegistry meterRegistry;

    private final Counter rpcCallCounter;
    private final Timer rpcCallTimer;

    public MetricsFilter() {
        this.rpcCallCounter = Counter.builder("rpc.calls.total")
                .description("RPC调用总数")
                .register(Metrics.globalRegistry);

        this.rpcCallTimer = Timer.builder("rpc.calls.duration")
                .description("RPC调用耗时")
                .publishPercentiles(0.5, 0.95, 0.99)
                .register(Metrics.globalRegistry);
    }

    @Override
    public Result invoke(Invoker<?> invoker, Invocation invocation) throws RpcException {
        String serviceName = invoker.getInterface().getSimpleName();
        String methodName = invocation.getMethodName();
        String side = RpcContext.getContext().isProviderSide() ? "provider" : "consumer";

        rpcCallCounter.increment();

        Timer.Sample sample = Timer.start();
        String status = "success";

        try {
            Result result = invoker.invoke(invocation);

            if (result.hasException()) {
                status = "error";
                recordException(serviceName, methodName, side, result.getException());
            }

            return result;
        } catch (RpcException e) {
            status = "error";
            recordException(serviceName, methodName, side, e);
            throw e;
        } finally {
            sample.stop(rpcCallTimer.tag("service", serviceName)
                    .tag("method", methodName)
                    .tag("side", side)
                    .tag("status", status));

            log.debug("RPC调用完成: {}.{}, side: {}, status: {}",
                     serviceName, methodName, side, status);
        }
    }

    private void recordException(String serviceName, String methodName,
                               String side, Throwable exception) {
        Counter.builder("rpc.calls.exceptions")
                .tag("service", serviceName)
                .tag("method", methodName)
                .tag("side", side)
                .tag("exception", exception.getClass().getSimpleName())
                .register(Metrics.globalRegistry)
                .increment();
    }
}
/**
 * 认证Filter - RPC调用认证
 */
@Activate(group = CommonConstants.PROVIDER, order = -1000)
@Slf4j
public class AuthFilter implements Filter {

    @Override
    public Result invoke(Invoker<?> invoker, Invocation invocation) throws RpcException {
        RpcContext context = RpcContext.getContext();

        // 获取认证信息
        String token = context.getAttachment("auth-token");
        String appId = context.getAttachment("app-id");

        if (!authenticate(token, appId)) {
            log.warn("RPC认证失败, 服务: {}, 方法: {}, appId: {}",
                    invoker.getInterface().getSimpleName(),
                    invocation.getMethodName(), appId);
            throw new RpcException("认证失败");
        }

        // 设置用户上下文
        UserContext userContext = parseToken(token);
        UserContextHolder.setContext(userContext);

        try {
            return invoker.invoke(invocation);
        } finally {
            UserContextHolder.clear();
        }
    }

    private boolean authenticate(String token, String appId) {
        // 实现认证逻辑
        return token != null && appId != null;
    }

    private UserContext parseToken(String token) {
        // 解析token获取用户信息
        return UserContext.builder()
                .userId("user-from-token")
                .build();
    }
}

4.2 自定义负载均衡策略

/**
 * 基于响应时间的负载均衡
 */
@Component
public class ResponseTimeLoadBalance extends AbstractLoadBalance {

    public static final String NAME = "responsetime";

    private final ConcurrentMap<String, ResponseTimeStats> statsMap =
        new ConcurrentHashMap<>();

    @Override
    protected <T> Invoker<T> doSelect(List<Invoker<T>> invokers, URL url, Invocation invocation) {
        if (invokers.isEmpty()) {
            return null;
        }

        if (invokers.size() == 1) {
            return invokers.get(0);
        }

        // 收集响应时间数据
        List<Invoker<T>> availableInvokers = new ArrayList<>();
        Map<Invoker<T>, Double> weightMap = new HashMap<>();

        for (Invoker<T> invoker : invokers) {
            if (!invoker.isAvailable()) {
                continue;
            }

            ResponseTimeStats stats = getStats(invoker);
            double avgResponseTime = stats.getAverageResponseTime();
            double weight = calculateWeight(avgResponseTime);

            availableInvokers.add(invoker);
            weightMap.put(invoker, weight);
        }

        if (availableInvokers.isEmpty()) {
            return null;
        }

        // 基于权重选择
        return selectByWeight(availableInvokers, weightMap);
    }

    private <T> ResponseTimeStats getStats(Invoker<T> invoker) {
        String key = invoker.getUrl().getAddress();
        return statsMap.computeIfAbsent(key, k -> new ResponseTimeStats());
    }

    private double calculateWeight(double avgResponseTime) {
        if (avgResponseTime <= 0) {
            return 100.0; // 默认权重
        }

        // 响应时间越短，权重越高
        return Math.max(10, 1000 / avgResponseTime);
    }

    private <T> Invoker<T> selectByWeight(List<Invoker<T>> invokers,
                                         Map<Invoker<T>, Double> weightMap) {
        double totalWeight = weightMap.values().stream().mapToDouble(Double::doubleValue).sum();
        double random = ThreadLocalRandom.current().nextDouble(totalWeight);

        for (Invoker<T> invoker : invokers) {
            random -= weightMap.get(invoker);
            if (random <= 0) {
                return invoker;
            }
        }

        return invokers.get(invokers.size() - 1);
    }

    /**
     * 响应时间统计
     */
    private static class ResponseTimeStats {
        private final AtomicLong totalTime = new AtomicLong(0);
        private final AtomicInteger count = new AtomicInteger(0);
        private volatile double average = 0;

        public void record(long responseTime) {
            totalTime.addAndGet(responseTime);
            count.incrementAndGet();

            // 计算新的平均值
            this.average = (double) totalTime.get() / count.get();
        }

        public double getAverageResponseTime() {
            return average;
        }
    }
}
// 注册自定义负载均衡
@Configuration
public class LoadBalanceConfiguration {

    @Bean
    public ResponseTimeLoadBalance responseTimeLoadBalance() {
        return new ResponseTimeLoadBalance();
    }
}

4.3 序列化优化

/**
 * 高性能序列化器 - 基于Kryo
 */
public class KryoSerialization implements Serialization {

    @Override
    public byte getContentTypeId() {
        return 101; // 自定义内容类型ID
    }

    @Override
    public String getContentType() {
        return "x-application/kryo";
    }

    @Override
    public ObjectOutput serialize(URL url, OutputStream output) throws IOException {
        return new KryoObjectOutput(output);
    }

    @Override
    public ObjectInput deserialize(URL url, InputStream input) throws IOException {
        return new KryoObjectInput(input);
    }

    private static class KryoObjectOutput implements ObjectOutput {
        private final Output output;
        private final Kryo kryo;

        public KryoObjectOutput(OutputStream outputStream) {
            this.output = new Output(outputStream);
            this.kryo = KryoHolder.getKryo();
        }

        @Override
        public void writeObject(Object obj) throws IOException {
            kryo.writeClassAndObject(output, obj);
        }

        @Override
        public void writeBool(boolean v) throws IOException {
            output.writeBoolean(v);
        }

        @Override
        public void writeByte(byte v) throws IOException {
            output.writeByte(v);
        }

        // 其他write方法...

        @Override
        public void flush() throws IOException {
            output.flush();
        }

        @Override
        public void close() throws IOException {
            output.close();
        }
    }

    private static class KryoObjectInput implements ObjectInput {
        private final Input input;
        private final Kryo kryo;

        public KryoObjectInput(InputStream inputStream) {
            this.input = new Input(inputStream);
            this.kryo = KryoHolder.getKryo();
        }

        @Override
        public Object readObject() throws IOException, ClassNotFoundException {
            return kryo.readClassAndObject(input);
        }

        @Override
        public <T> T readObject(Class<T> clazz) throws IOException, ClassNotFoundException {
            return kryo.readObject(input, clazz);
        }

        @Override
        public boolean readBool() throws IOException {
            return input.readBoolean();
        }

        @Override
        public byte readByte() throws IOException {
            return input.readByte();
        }

        // 其他read方法...

        @Override
        public void close() throws IOException {
            input.close();
        }
    }

    /**
     * Kryo实例持有者（线程安全）
     */
    private static class KryoHolder {
        private static final ThreadLocal<Kryo> KRYO_THREAD_LOCAL = ThreadLocal.withInitial(() -> {
            Kryo kryo = new Kryo();
            kryo.setRegistrationRequired(false);
            kryo.setReferences(true);

            // 注册常用类
            kryo.register(OrderDTO.class);
            kryo.register(OrderResult.class);
            kryo.register(ArrayList.class);
            kryo.register(HashMap.class);

            return kryo;
        });

        public static Kryo getKryo() {
            return KRYO_THREAD_LOCAL.get();
        }
    }
}

5. 服务治理集成

5.1 熔断与降级配置

# 服务提供者配置
dubbo:
  provider:
    filter: metrics,auth,exception
    cluster: failover
    retries: 2
    timeout: 3000
    loadbalance: roundrobin
    # 熔断配置
    circuit-breaker: true
    circuit-breaker-force-open: false
    circuit-breaker-request-volume-threshold: 20
    circuit-breaker-sleep-window-in-milliseconds: 5000
    circuit-breaker-error-threshold-percentage: 50
# 服务消费者配置
dubbo:
  consumer:
    check: false
    timeout: 3000
    retries: 2
    # 降级配置
    mock: true
    # 负载均衡配置
    loadbalance: responsetime
    cluster: failover
    # 容错配置
    failsafe: true

5.2 监控与指标收集

@Component
@Slf4j
public class DubboMetricsCollector {

    @Autowired
    private MeterRegistry meterRegistry;

    private final Map<String, Timer> methodTimers = new ConcurrentHashMap<>();
    private final Map<String, Counter> errorCounters = new ConcurrentHashMap<>();

    @EventListener
    public void collectMetrics(ServiceBeanExportedEvent event) {
        ServiceBean<?> serviceBean = event.getServiceBean();
        log.info("服务导出完成: {}", serviceBean.getInterface());

        // 注册服务级别指标
        registerServiceMetrics(serviceBean.getInterface());
    }

    private void registerServiceMetrics(String serviceName) {
        // 方法调用计时器
        Timer timer = Timer.builder("dubbo.service.duration")
                .tag("service", serviceName)
                .publishPercentiles(0.5, 0.95, 0.99)
                .register(meterRegistry);

        methodTimers.put(serviceName, timer);

        // 错误计数器
        Counter errorCounter = Counter.builder("dubbo.service.errors")
                .tag("service", serviceName)
                .register(meterRegistry);

        errorCounters.put(serviceName, errorCounter);
    }

    public void recordMethodCall(String serviceName, String methodName,
                               long duration, boolean success) {
        Timer timer = methodTimers.get(serviceName);
        if (timer != null) {
            timer.record(Duration.ofMillis(duration));
        }

        if (!success) {
            Counter errorCounter = errorCounters.get(serviceName);
            if (errorCounter != null) {
                errorCounter.increment();
            }
        }

        // 记录详细指标
        Counter.builder("dubbo.method.calls")
                .tag("service", serviceName)
                .tag("method", methodName)
                .tag("status", success ? "success" : "error")
                .register(meterRegistry)
                .increment();
    }
}
// 监控端点
@RestController
@RequestMapping("/monitor")
@Slf4j
public class DubboMonitorController {

    @Autowired
    private DubboMetricsCollector metricsCollector;

    @GetMapping("/services")
    public ResponseEntity<List<ServiceStatus>> getServiceStatus() {
        List<ServiceStatus> statusList = new ArrayList<>();

        // 获取Dubbo服务状态
        Collection<ProviderModel> providers = ApplicationModel.getProviderModels();
        for (ProviderModel provider : providers) {
            ServiceStatus status = ServiceStatus.builder()
                    .serviceName(provider.getServiceKey())
                    .providerCount(provider.getServiceMetadata().getServiceNumber())
                    .status("UP")
                    .build();
            statusList.add(status);
        }

        return ResponseEntity.ok(statusList);
    }

    @GetMapping("/metrics")
    public ResponseEntity<Map<String, Object>> getMetrics() {
        Map<String, Object> metrics = new HashMap<>();

        // 收集Dubbo内部指标
        metrics.put("providerCount", ApplicationModel.getProviderModels().size());
        metrics.put("consumerCount", ApplicationModel.getConsumerModels().size());

        // 获取运行时统计
        RuntimeMetrics runtimeMetrics = collectRuntimeMetrics();
        metrics.put("runtime", runtimeMetrics);

        return ResponseEntity.ok(metrics);
    }

    private RuntimeMetrics collectRuntimeMetrics() {
        // 实现运行时指标收集
        return RuntimeMetrics.builder()
                .activeCalls(0)
                .totalCalls(0)
                .errorCalls(0)
                .build();
    }
}

6. 生产环境最佳实践

6.1 配置优化建议

# 生产环境Dubbo配置
dubbo:
  application:
    name: ${spring.application.name}
    qos-enable: true
    qos-port: 22222
    # 元数据配置
    metadata-type: remote
  # 协议配置
  protocol:
    name: tri
    port: -1 # 随机端口
    serialization: kryo
    # 线程池配置
    threadpool: cached
    threads: 500
    iothreads: 10
    # 其他参数
    payload: 8388608 # 8MB
  # 注册中心配置
  registry:
    address: nacos://nacos-cluster:8848
    parameters:
      namespace: production
      username: nacos
      password: ${NACOS_PASSWORD}
    # 注册和订阅配置
    register: true
    subscribe: true
    # 失败重试
    check: false
  # 配置中心
  config-center:
    address: nacos://nacos-cluster:8848
    namespace: production
    group: DUBBO_GROUP
  # 元数据中心
  metadata-report:
    address: nacos://nacos-cluster:8848
    namespace: production
  # 消费者配置
  consumer:
    check: false
    timeout: 5000
    retries: 1
    # 负载均衡
    loadbalance: consistent
    # 集群容错
    cluster: failover
    # 连接控制
    connections: 10
    # 粘滞连接
    sticky: true
    # 异步调用
    async: false
  # 提供者配置
  provider:
    timeout: 8000
    retries: 0
    # 负载均衡
    loadbalance: roundrobin
    # 集群容错
    cluster: failfast
    # 连接控制
    connections: 100
    # 执行器
    dispatcher: message
    # 线程池
    threadpool: fixed
    threads: 200
    # 令牌验证
    token: true

6.2 故障排查与调试

@Component
@Slf4j
public class DubboDebugUtils {

    /**
     * 获取服务调用链信息
     */
    public static String getInvocationChain(Invocation invocation) {
        RpcContext context = RpcContext.getContext();
        StringBuilder chain = new StringBuilder();

        chain.append("Service: ").append(invocation.getTargetServiceUniqueName()).append("\n");
        chain.append("Method: ").append(invocation.getMethodName()).append("\n");
        chain.append("Arguments: ").append(Arrays.toString(invocation.getArguments())).append("\n");
        chain.append("Attachments: ").append(invocation.getAttachments()).append("\n");
        chain.append("Remote Host: ").append(context.getRemoteHost()).append("\n");
        chain.append("Local Host: ").append(context.getLocalHost()).append("\n");
        chain.append("Protocol: ").append(context.getProtocol()).append("\n");
        chain.append("Url: ").append(context.getUrl()).append("\n");

        return chain.toString();
    }

    /**
     * 诊断服务健康状况
     */
    public static ServiceHealth diagnoseService(String serviceName) {
        ServiceHealth health = new ServiceHealth();

        try {
            // 检查服务提供者
            List<ProviderModel> providers = ApplicationModel.getProviderModels();
            long providerCount = providers.stream()
                    .filter(p -> p.getServiceKey().contains(serviceName))
                    .count();

            // 检查服务消费者
            List<ConsumerModel> consumers = ApplicationModel.getConsumerModels();
            long consumerCount = consumers.stream()
                    .filter(c -> c.getServiceKey().contains(serviceName))
                    .count();

            health.setProviderCount(providerCount);
            health.setConsumerCount(consumerCount);
            health.setStatus(providerCount > 0 ? "HEALTHY" : "UNHEALTHY");

        } catch (Exception e) {
            log.error("服务诊断失败", e);
            health.setStatus("ERROR");
            health.setErrorMessage(e.getMessage());
        }

        return health;
    }

    /**
     * 动态调整服务参数
     */
    @RestController
    @RequestMapping("/debug/dubbo")
    @Slf4j
    public static class DubboDebugController {

        @PostMapping("/{service}/timeout")
        public ResponseEntity<String> adjustTimeout(
                @PathVariable String service,
                @RequestParam int timeout) {

            log.info("调整服务超时时间: {} -> {}ms", service, timeout);

            // 这里可以实现动态配置更新
            // 实际生产环境建议通过配置中心实现

            return ResponseEntity.ok("超时时间调整成功");
        }

        @PostMapping("/{service}/retries")
        public ResponseEntity<String> adjustRetries(
                @PathVariable String service,
                @RequestParam int retries) {

            log.info("调整服务重试次数: {} -> {}", service, retries);

            return ResponseEntity.ok("重试次数调整成功");
        }
    }
}

7. 总结

7.1 RPC在服务治理中的核心价值

通过本文的深入实践，你应该理解RPC在微服务架构中的核心价值：

高效通信：相比HTTP，性能提升显著
服务治理：内置负载均衡、熔断、降级等能力
开发效率：接口即契约，开发体验接近本地调用
运维便利：完善的监控、调试、管理能力

7.2 关键最佳实践

✅ 接口设计：清晰的接口定义和版本管理
✅ 超时控制：合理的超时时间和重试策略
✅ 熔断降级：完善的容错和降级机制
✅ 监控告警：全面的指标收集和监控告警
✅ 性能优化：合适的序列化和线程池配置

7.3 技术选型建议

Dubbo适用场景：

复杂的内部服务调用
需要完善的服务治理能力
Java技术栈为主

gRPC适用场景：

多语言环境
对性能要求极高
需要流式处理

Spring Cloud OpenFeign：

Spring Cloud生态
简单的RESTful风格调用
快速原型开发

RPC是微服务架构的基石，合理的RPC框架选型和正确的使用方式，能够显著提升系统的性能和稳定性。

《服务治理》RPC详解与实践

1. RPC基础概念

1.1 什么是RPC

1.2 RPC在微服务架构中的价值

1.3 RPC vs RESTful API

2. RPC核心架构

2.1 RPC调用流程

2.2 RPC核心组件

3. Dubbo框架深度实践

3.1 环境准备与配置

Maven依赖配置

应用配置

3.2 服务定义与实现

服务接口定义

服务提供者实现

3.3 服务消费者实现

消费者配置与调用

4. 高级特性与自定义扩展

4.1 自定义Filter实现

4.2 自定义负载均衡策略

4.3 序列化优化

5. 服务治理集成

5.1 熔断与降级配置

5.2 监控与指标收集

6. 生产环境最佳实践

6.1 配置优化建议

6.2 故障排查与调试

7. 总结

7.1 RPC在服务治理中的核心价值

7.2 关键最佳实践

7.3 技术选型建议

热门文章

最新文章

相关电子书

探索云世界

热门

云计算

大数据

云原生

人工智能

数据库

开发与运维

活动广场

任务中心

训练营

直播

乘风者计划

下载

镜像站

技术资料

《服务治理》RPC详解与实践

1. RPC基础概念

1.1 什么是RPC

1.2 RPC在微服务架构中的价值

1.3 RPC vs RESTful API

2. RPC核心架构

2.1 RPC调用流程

2.2 RPC核心组件

3. Dubbo框架深度实践

3.1 环境准备与配置

Maven依赖配置

应用配置

3.2 服务定义与实现

服务接口定义

服务提供者实现

3.3 服务消费者实现

消费者配置与调用

4. 高级特性与自定义扩展

4.1 自定义Filter实现

4.2 自定义负载均衡策略

4.3 序列化优化

5. 服务治理集成

5.1 熔断与降级配置

5.2 监控与指标收集

6. 生产环境最佳实践

6.1 配置优化建议

6.2 故障排查与调试

7. 总结

7.1 RPC在服务治理中的核心价值

7.2 关键最佳实践

7.3 技术选型建议

热门文章

最新文章

相关电子书
