1. Dubbo框架概述

1.1 什么是Dubbo

Apache Dubbo是一款高性能、轻量级的开源Java RPC框架，它提供了三大核心能力：

面向接口的远程方法调用
智能容错和负载均衡
服务自动注册和发现

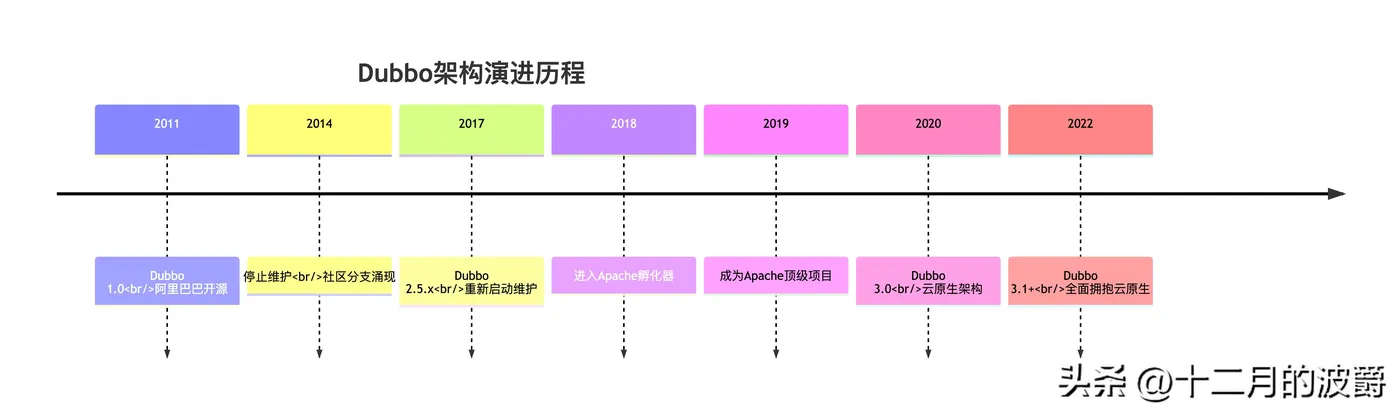

1.2 Dubbo发展历程与架构演进

1.3 Dubbo核心特性对比

特性	Dubbo 2.x	Dubbo 3.x	优势说明
服务发现	接口级发现	应用级发现	更好的K8s集成
协议支持	Dubbo协议	Triple协议(gRPC)	跨语言、HTTP/2
元数据中心	可选	必需	更好的服务治理
配置中心	简单配置	动态配置	实时配置更新
架构模式	SDK模式	云原生	更好的扩展性

2. Dubbo核心架构解析

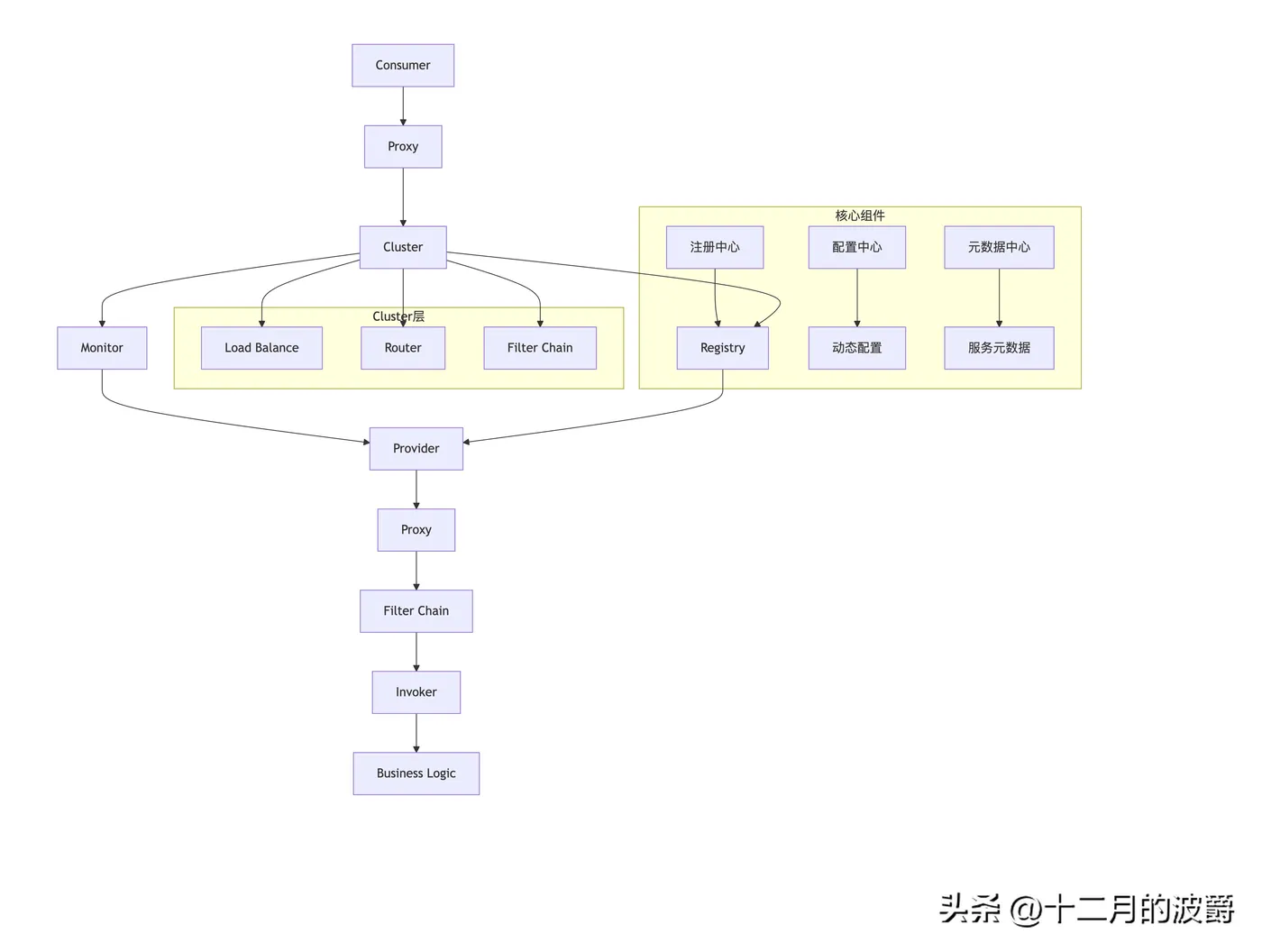

2.1 Dubbo整体架构

2.2 Dubbo分层架构

分层	职责	核心组件
Service层	业务接口定义	Service API
Config层	配置管理	@DubboService, @DubboReference
Proxy层	动态代理	Javassist, JDK Proxy
Registry层	服务注册发现	Nacos, Zookeeper
Cluster层	集群容错	Router, LoadBalance, Cluster
Monitor层	监控统计	Metrics, Tracing
Protocol层	远程调用	Dubbo, Triple, HTTP
Exchange层	信息交换	Request-Response
Transport层	网络传输	Netty, Mina
Serialize层	数据序列化	Hessian, JSON, Protobuf

3. Dubbo 3.x快速开始

3.1 环境准备与依赖配置

Maven依赖管理

<!-- Dubbo Spring Boot Starter -->
<dependency>
    <groupId>org.apache.dubbo</groupId>
    <artifactId>dubbo-spring-boot-starter</artifactId>
    <version>3.2.0</version>
</dependency>
<!-- Dubbo Registry Nacos -->
<dependency>
    <groupId>org.apache.dubbo</groupId>
    <artifactId>dubbo-registry-nacos</artifactId>
    <version>3.2.0</version>
</dependency>
<!-- Dubbo Protocol Triple -->
<dependency>
    <groupId>org.apache.dubbo</groupId>
    <artifactId>dubbo-rpc-triple</artifactId>
    <version>3.2.0</version>
</dependency>
<!-- Nacos Client -->
<dependency>
    <groupId>com.alibaba.nacos</groupId>
    <artifactId>nacos-client</artifactId>
    <version>2.2.0</version>
</dependency>
<!-- 序列化支持 -->
<dependency>
    <groupId>org.apache.dubbo</groupId>
    <artifactId>dubbo-serialization-kryo</artifactId>
    <version>3.2.0</version>
</dependency>
<!-- 服务治理 -->
<dependency>
    <groupId>org.apache.dubbo</groupId>
    <artifactId>dubbo-metadata-report-nacos</artifactId>
    <version>3.2.0</version>
</dependency>

Spring Boot配置

# application.yml
dubbo:
  application:
    name: user-service
    # 元数据配置
    metadata-type: remote
    # QOS配置
    qos-enable: true
    qos-port: 22222
    # 序列化配置
    serialize-check-status: WARN

  # 注册中心配置
  registry:
    address: nacos://127.0.0.1:8848
    parameters:
      namespace: dev
    # 应用级服务发现
    use-as-config-center: true
    use-as-metadata-center: true

  # 协议配置
  protocol:
    name: tri
    port: -1  # 随机端口
    serialization: kryo
    # 线程池配置
    threadpool: cached
    threads: 500

  # 配置中心
  config-center:
    address: nacos://127.0.0.1:8848
    namespace: dev

  # 元数据中心
  metadata-report:
    address: nacos://127.0.0.1:8848
    namespace: dev

  # 消费者配置
  consumer:
    check: false
    timeout: 3000
    retries: 2
    # 负载均衡策略
    loadbalance: roundrobin
    # 集群容错模式
    cluster: failover
    # 启动时检查
    lazy: true

  # 提供者配置
  provider:
    timeout: 5000
    retries: 0
    # 负载均衡
    loadbalance: consistent
    # 连接控制
    connections: 100
    # 令牌验证
    token: true
spring:
  application:
    name: user-service
  profiles:
    active: dev

3.2 服务定义与实现

服务接口定义

// 用户服务接口
public interface UserService {

    /**
     * 根据用户ID查询用户信息
     */
    UserDTO getUserById(Long userId);

    /**
     * 根据用户名查询用户
     */
    UserDTO getUserByUsername(String username);

    /**
     * 创建用户
     */
    UserCreateResult createUser(CreateUserRequest request);

    /**
     * 更新用户信息
     */
    UserUpdateResult updateUser(UpdateUserRequest request);

    /**
     * 批量查询用户信息
     */
    List<UserDTO> batchGetUsers(List<Long> userIds);

    /**
     * 分页查询用户列表
     */
    PageResult<UserDTO> queryUsers(UserQuery query, int page, int size);
}
// 数据传输对象
@Data
@Builder
@NoArgsConstructor
@AllArgsConstructor
public class UserDTO implements Serializable {
    private static final long serialVersionUID = 1L;

    private Long userId;
    private String username;
    private String email;
    private String phone;
    private UserStatus status;
    private LocalDateTime createTime;
    private LocalDateTime updateTime;
    private Map<String, String> attributes;
}
@Data
@Builder
@NoArgsConstructor
@AllArgsConstructor
public class CreateUserRequest implements Serializable {
    @NotBlank(message = "用户名不能为空")
    private String username;

    @Email(message = "邮箱格式不正确")
    private String email;

    @Pattern(regexp = "^1[3-9]\\d{9}$", message = "手机号格式不正确")
    private String phone;

    private Map<String, String> attributes;
}
@Data
@Builder
@NoArgsConstructor
@AllArgsConstructor
public class UserCreateResult implements Serializable {
    private boolean success;
    private Long userId;
    private String message;
    private UserDTO user;
}
// 分页结果
@Data
@Builder
@NoArgsConstructor
@AllArgsConstructor
public class PageResult<T> implements Serializable {
    private int page;
    private int size;
    private long total;
    private List<T> data;
}

服务提供者实现

// 服务实现类
@Service
@DubboService(
    version = "1.0.0",
    interfaceClass = UserService.class,
    // 服务治理配置
    timeout = 3000,
    retries = 0,
    loadbalance = "roundrobin",
    cluster = "failfast",
    // Filter链配置
    filter = {"exception", "metrics", "auth"},
    // 参数验证
    validation = "true",
    // 令牌验证
    token = "true",
    // 权重配置
    weight = 100,
    // 标签路由
    tag = "v1"
)
@Slf4j
public class UserServiceImpl implements UserService {

    @Autowired
    private UserRepository userRepository;

    @DubboReference(
        version = "1.0.0",
        check = false,
        timeout = 2000,
        retries = 2,
        mock = "com.example.service.AuthServiceMock"
    )
    private AuthService authService;

    @Override
    public UserDTO getUserById(Long userId) {
        log.info("查询用户信息, userId: {}", userId);

        if (userId == null || userId <= 0) {
            throw new IllegalArgumentException("用户ID不合法");
        }

        User user = userRepository.findById(userId)
                .orElseThrow(() -> new UserNotFoundException("用户不存在: " + userId));

        return convertToDTO(user);
    }

    @Override
    public UserDTO getUserByUsername(String username) {
        log.info("根据用户名查询用户, username: {}", username);

        User user = userRepository.findByUsername(username)
                .orElseThrow(() -> new UserNotFoundException("用户不存在: " + username));

        return convertToDTO(user);
    }

    @Override
    public UserCreateResult createUser(CreateUserRequest request) {
        log.info("创建用户, username: {}", request.getUsername());

        try {
            // 参数验证
            validateCreateRequest(request);

            // 检查用户名是否已存在
            if (userRepository.existsByUsername(request.getUsername())) {
                throw new BusinessException("用户名已存在");
            }

            // 创建用户
            User user = buildUser(request);
            user = userRepository.save(user);

            // 创建认证信息
            authService.createAuthInfo(user.getUserId(), request.getUsername());

            log.info("用户创建成功, userId: {}", user.getUserId());

            return UserCreateResult.builder()
                    .success(true)
                    .userId(user.getUserId())
                    .user(convertToDTO(user))
                    .message("用户创建成功")
                    .build();

        } catch (BusinessException e) {
            log.error("创建用户业务异常", e);
            return UserCreateResult.builder()
                    .success(false)
                    .message(e.getMessage())
                    .build();
        } catch (Exception e) {
            log.error("创建用户系统异常", e);
            return UserCreateResult.builder()
                    .success(false)
                    .message("系统异常，请稍后重试")
                    .build();
        }
    }

    @Override
    public UserUpdateResult updateUser(UpdateUserRequest request) {
        log.info("更新用户信息, userId: {}", request.getUserId());

        User user = userRepository.findById(request.getUserId())
                .orElseThrow(() -> new UserNotFoundException("用户不存在"));

        // 更新用户信息
        updateUserFromRequest(user, request);
        user = userRepository.save(user);

        return UserUpdateResult.builder()
                .success(true)
                .user(convertToDTO(user))
                .message("用户信息更新成功")
                .build();
    }

    @Override
    public List<UserDTO> batchGetUsers(List<Long> userIds) {
        log.info("批量查询用户信息, userIds: {}", userIds);

        if (userIds == null || userIds.isEmpty()) {
            return Collections.emptyList();
        }

        // 限制批量查询数量
        if (userIds.size() > 100) {
            throw new BusinessException("批量查询数量不能超过100");
        }

        List<User> users = userRepository.findAllById(userIds);

        return users.stream()
                .map(this::convertToDTO)
                .collect(Collectors.toList());
    }

    @Override
    public PageResult<UserDTO> queryUsers(UserQuery query, int page, int size) {
        log.info("分页查询用户列表, page: {}, size: {}", page, size);

        // 参数校验
        if (page < 0) page = 0;
        if (size <= 0 || size > 100) size = 20;

        Pageable pageable = PageRequest.of(page, size, Sort.by("createTime").descending());
        Page<User> userPage = userRepository.findByQuery(query, pageable);

        List<UserDTO> userDTOs = userPage.getContent().stream()
                .map(this::convertToDTO)
                .collect(Collectors.toList());

        return PageResult.<UserDTO>builder()
                .page(page)
                .size(size)
                .total(userPage.getTotalElements())
                .data(userDTOs)
                .build();
    }

    private UserDTO convertToDTO(User user) {
        return UserDTO.builder()
                .userId(user.getUserId())
                .username(user.getUsername())
                .email(user.getEmail())
                .phone(user.getPhone())
                .status(user.getStatus())
                .createTime(user.getCreateTime())
                .updateTime(user.getUpdateTime())
                .attributes(user.getAttributes())
                .build();
    }

    private User buildUser(CreateUserRequest request) {
        return User.builder()
                .username(request.getUsername())
                .email(request.getEmail())
                .phone(request.getPhone())
                .status(UserStatus.ACTIVE)
                .createTime(LocalDateTime.now())
                .updateTime(LocalDateTime.now())
                .attributes(request.getAttributes() != null ?
                    new HashMap<>(request.getAttributes()) : new HashMap<>())
                .build();
    }

    private void validateCreateRequest(CreateUserRequest request) {
        if (request.getUsername() == null || request.getUsername().trim().isEmpty()) {
            throw new IllegalArgumentException("用户名不能为空");
        }
        if (request.getEmail() == null || request.getEmail().trim().isEmpty()) {
            throw new IllegalArgumentException("邮箱不能为空");
        }
    }
}

服务消费者调用

@RestController
@RequestMapping("/api/users")
@Slf4j
public class UserController {

    @DubboReference(
        version = "1.0.0",
        check = false,
        timeout = 3000,
        retries = 2,
        loadbalance = "roundrobin",
        cluster = "failover",
        mock = "com.example.service.UserServiceMock",
        // 粘滞连接
        sticky = true,
        // 集群可用性检查
        availablecheck = true,
        // 启动时检查
        lazy = true
    )
    private UserService userService;

    @GetMapping("/{userId}")
    public ResponseEntity<UserDTO> getUser(@PathVariable Long userId) {
        log.info("查询用户信息, userId: {}", userId);

        try {
            UserDTO user = userService.getUserById(userId);
            return ResponseEntity.ok(user);
        } catch (UserNotFoundException e) {
            return ResponseEntity.notFound().build();
        } catch (Exception e) {
            log.error("查询用户信息异常", e);
            return ResponseEntity.status(500).build();
        }
    }

    @PostMapping
    public ResponseEntity<UserCreateResult> createUser(
            @RequestBody @Valid CreateUserRequest request) {
        log.info("创建用户, username: {}", request.getUsername());

        UserCreateResult result = userService.createUser(request);

        if (result.isSuccess()) {
            return ResponseEntity.ok(result);
        } else {
            return ResponseEntity.badRequest().body(result);
        }
    }

    @PutMapping("/{userId}")
    public ResponseEntity<UserUpdateResult> updateUser(
            @PathVariable Long userId,
            @RequestBody @Valid UpdateUserRequest request) {

        log.info("更新用户信息, userId: {}", userId);

        request.setUserId(userId);
        UserUpdateResult result = userService.updateUser(request);

        if (result.isSuccess()) {
            return ResponseEntity.ok(result);
        } else {
            return ResponseEntity.badRequest().body(result);
        }
    }

    @GetMapping("/batch")
    public ResponseEntity<List<UserDTO>> batchGetUsers(
            @RequestParam List<Long> userIds) {

        log.info("批量查询用户信息, userIds: {}", userIds);

        try {
            List<UserDTO> users = userService.batchGetUsers(userIds);
            return ResponseEntity.ok(users);
        } catch (Exception e) {
            log.error("批量查询用户信息异常", e);
            return ResponseEntity.status(500).build();
        }
    }

    @GetMapping("/query")
    public ResponseEntity<PageResult<UserDTO>> queryUsers(
            @ModelAttribute UserQuery query,
            @RequestParam(defaultValue = "0") int page,
            @RequestParam(defaultValue = "20") int size) {

        log.info("分页查询用户列表, page: {}, size: {}", page, size);

        try {
            PageResult<UserDTO> result = userService.queryUsers(query, page, size);
            return ResponseEntity.ok(result);
        } catch (Exception e) {
            log.error("分页查询用户列表异常", e);
            return ResponseEntity.status(500).build();
        }
    }
}
// 服务降级Mock实现
@Component
@Slf4j
public class UserServiceMock implements UserService {

    @Override
    public UserDTO getUserById(Long userId) {
        log.warn("UserService降级: getUserById被调用, userId: {}", userId);
        throw new ServiceDegradationException("用户服务暂时不可用");
    }

    @Override
    public UserDTO getUserByUsername(String username) {
        log.warn("UserService降级: getUserByUsername被调用, username: {}", username);
        throw new ServiceDegradationException("用户服务暂时不可用");
    }

    @Override
    public UserCreateResult createUser(CreateUserRequest request) {
        log.warn("UserService降级: createUser被调用");
        return UserCreateResult.builder()
                .success(false)
                .message("用户服务暂时不可用，请稍后重试")
                .build();
    }

    @Override
    public UserUpdateResult updateUser(UpdateUserRequest request) {
        log.warn("UserService降级: updateUser被调用");
        return UserUpdateResult.builder()
                .success(false)
                .message("用户服务暂时不可用")
                .build();
    }

    @Override
    public List<UserDTO> batchGetUsers(List<Long> userIds) {
        log.warn("UserService降级: batchGetUsers被调用");
        return Collections.emptyList();
    }

    @Override
    public PageResult<UserDTO> queryUsers(UserQuery query, int page, int size) {
        log.warn("UserService降级: queryUsers被调用");
        return PageResult.<UserDTO>builder()
                .page(page)
                .size(size)
                .total(0)
                .data(Collections.emptyList())
                .build();
    }
}

4. Dubbo高级特性

4.1 集群容错策略

@Configuration
@Slf4j
public class DubboClusterConfiguration {

    /**
     * 自定义集群容错配置
     */
    @Bean
    public Cluster userServiceCluster() {
        return new FailoverCluster();
    }

    /**
     * 自定义负载均衡策略
     */
    @Bean
    public LoadBalance responseTimeLoadBalance() {
        return new ResponseTimeLoadBalance();
    }
}
/**
 * 基于响应时间的负载均衡策略
 */
@Slf4j
public class ResponseTimeLoadBalance extends AbstractLoadBalance {

    public static final String NAME = "responsetime";

    private final ConcurrentMap<String, ResponseTimeStats> statsMap =
        new ConcurrentHashMap<>();

    @Override
    protected <T> Invoker<T> doSelect(List<Invoker<T>> invokers, URL url, Invocation invocation) {
        if (invokers.isEmpty()) {
            return null;
        }

        if (invokers.size() == 1) {
            return invokers.get(0);
        }

        // 基于响应时间计算权重
        List<WeightedInvoker<T>> weightedInvokers = new ArrayList<>();
        double totalWeight = 0;

        for (Invoker<T> invoker : invokers) {
            if (!invoker.isAvailable()) {
                continue;
            }

            double weight = calculateWeight(invoker);
            weightedInvokers.add(new WeightedInvoker<>(invoker, weight));
            totalWeight += weight;
        }

        if (weightedInvokers.isEmpty()) {
            return null;
        }

        // 基于权重选择
        double random = ThreadLocalRandom.current().nextDouble(totalWeight);
        for (WeightedInvoker<T> weighted : weightedInvokers) {
            random -= weighted.weight;
            if (random <= 0) {
                return weighted.invoker;
            }
        }

        return weightedInvokers.get(weightedInvokers.size() - 1).invoker;
    }

    private <T> double calculateWeight(Invoker<T> invoker) {
        String address = invoker.getUrl().getAddress();
        ResponseTimeStats stats = statsMap.computeIfAbsent(address,
            k -> new ResponseTimeStats());

        double avgResponseTime = stats.getAverageResponseTime();

        // 响应时间越短，权重越高
        if (avgResponseTime <= 0) {
            return 100.0;
        }

        return Math.max(10, 1000 / avgResponseTime);
    }

    public void recordResponseTime(String address, long responseTime) {
        ResponseTimeStats stats = statsMap.get(address);
        if (stats != null) {
            stats.record(responseTime);
        }
    }

    private static class WeightedInvoker<T> {
        final Invoker<T> invoker;
        final double weight;

        WeightedInvoker(Invoker<T> invoker, double weight) {
            this.invoker = invoker;
            this.weight = weight;
        }
    }

    private static class ResponseTimeStats {
        private final AtomicLong totalTime = new AtomicLong(0);
        private final AtomicInteger count = new AtomicInteger(0);
        private volatile double average = 0;

        public void record(long responseTime) {
            totalTime.addAndGet(responseTime);
            count.incrementAndGet();
            this.average = (double) totalTime.get() / count.get();
        }

        public double getAverageResponseTime() {
            return average;
        }
    }
}

4.2 自定义Filter扩展

/**
 * 监控Filter - 记录RPC调用指标
 */
@Activate(group = {CommonConstants.PROVIDER, CommonConstants.CONSUMER})
@Slf4j
public class MetricsFilter implements Filter {

    @Autowired
    private MeterRegistry meterRegistry;

    private final Counter rpcCallCounter;
    private final Timer rpcCallTimer;

    public MetricsFilter() {
        this.rpcCallCounter = Counter.builder("dubbo.rpc.calls.total")
                .description("Dubbo RPC调用总数")
                .register(Metrics.globalRegistry);

        this.rpcCallTimer = Timer.builder("dubbo.rpc.calls.duration")
                .description("Dubbo RPC调用耗时")
                .publishPercentiles(0.5, 0.95, 0.99)
                .register(Metrics.globalRegistry);
    }

    @Override
    public Result invoke(Invoker<?> invoker, Invocation invocation) throws RpcException {
        String serviceName = invoker.getInterface().getSimpleName();
        String methodName = invocation.getMethodName();
        String side = RpcContext.getContext().isProviderSide() ? "provider" : "consumer";

        rpcCallCounter.increment();

        Timer.Sample sample = Timer.start();
        String status = "success";

        try {
            Result result = invoker.invoke(invocation);

            if (result.hasException()) {
                status = "error";
                recordException(serviceName, methodName, side, result.getException());
            }

            return result;
        } catch (RpcException e) {
            status = "error";
            recordException(serviceName, methodName, side, e);
            throw e;
        } finally {
            sample.stop(rpcCallTimer.tag("service", serviceName)
                    .tag("method", methodName)
                    .tag("side", side)
                    .tag("status", status));

            log.debug("Dubbo RPC调用完成: {}.{}, side: {}, status: {}",
                     serviceName, methodName, side, status);
        }
    }

    private void recordException(String serviceName, String methodName,
                               String side, Throwable exception) {
        Counter.builder("dubbo.rpc.calls.exceptions")
                .tag("service", serviceName)
                .tag("method", methodName)
                .tag("side", side)
                .tag("exception", exception.getClass().getSimpleName())
                .register(Metrics.globalRegistry)
                .increment();
    }
}
/**
 * 认证Filter - RPC调用认证
 */
@Activate(group = CommonConstants.PROVIDER, order = -1000)
@Slf4j
public class AuthFilter implements Filter {

    @Override
    public Result invoke(Invoker<?> invoker, Invocation invocation) throws RpcException {
        RpcContext context = RpcContext.getContext();

        // 获取认证信息
        String token = context.getAttachment("auth-token");
        String appId = context.getAttachment("app-id");

        if (!authenticate(token, appId)) {
            log.warn("Dubbo RPC认证失败, 服务: {}, 方法: {}, appId: {}",
                    invoker.getInterface().getSimpleName(),
                    invocation.getMethodName(), appId);
            throw new RpcException(RpcException.FORBIDDEN_EXCEPTION, "认证失败");
        }

        // 设置用户上下文
        UserContext userContext = parseToken(token);
        UserContextHolder.setContext(userContext);

        try {
            return invoker.invoke(invocation);
        } finally {
            UserContextHolder.clear();
        }
    }

    private boolean authenticate(String token, String appId) {
        // 实现认证逻辑
        return token != null && !token.trim().isEmpty() &&
               appId != null && !appId.trim().isEmpty();
    }

    private UserContext parseToken(String token) {
        // 解析token获取用户信息
        // 这里应该是实际的token解析逻辑
        return UserContext.builder()
                .userId("user-from-token")
                .username("user")
                .roles(Collections.singletonList("USER"))
                .build();
    }
}
/**
 * 异常处理Filter
 */
@Activate(group = CommonConstants.PROVIDER, order = 1000)
@Slf4j
public class ExceptionFilter implements Filter {

    @Override
    public Result invoke(Invoker<?> invoker, Invocation invocation) throws RpcException {
        try {
            return invoker.invoke(invocation);
        } catch (RuntimeException e) {
            log.error("Dubbo服务调用异常, 服务: {}, 方法: {}",
                     invoker.getInterface().getName(), invocation.getMethodName(), e);

            // 转换业务异常
            if (e instanceof BusinessException) {
                throw new RpcException(RpcException.BIZ_EXCEPTION, e.getMessage());
            }

            // 其他异常转换为系统异常
            throw new RpcException(RpcException.SERVICE_ERROR, "系统异常");
        }
    }
}

4.3 路由规则与标签路由

/**
 * 自定义路由规则
 */
@Component
public class GrayReleaseRouter implements Router {

    private final RouterPriority routerPriority = RouterPriority.FIRST;

    @Override
    public <T> List<Invoker<T>> route(List<Invoker<T>> invokers, URL url,
                                    Invocation invocation) throws RpcException {

        // 获取灰度标签
        String grayTag = RpcContext.getContext().getAttachment("gray-tag");

        if (grayTag == null || grayTag.isEmpty()) {
            return invokers;
        }

        // 根据灰度标签过滤服务提供者
        return invokers.stream()
                .filter(invoker -> matchesGrayTag(invoker, grayTag))
                .collect(Collectors.toList());
    }

    private <T> boolean matchesGrayTag(Invoker<T> invoker, String grayTag) {
        URL providerUrl = invoker.getUrl();
        String providerTag = providerUrl.getParameter("tag", "");

        return grayTag.equals(providerTag);
    }

    @Override
    public int getPriority() {
        return routerPriority.getPriority();
    }

    @Override
    public URL getUrl() {
        return null;
    }
}
// 路由配置
@Configuration
public class RouterConfiguration {

    @Bean
    public GrayReleaseRouter grayReleaseRouter() {
        return new GrayReleaseRouter();
    }
}

5. Dubbo服务治理

5.1 动态配置管理

# dubbo-config.yaml - 动态配置
configVersion: v2.7
scope: application
key: user-service
configs:
  - type: service
    enabled: true
    service: com.example.service.UserService
    parameters:
      timeout: 5000
      retries: 1
      loadbalance: roundrobin

  - type: method
    enabled: true
    service: com.example.service.UserService
    methods:
      - name: getUserById
        parameters:
          timeout: 3000
          retries: 0
      - name: createUser
        parameters:
          timeout: 10000
          retries: 1

  - type: consumer
    enabled: true
    addresses:
      - 127.0.0.1:20880
    parameters:
      timeout: 3000
      retries: 2

5.2 服务监控与治理

/**
 * Dubbo服务监控
 */
@Component
@Slf4j
public class DubboMonitorService {

    @Autowired
    private ApplicationModel applicationModel;

    /**
     * 获取服务提供者状态
     */
    public List<ProviderStatus> getProviderStatus() {
        List<ProviderStatus> statusList = new ArrayList<>();

        Collection<ProviderModel> providers = applicationModel.getProviderModels();
        for (ProviderModel provider : providers) {
            String serviceKey = provider.getServiceKey();
            ServiceMetadata metadata = provider.getServiceMetadata();

            ProviderStatus status = ProviderStatus.builder()
                    .serviceName(serviceKey)
                    .version(metadata.getVersion())
                    .group(metadata.getGroup())
                    .methods(metadata.getMethods().size())
                    .status("ACTIVE")
                    .build();

            statusList.add(status);
        }

        return statusList;
    }

    /**
     * 获取服务消费者状态
     */
    public List<ConsumerStatus> getConsumerStatus() {
        List<ConsumerStatus> statusList = new ArrayList<>();

        Collection<ConsumerModel> consumers = applicationModel.getConsumerModels();
        for (ConsumerModel consumer : consumers) {
            String serviceKey = consumer.getServiceKey();
            ServiceMetadata metadata = consumer.getServiceMetadata();

            ConsumerStatus status = ConsumerStatus.builder()
                    .serviceName(serviceKey)
                    .version(metadata.getVersion())
                    .group(metadata.getGroup())
                    .status("ACTIVE")
                    .build();

            statusList.add(status);
        }

        return statusList;
    }

    /**
     * 动态调整服务参数
     */
    public boolean adjustServiceConfig(String serviceName, Map<String, String> parameters) {
        try {
            // 通过配置中心动态更新配置
            ConfigManager configManager = applicationModel.getApplicationConfigManager();

            // 这里应该是实际的配置更新逻辑
            log.info("动态调整服务配置: {}, parameters: {}", serviceName, parameters);

            return true;
        } catch (Exception e) {
            log.error("动态调整服务配置失败", e);
            return false;
        }
    }
}
// 监控端点
@RestController
@RequestMapping("/admin/dubbo")
@Slf4j
public class DubboAdminController {

    @Autowired
    private DubboMonitorService dubboMonitorService;

    @GetMapping("/providers")
    public ResponseEntity<List<ProviderStatus>> getProviders() {
        List<ProviderStatus> providers = dubboMonitorService.getProviderStatus();
        return ResponseEntity.ok(providers);
    }

    @GetMapping("/consumers")
    public ResponseEntity<List<ConsumerStatus>> getConsumers() {
        List<ConsumerStatus> consumers = dubboMonitorService.getConsumerStatus();
        return ResponseEntity.ok(consumers);
    }

    @PostMapping("/config/{serviceName}")
    public ResponseEntity<String> updateServiceConfig(
            @PathVariable String serviceName,
            @RequestBody Map<String, String> parameters) {

        boolean success = dubboMonitorService.adjustServiceConfig(serviceName, parameters);

        if (success) {
            return ResponseEntity.ok("配置更新成功");
        } else {
            return ResponseEntity.status(500).body("配置更新失败");
        }
    }

    @GetMapping("/qos/{command}")
    public ResponseEntity<String> executeQosCommand(@PathVariable String command) {
        try {
            // 执行QOS命令
            String result = executeDubboQosCommand(command);
            return ResponseEntity.ok(result);
        } catch (Exception e) {
            log.error("执行QOS命令失败", e);
            return ResponseEntity.status(500).body("命令执行失败: " + e.getMessage());
        }
    }

    private String executeDubboQosCommand(String command) {
        // 实现QOS命令执行逻辑
        return "Command executed: " + command;
    }
}

6. 生产环境最佳实践

6.1 性能优化配置

# 生产环境Dubbo优化配置
dubbo:
  application:
    name: ${spring.application.name}
    # 元数据配置
    metadata-type: remote
    # QOS配置
    qos-enable: true
    qos-port: 22222
    # 序列化检查
    serialize-check-status: DISABLE

  # 注册中心配置
  registry:
    address: nacos://nacos-cluster:8848
    parameters:
      namespace: production
      username: nacos
      password: ${NACOS_PASSWORD}
    # 注册和订阅配置
    register: true
    subscribe: true

  # 协议配置
  protocol:
    name: tri
    port: -1  # 随机端口
    serialization: kryo
    # 线程池配置
    threadpool: fixed
    threads: 500
    iothreads: 16
    # 其他参数
    payload: 8388608  # 8MB
    accepts: 1000

  # 配置中心
  config-center:
    address: nacos://nacos-cluster:8848
    namespace: production
    group: DUBBO_GROUP
    timeout: 30000

  # 元数据中心
  metadata-report:
    address: nacos://nacos-cluster:8848
    namespace: production
    timeout: 5000
    cycle-report: true
    retry-times: 10
    retry-period: 1000

  # 消费者配置
  consumer:
    check: false
    timeout: 5000
    retries: 1
    # 负载均衡
    loadbalance: consistent
    # 集群容错
    cluster: failover
    # 连接控制
    connections: 10
    # 粘滞连接
    sticky: true
    # 异步调用
    async: false
    # 启动时检查
    lazy: true
    # 缓存提供者列表
    file: ${user.home}/dubbo-cache/${spring.application.name}.cache

  # 提供者配置
  provider:
    timeout: 8000
    retries: 0
    # 负载均衡
    loadbalance: roundrobin
    # 集群容错
    cluster: failfast
    # 连接控制
    connections: 100
    # 执行器
    dispatcher: message
    # 线程池
    threadpool: fixed
    threads: 500
    # 令牌验证
    token: true
    # 访问日志
    accesslog: true

6.2 故障排查工具

@Component
@Slf4j
public class DubboTroubleshootingTool {

    /**
     * 诊断Dubbo服务状态
     */
    public ServiceDiagnosis diagnoseService(String serviceName) {
        ServiceDiagnosis diagnosis = new ServiceDiagnosis();
        diagnosis.setServiceName(serviceName);
        diagnosis.setTimestamp(LocalDateTime.now());

        try {
            // 检查服务提供者
            diagnosis.setProviders(checkServiceProviders(serviceName));

            // 检查服务消费者
            diagnosis.setConsumers(checkServiceConsumers(serviceName));

            // 检查注册中心
            diagnosis.setRegistryStatus(checkRegistryStatus());

            // 检查配置中心
            diagnosis.setConfigStatus(checkConfigStatus());

            diagnosis.setOverallStatus(calculateOverallStatus(diagnosis));

        } catch (Exception e) {
            log.error("服务诊断失败", e);
            diagnosis.setOverallStatus("ERROR");
            diagnosis.setErrorMessage(e.getMessage());
        }

        return diagnosis;
    }

    /**
     * 获取Dubbo调用链信息
     */
    public InvocationTrace getInvocationTrace(String traceId) {
        InvocationTrace trace = new InvocationTrace();
        trace.setTraceId(traceId);

        // 这里应该是实际的调用链追踪逻辑
        // 可以集成SkyWalking、Zipkin等

        return trace;
    }

    /**
     * 动态调试Dubbo服务
     */
    public DebugResult debugService(String serviceName, String methodName,
                                  Object[] args) {
        DebugResult result = new DebugResult();

        try {
            // 通过反射调用服务方法进行调试
            Object debugResult = invokeServiceMethod(serviceName, methodName, args);

            result.setSuccess(true);
            result.setResult(debugResult);

        } catch (Exception e) {
            log.error("服务调试失败", e);
            result.setSuccess(false);
            result.setErrorMessage(e.getMessage());
        }

        return result;
    }

    private List<ProviderInfo> checkServiceProviders(String serviceName) {
        // 实现服务提供者检查逻辑
        return Collections.emptyList();
    }

    private List<ConsumerInfo> checkServiceConsumers(String serviceName) {
        // 实现服务消费者检查逻辑
        return Collections.emptyList();
    }

    private String checkRegistryStatus() {
        // 实现注册中心状态检查
        return "HEALTHY";
    }

    private String checkConfigStatus() {
        // 实现配置中心状态检查
        return "HEALTHY";
    }

    private String calculateOverallStatus(ServiceDiagnosis diagnosis) {
        // 计算整体状态
        return "HEALTHY";
    }

    private Object invokeServiceMethod(String serviceName, String methodName,
                                     Object[] args) {
        // 实现服务方法调用
        return null;
    }
}
// 故障排查端点
@RestController
@RequestMapping("/admin/troubleshooting")
@Slf4j
public class TroubleshootingController {

    @Autowired
    private DubboTroubleshootingTool troubleshootingTool;

    @GetMapping("/diagnose/{serviceName}")
    public ResponseEntity<ServiceDiagnosis> diagnoseService(
            @PathVariable String serviceName) {

        ServiceDiagnosis diagnosis = troubleshootingTool.diagnoseService(serviceName);
        return ResponseEntity.ok(diagnosis);
    }

    @GetMapping("/trace/{traceId}")
    public ResponseEntity<InvocationTrace> getInvocationTrace(
            @PathVariable String traceId) {

        InvocationTrace trace = troubleshootingTool.getInvocationTrace(traceId);
        return ResponseEntity.ok(trace);
    }

    @PostMapping("/debug/{serviceName}/{methodName}")
    public ResponseEntity<DebugResult> debugService(
            @PathVariable String serviceName,
            @PathVariable String methodName,
            @RequestBody Object[] args) {

        DebugResult result = troubleshootingTool.debugService(serviceName, methodName, args);
        return ResponseEntity.ok(result);
    }
}

7. 总结

7.1 Dubbo核心价值总结

通过本文的深入实践，你应该理解Dubbo在微服务架构中的核心价值：

高性能RPC调用：基于Triple协议的高性能通信
完善的服务治理：内置负载均衡、容错、路由等能力
云原生支持：Dubbo 3.x全面拥抱云原生架构
丰富的扩展机制：Filter、Router、LoadBalance等扩展点

7.2 关键最佳实践

✅ 版本管理：清晰的服务版本划分和演进策略
✅ 容错设计：合理的重试、熔断、降级策略
✅ 性能优化：合适的序列化、线程池、连接数配置
✅ 监控告警：完善的指标收集和故障告警
✅ 安全防护：认证、鉴权、限流等安全措施

7.3 技术演进建议

Dubbo 2.x迁移到3.x的关键点：

应用级服务发现替代接口级发现
Triple协议替代Dubbo协议
元数据中心的必需配置
配置管理方式的更新

生产环境部署建议：

使用集群模式的注册中心
配置合理的超时和重试策略
启用监控和链路追踪
建立完善的运维体系

Dubbo作为成熟的RPC框架，在微服务架构中发挥着重要作用。合理的架构设计和正确的使用方式，能够显著提升系统的性能和稳定性。

《服务治理》Dubbo框架深度解析与实践

1. Dubbo框架概述

1.1 什么是Dubbo

1.2 Dubbo发展历程与架构演进

1.3 Dubbo核心特性对比

2. Dubbo核心架构解析

2.1 Dubbo整体架构

2.2 Dubbo分层架构

3. Dubbo 3.x快速开始

3.1 环境准备与依赖配置

Maven依赖管理

Spring Boot配置

3.2 服务定义与实现

服务接口定义

服务提供者实现

服务消费者调用

4. Dubbo高级特性

4.1 集群容错策略

4.2 自定义Filter扩展

4.3 路由规则与标签路由

5. Dubbo服务治理

5.1 动态配置管理

5.2 服务监控与治理

6. 生产环境最佳实践

6.1 性能优化配置

6.2 故障排查工具

7. 总结

7.1 Dubbo核心价值总结

7.2 关键最佳实践

7.3 技术演进建议

热门文章

最新文章

相关电子书

探索云世界

热门

云计算

大数据

云原生

人工智能

数据库

开发与运维

活动广场

任务中心

训练营

直播

乘风者计划

下载

镜像站

技术资料

《服务治理》Dubbo框架深度解析与实践

1. Dubbo框架概述

1.1 什么是Dubbo

1.2 Dubbo发展历程与架构演进

1.3 Dubbo核心特性对比

2. Dubbo核心架构解析

2.1 Dubbo整体架构

2.2 Dubbo分层架构

3. Dubbo 3.x快速开始

3.1 环境准备与依赖配置

Maven依赖管理

Spring Boot配置

3.2 服务定义与实现

服务接口定义

服务提供者实现

服务消费者调用

4. Dubbo高级特性

4.1 集群容错策略

4.2 自定义Filter扩展

4.3 路由规则与标签路由

5. Dubbo服务治理

5.1 动态配置管理

5.2 服务监控与治理

6. 生产环境最佳实践

6.1 性能优化配置

6.2 故障排查工具

7. 总结

7.1 Dubbo核心价值总结

7.2 关键最佳实践

7.3 技术演进建议

热门文章

最新文章

相关电子书
