摘要

WebSocket 就像是连接地球与太空站的量子通信链路——它打破了传统 HTTP 请求-响应模式的束缚,建立起真正的双向实时数据传输通道。从最初接触 WebSocket 时对其"神秘握手"的好奇,到后来在大型在线游戏、股票交易系统、协作编辑器中的深度应用,我见证了这项技术如何革命性地改变了 Web 应用的交互体验。本文将从三个维度深入探讨 WebSocket:首先是协议层面的技术原理,包括握手机制、帧结构、心跳保活等核心概念;其次是工程实践层面,涵盖客户端与服务端的完整实现、连接管理、错误处理、性能优化等关键技术点;最后是生产环境的架构设计,包括负载均衡、集群部署、监控告警、安全防护等企业级解决方案。文章将通过丰富的代码示例、可视化图表和实战案例,帮助读者从零开始构建稳定可靠的 WebSocket 应用。无论你是初次接触实时通信的新手,还是希望优化现有系统的资深开发者,这篇文章都将为你提供从理论到实践的完整指南,让你在实时通信的星海中自由航行。


1. WebSocket 协议原理与核心机制

1.1 协议升级与握手流程

WebSocket 通过 HTTP 升级机制建立连接,这个过程就像太空船从地面发射台转换到轨道飞行模式。客户端发送特殊的 HTTP 请求,服务端确认后协议升级为 WebSocket。

%%{init: {'theme':'forest','themeVariables':{'primaryColor':'#2E86C1','primaryTextColor':'#ffffff','secondaryColor':'#AED6F1'}}}%%
sequenceDiagram
    autonumber
    participant C as Client
    participant S as Server
    Note over C,S: WebSocket 握手流程
    C->>S: HTTP GET /chat HTTP/1.1<br/>Upgrade: websocket<br/>Connection: Upgrade<br/>Sec-WebSocket-Key: x3JJHMbDL1EzLkh9GBhXDw==
    S->>C: HTTP/1.1 101 Switching Protocols<br/>Upgrade: websocket<br/>Connection: Upgrade<br/>Sec-WebSocket-Accept: HSmrc0sMlYUkAGmm5OPpG2HaGWk=
    Note over C,S: 协议升级完成,开始 WebSocket 通信
    C->>S: WebSocket Frame (Text/Binary)
    S->>C: WebSocket Frame (Text/Binary)
    C->>S: Close Frame
    S->>C: Close Frame

图1:WebSocket握手与通信时序图(sequenceDiagram)- 展示完整的连接建立到关闭流程

1.2 帧结构与数据传输

WebSocket 使用帧(Frame)作为数据传输的基本单位,每个帧包含操作码、掩码、负载长度等关键信息。

// WebSocket 客户端实现示例
class WebSocketClient {

    constructor(url, protocols = []) {

        this.url = url;
        this.protocols = protocols;
        this.ws = null;
        this.reconnectAttempts = 0;
        this.maxReconnectAttempts = 5;
        this.reconnectInterval = 1000;
        this.heartbeatInterval = 30000;
        this.heartbeatTimer = null;
    }

    // 建立连接
    connect() {

        try {

            this.ws = new WebSocket(this.url, this.protocols);
            this.setupEventHandlers();
            console.log('WebSocket connecting to:', this.url);
        } catch (error) {

            console.error('WebSocket connection failed:', error);
            this.handleReconnect();
        }
    }

    // 设置事件处理器
    setupEventHandlers() {

        this.ws.onopen = (event) => {

            console.log('WebSocket connected');
            this.reconnectAttempts = 0;
            this.startHeartbeat();
            this.onOpen && this.onOpen(event);
        };

        this.ws.onmessage = (event) => {

            const data = this.parseMessage(event.data);
            this.onMessage && this.onMessage(data);
        };

        this.ws.onclose = (event) => {

            console.log('WebSocket closed:', event.code, event.reason);
            this.stopHeartbeat();
            this.onClose && this.onClose(event);

            // 非正常关闭时尝试重连
            if (event.code !== 1000) {

                this.handleReconnect();
            }
        };

        this.ws.onerror = (error) => {

            console.error('WebSocket error:', error);
            this.onError && this.onError(error);
        };
    }

    // 发送消息
    send(data) {

        if (this.ws && this.ws.readyState === WebSocket.OPEN) {

            const message = typeof data === 'object' ? JSON.stringify(data) : data;
            this.ws.send(message);
            return true;
        }
        console.warn('WebSocket not ready, message not sent:', data);
        return false;
    }

    // 心跳保活
    startHeartbeat() {

        this.heartbeatTimer = setInterval(() => {

            if (this.ws && this.ws.readyState === WebSocket.OPEN) {

                this.send({
    type: 'ping', timestamp: Date.now() });
            }
        }, this.heartbeatInterval);
    }

    stopHeartbeat() {

        if (this.heartbeatTimer) {

            clearInterval(this.heartbeatTimer);
            this.heartbeatTimer = null;
        }
    }

    // 重连机制
    handleReconnect() {

        if (this.reconnectAttempts < this.maxReconnectAttempts) {

            this.reconnectAttempts++;
            const delay = this.reconnectInterval * Math.pow(2, this.reconnectAttempts - 1);
            console.log(`Reconnecting in ${
     delay}ms (attempt ${
     this.reconnectAttempts})`);

            setTimeout(() => {

                this.connect();
            }, delay);
        } else {

            console.error('Max reconnection attempts reached');
            this.onMaxReconnectAttemptsReached && this.onMaxReconnectAttemptsReached();
        }
    }

    // 解析消息
    parseMessage(data) {

        try {

            return JSON.parse(data);
        } catch (error) {

            return data;
        }
    }

    // 关闭连接
    close(code = 1000, reason = 'Normal closure') {

        if (this.ws) {

            this.stopHeartbeat();
            this.ws.close(code, reason);
        }
    }
}

关键行点评:

  • setupEventHandlers() 方法统一管理所有 WebSocket 事件,确保连接状态的正确处理
  • startHeartbeat() 实现心跳保活机制,防止连接被中间设备意外断开
  • handleReconnect() 使用指数退避算法进行重连,避免服务器压力过大

2. 服务端实现与架构设计

2.1 Node.js WebSocket 服务器

意图与要点:构建高性能的 WebSocket 服务器,支持房间管理、消息广播、用户认证等核心功能。

// WebSocket 服务器实现 (Node.js + ws库)
const WebSocket = require('ws');
const http = require('http');
const url = require('url');
const jwt = require('jsonwebtoken');

class WebSocketServer {

    constructor(options = {
   }) {

        this.port = options.port || 8080;
        this.jwtSecret = options.jwtSecret || 'your-secret-key';
        this.clients = new Map(); // 存储客户端连接
        this.rooms = new Map();   // 存储房间信息
        this.server = null;
        this.wss = null;
    }

    // 启动服务器
    start() {

        this.server = http.createServer();
        this.wss = new WebSocket.Server({

            server: this.server,
            verifyClient: this.verifyClient.bind(this)
        });

        this.wss.on('connection', this.handleConnection.bind(this));

        this.server.listen(this.port, () => {

            console.log(`WebSocket server started on port ${
     this.port}`);
        });

        // 定期清理断开的连接
        setInterval(this.cleanupConnections.bind(this), 30000);
    }

    // 客户端验证
    verifyClient(info) {

        const query = url.parse(info.req.url, true).query;
        const token = query.token;

        if (!token) {

            console.log('Connection rejected: No token provided');
            return false;
        }

        try {

            const decoded = jwt.verify(token, this.jwtSecret);
            info.req.user = decoded;
            return true;
        } catch (error) {

            console.log('Connection rejected: Invalid token');
            return false;
        }
    }

    // 处理新连接
    handleConnection(ws, req) {

        const user = req.user;
        const clientId = this.generateClientId();

        // 存储客户端信息
        const clientInfo = {

            id: clientId,
            ws: ws,
            user: user,
            rooms: new Set(),
            lastPing: Date.now()
        };

        this.clients.set(clientId, clientInfo);

        console.log(`Client ${
     clientId} connected (user: ${
     user.username})`);

        // 设置消息处理器
        ws.on('message', (data) => {

            this.handleMessage(clientId, data);
        });

        // 处理连接关闭
        ws.on('close', (code, reason) => {

            this.handleDisconnection(clientId, code, reason);
        });

        // 处理错误
        ws.on('error', (error) => {

            console.error(`Client ${
     clientId} error:`, error);
        });

        // 发送欢迎消息
        this.sendToClient(clientId, {

            type: 'welcome',
            clientId: clientId,
            user: user
        });
    }

    // 处理消息
    handleMessage(clientId, data) {

        const client = this.clients.get(clientId);
        if (!client) return;

        try {

            const message = JSON.parse(data);
            client.lastPing = Date.now();

            switch (message.type) {

                case 'ping':
                    this.sendToClient(clientId, {
    type: 'pong', timestamp: Date.now() });
                    break;

                case 'join_room':
                    this.joinRoom(clientId, message.room);
                    break;

                case 'leave_room':
                    this.leaveRoom(clientId, message.room);
                    break;

                case 'room_message':
                    this.broadcastToRoom(message.room, {

                        type: 'room_message',
                        from: client.user.username,
                        message: message.content,
                        timestamp: Date.now()
                    }, clientId);
                    break;

                case 'private_message':
                    this.sendPrivateMessage(clientId, message.to, message.content);
                    break;

                default:
                    console.log(`Unknown message type: ${
     message.type}`);
            }
        } catch (error) {

            console.error(`Error parsing message from client ${
     clientId}:`, error);
        }
    }

    // 加入房间
    joinRoom(clientId, roomName) {

        const client = this.clients.get(clientId);
        if (!client) return;

        if (!this.rooms.has(roomName)) {

            this.rooms.set(roomName, new Set());
        }

        this.rooms.get(roomName).add(clientId);
        client.rooms.add(roomName);

        this.sendToClient(clientId, {

            type: 'room_joined',
            room: roomName
        });

        // 通知房间其他成员
        this.broadcastToRoom(roomName, {

            type: 'user_joined',
            user: client.user.username,
            room: roomName
        }, clientId);
    }

    // 房间广播
    broadcastToRoom(roomName, message, excludeClientId = null) {

        const room = this.rooms.get(roomName);
        if (!room) return;

        room.forEach(clientId => {

            if (clientId !== excludeClientId) {

                this.sendToClient(clientId, message);
            }
        });
    }

    // 发送消息给指定客户端
    sendToClient(clientId, message) {

        const client = this.clients.get(clientId);
        if (client && client.ws.readyState === WebSocket.OPEN) {

            client.ws.send(JSON.stringify(message));
            return true;
        }
        return false;
    }

    // 生成客户端ID
    generateClientId() {

        return 'client_' + Math.random().toString(36).substr(2, 9) + '_' + Date.now();
    }

    // 清理断开的连接
    cleanupConnections() {

        const now = Date.now();
        const timeout = 60000; // 60秒超时

        this.clients.forEach((client, clientId) => {

            if (now - client.lastPing > timeout || client.ws.readyState !== WebSocket.OPEN) {

                this.handleDisconnection(clientId, 1001, 'Timeout or connection lost');
            }
        });
    }

    // 处理断开连接
    handleDisconnection(clientId, code, reason) {

        const client = this.clients.get(clientId);
        if (!client) return;

        console.log(`Client ${
     clientId} disconnected: ${
     code} ${
     reason}`);

        // 从所有房间中移除
        client.rooms.forEach(roomName => {

            this.leaveRoom(clientId, roomName);
        });

        // 移除客户端记录
        this.clients.delete(clientId);
    }
}

// 启动服务器
const server = new WebSocketServer({

    port: 8080,
    jwtSecret: process.env.JWT_SECRET || 'your-secret-key'
});

server.start();

关键行点评:

  • verifyClient() 在连接建立前进行 JWT 认证,确保只有合法用户能够连接
  • cleanupConnections() 定期清理超时连接,防止内存泄漏和僵尸连接
  • broadcastToRoom() 实现高效的房间消息广播,支持大规模实时通信

2.2 WebSocket 架构设计

%%{init: {'theme':'forest','themeVariables':{'primaryColor':'#8E44AD','primaryTextColor':'#ffffff','secondaryColor':'#D7BDE2'}}}%%
flowchart TB
    subgraph Client_Layer[客户端层]
        WEB[Web Browser]
        MOBILE[Mobile App]
        DESKTOP[Desktop App]
    end

    subgraph Gateway_Layer[网关层]
        LB[Load Balancer]
        NGINX[Nginx Proxy]
    end

    subgraph Application_Layer[应用层]
        WS1[WebSocket Server 1]
        WS2[WebSocket Server 2]
        WS3[WebSocket Server 3]
    end

    subgraph Message_Layer[消息层]
        REDIS[Redis Pub/Sub]
        MQ[Message Queue]
    end

    subgraph Storage_Layer[存储层]
        DB[(Database)]
        CACHE[(Redis Cache)]
    end

    WEB --> LB
    MOBILE --> LB
    DESKTOP --> LB

    LB --> NGINX
    NGINX --> WS1
    NGINX --> WS2
    NGINX --> WS3

    WS1 --> REDIS
    WS2 --> REDIS
    WS3 --> REDIS

    WS1 --> MQ
    WS2 --> MQ
    WS3 --> MQ

    REDIS --> CACHE
    MQ --> DB

    classDef client fill:#3498DB,stroke:#2980B9,color:#ffffff
    classDef gateway fill:#E74C3C,stroke:#C0392B,color:#ffffff
    classDef app fill:#2ECC71,stroke:#27AE60,color:#ffffff
    classDef message fill:#F39C12,stroke:#E67E22,color:#ffffff
    classDef storage fill:#9B59B6,stroke:#8E44AD,color:#ffffff

    class WEB,MOBILE,DESKTOP client
    class LB,NGINX gateway
    class WS1,WS2,WS3 app
    class REDIS,MQ message
    class DB,CACHE storage

图2:WebSocket分布式架构图(flowchart)- 展示从客户端到存储的完整技术栈


3. 实时通信场景与应用实践

3.1 聊天室应用实现

意图与要点:构建功能完整的实时聊天室,包括用户管理、消息历史、文件传输等功能。

// 聊天室客户端实现
class ChatRoom {

    constructor(serverUrl, token) {

        this.serverUrl = serverUrl;
        this.token = token;
        this.client = null;
        this.currentRoom = null;
        this.messageHistory = new Map();
        this.users = new Map();
    }

    // 初始化聊天室
    async initialize() {

        const wsUrl = `${
     this.serverUrl}?token=${
     this.token}`;
        this.client = new WebSocketClient(wsUrl);

        // 设置事件处理器
        this.client.onOpen = this.handleConnect.bind(this);
        this.client.onMessage = this.handleMessage.bind(this);
        this.client.onClose = this.handleDisconnect.bind(this);
        this.client.onError = this.handleError.bind(this);

        this.client.connect();
    }

    // 处理连接成功
    handleConnect(event) {

        console.log('Connected to chat server');
        this.updateConnectionStatus('connected');
    }

    // 处理消息
    handleMessage(data) {

        switch (data.type) {

            case 'welcome':
                this.handleWelcome(data);
                break;
            case 'room_joined':
                this.handleRoomJoined(data);
                break;
            case 'room_message':
                this.handleRoomMessage(data);
                break;
            case 'user_joined':
                this.handleUserJoined(data);
                break;
            case 'user_left':
                this.handleUserLeft(data);
                break;
            case 'private_message':
                this.handlePrivateMessage(data);
                break;
            case 'file_share':
                this.handleFileShare(data);
                break;
            case 'typing_indicator':
                this.handleTypingIndicator(data);
                break;
        }
    }

    // 加入房间
    joinRoom(roomName) {

        if (this.client && this.client.ws.readyState === WebSocket.OPEN) {

            this.client.send({

                type: 'join_room',
                room: roomName
            });
        }
    }

    // 发送消息
    sendMessage(content, type = 'text') {

        if (!this.currentRoom) {

            console.warn('Not in any room');
            return;
        }

        const message = {

            type: 'room_message',
            room: this.currentRoom,
            content: content,
            messageType: type,
            timestamp: Date.now()
        };

        this.client.send(message);

        // 添加到本地消息历史
        this.addMessageToHistory(this.currentRoom, {

            ...message,
            from: 'me',
            status: 'sending'
        });
    }

    // 发送文件
    async sendFile(file) {

        if (!this.currentRoom || !file) return;

        try {

            // 将文件转换为 Base64
            const base64Data = await this.fileToBase64(file);

            const fileMessage = {

                type: 'file_share',
                room: this.currentRoom,
                fileName: file.name,
                fileSize: file.size,
                fileType: file.type,
                fileData: base64Data,
                timestamp: Date.now()
            };

            this.client.send(fileMessage);
        } catch (error) {

            console.error('Error sending file:', error);
        }
    }

    // 发送打字指示器
    sendTypingIndicator(isTyping) {

        if (!this.currentRoom) return;

        this.client.send({

            type: 'typing_indicator',
            room: this.currentRoom,
            isTyping: isTyping
        });
    }

    // 文件转 Base64
    fileToBase64(file) {

        return new Promise((resolve, reject) => {

            const reader = new FileReader();
            reader.onload = () => resolve(reader.result.split(',')[1]);
            reader.onerror = reject;
            reader.readAsDataURL(file);
        });
    }

    // 添加消息到历史记录
    addMessageToHistory(room, message) {

        if (!this.messageHistory.has(room)) {

            this.messageHistory.set(room, []);
        }

        this.messageHistory.get(room).push(message);
        this.updateChatUI(room, message);
    }

    // 更新聊天界面
    updateChatUI(room, message) {

        const chatContainer = document.getElementById('chat-messages');
        if (!chatContainer) return;

        const messageElement = document.createElement('div');
        messageElement.className = `message ${
     message.from === 'me' ? 'sent' : 'received'}`;

        const timestamp = new Date(message.timestamp).toLocaleTimeString();

        if (message.messageType === 'file') {

            messageElement.innerHTML = `
                <div class="message-header">
                    <span class="sender">${
     message.from}</span>
                    <span class="timestamp">${
     timestamp}</span>
                </div>
                <div class="file-message">
                    <i class="file-icon"></i>
                    <span class="file-name">${
     message.fileName}</span>
                    <span class="file-size">(${
     this.formatFileSize(message.fileSize)})</span>
                    <button onclick="downloadFile('${
     message.fileData}', '${
     message.fileName}')">
                        下载
                    </button>
                </div>
            `;
        } else {

            messageElement.innerHTML = `
                <div class="message-header">
                    <span class="sender">${
     message.from}</span>
                    <span class="timestamp">${
     timestamp}</span>
                </div>
                <div class="message-content">${
     this.escapeHtml(message.content)}</div>
            `;
        }

        chatContainer.appendChild(messageElement);
        chatContainer.scrollTop = chatContainer.scrollHeight;
    }

    // 格式化文件大小
    formatFileSize(bytes) {

        if (bytes === 0) return '0 Bytes';
        const k = 1024;
        const sizes = ['Bytes', 'KB', 'MB', 'GB'];
        const i = Math.floor(Math.log(bytes) / Math.log(k));
        return parseFloat((bytes / Math.pow(k, i)).toFixed(2)) + ' ' + sizes[i];
    }

    // HTML 转义
    escapeHtml(text) {

        const div = document.createElement('div');
        div.textContent = text;
        return div.innerHTML;
    }
}

// 使用示例
const chatRoom = new ChatRoom('ws://localhost:8080', 'your-jwt-token');
chatRoom.initialize();

关键行点评:

  • sendFile() 方法支持文件的 Base64 编码传输,适合小文件的实时分享
  • sendTypingIndicator() 提供打字状态提示,提升用户体验
  • addMessageToHistory() 本地缓存消息历史,支持离线查看和快速加载

3.2 性能监控与数据分析

%%{init: {'theme':'forest','themeVariables':{'primaryColor':'#E74C3C','primaryTextColor':'#ffffff'}}}%%
pie title WebSocket 连接状态分布
    "活跃连接" : 65
    "空闲连接" : 20
    "重连中" : 10
    "错误状态" : 5

图3:WebSocket连接状态分布图(pie)- 展示实时连接健康度

在这里插入图片描述

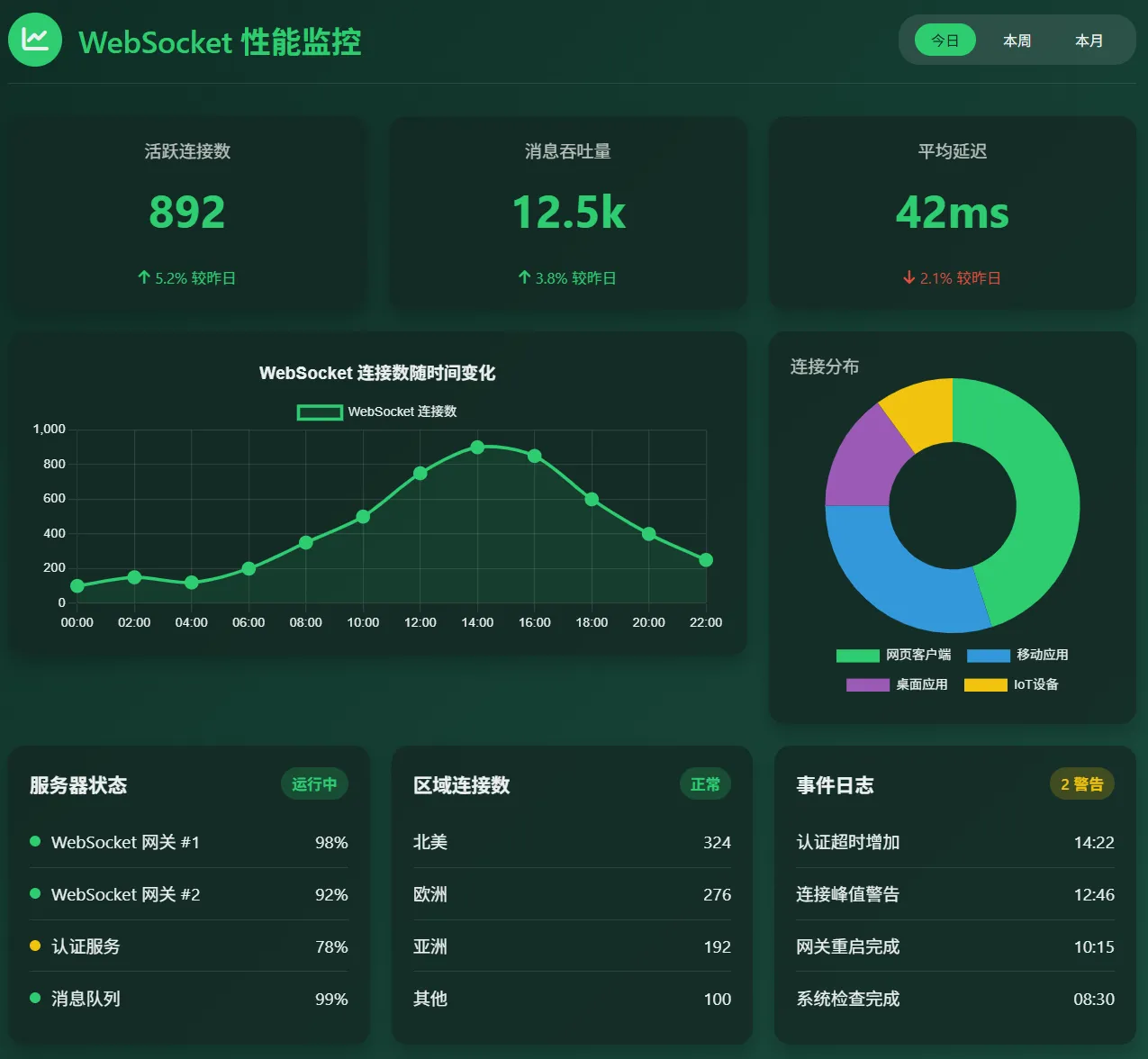

图4:WebSocket连接数趋势图(xychart-beta)- 展示24小时连接数变化


4. 技术对比与选型指南

4.1 实时通信技术对比

技术方案 延迟 服务器资源消耗 客户端兼容性 开发复杂度 适用场景
WebSocket 极低(1-5ms) 中等 优秀 中等 实时聊天、游戏、协作
Server-Sent Events 低(10-50ms) 良好 简单 实时通知、数据推送
Long Polling 中等(100-500ms) 优秀 简单 简单实时更新
Socket.IO 低(5-20ms) 中等 优秀 简单 快速原型、跨平台
gRPC Streaming 极低(1-3ms) 中等 复杂 微服务、高性能场景

4.2 WebSocket 库选择建议

"选择合适的工具比优化错误的工具更重要。在实时通信领域,稳定性和可维护性往往比极致性能更有价值。" —— 实时系统架构原则


5. 生产环境部署与优化

5.1 负载均衡与集群部署

意图与要点:实现 WebSocket 的水平扩展,支持会话粘性和跨节点消息路由。

# Nginx WebSocket 负载均衡配置
upstream websocket_backend {

    # 启用会话粘性,确保客户端连接到同一服务器
    ip_hash;

    server 192.168.1.10:8080 weight=3 max_fails=3 fail_timeout=30s;
    server 192.168.1.11:8080 weight=3 max_fails=3 fail_timeout=30s;
    server 192.168.1.12:8080 weight=2 max_fails=3 fail_timeout=30s;

    # 备用服务器
    server 192.168.1.13:8080 backup;
}

server {

    listen 80;
    server_name websocket.example.com;

    # WebSocket 代理配置
    location /ws {

        proxy_pass http://websocket_backend;

        # WebSocket 必需的头部
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection "upgrade";
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;

        # 超时设置
        proxy_connect_timeout 60s;
        proxy_send_timeout 60s;
        proxy_read_timeout 300s;

        # 缓冲区设置
        proxy_buffering off;
        proxy_cache off;
    }

    # 健康检查端点
    location /health {

        proxy_pass http://websocket_backend/health;
        proxy_set_header Host $host;
    }
}

5.2 监控与告警系统

// WebSocket 监控指标收集
class WebSocketMonitor {

    constructor() {

        this.metrics = {

            totalConnections: 0,
            activeConnections: 0,
            messagesPerSecond: 0,
            errorRate: 0,
            averageLatency: 0,
            memoryUsage: 0,
            cpuUsage: 0
        };

        this.messageCount = 0;
        this.errorCount = 0;
        this.latencySum = 0;
        this.latencyCount = 0;

        this.startMonitoring();
    }

    // 开始监控
    startMonitoring() {

        // 每秒收集指标
        setInterval(() => {

            this.collectMetrics();
            this.sendMetricsToInfluxDB();
            this.checkAlerts();
            this.resetCounters();
        }, 1000);

        // 每分钟收集系统资源
        setInterval(() => {

            this.collectSystemMetrics();
        }, 60000);
    }

    // 收集 WebSocket 指标
    collectMetrics() {

        this.metrics.messagesPerSecond = this.messageCount;
        this.metrics.errorRate = this.errorCount / Math.max(this.messageCount, 1);
        this.metrics.averageLatency = this.latencyCount > 0 ?
            this.latencySum / this.latencyCount : 0;
    }

    // 记录消息
    recordMessage(latency = 0) {

        this.messageCount++;
        if (latency > 0) {

            this.latencySum += latency;
            this.latencyCount++;
        }
    }

    // 记录错误
    recordError() {

        this.errorCount++;
    }

    // 记录连接变化
    recordConnection(isConnect) {

        if (isConnect) {

            this.metrics.totalConnections++;
            this.metrics.activeConnections++;
        } else {

            this.metrics.activeConnections--;
        }
    }

    // 收集系统指标
    collectSystemMetrics() {

        const used = process.memoryUsage();
        this.metrics.memoryUsage = used.heapUsed / 1024 / 1024; // MB

        // CPU 使用率需要额外的库来获取
        // this.metrics.cpuUsage = getCpuUsage();
    }

    // 发送指标到 InfluxDB
    sendMetricsToInfluxDB() {

        const influxData = {

            measurement: 'websocket_metrics',
            tags: {

                server: process.env.SERVER_ID || 'unknown',
                environment: process.env.NODE_ENV || 'development'
            },
            fields: this.metrics,
            timestamp: Date.now() * 1000000 // 纳秒时间戳
        };

        // 发送到 InfluxDB (示例)
        // influxClient.writePoints([influxData]);
        console.log('Metrics:', JSON.stringify(this.metrics, null, 2));
    }

    // 检查告警条件
    checkAlerts() {

        const alerts = [];

        // 连接数告警
        if (this.metrics.activeConnections > 10000) {

            alerts.push({

                level: 'warning',
                message: `High connection count: ${
     this.metrics.activeConnections}`
            });
        }

        // 错误率告警
        if (this.metrics.errorRate > 0.05) {

            alerts.push({

                level: 'critical',
                message: `High error rate: ${
     (this.metrics.errorRate * 100).toFixed(2)}%`
            });
        }

        // 延迟告警
        if (this.metrics.averageLatency > 1000) {

            alerts.push({

                level: 'warning',
                message: `High latency: ${
     this.metrics.averageLatency.toFixed(2)}ms`
            });
        }

        // 内存使用告警
        if (this.metrics.memoryUsage > 1024) {

            alerts.push({

                level: 'warning',
                message: `High memory usage: ${
     this.metrics.memoryUsage.toFixed(2)}MB`
            });
        }

        // 发送告警
        alerts.forEach(alert => {

            this.sendAlert(alert);
        });
    }

    // 发送告警
    sendAlert(alert) {

        console.log(`ALERT [${
     alert.level.toUpperCase()}]: ${
     alert.message}`);

        // 发送到告警系统 (钉钉、邮件、Slack 等)
        // alertSystem.send(alert);
    }

    // 重置计数器
    resetCounters() {

        this.messageCount = 0;
        this.errorCount = 0;
        this.latencySum = 0;
        this.latencyCount = 0;
    }
}

// 全局监控实例
const monitor = new WebSocketMonitor();

// 在 WebSocket 服务器中集成监控
// server.on('connection', () => monitor.recordConnection(true));
// server.on('message', (latency) => monitor.recordMessage(latency));
// server.on('error', () => monitor.recordError());

关键行点评:

  • collectMetrics() 实时收集关键性能指标,为系统优化提供数据支撑
  • checkAlerts() 基于阈值的智能告警,及时发现系统异常
  • sendMetricsToInfluxDB() 将指标数据持久化,支持历史分析和趋势预测

6. 安全防护与最佳实践

6.1 安全威胁与防护措施

在这里插入图片描述
在这里插入图片描述

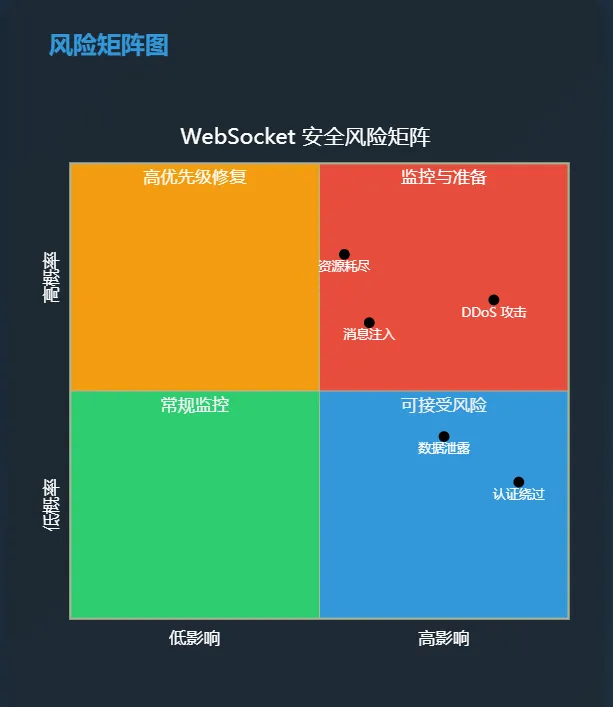

图5:WebSocket安全风险矩阵(quadrantChart)- 评估各类安全威胁的优先级

6.2 安全防护实现

意图与要点:实现多层次的安全防护,包括认证授权、输入验证、速率限制等。

// WebSocket 安全防护中间件
class WebSocketSecurity {

    constructor(options = {
   }) {

        this.rateLimiter = new Map(); // 速率限制
        this.blacklist = new Set();   // 黑名单
        this.maxMessageSize = options.maxMessageSize || 64 * 1024; // 64KB
        this.maxMessagesPerMinute = options.maxMessagesPerMinute || 100;
        this.suspiciousPatterns = [
            /<script\b[^<]*(?:(?!<\/script>)<[^<]*)*<\/script>/gi,
            /javascript:/gi,
            /on\w+\s*=/gi
        ];
    }

    // 验证连接
    validateConnection(req) {

        const clientIP = this.getClientIP(req);

        // 检查黑名单
        if (this.blacklist.has(clientIP)) {

            throw new Error('IP address is blacklisted');
        }

        // 验证 Origin
        const origin = req.headers.origin;
        if (!this.isValidOrigin(origin)) {

            throw new Error('Invalid origin');
        }

        // 验证 User-Agent
        const userAgent = req.headers['user-agent'];
        if (!this.isValidUserAgent(userAgent)) {

            throw new Error('Invalid user agent');
        }

        return true;
    }

    // 验证消息
    validateMessage(clientId, message) {

        const clientIP = this.getClientIPById(clientId);

        // 检查消息大小
        if (Buffer.byteLength(message, 'utf8') > this.maxMessageSize) {

            this.recordSuspiciousActivity(clientIP, 'oversized_message');
            throw new Error('Message too large');
        }

        // 速率限制检查
        if (!this.checkRateLimit(clientIP)) {

            this.recordSuspiciousActivity(clientIP, 'rate_limit_exceeded');
            throw new Error('Rate limit exceeded');
        }

        // 解析并验证消息内容
        let parsedMessage;
        try {

            parsedMessage = JSON.parse(message);
        } catch (error) {

            this.recordSuspiciousActivity(clientIP, 'invalid_json');
            throw new Error('Invalid JSON format');
        }

        // 验证消息结构
        if (!this.isValidMessageStructure(parsedMessage)) {

            this.recordSuspiciousActivity(clientIP, 'invalid_structure');
            throw new Error('Invalid message structure');
        }

        // 内容安全检查
        if (this.containsSuspiciousContent(parsedMessage)) {

            this.recordSuspiciousActivity(clientIP, 'suspicious_content');
            throw new Error('Suspicious content detected');
        }

        return parsedMessage;
    }

    // 速率限制检查
    checkRateLimit(clientIP) {

        const now = Date.now();
        const windowStart = now - 60000; // 1分钟窗口

        if (!this.rateLimiter.has(clientIP)) {

            this.rateLimiter.set(clientIP, []);
        }

        const requests = this.rateLimiter.get(clientIP);

        // 清理过期记录
        while (requests.length > 0 && requests[0] < windowStart) {

            requests.shift();
        }

        // 检查是否超过限制
        if (requests.length >= this.maxMessagesPerMinute) {

            return false;
        }

        // 记录当前请求
        requests.push(now);
        return true;
    }

    // 验证消息结构
    isValidMessageStructure(message) {

        if (typeof message !== 'object' || message === null) {

            return false;
        }

        // 必需字段检查
        if (!message.type || typeof message.type !== 'string') {

            return false;
        }

        // 字段长度限制
        if (message.type.length > 50) {

            return false;
        }

        // 根据消息类型验证特定字段
        switch (message.type) {

            case 'room_message':
                return message.room && message.content &&
                       typeof message.room === 'string' &&
                       typeof message.content === 'string' &&
                       message.room.length <= 100 &&
                       message.content.length <= 10000;

            case 'join_room':
                return message.room &&
                       typeof message.room === 'string' &&
                       message.room.length <= 100 &&
                       /^[a-zA-Z0-9_-]+$/.test(message.room);

            default:
                return true;
        }
    }

    // 检查可疑内容
    containsSuspiciousContent(message) {

        const content = JSON.stringify(message);

        return this.suspiciousPatterns.some(pattern => {

            return pattern.test(content);
        });
    }

    // 验证来源
    isValidOrigin(origin) {

        const allowedOrigins = [
            'https://yourdomain.com',
            'https://app.yourdomain.com',
            'http://localhost:3000' // 开发环境
        ];

        return allowedOrigins.includes(origin);
    }

    // 验证 User-Agent
    isValidUserAgent(userAgent) {

        if (!userAgent || userAgent.length < 10) {

            return false;
        }

        // 检查是否为已知的恶意 User-Agent
        const maliciousPatterns = [
            /bot/i,
            /crawler/i,
            /scanner/i
        ];

        return !maliciousPatterns.some(pattern => pattern.test(userAgent));
    }

    // 记录可疑活动
    recordSuspiciousActivity(clientIP, activityType) {

        const activity = {

            ip: clientIP,
            type: activityType,
            timestamp: Date.now(),
            count: 1
        };

        console.log('Suspicious activity detected:', activity);

        // 累计可疑活动,达到阈值时加入黑名单
        const key = `${
     clientIP}_${
     activityType}`;
        const existing = this.suspiciousActivities.get(key) || {
    count: 0, firstSeen: Date.now() };
        existing.count++;

        if (existing.count >= 5) {

            this.addToBlacklist(clientIP, `Multiple ${
     activityType} violations`);
        }

        this.suspiciousActivities.set(key, existing);
    }

    // 添加到黑名单
    addToBlacklist(clientIP, reason) {

        this.blacklist.add(clientIP);
        console.log(`IP ${
     clientIP} added to blacklist: ${
     reason}`);

        // 设置自动解除黑名单
        setTimeout(() => {

            this.blacklist.delete(clientIP);
            console.log(`IP ${
     clientIP} removed from blacklist`);
        }, 24 * 60 * 60 * 1000); // 24小时后自动解除
    }

    // 获取客户端 IP
    getClientIP(req) {

        return req.headers['x-forwarded-for'] ||
               req.headers['x-real-ip'] ||
               req.connection.remoteAddress ||
               req.socket.remoteAddress ||
               '0.0.0.0';
    }

    // 清理过期数据
    cleanup() {

        const now = Date.now();
        const expireTime = 24 * 60 * 60 * 1000; // 24小时

        // 清理速率限制记录
        for (const [ip, requests] of this.rateLimiter.entries()) {

            const validRequests = requests.filter(time => now - time < 60000);
            if (validRequests.length === 0) {

                this.rateLimiter.delete(ip);
            } else {

                this.rateLimiter.set(ip, validRequests);
            }
        }

        // 清理可疑活动记录
        for (const [key, activity] of this.suspiciousActivities.entries()) {

            if (now - activity.firstSeen > expireTime) {

                this.suspiciousActivities.delete(key);
            }
        }
    }
}

// 使用安全中间件
const security = new WebSocketSecurity({

    maxMessageSize: 64 * 1024,
    maxMessagesPerMinute: 100
});

// 定期清理
setInterval(() => {

    security.cleanup();
}, 60 * 60 * 1000); // 每小时清理一次

关键行点评:

  • validateMessage() 实现多层次的消息验证,防止恶意输入和注入攻击
  • checkRateLimit() 使用滑动窗口算法进行精确的速率限制
  • recordSuspiciousActivity() 智能检测和记录异常行为,支持自动防护

总结

在 WebSocket 的技术星海中航行多年,深深感受到这项技术的革命性价值。从协议层面的握手机制到应用层面的实时交互,从单机部署到分布式集群,WebSocket 为我们打开了实时通信的无限可能。在这次技术探索中,我们不仅掌握了 WebSocket 的核心原理和实现细节,更重要的是建立了完整的工程化思维:如何设计可扩展的架构、如何实现可靠的连接管理、如何构建安全的防护体系、如何建立有效的监控告警。真正的技术价值不在于炫技,而在于解决实际问题。WebSocket 让我们能够构建真正实时的用户体验——无论是游戏中的即时对战、交易系统的实时报价,还是协作工具的同步编辑。但技术的应用必须建立在对其本质的深刻理解之上:理解连接的生命周期、理解消息的传输机制、理解网络的不可靠性、理解安全的重要性。在未来的项目中,请记住:优秀的 WebSocket 应用不仅要快速响应,更要稳定可靠;不仅要功能丰富,更要安全可控;不仅要满足当前需求,更要具备扩展能力。愿你在实时通信的技术宇宙中,用 WebSocket 这把利剑,为用户创造出真正有价值的实时体验,在代码的星河中留下属于自己的光辉轨迹。

■ 我是蒋星熠Jaxonic!如果这篇文章在你的技术成长路上留下了印记
■ 👁 【关注】与我一起探索技术的无限可能,见证每一次突破
■ 👍 【点赞】为优质技术内容点亮明灯,传递知识的力量
■ 🔖 【收藏】将精华内容珍藏,随时回顾技术要点
■ 💬 【评论】分享你的独特见解,让思维碰撞出智慧火花
■ 🗳 【投票】用你的选择为技术社区贡献一份力量
■ 技术路漫漫,让我们携手前行,在代码的世界里摘取属于程序员的那片星辰大海!

参考链接

  1. WebSocket RFC 6455 官方规范
  2. MDN WebSocket API 文档
  3. Socket.IO 官方文档
  4. Node.js ws 库文档
  5. WebSocket 安全最佳实践
相关文章
|
2天前
|
存储 关系型数据库 分布式数据库
PostgreSQL 18 发布,快来 PolarDB 尝鲜!
PostgreSQL 18 发布,PolarDB for PostgreSQL 全面兼容。新版本支持异步I/O、UUIDv7、虚拟生成列、逻辑复制增强及OAuth认证,显著提升性能与安全。PolarDB-PG 18 支持存算分离架构,融合海量弹性存储与极致计算性能,搭配丰富插件生态,为企业提供高效、稳定、灵活的云数据库解决方案,助力企业数字化转型如虎添翼!
|
13天前
|
弹性计算 关系型数据库 微服务
基于 Docker 与 Kubernetes(K3s)的微服务:阿里云生产环境扩容实践
在微服务架构中,如何实现“稳定扩容”与“成本可控”是企业面临的核心挑战。本文结合 Python FastAPI 微服务实战,详解如何基于阿里云基础设施,利用 Docker 封装服务、K3s 实现容器编排,构建生产级微服务架构。内容涵盖容器构建、集群部署、自动扩缩容、可观测性等关键环节,适配阿里云资源特性与服务生态,助力企业打造低成本、高可靠、易扩展的微服务解决方案。
1292 5
|
12天前
|
机器学习/深度学习 人工智能 前端开发
通义DeepResearch全面开源!同步分享可落地的高阶Agent构建方法论
通义研究团队开源发布通义 DeepResearch —— 首个在性能上可与 OpenAI DeepResearch 相媲美、并在多项权威基准测试中取得领先表现的全开源 Web Agent。
1318 87
|
2天前
|
弹性计算 安全 数据安全/隐私保护
2025年阿里云域名备案流程(新手图文详细流程)
本文图文详解阿里云账号注册、服务器租赁、域名购买及备案全流程,涵盖企业实名认证、信息模板创建、域名备案提交与管局审核等关键步骤,助您快速完成网站上线前的准备工作。
178 82
2025年阿里云域名备案流程(新手图文详细流程)
|
2天前
|
自然语言处理 前端开发
基于Electron38+Vite7.1+Vue3+Pinia3+ElementPlus电脑端admin后台管理模板
基于最新版跨平台框架Electron38整合Vite7+Vue3+ElementPlus搭建轻量级客户端中后台管理系统解决方案。
161 86
