简介: 使用MYSQL Report分析数据库性能

1.索引报表

根据上一节的提示做如下设置。由于有MyISAM表,但使用率很低,可以减小键缓存大小以节省内存

SET GLOBAL key_buffer_size =4*1024*1024; --设置为4MB

永久设置my.ini(通过SHOW VARIABLES LIKE 'datadir';获得)

[mysqld]
key_buffer_size=4M

查看哪些表是MyISAM引擎:

SELECT table_schema, table_name, engine
FROM information_schema.tables
WHERE engine='MyISAM';

结果为空,所以考虑转换为InnoDB:

ALTER TABLE user ENGINE=InnoDB

由于MyISAM表是只不是读的,所以不设置

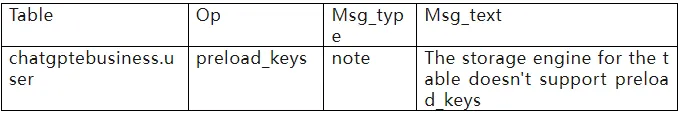

LOAD INDEX INTO CACHE user;

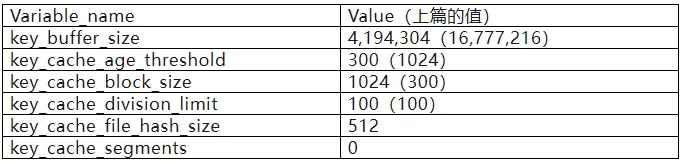

查看键缓存配置

SHOW VARIABLES LIKE 'key%';

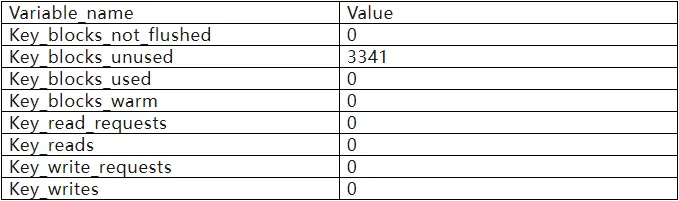

查看键缓存运行状态

SHOW GLOBAL STATUS LIKE 'Key%';

解决1:键缓存完全失效

问题2:缓存利用率低但配置过大

-- 将键缓存从16MB降到4MB
SET GLOBAL key_buffer_size = 4 * 1024 * 1024;
-- 永久配置(my.cnf)
[mysqld]
key_buffer_size = 4M

键缓存优化策略

最佳配置计算

-- 计算理想键缓存大小
SELECT
CONCAT(ROUND(SUM(INDEX_LENGTH)/1024/1024, 2), ' MB') AS ideal_size
FROM information_schema.TABLES
WHERE ENGINE = 'MyISAM';

显示null

多键缓存配置(MariaDB专用)

-- 1. 创建专用缓存
SET GLOBAL mycache.key_buffer_size = 64 * 1024 * 1024;
-- 2. 分配表到缓存

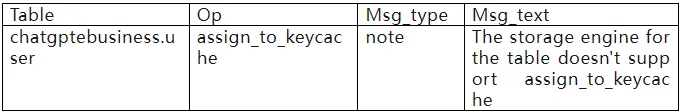

CACHE INDEX chatgptebusiness.user IN mycache;


-- 3. 预热缓存
LOAD INDEX INTO CACHE user;

完全禁用键缓存(若无MyISAM表):有MyISAM表

监控转变:

-- 关注 InnoDB 缓冲池
SHOW ENGINE INNODB STATUS;
"Type"    "Name"    "Status"
"InnoDB"    ""    "
=====================================
2025-08-05 13:06:58 0x4738 INNODB MONITOR OUTPUT
=====================================
Per second averages calculated from the last 37 seconds
-----------------
BACKGROUND THREAD
-----------------
srv_master_thread loops: 1 srv_active, 0 srv_shutdown, 740 srv_idle
srv_master_thread log flush and writes: 741
----------
SEMAPHORES
----------
OS WAIT ARRAY INFO: reservation count 14
OS WAIT ARRAY INFO: signal count 12
RW-shared spins 13, rounds 367, OS waits 12
RW-excl spins 6, rounds 43, OS waits 1
RW-sx spins 0, rounds 0, OS waits 0
Spin rounds per wait: 28.23 RW-shared, 7.17 RW-excl, 0.00 RW-sx
------------
TRANSACTIONS
------------
Trx id counter 3910271
Purge done for trx's n:o < 3909988 undo n:o < 0 state: running but idle
History list length 0
LIST OF TRANSACTIONS FOR EACH SESSION:
---TRANSACTION 283084118929552, not started
0 lock struct(s), heap size 1128, 0 row lock(s)
--------
FILE I/O
--------
I/O thread 0 state: native aio handle (insert buffer thread)
I/O thread 1 state: native aio handle (log thread)
I/O thread 2 state: native aio handle (read thread)
I/O thread 3 state: native aio handle (read thread)
I/O thread 4 state: native aio handle (read thread)
I/O thread 5 state: native aio handle (read thread)
I/O thread 6 state: native aio handle (write thread)
I/O thread 7 state: native aio handle (write thread)
I/O thread 8 state: native aio handle (write thread)
I/O thread 9 state: native aio handle (write thread)
Pending normal aio reads: [0, 0, 0, 0] , aio writes: [0, 0, 0, 0] ,
 ibuf aio reads:, log i/o's:, sync i/o's:
Pending flushes (fsync) log: 0; buffer pool: 0
1643 OS file reads, 227 OS file writes, 55 OS fsyncs
0.00 reads/s, 0 avg bytes/read, 0.00 writes/s, 0.00 fsyncs/s
-------------------------------------
INSERT BUFFER AND ADAPTIVE HASH INDEX
-------------------------------------
Ibuf: size 1, free list len 305, seg size 307, 0 merges
merged operations:
 insert 0, delete mark 0, delete 0
discarded operations:
 insert 0, delete mark 0, delete 0
0.00 hash searches/s, 0.00 non-hash searches/s
---
LOG
---
Log sequence number 35265617625
Log flushed up to   35265617625
Pages flushed up to 35265617625
Last checkpoint at  35265617616
0 pending log flushes, 0 pending chkp writes
29 log i/o's done, 0.00 log i/o's/second
----------------------
BUFFER POOL AND MEMORY
----------------------
Total large memory allocated 4311744512
Dictionary memory allocated 741184
Buffer pool size   256864
Free buffers       255375
Database pages     1489
Old database pages 0
Modified db pages  0
Percent of dirty pages(LRU & free pages): 0.000
Max dirty pages percent: 75.000
Pending reads 0
Pending writes: LRU 0, flush list 0, single page 0
Pages made young 0, not young 0
0.00 youngs/s, 0.00 non-youngs/s
Pages read 1343, created 146, written 194
0.00 reads/s, 0.00 creates/s, 0.00 writes/s
No buffer pool page gets since the last printout
Pages read ahead 0.00/s, evicted without access 0.00/s, Random read ahead 0.00/s
LRU len: 1489, unzip_LRU len: 0
I/O sum[0]:cur[0], unzip sum[0]:cur[0]
----------------------
INDIVIDUAL BUFFER POOL INFO
----------------------
---BUFFER POOL 0
Buffer pool size   32108
Free buffers       31961
Database pages     147
Old database pages 0
Modified db pages  0
Percent of dirty pages(LRU & free pages): 0.000
Max dirty pages percent: 75.000
Pending reads 0
Pending writes: LRU 0, flush list 0, single page 0
Pages made young 0, not young 0
0.00 youngs/s, 0.00 non-youngs/s
Pages read 143, created 4, written 22
0.00 reads/s, 0.00 creates/s, 0.00 writes/s
No buffer pool page gets since the last printout
Pages read ahead 0.00/s, evicted without access 0.00/s, Random read ahead 0.00/s
LRU len: 147, unzip_LRU len: 0
I/O sum[0]:cur[0], unzip sum[0]:cur[0]
---BUFFER POOL 1
Buffer pool size   32108
Free buffers       31976
Database pages     132
Old database pages 0
Modified db pages  0
Percent of dirty pages(LRU & free pages): 0.000
Max dirty pages percent: 75.000
Pending reads 0
Pending writes: LRU 0, flush list 0, single page 0
Pages made young 0, not young 0
0.00 youngs/s, 0.00 non-youngs/s
Pages read 132, created 0, written 1
0.00 reads/s, 0.00 creates/s, 0.00 writes/s
No buffer pool page gets since the last printout
Pages read ahead 0.00/s, evicted without access 0.00/s, Random read ahead 0.00/s
LRU len: 132, unzip_LRU len: 0
I/O sum[0]:cur[0], unzip sum[0]:cur[0]
---BUFFER POOL 2
Buffer pool size   32108
Free buffers       31996
Database pages     112
Old database pages 0
Modified db pages  0
Percent of dirty pages(LRU & free pages): 0.000
Max dirty pages percent: 75.000
Pending reads 0
Pending writes: LRU 0, flush list 0, single page 0
Pages made young 0, not young 0
0.00 youngs/s, 0.00 non-youngs/s
Pages read 112, created 0, written 0
0.00 reads/s, 0.00 creates/s, 0.00 writes/s
No buffer pool page gets since the last printout
Pages read ahead 0.00/s, evicted without access 0.00/s, Random read ahead 0.00/s
LRU len: 112, unzip_LRU len: 0
I/O sum[0]:cur[0], unzip sum[0]:cur[0]
---BUFFER POOL 3
Buffer pool size   32108
Free buffers       31839
Database pages     269
Old database pages 0
Modified db pages  0
Percent of dirty pages(LRU & free pages): 0.000
Max dirty pages percent: 75.000
Pending reads 0
Pending writes: LRU 0, flush list 0, single page 0
Pages made young 0, not young 0
0.00 youngs/s, 0.00 non-youngs/s
Pages read 255, created 14, written 16
0.00 reads/s, 0.00 creates/s, 0.00 writes/s
No buffer pool page gets since the last printout
Pages read ahead 0.00/s, evicted without access 0.00/s, Random read ahead 0.00/s
LRU len: 269, unzip_LRU len: 0
I/O sum[0]:cur[0], unzip sum[0]:cur[0]
---BUFFER POOL 4
Buffer pool size   32108
Free buffers       31943
Database pages     165
Old database pages 0
Modified db pages  0
Percent of dirty pages(LRU & free pages): 0.000
Max dirty pages percent: 75.000
Pending reads 0
Pending writes: LRU 0, flush list 0, single page 0
Pages made young 0, not young 0
0.00 youngs/s, 0.00 non-youngs/s
Pages read 165, created 0, written 3
0.00 reads/s, 0.00 creates/s, 0.00 writes/s
No buffer pool page gets since the last printout
Pages read ahead 0.00/s, evicted without access 0.00/s, Random read ahead 0.00/s
LRU len: 165, unzip_LRU len: 0
I/O sum[0]:cur[0], unzip sum[0]:cur[0]
---BUFFER POOL 5
Buffer pool size   32108
Free buffers       31909
Database pages     199
Old database pages 0
Modified db pages  0
Percent of dirty pages(LRU & free pages): 0.000
Max dirty pages percent: 75.000
Pending reads 0
Pending writes: LRU 0, flush list 0, single page 0
Pages made young 0, not young 0
0.00 youngs/s, 0.00 non-youngs/s
Pages read 199, created 0, written 10
0.00 reads/s, 0.00 creates/s, 0.00 writes/s
No buffer pool page gets since the last printout
Pages read ahead 0.00/s, evicted without access 0.00/s, Random read ahead 0.00/s
LRU len: 199, unzip_LRU len: 0
I/O sum[0]:cur[0], unzip sum[0]:cur[0]
---BUFFER POOL 6
Buffer pool size   32108
Free buffers       31883
Database pages     225
Old database pages 0
Modified db pages  0
Percent of dirty pages(LRU & free pages): 0.000
Max dirty pages percent: 75.000
Pending reads 0
Pending writes: LRU 0, flush list 0, single page 0
Pages made young 0, not young 0
0.00 youngs/s, 0.00 non-youngs/s
Pages read 161, created 64, written 72
0.00 reads/s, 0.00 creates/s, 0.00 writes/s
No buffer pool page gets since the last printout
Pages read ahead 0.00/s, evicted without access 0.00/s, Random read ahead 0.00/s
LRU len: 225, unzip_LRU len: 0
I/O sum[0]:cur[0], unzip sum[0]:cur[0]
---BUFFER POOL 7
Buffer pool size   32108
Free buffers       31868
Database pages     240
Old database pages 0
Modified db pages  0
Percent of dirty pages(LRU & free pages): 0.000
Max dirty pages percent: 75.000
Pending reads 0
Pending writes: LRU 0, flush list 0, single page 0
Pages made young 0, not young 0
0.00 youngs/s, 0.00 non-youngs/s
Pages read 176, created 64, written 70
0.00 reads/s, 0.00 creates/s, 0.00 writes/s
No buffer pool page gets since the last printout
Pages read ahead 0.00/s, evicted without access 0.00/s, Random read ahead 0.00/s
LRU len: 240, unzip_LRU len: 0
I/O sum[0]:cur[0], unzip sum[0]:cur[0]
--------------
ROW OPERATIONS
--------------
0 queries inside InnoDB, 0 queries in queue
0 read views open inside InnoDB
Process ID=8244, Main thread ID=1424, state: sleeping
Number of rows inserted 0, updated 0, deleted 0, read 0
0.00 inserts/s, 0.00 updates/s, 0.00 deletes/s, 0.00 reads/s
Number of system rows inserted 0, updated 0, deleted 0, read 0
0.00 inserts/s, 0.00 updates/s, 0.00 deletes/s, 0.00 reads/s
----------------------------
END OF INNODB MONITOR OUTPUT
============================
"
SHOW GLOBAL STATUS LIKE 'Innodb_buffer_pool%';
"Variable_name"    "Value"
"Innodb_buffer_pool_dump_status"    ""
"Innodb_buffer_pool_load_status"    "Buffer pool(s) load completed at 250804 11:04:31"
"Innodb_buffer_pool_resize_status"    ""
"Innodb_buffer_pool_load_incomplete"    "OFF"
"Innodb_buffer_pool_pages_data"    "992"
"Innodb_buffer_pool_bytes_data"    "16252928"
"Innodb_buffer_pool_pages_dirty"    "0"
"Innodb_buffer_pool_bytes_dirty"    "0"
"Innodb_buffer_pool_pages_flushed"    "201"
"Innodb_buffer_pool_pages_free"    "0"
"Innodb_buffer_pool_pages_misc"    "11"
"Innodb_buffer_pool_pages_total"    "1003"
"Innodb_buffer_pool_read_ahead_rnd"    "0"
"Innodb_buffer_pool_read_ahead"    "0"
"Innodb_buffer_pool_read_ahead_evicted"    "91"
"Innodb_buffer_pool_read_requests"    "12023"
"Innodb_buffer_pool_reads"    "1515"
"Innodb_buffer_pool_wait_free"    "0"
"Innodb_buffer_pool_write_requests"    "963"

数据获取方法

  1. 实时监控命令
SHOW GLOBAL STATUS WHERE VARIABLE_NAME IN ('Questions', 'Com_%', 'Queries', 'Slow_queries');

2.操作报表
生成类似报表的SQL查询

-- 查看所有Com_开头的状态变量
SHOW GLOBAL STATUS LIKE 'Com_%';
"Variable_name"    "Value"
"Com_admin_commands"    "6185"
"Com_alter_db"    "0"
"Com_alter_db_upgrade"    "0"
"Com_alter_event"    "0"
"Com_alter_function"    "0"
"Com_alter_procedure"    "0"
"Com_alter_server"    "0"
"Com_alter_sequence"    "0"
"Com_alter_table"    "1"
"Com_alter_tablespace"    "0"
"Com_alter_user"    "0"
"Com_analyze"    "0"
"Com_assign_to_keycache"    "1"
"Com_backup"    "0"
"Com_backup_lock"    "0"
"Com_begin"    "0"
"Com_binlog"    "0"
"Com_call_procedure"    "0"
"Com_change_db"    "14"
"Com_change_master"    "0"
"Com_check"    "0"
"Com_checksum"    "0"
"Com_commit"    "0"
"Com_compound_sql"    "0"
"Com_create_db"    "0"
"Com_create_event"    "0"
"Com_create_function"    "0"
"Com_create_index"    "0"
"Com_create_package"    "0"
"Com_create_package_body"    "0"
"Com_create_procedure"    "0"
"Com_create_role"    "0"
"Com_create_sequence"    "0"
"Com_create_server"    "0"
"Com_create_table"    "0"
"Com_create_temporary_table"    "0"
"Com_create_trigger"    "0"
"Com_create_udf"    "0"
"Com_create_user"    "0"
"Com_create_view"    "0"
"Com_dealloc_sql"    "0"
"Com_delete"    "0"
"Com_delete_multi"    "0"
"Com_do"    "0"
"Com_drop_db"    "0"
"Com_drop_event"    "0"
"Com_drop_function"    "0"
"Com_drop_index"    "0"
"Com_drop_procedure"    "0"
"Com_drop_package"    "0"
"Com_drop_package_body"    "0"
"Com_drop_role"    "0"
"Com_drop_server"    "0"
"Com_drop_sequence"    "0"
"Com_drop_table"    "0"
"Com_drop_temporary_table"    "0"
"Com_drop_trigger"    "0"
"Com_drop_user"    "0"
"Com_drop_view"    "0"
"Com_empty_query"    "0"
"Com_execute_immediate"    "0"
"Com_execute_sql"    "0"
"Com_flush"    "0"
"Com_get_diagnostics"    "0"
"Com_grant"    "0"
"Com_grant_role"    "0"
"Com_ha_close"    "0"
"Com_ha_open"    "0"
"Com_ha_read"    "0"
"Com_help"    "0"
"Com_insert"    "0"
"Com_insert_select"    "0"
"Com_install_plugin"    "0"
"Com_kill"    "0"
"Com_load"    "0"
"Com_lock_tables"    "0"
"Com_multi"    "0"
"Com_optimize"    "0"
"Com_preload_keys"    "3"
"Com_prepare_sql"    "0"
"Com_purge"    "0"
"Com_purge_before_date"    "0"
"Com_release_savepoint"    "0"
"Com_rename_table"    "0"
"Com_rename_user"    "0"
"Com_repair"    "0"
"Com_replace"    "0"
"Com_replace_select"    "0"
"Com_reset"    "0"
"Com_resignal"    "0"
"Com_revoke"    "0"
"Com_revoke_all"    "0"
"Com_revoke_role"    "0"
"Com_rollback"    "0"
"Com_rollback_to_savepoint"    "0"
"Com_savepoint"    "0"
"Com_select"    "18552"
"Com_set_option"    "18562"
"Com_show_authors"    "0"
"Com_show_binlog_events"    "0"
"Com_show_binlogs"    "0"
"Com_show_charsets"    "0"
"Com_show_collations"    "0"
"Com_show_contributors"    "0"
"Com_show_create_db"    "0"
"Com_show_create_event"    "0"
"Com_show_create_func"    "0"
"Com_show_create_package"    "0"
"Com_show_create_package_body"    "0"
"Com_show_create_proc"    "0"
"Com_show_create_table"    "0"
"Com_show_create_trigger"    "0"
"Com_show_create_user"    "0"
"Com_show_databases"    "0"
"Com_show_engine_logs"    "0"
"Com_show_engine_mutex"    "0"
"Com_show_engine_status"    "1"
"Com_show_errors"    "0"
"Com_show_events"    "0"
"Com_show_explain"    "0"
"Com_show_fields"    "0"
"Com_show_function_status"    "0"
"Com_show_generic"    "0"
"Com_show_grants"    "0"
"Com_show_keys"    "0"
"Com_show_master_status"    "0"
"Com_show_open_tables"    "0"
"Com_show_package_status"    "0"
"Com_show_package_body_status"    "0"
"Com_show_plugins"    "0"
"Com_show_privileges"    "0"
"Com_show_procedure_status"    "0"
"Com_show_processlist"    "0"
"Com_show_profile"    "0"
"Com_show_profiles"    "0"
"Com_show_relaylog_events"    "0"
"Com_show_slave_hosts"    "0"
"Com_show_slave_status"    "0"
"Com_show_status"    "4"
"Com_show_storage_engines"    "0"
"Com_show_table_status"    "0"
"Com_show_tables"    "0"
"Com_show_triggers"    "0"
"Com_show_variables"    "1"
"Com_show_warnings"    "0"
"Com_shutdown"    "0"
"Com_signal"    "0"
"Com_start_all_slaves"    "0"
"Com_start_slave"    "0"
"Com_stmt_close"    "0"
"Com_stmt_execute"    "0"
"Com_stmt_fetch"    "0"
"Com_stmt_prepare"    "0"
"Com_stmt_reprepare"    "0"
"Com_stmt_reset"    "0"
"Com_stmt_send_long_data"    "0"
"Com_stop_all_slaves"    "0"
"Com_stop_slave"    "0"
"Com_truncate"    "0"
"Com_uninstall_plugin"    "0"
"Com_unlock_tables"    "0"
"Com_update"    "0"
"Com_update_multi"    "0"
"Com_xa_commit"    "0"
"Com_xa_end"    "0"
"Com_xa_prepare"    "0"
"Com_xa_recover"    "0"
"Com_xa_rollback"    "0"
"Com_xa_start"    "0"
"Compression"    "OFF"
-- 或者使用查询(在MySQL 5.7及以上或MariaDB中):
SELECT VARIABLE_NAME, VARIABLE_VALUE
FROM performance_schema.global_status
WHERE VARIABLE_NAME LIKE 'Com_%';

1146 - Table 'performance_schema.global_status' doesn't exist

报表中的’Com’(总命令数)实际上是所有Com变量的总和(注意:不包括’Com_quit’,因为’Com_quit’是退出命令,不属于查询命令)。

问题1:短连接风暴

启用连接池:

[mysqld]
thread_handling = pool-of-threads
thread_pool_size = 32
thread_pool_max_threads = 1000

调整超时参数:

SET GLOBAL wait_timeout = 600;
SET GLOBAL interactive_timeout = 600;

问题2: 非业务命令泛滥

禁用不必要命令:

REVOKE SUPER ON *.* FROM 'root'@'localhost'; --(最好不用)
REVOKE SHOW DATABASES ON *.* FROM 'root'@'localhost';

缓存元数据查询:

SET GLOBAL information_schema_stats_expiry = 86400;

1193 - Unknown system var'iable 'information_schema_stats_expiry分析:information_schema_stats_expiry 是 MySQL 8.0.0 引入的变量,用于控制 INFORMATION_SCHEMA 统计信息的缓存时间。
审计命令来源

SELECT * FROM performance_schema.events_statements_history
WHERE SQL_TEXT LIKE '%set_option%'
ORDER BY TIMER_START DESC
LIMIT 10;

结果为空

问题3: SELECT主导数据操作

查询缓存优化:

SET GLOBAL query_cache_size = 64M;
SET GLOBAL query_cache_min_res_unit = 2048;

注意

SET GLOBAL query_cache_size = 6410241024(不支持64M)

读写分离:

[mysqld]
read_only = ON
# 在从库上

热点查询优化:

-- 找出高频SELECT
SELECT DIGEST_TEXT, COUNT_STAR, AVG_TIMER_WAIT
FROM performance_schema.events_statements_summary_by_digest
WHERE DIGEST_TEXT LIKE 'SELECT%'
ORDER BY COUNT_STAR DESC
LIMIT 10;
"DIGEST_TEXT"    "COUNT_STAR"    "AVG_TIMER_WAIT"
"SELECT @@SESSION . `auto_increment_increment` AS `auto_increment_increment` , @@`character_set_client` AS `character_set_client` , @@`character_set_connection` AS `character_set_connection` , @@`character_set_results` AS `character_set_results` , @@`character_set_server` AS `character_set_server` , @@`collation_server` AS `collation_server` , @@`collation_connection` AS `collation_connection` , @@`init_connect` AS `init_connect` , @@`interactive_timeout` AS `interactive_timeout` , @@`license` AS `license` , @@`lower_case_table_names` AS `lower_case_table_names` , @@`max_allowed_packet` AS `max_allowed_packet` , @@`net_write_timeout` AS `net_write_timeout` , @@`performance_schema` AS `performance_schema` , @@`query_cache_size` AS `query_cache_size` , @@`query_cache_type` AS `query_cache_type` , @@`sql_mode` AS `sql_mode` , @@`system_time_zone` AS `system_time_zone` , @@`time_zone` AS `time_zone` , @@`tx_isolation` AS `transaction_isolation` , @@"    "42669"    "220900000"
"SELECT COUNT ( * ) AS `sum` FROM SYSTEM_USER WHERE `username` = ? AND PASSWORD = ? "    "42548"    "777900000"
"SELECT @@SESSION . `tx_isolation` "    "42140"    "91900000"
"SELECT `table_schema` , TABLE_NAME , ENGINE FROM `information_schema` . `tables` WHERE ENGINE = ? "    "1"    "145809900000"
"SELECT `CONCAT` ( `ROUND` ( SUM ( `INDEX_LENGTH` ) / ? / ?, ... ) , ? ) AS `ideal_size` FROM `information_schema` . `TABLES` WHERE ENGINE = ? "    "1"    "417820200000"
"SELECT `VARIABLE_NAME` , `VARIABLE_VALUE` FROM `performance_schema` . `global_status` WHERE `VARIABLE_NAME` LIKE ? "    "1"    "189100000"
"SELECT COUNT ( * ) FROM `information_schema` . `TABLES` WHERE `TABLE_SCHEMA` = ? UNION SELECT COUNT ( * ) FROM `information_schema` . `COLUMNS` WHERE `TABLE_SCHEMA` = ? UNION SELECT COUNT ( * ) FROM `information_schema` . `ROUTINES` WHERE `ROUTINE_SCHEMA` = ? "    "1"    "99159400000"
"SELECT `TABLE_SCHEMA` , TABLE_NAME , `TABLE_TYPE` FROM `information_schema` . `TABLES` WHERE `TABLE_SCHEMA` = ? ORDER BY `TABLE_SCHEMA` , `TABLE_TYPE` "    "1"    "53001700000"
"SELECT `TABLE_SCHEMA` , TABLE_NAME , COLUMN_NAME , `COLUMN_TYPE` FROM `information_schema` . `COLUMNS` WHERE `TABLE_SCHEMA` = ? ORDER BY `TABLE_SCHEMA` , TABLE_NAME "    "1"    "55605700000"
"SELECT DISTINCTROW `ROUTINE_SCHEMA` , `ROUTINE_NAME` , `PARAMS` . `PARAMETER` FROM `information_schema` . `ROUTINES` LEFT JOIN ( SELECT `SPECIFIC_SCHEMA` , `SPECIFIC_NAME` , GROUP_CONCAT ( `CONCAT` ( `DATA_TYPE` , ? , `PARAMETER_NAME` ) ORDER BY `ORDINAL_POSITION` SEPARATOR ? ) `PARAMETER` , `ROUTINE_TYPE` FROM `information_schema` . `PARAMETERS` GROUP BY `SPECIFIC_SCHEMA` , `SPECIFIC_NAME` , `ROUTINE_TYPE` ) `PARAMS` ON `ROUTINES` . `ROUTINE_SCHEMA` = `PARAMS` . `SPECIFIC_SCHEMA` AND `ROUTINES` . `ROUTINE_NAME` = `PARAMS` . `SPECIFIC_NAME` AND `ROUTINES` . `ROUTINE_TYPE` = `PARAMS` . `ROUTINE_TYPE` WHERE `ROUTINE_SCHEMA` = ? ORDER BY `ROUTINE_SCHEMA` "    "1"    "12105600000"

配置优化建议(my.cnf)

[mysqld]
# 连接优化
max_connections = 1000
thread_cache_size = 100
wait_timeout = 300
# 性能优化
query_cache_size = 64M
table_open_cache = 2048
tmp_table_size = 64M
# 监控配置
performance_schema = ON
slow_query_log = ON
long_query_time = 2

3.查询和排序报表

查看这些指标

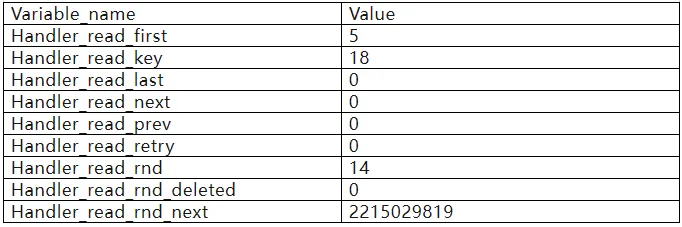

SHOW GLOBAL STATUS LIKE 'Handler_read%';

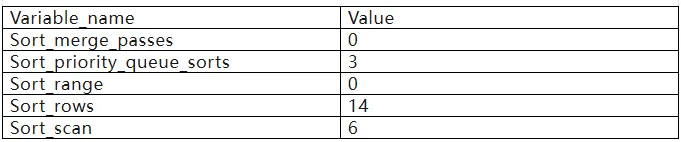

SHOW GLOBAL STATUS LIKE 'Sort%';

1.‘Handler_read_rnd_next’:全表扫描的次数(对应Scan)。

2.‘Sort_scan’:全表扫描排序的次数(对应Sort scan)。

3.‘Sort_range’:范围扫描排序的次数(对应Sort range)。

4.‘Sort_merge_passes’:排序合并通过次数(对应Sort mrg pass)。

慢查询日志分析

-- 启用慢查询日志
SET GLOBAL slow_query_log = ON;
SET GLOBAL long_query_time = 1;

-- 捕获1秒以上查询
SET GLOBAL log_queries_not_using_indexes = ON;

-- 临时增加缓冲池:
SET GLOBAL innodb_buffer_pool_size = 2*1024*1024*1024;

-- 2GB
-- 索引优化验证:
EXPLAIN
SELECT * FROM `user` WHERE username='cindy' and password='123456'

注意

若版本 < 10.5:不支持 EXPLAIN ANALYZE,需升级或改用 EXPLAIN。

若版本 ≥ 10.5:支持 EXPLAIN ANALYZE。

#慢查询日志
slow_query_log = 1
slow_query_log_file = C:\xampp\mysql\slow.log
long_query_time = 2
 # 记录超过2秒的查询

配置优化建议(my.cnf)

# 索引优化配置
innodb_flush_neighbors = 0

# 减少随机IO影响
innodb_adaptive_hash_index = OFF

# 高并发下禁用AHI
# 排序优化
sort_buffer_size = 4M

# 增大排序缓冲区
max_sort_length = 1024

# 减少排序内存占用
# 监控配置
performance_schema = ON
optimizer_trace = enabled=on

自动索引建议系统:

MariaDB 10.4+:默认启用INDEX_STATISTICS,但统计信息可能延迟更新。

4.查询缓存报表
彻底关闭缓存

SET GLOBAL query_cache_size = 0;

验证

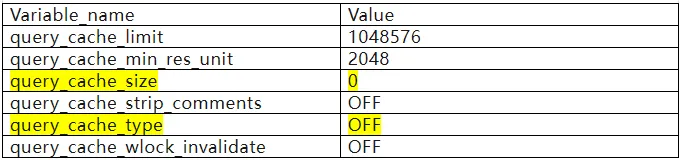

SHOW VARIABLES LIKE 'query_cache%';

彻底禁用查询缓存(推荐)

-- 立即生效
SET GLOBAL query_cache_size = 0;
SET GLOBAL query_cache_type = OFF;
-- 永久配置(my.cnf)
[mysqld]
query_cache_type = 0
query_cache_size = 0

InnoDB缓冲池优化

SELECT
ROUND(
(1 - (Variable_value / (SELECT Variable_value
FROM information_schema.global_status
WHERE Variable_name = 'Innodb_buffer_pool_read_requests'))
) * 100, 2) AS hit_rate
FROM information_schema.global_status
WHERE Variable_name = 'Innodb_buffer_pool_reads';

结果

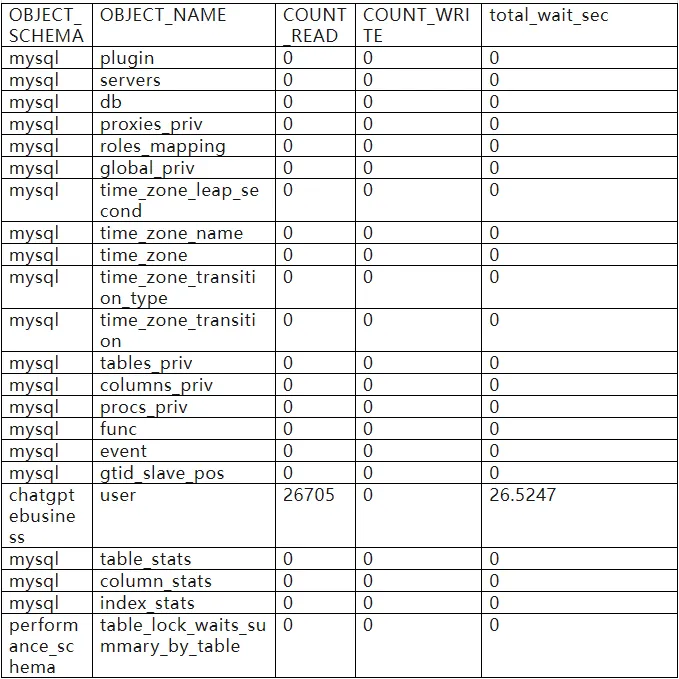

5.表锁报表和表信息报表
表缓存配置优化

SET GLOBAL table_open_cache = 250;

表定义缓存优化

-- 查看当前表定义缓存状态
SHOW GLOBAL STATUS LIKE 'Open_table_definitions';


-- 优化配置(设置为表缓存的1.5-2倍)
SET GLOBAL table_definition_cache = 400;

调整表缓存大小:

SET GLOBAL table_open_cache = 250;
 -- 降低85%内存占用(当前打开161表 → 新缓存大小 ≈161 × 1.5250

转换存储引擎

ALTER TABLE `user` ENGINE=InnoDB;

配置建议(my.cnf)

# 表缓存设置 (基于当前负载)
table_open_cache = 250
table_definition_cache = 400
# 表锁监控 (默认已开启)
performance_schema = ON

查看行锁状态

SHW ENGINE INNODB STATUS;
"Type"

"Name"

"Status"
"InnoDB"

""

"
=====================================
2025-08-04 18:35:33 0x6538 INNODB MONITOR OUTPUT
=====================================
Per second averages calculated from the last 9 seconds
-----------------
BACKGROUND THREAD
-----------------
srv_master_thread loops: 1 srv_active, 0 srv_shutdown, 972 srv_idle
srv_master_thread log flush and writes: 973
----------
SEMAPHORES
----------
OS WAIT ARRAY INFO: reservation count 143
OS WAIT ARRAY INFO: signal count 53
RW-shared spins 16, rounds 441, OS waits 14
RW-excl spins 7, rounds 43, OS waits 1
RW-sx spins 1, rounds 1, OS waits 0
Spin rounds per wait: 27.56 RW-shared, 6.14 RW-excl, 1.00 RW-sx
------------
TRANSACTIONS
------------
Trx id counter 3910314
Purge done for trx's n:o < 3910313 undo n:o < 0 state: running but idle
History list length 0
LIST OF TRANSACTIONS FOR EACH SESSION:
---TRANSACTION 284302175940752, not started
0 lock struct(s), heap size 1128, 0 row lock(s)
--------
FILE I/O
--------
I/O thread 0 state: native aio handle (insert buffer thread)
I/O thread 1 state: native aio handle (log thread)
I/O thread 2 state: native aio handle (read thread)
I/O thread 3 state: native aio handle (read thread)
I/O thread 4 state: native aio handle (read thread)
I/O thread 5 state: native aio handle (read thread)
I/O thread 6 state: native aio handle (write thread)
I/O thread 7 state: native aio handle (write thread)
I/O thread 8 state: native aio handle (write thread)
I/O thread 9 state: native aio handle (write thread)
Pending normal aio reads: [0, 0, 0, 0] , aio writes: [0, 0, 0, 0] ,
ibuf aio reads:, log i/o's:, sync i/o's:
Pending flushes (fsync) log: 0; buffer pool: 0
511 OS file reads, 199 OS file writes, 34 OS fsyncs
0.00 reads/s, 0 avg bytes/read, 0.00 writes/s, 0.00 fsyncs/s
-------------------------------------
INSERT BUFFER AND ADAPTIVE HASH INDEX
-------------------------------------
Ibuf: size 1, free list len 305, seg size 307, 0 merges
merged operations:
insert 0, delete mark 0, delete 0
discarded operations:
insert 0, delete mark 0, delete 0
Hash table size 69257, node heap has 0 buffer(s)
Hash table size 69257, node heap has 0 buffer(s)
Hash table size 69257, node heap has 0 buffer(s)
Hash table size 69257, node heap has 0 buffer(s)
Hash table size 69257, node heap has 0 buffer(s)
Hash table size 69257, node heap has 0 buffer(s)
Hash table size 69257, node heap has 0 buffer(s)
Hash table size 69257, node heap has 2 buffer(s)
0.00 hash searches/s, 0.00 non-hash searches/s
---
LOG
---
Log sequence number 35265783830
Log flushed up to

35265783830
Pages flushed up to 35265783830
Last checkpoint at

35265783821
0 pending log flushes, 0 pending chkp writes
24 log i/o's done, 0.00 log i/o's/second
----------------------
BUFFER POOL AND MEMORY
----------------------
Total large memory allocated 285212672
Dictionary memory allocated 40064
Buffer pool size

16054
Free buffers

15443
Database pages

609
Old database pages 238
Modified db pages

0
Percent of dirty pages(LRU & free pages): 0.000
Max dirty pages percent: 75.000
Pending reads 0
Pending writes: LRU 0, flush list 0, single page 0
Pages made young 0, not young 0
0.00 youngs/s, 0.00 non-youngs/s
Pages read 462, created 147, written 179
0.00 reads/s, 0.00 creates/s, 0.00 writes/s
Buffer pool hit rate 1000 / 1000, young-making rate 0 / 1000 not 0 / 1000
Pages read ahead 0.00/s, evicted without access 0.00/s, Random read ahead 0.00/s
LRU len: 609, unzip_LRU len: 0
I/O sum[0]:cur[0], unzip sum[0]:cur[0]
--------------
ROW OPERATIONS
--------------
0 queries inside InnoDB, 0 queries in queue
0 read views open inside InnoDB
Process ID=1480, Main thread ID=37740, state: sleeping
Number of rows inserted 0, updated 0, deleted 0, read 319579260
0.00 inserts/s, 0.00 updates/s, 0.00 deletes/s, 330960.56 reads/s
Number of system rows inserted 0, updated 0, deleted 0, read 0
0.00 inserts/s, 0.00 updates/s, 0.00 deletes/s, 0.00 reads/s
----------------------------
END OF INNODB MONITOR OUTPUT
============================
"

6.链接报表与临时报表
监控与进一步分析
使用以下命令监控连接和临时表的状态:

SHOW GLOBAL STATUS LIKE 'Threads_connected'; -- 当前连接数


SHOW GLOBAL STATUS LIKE 'Threads_running'; -- 当前运行线程数


SHOW GLOBAL STATUS LIKE 'Created_tmp%'; -- 临时表和文件创建情况

紧急连接优化 (立即执行)

SET GLOBAL max_connections = 600;-- 启用线程池 (MariaDB 10.4+)
SET GLOBAL thread_handling = pool-of-threads;

1238 - Variable 'thread_handling' is a read only variable
用配置文件代替
thread_handling = pool-of-threads

SET GLOBAL thread_pool_size = 32;
-- 减少连接超时
SET GLOBAL wait_timeout = 60;
SET GLOBAL interactive_timeout = 60;

配置优化

# 临时表优化
tmp_table_size = 64M
max_heap_table_size = 64M
#internal_tmp_disk_storage_engine = InnoDB
在MariaDB中。不可以这么设置,默认即为InnoDB
# 文件系统优化
tmpdir = "C:/xampp/tmp" #使用默认

7.线程报表
调查连接失败问题
查询监控连接失败情况

SHOW GLOBAL STATUS LIKE 'Aborted_connects';

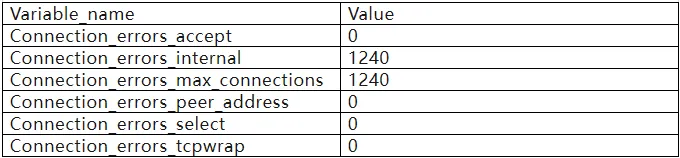

SHOW GLOBAL STATUS LIKE 'Connection_errors%'

配置调整回顾

连接相关:

max_connections=600
thread_cache_size=256
wait_timeout=60
interactive_timeout=60

临时表相关:

tmp_table_size=64M
max_heap_table_size=64M

以前有
thread_cache_size = 4,改为256
wait_timeout = 300 保持300

解决方案:

-- 1. 检查认证错误
SHOW GLOBAL STATUS LIKE 'Connection_errors%';
--同上
-- 2. 优化认证缓存
SET GLOBAL credentials_expired = OFF;

1193 - Unknown system variable 'credentials_expired'

SET GLOBAL disconnect_on_expired_password = OFF;
-- 3. 增加连接积压队列
SET GLOBAL back_log = 200;

238 - Variable 'back_log' is a read only variable

用配置文件代替

back_log = 200

配置优化 (my.cnf):

[mysqld]
# 认证优化
connect_timeout = 15
authentication_policy = ''

# 允许所有认证方法
# 连接缓冲
skip_name_resolve = ON
max_connect_errors = 1000000

注意MariaDB 10.4.32显示authentication_policy未知变量,改为

#设置默认认证插件
default_authentication_plugin = mysql_native_password
# 启用所有认证插件(需要先安装)
plugin_load_add = auth_socket
plugin_load_add = auth_ed25519
plugin_load_add = auth_gssapi

网络流量优化

-- 启用协议压缩
SET GLOBAL protocol_compression = ON;
-- 调整包大小
SET GLOBAL max_allowed_packet = 32*1024*1024;
SET GLOBAL net_buffer_length = 32*1024;

注意protocol_compression 是 MySQL 8.0.20+ 引入的变量,MariaDB 不支持此变量

InnoDB缓冲池精细调优 (推荐)

优化点:14.56%空闲页面利用

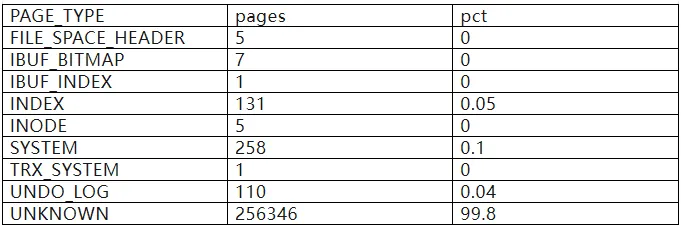

-- 查看缓冲池页分布
SELECT
PAGE_TYPE,
COUNT(*) AS pages,
ROUND(COUNT(*)*100/(SELECT COUNT(*)
FROM information_schema.INNODB_BUFFER_PAGE),2) AS pct
FROM information_schema.INNODB_BUFFER_PAGE
GROUP BY PAGE_TYPE;


-- 调整缓冲池实例数(减少锁竞争)
SET GLOBAL innodb_buffer_pool_instances = 8;

1238 - Variable 'innodb_buffer_pool_instances' is a read only variable

用配置文件代替

innodb_buffer_pool_instances

配置优化:

# 缓冲池优化
innodb_buffer_pool_size = 16M
innodb_buffer_pool_chunk_size = 1M
innodb_lru_scan_depth = 256
innodb_buffer_pool_dump_at_shutdown = ON
innodb_buffer_pool_load_at_startup = ON

注意:前面有配置

innodb_buffer_pool_size = 4G #默认256K。保持4G

最终优化建议

立即执行:

# 增加连接积压缓冲
mysql -e "SET GLOBAL back_log = 200;"

1238 - Variable 'back_log' is a read only variable

用配置文件代替

back_log=200

# 启用协议压缩
mysql -e "SET GLOBAL protocol_compression = ON;"
# 1193 - Unknown system variable 'protocol_compression'

24小时内完成:

# 更新my.cnf配置
connect_timeout=15
skip_name_resolve=ON
protocol_compression=ON
innodb_buffer_pool_instances=8
#不支持protocol_compression

8.InnoDB锁报表
获取InnoDB锁信息的方法:
1.查看当前锁等待:

SHOW ENGINE INNODB STATUS; # 在输出的TRANSACTIONS部分查看
------------TRANSACTIONS------------
Trx id counter 3910271
Purge done for trx's n:o < 3909988 undo n:o < 0 state: running but idle
History list length 0
LIST OF TRANSACTIONS FOR EACH SESSION:
---TRANSACTION 283084118929552, not started
0 lock struct(s), heap size 1128, 0 row lock(s)

2.查看锁等待的详细信息:

SELECT * FROM information_schema.INNODB_LOCK_WAITS;

为空

3.查看当前所有锁:

SELECT * FROM information_schema.INNODB_LOCKS;

为空

4.查看InnoDB事务:

SELECT * FROM information_schema.INNODB_TRX;

为空

InnoDB 锁监控方法

  1. 实时锁状态查看
-- 当前锁等待信息
SELECT * FROM information_schema.INNODB_LOCK_WAITS;

为空

-- 所有活跃锁
SELECT * FROM information_schema.INNODB_LOCKS;

为空

-- 事务与锁关联
SELECT
r.trx_id AS waiting_trx_id,
r.trx_mysql_thread_id AS waiting_thread,
b.trx_id AS blocking_trx_id,
b.trx_mysql_thread_id AS blocking_thread
FROM information_schema.INNODB_LOCK_WAITS w
JOIN information_schema.INNODB_TRX b ON b.trx_id = w.blocking_trx_id
JOIN information_schema.INNODB_TRX r ON r.trx_id = w.requesting_trx_id;

为空

预防性配置优化

[mysqld]
# 事务隔离级别 (推荐RC)
transaction_isolation = READ-COMMITTED
# 锁超时设置
innodb_lock_wait_timeout = 30 #默认50 改为30
# 死锁检测优化
innodb_deadlock_detect = ON
innodb_print_all_deadlocks = ON
# 行锁设置
innodb_row_lock_timeout = 10
unknown variable 'innodb_row_lock_timeout=10'

改为

innodb_lock_wait_timeout = 10

Deepseek回答有误

高级锁监控技术

1.实时锁可视化

- 锁等待链分析
SELECT
CONCAT('thread ', r.trx_mysql_thread_id,
' waiting for lock held by thread ', b.trx_mysql_thread_id) AS lock_wait_chain
FROM information_schema.INNODB_LOCK_WAITS w
JOIN information_schema.INNODB_TRX b ON b.trx_id = w.blocking_trx_id
JOIN information_schema.INNODB_TRX r ON r.trx_id = w.requesting_trx_id;

空记录

  1. 历史锁竞争分析
-- 锁等待历史统计
SELECT
OBJECT_SCHEMA,
OBJECT_NAME,
COUNT_READ,
COUNT_WRITE,
COUNT_TIMER_WAIT/1000000000 AS total_wait_sec
FROM performance_schema.table_lock_waits_summary_by_table;

1054 - Unknown column 'COUNT_TIMER_WAIT' in 'field list'

COUNT_TIMER_WAIT 改为SUM_TIMER_WAIT
9.InnoDB其他报表
性能优化策略

  1. 读优化(关键重点)
-- 识别高频读取表
SELECT
TABLE_SCHEMA,
TABLE_NAME,
ROWS_READ
FROM information_schema.TABLE_STATISTICS
ORDER BY ROWS_READ DESC
LIMIT 5;

空记录

2.缓冲池优化

-- 增加缓冲池实例(减少锁竞争)
SET GLOBAL innodb_buffer_pool_instances = 8;

1238 - Variable 'innodb_buffer_pool_instances' is a read only variable

my.ini添加

innodb_buffer_pool_instances=8
-- 分析TOP读取查询
SELECT DIGEST_TEXT, ROWS_READ_EXAMINED, COUNT_STAR
FROM performance_schema.events_statements_summary_by_digest
ORDER BY ROWS_READ_EXAMINED DESC
LIMIT 10;

1054 - Unknown column 'ROWS_READ_EXAMINED' in 'field list'

# 读优化配置
innodb_read_ahead_threshold = 64

# 提高预读效率
innodb_random_read_ahead = ON

# 启用随机预读
read_buffer_size = 4M

# 增大读取缓冲区
# 缓冲池管理
innodb_buffer_pool_size = 16M
innodb_buffer_pool_dump_now = ON

# 立即转储缓冲池状态
innodb_buffer_pool_load_now = ON

# 启动时立即加载
# 性能监控
innodb_monitor_enable = all

前面设置innodb_buffer_pool_size = 4G,保持4G

前面设置read_buffer_size=256K 改为4M

相关实践学习
每个IT人都想学的“Web应用上云经典架构”实战
本实验从Web应用上云这个最基本的、最普遍的需求出发,帮助IT从业者们通过“阿里云Web应用上云解决方案”,了解一个企业级Web应用上云的常见架构,了解如何构建一个高可用、可扩展的企业级应用架构。
MySQL数据库入门学习
本课程通过最流行的开源数据库MySQL带你了解数据库的世界。 &nbsp; 相关的阿里云产品:云数据库RDS MySQL 版 阿里云关系型数据库RDS(Relational Database Service)是一种稳定可靠、可弹性伸缩的在线数据库服务,提供容灾、备份、恢复、迁移等方面的全套解决方案,彻底解决数据库运维的烦恼。 了解产品详情:&nbsp;https://www.aliyun.com/product/rds/mysql&nbsp;
目录
相关文章
|
19天前
|
缓存 关系型数据库 BI
使用MYSQL Report分析数据库性能(下)
使用MYSQL Report分析数据库性能
56 3
|
11天前
|
数据采集 数据可视化 数据挖掘
阿里云瑶池数据库 Data Agent,数据安全,分析准确,让数据更有价值!
Data Agent 是阿里云瑶池数据库推出的智能数据体产品,融合 Data+AI 与 Agentic AI 技术,覆盖数据全生命周期。支持多源数据接入,可自主规划分析任务、生成代码并输出可视化洞察报告,让业务人员零门槛获取专业级分析结果,助力企业高效实现数据驱动决策。
|
12天前
|
关系型数据库 MySQL 分布式数据库
阿里云PolarDB云原生数据库收费价格:MySQL和PostgreSQL详细介绍
阿里云PolarDB兼容MySQL、PostgreSQL及Oracle语法,支持集中式与分布式架构。标准版2核4G年费1116元起,企业版最高性能达4核16G,支持HTAP与多级高可用,广泛应用于金融、政务、互联网等领域,TCO成本降低50%。
|
13天前
|
关系型数据库 MySQL 数据库
阿里云数据库RDS费用价格:MySQL、SQL Server、PostgreSQL和MariaDB引擎收费标准
阿里云RDS数据库支持MySQL、SQL Server、PostgreSQL、MariaDB,多种引擎优惠上线!MySQL倚天版88元/年,SQL Server 2核4G仅299元/年,PostgreSQL 227元/年起。高可用、可弹性伸缩,安全稳定。详情见官网活动页。
|
13天前
|
关系型数据库 分布式数据库 数据库
阿里云数据库收费价格:MySQL、PostgreSQL、SQL Server和MariaDB引擎费用整理
阿里云数据库提供多种类型,包括关系型与NoSQL,主流如PolarDB、RDS MySQL/PostgreSQL、Redis等。价格低至21元/月起,支持按需付费与优惠套餐,适用于各类应用场景。
|
13天前
|
SQL 关系型数据库 MySQL
Mysql数据恢复—Mysql数据库delete删除后数据恢复案例
本地服务器,操作系统为windows server。服务器上部署mysql单实例,innodb引擎,独立表空间。未进行数据库备份,未开启binlog。 人为误操作使用Delete命令删除数据时未添加where子句,导致全表数据被删除。删除后未对该表进行任何操作。需要恢复误删除的数据。 在本案例中的mysql数据库未进行备份,也未开启binlog日志,无法直接还原数据库。
|
19天前
|
关系型数据库 MySQL 数据库
阿里云数据库RDS支持MySQL、SQL Server、PostgreSQL和MariaDB引擎
阿里云数据库RDS支持MySQL、SQL Server、PostgreSQL和MariaDB引擎,提供高性价比、稳定安全的云数据库服务,适用于多种行业与业务场景。
|
SQL Java 数据库连接
MySQL---数据库从入门走向大神系列(十五)-Apache的DBUtils框架使用
MySQL---数据库从入门走向大神系列(十五)-Apache的DBUtils框架使用
320 0
MySQL---数据库从入门走向大神系列(十五)-Apache的DBUtils框架使用
|
SQL 关系型数据库 MySQL
MySQL---数据库从入门走向大神系列(六)-事务处理与事务隔离(锁机制)
MySQL---数据库从入门走向大神系列(六)-事务处理与事务隔离(锁机制)
226 0
MySQL---数据库从入门走向大神系列(六)-事务处理与事务隔离(锁机制)
|
存储 SQL 关系型数据库
MySQL---数据库从入门走向大神系列(五)-存储过程
MySQL---数据库从入门走向大神系列(五)-存储过程
211 0
MySQL---数据库从入门走向大神系列(五)-存储过程

推荐镜像

更多
