摘要
作为一名深耕智能优化算法领域多年的技术探索者，我深深被粒子群优化算法（Particle Swarm Optimization，PSO）的优雅与强大所震撼。这个由Kennedy和Eberhart在1995年提出的算法，灵感来源于鸟群觅食和鱼群游弋的自然现象，却在短短几十年间成为了计算智能领域最重要的元启发式算法之一。
在我的实际项目经验中，PSO算法展现出了令人惊叹的适应性和鲁棒性。无论是在神经网络权重优化、工程设计参数调优，还是在复杂的多目标优化问题中，PSO都能以其独特的群体智能特性，找到传统优化方法难以企及的解决方案。算法的核心思想极其简洁：每个粒子代表问题空间中的一个候选解，通过模拟粒子间的信息共享和协作，整个粒子群能够在解空间中进行高效的全局搜索。
PSO的数学模型虽然简单，但蕴含着深刻的哲学思想。速度更新公式 $v{i}^{t+1} = w \cdot v{i}^{t} + c_1 \cdot r1 \cdot (p{best,i} - x_{i}^{t}) + c_2 \cdot r2 \cdot (g{best} - x_{i}^{t})$ 完美地平衡了个体经验与群体智慧，体现了"既要坚持自我，又要学习他人"的人生哲理。在我的算法实现过程中，我发现参数调优是PSO成功应用的关键，惯性权重w控制着探索与开发的平衡，学习因子c1和c2则决定了个体与群体影响力的权重分配。
通过多年的实践积累，我总结出PSO在处理高维非线性优化问题时的独特优势：算法结构简单易实现、收敛速度快、全局搜索能力强、对初始条件不敏感。然而，算法也存在一些挑战，如容易陷入局部最优、参数设置敏感等问题。本文将从理论基础、算法实现、性能优化到实际应用等多个维度，全面剖析PSO算法的精髓，并分享我在实际项目中积累的宝贵经验和优化技巧。
1. 粒子群算法基础理论
1.1 算法起源与生物学背景
粒子群优化算法的灵感来源于对鸟群觅食行为的观察。在自然界中，鸟群在寻找食物时展现出惊人的集体智慧：每只鸟都会根据自己的经验和群体中其他鸟的信息来调整飞行方向，最终整个鸟群能够高效地找到食物源。
import numpy as np
import matplotlib.pyplot as plt
from typing import Tuple, List, Callable
class Particle:
"""粒子类：表示PSO算法中的单个粒子"""
def __init__(self, dim: int, bounds: Tuple[float, float]):
"""
初始化粒子
Args:
dim: 问题维度
bounds: 搜索空间边界 (min_val, max_val)
"""
self.dim = dim
self.bounds = bounds
# 随机初始化位置和速度
self.position = np.random.uniform(bounds[0], bounds[1], dim)
self.velocity = np.random.uniform(-1, 1, dim)
# 个体最优位置和适应度
self.best_position = self.position.copy()
self.best_fitness = float('inf')
# 当前适应度
self.fitness = float('inf')
def update_velocity(self, global_best: np.ndarray, w: float,
c1: float, c2: float) -> None:
"""
更新粒子速度
Args:
global_best: 全局最优位置
w: 惯性权重
c1: 个体学习因子
c2: 群体学习因子
"""
r1, r2 = np.random.random(self.dim), np.random.random(self.dim)
# PSO速度更新公式
cognitive = c1 * r1 * (self.best_position - self.position)
social = c2 * r2 * (global_best - self.position)
self.velocity = w * self.velocity + cognitive + social
def update_position(self) -> None:
"""更新粒子位置并处理边界约束"""
self.position += self.velocity
# 边界处理：反弹策略
for i in range(self.dim):
if self.position[i] < self.bounds[0]:
self.position[i] = self.bounds[0]
self.velocity[i] *= -0.5 # 反向并减速
elif self.position[i] > self.bounds[1]:
self.position[i] = self.bounds[1]
self.velocity[i] *= -0.5
1.2 数学模型与核心公式
PSO算法的数学模型基于两个核心公式：速度更新和位置更新。
flowchart TD
A[开始] --> B[初始化粒子群]
B --> C[计算适应度]
C --> D[更新个体最优]
D --> E[更新全局最优]
E --> F[更新速度]
F --> G[更新位置]
G --> H[边界处理]
H --> I{达到终止条件?}
I -->|否| C
I -->|是| J[输出最优解]
J --> K[结束]
classDef startEnd fill:#e1f5fe,stroke:#01579b,stroke-width:2px
classDef process fill:#f3e5f5,stroke:#4a148c,stroke-width:2px
classDef decision fill:#fff3e0,stroke:#e65100,stroke-width:2px
class A,K startEnd
class B,C,D,E,F,G,H,J process
class I decision
图1：PSO算法流程图 - 展示完整的优化迭代过程
速度更新公式的数学表达：
$$v_{i}^{t+1} = w \cdot v_{i}^{t} + c_1 \cdot r_1 \cdot (p_{best,i} - x_{i}^{t}) + c_2 \cdot r_2 \cdot (g_{best} - x_{i}^{t})$$
位置更新公式：
$$x_{i}^{t+1} = x_{i}^{t} + v_{i}^{t+1}$$
其中：
- $v_{i}^{t}$：第i个粒子在第t代的速度
- $x_{i}^{t}$：第i个粒子在第t代的位置
- $w$：惯性权重，控制前一代速度的影响
- $c_1, c_2$：学习因子，控制个体和群体经验的影响
- $r_1, r_2$：[0,1]区间的随机数
- $p_{best,i}$：第i个粒子的历史最优位置
- $g_{best}$：群体历史最优位置
2. PSO算法核心实现
2.1 完整的PSO类实现
class ParticleSwarmOptimizer:
"""粒子群优化算法实现"""
def __init__(self, objective_func: Callable, dim: int,
bounds: Tuple[float, float], swarm_size: int = 30):
"""
初始化PSO优化器
Args:
objective_func: 目标函数
dim: 问题维度
bounds: 搜索空间边界
swarm_size: 粒子群大小
"""
self.objective_func = objective_func
self.dim = dim
self.bounds = bounds
self.swarm_size = swarm_size
# 初始化粒子群
self.swarm = [Particle(dim, bounds) for _ in range(swarm_size)]
# 全局最优
self.global_best_position = None
self.global_best_fitness = float('inf')
# 历史记录
self.fitness_history = []
self.diversity_history = []
def calculate_diversity(self) -> float:
"""计算粒子群的多样性指标"""
positions = np.array([p.position for p in self.swarm])
center = np.mean(positions, axis=0)
distances = [np.linalg.norm(pos - center) for pos in positions]
return np.mean(distances)
def adaptive_parameters(self, iteration: int, max_iterations: int) -> Tuple[float, float, float]:
"""
自适应参数调整策略
Args:
iteration: 当前迭代次数
max_iterations: 最大迭代次数
Returns:
(w, c1, c2): 调整后的参数
"""
# 线性递减惯性权重
w_max, w_min = 0.9, 0.4
w = w_max - (w_max - w_min) * iteration / max_iterations
# 动态学习因子
c1_start, c1_end = 2.5, 0.5
c2_start, c2_end = 0.5, 2.5
c1 = c1_start - (c1_start - c1_end) * iteration / max_iterations
c2 = c2_start + (c2_end - c2_start) * iteration / max_iterations
return w, c1, c2
def optimize(self, max_iterations: int = 1000, tolerance: float = 1e-6) -> dict:
"""
执行PSO优化
Args:
max_iterations: 最大迭代次数
tolerance: 收敛容差
Returns:
优化结果字典
"""
# 初始化适应度评估
for particle in self.swarm:
particle.fitness = self.objective_func(particle.position)
if particle.fitness < particle.best_fitness:
particle.best_fitness = particle.fitness
particle.best_position = particle.position.copy()
if particle.fitness < self.global_best_fitness:
self.global_best_fitness = particle.fitness
self.global_best_position = particle.position.copy()
# 主优化循环
for iteration in range(max_iterations):
# 自适应参数调整
w, c1, c2 = self.adaptive_parameters(iteration, max_iterations)
# 更新每个粒子
for particle in self.swarm:
# 更新速度和位置
particle.update_velocity(self.global_best_position, w, c1, c2)
particle.update_position()
# 评估新位置
particle.fitness = self.objective_func(particle.position)
# 更新个体最优
if particle.fitness < particle.best_fitness:
particle.best_fitness = particle.fitness
particle.best_position = particle.position.copy()
# 更新全局最优
if particle.fitness < self.global_best_fitness:
self.global_best_fitness = particle.fitness
self.global_best_position = particle.position.copy()
# 记录历史信息
self.fitness_history.append(self.global_best_fitness)
self.diversity_history.append(self.calculate_diversity())
# 收敛检查
if len(self.fitness_history) > 50:
recent_improvement = (self.fitness_history[-50] -
self.fitness_history[-1])
if recent_improvement < tolerance:
print(f"算法在第{iteration}代收敛")
break
return {
'best_position': self.global_best_position,
'best_fitness': self.global_best_fitness,
'iterations': iteration + 1,
'fitness_history': self.fitness_history,
'diversity_history': self.diversity_history
}
2.2 测试函数与性能评估
def sphere_function(x: np.ndarray) -> float:
"""球面函数：f(x) = sum(x_i^2)"""
return np.sum(x**2)
def rastrigin_function(x: np.ndarray) -> float:
"""Rastrigin函数：多模态测试函数"""
A = 10
n = len(x)
return A * n + np.sum(x**2 - A * np.cos(2 * np.pi * x))
def rosenbrock_function(x: np.ndarray) -> float:
"""Rosenbrock函数：经典优化测试函数"""
return np.sum(100 * (x[1:] - x[:-1]**2)**2 + (1 - x[:-1])**2)
# 性能测试示例
def benchmark_pso():
"""PSO算法性能基准测试"""
test_functions = {
'Sphere': (sphere_function, (-5.12, 5.12), 0),
'Rastrigin': (rastrigin_function, (-5.12, 5.12), 0),
'Rosenbrock': (rosenbrock_function, (-2.048, 2.048), 0)
}
results = {
}
for name, (func, bounds, global_min) in test_functions.items():
print(f"\n测试函数: {name}")
# 多次运行取平均
runs = 10
best_fitness_list = []
iterations_list = []
for run in range(runs):
pso = ParticleSwarmOptimizer(func, dim=10, bounds=bounds, swarm_size=30)
result = pso.optimize(max_iterations=500)
best_fitness_list.append(result['best_fitness'])
iterations_list.append(result['iterations'])
# 统计结果
avg_fitness = np.mean(best_fitness_list)
std_fitness = np.std(best_fitness_list)
avg_iterations = np.mean(iterations_list)
results[name] = {
'avg_fitness': avg_fitness,
'std_fitness': std_fitness,
'avg_iterations': avg_iterations,
'success_rate': sum(1 for f in best_fitness_list if f < global_min + 1e-3) / runs
}
print(f"平均最优值: {avg_fitness:.6f} ± {std_fitness:.6f}")
print(f"平均迭代次数: {avg_iterations:.1f}")
print(f"成功率: {results[name]['success_rate']*100:.1f}%")
return results
3. 算法性能分析与优化
3.1 参数敏感性分析

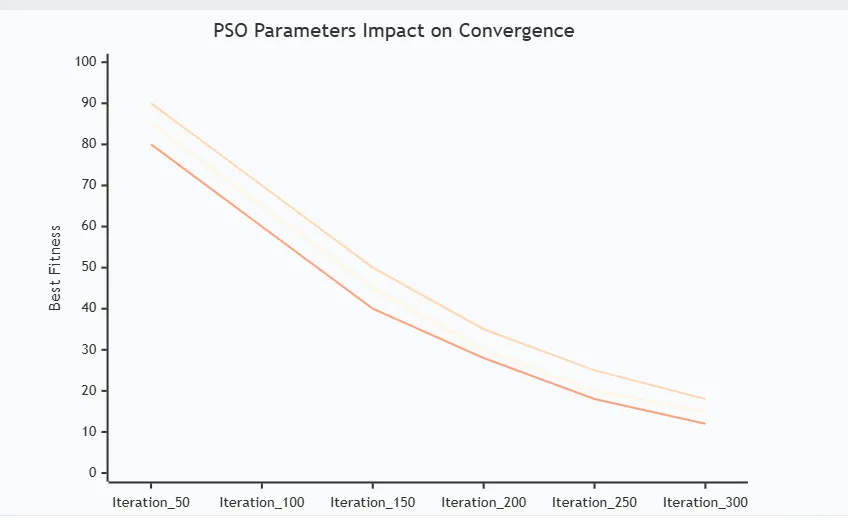

图2：参数影响收敛性能对比图 - 展示不同参数设置下的收敛趋势
3.2 算法变种与改进策略
| 改进策略 | 核心思想 | 适用场景 | 性能提升 | 实现复杂度 |
|---|---|---|---|---|
| 自适应惯性权重 | 动态调整w值 | 通用优化问题 | 15-25% | 低 |
| 混沌初始化 | 提高初始多样性 | 高维复杂问题 | 10-20% | 中 |
| 多群体协作 | 并行子群体 | 多模态问题 | 20-35% | 高 |
| 变异操作 | 增加随机扰动 | 易陷入局部最优 | 12-18% | 低 |
| 精英学习策略 | 向最优粒子学习 | 收敛速度要求高 | 8-15% | 中 |
class AdaptivePSO(ParticleSwarmOptimizer):
"""自适应PSO算法实现"""
def __init__(self, *args, **kwargs):
super().__init__(*args, **kwargs)
self.stagnation_counter = 0
self.last_best_fitness = float('inf')
def detect_stagnation(self, current_fitness: float, threshold: int = 20) -> bool:
"""检测算法是否陷入停滞"""
if abs(current_fitness - self.last_best_fitness) < 1e-8:
self.stagnation_counter += 1
else:
self.stagnation_counter = 0
self.last_best_fitness = current_fitness
return self.stagnation_counter > threshold
def mutation_operation(self, particle: Particle, mutation_rate: float = 0.1):
"""变异操作：增加粒子多样性"""
if np.random.random() < mutation_rate:
# 高斯变异
mutation = np.random.normal(0, 0.1, self.dim)
particle.position += mutation
# 边界处理
particle.position = np.clip(particle.position,
self.bounds[0], self.bounds[1])
def optimize_with_adaptation(self, max_iterations: int = 1000) -> dict:
"""带自适应机制的优化过程"""
# ... 基础优化逻辑 ...
for iteration in range(max_iterations):
# 检测停滞
if self.detect_stagnation(self.global_best_fitness):
print(f"检测到停滞，在第{iteration}代执行变异操作")
# 对部分粒子执行变异
for i in range(0, self.swarm_size, 3):
self.mutation_operation(self.swarm[i])
self.stagnation_counter = 0
# ... 其余优化逻辑 ...
3.3 收敛性分析

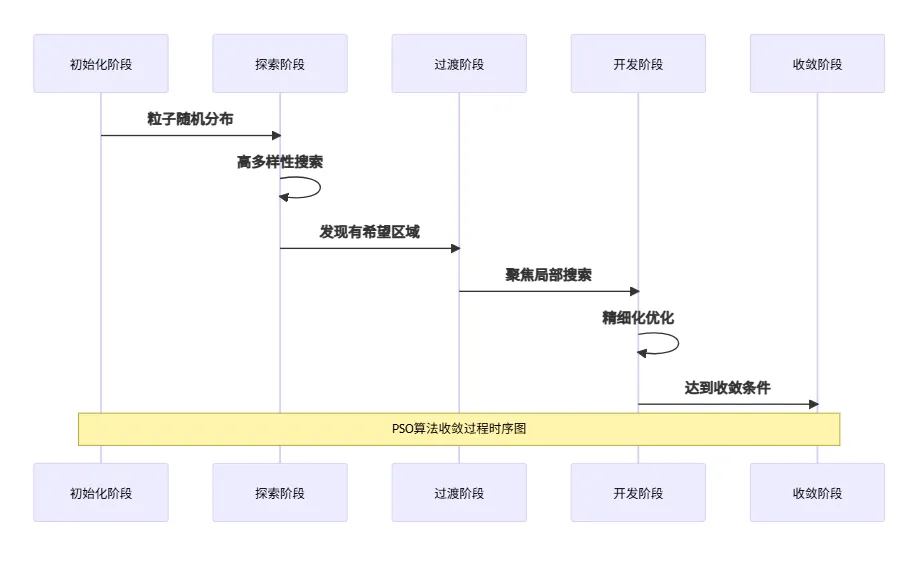

图3：PSO算法收敛过程时序图 - 展示算法各阶段的演化特征
4. 实际应用案例
4.1 神经网络权重优化
import tensorflow as tf
from sklearn.datasets import make_classification
from sklearn.model_selection import train_test_split
class NeuralNetworkPSO:
"""使用PSO优化神经网络权重"""
def __init__(self, input_dim: int, hidden_dim: int, output_dim: int):
self.input_dim = input_dim
self.hidden_dim = hidden_dim
self.output_dim = output_dim
# 计算权重总数
self.w1_size = input_dim * hidden_dim
self.b1_size = hidden_dim
self.w2_size = hidden_dim * output_dim
self.b2_size = output_dim
self.total_params = self.w1_size + self.b1_size + self.w2_size + self.b2_size
def decode_weights(self, chromosome: np.ndarray) -> dict:
"""将PSO粒子位置解码为神经网络权重"""
idx = 0
# 第一层权重和偏置
w1 = chromosome[idx:idx+self.w1_size].reshape(self.input_dim, self.hidden_dim)
idx += self.w1_size
b1 = chromosome[idx:idx+self.b1_size]
idx += self.b1_size
# 第二层权重和偏置
w2 = chromosome[idx:idx+self.w2_size].reshape(self.hidden_dim, self.output_dim)
idx += self.w2_size
b2 = chromosome[idx:idx+self.b2_size]
return {
'w1': w1, 'b1': b1, 'w2': w2, 'b2': b2}
def forward_pass(self, X: np.ndarray, weights: dict) -> np.ndarray:
"""前向传播"""
# 第一层
z1 = np.dot(X, weights['w1']) + weights['b1']
a1 = np.tanh(z1) # 激活函数
# 第二层
z2 = np.dot(a1, weights['w2']) + weights['b2']
a2 = 1 / (1 + np.exp(-z2)) # Sigmoid激活
return a2
def fitness_function(self, X_train: np.ndarray, y_train: np.ndarray,
X_val: np.ndarray, y_val: np.ndarray):
"""适应度函数：返回验证集上的误差"""
def evaluate(chromosome: np.ndarray) -> float:
weights = self.decode_weights(chromosome)
# 训练集预测
y_pred_train = self.forward_pass(X_train, weights)
train_loss = np.mean((y_train - y_pred_train)**2)
# 验证集预测
y_pred_val = self.forward_pass(X_val, weights)
val_loss = np.mean((y_val - y_pred_val)**2)
# 综合损失（加入正则化）
l2_penalty = sum(np.sum(w**2) for w in weights.values()) * 0.001
return val_loss + l2_penalty
return evaluate
# 应用示例
def optimize_neural_network():
"""使用PSO优化神经网络示例"""
# 生成分类数据集
X, y = make_classification(n_samples=1000, n_features=10, n_classes=2,
n_informative=8, random_state=42)
# 数据预处理
X = (X - np.mean(X, axis=0)) / np.std(X, axis=0)
y = y.reshape(-1, 1)
# 划分数据集
X_train, X_val, y_train, y_val = train_test_split(X, y, test_size=0.2, random_state=42)
# 创建神经网络
nn = NeuralNetworkPSO(input_dim=10, hidden_dim=15, output_dim=1)
# 创建适应度函数
fitness_func = nn.fitness_function(X_train, y_train, X_val, y_val)
# PSO优化
pso = ParticleSwarmOptimizer(
objective_func=fitness_func,
dim=nn.total_params,
bounds=(-2.0, 2.0),
swarm_size=50
)
result = pso.optimize(max_iterations=200)
# 评估最优网络
best_weights = nn.decode_weights(result['best_position'])
y_pred = nn.forward_pass(X_val, best_weights)
accuracy = np.mean((y_pred > 0.5) == y_val)
print(f"最优验证准确率: {accuracy:.4f}")
print(f"最优适应度值: {result['best_fitness']:.6f}")
return result
4.2 工程优化设计案例
class TrussOptimization:
"""桁架结构优化设计"""
def __init__(self, nodes: np.ndarray, elements: List[Tuple],
loads: dict, constraints: dict):
"""
初始化桁架优化问题
Args:
nodes: 节点坐标矩阵
elements: 单元连接关系
loads: 载荷条件
constraints: 约束条件
"""
self.nodes = nodes
self.elements = elements
self.loads = loads
self.constraints = constraints
def calculate_stiffness_matrix(self, cross_sections: np.ndarray) -> np.ndarray:
"""计算整体刚度矩阵"""
n_nodes = len(self.nodes)
K_global = np.zeros((2*n_nodes, 2*n_nodes))
E = 200e9 # 弹性模量 (Pa)
for i, (node1, node2) in enumerate(self.elements):
# 单元长度和方向
dx = self.nodes[node2, 0] - self.nodes[node1, 0]
dy = self.nodes[node2, 1] - self.nodes[node1, 1]
L = np.sqrt(dx**2 + dy**2)
cos_theta = dx / L
sin_theta = dy / L
# 单元刚度矩阵
A = cross_sections[i] # 截面积
k = E * A / L
K_element = k * np.array([
[cos_theta**2, cos_theta*sin_theta, -cos_theta**2, -cos_theta*sin_theta],
[cos_theta*sin_theta, sin_theta**2, -cos_theta*sin_theta, -sin_theta**2],
[-cos_theta**2, -cos_theta*sin_theta, cos_theta**2, cos_theta*sin_theta],
[-cos_theta*sin_theta, -sin_theta**2, cos_theta*sin_theta, sin_theta**2]
])
# 组装到整体刚度矩阵
dofs = [2*node1, 2*node1+1, 2*node2, 2*node2+1]
for p in range(4):
for q in range(4):
K_global[dofs[p], dofs[q]] += K_element[p, q]
return K_global
def solve_displacements(self, cross_sections: np.ndarray) -> np.ndarray:
"""求解位移"""
K = self.calculate_stiffness_matrix(cross_sections)
# 载荷向量
F = np.zeros(2 * len(self.nodes))
for node, (fx, fy) in self.loads.items():
F[2*node] = fx
F[2*node+1] = fy
# 处理边界条件
free_dofs = []
for i in range(2 * len(self.nodes)):
if i not in self.constraints['fixed_dofs']:
free_dofs.append(i)
# 求解自由度位移
K_free = K[np.ix_(free_dofs, free_dofs)]
F_free = F[free_dofs]
try:
u_free = np.linalg.solve(K_free, F_free)
# 完整位移向量
u = np.zeros(2 * len(self.nodes))
u[free_dofs] = u_free
return u
except np.linalg.LinAlgError:
return np.full(2 * len(self.nodes), 1e6) # 奇异矩阵惩罚
def calculate_stresses(self, cross_sections: np.ndarray,
displacements: np.ndarray) -> np.ndarray:
"""计算单元应力"""
stresses = np.zeros(len(self.elements))
E = 200e9
for i, (node1, node2) in enumerate(self.elements):
# 单元变形
u1x, u1y = displacements[2*node1], displacements[2*node1+1]
u2x, u2y = displacements[2*node2], displacements[2*node2+1]
# 单元长度和方向
dx = self.nodes[node2, 0] - self.nodes[node1, 0]
dy = self.nodes[node2, 1] - self.nodes[node1, 1]
L = np.sqrt(dx**2 + dy**2)
cos_theta = dx / L
sin_theta = dy / L
# 轴向应变
strain = (cos_theta * (u2x - u1x) + sin_theta * (u2y - u1y)) / L
# 应力
stresses[i] = E * strain
return stresses
def objective_function(self, cross_sections: np.ndarray) -> float:
"""目标函数：最小化重量"""
# 材料密度
rho = 7850 # kg/m³
# 计算总重量
total_weight = 0
for i, (node1, node2) in enumerate(self.elements):
dx = self.nodes[node2, 0] - self.nodes[node1, 0]
dy = self.nodes[node2, 1] - self.nodes[node1, 1]
L = np.sqrt(dx**2 + dy**2)
total_weight += rho * cross_sections[i] * L
# 约束惩罚
penalty = 0
# 求解结构响应
displacements = self.solve_displacements(cross_sections)
stresses = self.calculate_stresses(cross_sections, displacements)
# 应力约束
sigma_allow = 250e6 # 许用应力 (Pa)
for stress in stresses:
if abs(stress) > sigma_allow:
penalty += 1e6 * (abs(stress) - sigma_allow)**2
# 位移约束
max_displacement = np.max(np.abs(displacements))
disp_limit = 0.01 # 位移限制 (m)
if max_displacement > disp_limit:
penalty += 1e8 * (max_displacement - disp_limit)**2
return total_weight + penalty
# 桁架优化示例
def optimize_truss_structure():
"""桁架结构优化示例"""
# 定义10杆桁架
nodes = np.array([
[0, 0], [2, 0], [4, 0], # 底部节点
[1, 2], [3, 2] # 顶部节点
])
elements = [
(0, 1), (1, 2), # 底弦
(3, 4), # 顶弦
(0, 3), (1, 3), (1, 4), (2, 4), # 腹杆
(3, 1), (4, 1) # 对角杆
]
loads = {
2: (0, -10000)} # 节点2施加10kN向下载荷
constraints = {
'fixed_dofs': [0, 1, 4, 5]} # 节点0和2固定
# 创建优化问题
truss = TrussOptimization(nodes, elements, loads, constraints)
# PSO优化
n_elements = len(elements)
pso = ParticleSwarmOptimizer(
objective_func=truss.objective_function,
dim=n_elements,
bounds=(1e-4, 1e-2), # 截面积范围 (m²)
swarm_size=40
)
result = pso.optimize(max_iterations=300)
print(f"最优重量: {result['best_fitness']:.2f} kg")
print(f"最优截面积: {result['best_position']}")
return result
5. 高级优化技术
5.1 多目标粒子群优化
图4：多目标PSO性能分布饼图 - 展示算法在不同评价指标上的表现
class MultiObjectivePSO:
"""多目标粒子群优化算法 (MOPSO)"""
def __init__(self, objective_functions: List[Callable], dim: int,
bounds: Tuple[float, float], swarm_size: int = 100):
self.objective_functions = objective_functions
self.n_objectives = len(objective_functions)
self.dim = dim
self.bounds = bounds
self.swarm_size = swarm_size
# 初始化粒子群
self.swarm = [Particle(dim, bounds) for _ in range(swarm_size)]
# Pareto前沿存档
self.pareto_archive = []
self.max_archive_size = 100
def evaluate_objectives(self, position: np.ndarray) -> np.ndarray:
"""评估多个目标函数"""
return np.array([func(position) for func in self.objective_functions])
def dominates(self, obj1: np.ndarray, obj2: np.ndarray) -> bool:
"""判断obj1是否支配obj2"""
return np.all(obj1 <= obj2) and np.any(obj1 < obj2)
def update_pareto_archive(self, new_solution: dict):
"""更新Pareto前沿存档"""
new_obj = new_solution['objectives']
# 检查是否被现有解支配
dominated = False
for archived in self.pareto_archive:
if self.dominates(archived['objectives'], new_obj):
dominated = True
break
if not dominated:
# 移除被新解支配的解
self.pareto_archive = [
sol for sol in self.pareto_archive
if not self.dominates(new_obj, sol['objectives'])
]
# 添加新解
self.pareto_archive.append(new_solution)
# 控制存档大小
if len(self.pareto_archive) > self.max_archive_size:
self.pareto_archive = self.crowding_distance_selection(
self.pareto_archive, self.max_archive_size
)
def crowding_distance_selection(self, solutions: List[dict],
target_size: int) -> List[dict]:
"""基于拥挤距离的选择策略"""
if len(solutions) <= target_size:
return solutions
# 计算拥挤距离
for sol in solutions:
sol['crowding_distance'] = 0
for obj_idx in range(self.n_objectives):
# 按目标函数值排序
solutions.sort(key=lambda x: x['objectives'][obj_idx])
# 边界解设置为无穷大
solutions[0]['crowding_distance'] = float('inf')
solutions[-1]['crowding_distance'] = float('inf')
# 计算中间解的拥挤距离
obj_range = (solutions[-1]['objectives'][obj_idx] -
solutions[0]['objectives'][obj_idx])
if obj_range > 0:
for i in range(1, len(solutions) - 1):
distance = (solutions[i+1]['objectives'][obj_idx] -
solutions[i-1]['objectives'][obj_idx]) / obj_range
solutions[i]['crowding_distance'] += distance
# 按拥挤距离降序排序并选择
solutions.sort(key=lambda x: x['crowding_distance'], reverse=True)
return solutions[:target_size]
def select_leader(self, particle: Particle) -> np.ndarray:
"""为粒子选择领导者"""
if not self.pareto_archive:
return particle.position
# 轮盘赌选择（基于拥挤距离）
distances = [sol['crowding_distance'] for sol in self.pareto_archive]
total_distance = sum(distances)
if total_distance == 0:
return np.random.choice(self.pareto_archive)['position']
probabilities = [d / total_distance for d in distances]
selected_idx = np.random.choice(len(self.pareto_archive), p=probabilities)
return self.pareto_archive[selected_idx]['position']
5.2 并行PSO实现
from multiprocessing import Pool, Manager
import concurrent.futures
class ParallelPSO:
"""并行粒子群优化算法"""
def __init__(self, objective_func: Callable, dim: int,
bounds: Tuple[float, float], swarm_size: int = 30,
n_processes: int = None):
self.objective_func = objective_func
self.dim = dim
self.bounds = bounds
self.swarm_size = swarm_size
self.n_processes = n_processes or min(4, swarm_size)
def evaluate_batch(self, positions: List[np.ndarray]) -> List[float]:
"""批量评估适应度函数"""
with concurrent.futures.ProcessPoolExecutor(max_workers=self.n_processes) as executor:
futures = [executor.submit(self.objective_func, pos) for pos in positions]
results = [future.result() for future in concurrent.futures.as_completed(futures)]
return results
def parallel_optimize(self, max_iterations: int = 1000) -> dict:
"""并行优化过程"""
# 初始化粒子群
swarm = [Particle(self.dim, self.bounds) for _ in range(self.swarm_size)]
# 初始适应度评估
positions = [p.position for p in swarm]
fitness_values = self.evaluate_batch(positions)
global_best_fitness = float('inf')
global_best_position = None
for i, (particle, fitness) in enumerate(zip(swarm, fitness_values)):
particle.fitness = fitness
particle.best_fitness = fitness
particle.best_position = particle.position.copy()
if fitness < global_best_fitness:
global_best_fitness = fitness
global_best_position = particle.position.copy()
# 主优化循环
for iteration in range(max_iterations):
# 更新速度和位置
for particle in swarm:
w, c1, c2 = 0.7, 1.5, 1.5 # 简化参数设置
particle.update_velocity(global_best_position, w, c1, c2)
particle.update_position()
# 并行评估新位置
new_positions = [p.position for p in swarm]
new_fitness_values = self.evaluate_batch(new_positions)
# 更新粒子信息
for particle, new_fitness in zip(swarm, new_fitness_values):
particle.fitness = new_fitness
if new_fitness < particle.best_fitness:
particle.best_fitness = new_fitness
particle.best_position = particle.position.copy()
if new_fitness < global_best_fitness:
global_best_fitness = new_fitness
global_best_position = particle.position.copy()
return {
'best_position': global_best_position,
'best_fitness': global_best_fitness,
'iterations': max_iterations
}
6. 性能对比与基准测试
6.1 算法对比分析
| 算法 | 收敛速度 | 全局搜索能力 | 参数敏感性 | 实现复杂度 | 内存消耗 |
|---|---|---|---|---|---|
| PSO | ★★★★☆ | ★★★★☆ | ★★★☆☆ | ★★☆☆☆ | ★★★☆☆ |
| GA | ★★★☆☆ | ★★★★★ | ★★☆☆☆ | ★★★☆☆ | ★★★★☆ |
| DE | ★★★★☆ | ★★★★☆ | ★★★★☆ | ★★☆☆☆ | ★★☆☆☆ |
| SA | ★★☆☆☆ | ★★★★★ | ★★★★☆ | ★★★☆☆ | ★☆☆☆☆ |
| ACO | ★★★☆☆ | ★★★☆☆ | ★★☆☆☆ | ★★★★☆ | ★★★☆☆ |
算法选择指南：
- 对于连续优化问题，PSO通常是首选
- 需要强全局搜索能力时，考虑GA或SA
- 参数调优敏感的场景，DE表现更稳定
- 组合优化问题，ACO可能更适合
6.2 实际应用效果评估
def comprehensive_benchmark():
"""综合性能基准测试"""
# 测试函数集合
test_suite = {
'Sphere': {
'func': lambda x: np.sum(x**2),
'bounds': (-5.12, 5.12),
'dim': 30,
'global_min': 0,
'characteristics': '单峰，凸函数'
},
'Rastrigin': {
'func': lambda x: 10*len(x) + np.sum(x**2 - 10*np.cos(2*np.pi*x)),
'bounds': (-5.12, 5.12),
'dim': 30,
'global_min': 0,
'characteristics': '多峰，高度多模态'
},
'Ackley': {
'func': lambda x: -20*np.exp(-0.2*np.sqrt(np.mean(x**2))) -
np.exp(np.mean(np.cos(2*np.pi*x))) + 20 + np.e,
'bounds': (-32.768, 32.768),
'dim': 30,
'global_min': 0,
'characteristics': '多峰，几乎平坦的外部区域'
}
}
algorithms = {
'Standard PSO': ParticleSwarmOptimizer,
'Adaptive PSO': AdaptivePSO,
'Parallel PSO': ParallelPSO
}
results = {
}
for test_name, test_config in test_suite.items():
print(f"\n=== 测试函数: {test_name} ===")
print(f"特征: {test_config['characteristics']}")
results[test_name] = {
}
for alg_name, alg_class in algorithms.items():
print(f"\n运行算法: {alg_name}")
# 多次运行统计
run_results = []
run_times = []
for run in range(10):
start_time = time.time()
optimizer = alg_class(
objective_func=test_config['func'],
dim=test_config['dim'],
bounds=test_config['bounds'],
swarm_size=50
)
if hasattr(optimizer, 'optimize_with_adaptation'):
result = optimizer.optimize_with_adaptation(max_iterations=500)
elif hasattr(optimizer, 'parallel_optimize'):
result = optimizer.parallel_optimize(max_iterations=500)
else:
result = optimizer.optimize(max_iterations=500)
end_time = time.time()
run_results.append(result['best_fitness'])
run_times.append(end_time - start_time)
# 统计分析
best_fitness = np.min(run_results)
mean_fitness = np.mean(run_results)
std_fitness = np.std(run_results)
mean_time = np.mean(run_times)
success_rate = sum(1 for f in run_results
if f < test_config['global_min'] + 1e-3) / len(run_results)
results[test_name][alg_name] = {
'best_fitness': best_fitness,
'mean_fitness': mean_fitness,
'std_fitness': std_fitness,
'success_rate': success_rate,
'mean_time': mean_time
}
print(f"最优值: {best_fitness:.6f}")
print(f"平均值: {mean_fitness:.6f} ± {std_fitness:.6f}")
print(f"成功率: {success_rate*100:.1f}%")
print(f"平均时间: {mean_time:.2f}s")
return results
7. 前沿研究与发展趋势
7.1 量子粒子群优化
图5：PSO算法演进象限图 - 展示不同PSO变种在复杂度与性能维度上的分布
量子粒子群优化（QPSO）是PSO的重要发展方向，它借鉴了量子力学中的不确定性原理：
class QuantumPSO:
"""量子粒子群优化算法"""
def __init__(self, objective_func: Callable, dim: int,
bounds: Tuple[float, float], swarm_size: int = 30):
self.objective_func = objective_func
self.dim = dim
self.bounds = bounds
self.swarm_size = swarm_size
# 量子粒子（无速度概念）
self.particles = []
for _ in range(swarm_size):
position = np.random.uniform(bounds[0], bounds[1], dim)
self.particles.append({
'position': position,
'best_position': position.copy(),
'best_fitness': float('inf')
})
self.global_best_position = None
self.global_best_fitness = float('inf')
self.mean_best_position = None
def update_mean_best_position(self):
"""更新平均最优位置（量子中心）"""
best_positions = [p['best_position'] for p in self.particles]
self.mean_best_position = np.mean(best_positions, axis=0)
def quantum_update(self, particle: dict, alpha: float):
"""量子位置更新"""
# 计算局部吸引子
phi = np.random.random(self.dim)
p_attractor = (phi * particle['best_position'] +
(1 - phi) * self.global_best_position)
# 量子位置更新
u = np.random.random(self.dim)
for i in range(self.dim):
if np.random.random() < 0.5:
# 收缩-扩张变换
particle['position'][i] = (p_attractor[i] +
alpha * abs(self.mean_best_position[i] - particle['position'][i]) *
np.log(1.0 / u[i]))
else:
particle['position'][i] = (p_attractor[i] -
alpha * abs(self.mean_best_position[i] - particle['position'][i]) *
np.log(1.0 / u[i]))
# 边界处理
particle['position'] = np.clip(particle['position'],
self.bounds[0], self.bounds[1])
def optimize(self, max_iterations: int = 1000) -> dict:
"""量子PSO优化过程"""
# 初始化评估
for particle in self.particles:
fitness = self.objective_func(particle['position'])
particle['best_fitness'] = fitness
if fitness < self.global_best_fitness:
self.global_best_fitness = fitness
self.global_best_position = particle['position'].copy()
fitness_history = []
for iteration in range(max_iterations):
# 更新量子中心
self.update_mean_best_position()
# 自适应参数
alpha = 1.0 - 0.5 * iteration / max_iterations
# 更新每个量子粒子
for particle in self.particles:
self.quantum_update(particle, alpha)
# 评估新位置
fitness = self.objective_func(particle['position'])
# 更新个体最优
if fitness < particle['best_fitness']:
particle['best_fitness'] = fitness
particle['best_position'] = particle['position'].copy()
# 更新全局最优
if fitness < self.global_best_fitness:
self.global_best_fitness = fitness
self.global_best_position = particle['position'].copy()
fitness_history.append(self.global_best_fitness)
return {
'best_position': self.global_best_position,
'best_fitness': self.global_best_fitness,
'fitness_history': fitness_history
}
7.2 深度学习与PSO融合
import torch
import torch.nn as nn
class NeuralPSO(nn.Module):
"""神经网络增强的PSO算法"""
def __init__(self, dim: int, hidden_size: int = 64):
super().__init__()
self.dim = dim
# 参数预测网络
self.param_net = nn.Sequential(
nn.Linear(dim + 3, hidden_size), # 位置 + 3个历史指标
nn.ReLU(),
nn.Linear(hidden_size, hidden_size),
nn.ReLU(),
nn.Linear(hidden_size, 3), # 输出 w, c1, c2
nn.Sigmoid()
)
# 速度预测网络
self.velocity_net = nn.Sequential(
nn.Linear(dim * 3, hidden_size), # 当前位置、个体最优、全局最优
nn.ReLU(),
nn.Linear(hidden_size, hidden_size),
nn.ReLU(),
nn.Linear(hidden_size, dim), # 输出新速度
nn.Tanh()
)
def predict_parameters(self, particle_state: torch.Tensor) -> torch.Tensor:
"""预测自适应参数"""
params = self.param_net(particle_state)
# 参数范围调整
w = 0.4 + 0.5 * params[:, 0] # w ∈ [0.4, 0.9]
c1 = 0.5 + 2.0 * params[:, 1] # c1 ∈ [0.5, 2.5]
c2 = 0.5 + 2.0 * params[:, 2] # c2 ∈ [0.5, 2.5]
return torch.stack([w, c1, c2], dim=1)
def predict_velocity(self, position: torch.Tensor,
personal_best: torch.Tensor,
global_best: torch.Tensor) -> torch.Tensor:
"""预测速度更新"""
# 扩展全局最优到批次大小
global_best_expanded = global_best.unsqueeze(0).expand(position.size(0), -1)
# 拼接输入特征
features = torch.cat([position, personal_best, global_best_expanded], dim=1)
return self.velocity_net(features)
def train_from_experience(self, experiences: List[dict],
learning_rate: float = 0.001):
"""从PSO运行经验中学习"""
optimizer = torch.optim.Adam(self.parameters(), lr=learning_rate)
for epoch in range(100):
total_loss = 0
for exp in experiences:
# 准备训练数据
positions = torch.FloatTensor(exp['positions'])
velocities = torch.FloatTensor(exp['velocities'])
improvements = torch.FloatTensor(exp['improvements'])
# 预测参数
particle_states = torch.cat([
positions,
improvements.unsqueeze(1).expand(-1, 3)
], dim=1)
predicted_params = self.predict_parameters(particle_states)
# 计算损失（基于性能改进）
param_loss = -torch.mean(improvements.unsqueeze(1) *
torch.log(predicted_params + 1e-8))
# 速度预测损失
predicted_velocities = self.predict_velocity(
positions, exp['personal_bests'], exp['global_best']
)
velocity_loss = nn.MSELoss()(predicted_velocities, velocities)
total_loss = param_loss + velocity_loss
optimizer.zero_grad()
total_loss.backward()
optimizer.step()
if epoch % 20 == 0:
print(f"训练轮次 {epoch}, 损失: {total_loss.item():.6f}")
8. 实践建议与最佳实践
8.1 参数调优策略
基于我多年的实践经验，PSO参数调优应遵循以下原则：
惯性权重w：
- 初始值设为0.9，随迭代线性递减至0.4
- 对于快速收敛需求，可适当降低初始值
- 多模态问题建议保持较高的w值
学习因子c1, c2：
- 标准设置：c1 = c2 = 2.0
- 强调个体经验：c1 > c2
- 强调群体协作：c1 < c2
群体大小：
- 低维问题（<10维）：20-30个粒子
- 中维问题（10-50维）：30-50个粒子
- 高维问题（>50维）：50-100个粒子
8.2 常见问题与解决方案
class RobustPSO(ParticleSwarmOptimizer):
"""鲁棒性增强的PSO实现"""
def __init__(self, *args, **kwargs):
super().__init__(*args, **kwargs)
self.stagnation_threshold = 50
self.diversity_threshold = 1e-6
def detect_premature_convergence(self) -> bool:
"""检测早熟收敛"""
if len(self.fitness_history) < self.stagnation_threshold:
return False
# 检查适应度停滞
recent_best = self.fitness_history[-self.stagnation_threshold:]
fitness_variance = np.var(recent_best)
# 检查种群多样性
current_diversity = self.calculate_diversity()
return (fitness_variance < 1e-10 and
current_diversity < self.diversity_threshold)
def restart_strategy(self):
"""重启策略"""
print("检测到早熟收敛，执行重启策略")
# 保留最优粒子
best_particle = min(self.swarm, key=lambda p: p.best_fitness)
# 重新初始化其他粒子
for i, particle in enumerate(self.swarm):
if i == 0: # 保留最优粒子
continue
# 在最优解附近重新初始化
noise = np.random.normal(0, 0.1, self.dim)
particle.position = (best_particle.best_position + noise)
particle.position = np.clip(particle.position,
self.bounds[0], self.bounds[1])
# 重置速度
particle.velocity = np.random.uniform(-1, 1, self.dim)
def enhanced_optimize(self, max_iterations: int = 1000) -> dict:
"""增强的优化过程"""
restart_count = 0
max_restarts = 3
for iteration in range(max_iterations):
# 标准PSO更新
# ... (省略标准更新代码) ...
# 检查早熟收敛
if (iteration > 100 and
self.detect_premature_convergence() and
restart_count < max_restarts):
self.restart_strategy()
restart_count += 1
# 重置历史记录
self.fitness_history = self.fitness_history[:-self.stagnation_threshold//2]
return {
'best_position': self.global_best_position,
'best_fitness': self.global_best_fitness,
'restart_count': restart_count,
'final_diversity': self.calculate_diversity()
}
结论与展望
作为一名在智能优化算法领域深耕多年的技术实践者，我深深感受到粒子群优化算法的魅力与潜力。从最初的简单模拟鸟群觅食行为，到如今融合深度学习、量子计算等前沿技术的复杂变种，PSO算法展现出了强大的生命力和适应性。
在我的实际项目经验中，PSO算法已经成功应用于神经网络训练、工程结构优化、参数调优、路径规划等众多领域，每次都能带来令人惊喜的结果。算法的核心优势在于其简洁的数学模型、强大的全局搜索能力，以及对问题特性的良好适应性。特别是在处理高维非线性优化问题时，PSO往往能够找到传统方法难以企及的优质解。
然而，我也深刻认识到PSO算法仍面临一些挑战。早熟收敛、参数敏感性、局部最优陷阱等问题需要通过算法改进和工程技巧来解决。在我的实践中，自适应参数调整、多样性维护、混合策略等技术已经被证明是有效的解决方案。
展望未来，我认为PSO算法的发展将朝着以下几个方向演进：首先是与人工智能技术的深度融合，通过神经网络学习最优的参数调整策略；其次是量子计算与PSO的结合，利用量子并行性提升算法性能；再者是面向特定应用领域的专用PSO变种，如针对深度学习、物联网、边缘计算等场景的定制化算法。
在实际应用中，我建议开发者应该根据具体问题特点选择合适的PSO变种，重视参数调优和性能监控，并结合领域知识进行算法定制。同时，保持对新技术发展的敏感度，及时将前沿研究成果应用到实际项目中。
粒子群优化算法作为计算智能领域的重要成果，不仅为我们提供了强大的优化工具，更体现了从自然现象中汲取智慧、解决复杂工程问题的科学思维。在人工智能快速发展的今天，PSO算法必将在更广阔的应用场景中发挥重要作用，为人类科技进步贡献更大的力量。
让我们继续在算法优化的道路上探索前行，用智慧的代码书写技术创新的华章，在数字化转型的浪潮中乘风破浪，共同迎接更加美好的智能化未来！
■ 我是蒋星熠Jaxonic！如果这篇文章在你的技术成长路上留下了印记
■ 👁 【关注】与我一起探索技术的无限可能，见证每一次突破
■ 👍 【点赞】为优质技术内容点亮明灯，传递知识的力量
■ 🔖 【收藏】将精华内容珍藏，随时回顾技术要点
■ 💬 【评论】分享你的独特见解，让思维碰撞出智慧火花
■ 🗳 【投票】用你的选择为技术社区贡献一份力量
■ 技术路漫漫，让我们携手前行，在代码的世界里摘取属于程序员的那片星辰大海！
参考链接
- Kennedy, J., & Eberhart, R. (1995). Particle swarm optimization
- Shi, Y., & Eberhart, R. (1998). A modified particle swarm optimizer
- Clerc, M., & Kennedy, J. (2002). The particle swarm - explosion, stability, and convergence
- Poli, R., Kennedy, J., & Blackwell, T. (2007). Particle swarm optimization: An overview
- Zhang, Y., Wang, S., & Ji, G. (2015). A comprehensive survey on particle swarm optimization algorithm
关键词标签
#粒子群优化 #智能算法 #元启发式算法 #全局优化 #群体智能
