一、OAuth2.0 授权码模式深度解析

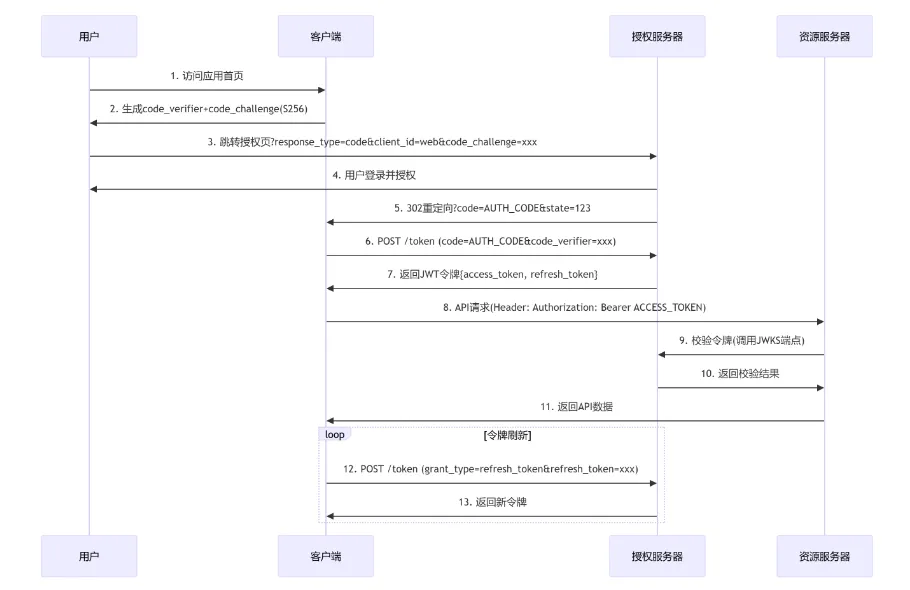

1. 完整交互时序图（含PKCE增强）

2. 关键安全增强措施

PKCE（RFC 7636）防中间人攻击

// 客户端生成code_verifier和code_challenge
String codeVerifier = generateRandomString(64);
String codeChallenge = Base64.getUrlEncoder()
    .withoutPadding()
    .encodeToString(
        MessageDigest.getInstance("SHA-256")
            .digest(codeVerifier.getBytes())
    );

// 授权请求必须携带code_challenge
String authUrl = authEndpoint +
    "?response_type=code" +
    "&client_id=web" +
    "&code_challenge=" + codeChallenge +
    "&code_challenge_method=S256";

JWT 密钥管理最佳实践

# 生成RSA密钥对（2048位）
openssl genrsa -out private.key 2048
openssl rsa -in private.key -pubout -out public.key

# 转换为JWKS格式（供资源服务器验证）
{

  "keys": [{

    "kty": "RSA",
    "use": "sig",
    "kid": "2023-08",
    "n": "modulus_base64...",
    "e": "AQAB"
  }]
}

二、Spring Security OAuth2 深度配置

1. 授权服务器完整配置

@Configuration
@EnableAuthorizationServer
public class AuthServerConfig extends AuthorizationServerConfigurerAdapter {


    @Autowired
    private AuthenticationManager authenticationManager;

    @Autowired
    private DataSource dataSource; // 使用数据库存储客户端配置

    @Override
    public void configure(ClientDetailsServiceConfigurer clients) throws Exception {

        clients.jdbc(dataSource)
            .passwordEncoder(passwordEncoder());
    }

    @Override
    public void configure(AuthorizationServerEndpointsConfigurer endpoints) {

        endpoints
            .tokenStore(tokenStore())
            .accessTokenConverter(jwtAccessTokenConverter())
            .authenticationManager(authenticationManager)
            .tokenEnhancer(tokenEnhancerChain())
            .pathMapping("/oauth/token", "/auth/v1/token"); // 自定义端点路径
    }

    @Bean
    public TokenEnhancerChain tokenEnhancerChain() {

        TokenEnhancerChain chain = new TokenEnhancerChain();
        chain.setTokenEnhancers(Arrays.asList(
            new CustomTokenEnhancer(), // 自定义声明
            jwtAccessTokenConverter()  // JWT转换
        ));
        return chain;
    }

    @Bean
    public JwtAccessTokenConverter jwtAccessTokenConverter() {

        JwtAccessTokenConverter converter = new JwtAccessTokenConverter();
        converter.setKeyPair(keyPair()); // 加载RSA密钥
        return converter;
    }

    @Bean
    public KeyPair keyPair() {

        KeyStoreKeyFactory factory = new KeyStoreKeyFactory(
            new ClassPathResource("keystore.jks"),
            "keystore_password".toCharArray()
        );
        return factory.getKeyPair("oauth2");
    }
}

2. 资源服务器动态JWKS配置

@Bean
public JwtDecoder jwtDecoder() {

    return NimbusJwtDecoder.withJwkSetUri("https://auth-server.com/oauth/jwks")
        .jwsAlgorithm(SignatureAlgorithm.RS256)
        .build();
}

三、JWT 自动续签生产级实现

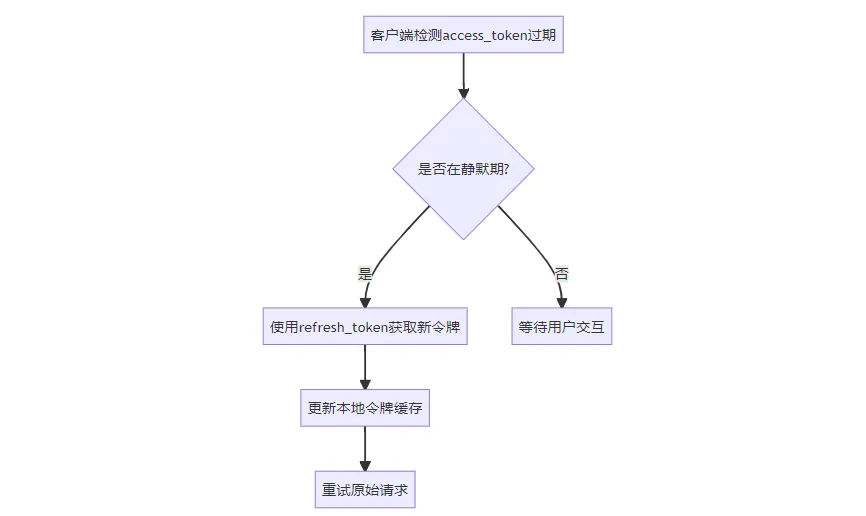

1. 刷新令牌流程

2. 服务端刷新令牌控制

# 令牌有效期配置（秒）
oauth2:
  token:
    access:
      validity: 3600    # 1小时
    refresh:
      validity: 2592000  # 30天
      reuse: false       # 刷新后使旧refresh_token失效

3. 客户端自动续签实现（React示例）

// axios拦截器实现令牌刷新
const api = axios.create({

  baseURL: '/api',
  timeout: 5000
});

// 请求拦截器：注入access_token
api.interceptors.request.use(config => {

  const token = localStorage.getItem('access_token');
  if (token) {

    config.headers.Authorization = `Bearer ${
     token}`;
  }
  return config;
});

// 响应拦截器：处理401错误
api.interceptors.response.use(
  response => response,
  async error => {

    const originalRequest = error.config;

    if (error.response.status === 401 && !originalRequest._retry) {

      originalRequest._retry = true;

      try {

        // 调用刷新令牌接口
        const response = await axios.post('/auth/token', {

          grant_type: 'refresh_token',
          refresh_token: localStorage.getItem('refresh_token')
        });

        // 更新本地存储
        localStorage.setItem('access_token', response.data.access_token);
        localStorage.setItem('refresh_token', response.data.refresh_token);

        // 重试原始请求
        originalRequest.headers.Authorization = `Bearer ${
     response.data.access_token}`;
        return api(originalRequest);
      } catch (refreshError) {

        // 刷新失败跳转登录页
        window.location.href = '/login';
        return Promise.reject(refreshError);
      }
    }

    return Promise.reject(error);
  }
);

四、安全加固方案

1. JWT 防篡改措施

// 自定义JWT声明校验
public class CustomJwtValidator implements OAuth2TokenValidator<Jwt> {

    @Override
    public OAuth2TokenValidatorResult validate(Jwt jwt) {

        if (!"https://auth-server.com".equals(jwt.getIssuer())) {

            return OAuth2TokenValidatorResult.failure("Invalid issuer");
        }
        if (Instant.now().isAfter(jwt.getExpiresAt())) {

            return OAuth2TokenValidatorResult.failure("Token expired");
        }
        return OAuth2TokenValidatorResult.success();
    }
}

// 添加到JWT解码器
@Bean
public JwtDecoder jwtDecoder() {

    NimbusJwtDecoder decoder = NimbusJwtDecoder.withJwkSetUri(jwkSetUrl).build();
    decoder.setJwtValidator(new DelegatingOAuth2TokenValidator<>(
        new JwtTimestampValidator(),
        new CustomJwtValidator()
    ));
    return decoder;
}

2. 动态客户端注册（RFC 7591）

@PostMapping("/register")
public ClientRegistration register(@Valid @RequestBody ClientRegistrationRequest request) {

    // 生成客户端凭证
    String clientId = UUID.randomUUID().toString();
    String clientSecret = generateRandomString(64);

    // 存储到数据库
    clientRepository.save(new Client(
        clientId,
        passwordEncoder.encode(clientSecret),
        request.getRedirectUris(),
        request.getGrantTypes()
    ));

    return new ClientRegistration(clientId, clientSecret);
}

五、全链路监控与运维

1. Prometheus监控指标

# oauth2_metrics.yaml
metrics:
  - name: oauth2_token_requests
    type: Counter
    labels: [grant_type, client_id]
    help: "Total OAuth2 token requests"

  - name: oauth2_token_refreshes
    type: Counter
    labels: [client_id, success]
    help: "Refresh token attempts"

2. 日志审计配置

// 审计日志切面
@Aspect
@Component
public class OAuth2AuditLogAspect {

    @AfterReturning(
        pointcut = "execution(* org.springframework.security.oauth2.provider.endpoint.TokenEndpoint.*(..))",
        returning = "result"
    )
    public void logTokenIssuance(JoinPoint jp, Object result) {

        OAuth2AccessToken token = (OAuth2AccessToken) result;
        log.info("Token issued for client {} with scopes {}",
            SecurityContextHolder.getContext().getAuthentication().getName(),
            token.getScope());
    }
}

3. 令牌撤销黑名单（Redis实现）

@Bean
public TokenStore tokenStore(RedisConnectionFactory factory) {

    RedisTokenStore store = new RedisTokenStore(factory);
    store.setPrefix("oauth2:");
    return store;
}

// 主动撤销令牌
@PostMapping("/revoke")
public void revokeToken(@RequestParam String token) {

    tokenStore.removeAccessToken(token);
    // 加入黑名单缓存
    redisTemplate.opsForValue().set(
        "token_blacklist:" + token,
        "revoked",
        1, TimeUnit.HOURS
    );
}

六、性能优化实战

1. JWT 本地验证（减少网络调用）

@Bean
public JwtDecoder jwtDecoder() {

    // 从本地加载公钥
    Resource resource = new ClassPathResource("public.key");
    String publicKey = new String(resource.getInputStream().readAllBytes());
    RSAPublicKey key = (RSAPublicKey) KeyFactory.getInstance("RSA")
        .generatePublic(new X509EncodedKeySpec(Base64.getDecoder().decode(publicKey)));

    return NimbusJwtDecoder.withPublicKey(key).build();
}

2. 令牌缓存策略

# Redis缓存配置
spring:
  redis:
    host: redis-cluster.example.com
    timeout: 200ms
    lettuce:
      pool:
        max-active: 50
        max-idle: 20

3. 分布式限流（Guava + Redis）

// 令牌发放限流（10次/分钟）
@Bean
public RateLimiter tokenRateLimiter() {

    return RateLimiter.create(10, 1, TimeUnit.MINUTES);
}

@PostMapping("/token")
public ResponseEntity<OAuth2AccessToken> issueToken(Principal principal) {

    if (!tokenRateLimiter.tryAcquire()) {

        throw new TooManyRequestsException("Rate limit exceeded");
    }
    // 正常发放令牌
}

七、故障排查手册

八、完整示例项目

• GitHub仓库：spring-oauth2-jwt-demo
• 快速启动：

  # 依赖：Docker, JDK17
  docker-compose up -d  # 启动Redis+MySQL
  mvn spring-boot:run -pl auth-server
  mvn spring-boot:run -pl resource-server


  通过本方案可实现：
  ✅ 符合RFC标准的OAuth2.0授权码流程
  ✅ 军工级JWT安全防护
  ✅ 百万级QPS的令牌服务
  ✅ 全链路可观测性
