简介： Datax安装及基本使用

@[TOC]

一、Datax概述

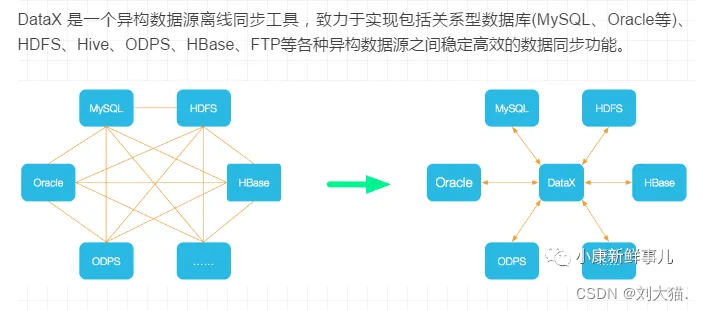

1.概述

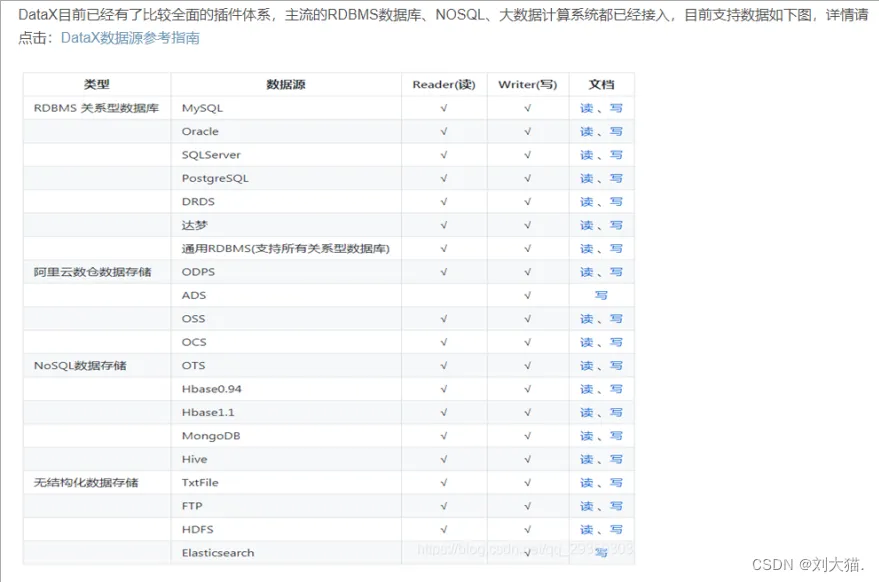

2.DataX插件体系

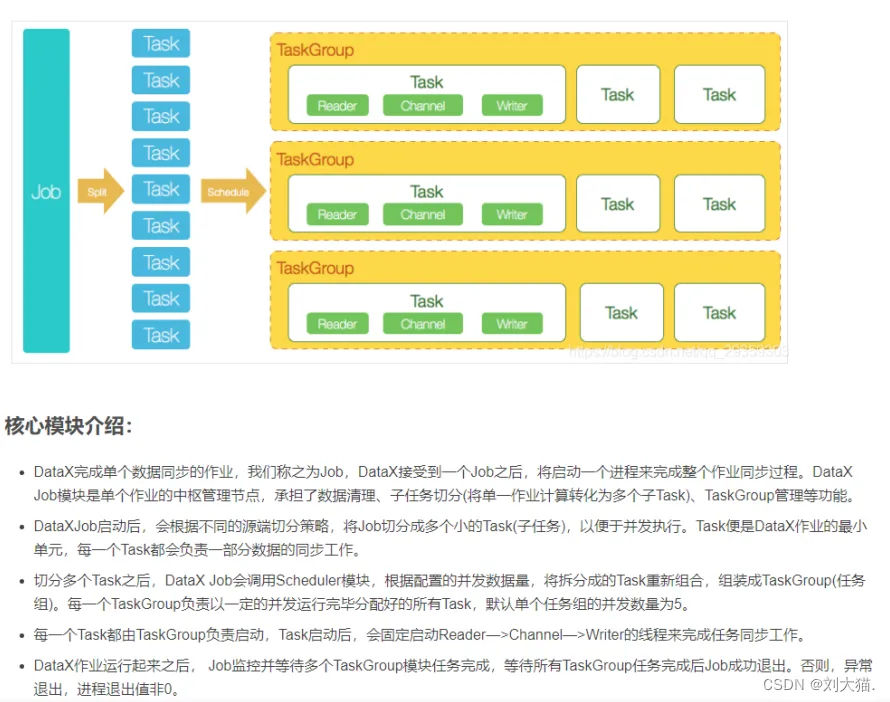

3.DataX核心架构


二、安装

2.1下载并解压

源码地址： https://github.com/alibaba/DataX
这里我下载的是最新版本的 DataX3.0 。下载地址为：
http://datax-opensource.oss-cn-hangzhou.aliyuncs.com/datax.tar.gz

# 下载后进行解压
[xiaokang@hadoop ~]$ tar -zxvf datax.tar.gz -C /opt/software/

2.2运行自检脚本

[xiaokang@hadoop ~]$ cd /opt/software/datax/
[xiaokang@hadoop datax]$ bin/datax.py job/job.json

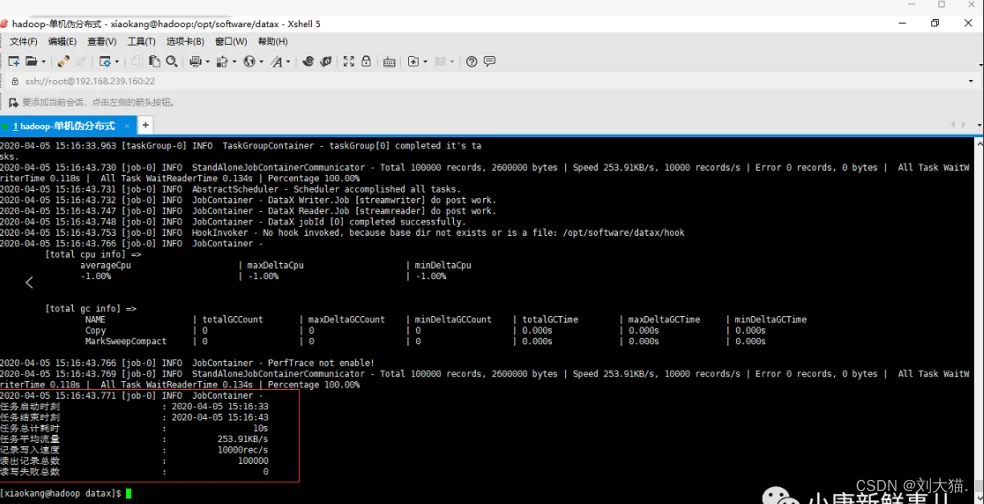

出现以下界面说明DataX安装成功

三、基本使用

3.1从stream读取数据并打印到控制台

1. 查看官方json配置模板

[xiaokang@hadoop ~]$ python /opt/software/datax/bin/datax.py -r streamreader -w streamwriter

DataX (DATAX-OPENSOURCE-3.0), From Alibaba !
Copyright (C) 2010-2017, Alibaba Group. All Rights Reserved.

Please refer to the streamreader document:
     https://github.com/alibaba/DataX/blob/master/streamreader/doc/streamreader.md

Please refer to the streamwriter document:
     https://github.com/alibaba/DataX/blob/master/streamwriter/doc/streamwriter.md

Please save the following configuration as a json file and  use
     python {DATAX_HOME}/bin/datax.py {JSON_FILE_NAME}.json
to run the job.

{
    "job": {
        "content": [
            {
                "reader": {
                    "name": "streamreader",
                    "parameter": {
                        "column": [],
                        "sliceRecordCount": ""
                    }
                },
                "writer": {
                    "name": "streamwriter",
                    "parameter": {
                        "encoding": "",
                        "print": true
                    }
                }
            }
        ],
        "setting": {
            "speed": {
                "channel": ""
            }
        }
    }
}

2. 根据模板编写json文件

{
    "job": {
        "content": [
            {
                "reader": {
                    "name": "streamreader",
                    "parameter": {
                        "column": [
                            {
                                "type":"string",
                                "value":"xiaokang-微信公众号:小康新鲜事儿"
                            },
                            {
                                "type":"string",
                                "value":"你好，世界-DataX"
                            }
                        ],
                        "sliceRecordCount": "10"
                    }
                },
                "writer": {
                    "name": "streamwriter",
                    "parameter": {
                        "encoding": "utf-8",
                        "print": true
                    }
                }
            }
        ],
        "setting": {
            "speed": {
                "channel": "2"
            }
        }
    }
}

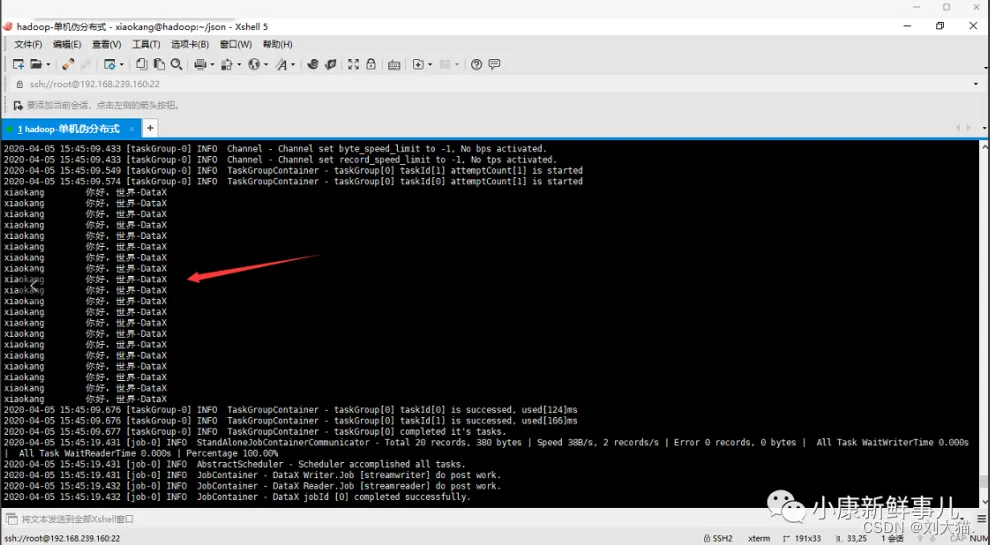

3. 运行Job

[xiaokang@hadoop json]$ /opt/software/datax/bin/datax.py ./stream2stream.json


3.2 Mysql导入数据到HDFS

示例：导出 MySQL 数据库中的 help_keyword 表到 HDFS 的 /datax目录下(此目录必须提前创建)。

1. 查看官方json配置模板

[xiaokang@hadoop json]$ python /opt/software/datax/bin/datax.py -r mysqlreader -w hdfswriter

DataX (DATAX-OPENSOURCE-3.0), From Alibaba !
Copyright (C) 2010-2017, Alibaba Group. All Rights Reserved.

Please refer to the mysqlreader document:
     https://github.com/alibaba/DataX/blob/master/mysqlreader/doc/mysqlreader.md

Please refer to the hdfswriter document:
     https://github.com/alibaba/DataX/blob/master/hdfswriter/doc/hdfswriter.md

Please save the following configuration as a json file and  use
     python {DATAX_HOME}/bin/datax.py {JSON_FILE_NAME}.json
to run the job.

{

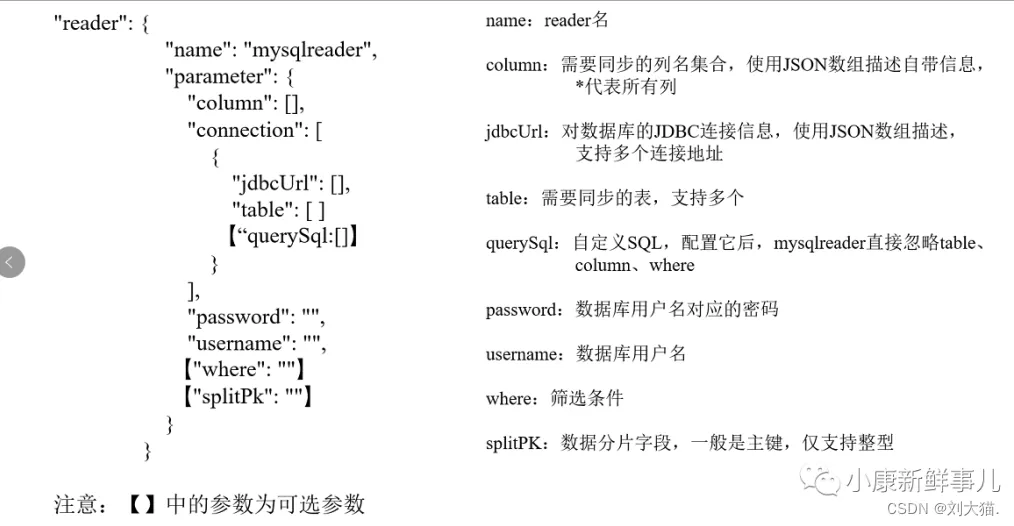

    "job": {
        "content": [
            {
                "reader": {
                    "name": "mysqlreader",
                    "parameter": {
                        "column": [],
                        "connection": [
                            {
                                "jdbcUrl": [],
                                "table": []
                            }
                        ],
                        "password": "",
                        "username": "",
                        "where": ""
                    }
                },

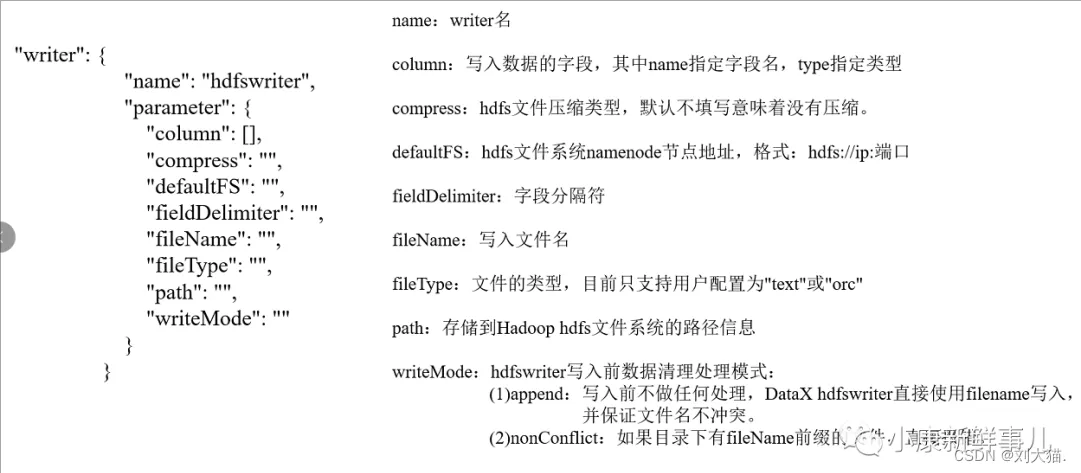

                "writer": {
                    "name": "hdfswriter",
                    "parameter": {
                        "column": [],
                        "compress": "",
                        "defaultFS": "",
                        "fieldDelimiter": "",
                        "fileName": "",
                        "fileType": "",
                        "path": "",
                        "writeMode": ""
                    }
                }
            }
        ],
        "setting": {
            "speed": {
                "channel": ""
            }
        }
    }
}

2. 根据模板编写json文件



{
    "job": {
        "content": [
            {
                "reader": {
                    "name": "mysqlreader",
                    "parameter": {
                        "column": [
                            "help_keyword_id",
                            "name"
                        ],
                        "connection": [
                            {
                                "jdbcUrl": [
                                    "jdbc:mysql://192.168.1.106:3306/mysql"
                                ],
                                "table": [
                                    "help_keyword"
                                ]
                            }
                        ],
                        "password": "xiaokang",
                        "username": "root"
                    }
                },
                "writer": {
                    "name": "hdfswriter",
                    "parameter": {
                        "column": [
                            {
                                "name":"help_keyword_id",
                                "type":"int"
                            },
                            {
                                "name":"name",
                                "type":"string"
                            }
                        ],
                        "defaultFS": "hdfs://hadoop:9000",
                        "fieldDelimiter": "|",
                        "fileName": "keyword.txt",
                        "fileType": "text",
                        "path": "/datax",
                        "writeMode": "append"
                    }
                }
            }
        ],
        "setting": {
            "speed": {
                "channel": "3"
            }
        }
    }
}

3. 运行Job

[xiaokang@hadoop json]$ /opt/software/datax/bin/datax.py ./mysql2hdfs.json

3.3 HDFS数据导出到Mysql

1. 将3.2中导入的文件重命名并在数据库创建表

[xiaokang@hadoop ~]$ hdfs dfs -mv /datax/keyword.txt__4c0e0d04_e503_437a_a1e3_49db49cbaaed /datax/keyword.txt

表必须预先创建，建表语句如下：

CREATE  TABLE  help_keyword_from_hdfs_datax LIKE help_keyword;

2. 查看官方json配置模板

[xiaokang@hadoop json]$ python /opt/software/datax/bin/datax.py -r hdfsreader -w mysqlwriter

DataX (DATAX-OPENSOURCE-3.0), From Alibaba !
Copyright (C) 2010-2017, Alibaba Group. All Rights Reserved.

Please refer to the hdfsreader document:
     https://github.com/alibaba/DataX/blob/master/hdfsreader/doc/hdfsreader.md

Please refer to the mysqlwriter document:
     https://github.com/alibaba/DataX/blob/master/mysqlwriter/doc/mysqlwriter.md

Please save the following configuration as a json file and  use
     python {DATAX_HOME}/bin/datax.py {JSON_FILE_NAME}.json
to run the job.

{
    "job": {
        "content": [
            {
                "reader": {
                    "name": "hdfsreader",
                    "parameter": {
                        "column": [],
                        "defaultFS": "",
                        "encoding": "UTF-8",
                        "fieldDelimiter": ",",
                        "fileType": "orc",
                        "path": ""
                    }
                },
                "writer": {
                    "name": "mysqlwriter",
                    "parameter": {
                        "column": [],
                        "connection": [
                            {
                                "jdbcUrl": "",
                                "table": []
                            }
                        ],
                        "password": "",
                        "preSql": [],
                        "session": [],
                        "username": "",
                        "writeMode": ""
                    }
                }
            }
        ],
        "setting": {
            "speed": {
                "channel": ""
            }
        }
    }
}

3. 根据模板编写json文件

{
    "job": {
        "content": [
            {
                "reader": {
                    "name": "hdfsreader",
                    "parameter": {
                        "column": [
                            "*"
                        ],
                        "defaultFS": "hdfs://hadoop:9000",
                        "encoding": "UTF-8",
                        "fieldDelimiter": "|",
                        "fileType": "text",
                        "path": "/datax/keyword.txt"
                    }
                },
                "writer": {
                    "name": "mysqlwriter",
                    "parameter": {
                        "column": [
                            "help_keyword_id",
                            "name"
                        ],
                        "connection": [
                            {
                                "jdbcUrl": "jdbc:mysql://192.168.1.106:3306/mysql",
                                "table": ["help_keyword_from_hdfs_datax"]
                            }
                        ],
                        "password": "xiaokang",
                        "username": "root",
                        "writeMode": "insert"
                    }
                }
            }
        ],
        "setting": {
            "speed": {
                "channel": "3"
            }
        }
    }
}

4. 运行Job

[xiaokang@hadoop json]$ /opt/software/datax/bin/datax.py ./hdfs2mysql.json

3.4 mysql同步到mysql

{
    "job": {
        "content": [{
            "reader": {
                "name": "mysqlreader",
                "parameter": {
                    "password": "gee123456",
                    "username": "geespace",
                    "connection": [{
                        "jdbcUrl": ["jdbc:mysql://192.168.20.75:9950/geespace_bd_platform_dev"],
                        "querySql": ["SELECT id, name FROM test_test"]
                    }]
                }
            },
            "writer": {
                "name": "mysqlwriter",
                "parameter": {
                    "column": ["id", "name"],
                    "password": "gee123456",
                    "username": "geespace",
                    "writeMode": "insert",
                    "connection": [{
                        "table": ["test_test_1"],
                        "jdbcUrl": "jdbc:mysql://192.168.20.75:9950/geespace_bd_platform_dev"
                    }]
                }
            }
        }],
        "setting": {
            "speed": {
                "channel": 1
            },
            "errorLimit": {
                "record": 0,
                "percentage": 0.02
            }
        }
    }
}

3.5 mysql同步到hbase

{
    "job": {
        "content": [{
            "reader": {
                "name": "mysqlreader",
                "parameter": {
                    "password": "gee123456",
                    "username": "geespace",
                    "connection": [{
                        "jdbcUrl": ["jdbc:mysql://192.168.20.75:9950/geespace_bd_platform_dev"],
                        "querySql": ["SELECT id, name FROM test_test"]
                    }]
                }
            },
            "writer": {
                "name": "hbase11xwriter",
                "parameter": {
                    "mode": "normal",
                    "table": "test_test_1",
                    "column": [{
                        "name": "f:id",
                        "type": "string",
                        "index": 0
                    }, {
                        "name": "f:name",
                        "type": "string",
                        "index": 1
                    }],
                    "encoding": "utf-8",
                    "hbaseConfig": {
                        "hbase.zookeeper.quorum": "192.168.20.91:2181",
                        "zookeeper.znode.parent": "/hbase"
                    },
                    "rowkeyColumn": [{
                        "name": "f:id",
                        "type": "string",
                        "index": 0
                    }, {
                        "name": "f:name",
                        "type": "string",
                        "index": 1
                    }]
                }
            }
        }],
        "setting": {
            "speed": {
                "channel": 1
            },
            "errorLimit": {
                "record": 0,
                "percentage": 0.02
            }
        }
    }
}

3.6 hbase同步到hbase

{
    "job": {
        "content": [{
            "reader": {
                "name": "hbase11xreader",
                "parameter": {
                    "mode": "normal",
                    "table": "test_test",
                    "column": [{
                        "name": "f:id",
                        "type": "string"
                    }, {
                        "name": "f:name",
                        "type": "string"
                    }],
                    "encoding": "utf-8",
                    "hbaseConfig": {
                        "hbase.zookeeper.quorum": "192.168.20.91:2181",
                        "zookeeper.znode.parent": "/hbase"
                    }
                }
            },
            "writer": {
                "name": "hbase11xwriter",
                "parameter": {
                    "mode": "normal",
                    "table": "test_test_1",
                    "column": [{
                        "name": "f:id",
                        "type": "string",
                        "index": 0
                    }, {
                        "name": "f:name",
                        "type": "string",
                        "index": 1
                    }],
                    "encoding": "utf-8",
                    "hbaseConfig": {
                        "hbase.zookeeper.quorum": "192.168.20.91:2181",
                        "zookeeper.znode.parent": "/hbase"
                    },
                    "rowkeyColumn": [{
                        "name": "f:id",
                        "type": "string",
                        "index": 0
                    }, {
                        "name": "f:name",
                        "type": "string",
                        "index": 1
                    }]
                }
            }
        }],
        "setting": {
            "speed": {
                "channel": 1
            },
            "errorLimit": {
                "record": 0,
                "percentage": 0.02
            }
        }
    }
}

3.7 hbase同步到mysql

{
    "job": {
        "content": [{
            "reader": {
                "name": "hbase11xreader",
                "parameter": {
                    "mode": "normal",
                    "table": "test_test_1",
                    "column": [{
                        "name": "f:id",
                        "type": "string"
                    }, {
                        "name": "f:name",
                        "type": "string"
                    }],
                    "encoding": "utf-8",
                    "hbaseConfig": {
                        "hbase.zookeeper.quorum": "192.168.20.91:2181",
                        "zookeeper.znode.parent": "/hbase"
                    }
                }
            },
            "writer": {
                "name": "mysqlwriter",
                "parameter": {
                    "column": ["id", "name"],
                    "password": "gee123456",
                    "username": "geespace",
                    "writeMode": "insert",
                    "connection": [{
                        "table": ["test_test"],
                        "jdbcUrl": "jdbc:mysql://192.168.20.75:9950/geespace_bd_platform_dev"
                    }]
                }
            }
        }],
        "setting": {
            "speed": {
                "channel": 1
            },
            "errorLimit": {
                "record": 0,
                "percentage": 0.02
            }
        }
    }
}

四、辅助资料

DataX介绍以及优缺点分析：
https://blog.csdn.net/qq_29359303/article/details/100656445?ops_request_misc=%257B%2522request%255Fid%2522%253A%2522162434122516780357231881%2522%252C%2522scm%2522%253A%252220140713.130102334..%2522%257D&request_id=162434122516780357231881&biz_id=0&utm_med

datax详细介绍及使用：
https://blog.csdn.net/qq_39188747/article/details/102577017?ops_request_misc=%257B%2522request%255Fid%2522%253A%2522162434122516780357231881%2522%252C%2522scm%2522%253A%252220140713.130102334..%2522%257D&request_id=162434122516780357231881&biz_id=0&utm_med
