一、功能说明
SpringBoot的定时任务的加强工具，实现对SpringBoot原生的定时任务进行动态管理，完全兼容原生@Scheduled注解，无需对原本的定时任务进行修改。
二、快速使用
具体的功能已经封装成SpringBoot-starter即插即用
<dependency><groupId>com.github.guoyixing</groupId><artifactId>spring-boot-starter-super-scheduled</artifactId><version>0.3.1</version></dependency>
使用方法和源码：
码云：https://gitee.com/qiaodaimadewangcai/super-scheduled
github：https://github.com/guoyixing/super-scheduled
三、实现原理
1、动态管理实现
(1) 配置管理介绍
@Component("superScheduledConfig")public class SuperScheduledConfig {/*** 执行定时任务的线程池*/private ThreadPoolTaskScheduler taskScheduler;/*** 定时任务名称与定时任务回调钩子 的关联关系容器*/private Map<String, ScheduledFuture> nameToScheduledFuture = new ConcurrentHashMap<>();/*** 定时任务名称与定时任务需要执行的逻辑 的关联关系容器*/private Map<String, Runnable> nameToRunnable = new ConcurrentHashMap<>();/*** 定时任务名称与定时任务的源信息 的关联关系容器*/private Map<String, ScheduledSource> nameToScheduledSource = new ConcurrentHashMap<>();/* 普通的get/sets省略 */}
(2) 使用后处理器拦截SpringBoot原本的定时任务
- 实现
ApplicationContextAware接口拿到SpringBoot的上下文 - 实现
BeanPostProcessor接口，将这个类标记为后处理器，后处理器会在每个bean实例化之后执行 - 使用
@DependsOn注解强制依赖SuperScheduledConfig类，让SpringBoot实例化SuperScheduledPostProcessor类之前先实例化SuperScheduledConfig类 - 主要实现逻辑在
postProcessAfterInitialization()方法中
@DependsOn({"superScheduledConfig"})@Component@Orderpublic class SuperScheduledPostProcessor implements BeanPostProcessor, ApplicationContextAware {protected final Log logger = LogFactory.getLog(getClass());private ApplicationContext applicationContext;/*** 实例化bean之前的操作* @param bean bean实例* @param beanName bean的Name*/@Overridepublic Object postProcessBeforeInitialization(Object bean, String beanName) throws BeansException {return bean;}/*** 实例化bean之后的操作* @param bean bean实例* @param beanName bean的Name*/@Overridepublic Object postProcessAfterInitialization(Object bean,String beanName) throws BeansException {//1.获取配置管理器SuperScheduledConfig superScheduledConfig = applicationContext.getBean(SuperScheduledConfig.class);//2.获取当前实例化完成的bean的所有方法Method[] methods = bean.getClass().getDeclaredMethods();//循环处理对每个方法逐一处理if (methods.length > 0) {for (Method method : methods) {//3.尝试在该方法上获取@Scheduled注解（SpringBoot的定时任务注解）Scheduled annotation = method.getAnnotation(Scheduled.class);//如果无法获取到@Scheduled注解，就跳过这个方法if (annotation == null) {continue;}//4.创建定时任务的源属性//创建定时任务的源属性（用来记录定时任务的配置，初始化的时候记录的是注解上原本的属性）ScheduledSource scheduledSource = new ScheduledSource(annotation, method, bean);//对注解上获取到源属性中的属性进行检测if (!scheduledSource.check()) {throw new SuperScheduledException("在" + beanName + "Bean中" + method.getName() + "方法的注解参数错误");}//生成定时任务的名称（id），使用beanName+“.”+方法名String name = beanName + "." + method.getName();//将以key-value的形式，将源数据存入配置管理器中，key：定时任务的名称 value：源数据superScheduledConfig.addScheduledSource(name, scheduledSource);try {//5.将原本SpringBoot的定时任务取消掉clearOriginalScheduled(annotation);} catch (Exception e) {throw new SuperScheduledException("在关闭原始方法" + beanName + method.getName() + "时出现错误");}}}//最后bean保持原有返回return bean;}/*** 修改注解原先的属性* @param annotation 注解实例对象* @throws Exception*/private void clearOriginalScheduled(Scheduled annotation) throws Exception {changeAnnotationValue(annotation, "cron", Scheduled.CRON_DISABLED);changeAnnotationValue(annotation, "fixedDelay", -1L);changeAnnotationValue(annotation, "fixedDelayString", "");changeAnnotationValue(annotation, "fixedRate", -1L);changeAnnotationValue(annotation, "fixedRateString", "");changeAnnotationValue(annotation, "initialDelay", -1L);changeAnnotationValue(annotation, "initialDelayString", "");}/*** 获取SpringBoot的上下文* @param applicationContext SpringBoot的上下文*/@Overridepublic void setApplicationContext(ApplicationContext applicationContext) throws BeansException {this.applicationContext = applicationContext;}}

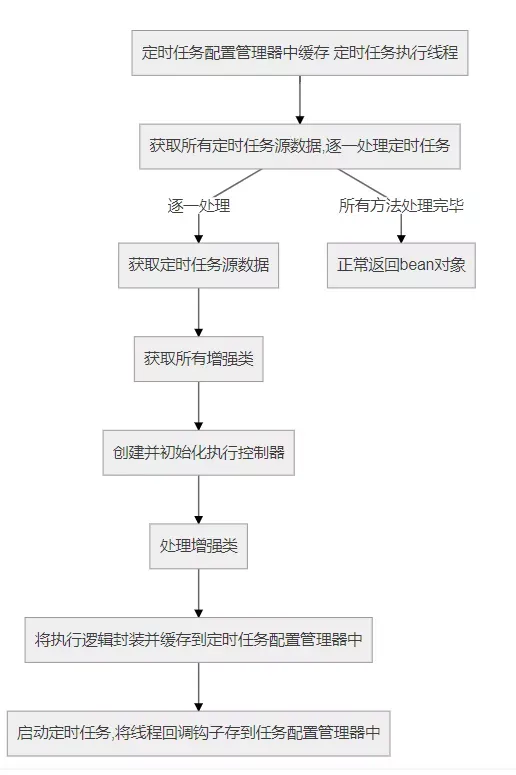

(3) 使用ApplicationRunner初始化自定义的定时任务运行器
- 实现
ApplicationContextAware接口拿到SpringBoot的上下文 - 使用
@DependsOn注解强制依赖threadPoolTaskScheduler类 - 实现
ApplicationRunner接口，在所有bean初始化结束之后，运行自定义逻辑 - 主要实现逻辑在
run()方法中
@DependsOn("threadPoolTaskScheduler")@Componentpublic class SuperScheduledApplicationRunner implements ApplicationRunner, ApplicationContextAware {protected final Log logger = LogFactory.getLog(getClass());private DateTimeFormatter df = DateTimeFormatter.ofPattern("yyyy-MM-dd HH:mm:ss");private ApplicationContext applicationContext;/*** 定时任务配置管理器*/@Autowiredprivate SuperScheduledConfig superScheduledConfig;/*** 定时任务执行线程*/@Autowiredprivate ThreadPoolTaskScheduler threadPoolTaskScheduler;@Overridepublic void run(ApplicationArguments args) {//1.定时任务配置管理器中缓存 定时任务执行线程superScheduledConfig.setTaskScheduler(threadPoolTaskScheduler);//2.获取所有定时任务源数据Map<String, ScheduledSource> nameToScheduledSource = superScheduledConfig.getNameToScheduledSource();//逐一处理定时任务for (String name : nameToScheduledSource.keySet()) {//3.获取定时任务源数据ScheduledSource scheduledSource = nameToScheduledSource.get(name);//4.获取所有增强类String[] baseStrengthenBeanNames = applicationContext.getBeanNamesForType(BaseStrengthen.class);//5.创建执行控制器SuperScheduledRunnable runnable = new SuperScheduledRunnable();//配置执行控制器runnable.setMethod(scheduledSource.getMethod());runnable.setBean(scheduledSource.getBean());//6.逐一处理增强类（增强器实现原理后面具体分析）List<Point> points = new ArrayList<>(baseStrengthenBeanNames.length);for (String baseStrengthenBeanName : baseStrengthenBeanNames) {//7.将增强器代理成pointObject baseStrengthenBean = applicationContext.getBean(baseStrengthenBeanName);//创建代理Point proxy = ProxyUtils.getInstance(Point.class, new RunnableBaseInterceptor(baseStrengthenBean, runnable));proxy.setSuperScheduledName(name);//8.所有的points连成起来points.add(proxy);}//将point形成调用链runnable.setChain(new Chain(points));//将执行逻辑封装并缓存到定时任务配置管理器中superScheduledConfig.addRunnable(name, runnable::invoke);try {//8.启动定时任务ScheduledFuture<?> schedule = ScheduledFutureFactory.create(threadPoolTaskScheduler, scheduledSource, runnable::invoke);//将线程回调钩子存到任务配置管理器中superScheduledConfig.addScheduledFuture(name, schedule);logger.info(df.format(LocalDateTime.now()) + "任务" + name + "已经启动...");} catch (Exception e) {throw new SuperScheduledException("任务" + name + "启动失败，错误信息：" + e.getLocalizedMessage());}}}@Overridepublic void setApplicationContext(ApplicationContext applicationContext) throws BeansException {this.applicationContext = applicationContext;}}
(4) 进行动态管理
@Componentpublic class SuperScheduledManager {protected final Log logger = LogFactory.getLog(getClass());private DateTimeFormatter df = DateTimeFormatter.ofPattern("yyyy-MM-dd HH:mm:ss");@Autowiredprivate SuperScheduledConfig superScheduledConfig;/*** 修改Scheduled的执行周期** @param name scheduled的名称* @param cron cron表达式*/public void setScheduledCron(String name, String cron) {//终止原先的任务cancelScheduled(name);//创建新的任务ScheduledSource scheduledSource = superScheduledConfig.getScheduledSource(name);scheduledSource.clear();scheduledSource.setCron(cron);addScheduled(name, scheduledSource);}/*** 修改Scheduled的fixedDelay** @param name scheduled的名称* @param fixedDelay 上一次执行完毕时间点之后多长时间再执行*/public void setScheduledFixedDelay(String name, Long fixedDelay) {//终止原先的任务cancelScheduled(name);//创建新的任务ScheduledSource scheduledSource = superScheduledConfig.getScheduledSource(name);scheduledSource.clear();scheduledSource.setFixedDelay(fixedDelay);addScheduled(name, scheduledSource);}/*** 修改Scheduled的fixedRate** @param name scheduled的名称* @param fixedRate 上一次开始执行之后多长时间再执行*/public void setScheduledFixedRate(String name, Long fixedRate) {//终止原先的任务cancelScheduled(name);//创建新的任务ScheduledSource scheduledSource = superScheduledConfig.getScheduledSource(name);scheduledSource.clear();scheduledSource.setFixedRate(fixedRate);addScheduled(name, scheduledSource);}/*** 查询所有启动的Scheduled*/public List<String> getRunScheduledName() {Set<String> names = superScheduledConfig.getNameToScheduledFuture().keySet();return new ArrayList<>(names);}/*** 查询所有的Scheduled*/public List<String> getAllSuperScheduledName() {Set<String> names = superScheduledConfig.getNameToRunnable().keySet();return new ArrayList<>(names);}/*** 终止Scheduled** @param name scheduled的名称*/public void cancelScheduled(String name) {ScheduledFuture scheduledFuture = superScheduledConfig.getScheduledFuture(name);scheduledFuture.cancel(true);superScheduledConfig.removeScheduledFuture(name);logger.info(df.format(LocalDateTime.now()) + "任务" + name + "已经终止...");}/*** 启动Scheduled** @param name scheduled的名称* @param scheduledSource 定时任务的源信息*/public void addScheduled(String name, ScheduledSource scheduledSource) {if (getRunScheduledName().contains(name)) {throw new SuperScheduledException("定时任务" + name + "已经被启动过了");}if (!scheduledSource.check()) {throw new SuperScheduledException("定时任务" + name + "源数据内容错误");}scheduledSource.refreshType();Runnable runnable = superScheduledConfig.getRunnable(name);ThreadPoolTaskScheduler taskScheduler = superScheduledConfig.getTaskScheduler();ScheduledFuture<?> schedule = ScheduledFutureFactory.create(taskScheduler, scheduledSource, runnable);logger.info(df.format(LocalDateTime.now()) + "任务" + name + "已经启动...");superScheduledConfig.addScheduledSource(name, scheduledSource);superScheduledConfig.addScheduledFuture(name, schedule);}/*** 以cron类型启动Scheduled** @param name scheduled的名称* @param cron cron表达式*/public void addCronScheduled(String name, String cron) {ScheduledSource scheduledSource = new ScheduledSource();scheduledSource.setCron(cron);addScheduled(name, scheduledSource);}/*** 以fixedDelay类型启动Scheduled** @param name scheduled的名称* @param fixedDelay 上一次执行完毕时间点之后多长时间再执行* @param initialDelay 第一次执行的延迟时间*/public void addFixedDelayScheduled(String name, Long fixedDelay, Long... initialDelay) {ScheduledSource scheduledSource = new ScheduledSource();scheduledSource.setFixedDelay(fixedDelay);if (initialDelay != null && initialDelay.length == 1) {scheduledSource.setInitialDelay(initialDelay[0]);} else if (initialDelay != null && initialDelay.length > 1) {throw new SuperScheduledException("第一次执行的延迟时间只能传入一个参数");}addScheduled(name, scheduledSource);}/*** 以fixedRate类型启动Scheduled** @param name scheduled的名称* @param fixedRate 上一次开始执行之后多长时间再执行* @param initialDelay 第一次执行的延迟时间*/public void addFixedRateScheduled(String name, Long fixedRate, Long... initialDelay) {ScheduledSource scheduledSource = new ScheduledSource();scheduledSource.setFixedRate(fixedRate);if (initialDelay != null && initialDelay.length == 1) {scheduledSource.setInitialDelay(initialDelay[0]);} else if (initialDelay != null && initialDelay.length > 1) {throw new SuperScheduledException("第一次执行的延迟时间只能传入一个参数");}addScheduled(name, scheduledSource);}/*** 手动执行一次任务** @param name scheduled的名称*/public void runScheduled(String name) {Runnable runnable = superScheduledConfig.getRunnable(name);runnable.run();}}
2、增强接口实现
增强器实现的整体思路与SpringAop的思路一致，实现没有Aop复杂
(1) 增强接口
@Order(Ordered.HIGHEST_PRECEDENCE)public interface BaseStrengthen {/*** 前置强化方法** @param bean bean实例（或者是被代理的bean）* @param method 执行的方法对象* @param args 方法参数*/void before(Object bean, Method method, Object[] args);/*** 后置强化方法* 出现异常不会执行* 如果未出现异常，在afterFinally方法之后执行** @param bean bean实例（或者是被代理的bean）* @param method 执行的方法对象* @param args 方法参数*/void after(Object bean, Method method, Object[] args);/*** 异常强化方法** @param bean bean实例（或者是被代理的bean）* @param method 执行的方法对象* @param args 方法参数*/void exception(Object bean, Method method, Object[] args);/*** Finally强化方法，出现异常也会执行** @param bean bean实例（或者是被代理的bean）* @param method 执行的方法对象* @param args 方法参数*/void afterFinally(Object bean, Method method, Object[] args);}
(2) 代理抽象类
public abstract class Point {/*** 定时任务名*/private String superScheduledName;/*** 抽象的执行方法，使用代理实现* @param runnable 定时任务执行器*/public abstract Object invoke(SuperScheduledRunnable runnable);/* 普通的get/sets省略 */}
(3) 调用链类
public class Chain {private List<Point> list;private int index = -1;/*** 索引自增1*/public int incIndex() {return ++index;}/*** 索引还原*/public void resetIndex() {this.index = -1;}}
(4) cglib动态代理实现
使用cglib代理增强器，将增强器全部代理成调用链节点Point
public class RunnableBaseInterceptor implements MethodInterceptor {/*** 定时任务执行器*/private SuperScheduledRunnable runnable;/*** 定时任务增强类*/private BaseStrengthen strengthen;@Overridepublic Object intercept(Object obj, Method method, Object[] args, MethodProxy methodProxy) throws Throwable {Object result;//如果执行的是invoke()方法if ("invoke".equals(method.getName())) {//前置强化方法strengthen.before(obj, method, args);try {//调用执行器中的invoke()方法result = runnable.invoke();} catch (Exception e) {//异常强化方法strengthen.exception(obj, method, args);throw new SuperScheduledException(strengthen.getClass() + "中强化执行时发生错误", e);} finally {//Finally强化方法，出现异常也会执行strengthen.afterFinally(obj, method, args);}//后置强化方法strengthen.after(obj, method, args);} else {//直接执行方法result = methodProxy.invokeSuper(obj, args);}return result;}public RunnableBaseInterceptor(Object object, SuperScheduledRunnable runnable) {this.runnable = runnable;if (BaseStrengthen.class.isAssignableFrom(object.getClass())) {this.strengthen = (BaseStrengthen) object;} else {throw new SuperScheduledException(object.getClass() + "对象不是BaseStrengthen类型");}}public RunnableBaseInterceptor() {}}
(5) 定时任务执行器实现
public class SuperScheduledRunnable {/*** 原始的方法*/private Method method;/*** 方法所在的bean*/private Object bean;/*** 增强器的调用链*/private Chain chain;public Object invoke() {Object result;//索引自增1if (chain.incIndex() == chain.getList().size()) {//调用链中的增强方法已经全部执行结束try {//调用链索引初始化chain.resetIndex();//增强器全部执行完毕，执行原本的方法result = method.invoke(bean);} catch (IllegalAccessException | InvocationTargetException e) {throw new SuperScheduledException(e.getLocalizedMessage());}} else {//获取被代理后的方法增强器Point point = chain.getList().get(chain.getIndex());//执行增强器代理//增强器代理中，会回调方法执行器，形成调用链，逐一运行调用链中的增强器result = point.invoke(this);}return result;}/* 普通的get/sets省略 */}
(6) 增强器代理逻辑
com.gyx.superscheduled.core.SuperScheduledApplicationRunner类中的代码片段
//创建执行控制器SuperScheduledRunnable runnable = new SuperScheduledRunnable();runnable.setMethod(scheduledSource.getMethod());runnable.setBean(scheduledSource.getBean());//用来存放 增强器的代理对象List<Point> points = new ArrayList<>(baseStrengthenBeanNames.length);//循环所有的增强器的beanNamefor (String baseStrengthenBeanName : baseStrengthenBeanNames) {//获取增强器的bean对象Object baseStrengthenBean = applicationContext.getBean(baseStrengthenBeanName);//将增强器代理成Point节点Point proxy = ProxyUtils.getInstance(Point.class, new RunnableBaseInterceptor(baseStrengthenBean, runnable));proxy.setSuperScheduledName(name);//增强器的代理对象缓存到list中points.add(proxy);}//将增强器代理实例的集合生成调用链//执行控制器中设置调用链runnable.setChain(new Chain(points));
