1、相关依赖
<!-- https://mvnrepository.com/artifact/io.springfox/springfox-swagger2 --><dependency><groupId>io.springfox</groupId><artifactId>springfox-swagger2</artifactId><version>2.9.2</version></dependency><!-- https://mvnrepository.com/artifact/io.springfox/springfox-swagger-ui --><dependency><groupId>io.springfox</groupId><artifactId>springfox-swagger-ui</artifactId><version>2.9.2</version></dependency><!-- https://mvnrepository.com/artifact/com.github.xiaoymin/swagger-bootstrap-ui --><dependency><groupId>com.github.xiaoymin</groupId><artifactId>swagger-bootstrap-ui</artifactId><version>1.8.5</version></dependency><dependency><groupId>com.alibaba</groupId><artifactId>druid-spring-boot-starter</artifactId><version>1.1.13</version></dependency><dependency><groupId>mysql</groupId><artifactId>mysql-connector-java</artifactId><version>8.0.19</version></dependency><dependency><groupId>org.flowable</groupId><artifactId>flowable-spring-boot-starter</artifactId><version>6.5.0</version></dependency>
2、flowable以及数据库的配置
mysql:url: jdbc:mysql:///test?serverTimezone=UTCusername: rootpassword: 123456driverClassName: com.mysql.cj.jdbc.Driverspring:application:name: ServiceActivitidatasource:type: com.alibaba.druid.pool.DruidDataSourceurl: ${mysql.url}driver-class-name: ${mysql.driverClassName}username: ${mysql.username}password: ${mysql.password}druid: # #url: ${mysql.url}username: ${mysql.username}password: ${mysql.password}driver-class-name: ${mysql.driverClassName}initial-size: 10max-active: 200min-idle: 10max-wait: 60000pool-prepared-statements: falsevalidation-query: SELECT 1 FROM DUALtest-on-borrow: falsetest-on-return: falsetest-while-idle: truetime-between-eviction-runs-millis: 60000min-evictable-idle-time-millis: 30000max-pool-prepared-statement-per-connection-size: 20aop-patterns: com.msyyt.crm.activity.*filter: # 状态监控stat:enabled: truedb-type: mysqllog-slow-sql: trueslow-sql-millis: 2000web-stat-filter: # 监控过滤器enabled: true #是否启用 默认trueexclusions:- '*.js'- '*.gif'- '*.jpg'- '*.png'- '*.css'- '*.ico'- /druid/*stat-view-servlet: # druid 监控页面enabled: trueurl-pattern: /druid/*reset-enable: falseallow: # 白名单deny: # 黑名单login-username: adminlogin-password: admin# 工作流flowable:#关闭定时任务JOBasync-executor-activate: false# 将databaseSchemaUpdate设置为true。当Flowable发现库与数据库表结构不一致时，会自动将数据库表结构升级至新版本。database-schema-update: true

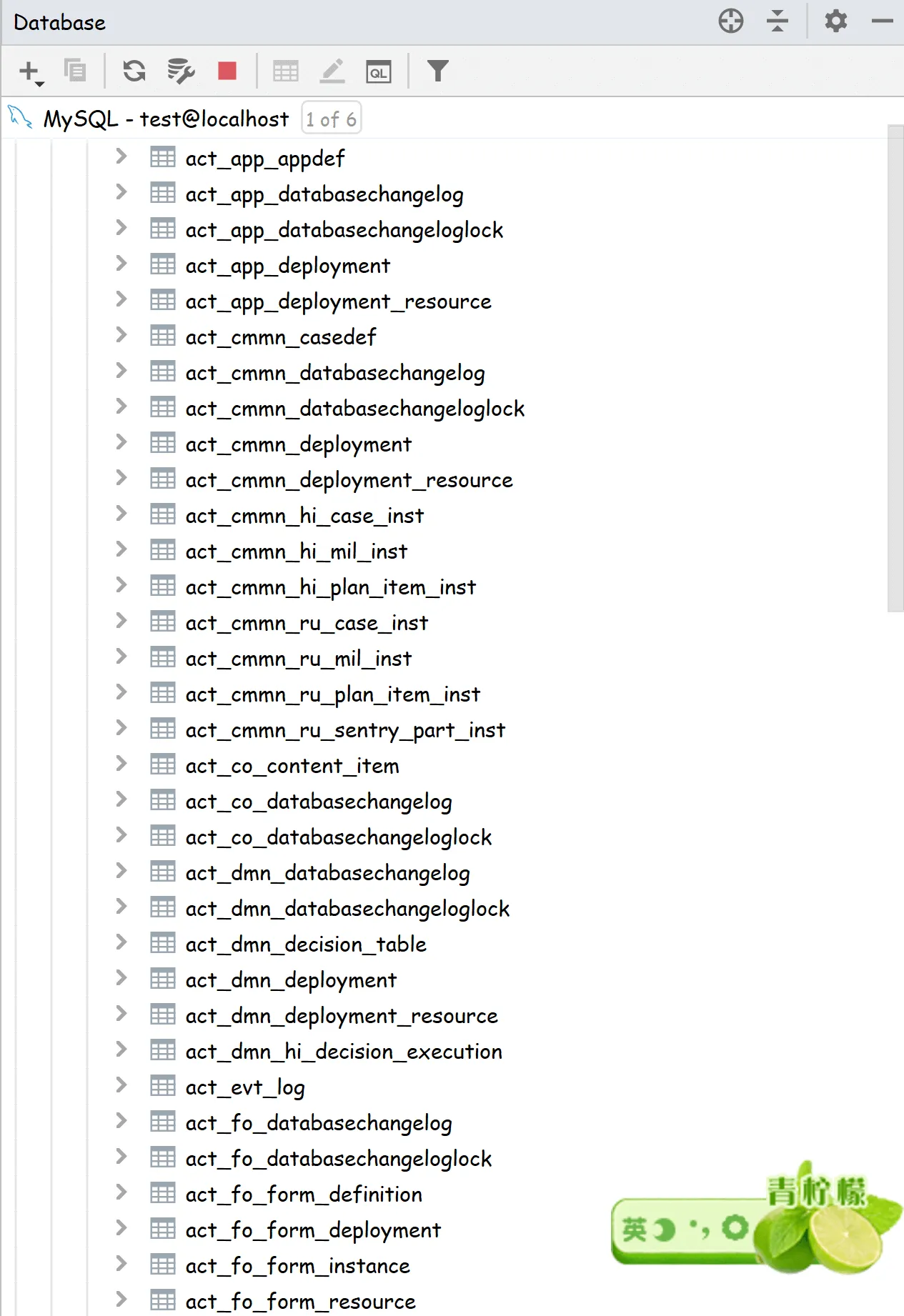

3、运行项目生成数据库表

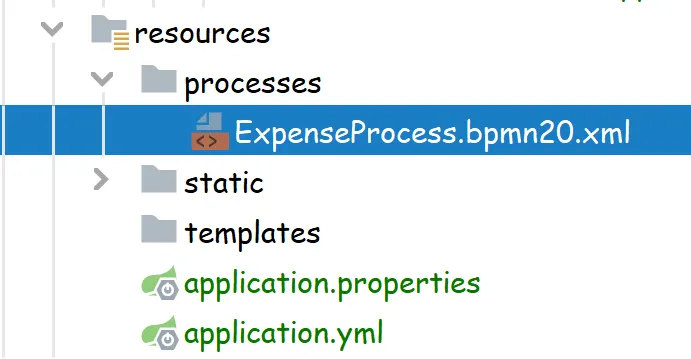

4、定义标准的BPMN流程文件ExpenseProcess.bpmn20.xml放至resource目录下新建processes目录下
<?xml version="1.0" encoding="UTF-8"?><definitions xmlns="http://www.omg.org/spec/BPMN/20100524/MODEL" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xmlns:flowable="http://flowable.org/bpmn" xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI"xmlns:omgdc="http://www.omg.org/spec/DD/20100524/DC" xmlns:omgdi="http://www.omg.org/spec/DD/20100524/DI"typeLanguage="http://www.w3.org/2001/XMLSchema" expressionLanguage="http://www.w3.org/1999/XPath"targetNamespace="http://www.flowable.org/processdef"><process id="Expense" name="ExpenseProcess" isExecutable="true"><documentation>报销流程</documentation><startEvent id="start" name="开始"></startEvent><userTask id="fillTask" name="出差报销" flowable:assignee="${taskUser}"><extensionElements><modeler:initiator-can-complete xmlns:modeler="http://flowable.org/modeler"><![CDATA[false]]></modeler:initiator-can-complete></extensionElements></userTask><exclusiveGateway id="judgeTask"></exclusiveGateway><userTask id="directorTak" name="经理审批"><extensionElements><flowable:taskListener event="create"class="com.fcant.service_flowable.handler.ManagerTaskHandler"></flowable:taskListener></extensionElements></userTask><userTask id="bossTask" name="老板审批"><extensionElements><flowable:taskListener event="create"class="com.fcant.service_flowable.handler.BossTaskHandler"></flowable:taskListener></extensionElements></userTask><endEvent id="end" name="结束"></endEvent><sequenceFlow id="directorNotPassFlow" name="驳回" sourceRef="directorTak" targetRef="fillTask"><conditionExpression xsi:type="tFormalExpression"><![CDATA[${outcome=='驳回'}]]></conditionExpression></sequenceFlow><sequenceFlow id="bossNotPassFlow" name="驳回" sourceRef="bossTask" targetRef="fillTask"><conditionExpression xsi:type="tFormalExpression"><![CDATA[${outcome=='驳回'}]]></conditionExpression></sequenceFlow><sequenceFlow id="flow1" sourceRef="start" targetRef="fillTask"></sequenceFlow><sequenceFlow id="flow2" sourceRef="fillTask" targetRef="judgeTask"></sequenceFlow><sequenceFlow id="judgeMore" name="大于500元" sourceRef="judgeTask" targetRef="bossTask"><conditionExpression xsi:type="tFormalExpression"><![CDATA[${money > 500}]]></conditionExpression></sequenceFlow><sequenceFlow id="bossPassFlow" name="通过" sourceRef="bossTask" targetRef="end"><conditionExpression xsi:type="tFormalExpression"><![CDATA[${outcome=='通过'}]]></conditionExpression></sequenceFlow><sequenceFlow id="directorPassFlow" name="通过" sourceRef="directorTak" targetRef="end"><conditionExpression xsi:type="tFormalExpression"><![CDATA[${outcome=='通过'}]]></conditionExpression></sequenceFlow><sequenceFlow id="judgeLess" name="小于500元" sourceRef="judgeTask" targetRef="directorTak"><conditionExpression xsi:type="tFormalExpression"><![CDATA[${money <= 500}]]></conditionExpression></sequenceFlow></process><bpmndi:BPMNDiagram id="BPMNDiagram_Expense"><bpmndi:BPMNPlane bpmnElement="Expense" id="BPMNPlane_Expense"><bpmndi:BPMNShape bpmnElement="start" id="BPMNShape_start"><omgdc:Bounds height="30.0" width="30.0" x="285.0" y="135.0"></omgdc:Bounds></bpmndi:BPMNShape><bpmndi:BPMNShape bpmnElement="fillTask" id="BPMNShape_fillTask"><omgdc:Bounds height="80.0" width="100.0" x="405.0" y="110.0"></omgdc:Bounds></bpmndi:BPMNShape><bpmndi:BPMNShape bpmnElement="judgeTask" id="BPMNShape_judgeTask"><omgdc:Bounds height="40.0" width="40.0" x="585.0" y="130.0"></omgdc:Bounds></bpmndi:BPMNShape><bpmndi:BPMNShape bpmnElement="directorTak" id="BPMNShape_directorTak"><omgdc:Bounds height="80.0" width="100.0" x="735.0" y="110.0"></omgdc:Bounds></bpmndi:BPMNShape><bpmndi:BPMNShape bpmnElement="bossTask" id="BPMNShape_bossTask"><omgdc:Bounds height="80.0" width="100.0" x="555.0" y="255.0"></omgdc:Bounds></bpmndi:BPMNShape><bpmndi:BPMNShape bpmnElement="end" id="BPMNShape_end"><omgdc:Bounds height="28.0" width="28.0" x="771.0" y="281.0"></omgdc:Bounds></bpmndi:BPMNShape><bpmndi:BPMNEdge bpmnElement="flow1" id="BPMNEdge_flow1"><omgdi:waypoint x="315.0" y="150.0"></omgdi:waypoint><omgdi:waypoint x="405.0" y="150.0"></omgdi:waypoint></bpmndi:BPMNEdge><bpmndi:BPMNEdge bpmnElement="flow2" id="BPMNEdge_flow2"><omgdi:waypoint x="505.0" y="150.16611295681062"></omgdi:waypoint><omgdi:waypoint x="585.4333333333333" y="150.43333333333334"></omgdi:waypoint></bpmndi:BPMNEdge><bpmndi:BPMNEdge bpmnElement="judgeLess" id="BPMNEdge_judgeLess"><omgdi:waypoint x="624.5530726256983" y="150.44692737430168"></omgdi:waypoint><omgdi:waypoint x="735.0" y="150.1392757660167"></omgdi:waypoint></bpmndi:BPMNEdge><bpmndi:BPMNEdge bpmnElement="directorNotPassFlow" id="BPMNEdge_directorNotPassFlow"><omgdi:waypoint x="785.0" y="110.0"></omgdi:waypoint><omgdi:waypoint x="785.0" y="37.0"></omgdi:waypoint><omgdi:waypoint x="455.0" y="37.0"></omgdi:waypoint><omgdi:waypoint x="455.0" y="110.0"></omgdi:waypoint></bpmndi:BPMNEdge><bpmndi:BPMNEdge bpmnElement="bossPassFlow" id="BPMNEdge_bossPassFlow"><omgdi:waypoint x="655.0" y="295.0"></omgdi:waypoint><omgdi:waypoint x="771.0" y="295.0"></omgdi:waypoint></bpmndi:BPMNEdge><bpmndi:BPMNEdge bpmnElement="judgeMore" id="BPMNEdge_judgeMore"><omgdi:waypoint x="605.4340277777778" y="169.56597222222223"></omgdi:waypoint><omgdi:waypoint x="605.1384083044983" y="255.0"></omgdi:waypoint></bpmndi:BPMNEdge><bpmndi:BPMNEdge bpmnElement="directorPassFlow" id="BPMNEdge_directorPassFlow"><omgdi:waypoint x="785.0" y="190.0"></omgdi:waypoint><omgdi:waypoint x="785.0" y="281.0"></omgdi:waypoint></bpmndi:BPMNEdge><bpmndi:BPMNEdge bpmnElement="bossNotPassFlow" id="BPMNEdge_bossNotPassFlow"><omgdi:waypoint x="555.0" y="295.0"></omgdi:waypoint><omgdi:waypoint x="455.0" y="295.0"></omgdi:waypoint><omgdi:waypoint x="455.0" y="190.0"></omgdi:waypoint></bpmndi:BPMNEdge></bpmndi:BPMNPlane></bpmndi:BPMNDiagram></definitions>
5、添加代理类
A.ManagerTaskHandler.java
package com.fcant.service_flowable.handler;import org.flowable.engine.delegate.TaskListener;import org.flowable.task.service.delegate.DelegateTask;/*** ManagerTaskHandler* <p>* encoding:UTF-8** @author Fcant 下午 19:42 2020/8/2/0002*/public class ManagerTaskHandler implements TaskListener {@Overridepublic void notify(DelegateTask delegateTask) {delegateTask.setAssignee("经理");}}
B.BossTaskHandler.java
package com.fcant.service_flowable.handler;import org.flowable.engine.delegate.TaskListener;import org.flowable.task.service.delegate.DelegateTask;/*** BossTaskHandler* <p>* encoding:UTF-8** @author Fcant 下午 19:43 2020/8/2/0002*/public class BossTaskHandler implements TaskListener {@Overridepublic void notify(DelegateTask delegateTask) {delegateTask.setAssignee("老板");}}
C.以上代理类可以使用标签进行替换
<userTask id="holidayApprovedTask" name="Holiday approved" flowable:assignee="${employee}"/>

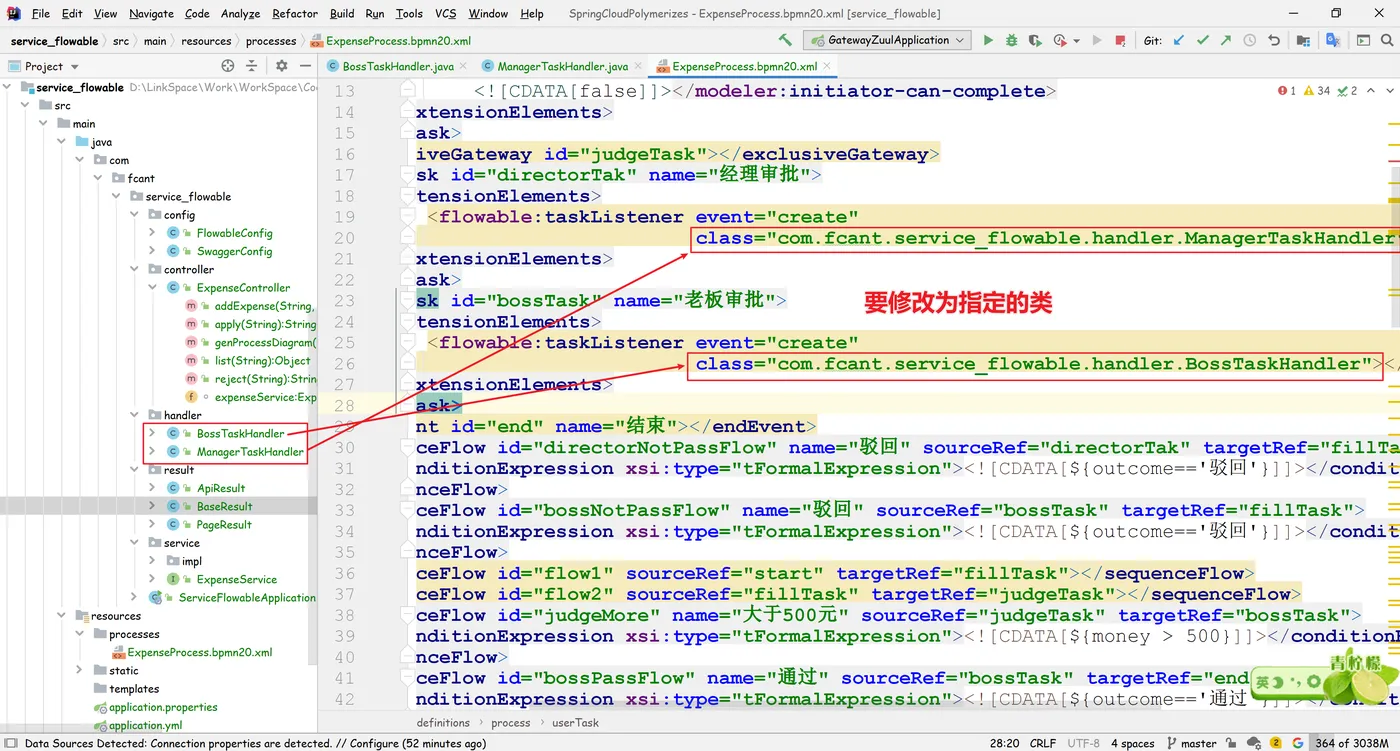

D.代理类完成后需要在BPMN进行类指定
6、业务逻辑层以及测试接口
A.ExpenseService.java
package com.fcant.service_flowable.service;import javax.servlet.http.HttpServletResponse;/*** ExpenseService* <p>* encoding:UTF-8** @author Fcant 下午 20:10 2020/8/2/0002*/public interface ExpenseService {/*** 添加报销** @param userId 用户Id* @param money 报销金额* @param descption 描述* @return String* @author Fcant 下午 20:02 2020/8/2/0002*/public String addExpense(String userId, Integer money, String descption);/*** 获取审批管理列表** @param userId 对应用户的审批列表* @return Object* @author Fcant 下午 20:01 2020/8/2/0002*/public Object list(String userId);/*** 批准** @param taskId 批准的工作流ID* @return* @author Fcant 下午 20:01 2020/8/2/0002*/public String apply(String taskId);/*** 拒绝** @param taskId 拒绝的工作流ID* @return String* @author Fcant 下午 20:00 2020/8/2/0002*/public String reject(String taskId);/*** 生成流程图** @param processId 任务ID* @author Fcant 下午 19:59 2020/8/2/0002*/public void genProcessDiagram(HttpServletResponse httpServletResponse, String processId) throws Exception;}
B.ExpenseServiceImpl.java
package com.fcant.service_flowable.service.impl;import com.fcant.service_flowable.service.ExpenseService;import org.flowable.bpmn.model.BpmnModel;import org.flowable.engine.*;import org.flowable.engine.runtime.Execution;import org.flowable.engine.runtime.ProcessInstance;import org.flowable.image.ProcessDiagramGenerator;import org.flowable.task.api.Task;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.stereotype.Service;import javax.servlet.http.HttpServletResponse;import java.io.InputStream;import java.io.OutputStream;import java.util.ArrayList;import java.util.HashMap;import java.util.List;/*** ExpenseServiceImpl* <p>* encoding:UTF-8** @author Fcant 下午 20:10 2020/8/2/0002*/@Servicepublic class ExpenseServiceImpl implements ExpenseService {@Autowiredprivate RuntimeService runtimeService;@Autowiredprivate TaskService taskService;@Autowiredprivate RepositoryService repositoryService;@Autowiredprivate ProcessEngine processEngine;/*** 添加报销** @param userId 用户Id* @param money 报销金额* @param descption 描述* @return String* @author Fcant 下午 20:02 2020/8/2/0002*/@Overridepublic String addExpense(String userId, Integer money, String descption) {//启动流程HashMap<String, Object> map = new HashMap<>();map.put("taskUser", userId);map.put("money", money);ProcessInstance processInstance = runtimeService.startProcessInstanceByKey("Expense", map);return "提交成功.流程Id为：" + processInstance.getId();}/*** 获取审批管理列表** @param userId 对应用户的审批列表* @return Object* @author Fcant 下午 20:01 2020/8/2/0002*/@Overridepublic Object list(String userId) {List<Task> tasks = taskService.createTaskQuery().taskAssignee(userId).orderByTaskCreateTime().desc().list();for (Task task : tasks) {System.out.println(task.toString());}return tasks.toArray().toString();}/*** 批准** @param taskId 批准的工作流ID* @return* @author Fcant 下午 20:01 2020/8/2/0002*/@Overridepublic String apply(String taskId) {Task task = taskService.createTaskQuery().taskId(taskId).singleResult();if (task == null) {throw new RuntimeException("流程不存在");}//通过审核HashMap<String, Object> map = new HashMap<>();map.put("outcome", "通过");taskService.complete(taskId, map);return "processed ok!";}/*** 拒绝** @param taskId 拒绝的工作流ID* @return String* @author Fcant 下午 20:00 2020/8/2/0002*/@Overridepublic String reject(String taskId) {HashMap<String, Object> map = new HashMap<>();map.put("outcome", "驳回");taskService.complete(taskId, map);return "reject";}/*** 生成流程图** @param processId 任务ID* @author Fcant 下午 19:59 2020/8/2/0002*/@Overridepublic void genProcessDiagram(HttpServletResponse httpServletResponse, String processId) throws Exception {ProcessInstance pi = runtimeService.createProcessInstanceQuery().processInstanceId(processId).singleResult();//流程走完的不显示图if (pi == null) {return;}Task task = taskService.createTaskQuery().processInstanceId(pi.getId()).singleResult();//使用流程实例ID，查询正在执行的执行对象表，返回流程实例对象String InstanceId = task.getProcessInstanceId();List<Execution> executions = runtimeService.createExecutionQuery().processInstanceId(InstanceId).list();//得到正在执行的Activity的IdList<String> activityIds = new ArrayList<>();List<String> flows = new ArrayList<>();for (Execution exe : executions) {List<String> ids = runtimeService.getActiveActivityIds(exe.getId());activityIds.addAll(ids);}//获取流程图BpmnModel bpmnModel = repositoryService.getBpmnModel(pi.getProcessDefinitionId());ProcessEngineConfiguration engconf = processEngine.getProcessEngineConfiguration();ProcessDiagramGenerator diagramGenerator = engconf.getProcessDiagramGenerator();InputStream in = diagramGenerator.generateDiagram(bpmnModel,"png", activityIds, flows, engconf.getActivityFontName(),engconf.getLabelFontName(), engconf.getAnnotationFontName(),engconf.getClassLoader(), 1.0, true);OutputStream out = null;byte[] buf = new byte[1024];int legth = 0;try {out = httpServletResponse.getOutputStream();while ((legth = in.read(buf)) != -1) {out.write(buf, 0, legth);}} finally {if (in != null) {in.close();}if (out != null) {out.close();}}}}
C.ExpenseController.java
package com.fcant.service_flowable.controller;import com.fcant.service_flowable.service.ExpenseService;import io.swagger.annotations.Api;import io.swagger.annotations.ApiOperation;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.stereotype.Controller;import org.springframework.web.bind.annotation.RequestMapping;import org.springframework.web.bind.annotation.ResponseBody;import javax.servlet.http.HttpServletResponse;/*** ExpenseController* <p>* encoding:UTF-8** @author Fcant 下午 19:46 2020/8/2/0002*/@Api(tags = "expense",value = "工作流控制器")@Controller@RequestMapping("/expense")public class ExpenseController {@AutowiredExpenseService expenseService;/*** 添加报销** @param userId 用户Id* @param money 报销金额* @param descption 描述* @return String* @author Fcant 下午 20:02 2020/8/2/0002*/@ApiOperation(value="添加报销")@RequestMapping(value = "/add")@ResponseBodypublic String addExpense(String userId, Integer money, String descption) {return expenseService.addExpense(userId, money, descption);}/*** 获取审批管理列表** @param userId 对应用户的审批列表* @return Object* @author Fcant 下午 20:01 2020/8/2/0002*/@ApiOperation(value="获取审批管理列表")@RequestMapping(value = "/list")@ResponseBodypublic Object list(String userId) {return expenseService.list(userId);}/*** 批准** @param taskId 批准的工作流ID* @return* @author Fcant 下午 20:01 2020/8/2/0002*/@ApiOperation(value="批准")@RequestMapping(value = "/apply")@ResponseBodypublic String apply(String taskId) {expenseService.apply(taskId);return "processed ok!";}/*** 拒绝** @param taskId 拒绝的工作流ID* @return String* @author Fcant 下午 20:00 2020/8/2/0002*/@ApiOperation(value="拒绝")@ResponseBody@RequestMapping(value = "/reject")public String reject(String taskId) {expenseService.reject(taskId);return "reject";}/*** 生成流程图** @param processId 任务ID* @author Fcant 下午 19:59 2020/8/2/0002*/@ApiOperation(value="生成流程图")@RequestMapping(value = "/processDiagram")public void genProcessDiagram(HttpServletResponse httpServletResponse, String processId) throws Exception {expenseService.genProcessDiagram(httpServletResponse, processId);}}
7、配置生成的流图的字体（防止/解决生成流程图片的乱码问题）
package com.fcant.service_flowable.config;import org.flowable.spring.SpringProcessEngineConfiguration;import org.flowable.spring.boot.EngineConfigurationConfigurer;import org.springframework.context.annotation.Configuration;/*** FlowableConfig* <p>* encoding:UTF-8** @author Fcant 下午 19:51 2020/8/2/0002*/@Configurationpublic class FlowableConfig implements EngineConfigurationConfigurer<SpringProcessEngineConfiguration> {@Overridepublic void configure(SpringProcessEngineConfiguration engineConfiguration) {engineConfiguration.setActivityFontName("宋体");engineConfiguration.setLabelFontName("宋体");engineConfiguration.setAnnotationFontName("宋体");}}
8、配置Swagger
package com.fcant.service_flowable.config;import org.springframework.context.annotation.Bean;import org.springframework.context.annotation.Configuration;import org.springframework.web.servlet.config.annotation.ResourceHandlerRegistry;import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;import springfox.documentation.builders.ApiInfoBuilder;import springfox.documentation.builders.PathSelectors;import springfox.documentation.builders.RequestHandlerSelectors;import springfox.documentation.service.ApiInfo;import springfox.documentation.service.Contact;import springfox.documentation.spi.DocumentationType;import springfox.documentation.spring.web.plugins.Docket;import springfox.documentation.swagger2.annotations.EnableSwagger2;/*** SwaggerConfig* <p>* encoding:UTF-8** @author Fcant 下午 23:41 2020/8/1/0001*/@Configuration@EnableSwagger2public class SwaggerConfig implements WebMvcConfigurer {@Overridepublic void addResourceHandlers(ResourceHandlerRegistry registry) {registry.addResourceHandler("swagger-ui.html").addResourceLocations("classpath:/META-INF/resources/");registry.addResourceHandler("/webjars/**").addResourceLocations("classpath:/META-INF/resources/webjars/");}/*** @author Fcant 13:44 2019/12/5*/@Beanpublic Docket petApi() {return new Docket(DocumentationType.SWAGGER_2).apiInfo(apiInfo()).select().apis(RequestHandlerSelectors.basePackage("com.fcant.service_flowable.controller")).paths(PathSelectors.any()).build();}/*** 该套 API 说明，包含作者、简介、版本、host、服务URL* @return*/private ApiInfo apiInfo() {return new ApiInfoBuilder().title("Flowable Service API").contact(new Contact("fcant","null","fcscanf@outlook.com")).version("0.1").termsOfServiceUrl("www.yuque.com/fcant").description("Flowable Service API").build();}}

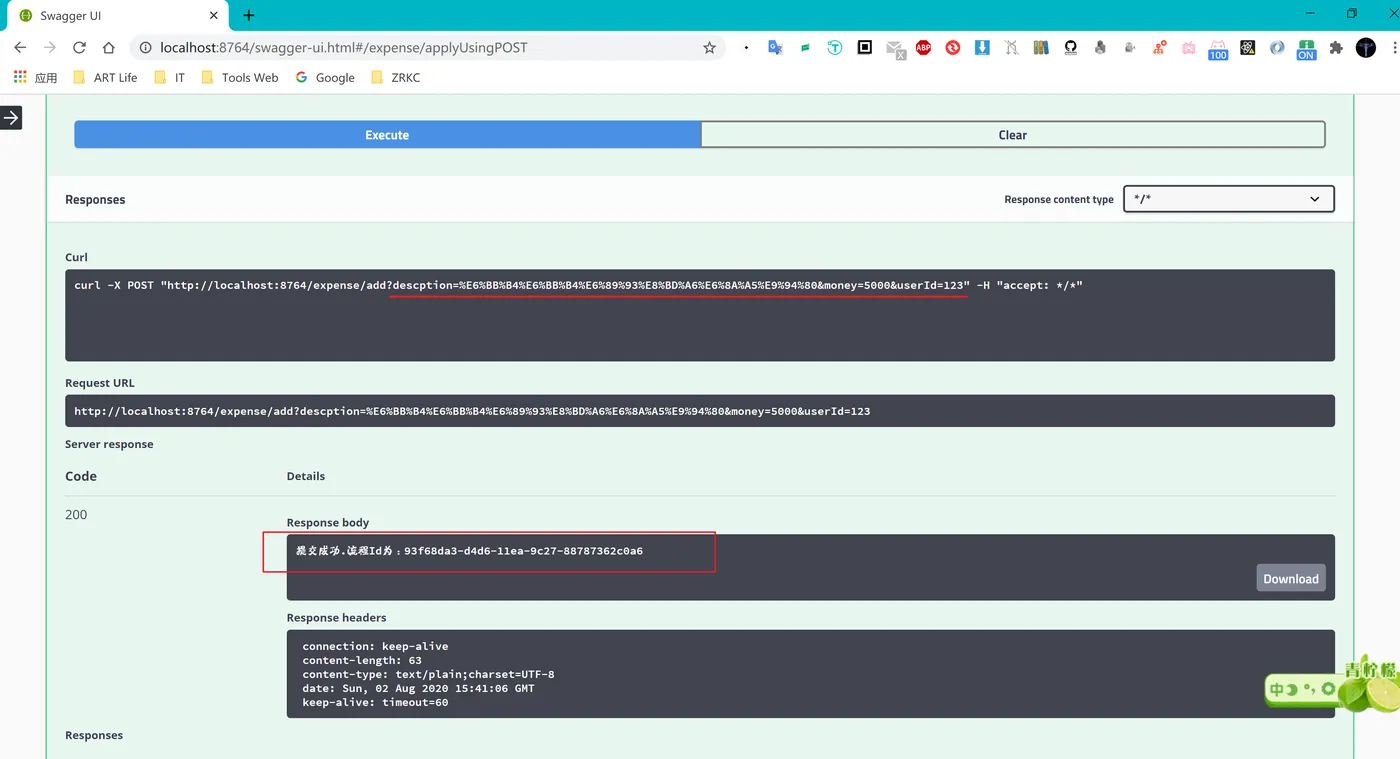

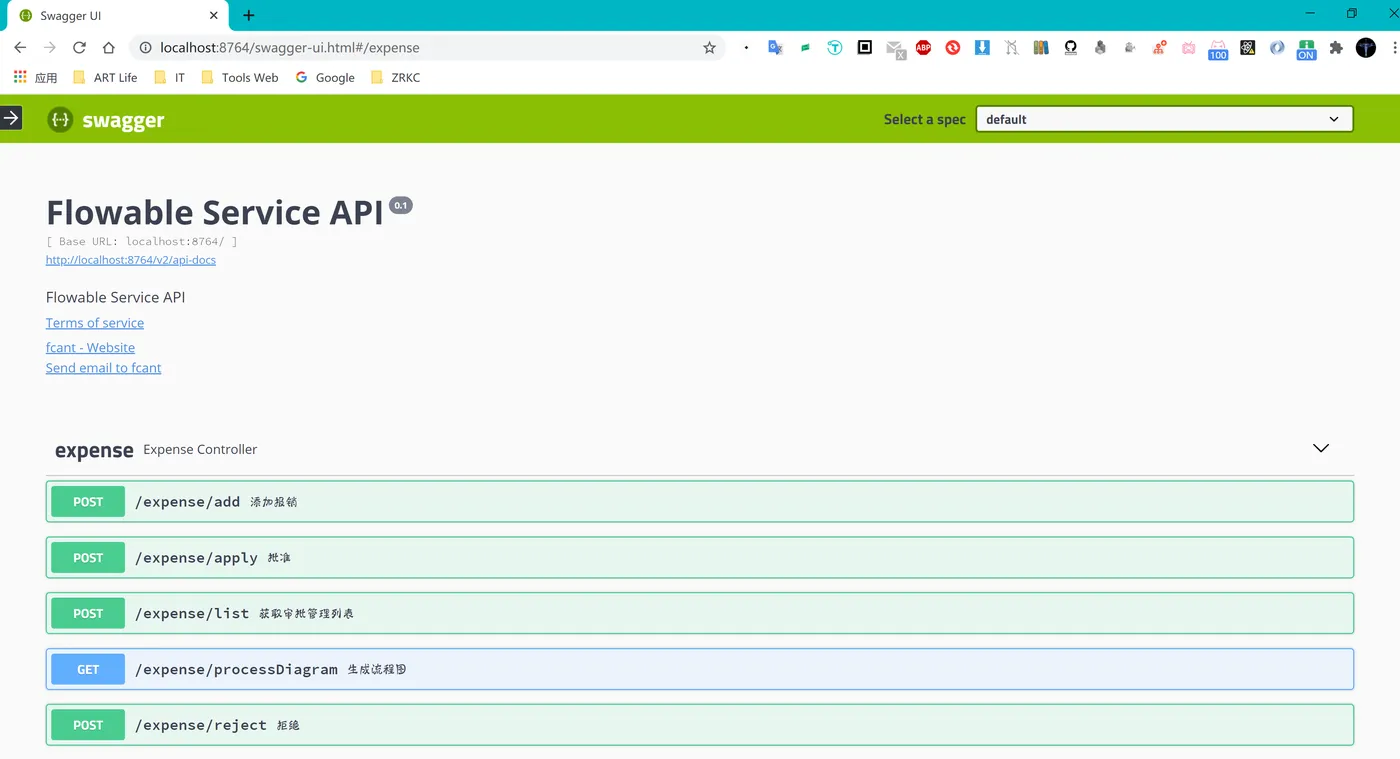

9、启动项目，访问Swagger页面进行接口测试
