import ray
from typing import Dict
from numpy.typing import NDArray

# Load a CSV dataset directly from NAS/S3
ds = ray.data.read_csv("/mnt/example-data/iris.csv")

#用户定义Map推理类
class CustomMapActor:
    # 初始化
    def __init__(self):
      print("init")

    # 推理，自定义模型调用逻辑，必需实现
    def __call__(self, single):
        single["output"] = "test"
        return single

#用户定义MapBatch推理类
class CustomMapBatchActor:
    # 初始化
    def __init__(self):
      print("init")

    # 推理，自定义模型调用逻辑，格式为{key:NDArray, key:NDArray}，key为列名，NDArray为batch_size长度的列值数组
    def __call__(self, data: Dict[str, NDArray]):
       return data

ds = ds.map(CustomMapActor,concurrency=5)

ds = ds.map_batches(CustomMapBatchActor, concurrency=5, batch_size=1024)

ds.write_csv("/mnt/result-data/")

ds = ray.data.read_csv(xx)

class MapActor:
    xxxx

ds = ds.map(MapActor)

ds = ds.write_parquet(xxx)

@PublicAPI
def read_csv(
    paths: Union[str, List[str]],
    *,
    filesystem: Optional["pyarrow.fs.FileSystem"] = None,
    parallelism: int = -1,
    ray_remote_args: Dict[str, Any] = None,
    arrow_open_stream_args: Optional[Dict[str, Any]] = None,
    meta_provider: Optional[BaseFileMetadataProvider] = None,
    partition_filter: Optional[PathPartitionFilter] = None,
    partitioning: Partitioning = Partitioning("hive"),
    include_paths: bool = False,
    ignore_missing_paths: bool = False,
    shuffle: Optional[Union[Literal["files"], FileShuffleConfig]] = None,
    file_extensions: Optional[List[str]] = None,
    concurrency: Optional[int] = None,
    override_num_blocks: Optional[int] = None,
    **arrow_csv_args,
) -> Dataset:
    """Creates a :class:`~ray.data.Dataset` from CSV files.
    Args:
        paths: 传入文件读取路径
        filesystem: 可以传入文件系统
        其余参数省略
    Returns:
        :class:`~ray.data.Dataset` producing records read from the specified paths.
    """
    _emit_meta_provider_deprecation_warning(meta_provider)

    if meta_provider is None:
        meta_provider = DefaultFileMetadataProvider()

    #核心部分，构建CSVDatasource
    datasource = CSVDatasource(
        paths,
        arrow_csv_args=arrow_csv_args,
        filesystem=filesystem,
        open_stream_args=arrow_open_stream_args,
        meta_provider=meta_provider,
        partition_filter=partition_filter,
        partitioning=partitioning,
        ignore_missing_paths=ignore_missing_paths,
        shuffle=shuffle,
        include_paths=include_paths,
        file_extensions=file_extensions,
    )

    #所有的read_xxx函数，最终都适用read_datasource方法传入一个Datasource，并返回一个Dataset类
    return read_datasource(
        datasource,
        parallelism=parallelism,
        ray_remote_args=ray_remote_args,
        concurrency=concurrency,
        override_num_blocks=override_num_blocks,
    )

@PublicAPI
classDatasource:
    """Interface for defining a custom :class:`~ray.data.Dataset` datasource.

    To read a datasource into a dataset, use :meth:`~ray.data.read_datasource`.
    """  # noqa: E501
    def get_name(self) -> str:
        """Return a human-readable name forthis datasource.
        This will be used as the names of the read tasks.
        """
        name = type(self).__name__
        datasource_suffix = "Datasource"
        if name.endswith(datasource_suffix):
            name = name[: -len(datasource_suffix)]
        return name

    def estimate_inmemory_data_size(self) -> Optional[int]:
        """Return an estimate of the in-memory data size, or None if unknown.

        Note that the in-memory data size may be larger than the on-disk data size.
        """
        raise NotImplementedError

    def get_read_tasks(self, parallelism: int) -> List["ReadTask"]:
        """Execute the read and return read tasks.

        Args:
            parallelism: The requested read parallelism. The number of read
                tasks should equal to this value if possible.

        Returns:
            A list of read tasks that can be executed to read blocks from the
            datasource in parallel.
        """
        raise NotImplementedError

@DeveloperAPI
class ReadTask(Callable[[], Iterable[Block]]):
    """A function used to read blocks from the :class:`~ray.data.Dataset`.

    Read tasks are generated by :meth:`~ray.data.Datasource.get_read_tasks`,
    andreturn a list of ``ray.data.Block`` when called. Initial metadata about the read
    operation can be retrieved via the ``metadata`` attribute prior to executing the
    read. Final metadata is returned after the read along with the blocks.

    Ray will execute read tasks in remote functions to parallelize execution.
    Note that the number of blocks returned can vary at runtime. For example,
    if a task is reading a single large file it can return multiple blocks to
    avoid running out of memory during the read.

    The initial metadata should reflect all the blocks returned by the read,
    e.g., if the metadata says ``num_rows=1000``, the read can return a single
    block of 1000 rows, or multiple blocks with 1000 rows altogether.

    The final metadata (returned with the actual block) reflects the exact
    contents of the block itself.
    """

    def __init__(self, read_fn: Callable[[], Iterable[Block]], metadata: BlockMetadata):
        self._metadata = metadata
        self._read_fn = read_fn

    @property
    def metadata(self) -> BlockMetadata:
        return self._metadata

    @property
    def read_fn(self) -> Callable[[], Iterable[Block]]:
        return self._read_fn

    def __call__(self) -> Iterable[Block]:
        result = self._read_fn()
        if not hasattr(result, "__iter__"):
            DeprecationWarning(
                "Read function must return Iterable[Block], got {}. "
                "Probably you need to return `[block]` instead of "
                "`block`.".format(result)
            )
        yield from result

@DeveloperAPI
class FileBasedDatasource(Datasource):
    """File-based datasource for reading files.
    Don't use this class directly. Instead, subclass it and implement `_read_stream()`.
    """
    def __init__(
        self,
        paths: Union[str, List[str]],
        ...
    ):
        #...
        #...
        #...
        paths, self._filesystem = _resolve_paths_and_filesystem(paths, filesystem)
        self._filesystem = RetryingPyFileSystem.wrap(
            self._filesystem, retryable_errors=self._data_context.retried_io_errors
        )
        paths, file_sizes = map(
            list,
            zip(
                *meta_provider.expand_paths(
                    paths,
                    self._filesystem,
                    partitioning,
                    ignore_missing_paths=ignore_missing_paths,
                )
            ),
        )
        # Read tasks serialize `FileBasedDatasource` instances, and the list of paths
        # can be large. To avoid slow serialization speeds, we store a reference to
        # the paths rather than the paths themselves.
        self._paths_ref = ray.put(paths)
        self._file_sizes_ref = ray.put(file_sizes)
    def get_read_tasks(self, parallelism: int) -> List[ReadTask]:
        #...
        #...

        #定义了从所有文件路径中读取Block的方法
        def read_files(
            read_paths: Iterable[str],
        ) -> Iterable[Block]:
            nonlocal filesystem, open_stream_args, partitioning
            fs = _unwrap_s3_serialization_workaround(filesystem)
            #核心是遍历所有文件路径，并调用子类实现的_read_stream从单个路径中读取Block
            for read_path in read_paths:
                partitions: Dict[str, str] = {}
                if partitioning is not None:
                    parse = PathPartitionParser(partitioning)
                    partitions = parse(read_path)
                with RetryingContextManager(
                    self._open_input_source(fs, read_path, **open_stream_args),
                    context=self._data_context,
                ) as f:
                    for block in iterate_with_retry(
                        lambda: self._read_stream(f, read_path),
                        description="read stream iteratively",
                        match=self._data_context.retried_io_errors,
                    ):
                        if partitions:
                            block = _add_partitions(block, partitions)
                        if self._include_paths:
                            block_accessor = BlockAccessor.for_block(block)
                            block = block_accessor.fill_column("path", read_path)
                        yield block

        #主要封装了多线程读取与单线程读取
        def create_read_task_fn(read_paths, num_threads):
            def read_task_fn():
                nonlocal num_threads, read_paths
                #多线程读取
                if num_threads > 0:
                    yield from make_async_gen(
                        iter(read_paths),
                        read_files,
                        num_workers=num_threads,
                        preserve_ordering=True,
                        buffer_size=max(len(read_paths) // num_threads, 1),
                    )
                #单线程读取
                else:
                    yield from read_files(read_paths)
            return read_task_fn
        # fix https://github.com/ray-project/ray/issues/24296
        parallelism = min(parallelism, len(paths))
        #根据用户传入对parallelism对文件路径进行分块，共生成parallelism个ReadTask
        read_tasks = []
        split_paths = np.array_split(paths, parallelism)
        split_file_sizes = np.array_split(file_sizes, parallelism)
        for read_paths, file_sizes in zip(split_paths, split_file_sizes):
            if len(read_paths) <= 0:
                continue
            meta = self._meta_provider(
                read_paths,
                self._schema,
                rows_per_file=self._rows_per_file(),
                file_sizes=file_sizes,
            )
            #封装实际的read_task_fn
            read_task_fn = create_read_task_fn(read_paths, self._NUM_THREADS_PER_TASK)
            #将read_task_fn传入ReadTask的构造方法，作为实际的文件读取方法
            read_task = ReadTask(read_task_fn, meta)
            read_tasks.append(read_task)
        return read_tasks
    def _read_stream(self, f: "pyarrow.NativeFile", path: str) -> Iterator[Block]:
        """Streaming read a single file.
        This method should be implemented by subclasses.
        """
        raise NotImplementedError(
            "Subclasses of FileBasedDatasource must implement _read_stream()."
        )

class CSVDatasource(FileBasedDatasource):
    #重点，由父类FileBasedDatasource调用
    def _read_stream(self, f: "pyarrow.NativeFile", path: str) -> Iterator[Block]:
        import pyarrow as pa
        from pyarrow import csv
        try:
            reader = csv.open_csv(
                f,
                read_options=self.read_options,
                parse_options=self.parse_options,
                **self.arrow_csv_args,
            )
            schema = None
            while True:
                try:
                    batch = reader.read_next_batch()
                    table = pa.Table.from_batches([batch], schema=schema)
                    if schema is None:
                        schema = table.schema
                    yield table
                except StopIteration:
                    return

@PublicAPI
@wrap_auto_init
def read_datasource(
    datasource: Datasource,
    *,
    parallelism: int = -1,
    ray_remote_args: Dict[str, Any] = None,
    concurrency: Optional[int] = None,
    override_num_blocks: Optional[int] = None,
    **read_args,
) -> Dataset:
    """Read a stream from a custom :class:`~ray.data.Datasource`.

    Args:
        datasource: The :class:`~ray.data.Datasource` to read data from.
        parallelism: This argument is deprecated. Use ``override_num_blocks`` argument.
        ray_remote_args: kwargs passed to :func:`ray.remote` in the read tasks.
        concurrency: The maximum number of Ray tasks to run concurrently. Set this
            to control number of tasks to run concurrently. This doesn't change the
            total number of tasks run or the total number of output blocks. By default,
            concurrency is dynamically decided based on the available resources.
        override_num_blocks: Override the number of output blocks from all read tasks.
            By default, the number of output blocks is dynamically decided based on
            input data size and available resources. You shouldn't manually setthis
            value in most cases.
        read_args: Additional kwargs to pass to the :class:`~ray.data.Datasource`
            implementation.

    Returns:
        :class:`~ray.data.Dataset` that reads data from the :class:`~ray.data.Datasource`.
    """  # noqa: E501
    parallelism = _get_num_output_blocks(parallelism, override_num_blocks)

    ctx = DataContext.get_current()

    if ray_remote_args is None:
        ray_remote_args = {}

    ifnot datasource.supports_distributed_reads:
        ray_remote_args["scheduling_strategy"] = NodeAffinitySchedulingStrategy(
            ray.get_runtime_context().get_node_id(),
            soft=False,
        )

    if"scheduling_strategy"not in ray_remote_args:
        ray_remote_args["scheduling_strategy"] = ctx.scheduling_strategy

    #为了兼容旧接口，一起Ray Data采用legacy_reader，现在采用datasource，这里直接认为datasource_or_legacy_reader=datasource即可
    datasource_or_legacy_reader = _get_datasource_or_legacy_reader(
        datasource,
        ctx,
        read_args,
    )

    cur_pg = ray.util.get_current_placement_group()
    requested_parallelism, _, inmemory_size = _autodetect_parallelism(
        parallelism,
        ctx.target_max_block_size,
        DataContext.get_current(),
        datasource_or_legacy_reader,
        placement_group=cur_pg,
    )

    #调用Datasource.get_read_tasks方法，获取ReadTask列表，主要用于构建DatasetStats
    read_tasks = datasource_or_legacy_reader.get_read_tasks(requested_parallelism)

    import uuid

    stats = DatasetStats(
        metadata={"Read": [read_task.metadata for read_task in read_tasks]},
        parent=None,
        needs_stats_actor=True,
        stats_uuid=uuid.uuid4(),
    )

    #核心代码，创建Read Operator，这是一个Logical Operator，将datasource传入
    read_op = Read(
        datasource,
        datasource_or_legacy_reader,
        parallelism,
        inmemory_size,
        len(read_tasks) if read_tasks else0,
        ray_remote_args,
        concurrency,
    )
    #创建ExecutionPlan，这个类最终会用于流式执行，可以理解为
    execution_plan = ExecutionPlan(stats)

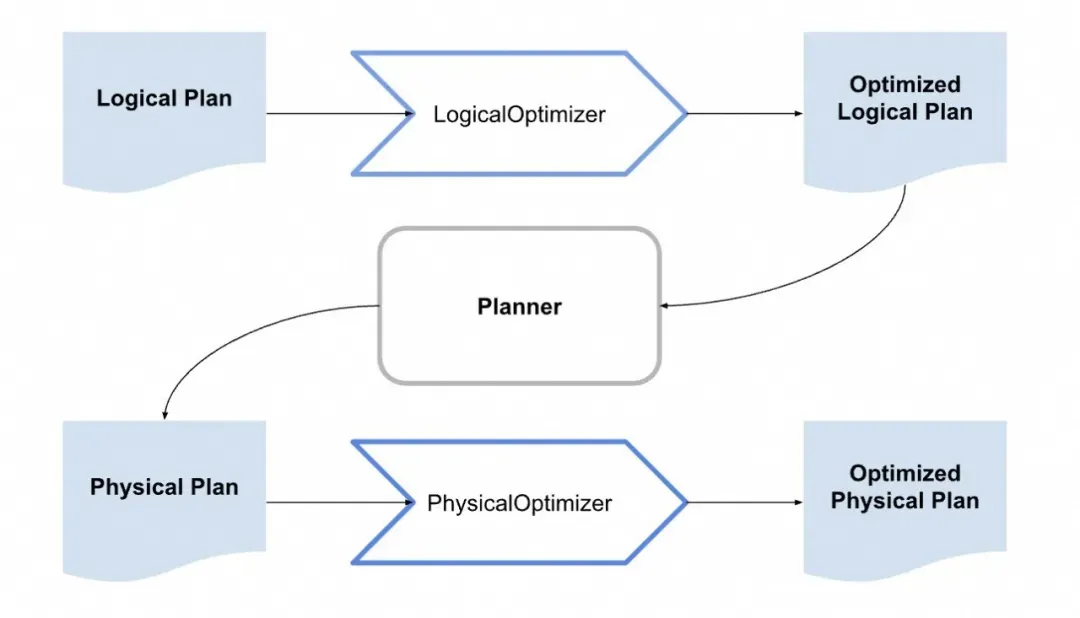

    #创建LogicalPlan，并初始化DAG的源头为Read算子
    logical_plan = LogicalPlan(read_op, execution_plan._context)
    #构建Dataset
    return Dataset(
        plan=execution_plan,
        logical_plan=logical_plan,
    )

class LogicalPlan(Plan):
    """The plan with a DAG of logical operators."""

    def __init__(self, dag: LogicalOperator, context: "DataContext"):
        super().__init__(context)
        self._dag = dag

    @property
    def dag(self) -> LogicalOperator:
        """Get the DAG of logical operators."""
        return self._dag

    def sources(self) -> List[LogicalOperator]:
        """List of operators that are sources forthis plan's DAG."""
        # If an operator has no input dependencies, it's a source.
        ifnotany(self._dag.input_dependencies):
            return [self._dag]

        sources = []
        for op in self._dag.input_dependencies:
            sources.extend(LogicalPlan(op, self._context).sources())
        return sources

classOperator:
    """Abstract class for operators.

    Operators live on the driver side of the Dataset only.
    """

    def __init__(
        self,
        name: str,
        input_dependencies: List["Operator"],
    ):
        self._name = name
        self._input_dependencies = input_dependencies
        self._output_dependencies = []
        for x in input_dependencies:
            assert isinstance(x, Operator), x
            x._output_dependencies.append(self)

    @property
    def name(self) -> str:
        return self._name

    @property
    def dag_str(self) -> str:
        """String representation of the whole DAG."""
        if self.input_dependencies:
            out_str = ", ".join([x.dag_str for x in self.input_dependencies])
            out_str += " -> "
        else:
            out_str = ""
        out_str += f"{self.__class__.__name__}[{self._name}]"
        return out_str

    @property
    def input_dependencies(self) -> List["Operator"]:
        """List of operators that provide inputs for this operator."""
        assert hasattr(
            self, "_input_dependencies"
        ), "Operator.__init__() was not called."
        return self._input_dependencies

    @property
    def output_dependencies(self) -> List["Operator"]:
        """List of operators that consume outputs from this operator."""
        assert hasattr(
            self, "_output_dependencies"
        ), "Operator.__init__() was not called."
        return self._output_dependencies

    def post_order_iter(self) -> Iterator["Operator"]:
        """Depth-first traversal of this operator and its input dependencies."""
        for op in self.input_dependencies:
            yield from op.post_order_iter()
        yield self

    def __repr__(self) -> str:
        return f"{self.__class__.__name__}[{self._name}]"

    def __str__(self) -> str:
        return repr(self)

@PublicAPI
classDataset:
    def __init__(
        self,
        plan: ExecutionPlan,
        logical_plan: LogicalPlan,
    ):
        """Construct a Dataset (internal API).

        The constructor is not part of the Dataset API. Use the ``ray.data.*``
        read methods to construct a dataset.
        """
        assert isinstance(plan, ExecutionPlan), type(plan)
        usage_lib.record_library_usage("dataset")  # Legacy telemetry name.

        self._plan = plan
        self._logical_plan = logical_plan
        self._plan.link_logical_plan(logical_plan)

        # Handle to currently running executor forthis dataset.
        self._current_executor: Optional["Executor"] = None
        self._write_ds = None

        self._set_uuid(StatsManager.get_dataset_id_from_stats_actor())

@PublicAPI(api_group=BT_API_GROUP)
    def map(
        self,
        fn: UserDefinedFunction[Dict[str, Any], Dict[str, Any]],
        *,
        compute: Optional[ComputeStrategy] = None,
        fn_args: Optional[Iterable[Any]] = None,
        fn_kwargs: Optional[Dict[str, Any]] = None,
        fn_constructor_args: Optional[Iterable[Any]] = None,
        fn_constructor_kwargs: Optional[Dict[str, Any]] = None,
        num_cpus: Optional[float] = None,
        num_gpus: Optional[float] = None,
        memory: Optional[float] = None,
        concurrency: Optional[Union[int, Tuple[int, int]]] = None,
        ray_remote_args_fn: Optional[Callable[[], Dict[str, Any]]] = None,
        **ray_remote_args,
    ) -> "Dataset":
        #根据传入的fn类型确定计算方式，如果传入的是函数，则最终会通过Ray Task的方式执行计算
        #如果传入的是类，则最终会通过Ray Actor的方式执行
        compute = get_compute_strategy(
            fn,
            fn_constructor_args=fn_constructor_args,
            compute=compute,
            concurrency=concurrency,
        )

        #最后启动Ray Task/Actor时，会传入ray_remote_args。
        if num_cpus is not None:
            ray_remote_args["num_cpus"] = num_cpus

        if num_gpus is not None:
            ray_remote_args["num_gpus"] = num_gpus

        if memory is not None:
            ray_remote_args["memory"] = memory

        #拷贝数据集已有的ExecutionPlan
        plan = self._plan.copy()
        #定义MapRows LogicalOperator
        map_op = MapRows(
            self._logical_plan.dag, #之前的LogicalPlan的dag，即最后一个算子作为新建算子的前置算子
            fn,
            fn_args=fn_args,
            fn_kwargs=fn_kwargs,
            fn_constructor_args=fn_constructor_args,
            fn_constructor_kwargs=fn_constructor_kwargs,
            compute=compute,
            ray_remote_args_fn=ray_remote_args_fn,
            ray_remote_args=ray_remote_args,
        )
        #更新LogicalPlan，此时map_op已有前置输入
        logical_plan = LogicalPlan(map_op, self.context)
        return Dataset(plan, logical_plan)

@ConsumptionAPI
    @PublicAPI(api_group=IOC_API_GROUP)
    def write_csv(
        self,
        path: str,
        *,
        filesystem: Optional["pyarrow.fs.FileSystem"] = None,
        try_create_dir: bool = True,
        arrow_open_stream_args: Optional[Dict[str, Any]] = None,
        filename_provider: Optional[FilenameProvider] = None,
        arrow_csv_args_fn: Optional[Callable[[], Dict[str, Any]]] = None,
        min_rows_per_file: Optional[int] = None,
        ray_remote_args: Dict[str, Any] = None,
        concurrency: Optional[int] = None,
        num_rows_per_file: Optional[int] = None,
        **arrow_csv_args,
    ) -> None:
        #定义CSVDatasink，可以类比于读取时的Datasource
        datasink = CSVDatasink(
            path,
            arrow_csv_args_fn=arrow_csv_args_fn,
            arrow_csv_args=arrow_csv_args,
            min_rows_per_file=effective_min_rows,
            filesystem=filesystem,
            try_create_dir=try_create_dir,
            open_stream_args=arrow_open_stream_args,
            filename_provider=filename_provider,
            dataset_uuid=self._uuid,
        )
        self.write_datasink(
            datasink,
            ray_remote_args=ray_remote_args,
            concurrency=concurrency,
        )

@DeveloperAPI
class Datasink(Generic[WriteReturnType]):
    def write(
        self,
        blocks: Iterable[Block],
        ctx: TaskContext,
    ) -> WriteReturnType:
        """Write blocks. This is used by a single write task.

        Args:
            blocks: Generator of data blocks.
            ctx: ``TaskContext`` for the write task.

        Returns:
            Result of this write task. When the entire write operator finishes,
            All returned values will be passed as `WriteResult.write_returns`
            to `Datasink.on_write_complete`.
        """
        raise NotImplementedError

class _FileDatasink(Datasink[None]):
    #......
    def write(
        self,
        blocks: Iterable[Block],
        ctx: TaskContext,
    ) -> None:
        builder = DelegatingBlockBuilder()
        #遍历block的迭代器，合并block（block可能会被Split），并调用write_block方法。
        for block in blocks:
            builder.add_block(block)
        block = builder.build()
        block_accessor = BlockAccessor.for_block(block)

        if block_accessor.num_rows() == 0:
            logger.warning(f"Skipped writing empty block to {self.path}")
            return

        self.write_block(block_accessor, 0, ctx)

    #由子类实现
    def write_block(self, block: BlockAccessor, block_index: int, ctx: TaskContext):
        raise NotImplementedError


@DeveloperAPI
class BlockBasedFileDatasink(_FileDatasink):
    def write_block_to_file(self, block: BlockAccessor, file: "pyarrow.NativeFile"):
        """Write a block of data to a file.

        Args:
            block: The block to write.
            file: The file to write the block to.
        """
        raise NotImplementedError

    def write_block(self, block: BlockAccessor, block_index: int, ctx: TaskContext):
        #获取写入的文件名
        filename = self.filename_provider.get_filename_for_block(
            block, ctx.task_idx, block_index
        )
        #获取写入地址
        write_path = posixpath.join(self.path, filename)

        def write_block_to_path():
            #打开文件写入流
            with self.open_output_stream(write_path) as file:
                #由子类实现具体写入
                self.write_block_to_file(block, file)

        call_with_retry(
            write_block_to_path,
            description=f"write '{write_path}'",
            match=self._data_context.retried_io_errors,
        )

class CSVDatasink(BlockBasedFileDatasink):
    def write_block_to_file(self, block: BlockAccessor, file: "pyarrow.NativeFile"):
        from pyarrow import csv

        writer_args = _resolve_kwargs(self.arrow_csv_args_fn, **self.arrow_csv_args)
        write_options = writer_args.pop("write_options", None)
        csv.write_csv(block.to_arrow(), file, write_options, **writer_args)

@ConsumptionAPI(pattern="Time complexity:")
    def write_datasink(
        self,
        datasink: Datasink,
        *,
        ray_remote_args: Dict[str, Any] = None,
        concurrency: Optional[int] = None,
    ) -> None:
        #...
        #...
        plan = self._plan.copy()
        #往DAG中添加Write Operator
        write_op = Write(
            self._logical_plan.dag,
            datasink,
            ray_remote_args=ray_remote_args,
            concurrency=concurrency,
        )

        logical_plan = LogicalPlan(write_op, self.context)

        try:
            datasink.on_write_start()
            #通过materialize方法触发数据集的真正执行
            self._write_ds = Dataset(plan, logical_plan).materialize()
            #获取到数据集执行的结果，实际上是最后一个Operator的输出
            raw_write_results = ray.get(self._write_ds._plan.execute().block_refs)
            write_result = gen_datasink_write_result(raw_write_results)
            logger.info(
                "Data sink %s finished. %d rows and %s data written.",
                datasink.get_name(),
                write_result.num_rows,
                memory_string(write_result.size_bytes),
            )
            datasink.on_write_complete(write_result)

        except Exception as e:
            datasink.on_write_failed(e)
            raise

@ConsumptionAPI(pattern="store memory.", insert_after=True)
    @PublicAPI(api_group=E_API_GROUP)
    def materialize(self) -> "MaterializedDataset":
        #首先复制原本的数据集
        copy = Dataset.copy(self, _deep_copy=True, _as=MaterializedDataset)
        #直接触发数据集的执行，并获得最终执行结果
        bundle = copy._plan.execute()
        #定义一个新的LogicalPlan，只有一个InputData Operator，用于缓存数据集的执行结果
        logical_plan = LogicalPlan(InputData(input_data=ref_bundles), self.context)
        #将缓存执行结果的数据集输出
        output = MaterializedDataset(
            ExecutionPlan(copy._plan.stats(), data_context=copy.context),
            logical_plan,
        )
        # Metrics are tagged with `copy`s uuid, update the output uuid with
        # this so the user can access the metrics label.
        output.set_name(copy.name)
        output._set_uuid(copy._get_uuid())
        output._plan.execute()  # No-op that marks the plan as fully executed.
        return output

classExecutionPlan:
    def execute(
    self,
    preserve_order: bool = False,
) -> RefBundle:
    """Execute this plan.

    Args:
        preserve_order: Whether to preserve order in execution.

    Returns:
        The blocks of the output dataset.
    """
    self._has_started_execution = True

    # Always used the saved context for execution.
    context = self._context

    #判断下是否已经执行过了，如果执行过就不再重复执行
    ifnot self.has_computed_output():
        from ray.data._internal.execution.legacy_compat import (
            _get_initial_stats_from_plan,
            execute_to_legacy_block_list,
        )

        if self._logical_plan.dag.output_data() is not None:
            #...
        else:

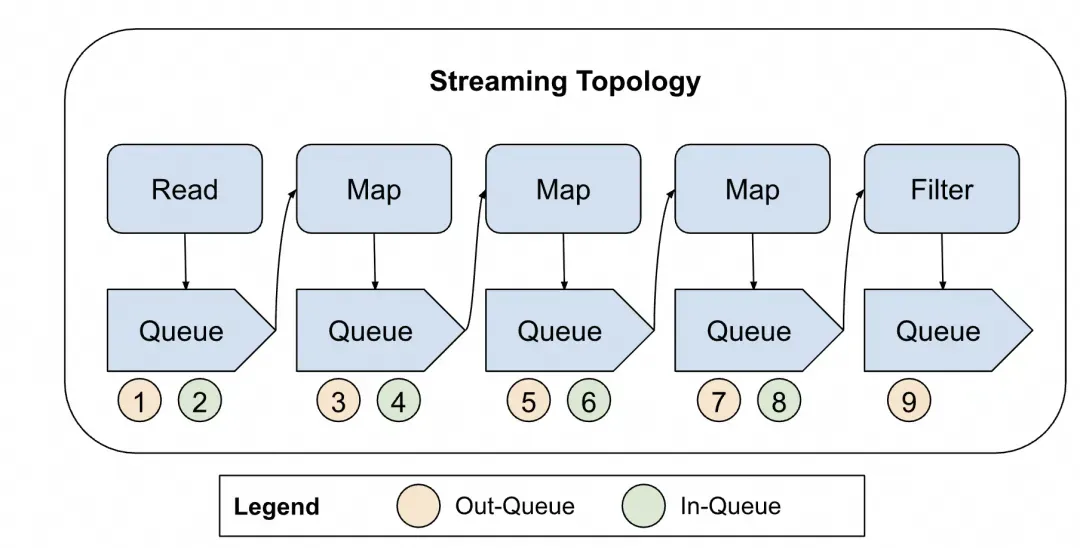

            #如果没有执行过，则采用StreamingExecutor流式执行
            from ray.data._internal.execution.streaming_executor import (
                StreamingExecutor,
            )

            metrics_tag = create_dataset_tag(self._dataset_name, self._dataset_uuid)
            #初始化StreamingExecutor
            executor = StreamingExecutor(
                context,
                metrics_tag,
            )
            #真正触发executor的执行
            blocks = execute_to_legacy_block_list(
                executor,
                self,
                dataset_uuid=self._dataset_uuid,
                preserve_order=preserve_order,
            )
            bundle = RefBundle(
                tuple(blocks.iter_blocks_with_metadata()),
                owns_blocks=blocks._owned_by_consumer,
            )

        # Set the snapshot to the output of the finaloperator.
        self._snapshot_bundle = bundle
        self._snapshot_operator = self._logical_plan.dag
        self._snapshot_stats = stats
        self._snapshot_stats.dataset_uuid = self._dataset_uuid

    return self._snapshot_bundle

def execute_to_legacy_block_list(
    executor: Executor,
    plan: ExecutionPlan,
    dataset_uuid: str,
    preserve_order: bool,
) -> BlockList:
    """Execute a plan with the new executor and translate it into a legacy block list.

    Args:
        executor: The executor to use.
        plan: The legacy plan to execute.
        dataset_uuid: UUID of the dataset forthis execution.
        preserve_order: Whether to preserve order in execution.

    Returns:
        The output as a legacy block list.
    """

    #Logical Operator到Physical Operator的转换在此处执行
    dag, stats = _get_execution_dag(
        executor,
        plan,
        preserve_order,
    )
    #对DAG流式执行
    bundles = executor.execute(dag, initial_stats=stats)
    #将RefBundle转换为BlockList，RefBundle事实上是一组block引用的集合，是Operators之间进行数据传输的基本单元
    #RefBudle通常存储1个Block以及其MetaData，但如果发生了block splitting，也可能存储多个
    block_list = _bundles_to_block_list(bundles)
    # Set the stats UUID after execution finishes.
    _set_stats_uuid_recursive(executor.get_stats(), dataset_uuid)
    return block_list

def _get_execution_dag(
    executor: Executor,
    plan: ExecutionPlan,
    preserve_order: bool,
) -> Tuple[PhysicalOperator, DatasetStats]:
    """Get the physical operators DAG from a plan."""
    # Record usage of logical operators if available.
    ifhasattr(plan, "_logical_plan")and plan._logical_plan is not None:
        record_operators_usage(plan._logical_plan.dag)

    # Get DAG of physical operators and input statistics.
    dag = get_execution_plan(plan._logical_plan).dag
    stats = _get_initial_stats_from_plan(plan)

    # Enforce to preserve ordering if the plan has operators
    # required to do so, such as Zip and Sort.
    if preserve_order or plan.require_preserve_order():
        executor._options.preserve_order = True

    return dag, stats

def get_execution_plan(logical_plan: LogicalPlan) -> PhysicalPlan:
    """Get the physical execution plan for the provided logical plan.

    This process has 3 steps:
    (1) logical optimization: optimize logical operators.
    (2) planning: convert logical to physical operators.
    (3) physical optimization: optimize physical operators.
    """
    optimized_logical_plan = LogicalOptimizer().optimize(logical_plan)
    logical_plan._dag = optimized_logical_plan.dag
    physical_plan = Planner().plan(optimized_logical_plan)
    return PhysicalOptimizer().optimize(physical_plan)

classPlanner:
    """The planner to convert optimized logical to physical operators.

    Note that planner is only doing operators conversion. Physical optimization work is
    done by physical optimizer.
    """

    def __init__(self):
        self._physical_op_to_logical_op: Dict[PhysicalOperator, LogicalOperator] = {}

    def plan(self, logical_plan: LogicalPlan) -> PhysicalPlan:
        """Convert logical to physical operators recursively in post-order."""
        physical_dag = self._plan(logical_plan.dag, logical_plan.context)
        physical_plan = PhysicalPlan(
            physical_dag,
            self._physical_op_to_logical_op,
            logical_plan.context,
        )
        return physical_plan

    def _plan(
        self, logical_op: LogicalOperator, data_context: DataContext
    ) -> PhysicalOperator:
        # Plan the input dependencies first.
        physical_children = []
        for child in logical_op.input_dependencies:
            physical_children.append(self._plan(child, data_context))

        physical_op = None
        for op_type, plan_fn in PLAN_LOGICAL_OP_FNS:
            if isinstance(logical_op, op_type):
                # We will call `set_logical_operators()` in the following for-loop,
                # no need to do it here.
                physical_op = plan_fn(logical_op, physical_children, data_context)
                break

        if physical_op is None:
            raise ValueError(
                f"Found unknown logical operator during planning: {logical_op}"
            )

        # Traverse up the DAG, andset the mapping from physical to logical operators.
        # At this point, all physical operators without logical operators set
        # must have been created by the current logical operator.
        queue = [physical_op]
        whilequeue:
            curr_physical_op = queue.pop()
            # Once we find an operator with a logical operatorset, we can stop.
            if curr_physical_op._logical_operators:
                break

            curr_physical_op.set_logical_operators(logical_op)
            queue.extend(physical_op.input_dependencies)

        self._physical_op_to_logical_op[physical_op] = logical_op
        return physical_op

class PhysicalOperator(Operator):
    """Abstract class for physical operators.

    An operator transforms one or more input streams of RefBundles into a single
    output stream of RefBundles.
    Physical operators are stateful and non-serializable; they live on the driver side
    of the Dataset only.
    Here's a simple example of implementing a basic "Map"operator:
        class MapOperator(PhysicalOperator):
            def __init__(self):
                self.active_tasks = []
            def add_input(self, refs, _):
                self.active_tasks.append(map_task.remote(refs))
            def has_next(self):
                ready, _ = ray.wait(self.active_tasks, timeout=0)
                return len(ready) > 0
            def get_next(self):
                ready, remaining = ray.wait(self.active_tasks, num_returns=1)
                self.active_tasks = remaining
                return ready[0]
    Note that the above operator fully supports both bulk and streaming execution,
    since `add_input` and `get_next` can be called in any order. In bulk execution
    (now deprecated), all inputs would be added up-front, but in streaming
    execution (now the default execution mode) the calls could be interleaved.
    """
    _OPERATOR_ID_LABEL_KEY = "__data_operator_id"
    def __init__(
        self,
        name: str,
        input_dependencies: List["PhysicalOperator"],
        data_context: DataContext,
        target_max_block_size: Optional[int],
    ):
        super().__init__(name, input_dependencies)
        for x in input_dependencies:
            assert isinstance(x, PhysicalOperator), x
        self._inputs_complete = not input_dependencies
        self._output_block_size_option = None
        self.set_target_max_block_size(target_max_block_size)
        self._started = False
        self._in_task_submission_backpressure = False
        self._in_task_output_backpressure = False
        self._estimated_num_output_bundles = None
        self._estimated_output_num_rows = None
        self._execution_completed = False
        # The LogicalOperator(s) which were translated to create this PhysicalOperator.
        # Set via `PhysicalOperator.set_logical_operators()`.
        self._logical_operators: List[LogicalOperator] = []
        self._data_context = data_context
        self._id = str(uuid.uuid4())
        # Initialize metrics after data_context is set
        self._metrics = OpRuntimeMetrics(self)
    def start(self, options: ExecutionOptions) -> None:
        """Called by the executor when execution starts for an operator.
        Args:
            options: The global options used for the overall execution.
        """
        self._started = True
    def should_add_input(self) -> bool:
        """Return whether it is desirable to add input to thisoperator right now.
        Operators can customize the implementation of this method to apply additional
        backpressure (e.g., waiting for internal actors to be created).
        """
        return True
    def add_input(self, refs: RefBundle, input_index: int) -> None:
        """Called when an upstream result is available.
        Inputs may be added in any order, and calls to `add_input` may be interleaved
        with calls to `get_next` / `has_next` to implement streaming execution.
        Subclasses should override `_add_input_inner` instead of this method.
        Args:
            refs: The ref bundle that should be added as input.
            input_index: The index identifying the input dependency producing the
                input. For most operators, this is always `0` since there is only
                one upstream input operator.
        """
        assert 0 <= input_index < len(self._input_dependencies), (
            f"Input index out of bounds (total inputs {len(self._input_dependencies)}, "
            f"index is {input_index})"
        )
        self._metrics.on_input_received(refs)
        self._add_input_inner(refs, input_index)
    def _add_input_inner(self, refs: RefBundle, input_index: int) -> None:
        """Subclasses should overridethis method to implement `add_input`."""
        raise NotImplementedError
    def has_next(self) -> bool:
        """Returns when a downstream output is available.
        When this returns true, it is safe to call `get_next()`.
        """
        raise NotImplementedError
    def get_next(self) -> RefBundle:
        """Get the next downstream output.
        It is only allowed to call thisif `has_next()` has returned True.
        Subclasses should override `_get_next_inner` instead of this method.
        """
        output = self._get_next_inner()
        self._metrics.on_output_taken(output)
        return output
    def _get_next_inner(self) -> RefBundle:
        """Subclasses should overridethis method to implement `get_next`."""
        raise NotImplementedError

def plan_read_op(
    op: Read,
    physical_children: List[PhysicalOperator],
    data_context: DataContext,
) -> PhysicalOperator:
    """Get the corresponding DAG of physical operators for Read.

    Note this method only converts the given `op`, but not its input dependencies.
    See Planner.plan()for more details.
    """
    assert len(physical_children)== 0
    #首先定义get_input_data
    def get_input_data(target_max_block_size) -> List[RefBundle]:
        parallelism = op.get_detected_parallelism()
        assert (
            parallelism is not None
        ), "Read parallelism must be set by the optimizer before execution"
        #创建Read时传入了Datasource，此处调用get_read_tasks获取List[ReadTask]
        read_tasks = op._datasource_or_legacy_reader.get_read_tasks(parallelism)
        _warn_on_high_parallelism(parallelism, len(read_tasks))

        #将ReadTask封装为Block
        ret = []
        for read_task in read_tasks:
            read_task_ref = ray.put(read_task)
            ref_bundle = RefBundle(
                [
                    (
                        # TODO(chengsu): figure out a better way to pass read
                        # tasks other than ray.put().
                        read_task_ref,
                        cleaned_metadata(read_task, read_task_ref),
                    )
                ],
                # `owns_blocks` is False, because these refs are the root of the
                # DAG. We shouldn't eagerly free them. Otherwise, the DAG cannot
                # be reconstructed.
                owns_blocks=False,
            )
            ret.append(ref_bundle)
        return ret
    #InputDataBuffer是一个PhysicalOperator，其输出是ReadTask
    inputs = InputDataBuffer(
        data_context,
        input_data_factory=get_input_data,
    )

    #定义实际调用ReadTask来进行读取的方法
    def do_read(blocks: Iterable[ReadTask], _: TaskContext) -> Iterable[Block]:
        for read_task in blocks:
            yield from read_task()


    # Create a MapTransformer for a read operator
    transform_fns: List[MapTransformFn] = [
        # First, execute the read tasks.
        #将do_read封装到BlockMapTransformFn中
        BlockMapTransformFn(do_read),
    ]
    #接着构建输出Block
    transform_fns.append(BuildOutputBlocksMapTransformFn.for_blocks())

    #MapTransformer封装了MapOperator的数据转换逻辑
    map_transformer = MapTransformer(transform_fns)

    return MapOperator.create(
        map_transformer,
        inputs,
        data_context,
        name=op.name,
        target_max_block_size=None,
        compute_strategy=TaskPoolStrategy(op._concurrency),
        ray_remote_args=op._ray_remote_args,
    )

class InputDataBuffer(PhysicalOperator):
    """Defines the input data for the operator DAG.

    For example, this may hold cached blocks from a previous Dataset execution, or
    the arguments for read tasks.
    """

    def __init__(
        self,
        data_context: DataContext,
        input_data: Optional[List[RefBundle]] = None,
        input_data_factory: Optional[Callable[[int], List[RefBundle]]] = None,
        num_output_blocks: Optional[int] = None,
    ):
        """Create an InputDataBuffer.

        Args:
            input_data: The list of bundles to output from thisoperator.
            input_data_factory: The factory to get input data, if input_data is None.
            num_output_blocks: The number of output blocks. If not specified, progress
                bars total will be set based on num output bundles instead.
        """
        super().__init__("Input", [], data_context, target_max_block_size=None)
        if input_data is not None:
            assert input_data_factory is None
            # Copy the input data to avoid mutating the original list.
            self._input_data = input_data[:]
            self._is_input_initialized = True
            self._initialize_metadata()
        else:
            # Initialize input lazily when execution is started.
            assert input_data_factory is not None
            self._input_data_factory = input_data_factory
            self._is_input_initialized = False
        self._input_data_index = 0

    def start(self, options: ExecutionOptions) -> None:
        ifnot self._is_input_initialized:
            #调用_input_data_factory方法，获取ReadTask引用列表
            self._input_data = self._input_data_factory(
                self.actual_target_max_block_size
            )
            self._is_input_initialized = True
            self._initialize_metadata()
        # InputDataBuffer does not take inputs from other operators,
        # so we record input metrics here
        for bundle in self._input_data:
            self._metrics.on_input_received(bundle)
        super().start(options)

    def has_next(self) -> bool:
        return self._input_data_index < len(self._input_data)

    def _get_next_inner(self) -> RefBundle:
        # We can't pop the input data. If we do, Ray might garbage collect the block
        # references, and Ray won't be able to reconstruct downstream objects.
        bundle = self._input_data[self._input_data_index]
        self._input_data_index += 1
        return bundle

    def get_stats(self) -> StatsDict:
        return {}

    def _add_input_inner(self, refs, input_index) -> None:
        raise ValueError("Inputs are not allowed for this operator.")

classMapTransformFn:
    """Represents a single transform function in a MapTransformer."""

    def __init__(
        self,
        input_type: MapTransformFnDataType,
        output_type: MapTransformFnDataType,
        category: MapTransformFnCategory,
        is_udf: bool = False,
    ):
        """
        Args:
            callable: the underlying Python callable object.
            input_type: the type of the input data.
            output_type: the type of the output data.
        """
        self._callable = callable
        self._input_type = input_type
        self._output_type = output_type
        self._category = category
        self._output_block_size_option = None
        self._is_udf = is_udf

    #由子类具体实现
    @abstractmethod
    def __call__(
        self,
        input: Iterable[MapTransformFnData],
        ctx: TaskContext,
    ) -> Iterable[MapTransformFnData]:
        ...

    @property
    def input_type(self) -> MapTransformFnDataType:
        return self._input_type

    @property
    def output_type(self) -> MapTransformFnDataType:
        return self._output_type

class BlockMapTransformFn(MapTransformFn):
    """A block-to-block MapTransformFn."""

    def __init__(self, block_fn: MapTransformCallable[Block, Block]):
        self._block_fn = block_fn
        super().__init__(
            MapTransformFnDataType.Block,
            MapTransformFnDataType.Block,
            category=MapTransformFnCategory.DataProcess,
        )

    def __call__(self, input: Iterable[Block], ctx: TaskContext) -> Iterable[Block]:
        yield from self._block_fn(input, ctx)

    def __repr__(self) -> str:
        return f"BlockMapTransformFn({self._block_fn})"

    def __eq__(self, other):
        return (
            isinstance(other, BlockMapTransformFn) and self._block_fn == other._block_fn
        )

classMapTransformer:
    """Encapsulates the data transformation logic of a physical MapOperator.

    A MapTransformer may consist of one or more steps, each of which is represented
    as a MapTransformFn. The first MapTransformFn must take blocks as input, and
    the last MapTransformFn must output blocks. The intermediate data types can
    be blocks, rows, or batches.
    """

    def __init__(
        self,
        transform_fns: List[MapTransformFn],
        init_fn: Optional[Callable[[], None]] = None,
    ):
        """
        Args:
        transform_fns: A list of `MapTransformFn`s that will be executed sequentially
            to transform data.
        init_fn: A function that will be called before transforming data.
            Used for the actor-based map operator.
        """
        self.set_transform_fns(transform_fns)

        self._init_fn = init_fn if init_fn is not None else lambda: None
        self._output_block_size_option = None
        self._udf_time = 0

    def apply_transform(
        self,
        input_blocks: Iterable[Block],
        ctx: TaskContext,
    ) -> Iterable[Block]:
        iter = input_blocks
        # Apply the transform functions sequentially to the input iterable.
        for transform_fn in self._transform_fns:
            iter = transform_fn(iter, ctx)
        return iter

class MapOperator(OneToOneOperator, ABC):
    @classmethod
    def create(
        cls,
        map_transformer: MapTransformer,
        input_op: PhysicalOperator,
        data_context: DataContext,
        target_max_block_size: Optional[int] = None,
        name: str = "Map",
        # TODO(ekl): slim down ComputeStrategy to only specify the compute
        # config andnot contain implementation code.
        compute_strategy: Optional[ComputeStrategy] = None,
        min_rows_per_bundle: Optional[int] = None,
        supports_fusion: bool = True,
        ray_remote_args_fn: Optional[Callable[[], Dict[str, Any]]] = None,
        ray_remote_args: Optional[Dict[str, Any]] = None,
    ) -> "MapOperator":
        """Create a MapOperator.

        This factory creates the MapOperator pool implementation that corresponds to the
        compute argument:
            - If None or TaskPoolStrategy -> TaskPoolMapOperator
            - If ActorPoolStrategy -> ActorPoolMapOperator

        Args:
            transform_fn: The function to apply to each ref bundle input.
            input_op: Operator generating input data forthis op.
            init_fn: The callable class to instantiate ifusing ActorPoolMapOperator.
            name: The name of thisoperator.
            compute_strategy: Customize the compute strategy forthis op.
            target_max_block_size: The target maximum number of bytes to
                include in an output block.
            min_rows_per_bundle: The number of rows to gather per batch passed to the
                transform_fn, or None to use the block size. Setting the batch size is
                important for the performance of GPU-accelerated transform functions.
                The actual rows passed may be less if the dataset is small.
            supports_fusion: Whether thisoperator supports fusion with other operators.
            ray_remote_args_fn: A function that returns a dictionary of remote args
                passed to each map worker. The purpose of this argument is to generate
                dynamic arguments for each actor/task, and will be called each time
                prior to initializing the worker. Args returned from this dict will
                always override the args in ``ray_remote_args``. Note: this is an
                advanced, experimental feature.
            ray_remote_args: Customize the :func:`ray.remote` args forthis op's tasks.
        """
        #默认采用Ray Task方式执行
        if compute_strategy is None:
            compute_strategy = TaskPoolStrategy()

        ifisinstance(compute_strategy, TaskPoolStrategy):
            from ray.data._internal.execution.operators.task_pool_map_operator import(
                TaskPoolMapOperator,
            )
            #对于TaskPoolStrategy，采用TaskPoolMapOperator
            returnTaskPoolMapOperator(
                map_transformer,
                input_op,
                data_context,
                name=name,
                target_max_block_size=target_max_block_size,
                min_rows_per_bundle=min_rows_per_bundle,
                concurrency=compute_strategy.size,
                supports_fusion=supports_fusion,
                ray_remote_args_fn=ray_remote_args_fn,
                ray_remote_args=ray_remote_args,
            )
        elif isinstance(compute_strategy, ActorPoolStrategy):
            from ray.data._internal.execution.operators.actor_pool_map_operator import(
                ActorPoolMapOperator,
            )
            #对于ActorPoolStrategy，采用ActorPoolMapOperator
            returnActorPoolMapOperator(
                map_transformer,
                input_op,
                data_context,
                target_max_block_size=target_max_block_size,
                compute_strategy=compute_strategy,
                name=name,
                min_rows_per_bundle=min_rows_per_bundle,
                supports_fusion=supports_fusion,
                ray_remote_args_fn=ray_remote_args_fn,
                ray_remote_args=ray_remote_args,
            )
        else:
            raise ValueError(f"Unsupported execution strategy {compute_strategy}")

class ActorPoolMapOperator(MapOperator):
    """A MapOperator implementation that executes tasks on an actor pool.
    """

    def __init__(
        self,
        map_transformer: MapTransformer,
        input_op: PhysicalOperator,
        data_context: DataContext,
        target_max_block_size: Optional[int],
        compute_strategy: ActorPoolStrategy,
        name: str = "ActorPoolMap",
        min_rows_per_bundle: Optional[int] = None,
        supports_fusion: bool = True,
        ray_remote_args_fn: Optional[Callable[[], Dict[str, Any]]] = None,
        ray_remote_args: Optional[Dict[str, Any]] = None,
    ):
        super().__init__(
            map_transformer,
            input_op,
            data_context,
            name,
            target_max_block_size,
            min_rows_per_bundle,
            supports_fusion,
            ray_remote_args_fn,
            ray_remote_args,
        )

        #初始化ActorPool
        self._actor_pool = _ActorPool(
            compute_strategy,
            self._start_actor,
            per_actor_resource_usage,
            self.data_context._enable_actor_pool_on_exit_hook,
        )
        # A queue of bundles awaiting dispatch to actors.
        self._bundle_queue = create_bundle_queue()
        # Cached actor class.
        self._cls = None
        # Whether no more submittable bundles will be added.
        self._inputs_done = False

class _MapWorker:
    """An actor worker for MapOperator."""

    def __init__(
        self,
        ctx: DataContext,
        src_fn_name: str,
        map_transformer: MapTransformer,
    ):
        DataContext._set_current(ctx)
        self.src_fn_name: str = src_fn_name
        self._map_transformer = map_transformer
        # Initialize state forthis actor.
        self._map_transformer.init()

    def get_location(self) -> NodeIdStr:
        return ray.get_runtime_context().get_node_id()

    def submit(
        self,
        data_context: DataContext,
        ctx: TaskContext,
        *blocks: Block,
        **kwargs: Dict[str, Any],
    ) -> Iterator[Union[Block, List[BlockMetadata]]]:
        yield from _map_task(
            self._map_transformer,
            data_context,
            ctx,
            *blocks,
            **kwargs,
        )

def _map_task(
    map_transformer: MapTransformer,
    data_context: DataContext,
    ctx: TaskContext,
    *blocks: Block,
    **kwargs: Dict[str, Any],
) -> Iterator[Union[Block, List[BlockMetadata]]]:
    """Remote function for a single operator task.

    Args:
        fn: The callable that takes Iterator[Block] as input and returns
            Iterator[Block] as output.
        blocks: The concrete block values from the task ref bundle.

    Returns:
        A generator of blocks, followed by the list of BlockMetadata for the blocks
        as the last generator return.
    """
    DataContext._set_current(data_context)
    ctx.kwargs.update(kwargs)
    TaskContext.set_current(ctx)
    stats = BlockExecStats.builder()
    map_transformer.set_target_max_block_size(ctx.target_max_block_size)
    with MemoryProfiler(data_context.memory_usage_poll_interval_s) as profiler:
        for b_out in map_transformer.apply_transform(iter(blocks), ctx):
            # TODO(Clark): Add input file propagation from input blocks.
            m_out = BlockAccessor.for_block(b_out).get_metadata()
            m_out.exec_stats = stats.build()
            m_out.exec_stats.udf_time_s = map_transformer.udf_time()
            m_out.exec_stats.task_idx = ctx.task_idx
            m_out.exec_stats.max_uss_bytes = profiler.estimate_max_uss()
            yield b_out
            yield m_out
            stats = BlockExecStats.builder()
            profiler.reset()

    TaskContext.reset_current()

def _start_actor(self):
        """Start a new actor and add it to the actor pool as a pending actor."""
        assert self._cls is not None
        ctx = self.data_context
        if self._ray_remote_args_fn:
            self._refresh_actor_cls()
        actor = self._cls.options(
            _labels={self._OPERATOR_ID_LABEL_KEY: self.id}
        ).remote(
            ctx,
            src_fn_name=self.name,
            map_transformer=self._map_transformer,
        )
        res_ref = actor.get_location.options(name=f"{self.name}.get_location").remote()

        def _task_done_callback(res_ref):
            # res_ref is a futurefor a now-ready actor; move actor from pending to the
            # active actor pool.
            has_actor = self._actor_pool.pending_to_running(res_ref)
            ifnot has_actor:
                # Actor has already been killed.
                return
            # A new actor has started, we try to dispatch queued tasks.
            self._dispatch_tasks()

        self._submit_metadata_task(
            res_ref,
            lambda: _task_done_callback(res_ref),
        )
        return actor, res_ref

class MapOperator(OneToOneOperator, ABC):
    def _submit_metadata_task(
        self, result_ref: ObjectRef, task_done_callback: Callable[[], None]
    ):
        """Submit a new metadata-handling task."""
        task_index = self._next_metadata_task_idx
        self._next_metadata_task_idx += 1

        def _task_done_callback():
            self._metadata_tasks.pop(task_index)
            task_done_callback()

        #在Operator中维护一个列表，保存所有提交的MetadataOpTask，后续调度系统会遍历该列表
        self._metadata_tasks[task_index] = MetadataOpTask(
            task_index, result_ref, _task_done_callback
        )

class MetadataOpTask(OpTask):
    """Represents an OpTask that only handles metadata, instead of Block data."""

    def __init__(
        self,
        task_index: int,
        object_ref: ray.ObjectRef,
        task_done_callback: Callable[[], None],
        task_resource_bundle: Optional[ExecutionResources] = None,
    ):
        """
        Args:
            object_ref: The ObjectRef of the task.
            task_done_callback: The callback to call when the task is done.
        """
        super().__init__(task_index, task_resource_bundle)
        self._object_ref = object_ref
        self._task_done_callback = task_done_callback

    #如何标志MetadataOpTask已经完成？只需要_object_ref变成ready，即代表ray的异步远程计算已经完成。
    def get_waitable(self) -> ray.ObjectRef:
        return self._object_ref

    def on_task_finished(self):
        """Callback when the task is finished."""
        self._task_done_callback()

def start(self, options: ExecutionOptions):
    self._actor_locality_enabled = options.actor_locality_enabled
    super().start(options)

    # Create the actor workers and add them to the pool.
    self._cls = ray.remote(**self._ray_remote_args)(_MapWorker)
    self._actor_pool.scale_up(self._actor_pool.min_size())
    refs = self._actor_pool.get_pending_actor_refs()

    # We synchronously wait for the initial number of actors to start. This avoids
    # situations where the scheduler is unable to schedule downstream operators
    # due to lack of available actors, causing an initial "pileup" of objects on
    # upstream operators, leading to a spike in memory usage prior to steady state.
    logger.debug(f"{self._name}: Waiting for {len(refs)} pool actors to start...")
    try:
        timeout = self.data_context.wait_for_min_actors_s
        ray.get(refs, timeout=timeout)
    except ray.exceptions.GetTimeoutError:
        raise ray.exceptions.GetTimeoutError(
            "Timed out while starting actors. "
            "This may mean that the cluster does not have "
            "enough resources for the requested actor pool."
        )

def _add_bundled_input(self, bundle: RefBundle):
    self._bundle_queue.add(bundle)
    self._metrics.on_input_queued(bundle)
    # Try to dispatch all bundles in the queue, including thisnew bundle.
    self._dispatch_tasks()

def _dispatch_tasks(self):
    """Try to dispatch tasks from the bundle buffer to the actor pool.

    This is called when:
        * a new input bundle is added,
        * a task finishes,
        * a new worker has been created.
    """
    #循环处理_bundle_queue中的所有数据
    while self._bundle_queue:
        # 从ActorPool中挑选一个Running状态的Actor
        if self._actor_locality_enabled:
            actor = self._actor_pool.pick_actor(self._bundle_queue.peek())
        else:
            actor = self._actor_pool.pick_actor()
        #如果没有正在运行的actor，则无法调度任务，等待下次执行
        if actor is None:
            # No actors available for executing the next task.
            break
        #获取一个bundle
        bundle = self._bundle_queue.pop()
        self._metrics.on_input_dequeued(bundle)
        input_blocks = [block for block, _ in bundle.blocks]
        ctx = TaskContext(
            task_idx=self._next_data_task_idx,
            target_max_block_size=self.actual_target_max_block_size,
        )
        #远程调用actor.submit方法，submit方法最终调用的是_map_task。返回的是Block结果的生成器
        gen = actor.submit.options(
            num_returns="streaming",
            name=f"{self.name}.submit",
            **self._ray_actor_task_remote_args,
        ).remote(
            self.data_context,
            ctx,
            *input_blocks,
            **self.get_map_task_kwargs(),
        )
        #定义任务结束的回调函数，
        def _task_done_callback(actor_to_return):
            # Return the actor that was running the task to the pool.
            self._actor_pool.return_actor(actor_to_return)
            # Dipsatch more tasks.
            self._dispatch_tasks()

        from functools import partial

        #封装任务到DataOpTask中
        self._submit_data_task(
            gen, bundle, partial(_task_done_callback, actor_to_return=actor)
        )

def _submit_data_task(
        self,
        gen: ObjectRefGenerator,
        inputs: RefBundle,
        task_done_callback: Optional[Callable[[], None]] = None,
    ):
        """Submit a new data-handling task."""
        # TODO(hchen):
        # 1. Move this to the base PhyscialOperator class.
        # 2. This method should only take a block-processing function as input,
        #    instead of a streaming generator. The logic of submitting ray tasks
        #    can also be capsulated in the base class.
        task_index = self._next_data_task_idx
        self._next_data_task_idx += 1
        self._metrics.on_task_submitted(task_index, inputs)

        #每次有新的数据计算完成，则回调该函数
        def _output_ready_callback(task_index, output: RefBundle):
            # Since output is streamed, it should only contain one block.
            assert len(output) == 1
            self._metrics.on_task_output_generated(task_index, output)

            # Notify output queue that the task has produced an new output.
            self._output_queue.notify_task_output_ready(task_index, output)
            self._metrics.on_output_queued(output)
        #所有数据计算完成，则回调该函数
        def _task_done_callback(task_index: int, exception: Optional[Exception]):
            self._data_tasks.pop(task_index)
            # Notify output queue that this task is complete.
            self._output_queue.notify_task_completed(task_index)
            if task_done_callback:
                task_done_callback()

        #封装到DataOpTask中
        self._data_tasks[task_index] = DataOpTask(
            task_index,
            gen,
            lambda output: _output_ready_callback(task_index, output),
            functools.partial(_task_done_callback, task_index),
        )

class DataOpTask(OpTask):
    """Represents an OpTask that handles Block data."""

    def __init__(
        self,
        task_index: int,
        streaming_gen: ObjectRefGenerator,
        output_ready_callback: Callable[[RefBundle], None],
        task_done_callback: Callable[[Optional[Exception]], None],
        task_resource_bundle: Optional[ExecutionResources] = None,
    ):
        """
        Args:
            streaming_gen: The streaming generator of this task. It should yield blocks.
            output_ready_callback: The callback to call when a new RefBundle is output
                from the generator.
            task_done_callback: The callback to call when the task is done.
        """
        super().__init__(task_index, task_resource_bundle)
        self._streaming_gen = streaming_gen
        self._output_ready_callback = output_ready_callback
        self._task_done_callback = task_done_callback

    def get_waitable(self) -> ObjectRefGenerator:
        return self._streaming_gen

    def on_data_ready(self, max_bytes_to_read: Optional[int]) -> int:
        """Callback when data is ready to be read from the streaming generator.

        Args:
            max_bytes_to_read: Max bytes of blocks to read. If None, all available
                will be read.
        Returns: The number of blocks read.
        """
        bytes_read = 0
        while max_bytes_to_read is None or bytes_read < max_bytes_to_read:
            try:
                block_ref = self._streaming_gen._next_sync(0)
                if block_ref.is_nil():
                    # The generator currently doesn't have new output.
                    # And it's not stopped yet.
                    break
            except StopIteration:
                self._task_done_callback(None)
                break

            try:
                meta = ray.get(next(self._streaming_gen))
            except StopIteration:
                # The generator should always yield 2 values (block and metadata)
                # each time. If we get a StopIteration here, it means an error
                # happened in the task.
                # And in thiscase, the block_ref is the exception object.
                # TODO(hchen): Ray Core should have a better interface for
                # detecting and obtaining the exception.
                try:
                    ray.get(block_ref)
                    assert False, "Above ray.get should raise an exception."
                except Exception as ex:
                    self._task_done_callback(ex)
                    raise ex from None
            self._output_ready_callback(
                RefBundle([(block_ref, meta)], owns_blocks=True)
            )
            bytes_read += meta.size_bytes
        return bytes_read

def plan_udf_map_op(
    op: AbstractUDFMap,
    physical_children: List[PhysicalOperator],
    data_context: DataContext,
) -> MapOperator:
    """Get the corresponding physical operators DAG for AbstractUDFMap operators.

    Note this method only converts the given `op`, but not its input dependencies.
    See Planner.plan()for more details.
    """
    assert len(physical_children)== 1
    input_physical_dag = physical_children[0]

    compute = get_compute(op._compute)
    fn, init_fn = _parse_op_fn(op)

    if isinstance(op, MapBatches):
        transform_fn = _generate_transform_fn_for_map_batches(fn)
        map_transformer = _create_map_transformer_for_map_batches_op(
            transform_fn,
            op._batch_size,
            op._batch_format,
            op._zero_copy_batch,
            init_fn,
        )
    else:
        if isinstance(op, MapRows):
            transform_fn = _generate_transform_fn_for_map_rows(fn)
        elif isinstance(op, FlatMap):
            transform_fn = _generate_transform_fn_for_flat_map(fn)
        else:
            raise ValueError(f"Found unknown logical operator during planning: {op}")

        map_transformer = _create_map_transformer_for_row_based_map_op(
            transform_fn, init_fn
        )

    return MapOperator.create(
        map_transformer,
        input_physical_dag,
        data_context,
        name=op.name,
        target_max_block_size=None,
        compute_strategy=compute,
        min_rows_per_bundle=op._min_rows_per_bundled_input,
        ray_remote_args_fn=op._ray_remote_args_fn,
        ray_remote_args=op._ray_remote_args,
    )

def execute_to_legacy_block_list(
    executor: Executor,
    plan: ExecutionPlan,
    dataset_uuid: str,
    preserve_order: bool,
) -> BlockList:
    #Logical Operator到Physical Operator的转换在此处执行
    dag, stats = _get_execution_dag(
        executor,
        plan,
        preserve_order,
    )
    #对DAG流式执行
    bundles = executor.execute(dag, initial_stats=stats)

    block_list = _bundles_to_block_list(bundles)
    # Set the stats UUID after execution finishes.
    _set_stats_uuid_recursive(executor.get_stats(), dataset_uuid)
    return block_list

classOpState:
    """The execution state tracked for each PhysicalOperator.

    This tracks state to manage input and output buffering for StreamingExecutor and
    progress bars, which is separate from execution state internal to the operators.

    Note: we use the `deque` data structure here because it is thread-safe, enabling
    operator queues to be shared across threads.
    """

    def __init__(self, op: PhysicalOperator, inqueues: List[OpBufferQueue]):
        # Each inqueue is connected to another operator's outqueue.
        assert len(inqueues)== len(op.input_dependencies), (op, inqueues)
        self.inqueues: List[OpBufferQueue] = inqueues
        # The outqueue is connected to another operator's inqueue (they physically
        # share the same Python list reference).
        #
        # Note: thisqueue is also accessed concurrently from the consumer thread.
        # (in addition to the streaming executor thread). Hence, it must be a
        # thread-safe type such as `deque`.
        self.outqueue: OpBufferQueue = OpBufferQueue()
        self.op = op
        self.progress_bar = None
        self.num_completed_tasks = 0
        self.inputs_done_called = False
        # Tracks whether `input_done` is called for each input op.
        self.input_done_called = [False] * len(op.input_dependencies)
        # Used for StreamingExecutor to signal exception or end of execution
        self._finished: bool = False
        self._exception: Optional[Exception] = None
        self._scheduling_status = OpSchedulingStatus()

    def add_output(self, ref: RefBundle) -> None:
        """Move a bundle produced by the operator to its outqueue."""
        self.outqueue.append(ref)
        self.num_completed_tasks += 1
        if self.progress_bar:
            assert (
                ref.num_rows() is not None
            ), "RefBundle must have a valid number of rows"
            self.progress_bar.update(ref.num_rows(), self.op.num_output_rows_total())

    def dispatch_next_task(self) -> None:
        """Move a bundle from the operator inqueue to the operator itself."""
        for i, inqueue in enumerate(self.inqueues):
            ref = inqueue.pop()
            if ref is not None:
                self.op.add_input(ref, input_index=i)
                return
        assert False, "Nothing to dispatch"

    def get_output_blocking(self, output_split_idx: Optional[int]) -> RefBundle:
        """Get an item from this node's output queue, blocking as needed.

        Returns:
            The RefBundle from the output queue, or an error / end of stream indicator.

        Raises:
            StopIteration: If all outputs are already consumed.
            Exception: If there was an exception raised during execution.
        """
        while True:
            # Check if StreamingExecutor has caught an exception or is done execution.
            if self._exception is not None:
                raise self._exception
            elif self._finished andnot self.outqueue.has_next(output_split_idx):
                raise StopIteration()
            ref = self.outqueue.pop(output_split_idx)
            if ref is not None:
                return ref
            time.sleep(0.01)

class StreamingExecutor(Executor, threading.Thread):
    """A streaming Dataset executor.

    This implementation executes Dataset DAGs in a fully streamed way. It runs
    by setting up the operator topology, and then routing blocks through operators in
    a way that maximizes throughput under resource constraints.
    """

    def execute(
        self, dag: PhysicalOperator, initial_stats: Optional[DatasetStats] = None
    ) -> Iterator[RefBundle]:
        """Executes the DAG using a streaming execution strategy.

        We take an event-loop approach to scheduling. We block on the next scheduling
        event using `ray.wait`, updating operator state and dispatching new tasks.
        """

        #......
        #......
        # Setup the streaming DAG topology and start the runner thread.
        self._topology, _ = build_streaming_topology(dag, self._options)

        #...
        #...

        self._has_op_completed = {op: False for op in self._topology}

        self._output_node: OpState = self._topology[dag]

        StatsManager.register_dataset_to_stats_actor(
            self._dataset_tag,
            self._get_operator_tags(),
        )
        for callback in get_execution_callbacks(self._data_context):
            callback.before_execution_starts(self)

        self.start()

        self._execution_started = True

        class StreamIterator(OutputIterator):
            def __init__(self, outer: Executor):
                self._outer = outer

            def get_next(self, output_split_idx: Optional[int] = None) -> RefBundle:
                try:
                    item = self._outer._output_node.get_output_blocking(
                        output_split_idx
                    )
                    if self._outer._global_info:
                        self._outer._global_info.update(
                            item.num_rows(), dag.num_output_rows_total()
                        )
                    return item
                # Needs to be BaseException to catch KeyboardInterrupt. Otherwise we
                # can leave dangling progress bars by skipping shutdown.
                except BaseException as e:
                    self._outer.shutdown(
                        e ifnot isinstance(e, StopIteration) else None
                    )
                    raise

            def __del__(self):
                self._outer.shutdown()

        return StreamIterator(self)

def build_streaming_topology(
    dag: PhysicalOperator, options: ExecutionOptions
) -> Tuple[Topology, int]:
    """Instantiate the streaming operator state topology for the given DAG.

    This involves creating the operator state for each operator in the DAG,
    registering it with this class, and wiring up the inqueues/outqueues of
    dependent operator states.

    Args:
        dag: The operator DAG to instantiate.
        options: The execution options to use to start operators.

    Returns:
        The topology dict holding the streaming execution state.
        The number of progress bars initialized so far.
    """

    topology: Topology = {}

    # DFS walk to wire up operator states.
    def setup_state(op: PhysicalOperator) -> OpState:
        if op in topology:
            raise ValueError("An operator can only be present in a topology once.")

        # Wire up the input outqueues to this op's inqueues.
        inqueues = []
        for i, parent in enumerate(op.input_dependencies):
            parent_state = setup_state(parent)
            inqueues.append(parent_state.outqueue)

        # Create state.
        op_state = OpState(op, inqueues)
        topology[op] = op_state
        op.start(options)
        return op_state

    setup_state(dag)

    return (topology, i)

def run(self):
    """Run the control loop in a helper thread.

    Results are returned via the output node's outqueue.
    """
    try:
        # Run scheduling loop until complete.
        while True:
            t_start = time.process_time()
            # use process_time to avoid timing ray.wait in _scheduling_loop_step
            continue_sched = self._scheduling_loop_step(self._topology)
            if self._initial_stats:
                self._initial_stats.streaming_exec_schedule_s.add(
                    time.process_time() - t_start
                )
            for callback in get_execution_callbacks(self._data_context):
                callback.on_execution_step(self)
            ifnot continue_sched or self._shutdown:
                break
    except Exception as e:
        # Propagate it to the result iterator.
        self._output_node.mark_finished(e)
    finally:
        # Signal end of results.
        self._output_node.mark_finished()


def _scheduling_loop_step(self, topology: Topology) -> bool:
    """Run one step of the scheduling loop.

    This runs a few general phases:
        1. Waiting for the next task completion using `ray.wait()`.
        2. Pulling completed refs into operator outqueues.
        3. Selecting and dispatching new inputs to operators.

    Returns:
        True if we should continue running the scheduling loop.
    """
    self._resource_manager.update_usages()
    # Note: calling process_completed_tasks() is expensive since it incurs
    # ray.wait() overhead, so make sure to allow multiple dispatch per call for
    # greater parallelism.

    #调用ray.wait()来等待DAG中的任务执行完成并进行处理
    num_errored_blocks = process_completed_tasks(
        topology,
        self._resource_manager,
        self._max_errored_blocks,
    )

    #根据策略选择一个Operator来执行
    op = select_operator_to_run(
        topology,
        self._resource_manager,
        self._backpressure_policies,
        self._autoscaler,
        ensure_at_least_one_running=self._consumer_idling(),
    )

    i = 0
    while op is not None:
        #调用OpState的dispatch_next_task，从inqueue中获取输入给Operator处理
        topology[op].dispatch_next_task()
        self._resource_manager.update_usages()
        #循环选择下一个Operator，直到满足一些条件（例如所有Operator都在满负荷运行）
        op = select_operator_to_run(
            topology,
            self._resource_manager,
            self._backpressure_policies,
            self._autoscaler,
            ensure_at_least_one_running=self._consumer_idling(),
        )

    # Log metrics of newly completed operators.
    for op in topology:
        if op.completed() andnot self._has_op_completed[op]:
            log_str = (
                f"Operator {op} completed. "
                f"Operator Metrics:\n{op._metrics.as_dict()}"
            )
            logger.debug(log_str)
            self._has_op_completed[op] = True

    # 持续处理，直到所有Operator都处理完成
    returnnot all(op.completed() for op in topology)

def process_completed_tasks(
    topology: Topology,
    resource_manager: ResourceManager,
    max_errored_blocks: int,
) -> int:
    """Process any newly completed tasks. To update operator
    states, call `update_operator_states()` afterwards.

    Args:
        topology: The toplogy of operators.
        backpressure_policies: The backpressure policies to use.
        max_errored_blocks: Max number of errored blocks to allow,
            unlimited if negative.
    Returns:
        The number of errored blocks.
    """

    # All active tasks, keyed by their waitables.
    active_tasks: Dict[Waitable, Tuple[OpState, OpTask]] = {}
    #获取所有Operator正在运行的DataOpTask与MetadataOpTask
    for op, state in topology.items():
        for task in op.get_active_tasks():
            #获取所有的waitable，对于DataOpTask来说，就是streaming_gen
            active_tasks[task.get_waitable()] = (state, task)

    # Process completed Ray tasks and notify operators.
    num_errored_blocks = 0
    if active_tasks:
        ready, _ = ray.wait(
            list(active_tasks.keys()),
            num_returns=len(active_tasks),
            fetch_local=False,
            timeout=0.1,
        )

        # Organize tasks by the operator they belong to, and sort them by task index.
        # So that we'll process them in a deterministic order.
        # This is because OpResourceAllocator may limit the number of blocks to read
        # per operator. In this case, we want to have fewer tasks finish quickly and
        # yield resources, instead of having all tasks output blocks together.
        ready_tasks_by_op = defaultdict(list)
        for ref in ready:
            state, task = active_tasks[ref]
            ready_tasks_by_op[state].append(task)

        for state, ready_tasks in ready_tasks_by_op.items():
            ready_tasks = sorted(ready_tasks, key=lambda t: t.task_index())
            for task in ready_tasks:
                if isinstance(task, DataOpTask):
                    try:
                        #回调DataOpTask的on_data_ready方法
                        bytes_read = task.on_data_ready(
                            max_bytes_to_read_per_op.get(state, None)
                        )
                        if state in max_bytes_to_read_per_op:
                            max_bytes_to_read_per_op[state] -= bytes_read
                    except Exception as e:
                        num_errored_blocks += 1
                        should_ignore = (
                            max_errored_blocks < 0
                            or max_errored_blocks >= num_errored_blocks
                        )
                        error_message = (
                            "An exception was raised from a task of "
                            f'operator"{state.op.name}".'
                        )
                        if should_ignore:
                            remaining = (
                                max_errored_blocks - num_errored_blocks
                                if max_errored_blocks >= 0
                                else"unlimited"
                            )
                            error_message += (
                                " Ignoring this exception with remaining"
                                f" max_errored_blocks={remaining}."
                            )
                            logger.error(error_message, exc_info=e)
                        else:
                            error_message += (
                                " Dataset execution will now abort."
                                " To ignore this exception and continue, set"
                                " DataContext.max_errored_blocks."
                            )
                            logger.error(error_message)
                            raise e from None
                else:
                    assert isinstance(task, MetadataOpTask)
                    task.on_task_finished()

    # Pull any operator outputs into the streaming op state.
    for op, op_state in topology.items():
        while op.has_next():
            #将所有Operator当前的输出移动到outqueue中
            op_state.add_output(op.get_next())

    return num_errored_blocks
