组网需求

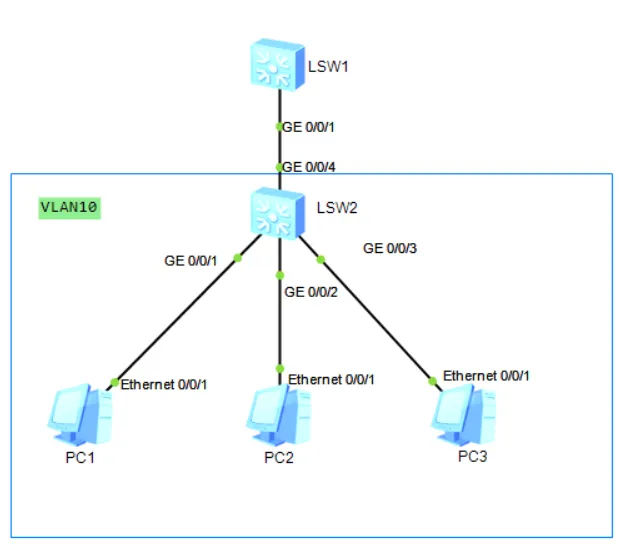

如图所示，用户PC1、PC2、PC3通过接入设备连接公司网络。为了提高用户接入的安全性，将接入设备Router的接口使能端口安全功能，并且设置接口学习MAC地址数的上限为接入用户数，这样其他外来人员使用自己带来的PC无法访问公司的网络。
配置思路
采用如下的思路配置端口安全：
1.配置VLAN，实现二层转发功能。
2.配置端口安全功能，实现学习到的MAC地址表项不老化。
操作步骤
创建VLAN，配置接口的链路类型，并配置IP
LSW2
<Huawei>sys [Huawei]sys LSW2 [LSW2]vlan batch 10 [LSW2]interface GigabitEthernet0/0/1 [LSW2-GigabitEthernet0/0/1]port link-type access [LSW2-GigabitEthernet0/0/1]port default vlan 10 [LSW2-GigabitEthernet0/0/1]quit [LSW2]interface GigabitEthernet0/0/2 [LSW2-GigabitEthernet0/0/2]port link-type access [LSW2-GigabitEthernet0/0/2]port default vlan 10 [LSW2-GigabitEthernet0/0/2]quit [LSW2]interface GigabitEthernet0/0/3 [LSW2-GigabitEthernet0/0/3]port link-type access [LSW2-GigabitEthernet0/0/3]port default vlan 10 [LSW2-GigabitEthernet0/0/3]quit [LSW2]interface GigabitEthernet0/0/4 [LSW2-GigabitEthernet0/0/4]port link-type trunk [LSW2-GigabitEthernet0/0/4]port trunk allow-pass vlan 10 [LSW2-GigabitEthernet0/0/4]quit
LSW1
<Huawei>sys [Huawei]sys LSW1 [LSW1]vlan batch 10 [LSW1]interface GigabitEthernet0/0/1 [LSW1-GigabitEthernet0/0/1]port link-type trunk [LSW1-GigabitEthernet0/0/1]port trunk allow-pass vlan 10 [LSW1-GigabitEthernet0/0/1]quit [LSW1]interface Vlanif 10 [LSW1-Vlanif10]ip add 192.168.10.1 24 [LSW1-Vlanif10]quit

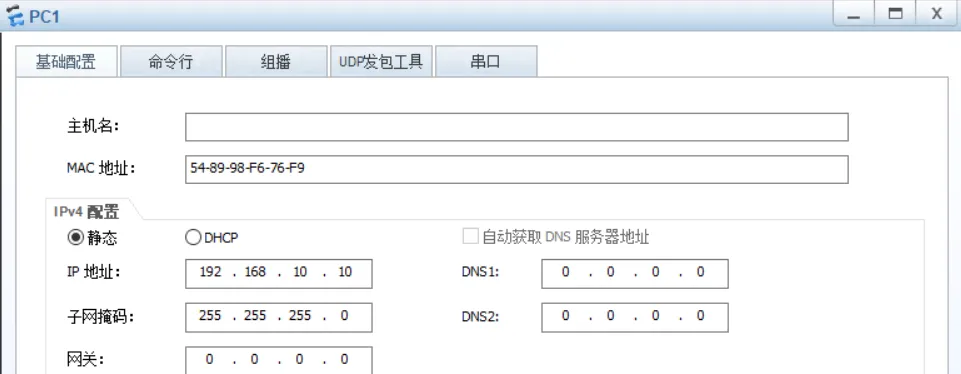

PC1

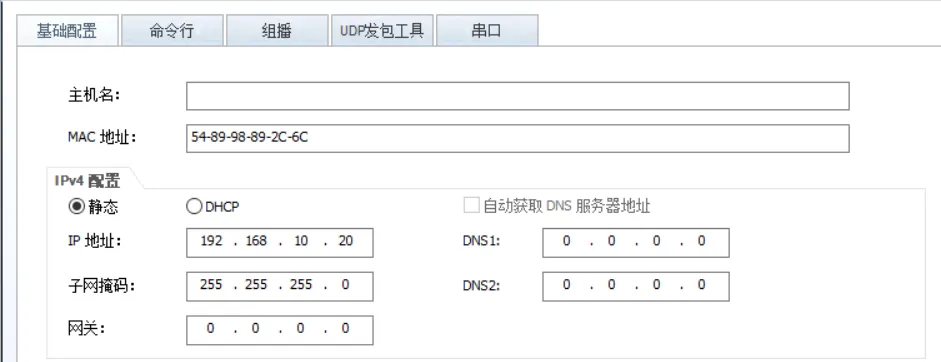

PC2

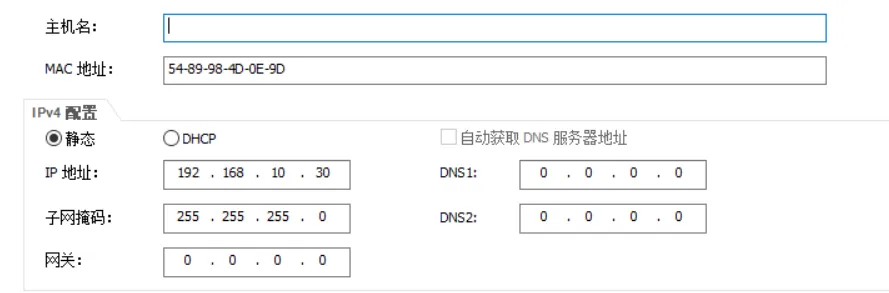

PC3
配置端口安全功能
LSW1
[LSW1]interface GigabitEthernet0/0/1 [LSW1-GigabitEthernet0/0/1]port-security enable [LSW1-GigabitEthernet0/0/1]port-security max-mac-num 3 [LSW1-GigabitEthernet0/0/1]port-security mac-address sticky [LSW1-GigabitEthernet0/0/1]quit [LSW1]display mac-address sticky vlan 10 MAC address table of slot 0: ------------------------------------------------------------------------------- MAC Address VLAN/ PEVLAN CEVLAN Port Type LSP/LSR-ID VSI/SI MAC-Tunnel ------------------------------------------------------------------------------- 5489-98f6-76f9 10 - - GE0/0/1 sticky - 5489-984d-0e9d 10 - - GE0/0/1 sticky - 5489-9889-2c6c 10 - - GE0/0/1 sticky - ------------------------------------------------------------------------------- Total matching items on slot 0 displayed = 3
测试把PC1替换后的PC是否可以连接到网络

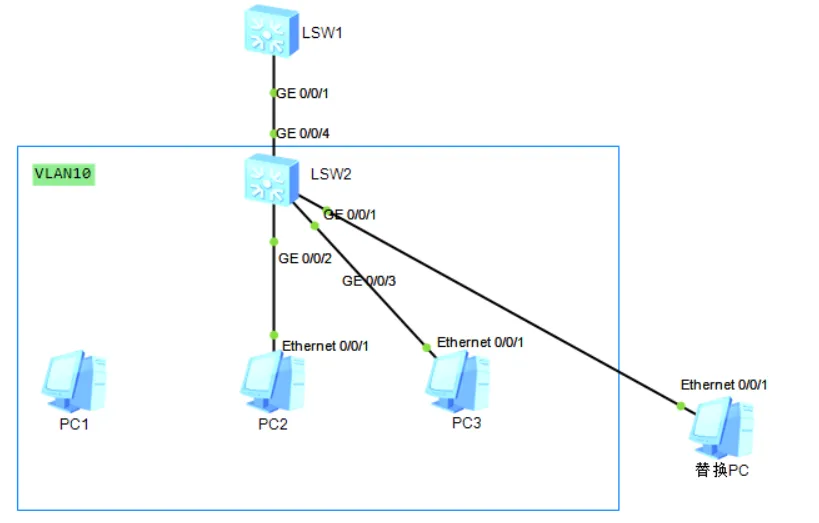

新拓扑图

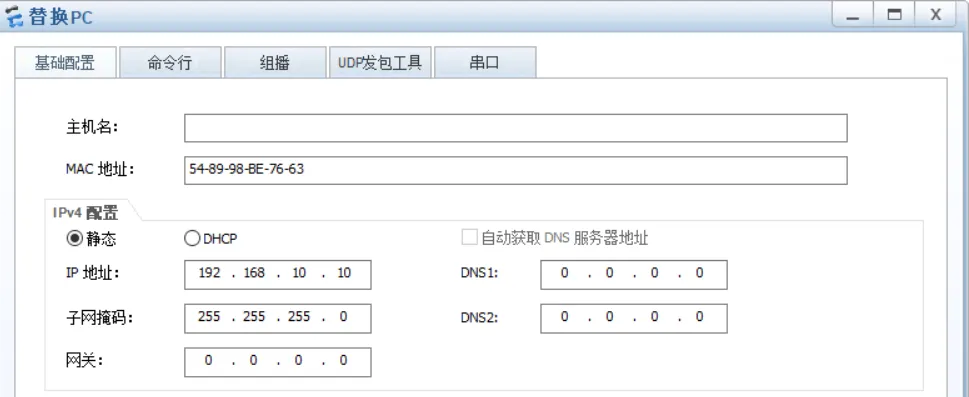

替换PC配置IP，配置的IP和PC1一致
验证
新增PC ping Vlanif接口，无法ping通
PC>ping 192.168.10.1 Ping 192.168.10.1: 32 data bytes, Press Ctrl_C to break From 192.168.10.10: Destination host unreachable From 192.168.10.10: Destination host unreachable From 192.168.10.10: Destination host unreachable From 192.168.10.10: Destination host unreachable From 192.168.10.10: Destination host unreachable --- 192.168.10.1 ping statistics --- 5 packet(s) transmitted 0 packet(s) received 100.00% packet loss
PC2、PC3 ping Vlanif接口，可以ping通
PC2 ping结果 PC>ping 192.168.10.1 Ping 192.168.10.1: 32 data bytes, Press Ctrl_C to break From 192.168.10.1: bytes=32 seq=1 ttl=255 time=32 ms From 192.168.10.1: bytes=32 seq=2 ttl=255 time=63 ms From 192.168.10.1: bytes=32 seq=3 ttl=255 time=47 ms From 192.168.10.1: bytes=32 seq=4 ttl=255 time=47 ms From 192.168.10.1: bytes=32 seq=5 ttl=255 time=62 ms --- 192.168.10.1 ping statistics --- 5 packet(s) transmitted 5 packet(s) received 0.00% packet loss round-trip min/avg/max = 32/50/63 ms PC3 ping结果 PC>ping 192.168.10.1 Ping 192.168.10.1: 32 data bytes, Press Ctrl_C to break From 192.168.10.1: bytes=32 seq=1 ttl=255 time=47 ms From 192.168.10.1: bytes=32 seq=2 ttl=255 time=62 ms From 192.168.10.1: bytes=32 seq=3 ttl=255 time=47 ms From 192.168.10.1: bytes=32 seq=4 ttl=255 time=31 ms From 192.168.10.1: bytes=32 seq=5 ttl=255 time=62 ms --- 192.168.10.1 ping statistics --- 5 packet(s) transmitted 5 packet(s) received 0.00% packet loss round-trip min/avg/max = 31/49/62 ms
