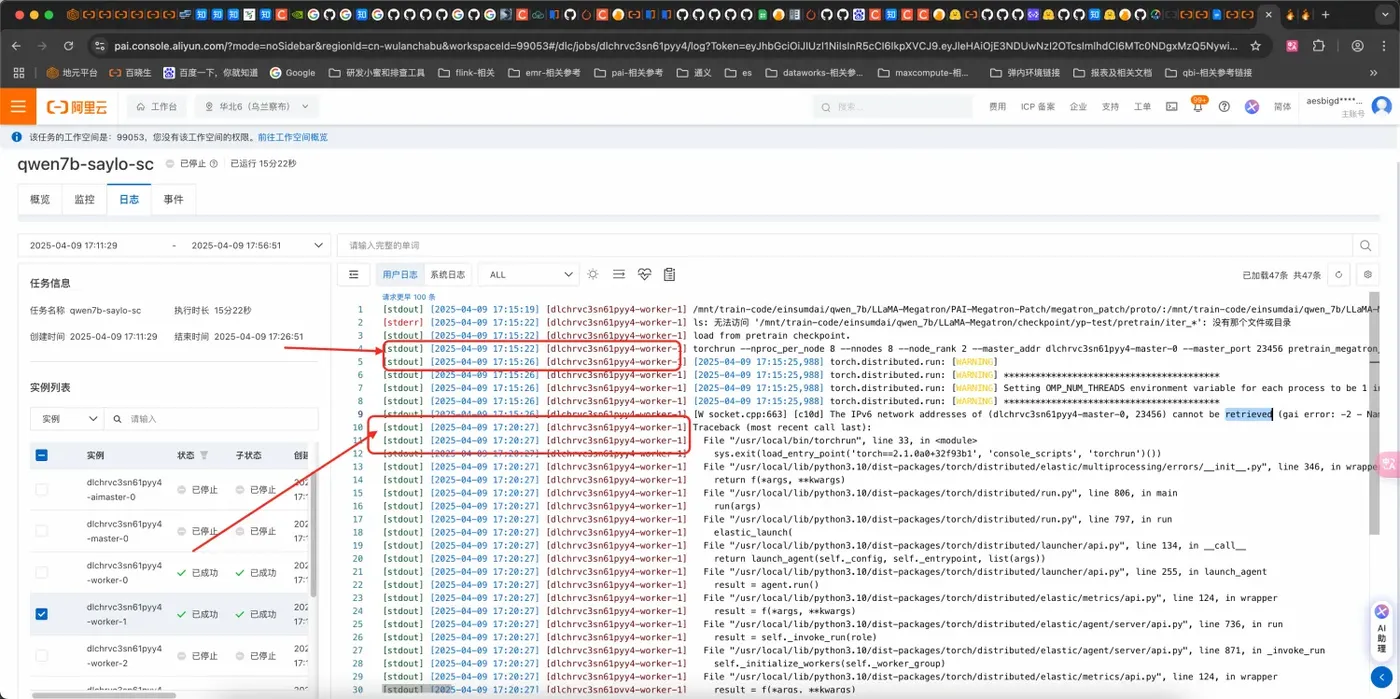

1. 报错堆栈

[stdout] [2025-04-09 17:15:19] [dlcxxx-worker-1] /mnt/train-code/einsumdai/qwen_7b/LLaMA-Megatron/PAI-Megatron-Patch/megatron_patch/proto/:/mnt/train-code/einsumdai/qwen_7b/LLaMA-Megatron/Megatron-LM:/mnt/train-code/einsumdai/qwen_7b/LLaMA-Megatron/PAI-Megatron-Patch:
[stderr] [2025-04-09 17:15:22] [dlcxxx-worker-1] ls: 无法访问 '/mnt/train-code/einsumdai/qwen_7b/LLaMA-Megatron/checkpoint/yp-test/pretrain/iter_*': 没有那个文件或目录
[stdout] [2025-04-09 17:15:22] [dlcxxx-worker-1] load from pretrain checkpoint.
[stdout] [2025-04-09 17:15:22] [dlcxxx-worker-1] torchrun --nproc_per_node 8 --nnodes 8 --node_rank 2 --master_addr dlchrvc3sn61pyy4-master-0 --master_port 23456 pretrain_megatron_alpaca_local.py --tensor-model-parallel-size 2 --pipeline-model-parallel-size 1 --distributed-backend nccl --use-distributed-optimizer --sequence-parallel --distributed-timeout-minutes 60 --add-qkv-bias --num-layers 28 --hidden-size 3584 --num-attention-heads 28 --num-query-groups 4 --ffn-hidden-size 18944 --position-embedding-type rope --max-position-embeddings 8192 --make-vocab-size-divisible-by 128 --norm-epsilon 1e-6 --normalization RMSNorm --swiglu --untie-embeddings-and-output-weights --use-flash-attn --use-rotary-position-embeddings --log-timers-to-tensorboard --log-validation-ppl-to-tensorboard --log-params-norm --log-output-info-by-layer --timing-log-level 1 --tensorboard-queue-size 1 --tensorboard-dir /mnt/train-code/einsumdai/qwen_7b/LLaMA-Megatron/tensorboard/yp-test_2025.04.09-17.15 --log-batch-size-to-tensorboard --log-validation-ppl-to-tensorboard --tensorboard-outputinfo-log-interval 20 --tensorboard-params-log-interval 20 --attention-dropout 0.0 --hidden-dropout 0.0 --weight-decay 0.1 --clip-grad 1.0 --adam-beta1 0.9 --adam-beta2 0.95 --adam-eps 1e-8 --micro-batch-size 1 --global-batch-size 96 --train-iters 3798 --epoch-num 3 --log-interval 1 --disable-bias-linear --no-bias-gelu-fusion --optimizer adam --no-bias-dropout-fusion --no-gradient-accumulation-fusion --no-bias-swiglu-fusion --no-manual-gc-eval --finetune --group-query-attention --manual-gc --use-mcore-models --seed 1234 --init-method-std 0.02 --lr 2e-5 --lr-decay-style cosine --min-lr 2e-6 --override-opt_param-scheduler --lr-decay-iters 3798 --lr-warmup-iters 113 --save /mnt/train-code/einsumdai/qwen_7b/LLaMA-Megatron/checkpoint/yp-test/pretrain --save-interval 500 --exit-signal-handler --load /mnt/train-code/einsumdai/qwen_7b/LLaMA-Megatron/checkpoint/checkpoint_v205-xverse-7b/pretrain --no-load-optim --no-load-rng --bf16 --attention-softmax-in-fp32 --loss-scale-window 100 --initial-loss-scale 65536 --eval-interval 100000000 --eval-iters 1000000 --data-impl mmap --data-path /mnt/train-code/einsumdai/dataset/sft_data_v3_250402.json --split 98,2,0 --train-data-disk-size 9426386 --seq-length 8192 --num-workers 0 --tokenizer-model /mnt/train-code/einsumdai/qwen_7b/LLaMA-Megatron/alpaca-tokenizer/llama-7b/tokenizer.model --dataloader-type cyclic --set-size 96 --set-files-per-dir 1000 --extra-vocab-size 0 --max-padding-length 8192 --patch-tokenizer-type SftTokenizer --patch-tokenizer-model /mnt/train-code/einsumdai/qwen_7b/LLaMA-Megatron/alpaca-tokenizer/llama-7b/
[stdout] [2025-04-09 17:15:26] [dlcxxx-worker-1] [2025-04-09 17:15:25,988] torch.distributed.run: [WARNING]
[stdout] [2025-04-09 17:15:26] [dlcxxx-worker-1] [2025-04-09 17:15:25,988] torch.distributed.run: [WARNING] *****************************************
[stdout] [2025-04-09 17:15:26] [dlcxxx-worker-1] [2025-04-09 17:15:25,988] torch.distributed.run: [WARNING] Setting OMP_NUM_THREADS environment variable for each process to be 1 in default, to avoid your system being overloaded, please further tune the variable for optimal performance in your application as needed.
[stdout] [2025-04-09 17:15:26] [dlcxxx-worker-1] [2025-04-09 17:15:25,988] torch.distributed.run: [WARNING] *****************************************
[stdout] [2025-04-09 17:15:26] [dlcxxx-worker-1] [W socket.cpp:663] [c10d] The IPv6 network addresses of (dlchrvc3sn61pyy4-master-0, 23456) cannot be retrieved (gai error: -2 - Name or service not known).
[stdout] [2025-04-09 17:20:27] [dlcxxx-worker-1] Traceback (most recent call last):
[stdout] [2025-04-09 17:20:27] [dlcxxx-worker-1]   File "/usr/local/bin/torchrun", line 33, in <module>
[stdout] [2025-04-09 17:20:27] [dlcxxx-worker-1]     sys.exit(load_entry_point('torch==2.1.0a0+32f93b1', 'console_scripts', 'torchrun')())
[stdout] [2025-04-09 17:20:27] [dlcxxx-worker-1]   File "/usr/local/lib/python3.10/dist-packages/torch/distributed/elastic/multiprocessing/errors/__init__.py", line 346, in wrapper
[stdout] [2025-04-09 17:20:27] [dlcxxx-worker-1]     return f(*args, **kwargs)
[stdout] [2025-04-09 17:20:27] [dlcxxx-worker-1]   File "/usr/local/lib/python3.10/dist-packages/torch/distributed/run.py", line 806, in main
[stdout] [2025-04-09 17:20:27] [dlcxxx-worker-1]     run(args)
[stdout] [2025-04-09 17:20:27] [dlcxxx-worker-1]   File "/usr/local/lib/python3.10/dist-packages/torch/distributed/run.py", line 797, in run
[stdout] [2025-04-09 17:20:27] [dlcxxx-worker-1]     elastic_launch(
[stdout] [2025-04-09 17:20:27] [dlcxxx-worker-1]   File "/usr/local/lib/python3.10/dist-packages/torch/distributed/launcher/api.py", line 134, in __call__
[stdout] [2025-04-09 17:20:27] [dlcxxx-worker-1]     return launch_agent(self._config, self._entrypoint, list(args))
[stdout] [2025-04-09 17:20:27] [dlcxxx-worker-1]   File "/usr/local/lib/python3.10/dist-packages/torch/distributed/launcher/api.py", line 255, in launch_agent
[stdout] [2025-04-09 17:20:27] [dlcxxx-worker-1]     result = agent.run()
[stdout] [2025-04-09 17:20:27] [dlcxxx-worker-1]   File "/usr/local/lib/python3.10/dist-packages/torch/distributed/elastic/metrics/api.py", line 124, in wrapper
[stdout] [2025-04-09 17:20:27] [dlcxxx-worker-1]     result = f(*args, **kwargs)
[stdout] [2025-04-09 17:20:27] [dlcxxx-worker-1]   File "/usr/local/lib/python3.10/dist-packages/torch/distributed/elastic/agent/server/api.py", line 736, in run
[stdout] [2025-04-09 17:20:27] [dlcxxx-worker-1]     result = self._invoke_run(role)
[stdout] [2025-04-09 17:20:27] [dlcxxx-worker-1]   File "/usr/local/lib/python3.10/dist-packages/torch/distributed/elastic/agent/server/api.py", line 871, in _invoke_run
[stdout] [2025-04-09 17:20:27] [dlcxxx-worker-1]     self._initialize_workers(self._worker_group)
[stdout] [2025-04-09 17:20:27] [dlcxxx-worker-1]   File "/usr/local/lib/python3.10/dist-packages/torch/distributed/elastic/metrics/api.py", line 124, in wrapper
[stdout] [2025-04-09 17:20:27] [dlcxxx-worker-1]     result = f(*args, **kwargs)
[stdout] [2025-04-09 17:20:27] [dlcxxx-worker-1]   File "/usr/local/lib/python3.10/dist-packages/torch/distributed/elastic/agent/server/api.py", line 705, in _initialize_workers
[stdout] [2025-04-09 17:20:27] [dlcxxx-worker-1]     self._rendezvous(worker_group)
[stdout] [2025-04-09 17:20:27] [dlcxxx-worker-1]   File "/usr/local/lib/python3.10/dist-packages/torch/distributed/elastic/metrics/api.py", line 124, in wrapper
[stdout] [2025-04-09 17:20:27] [dlcxxx-worker-1]     result = f(*args, **kwargs)
[stdout] [2025-04-09 17:20:27] [dlcxxx-worker-1]   File "/usr/local/lib/python3.10/dist-packages/torch/distributed/elastic/agent/server/api.py", line 549, in _rendezvous
[stdout] [2025-04-09 17:20:27] [dlcxxx-worker-1]     workers = self._assign_worker_ranks(store, group_rank, group_world_size, spec)
[stdout] [2025-04-09 17:20:27] [dlcxxx-worker-1]   File "/usr/local/lib/python3.10/dist-packages/torch/distributed/elastic/metrics/api.py", line 124, in wrapper
[stdout] [2025-04-09 17:20:27] [dlcxxx-worker-1]     result = f(*args, **kwargs)
[stdout] [2025-04-09 17:20:27] [dlcxxx-worker-1]   File "/usr/local/lib/python3.10/dist-packages/torch/distributed/elastic/agent/server/api.py", line 637, in _assign_worker_ranks
[stdout] [2025-04-09 17:20:27] [dlcxxx-worker-1]     role_infos = self._share_and_gather(store, group_rank, group_world_size, spec)
[stdout] [2025-04-09 17:20:27] [dlcxxx-worker-1]   File "/usr/local/lib/python3.10/dist-packages/torch/distributed/elastic/agent/server/api.py", line 674, in _share_and_gather
[stdout] [2025-04-09 17:20:27] [dlcxxx-worker-1]     role_infos_bytes = store_util.synchronize(
[stdout] [2025-04-09 17:20:27] [dlcxxx-worker-1]   File "/usr/local/lib/python3.10/dist-packages/torch/distributed/elastic/utils/store.py", line 64, in synchronize
[stdout] [2025-04-09 17:20:27] [dlcxxx-worker-1]     agent_data = get_all(store, rank, key_prefix, world_size)
[stdout] [2025-04-09 17:20:27] [dlcxxx-worker-1]   File "/usr/local/lib/python3.10/dist-packages/torch/distributed/elastic/utils/store.py", line 34, in get_all
[stdout] [2025-04-09 17:20:27] [dlcxxx-worker-1]     data = store.get(f"{prefix}{idx}")
[stdout] [2025-04-09 17:20:27] [dlcxxx-worker-1] RuntimeError: Socket Timeout

2. 问题原因

客户作业为8机8卡的作业，通过megatron使用torchrun来起任务，因为任务spot任务分配的机器本地镜像情况不同，有的本地存在cache，有的需要现拉，导致了不同worker起来的时间相差6-7分钟，导致torch.run的barrier对齐的时候超时失败。

2.1. 堆栈分析

客户日志中torch的版本：torch==2.1.0a0+32f93b1，应该是pai-megatron-patch自己打的某个版本

源码分析使用版本：pytorch v2.1.0-rc6

2.1.1. get_all

torch.distributed.elastic.utils.store.get_all

torch/distributed/elastic/utils/store.py:34

data = store.get(f"{prefix}{idx}")

这里socket timeout，需要找下store是什么对象，get方法去做了什么，超时时间能否设置，往上看堆栈

2.1.2. synchronize

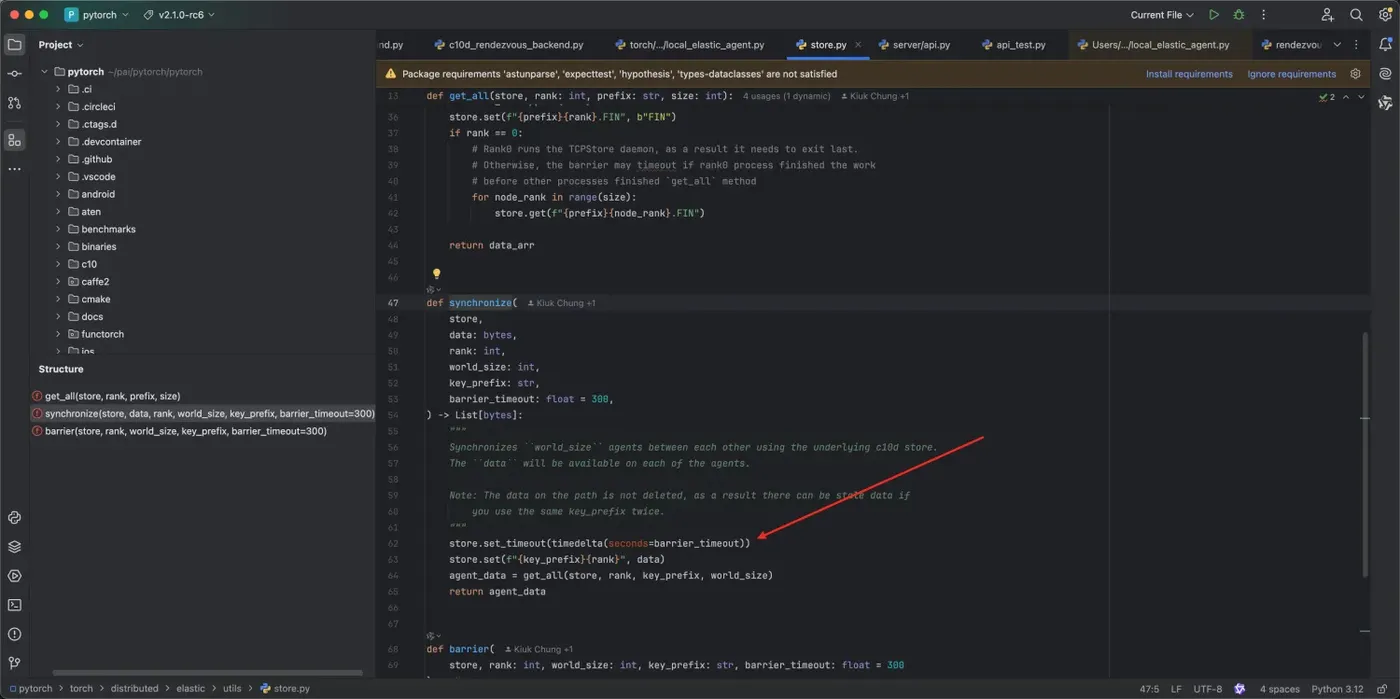

torch.distributed.elastic.utils.store.synchronize

torch/distributed/elastic/utils/store.py:64

agent_data = get_all(store, rank, key_prefix, world_size)

store在调用get_all的时候直接传了进去，是synchronize方法的入参

2.1.3. _share_and_gather

torch.distributed.elastic.agent.server.api.SimpleElasticAgent._share_and_gather

torch/distributed/elastic/agent/server/api.py:674

role_infos_bytes = store_util.synchronize(
 store, agent_config_enc, group_rank, group_world_size, key_prefix
)

调用_share_and_gather的入参里就有store，调用的上面synchronize的静态方法，同理还得往上看

2.2.4. _assign_worker_ranks

torch.distributed.elastic.agent.server.api.SimpleElasticAgent._assign_worker_ranks

torch/distributed/elastic/agent/server/api.py:637

role_infos = self._share_and_gather(store, group_rank, group_world_size, spec)

这里一样，也是直接拿着store调用

2.2.5. _rendezvous

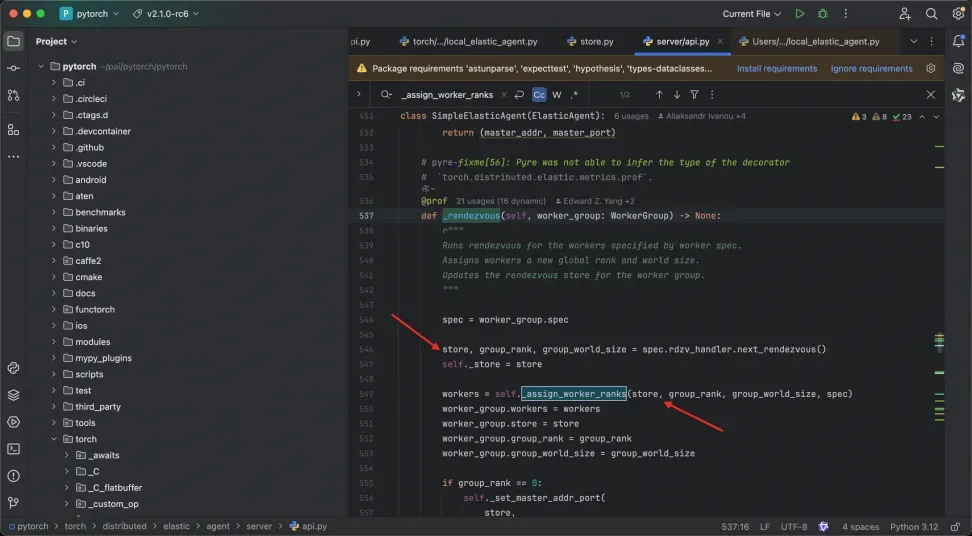

torch.distributed.elastic.agent.server.api.SimpleElasticAgent._rendezvous

这里有store相关的逻辑

是如下方法返回的对象：torch.distributed.elastic.rendezvous.api.RendezvousHandler.next_rendezvous

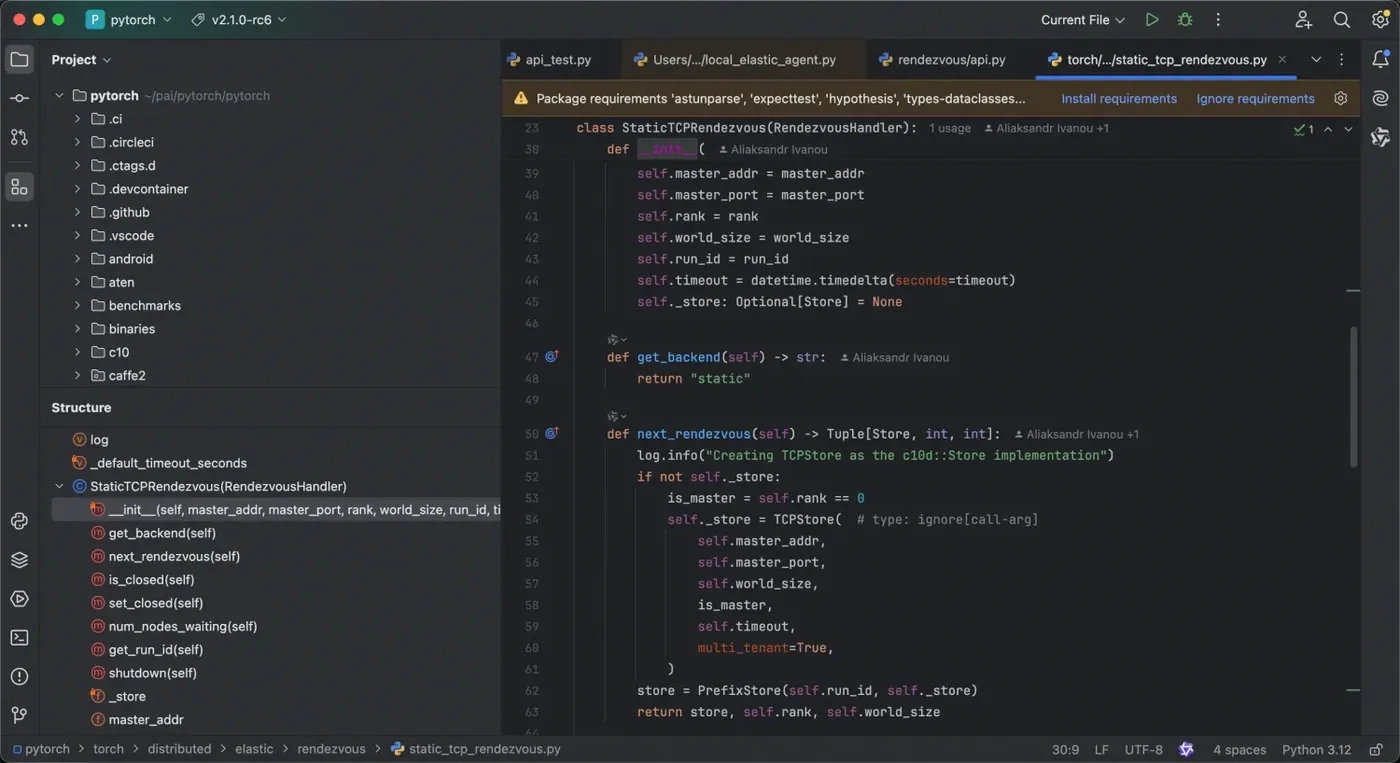

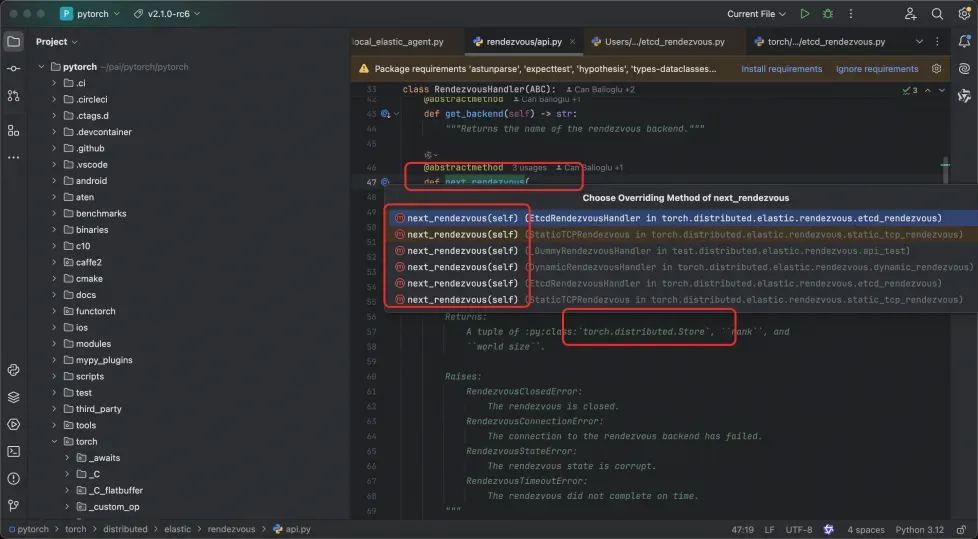

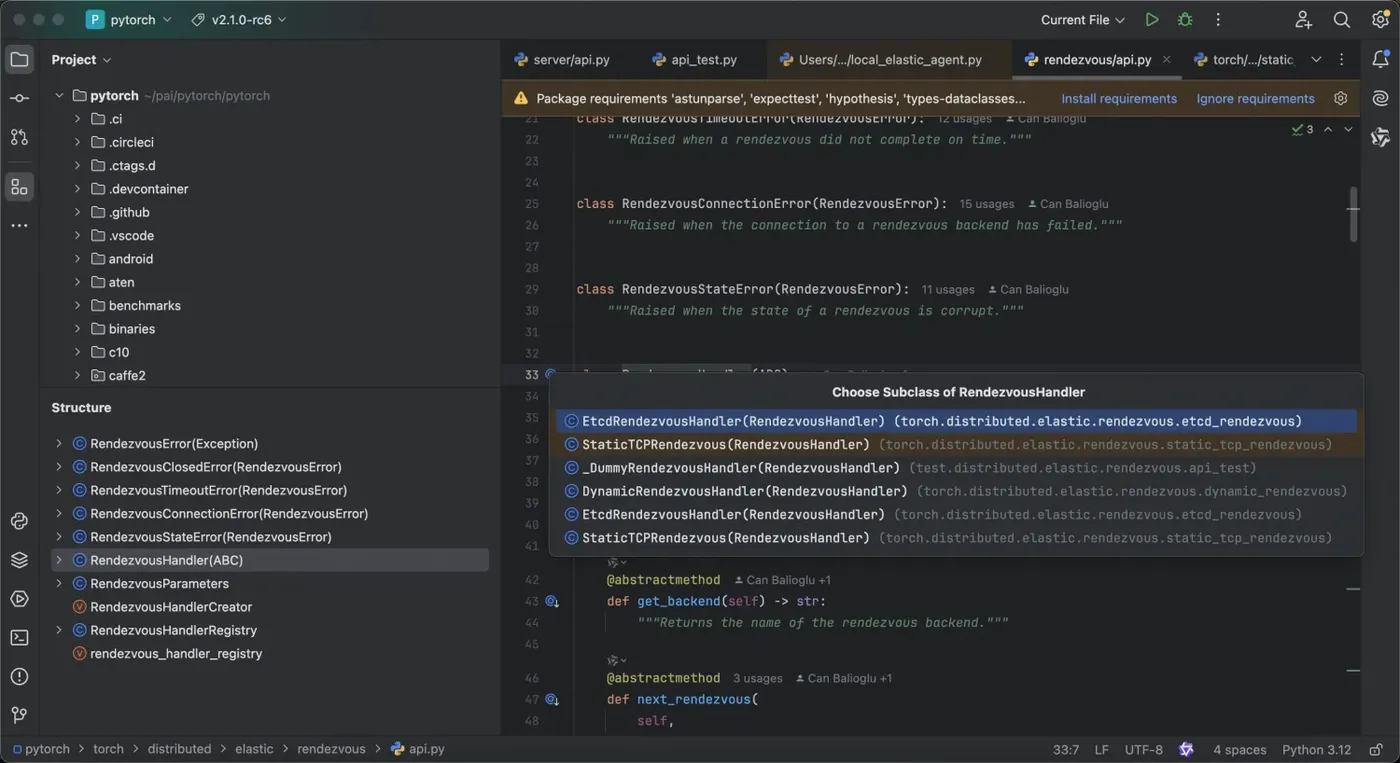

这里看next_rendezvous这个抽象方法的描述反馈的是torch.distributed.Store，但是这个方法实现在多个类里，具体要结合初始化方法看下

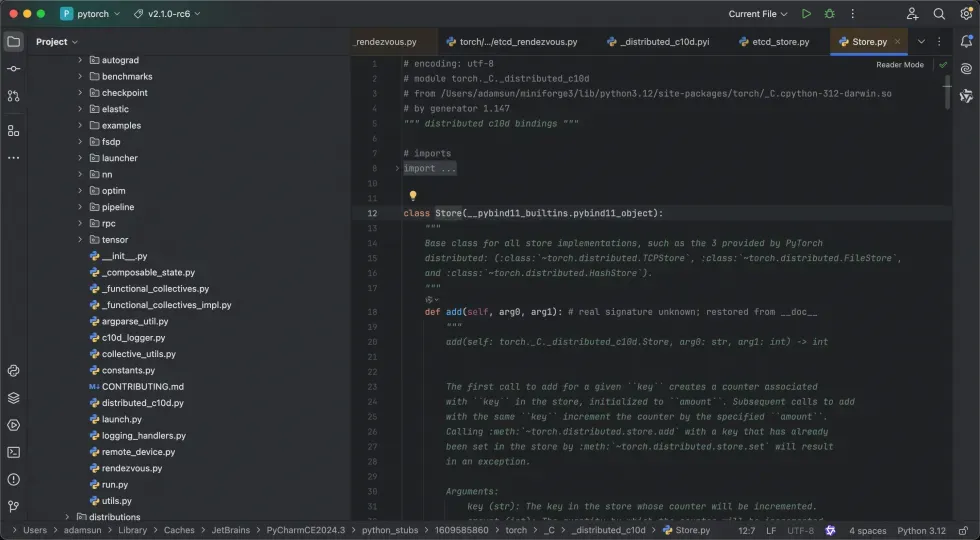

从python的代码看，这个torch.distributed.Store应该是cpp做的实现

回到当前方法这里：torch.distributed.elastic.agent.server.api.SimpleElasticAgent._rendezvous

next_rendezvous方法所在的实例化对象是spec

来自：spec = worker_group.spec

worker_group是_rendezvous方法调用的时候上层传入的

2.2.6. _initialize_workers

torch.distributed.elastic.agent.server.api.SimpleElasticAgent._initialize_workers

做的如下调用：self._rendezvous(worker_group)

这里worker_group有类型声明

def _initialize_workers(self, worker_group: WorkerGroup) -> None:

worker_group的类型是 torch.distributed.elastic.agent.server.api.WorkerGroup

其中spec对象的类型是 torch.distributed.elastic.agent.server.api.WorkerSpec

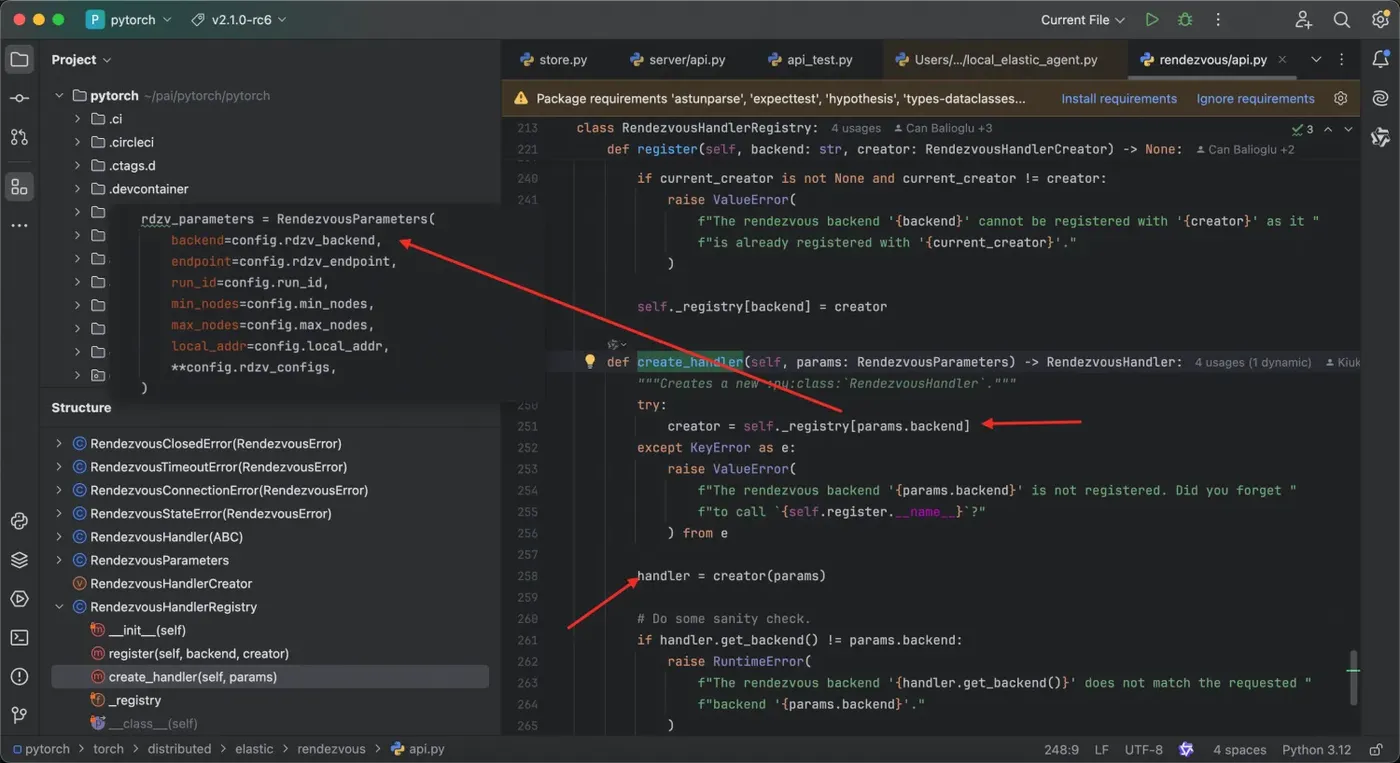

其中rdzv_handler对象的类型是 torch.distributed.elastic.rendezvous.api.RendezvousHandler 但是有多个继承类，得看一下初始化的时候初始化了哪个

2.2.7. run\_invoke_run

torch.distributed.elastic.agent.server.api.SimpleElasticAgent.run 调用了->

torch.distributed.elastic.agent.server.api.SimpleElasticAgent._invoke_run 调用了 -> initialize_workers方法(入参是self._worker_group)

这个入参不是调用_invoke_run的时候传入的

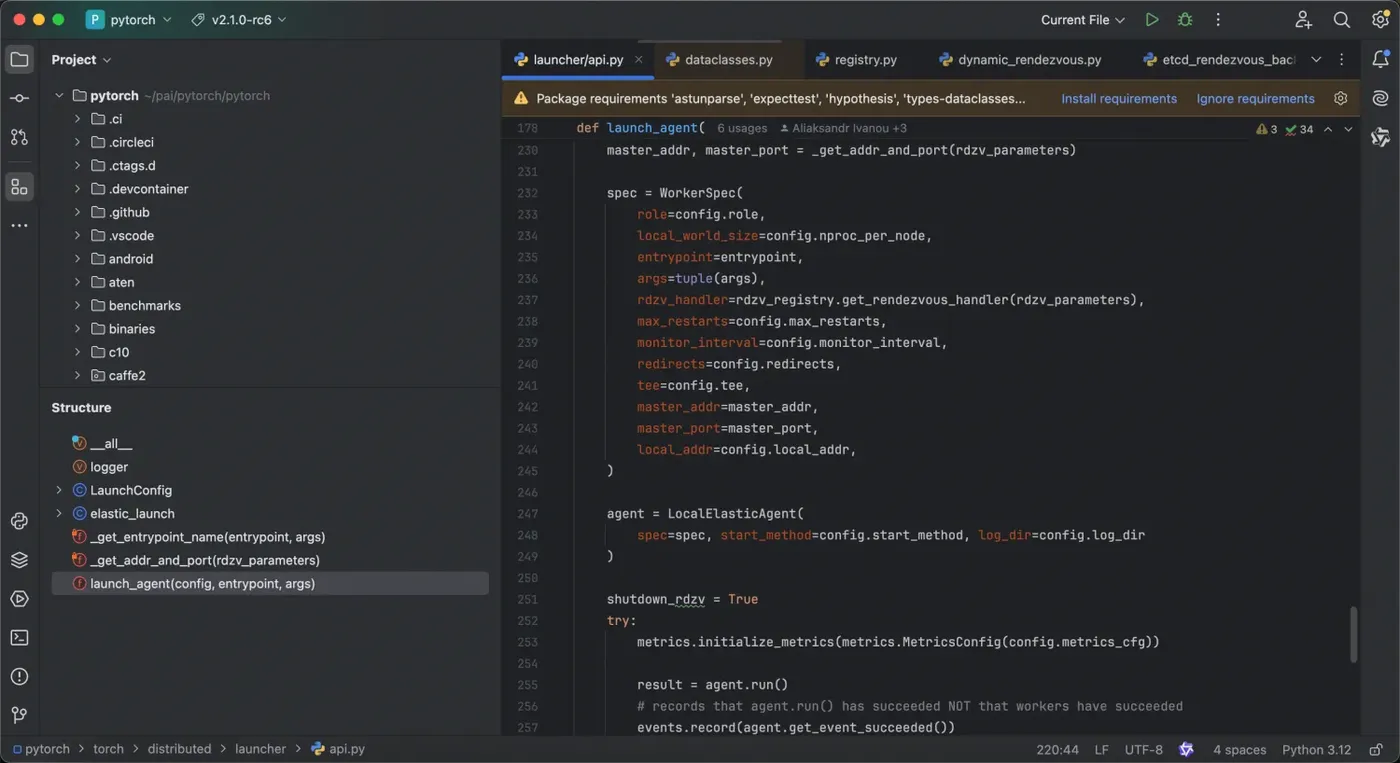

也不是更上一层调用 run的时候传入的所在类是 torch.distributed.elastic.agent.server.api.SimpleElasticAgent 有子类，应该是初始化的时候做的，看着pycharm上的提示，run和_invoke_run方法没有被重写过，需要看下怎么初始化的 self._worker_group
