简单轻量级的jquery图表插件

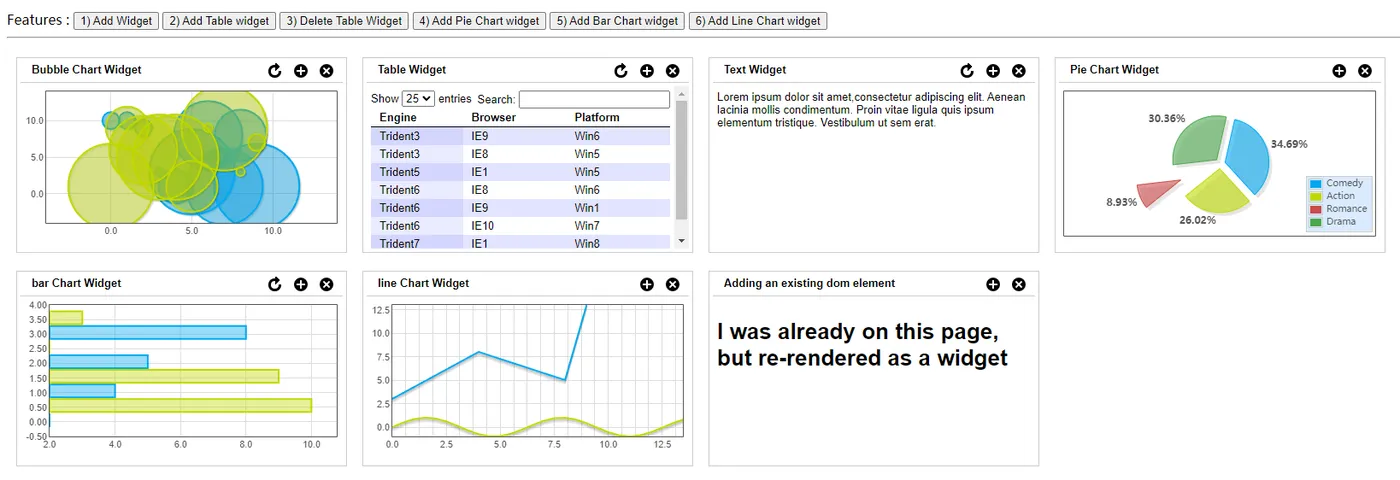

sDashboard是一个简单、轻量级的jquery图表插件。

sDashboard能将对象数组转换为jQuery图表的插件。每个对象数组将被渲染成一张图表，并且这张图表是可以被拖动、放大和关闭的。

sDashboard支持了渲染DataTable和flotr2图。它也支持侦听事件如单击图表数据表行，单击并选择图表数据。

在线演示 下载

创建一个最基本的图表
在文件头部引入以下文件

<!-- load jquery ui css theme -->
<link type="text/css" href="css/jquery-ui.css" rel="stylesheet" />

<!-- load the sDashboard css -->
<link href="../sDashboard.css" rel="stylesheet">

<!-- load jquery library -->

<script src="libs/jquery/jquery-1.8.2.js" type="text/javascript"></script>

<!-- load jquery ui library -->
<script src="libs/jquery/jquery-ui.js" type="text/javascript"></script>

<!-- load datatables library -->
<script src="libs/datatables/jquery.dataTables.js"></script>

<!-- load flot charting library -->
<script src="libs/float/jquery.flotr2.min.js" type="text/javascript"></script>

<!-- load sDashboard library -->
<script src="../jquery-sDashboard.js" type="text/javascript"></script>

调用插件

$(function(){

    var randomString = "Lorem ipsum dolor sit amet,consectetur adipiscing elit. Aenean lacinia mollis condimentum. Proin vitae ligula quis ipsum elementum tristique. Vestibulum ut sem erat.";
    //dashboard json data
    //this is the data format that the dashboard framework expects
    //**********************************************//

    var dashboardJSON = [{

      widgetTitle : "Bubble Chart Widget",
      widgetId : "id009",
      widgetType : "chart",
      enableRefresh: true,
      refreshCallBack : function(widgetId){

        var refreshedData = {

          data : myExampleData.constructBubbleChartData(),
          options : myExampleData.bubbleChartOptions
        };
        return refreshedData;
      },
      widgetContent : {

        data : myExampleData.bubbleChartData,
        options : myExampleData.bubbleChartOptions
      }

    }, {

      widgetTitle : "Table Widget",
      widgetId : "id3",
      widgetType : "table",
      enableRefresh : true,
      refreshCallBack : function(widgetData){

        return {

        "aaData" : [myExampleData.constructTableWidgetData(),

              myExampleData.constructTableWidgetData(),
              myExampleData.constructTableWidgetData(),
              myExampleData.constructTableWidgetData(),
              myExampleData.constructTableWidgetData(),
              myExampleData.constructTableWidgetData(),
              myExampleData.constructTableWidgetData()
              ],

              "aoColumns" : [{

              "sTitle" : "Engine"
              }, {

              "sTitle" : "Browser"
              }, {

              "sTitle" : "Platform"
              }]
            };
      },
      widgetContent : myExampleData.tableWidgetData
    }, {

      widgetTitle : "Text Widget",
      widgetId : "id2",
      enableRefresh : true,
      refreshCallBack : function(widgetId){

        return randomString + new Date();
      },

      widgetContent : randomString
    }, {

      widgetTitle : "Pie Chart Widget",
      widgetId : "id001",
      widgetType : "chart",
      widgetContent : {

        data : myExampleData.pieChartData,
        options : myExampleData.pieChartOptions
      }

    }, {

      widgetTitle : "bar Chart Widget",
      widgetId : "id002",
      widgetType : "chart",
      enableRefresh: true,
      refreshCallBack : function(widgetId){

        var refreshedData = {

          data : myExampleData.constructBarChartData(),
          options : myExampleData.barChartOptions
        };
        return refreshedData;
      },
      widgetContent : {

        data : myExampleData.barChartData,
        options : myExampleData.barChartOptions

      }

    }, {

      widgetTitle : "line Chart Widget",
      widgetId : "id003",
      widgetType : "chart",
      getDataBySelection : true,
      widgetContent : {

        data : myExampleData.lineChartData,
        options : myExampleData.lineChartOptions
      }

    }, {

      widgetTitle : "Adding an existing dom element",
      widgetId : "tweet123",
      widgetContent : $("#myTweets")
    }];
    //basic initialization example
    $("#myDashboard").sDashboard({

      dashboardData : dashboardJSON
    });
  });
