介绍
在面试和实际问题中，常常会遇到各种行列转换，例如数据根据分隔符一行变多行、数据一列变多列和多列变一列，下面来给大家介绍在Mysql中如何处理这些场景。
1.准备测试数据
create table dwd.fact_suject_data ( student_id int null comment '编号', subject_level varchar(255) null comment '科目等级', subject_level_json varchar(255) null comment '科目等级json数据' ); insert into dwd.fact_suject_data(student_id, subject_level,subject_level_json) values (12,'China E,English D,Math E','{"China": "E","English": "D","Math": "E"}'); insert into dwd.fact_suject_data(student_id, subject_level,subject_level_json) values (2,'China B,English B','{"China": "B","English": "B"}'); insert into dwd.fact_suject_data(student_id, subject_level,subject_level_json) values (3,'English A,Math C','{"English": "A","Math": "C"}'); insert into dwd.fact_suject_data(student_id, subject_level,subject_level_json) values (4,'China C,Math A','{"China": "C","Math": "A"}'); insert into dwd.fact_suject_data(student_id, subject_level,subject_level_json) values (5,'China D,English A,Math C','{"China": "D","English": "A","Math": "C"}'); insert into dwd.fact_suject_data(student_id, subject_level,subject_level_json) values (6,'China C,English A,Math D','{"China": "C","English": "A","Math": "D"}'); insert into dwd.fact_suject_data(student_id, subject_level,subject_level_json) values (7,'China A,English E,Math B','{"China": "A","English": "E","Math": "B"}'); insert into dwd.fact_suject_data(student_id, subject_level,subject_level_json) values (8,'China D,English E,Math E','{"China": "D","English": "E","Math": "E"}'); insert into dwd.fact_suject_data(student_id, subject_level,subject_level_json) values (9,'China C,English E,Math C','{"China": "C","English": "E","Math": "C"}');
2.根据分隔符一行变多行

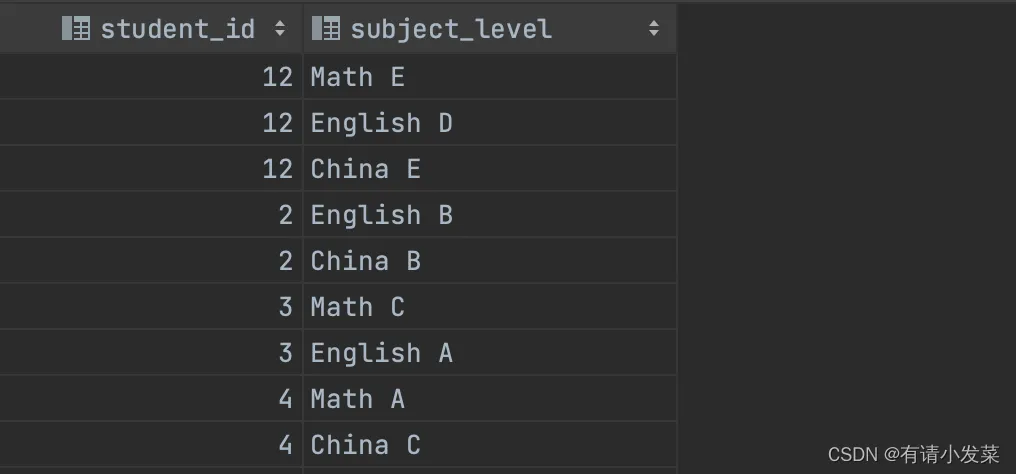

需求：我想要学生编号和科目等级两列，科目等级只展示单个科目等级。
方法一：使用mysql自带的表，用于切分字符串，注意help_topic_id是从0开始的
select t1.student_id, -- 根据 help_topic_id 对 subject_level 进行切分字符串 substring_index(substring_index(t1.subject_level, ',', t2.help_topic_id + 1), ',', - 1) subject_level from dwd.fact_suject_data t1 left join mysql.help_topic t2 on t2.help_topic_id <= length(t1.subject_level) - length(replace(t1.subject_level, ',', '')) ;
方法二：使用递归自己构造出自增id列（从1开始也可从0开始），用于切分字符串
with recursive cte(n) as (select 1 union all select n + 1 from cte where n < 100) -- 递归出需要的自增id表 select t1.student_id, -- 根据 n 对 subject_level 进行切分字符串 substring_index(substring_index(t1.subject_level, ',', t2.n), ',', -1) subject_level from dwd.fact_suject_data t1 left join cte t2 on t2.n <= (length(t1.subject_level) - length(replace(t1.subject_level, ',', '')) + 1) ;
两个方法的脚本，都是根据分隔符的总数量，依次构造出递增到总数量的数字，用于做substring_index()参数进行切割，除了以上两种方法，如果有其他表有这样递增且唯一的id，也可以进行借用。
3.一列变多列，简单分列

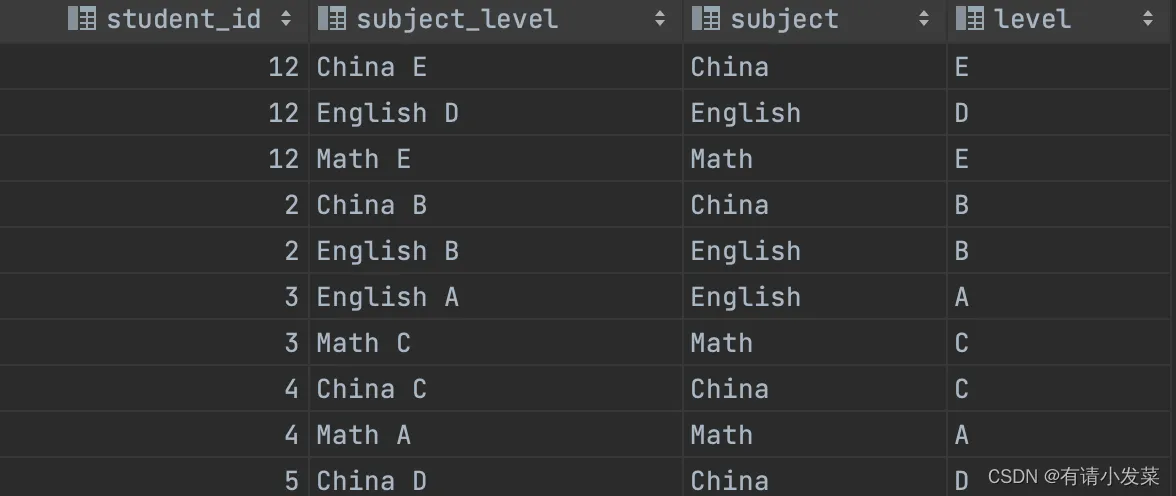

需求：我想要学生编号、科目和等级三列；
根据步骤2的结果，简单使用substring_index()切分就可以了；
select t1.student_id, -- 根据 help_topic_id 对 subject_level 进行切分字符串 substring_index(substring_index(t1.subject_level, ',', t2.help_topic_id + 1), ',', - 1) subject_level, substring_index(substring_index(substring_index(t1.subject_level, ',', t2.help_topic_id + 1), ',', - 1),' ',1) subject, substring_index(substring_index(substring_index(t1.subject_level, ',', t2.help_topic_id + 1), ',', - 1),' ',-1) level from dwd.fact_suject_data t1 left join mysql.help_topic t2 on t2.help_topic_id <= length(t1.subject_level) - length(replace(t1.subject_level, ',', '')) ;
需求：我想要学生编号和每科对应的数据，需要使用subject_level_json字段；
subject_level_json是常见的json数据类型，那么我们可以使用有关json的函数，下面介绍常用的几个，如果想要了解更多可点击Mysql官网查看和扩展；

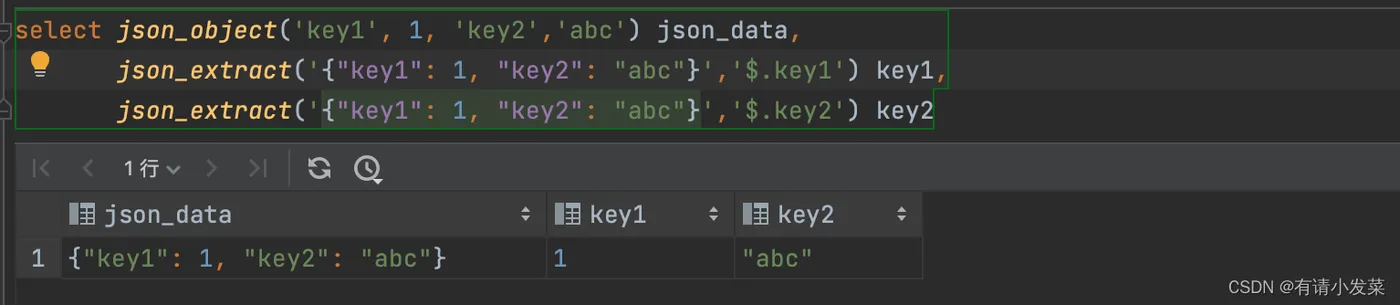

select json_object('key1', 1, 'key2','abc') json_data, json_extract('{"key1": 1, "key2": "abc"}','$.key1') key1, json_extract('{"key1": 1, "key2": "abc"}','$.key2') key2;
接下来直接引用，遇到数据类型不对的可以cast()转换，值多双引号的可replace()替换；

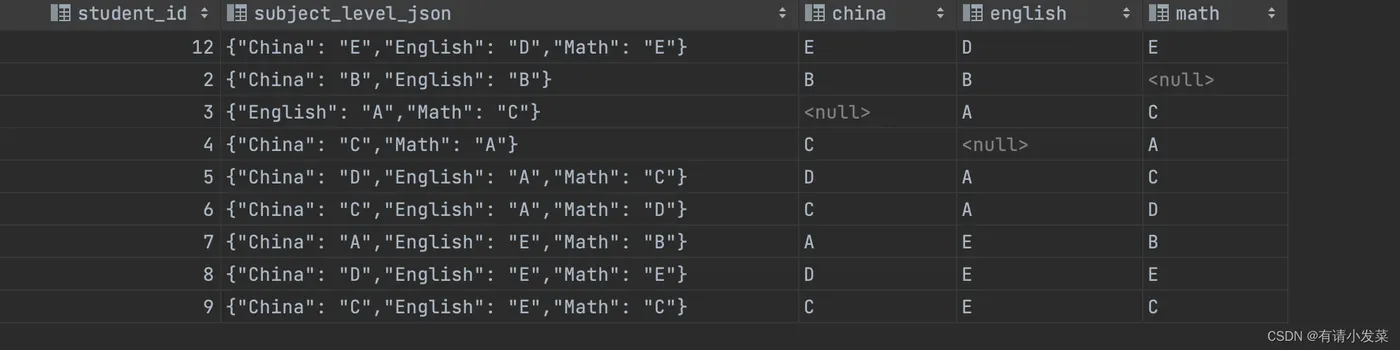

select student_id, subject_level_json, replace(cast(json_extract(cast(subject_level_json as json),'$.China') as char),'"','') china, replace(cast(json_extract(cast(subject_level_json as json),'$.English') as char),'"','') english, replace(cast(json_extract(cast(subject_level_json as json),'$.Math') as char),'"','') math from fact_suject_dat;
4.一列变多列，数据透视

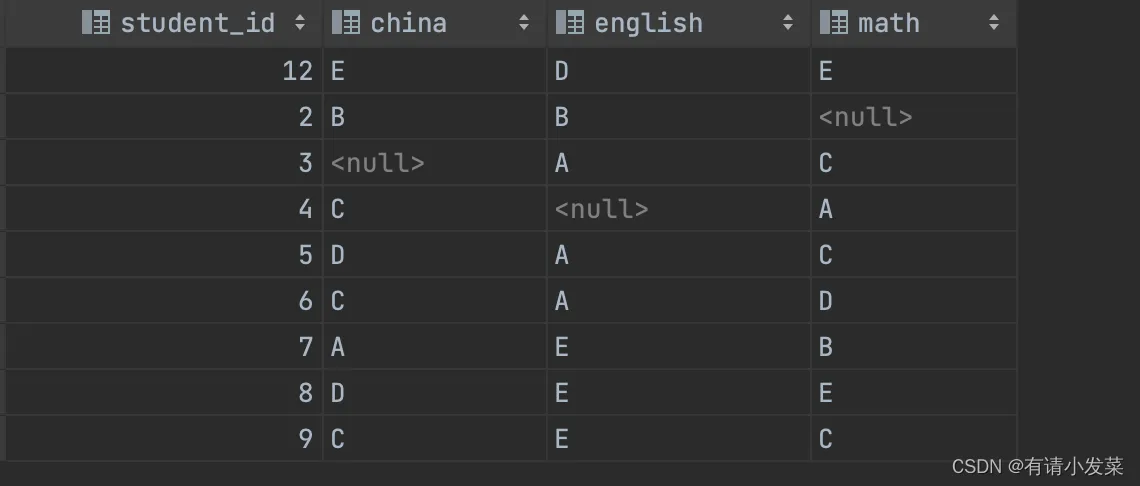

需求：我想要学生编号和每科对应的数据，不能使用使用subject_level_json字段；
根据步骤2分列后，进一步使用case when 就可直接转换了
select student_id, max(case when subject = 'China' then level else null end) china, max(case when subject = 'English' then level else null end) english, max(case when subject = 'Math' then level else null end) math from (select t1.student_id, -- 根据 help_topic_id 对 subject_level 进行切分字符串 substring_index(substring_index(t1.subject_level, ',', t2.help_topic_id + 1), ',', - 1) subject_level, substring_index(substring_index(substring_index(t1.subject_level, ',', t2.help_topic_id + 1), ',', - 1),' ',1) subject, substring_index(substring_index(substring_index(t1.subject_level, ',', t2.help_topic_id + 1), ',', - 1),' ',-1) level from dwd.fact_suject_data t1 left join mysql.help_topic t2 on t2.help_topic_id <= length(t1.subject_level) - length(replace(t1.subject_level, ',', ''))) t group by student_id ;
也可以subject_level字段，结合mid()或者substring()和case when进一步转换，如果对字符串函数不了解，点这里；
select student_id, max(case when subject_level like '%China%' then mid(subject_level ,(instr(subject_level,'China')+length('China')+1), 1) else null end) china, max(case when subject_level like '%English%' then mid(subject_level,(instr(subject_level,'English')+length('English')+1), 1) else null end) english, max(case when subject_level like '%Math%' then mid(subject_level ,(instr(subject_level,'Math')+length('Math')+1), 1) else null end) math from fact_suject_data group by student_i;
5.多列变一列
需求：我想要根据步骤4的结果，生成学生编号、科目和等级三列数据；
使用union all进行拼接就可以，如果是oracle的话可以用PIOVT功能。
select student_id, concat('China ',china) subject_level from (select student_id, max(case when subject_level like '%China%' then mid(subject_level ,(instr(subject_level,'China')+length('China')+1), 1) else null end) china, max(case when subject_level like '%English%' then mid(subject_level,(instr(subject_level,'English')+length('English')+1), 1) else null end) english, max(case when subject_level like '%Math%' then mid(subject_level ,(instr(subject_level,'Math')+length('Math')+1), 1) else null end) math from fact_suject_data group by student_id) t where china is not null union all select student_id, concat('English ',english) subject_level from (select student_id, max(case when subject_level like '%China%' then mid(subject_level ,(instr(subject_level,'China')+length('China')+1), 1) else null end) china, max(case when subject_level like '%English%' then mid(subject_level,(instr(subject_level,'English')+length('English')+1), 1) else null end) english, max(case when subject_level like '%Math%' then mid(subject_level ,(instr(subject_level,'Math')+length('Math')+1), 1) else null end) math from fact_suject_data group by student_id) t where english is not null union all select student_id, concat('Math ',math) subject_level from (select student_id, max(case when subject_level like '%China%' then mid(subject_level ,(instr(subject_level,'China')+length('China')+1), 1) else null end) china, max(case when subject_level like '%English%' then mid(subject_level,(instr(subject_level,'English')+length('English')+1), 1) else null end) english, max(case when subject_level like '%Math%' then mid(subject_level ,(instr(subject_level,'Math')+length('Math')+1), 1) else null end) math from fact_suject_data group by student_id) t where math is not null;
需要：我想要……
