更多ruoyi-nbcio功能请看演示系统
gitee源代码地址
前后端代码： https://gitee.com/nbacheng/ruoyi-nbcio
本节说明ruoyi-nbcio项目的formdesigner文件上传与回显处理，不过目前还只实现oss的formdesigner的文件上传与回显功能。
1、前端方面
formdesigner的upload.js组件修改如下：
/** * 上传组件 */ export let upload = { id:'', _id:'', compType: 'upload', ele: 'el-upload', //控件名称(左侧显示) compName:'附件', //图标 compIcon:'att', //展示表单的模式 viewType:'component', // 是否可配置 //暂时默认为true，无法更改，后期考虑某些时候无法配置 config: true, // 控件左侧label内容 showLabel:true, label: '附件上传', labelWidth: '80', //栅格间隔 gutter:15, //默认栅格 span:24, // 是否必填 required: false, //上传地址 action:'http://122.227.135.243:9060/common/upload', //多选上传 multiple:false, name:'file', //显示上传文件列表 'show-file-list':true, //文件列表类型 'list-type':'text', value:'', width:100, //按钮文字 buttonText:'请上传附件', //是否显示描述 showTip:false, //描述内容 tips:'点击按钮上传附件', //允许文件类型 accept:'.pdf, .doc, .docx, .xls, .xlsx, .gif, .png, .jpeg', //文件大小MB fileSize:10, headers:{"Authorization":"Bearer " + "token"},
原先detail.vue修改如下：
<template> <div class="app-container"> <el-tabs tab-position="top" v-model="activeName" :value="processed === true ? 'approval' : 'form'" @tab-click="changeTab"> <el-tab-pane label="任务办理" name="approval" v-if="processed === true"> <el-card class="box-card" shadow="hover" v-if="taskFormOpen"> <div slot="header" class="clearfix"> <span>填写表单</span> </div> <el-col :span="20" :offset="2"> <parser :form-conf="taskFormData" ref="taskFormParser"/> </el-col> </el-card> <el-card class="box-card" shadow="hover"> <div slot="header" class="clearfix"> <span>审批流程</span> </div> <el-row> <el-col :span="20" :offset="2"> <el-form ref="taskForm" :model="taskForm" :rules="rules" label-width="120px"> <el-form-item label="审批意见" prop="comment"> <el-input type="textarea" :rows="5" v-model="taskForm.comment" placeholder="请输入 审批意见" /> </el-form-item> <el-form-item label="抄送人" prop="copyUserIds"> <el-tag :key="index" v-for="(item, index) in copyUser" closable :disable-transitions="false" @close="handleClose('copy', item)"> {{ item.nickName }} </el-tag> <el-button class="button-new-tag" type="primary" icon="el-icon-plus" size="mini" circle @click="onSelectCopyUsers" /> </el-form-item> <el-form-item label="指定审批人" prop="copyUserIds"> <el-tag :key="index" v-for="(item, index) in nextUser" closable :disable-transitions="false" @close="handleClose('next', item)"> {{ item.nickName }} </el-tag> <el-button class="button-new-tag" type="primary" icon="el-icon-plus" size="mini" circle @click="onSelectNextUsers" /> </el-form-item> </el-form> </el-col> </el-row> <el-row :gutter="10" type="flex" justify="center" > <el-col :span="1.5"> <el-button icon="el-icon-circle-check" type="success" @click="handleComplete">通过</el-button> </el-col> <el-col :span="1.5"> <el-button icon="el-icon-chat-line-square" type="primary" @click="handleDelegate">委派</el-button> </el-col> <el-col :span="1.5"> <el-button icon="el-icon-thumb" type="success" @click="handleTransfer">转办</el-button> </el-col> <el-col :span="1.5"> <el-button icon="el-icon-refresh-left" type="warning" @click="handleReturn">退回</el-button> </el-col> <el-col :span="1.5"> <el-button icon="el-icon-circle-close" type="danger" @click="handleReject">拒绝</el-button> </el-col> </el-row> </el-card> </el-tab-pane> <el-tab-pane label="表单信息" name="form"> <div v-if="formOpen"> <el-card class="box-card" shadow="never" v-for="(formInfo, index) in formViewData" :key="index"> <!--<div slot="header" class="clearfix"> <span>{{ formInfo.title }}</span> </div>--> <!--流程处理表单模块--> <el-col :span="20" :offset="2"> <form-viewer ref="formViewer" v-model="formVal[index]" :buildData="formInfo" /> </el-col> </el-card> </div> <div style="margin-left:10%;margin-bottom: 30px"> <!--对上传文件进行显示处理，临时方案 add by nbacheng 2022-07-27 --> <el-upload action="#" :on-preview="handleFilePreview" :file-list="fileList" v-if="fileDisplay" /> </div> </el-tab-pane > <el-tab-pane label="流转记录" name="record"> <el-card class="box-card" shadow="never"> <el-col :span="20" :offset="2"> <div class="block"> <el-timeline> <el-timeline-item v-for="(item,index) in historyProcNodeList" :key="index" :icon="setIcon(item.endTime)" :color="setColor(item.endTime)"> <p style="font-weight: 700">{{ item.activityName }}</p> <el-card v-if="item.activityType === 'startEvent'" class="box-card" shadow="hover"> {{ item.assigneeName }} 在 {{ item.createTime }} 发起流程 </el-card> <el-card v-if="item.activityType === 'userTask'" class="box-card" shadow="hover"> <el-descriptions :column="5" :labelStyle="{'font-weight': 'bold'}"> <el-descriptions-item label="实际办理">{{ item.assigneeName || '-'}}</el-descriptions-item> <el-descriptions-item label="候选办理">{{ item.candidate || '-'}}</el-descriptions-item> <el-descriptions-item label="接收时间">{{ item.createTime || '-'}}</el-descriptions-item> <el-descriptions-item label="办结时间">{{ item.endTime || '-' }}</el-descriptions-item> <el-descriptions-item label="耗时">{{ item.duration || '-'}}</el-descriptions-item> </el-descriptions> <div v-if="item.commentList && item.commentList.length > 0"> <div v-for="(comment, index) in item.commentList" :key="index"> <el-divider content-position="left"> <el-tag :type="approveTypeTag(comment.type)" size="mini">{{ commentType(comment.type) }}</el-tag> <el-tag type="info" effect="plain" size="mini">{{ comment.time }}</el-tag> </el-divider> <span>{{ comment.fullMessage }}</span> </div> </div> </el-card> <el-card v-if="item.activityType === 'endEvent'" class="box-card" shadow="hover"> {{ item.createTime }} 结束流程 </el-card> </el-timeline-item> </el-timeline> </div> </el-col> </el-card> </el-tab-pane> <el-tab-pane label="流程跟踪" name="track"> <el-card class="box-card" shadow="never"> <process-viewer :key="`designer-${loadIndex}`" :style="'height:' + height" :xml="xmlData" :finishedInfo="finishedInfo" :allCommentList="historyProcNodeList" /> </el-card> </el-tab-pane> </el-tabs> <!--退回流程--> <el-dialog :title="returnTitle" :visible.sync="returnOpen" width="40%" append-to-body> <el-form ref="taskForm" :model="taskForm" label-width="80px" > <el-form-item label="退回节点" prop="targetKey"> <el-radio-group v-model="taskForm.targetKey"> <el-radio-button v-for="item in returnTaskList" :key="item.id" :label="item.id" >{{item.name}}</el-radio-button> </el-radio-group> </el-form-item> </el-form> <span slot="footer" class="dialog-footer"> <el-button @click="returnOpen = false">取 消</el-button> <el-button type="primary" @click="submitReturn">确 定</el-button> </span> </el-dialog> <el-dialog :title="userData.title" :visible.sync="userData.open" width="60%" append-to-body> <el-row type="flex" :gutter="20"> <!--部门数据--> <el-col :span="5"> <el-card shadow="never" style="height: 100%"> <div slot="header"> <span>部门列表</span> </div> <div class="head-container"> <el-input v-model="deptName" placeholder="请输入部门名称" clearable size="small" prefix-icon="el-icon-search"/> <el-tree :data="deptOptions" :props="deptProps" :expand-on-click-node="false" :filter-node-method="filterNode" ref="tree" default-expand-all @node-click="handleNodeClick" /> </div> </el-card> </el-col> <el-col :span="18"> <el-table ref="userTable" :key="userData.type" height="500" v-loading="userLoading" :data="userList" highlight-current-row @current-change="changeCurrentUser" @selection-change="handleSelectionChange"> <el-table-column v-if="userData.type === 'copy' || userData.type === 'next'" width="55" type="selection" /> <el-table-column v-else width="30"> <template slot-scope="scope"> <el-radio :label="scope.row.userId" v-model="currentUserId">{{''}}</el-radio> </template> </el-table-column> <el-table-column label="用户名" align="center" prop="nickName" /> <el-table-column label="手机" align="center" prop="phonenumber" /> <el-table-column label="部门" align="center" prop="dept.deptName" /> </el-table> <pagination :total="total" :page.sync="queryParams.pageNum" :limit.sync="queryParams.pageSize" @pagination="getList" /> </el-col> </el-row> <span slot="footer" class="dialog-footer"> <el-button @click="userData.open = false">取 消</el-button> <el-button type="primary" @click="submitUserData">确 定</el-button> </span> </el-dialog> </div> </template> <script> import { detailProcess } from '@/api/workflow/process' import Parser from '@/utils/generator/parser' import { complete, delegate, transfer, rejectTask, returnList, returnTask } from '@/api/workflow/task' import { selectUser, deptTreeSelect } from '@/api/system/user' import ProcessViewer from '@/components/ProcessViewer' import '@riophae/vue-treeselect/dist/vue-treeselect.css' import Treeselect from '@riophae/vue-treeselect' import formViewer from '@/components/formdesigner/components/formViewer' export default { name: "WorkDetail", components: { ProcessViewer, Parser, Treeselect, formViewer }, props: {}, computed: { commentType() { return val => { switch (val) { case '1': return '通过' case '2': return '退回' case '3': return '驳回' case '4': return '委派' case '5': return '转办' case '6': return '终止' case '7': return '撤回' } } }, approveTypeTag() { return val => { switch (val) { case '1': return 'success' case '2': return 'warning' case '3': return 'danger' case '4': return 'primary' case '5': return 'success' case '6': return 'danger' case '7': return 'info' } } } }, data() { return { height: document.documentElement.clientHeight - 205 + 'px;', // 模型xml数据 loadIndex: 0, xmlData: undefined, finishedInfo: { finishedSequenceFlowSet: [], finishedTaskSet: [], unfinishedTaskSet: [], rejectedTaskSet: [] }, historyProcNodeList: [], // 部门名称 deptName: undefined, // 部门树选项 deptOptions: undefined, userLoading: false, // 用户表格数据 userList: null, deptProps: { children: "children", label: "label" }, // 查询参数 queryParams: { pageNum: 1, pageSize: 10, deptId: undefined }, total: 0, // 遮罩层 loading: true, taskForm:{ comment:"", // 意见内容 procInsId: "", // 流程实例编号 taskId: "" ,// 流程任务编号 copyUserIds: "", // 抄送人Id vars: "", targetKey:"" }, rules: { comment: [{ required: true, message: '请输入审批意见', trigger: 'blur' }], }, currentUserId: null, variables: [], // 流程变量数据 taskFormOpen: false, taskFormData: {}, // 流程变量数据 processFormList: [], // 流程变量数据 formOpen: false, // 是否加载流程变量数据 returnTaskList: [], // 回退列表数据 processed: false, returnTitle: null, returnOpen: false, rejectOpen: false, rejectTitle: null, userData: { title: '', type: '', open: false, }, copyUser: [], nextUser: [], userMultipleSelection: [], userDialogTitle: '', userOpen: false, formVal:[], //formdesigner关联值 formViewData: [], //显示formdesigner的输入后提交的表单数据 fileDisplay: false, // formdesigner是否显示上传的文件控件 fileList: [], //表单设计器上传的文件列表 activeName:'', //获取当然tabname }; }, created() { this.initData(); }, mounted() { }, methods: { initData() { this.taskForm.procInsId = this.$route.params && this.$route.params.procInsId; this.taskForm.taskId = this.$route.query && this.$route.query.taskId; this.processed = this.$route.query && eval(this.$route.query.processed || false); // 流程任务重获取变量表单 this.getProcessDetails(this.taskForm.procInsId, this.taskForm.taskId); this.loadIndex = this.taskForm.procInsId; if(this.processed) { this.activeName = "approval"; } else { this.activeName = "form"; // 回填数据,这里主要是处理文件列表显示,临时解决，以后应该在formdesigner里完成 this.processFormList.forEach((item, i) => { if (item.hasOwnProperty('list')) { this.fillFormData(item.list, item) // 更新表单 this.key = +new Date().getTime() } }); } }, /** 查询部门下拉树结构 */ getTreeSelect() { deptTreeSelect().then(response => { this.deptOptions = response.data; }); }, /** 查询用户列表 */ getList() { this.userLoading = true; selectUser(this.addDateRange(this.queryParams, this.dateRange)).then(response => { this.userList = response.rows; this.total = response.total; this.toggleSelection(this.userMultipleSelection); this.userLoading = false; }); }, // 筛选节点 filterNode(value, data) { if (!value) return true; return data.label.indexOf(value) !== -1; }, changeTab(tab, event) { console.log("changeTab tab=",tab); if(tab.name === 'form') { console.log("changeTab this.processFormList=",this.processFormList); // 回填数据,这里主要是处理文件列表显示,临时解决，以后应该在formdesigner里完成 this.processFormList.forEach((item, i) => { if (item.hasOwnProperty('list')) { this.fillFormData(item.list, item) // 更新表单 this.key = +new Date().getTime() } }); } }, fillFormData(list, formConf) { // for formdesigner console.log("fillFormData list=",list); console.log("fillFormData formConf=",formConf); list.forEach((item, i) => { // 特殊处理el-upload，包括 回显图片 if(formConf.formValues[item.id] != '') { const val = formConf.formValues[item.id]; if (item.ele === 'el-upload') { console.log('fillFormData val=',val) if(item['list-type'] != 'text') {//图片 this.fileList = [] //隐藏加的el-upload文件列表 //item['file-list'] = JSON.parse(val) if(val != '') { item['file-list'] = JSON.parse(val) } } else { //列表 console.log("列表fillFormData val",val) this.fileList = JSON.parse(val) item['file-list'] = [] //隐藏加的表单设计器的文件列表 } // 回显图片 this.fileDisplay = true } } if (Array.isArray(item.columns)) { this.fillFormData(item.columns, formConf) } }) }, //点击文件列表中已上传文件进行下载 handleFilePreview(file) { location.href=file.url; }, // 节点单击事件 handleNodeClick(data) { this.queryParams.deptId = data.id; this.getList(); }, setIcon(val) { if (val) { return "el-icon-check"; } else { return "el-icon-time"; } }, setColor(val) { if (val) { return "#2bc418"; } else { return "#b3bdbb"; } }, // 多选框选中数据 handleSelectionChange(selection) { this.userMultipleSelection = selection }, toggleSelection(selection) { if (selection && selection.length > 0) { this.$nextTick(()=> { selection.forEach(item => { let row = this.userList.find(k => k.userId === item.userId); this.$refs.userTable.toggleRowSelection(row); }) }) } else { this.$nextTick(() => { this.$refs.userTable.clearSelection(); }); } }, // 关闭标签 handleClose(type, tag) { let userObj = this.userMultipleSelection.find(item => item.userId === tag.id); this.userMultipleSelection.splice(this.userMultipleSelection.indexOf(userObj), 1); if (type === 'copy') { this.copyUser = this.userMultipleSelection; // 设置抄送人ID if (this.copyUser && this.copyUser.length > 0) { const val = this.copyUser.map(item => item.id); this.taskForm.copyUserIds = val instanceof Array ? val.join(',') : val; } else { this.taskForm.copyUserIds = ''; } } else if (type === 'next') { this.nextUser = this.userMultipleSelection; // 设置抄送人ID if (this.nextUser && this.nextUser.length > 0) { const val = this.nextUser.map(item => item.id); this.taskForm.nextUserIds = val instanceof Array ? val.join(',') : val; } else { this.taskForm.nextUserIds = ''; } } }, /** 流程变量赋值 */ handleCheckChange(val) { if (val instanceof Array) { this.taskForm.values = { "approval": val.join(',') } } else { this.taskForm.values = { "approval": val } } }, getProcessDetails(procInsId, taskId) { const params = {procInsId: procInsId, taskId: taskId} detailProcess(params).then(res => { console.log("detailProcess res=",res); const data = res.data; this.xmlData = data.bpmnXml; this.processFormList = data.processFormList; this.processFormList.forEach((item, index) => { this.formVal[index] = JSON.stringify(item.formValues); this.formViewData[index] = JSON.stringify(item); }); this.taskFormOpen = data.existTaskForm; if (this.taskFormOpen) { this.taskFormData = data.taskFormData; } this.historyProcNodeList = data.historyProcNodeList; this.finishedInfo = data.flowViewer; this.formOpen = true }) }, onSelectCopyUsers() { this.userMultipleSelection = this.copyUser; this.onSelectUsers('添加抄送人', 'copy') }, onSelectNextUsers() { this.userMultipleSelection = this.nextUser; this.onSelectUsers('指定审批人', 'next') }, onSelectUsers(title, type) { this.userData.title = title; this.userData.type = type; this.getTreeSelect(); this.getList() this.userData.open = true; }, /** 通过任务 */ handleComplete() { // 校验表单 const taskFormRef = this.$refs.taskFormParser; const isExistTaskForm = taskFormRef !== undefined; // 若无任务表单，则 taskFormPromise 为 true，即不需要校验 const taskFormPromise = !isExistTaskForm ? true : new Promise((resolve, reject) => { taskFormRef.$refs[taskFormRef.formConfCopy.formRef].validate(valid => { valid ? resolve() : reject() }) }); const approvalPromise = new Promise((resolve, reject) => { this.$refs['taskForm'].validate(valid => { valid ? resolve() : reject() }) }); Promise.all([taskFormPromise, approvalPromise]).then(() => { if (isExistTaskForm) { this.taskForm.variables = taskFormRef[taskFormRef.formConfCopy.formModel] } complete(this.taskForm).then(response => { this.$modal.msgSuccess(response.msg); this.goBack(); }); }) }, /** 委派任务 */ handleDelegate() { this.$refs["taskForm"].validate(valid => { if (valid) { this.userData.type = 'delegate'; this.userData.title = '委派任务' this.userData.open = true; this.getTreeSelect(); } }) }, /** 转办任务 */ handleTransfer(){ this.$refs["taskForm"].validate(valid => { if (valid) { this.userData.type = 'transfer'; this.userData.title = '转办任务'; this.userData.open = true; this.getTreeSelect(); } }) }, /** 拒绝任务 */ handleReject() { this.$refs["taskForm"].validate(valid => { if (valid) { const _this = this; this.$modal.confirm('拒绝审批单流程会终止，是否继续？').then(function() { return rejectTask(_this.taskForm); }).then(res => { this.$modal.msgSuccess(res.msg); this.goBack(); }); } }); }, changeCurrentUser(val) { this.currentUserId = val.userId }, /** 返回页面 */ goBack() { // 关闭当前标签页并返回上个页面 this.$tab.closePage(this.$route) this.$router.back() }, /** 接收子组件传的值 */ getData(data) { if (data) { const variables = []; data.fields.forEach(item => { let variableData = {}; variableData.label = item.__config__.label // 表单值为多个选项时 if (item.__config__.defaultValue instanceof Array) { const array = []; item.__config__.defaultValue.forEach(val => { array.push(val) }) variableData.val = array; } else { variableData.val = item.__config__.defaultValue } variables.push(variableData) }) this.variables = variables; } }, submitUserData() { let type = this.userData.type; if (type === 'copy' || type === 'next') { if (!this.userMultipleSelection || this.userMultipleSelection.length <= 0) { this.$modal.msgError("请选择用户"); return false; } let userIds = this.userMultipleSelection.map(k => k.userId); if (type === 'copy') { // 设置抄送人ID信息 this.copyUser = this.userMultipleSelection; this.taskForm.copyUserIds = userIds instanceof Array ? userIds.join(',') : userIds; } else if (type === 'next') { // 设置下一级审批人ID信息 this.nextUser = this.userMultipleSelection; this.taskForm.nextUserIds = userIds instanceof Array ? userIds.join(',') : userIds; } this.userData.open = false; } else { if (!this.taskForm.comment) { this.$modal.msgError("请输入审批意见"); return false; } if (!this.currentUserId) { this.$modal.msgError("请选择用户"); return false; } this.taskForm.userId = this.currentUserId; if (type === 'delegate') { delegate(this.taskForm).then(res => { this.$modal.msgSuccess(res.msg); this.goBack(); }); } if (type === 'transfer') { transfer(this.taskForm).then(res => { this.$modal.msgSuccess(res.msg); this.goBack(); }); } } }, /** 可退回任务列表 */ handleReturn() { this.$refs['taskForm'].validate(valid => { if (valid) { this.returnTitle = "退回流程"; returnList(this.taskForm).then(res => { this.returnTaskList = res.data; this.taskForm.values = null; this.returnOpen = true; }) } }); }, /** 提交退回任务 */ submitReturn() { this.$refs["taskForm"].validate(valid => { if (valid) { if (!this.taskForm.targetKey) { this.$modal.msgError("请选择退回节点！"); } returnTask(this.taskForm).then(res => { this.$modal.msgSuccess(res.msg); this.goBack() }); } }); } } }; </script> <style lang="scss" scoped> .clearfix:before, .clearfix:after { display: table; content: ""; } .clearfix:after { clear: both } .box-card { width: 100%; margin-bottom: 20px; } .el-tag + .el-tag { margin-left: 10px; } .el-row { margin-bottom: 20px; &:last-child { margin-bottom: 0; } } .el-col { border-radius: 4px; } .button-new-tag { margin-left: 10px; } </style>
2、后端
单个上传文件修改如下：
/** * 通用上传请求（单个） */ @PostMapping("/upload") @ResponseBody public R<Map<String, String>> uploadFile(MultipartFile file) throws Exception { try { if(Constants.UPLOAD_TYPE_LOCAL.equals(uploadtype)) { // 上传文件路径 String filePath = RuoYiConfig.getUploadPath(); // 上传并返回新文件名称 String fileName = FileUploadUtils.upload(filePath, file); String url = serverConfig.getUrl() + fileName; Map<String, String> map = new HashMap<>(4); map.put("url", url); map.put("fileName", fileName); map.put("newFileName", FileUtils.getName(fileName)); map.put("originalFilename", file.getOriginalFilename()); return R.ok(map); } else { SysOssVo oss = iSysOssService.upload(file); Map<String, String> map = new HashMap<>(3); map.put("url", oss.getUrl()); map.put("fileName", oss.getOriginalName()); map.put("ossId", oss.getOssId().toString()); return R.ok(map); } } catch (Exception e) { return R.fail(e.getMessage()); } }

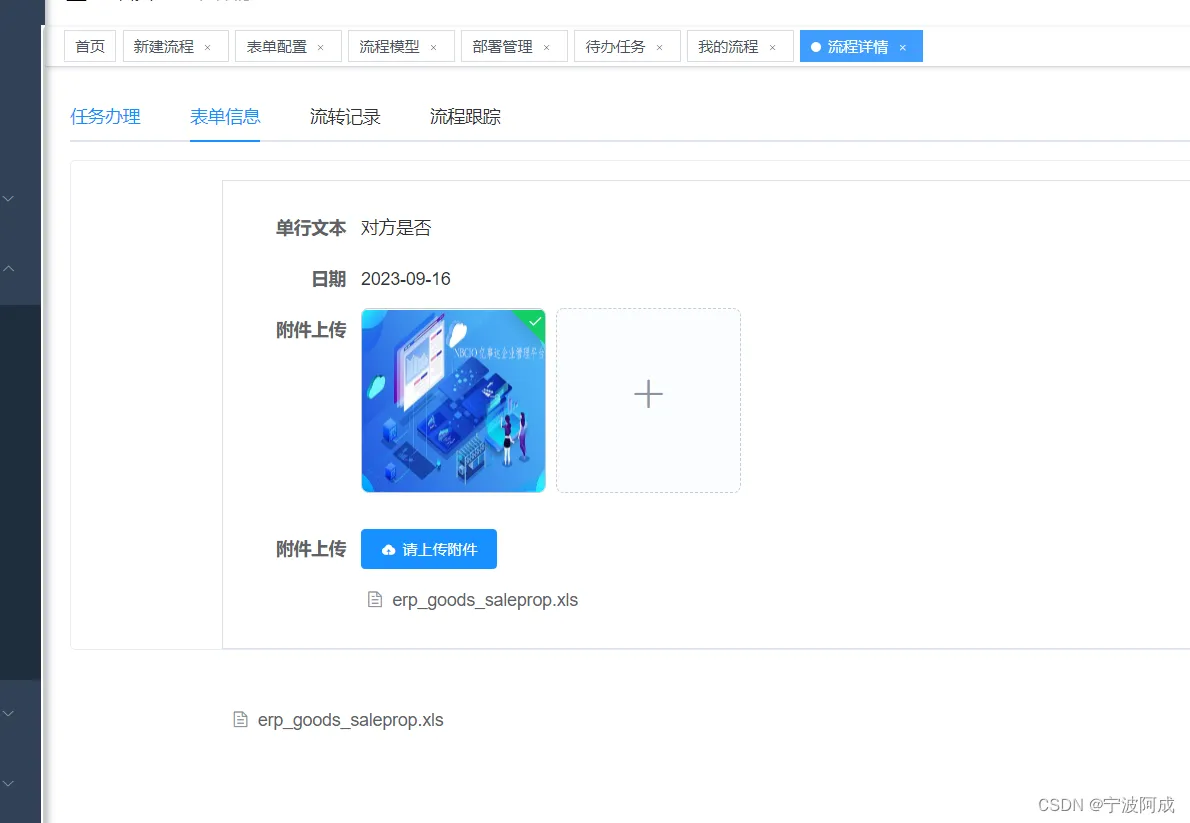

3、效果图
