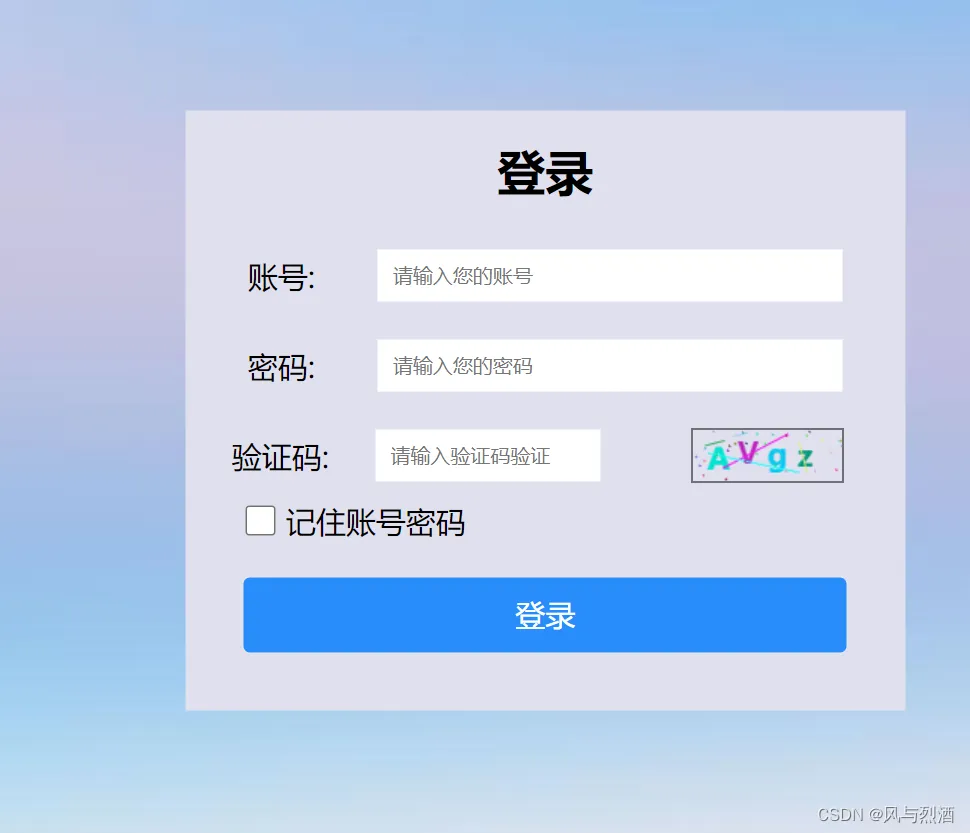

JS生成登录验证码

<div class="box_b">
    <img src="./img/0775639c-c82c-4a29-937f-d2a3bae5151a.png" alt="">
    <div class="register">
    <h1>登录</h1>
    <div class="register_r">
      <span>账号:</span>
      <input type="text" placeholder="请输入您的账号">
    </div>
    <div class="register_r">
      <span>密码:</span>
      <input type="password" placeholder="请输入您的密码" >
    </div>
    <div class="register_e">
      <span>验证码:</span>
      <input type="text" placeholder="请输入验证码验证" id="verification">
      <canvas id="c1" width="100" height="35" style="border:1px solid black"></canvas>
    </div>
    <div class="register_g">
      <input type="checkbox">
      <span>记住账号密码</span>
    </div>
    <button class="register_i">登录</button>
    </div>
  </div>

.box_b {
  width: 100%;
  height: 450px;
  position: absolute;
  top: 50%;
  left: 50%;
  transform: translate(-50%, -50%);
  display: flex;
  justify-content: space-around;
}
.box_b img {
  width: 500px;
  height: 550px;
}
.register {
  width: 480px;
  height: 400px;
  background-color: #E0E0EF;
  margin-top: 50px;
}
.register h1 {
  text-align: center;
  line-height: 80px;
}
.register span {
  font-size: 20px;
}
.register_r {
  width: 100%;
  display: flex;
  justify-content: space-evenly;
  line-height: 60px;
  text-align: center;
  align-items: center;
}
.register_r input {
  width: 300px;
  height: 35px;
  outline: none;
  padding-left: 10px;
  border: none;
}
.register_e {
  width: 100%;
  display: flex;
  justify-content: space-evenly;
  line-height: 60px;
  text-align: center;
  align-items: center;
}
.register_e input {
  width: 140px;
  height: 35px;
  outline: none;
  padding-left: 10px;
  border: none;
  margin-right: 30px;
}
.register_g {
  display: flex;
  align-items: center;
  margin-left: 40px;
}
.register_g input {
  width: 20px;
  height: 20px;
  margin-right: 7px;
}
.register_i {
  background-color: #298DFB;
  width: 84%;
  line-height: 50px;
  color: #fff;
  margin-top: 5%;
  border-radius: 5px;
  text-align: center;
  margin-left: 8%;
  border: 1px #E4E7ED ridge;
  font-size: 20px;
  cursor: pointer;
}
#c1 {
  vertical-align: middle;
  box-sizing: border-box;
  cursor: pointer;
  margin-right: 10px;
}

$(function() {
  // 存放随机的验证码
  var showNum = []
  draw(showNum)
  $("#c1").click(function() {
  draw(showNum)
  })
  $(".register_i").click(function() {
  var s = $("#verification").val().toLowerCase()
  var s1 = showNum.join("")
  if (s == s1) {
    alert("提交成功")
  } else {
    alert("验证码错误")
  }
  draw(showNum)
  })
  // 封装一个把随机验证码放在画布上
  function draw(showNum) {
  // 获取canvas
  var canvas = $("#c1")
  var ctx = canvas[0].getContext("2d")
  // 获取画布的宽高
  var canvas_width = canvas.width()
  var canvas_height = canvas.height()
  //  清空之前绘制的内容
  // 0,0清空的起始坐标
  // 矩形的宽高
  ctx.clearRect(0, 0, canvas_width, canvas_height)
  // 开始绘制
  var scode =
    "a,b,c,d,e,f,g,h,i,j,k,l,m,n,o,p,q,r,s,t,u,v,w,x,y,z,A,B,C,D,E,F,G,H,I,J,K,L,M,N,O,P,Q,R,S,T,U,V,W,X,Y,Z,1,2,3,4,5,6,7,8,9,"
  var arrCode = scode.split(",")
  var arrLength = arrCode.length
  for (var i = 0; i < 4; i++) {
    var index = Math.floor(Math.random() * arrCode.length)
    var txt = arrCode[index] //随机一个字符
    showNum[i] = txt.toLowerCase() //转化为小写存入验证码数组
    // 开始控制字符的绘制位置
    var x = 10 + 20 * i //每一个验证码绘制的起始点x坐标
    var y = 20 + Math.random() * 8 // 起始点y坐标
    ctx.font = "bold 20px 微软雅黑"
    // 开始旋转字符
    var deg = Math.random * -0.5
    // canvas 要实现绘制内容具有倾斜的效果，必须先平移，目的是把旋转点移动到绘制内容的地方
    ctx.translate(x, y)
    ctx.rotate(deg)
    // 设置绘制的随机颜色
    ctx.fillStyle = randomColor()
    ctx.fillText(txt, 0, 0)
    // 把canvas复原
    ctx.rotate(-deg)
    ctx.translate(-x, -y)
  }
  for (var i = 0; i < 30; i++) {
    if (i < 5) {
    // 绘制线
    ctx.strokeStyle = randomColor()
    ctx.beginPath()
    ctx.moveTo(Math.random() * canvas_width, Math.random() * canvas_height)
    ctx.lineTo(Math.random() * canvas_width, Math.random() * canvas_height)
    ctx.stroke()
    }
    // 绘制点
    ctx.strokeStyle = randomColor()
    ctx.beginPath()
    var x = Math.random() * canvas_width
    var y = Math.random() * canvas_height
    ctx.moveTo(x, y)
    ctx.lineTo(x + 1, y + 1)
    ctx.stroke()
  }
  }
  // 随机颜色
  function randomColor() {
  var r = Math.floor(Math.random() * 256)
  var g = Math.floor(Math.random() * 256)
  var b = Math.floor(Math.random() * 256)
  return `rgb(${r},${g},${b})`
  }
})
