1. Mybatis基础操作
学习完mybatis入门后,我们继续学习mybatis基础操作。
1.1 需求
需求说明

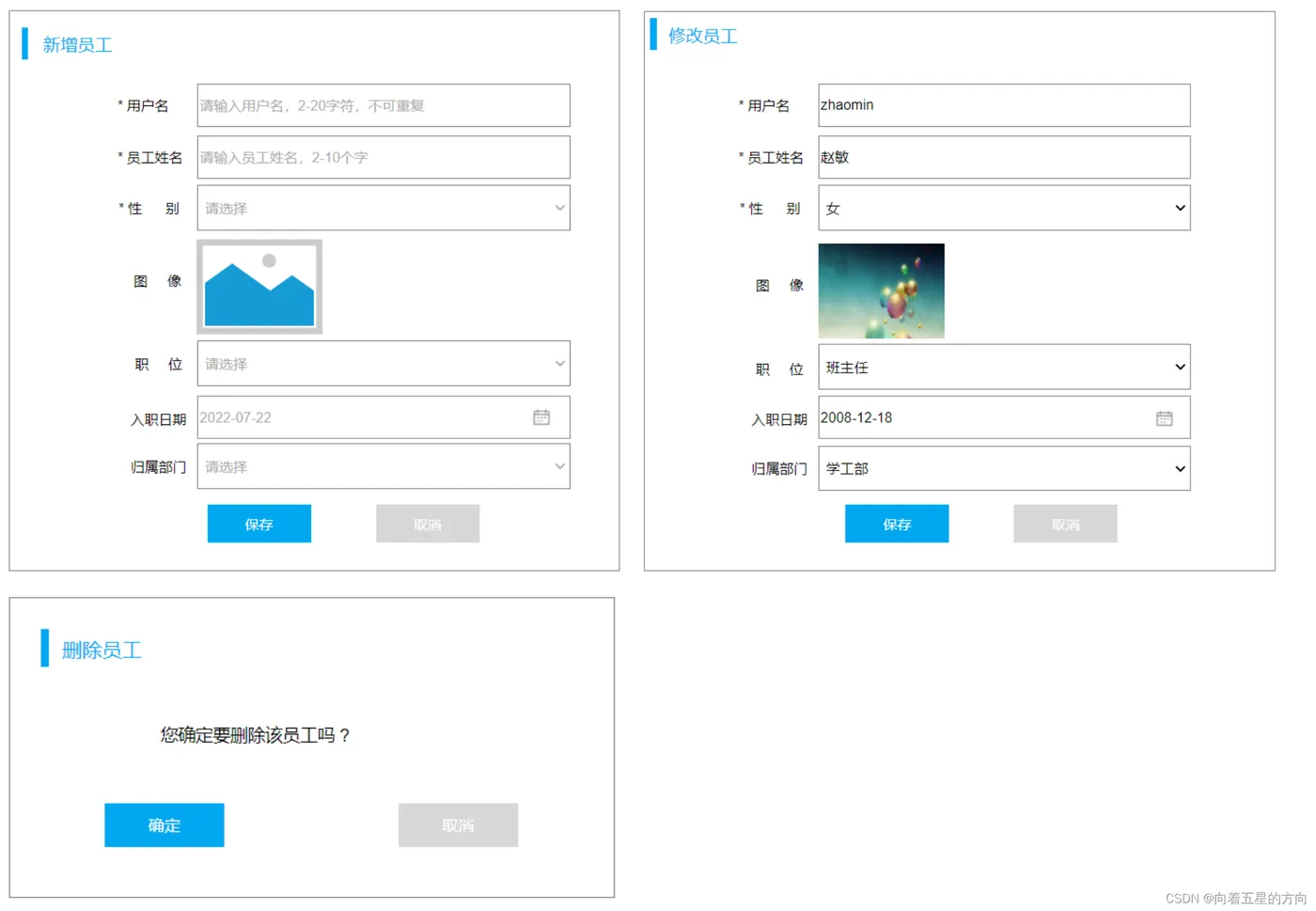

通过分析以上的页面原型和需求,我们确定了功能列表:
- 查询
- 根据主键ID查询
- 条件查询
- 新增
- 更新
- 删除
- 根据主键ID删除
- 根据主键ID批量删除
1.2 准备
实施前的准备工作:
- 准备数据库表
- 创建一个新的springboot工程,选择引入对应的起步依赖(mybatis、mysql驱动、lombok)
- application.properties中引入数据库连接信息
- 创建对应的实体类 Emp(实体类属性采用驼峰命名)
- 准备Mapper接口 EmpMapper
准备数据库表
-- 部门管理 create table dept ( id int unsigned primary key auto_increment comment '主键ID', name varchar(10) not null unique comment '部门名称', create_time datetime not null comment '创建时间', update_time datetime not null comment '修改时间' ) comment '部门表'; -- 部门表测试数据 insert into dept (id, name, create_time, update_time) values (1, '学工部', now(), now()), (2, '教研部', now(), now()), (3, '咨询部', now(), now()), (4, '就业部', now(), now()), (5, '人事部', now(), now()); -- 员工管理 create table emp ( id int unsigned primary key auto_increment comment 'ID', username varchar(20) not null unique comment '用户名', password varchar(32) default '123456' comment '密码', name varchar(10) not null comment '姓名', gender tinyint unsigned not null comment '性别, 说明: 1 男, 2 女', image varchar(300) comment '图像', job tinyint unsigned comment '职位, 说明: 1 班主任,2 讲师, 3 学工主管, 4 教研主管, 5 咨询师', entrydate date comment '入职时间', dept_id int unsigned comment '部门ID', create_time datetime not null comment '创建时间', update_time datetime not null comment '修改时间' ) comment '员工表'; -- 员工表测试数据 INSERT INTO emp (id, username, password, name, gender, image, job, entrydate, dept_id, create_time, update_time) VALUES (1, 'jinyong', '123456', '金庸', 1, '1.jpg', 4, '2000-01-01', 2, now(), now()), (2, 'zhangwuji', '123456', '张无忌', 1, '2.jpg', 2, '2015-01-01', 2, now(), now()), (3, 'yangxiao', '123456', '杨逍', 1, '3.jpg', 2, '2008-05-01', 2, now(), now()), (4, 'weiyixiao', '123456', '韦一笑', 1, '4.jpg', 2, '2007-01-01', 2, now(), now()), (5, 'changyuchun', '123456', '常遇春', 1, '5.jpg', 2, '2012-12-05', 2, now(), now()), (6, 'xiaozhao', '123456', '小昭', 2, '6.jpg', 3, '2013-09-05', 1, now(), now()), (7, 'jixiaofu', '123456', '纪晓芙', 2, '7.jpg', 1, '2005-08-01', 1, now(), now()), (8, 'zhouzhiruo', '123456', '周芷若', 2, '8.jpg', 1, '2014-11-09', 1, now(), now()), (9, 'dingminjun', '123456', '丁敏君', 2, '9.jpg', 1, '2011-03-11', 1, now(), now()), (10, 'zhaomin', '123456', '赵敏', 2, '10.jpg', 1, '2013-09-05', 1, now(), now()), (11, 'luzhangke', '123456', '鹿杖客', 1, '11.jpg', 5, '2007-02-01', 3, now(), now()), (12, 'hebiweng', '123456', '鹤笔翁', 1, '12.jpg', 5, '2008-08-18', 3, now(), now()), (13, 'fangdongbai', '123456', '方东白', 1, '13.jpg', 5, '2012-11-01', 3, now(), now()), (14, 'zhangsanfeng', '123456', '张三丰', 1, '14.jpg', 2, '2002-08-01', 2, now(), now()), (15, 'yulianzhou', '123456', '俞莲舟', 1, '15.jpg', 2, '2011-05-01', 2, now(), now()), (16, 'songyuanqiao', '123456', '宋远桥', 1, '16.jpg', 2, '2010-01-01', 2, now(), now()), (17, 'chenyouliang', '123456', '陈友谅', 1, '17.jpg', NULL, '2015-03-21', NULL, now(), now());

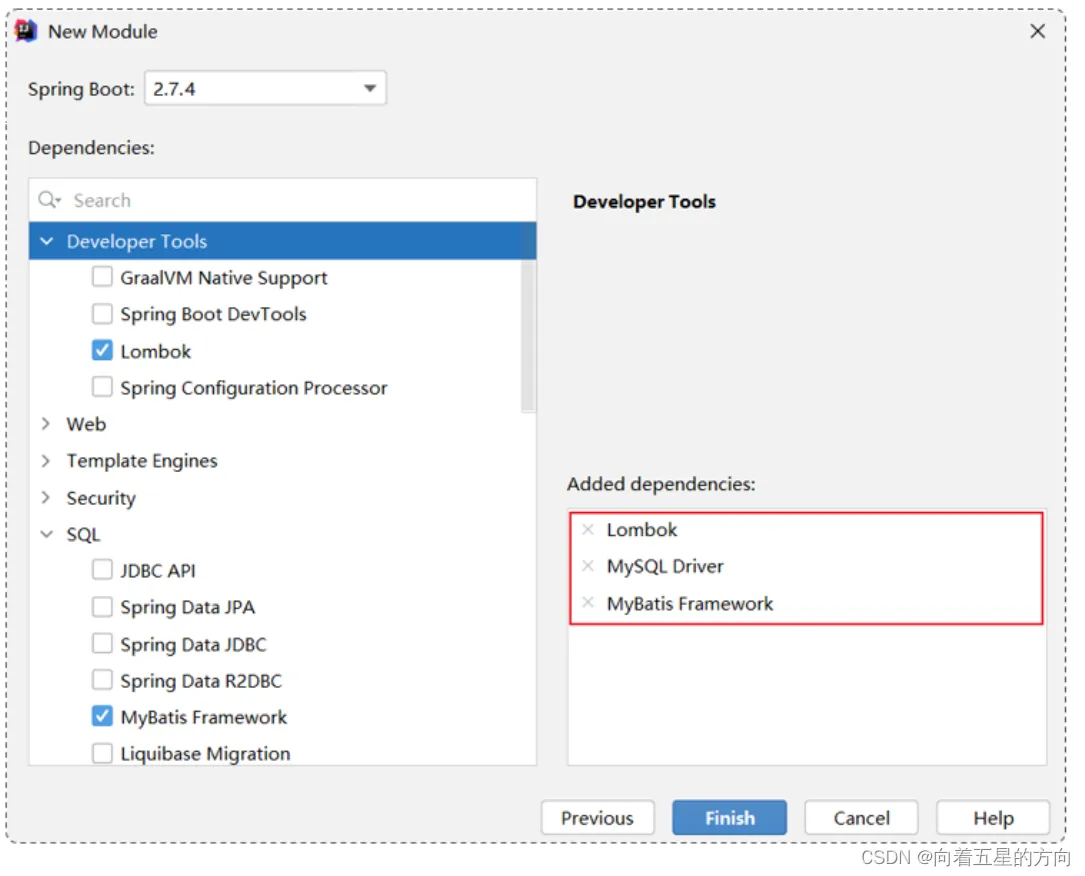

创建一个新的springboot工程,选择引入对应的起步依赖(mybatis、mysql驱动、lombok)
application.properties中引入数据库连接信息
提示:可以把之前项目中已有的配置信息复制过来即可
#驱动类名称 spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver #数据库连接的url spring.datasource.url=jdbc:mysql://localhost:3306/mybatis #连接数据库的用户名 spring.datasource.username=root #连接数据库的密码 spring.datasource.password=1234
创建对应的实体类Emp(实体类属性采用驼峰命名)
@Data @NoArgsConstructor @AllArgsConstructor public class Emp { private Integer id; private String username; private String password; private String name; private Short gender; private String image; private Short job; private LocalDate entrydate; //LocalDate类型对应数据表中的date类型 private Integer deptId; private LocalDateTime createTime;//LocalDateTime类型对应数据表中的datetime类型 private LocalDateTime updateTime; }
准备Mapper接口:EmpMapper
/*@Mapper注解:表示当前接口为mybatis中的Mapper接口 程序运行时会自动创建接口的实现类对象(代理对象),并交给Spring的IOC容器管理 */ @Mapper public interface EmpMapper { }

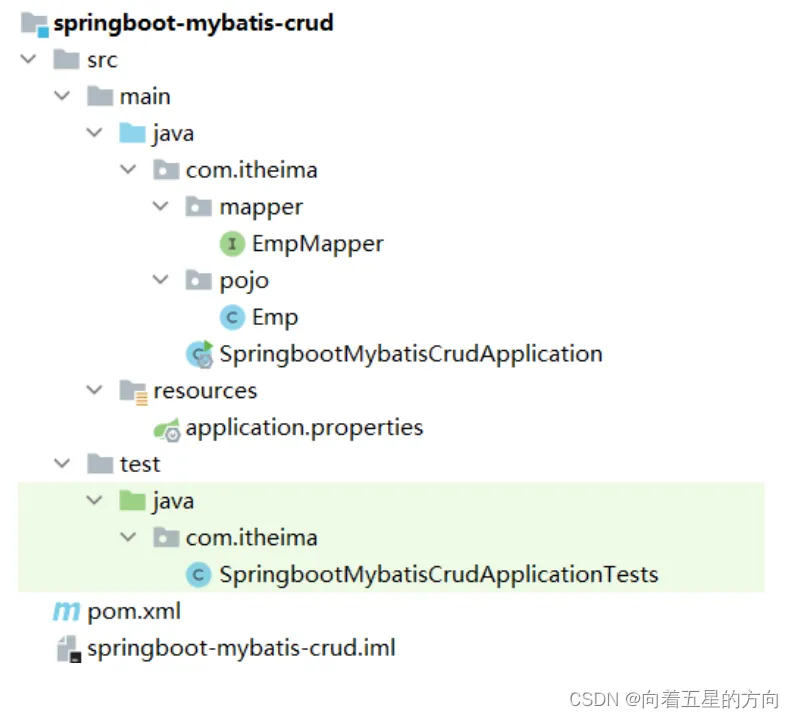

完成以上操作后,项目工程结构目录如下:
