简介: 【Dubbo3高级特性】「框架与服务」 Nacos作为注册中心-服务分组及服务分组聚合实现

Dubbo3的分组聚合能力调用机制

分组聚合主要时根据定义在类上面以及在方法上进行相关的调用处理,通过分组对结果进行聚合并返回聚合后的结果。

通过分组对结果进行聚合并返回聚合后的结果,比如菜单服务,用 group 区分同一接口的多种实现,现在消费方需从每种group中调用一次并返回结果,对结果进行合并之后返回,这样就可以实现聚合菜单项。

NACOS注册中心

properties文件

properties

复制代码

dubbo.application.name=nacos-registry-demo-consumer
dubbo.registry.address=nacos://${nacos.address:localhost}:8848?username=nacos&password=nacos

xml文件

xml

复制代码

<?xml version="1.0" encoding="UTF-8"?>
<!--
  ~
  ~   Licensed to the Apache Software Foundation (ASF) under one or more
  ~   contributor license agreements.  See the NOTICE file distributed with
  ~   this work for additional information regarding copyright ownership.
  ~   The ASF licenses this file to You under the Apache License, Version 2.0
  ~   (the "License"); you may not use this file except in compliance with
  ~   the License.  You may obtain a copy of the License at
  ~
  ~       http://www.apache.org/licenses/LICENSE-2.0
  ~
  ~   Unless required by applicable law or agreed to in writing, software
  ~   distributed under the License is distributed on an "AS IS" BASIS,
  ~   WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
  ~   See the License for the specific language governing permissions and
  ~   limitations under the License.
  ~
  -->
<beans xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:dubbo="http://dubbo.apache.org/schema/dubbo"
       xmlns="http://www.springframework.org/schema/beans" xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
       http://dubbo.apache.org/schema/dubbo http://dubbo.apache.org/schema/dubb
    <dubbo:application name="nacos-registry-demo-consumer/>
    <dubbo:registry address="nacos://${nacos.address:localhost}:8848?username=nacos&password=nacos"/>
</beans>

yaml文件

yaml

复制代码

dubbo:
  application:
  registry:
    address: nacos://${nacos.address:localhost}:8848?username=nacos&password=nacos

服务分组

主要通过使用服务分组区分服务接口的不同实现。

特性说明

同一个接口针对不同的业务场景、不同的使用需求或者不同的功能模块等场景,可使用服务分组来区分不同的实现方式。同时,这些不同实现所提供的服务是可并存的,也支持互相调用。

使用场景

当一个接口有多种实现时,可以用 group 区分。

实战案例

基础引入Maven依赖

xml

复制代码

<properties>
        <source.level>1.8</source.level>
        <target.level>1.8</target.level>
        <dubbo.version>3.0.2.1</dubbo.version>
        <spring.version>4.3.16.RELEASE</spring.version>
        <junit.version>4.12</junit.version>
        <maven-compiler-plugin.version>3.7.0</maven-compiler-plugin.version>
    </properties>
    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-framework-bom</artifactId>
                <version>${spring.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <dependency>
                <groupId>org.apache.dubbo</groupId>
                <artifactId>dubbo-bom</artifactId>
                <version>${dubbo.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <dependency>
                <groupId>org.apache.dubbo</groupId>
                <artifactId>dubbo-dependencies-zookeeper</artifactId>
                <version>${dubbo.version}</version>
                <type>pom</type>
            </dependency>
        </dependencies>
    </dependencyManagement>
<dependencies>
        <dependency>
            <groupId>org.apache.dubbo</groupId>
            <artifactId>dubbo</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.dubbo</groupId>
            <artifactId>dubbo-dependencies-zookeeper</artifactId>
            <type>pom</type>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>${junit.version}</version>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>
    <profiles>
        <!-- For jdk 11 above JavaEE annotation -->
        <profile>
            <id>javax.annotation</id>
            <activation>
                <jdk>[1.11,)</jdk>
            </activation>
            <dependencies>
                <dependency>
                    <groupId>javax.annotation</groupId>
                    <artifactId>javax.annotation-api</artifactId>
                    <version>1.3.2</version>
                </dependency>
            </dependencies>
        </profile>
    </profiles>
    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>${maven-compiler-plugin.version}</version>
                <configuration>
                    <source>${source.level}</source>
                    <target>${target.level}</target>
                </configuration>
            </plugin>
        </plugins>
    </build>

定义基础接口

java

复制代码

public interface GroupProcessServce {
    String execute(String parameter);
}

服务提供者annotation模式

使用 @DubboService 注解,添加 group 参数

实现实现类-Group1

java

复制代码

@DubboService(version = "1.0.0",group="g1")
public class Group1ExecuteProcess implements GroupProcessServce {
    @Override
    public String execute(String parameter) {
      // TODO 实现处理
    }
}

实现实现类-Group2

java

复制代码

@DubboService(version = "1.0.0",group="g2")
public class Group2ExecuteProcess implements GroupProcessServce {
    @Override
    public String execute(String parameter) {
      // TODO 实现处理
    }
}

####服务提供者 xml模式

使用 <dubbo:service /> 标签,添加 group 参数

xml

复制代码

<?xml version="1.0" encoding="UTF-8"?>
<!--
  ~
  ~   Licensed to the Apache Software Foundation (ASF) under one or more
  ~   contributor license agreements.  See the NOTICE file distributed with
  ~   this work for additional information regarding copyright ownership.
  ~   The ASF licenses this file to You under the Apache License, Version 2.0
  ~   (the "License"); you may not use this file except in compliance with
  ~   the License.  You may obtain a copy of the License at
  ~
  ~       http://www.apache.org/licenses/LICENSE-2.0
  ~
  ~   Unless required by applicable law or agreed to in writing, software
  ~   distributed under the License is distributed on an "AS IS" BASIS,
  ~   WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
  ~   See the License for the specific language governing permissions and
  ~   limitations under the License.
  ~
  -->
<beans xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:dubbo="http://dubbo.apache.org/schema/dubbo"
       xmlns="http://www.springframework.org/schema/beans" xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
       http://dubbo.apache.org/schema/dubbo http://dubbo.apache.org/schema/dubbo/dubbo.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd">
    <context:property-placeholder/>
    <dubbo:application name="group-server-provider"/>
    <dubbo:registry address="zookeeper://${zookeeper.address:127.0.0.1}:2181"/>
    <dubbo:provider token="true"/>
    <dubbo:protocol name="dubbo" port="20880"/>
    <bean id="group1Service" class="org.apache.dubbo.samples.group.impl.Group1ExecuteProcess"/>
    <bean id="group2Service" class="org.apache.dubbo.samples.group.impl.Group2ExecuteProcess"/>
    <dubbo:service id="groupADubboService" group="g1" interface="org.apache.dubbo.samples.group.api.GroupService"
                   ref="groupAService"/>
    <dubbo:service id="groupBDubboService" group="g2" interface="org.apache.dubbo.samples.group.api.GroupService"
                   ref="groupBService"/>
</beans>

服务消费者annotation模式

使用 @DubboReference 注解,添加 group 参数

java

复制代码

@DubboReference(group="g1")
    private GroupProcessService groupProcessServiceA;
  @DubboReference(group="g1")
    private GroupProcessService groupProcessServiceB;
  //group值为*,标识匹配任意服务分组
  @DubboReference(group = "*")
  private GroupProcessService groupProcessService;

服务消费者xml模式

使用 dubbo:reference/ 注解,添加 group 参数

xml

复制代码

<?xml version="1.0" encoding="UTF-8"?>
<!--
  ~
  ~   Licensed to the Apache Software Foundation (ASF) under one or more
  ~   contributor license agreements.  See the NOTICE file distributed with
  ~   this work for additional information regarding copyright ownership.
  ~   The ASF licenses this file to You under the Apache License, Version 2.0
  ~   (the "License"); you may not use this file except in compliance with
  ~   the License.  You may obtain a copy of the License at
  ~
  ~       http://www.apache.org/licenses/LICENSE-2.0
  ~
  ~   Unless required by applicable law or agreed to in writing, software
  ~   distributed under the License is distributed on an "AS IS" BASIS,
  ~   WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
  ~   See the License for the specific language governing permissions and
  ~   limitations under the License.
  ~
  -->
<beans xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:dubbo="http://dubbo.apache.org/schema/dubbo"
       xmlns="http://www.springframework.org/schema/beans" xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
       http://dubbo.apache.org/schema/dubbo http://dubbo.apache.org/schema/dubbo/dubbo.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd">
    <context:property-placeholder/>
    <dubbo:application name="demo-consumer"/>
    <dubbo:registry address="zookeeper://${zookeeper.address:127.0.0.1}:2181"/>
    <dubbo:reference group="g1" id="groupAService" check="false"
                     interface="org.apache.dubbo.samples.group.api.Group1ExecuteProcess"/>
    <dubbo:reference group="g2" id="groupBService" check="false"
                     interface="org.apache.dubbo.samples.group.api.Group1ExecuteProcess"/>
</beans>

服务提供端( API 配置)

使用 org.apache.dubbo.config.ServiceConfig 类,添加 group 参数

java

复制代码

// ServiceConfig为重对象,内部封装了与注册中心的连接,以及开启服务端口
// 请自行缓存,否则可能造成内存和连接泄漏
ServiceConfig<DemoService> service = new ServiceConfig<>();
service.setInterface(DemoService.class);
service.setGroup("demo");
...
ServiceConfig<DemoService> service2 = new ServiceConfig<>();
service.setInterface(DemoService.class);
service.setGroup("demo2");
...

启动 Dubbo 服务,可在注册中心看到相同服务名不同分组的服务,以 Nacos 作为注册中心为例,显示如下内容:

服务消费端( API 配置)

使用 org.apache.dubbo.config.ReferenceConfig,添加 group 参数

java

复制代码

// ReferenceConfig为重对象,内部封装了与注册中心的连接,以及开启服务端口
// 请自行缓存,否则可能造成内存和连接泄漏
ReferenceConfig<DemoService> reference = new ReferenceConfig<>();
reference.setInterface(DemoService.class);
reference.setGroup("demo");
...
ReferenceConfig<DemoService> reference2 = new ReferenceConfig<>();
reference2.setInterface(DemoService.class);
reference2.setGroup("demo2");
...
ReferenceConfig<DemoService> reference3 = new ReferenceConfig<>();
reference3.setInterface(DemoService.class);
reference3.setGroup("*");

启动 Dubbo 服务

启动 Dubbo 服务,可在注册中心看到相同服务名不同分组的服务,以 Nacos 作为注册中心为例,显示如下内容:

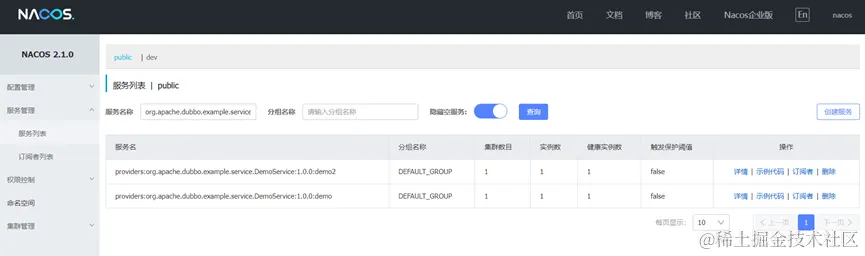

服务提供者

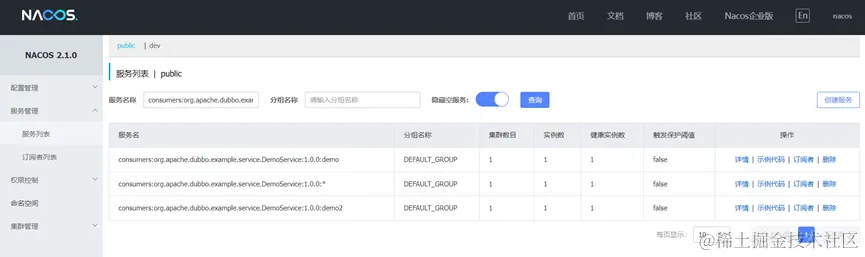

服务消费者

分组聚合

通过分组对结果进行聚合并返回聚合后的结果

特性说明

通过分组对结果进行聚合并返回聚合后的结果,比如菜单服务,用 group 区分同一接口的多种实现,现在消费方需从每种 group 中调用一次并返回结果,对结果进行合并之后返回,这样就可以实现聚合菜单项。

使用场景

服务分组和多版本

使用方式
搜索所有分组

xml

复制代码

<?xml version="1.0" encoding="UTF-8"?>
<!--
  ~ Licensed to the Apache Software Foundation (ASF) under one or more
  ~ contributor license agreements.  See the NOTICE file distributed with
  ~ this work for additional information regarding copyright ownership.
  ~ The ASF licenses this file to You under the Apache License, Version 2.0
  ~ (the "License"); you may not use this file except in compliance with
  ~ the License.  You may obtain a copy of the License at
  ~
  ~     http://www.apache.org/licenses/LICENSE-2.0
  ~
  ~ Unless required by applicable law or agreed to in writing, software
  ~ distributed under the License is distributed on an "AS IS" BASIS,
  ~ WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
  ~ See the License for the specific language governing permissions and
  ~ limitations under the License.
  -->
<beans xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:dubbo="http://dubbo.apache.org/schema/dubbo"
       xmlns="http://www.springframework.org/schema/beans" xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
       http://dubbo.apache.org/schema/dubbo http://dubbo.apache.org/schema/dubbo/dubbo.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd">
    <context:property-placeholder/>
    <dubbo:application name="merge-consumer"/>
    <dubbo:registry address="zookeeper://${zookeeper.address:127.0.0.1}:2181"/>
    <dubbo:reference id="mergeService" interface="org.apache.dubbo.samples.merge.api.MergeService"
                     group="*"/>
</beans>
合并指定分组

xml

复制代码

<?xml version="1.0" encoding="UTF-8"?>
<!--
  ~ Licensed to the Apache Software Foundation (ASF) under one or more
  ~ contributor license agreements.  See the NOTICE file distributed with
  ~ this work for additional information regarding copyright ownership.
  ~ The ASF licenses this file to You under the Apache License, Version 2.0
  ~ (the "License"); you may not use this file except in compliance with
  ~ the License.  You may obtain a copy of the License at
  ~
  ~     http://www.apache.org/licenses/LICENSE-2.0
  ~
  ~ Unless required by applicable law or agreed to in writing, software
  ~ distributed under the License is distributed on an "AS IS" BASIS,
  ~ WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
  ~ See the License for the specific language governing permissions and
  ~ limitations under the License.
  -->
<beans xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:dubbo="http://dubbo.apache.org/schema/dubbo"
       xmlns="http://www.springframework.org/schema/beans" xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
       http://dubbo.apache.org/schema/dubbo http://dubbo.apache.org/schema/dubbo/dubbo.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd">
    <context:property-placeholder/>
    <dubbo:application name="merge-consumer"/>
    <dubbo:registry address="zookeeper://${zookeeper.address:127.0.0.1}:2181"/>
    <dubbo:reference id="mergeService" interface="org.apache.dubbo.samples.merge.api.MergeService"
                     group="a,b"/>
</beans>
指定方法合并

指定方法合并结果,其它未指定的方法,将只调用一个 Group

xml

复制代码

<dubbo:reference interface="com.xxx.MenuService" group="*">
    <dubbo:method name="getMenuItems" merger="true" />
</dubbo:reference>
某个方法不合并

某个方法不合并结果,其它都合并结果

xml

复制代码

<dubbo:reference interface="com.xxx.MenuService" group="*" merger="true">
    <dubbo:method name="getMenuItems" merger="false" />
</dubbo:reference>
指定合并策略

指定合并策略,缺省根据返回值类型自动匹配,如果同一类型有两个合并器时,需指定合并器的名称 合并结果扩展

xml

复制代码

<dubbo:reference interface="com.xxx.MenuService" group="*">
    <dubbo:method name="getMenuItems" merger="mymerge" />
</dubbo:reference>
指定合并方法

指定合并方法,将调用返回结果的指定方法进行合并,合并方法的参数类型必须是返回结果类型本身

xml

复制代码

<dubbo:reference interface="com.xxx.MenuService" group="*">
    <dubbo:method name="getMenuItems" merger=".addAll" />
</dubbo:reference>


相关实践学习
基于MSE实现微服务的全链路灰度
通过本场景的实验操作,您将了解并实现在线业务的微服务全链路灰度能力。
相关文章
|
3月前
|
SpringCloudAlibaba 负载均衡 Dubbo
【SpringCloud Alibaba系列】Dubbo高级特性篇
本章我们介绍Dubbo的常用高级特性,包括序列化、地址缓存、超时与重试机制、多版本、负载均衡。集群容错、服务降级等。
【SpringCloud Alibaba系列】Dubbo高级特性篇
|
4月前
|
Dubbo Cloud Native 应用服务中间件
阿里云的 Dubbo 和 Nacos 深度整合,提供了高效的服务注册与发现、配置管理等关键功能,简化了微服务治理,提升了系统的灵活性和可靠性。
在云原生时代,微服务架构成为主流。阿里云的 Dubbo 和 Nacos 深度整合,提供了高效的服务注册与发现、配置管理等关键功能,简化了微服务治理,提升了系统的灵活性和可靠性。示例代码展示了如何在项目中实现两者的整合,通过 Nacos 动态调整服务状态和配置,适应多变的业务需求。
158 2
|
4月前
|
Dubbo Java 应用服务中间件
深入探讨了“dubbo+nacos+springboot3的native打包成功后运行出现异常”的原因及解决方案
本文深入探讨了“dubbo+nacos+springboot3的native打包成功后运行出现异常”的原因及解决方案。通过检查GraalVM版本兼容性、配置反射列表、使用代理类、检查配置文件、禁用不支持的功能、查看日志文件、使用GraalVM诊断工具和调整GraalVM配置等步骤,帮助开发者快速定位并解决问题,确保服务的正常运行。
113 1
|
5月前
|
Dubbo 应用服务中间件 Apache
Dubbo 应用切换 ZooKeeper 注册中心实例,流量无损迁移
如果 Dubbo 应用使用 ZooKeeper 作为注册中心,现在需要切换到新的 ZooKeeper 实例,如何做到流量无损?
65 4
|
4月前
|
数据管理 Nacos 开发者
"Nacos架构深度解析:一篇文章带你掌握业务层四大核心功能,服务注册、配置管理、元数据与健康检查一网打尽!"
【10月更文挑战第23天】Nacos 是一个用于服务注册发现和配置管理的平台,支持动态服务发现、配置管理、元数据管理和健康检查。其业务层包括服务注册与发现、配置管理、元数据管理和健康检查四大核心功能。通过示例代码展示了如何在业务层中使用Nacos,帮助开发者构建高可用、动态扩展的微服务生态系统。
203 0
|
4月前
|
SQL 关系型数据库 数据库连接
"Nacos 2.1.0版本数据库配置写入难题破解攻略:一步步教你排查连接、权限和配置问题,重启服务轻松解决!"
【10月更文挑战第23天】在使用Nacos 2.1.0版本时,可能会遇到无法将配置信息写入数据库的问题。本文将引导你逐步解决这一问题,包括检查数据库连接、用户权限、Nacos配置文件,并提供示例代码和详细步骤。通过这些方法,你可以有效解决配置写入失败的问题。
234 0
|
7月前
|
运维 Java Nacos
Spring Cloud应用框架:Nacos作为服务注册中心和配置中心
Spring Cloud应用框架:Nacos作为服务注册中心和配置中心
|
7月前
|
Kubernetes Nacos 微服务
【技术难题破解】Nacos v2.2.3 + K8s 微服务注册:强制删除 Pod 却不消失?!7步排查法+实战代码,手把手教你解决Nacos Pod僵死问题,让服务瞬间满血复活!
【8月更文挑战第15天】Nacos作为微服务注册与配置中心受到欢迎,但有时会遇到“v2.2.3 k8s 微服务注册nacos强制删除 pod不消失”的问题。本文介绍此现象及其解决方法,帮助开发者确保服务稳定运行。首先需检查Pod状态与事件、配置文件及Nacos配置,确认无误后可调整Pod生命周期管理,并检查Kubernetes版本兼容性。若问题持续,考虑使用Finalizers、审查Nacos日志或借助Kubernetes诊断工具。必要时,可尝试手动强制删除Pod。通过系统排查,通常能有效解决此问题。
165 0
|
7月前
|
Dubbo Java Nacos
【实战攻略】破解Dubbo+Nacos+Spring Boot 3 Native打包后运行异常的终极秘籍——从零开始彻底攻克那些让你头疼不已的技术难题!
【8月更文挑战第15天】Nacos作为微服务注册与配置中心受到欢迎,但使用Dubbo+Nacos+Spring Boot 3进行GraalVM native打包后常遇运行异常。本文剖析此问题及其解决策略:确认GraalVM版本兼容性;配置反射列表以支持必要类和方法;采用静态代理替代动态代理;检查并调整配置文件;禁用不支持的功能;利用日志和GraalVM诊断工具定位问题;根据诊断结果调整GraalVM配置。通过系统排查方法,能有效解决此类问题,确保服务稳定运行。
180 0
|
7月前
|
Java Nacos 开发工具
【Nacos】心跳断了怎么办?!8步排查法+实战代码,手把手教你解决Nacos客户端不发送心跳检测问题,让服务瞬间恢复活力!
【8月更文挑战第15天】Nacos是一款广受好评的微服务注册与配置中心。然而,“客户端不发送心跳检测”的问题时有发生,可能导致服务实例被视为离线。本文介绍如何排查此类问题:确认Nacos服务器地址配置正确;检查网络连通性;查看客户端日志;确保Nacos SDK版本兼容;调整心跳检测策略;验证服务实例注册状态;必要时重启应用;检查影响行为的环境变量。通过这些步骤,通常可定位并解决问题,保障服务稳定运行。
430 0
