一、实现功能

通过模拟 银行转账业务，来熟悉对mybatis的使用

二、环境搭建

1、引入依赖

<dependencies>
        <!--mybatis依赖-->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>3.5.10</version>
        </dependency>
        <!--数据库驱动-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>8.0.30</version>
        </dependency>
        <!--引入logback日志框架依赖，这个日志框架实现了slf4j规范-->
        <dependency>
            <groupId>ch.qos.logback</groupId>
            <artifactId>logback-classic</artifactId>
            <version>1.2.11</version>
        </dependency>
        <!--servlet依赖-->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <version>4.0.1</version>
        </dependency>
    </dependencies>

2、添加mybatis-config.xml核心配置文件

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
    <properties resource="jdbc.properties"/>
    <environments default="development">
        <environment id="development">
            <transactionManager type="JDBC"/>
            <dataSource type="POOLED">
                <property name="driver" value="${jdbc.driver}"/>
                <property name="url" value="${jdbc.url}"/>
                <property name="username" value="${jdbc.username}"/>
                <property name="password" value="${jdbc.password}"/>
            </dataSource>
        </environment>
    </environments>
    <mappers>
        <mapper resource="AccountMapper.xml"/>
    </mappers>
</configuration>

3、添加jdbc.properties文件

jdbc.driver=com.mysql.cj.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/powernode?useUnicode=true&amp;characterEncoding=utf-8
jdbc.username=root
jdbc.password=root

4、添加日志文件logback.xml

<?xml version="1.0" encoding="UTF-8"?>
<configuration debug="false">
    <appender name="STDOUT" class="ch.qos.logback.core.ConsoleAppender">
        <encoder class="ch.qos.logback.classic.encoder.PatternLayoutEncoder">
            <pattern>%d{HH:mm:ss.SSS} %contextName [%thread] %-5level %logger{36} - %msg%n
            </pattern>
        </encoder>
    </appender>
    <logger name="com.apache.ibatis" level="TRACE"/>
    <logger name="java.sql.Connection" level="DEBUG"/>
    <logger name="java.sql.Statement" level="DEBUG"/>
    <logger name="java.sql.PreparedStatement" level="DEBUG"/>
    <root level="DEBUG">
        <appender-ref ref="STDOUT" />
        <appender-ref ref="FILE" />
    </root>
</configuration>

5、添加AccountMapper.xml文件

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="account">
</mapper>

6、添加简单页面文件 index.html

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>银行转账</title>
</head>
<body>
<form action="/bank/transfer" method="post">
    转出账号：<input type="text" name="fromActno"><br>
    转入账号：<input type="text" name="toActno"><br>
    转账金额：<input type="text" name="money"><br>
    <input type="submit" value="转账"><br>
</form>
</body>
</html

7、增加工具类SqlSessionUtil

package com.powernode.bank.util;
import org.apache.ibatis.io.Resources;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;
import java.io.IOException;
public class SqlSessionUtil {
    private SqlSessionUtil(){};
    private static SqlSessionFactory sqlSessionFactory;
    static {
        try {
            sqlSessionFactory = new SqlSessionFactoryBuilder().build(Resources.getResourceAsStream("mybatis-config.xml"));
        } catch (IOException e) {
            e.printStackTrace();
        }
    }
    /**
     * 获取会话对象，
     * @return
     */
    public static SqlSession openSqlSession(){
        return sqlSessionFactory.openSession();
    }
}

8、增加实体类 Account

package com.powernode.bank.pojo;
public class Account {
    private Long id ;
    private String actno;
    private Double balance;
    public Long getId() {
        return id;
    }
    public void setId(Long id) {
        this.id = id;
    }
    public String getActno() {
        return actno;
    }
    public void setActno(String actno) {
        this.actno = actno;
    }
    public Double getBalance() {
        return balance;
    }
    public void setBalance(Double balance) {
        this.balance = balance;
    }
}

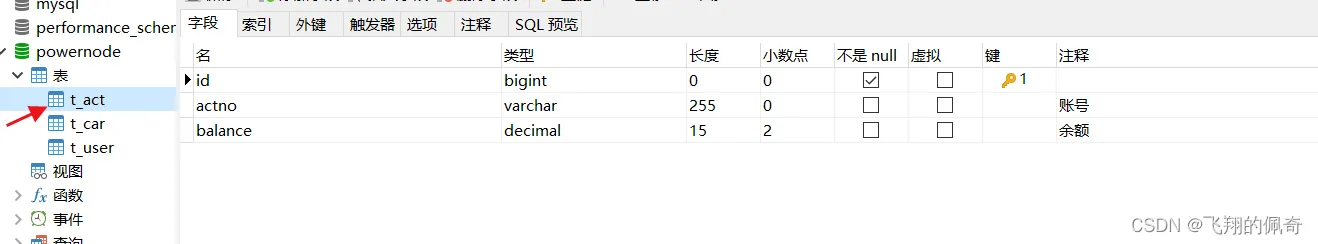

9、mysql建表 t_act

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;
-- ----------------------------
-- Table structure for t_act
-- ----------------------------
DROP TABLE IF EXISTS `t_act`;
CREATE TABLE `t_act`  (
  `id` bigint(0) NOT NULL AUTO_INCREMENT,
  `actno` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_unicode_ci NULL DEFAULT NULL COMMENT '账号',
  `balance` decimal(15, 2) NULL DEFAULT NULL COMMENT '余额',
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 3 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_unicode_ci ROW_FORMAT = Dynamic;
-- ----------------------------
-- Records of t_act
-- ----------------------------
INSERT INTO `t_act` VALUES (1, 'act001', 30002.00);
INSERT INTO `t_act` VALUES (2, 'act002', 19998.00);
SET FOREIGN_KEY_CHECKS = 1;

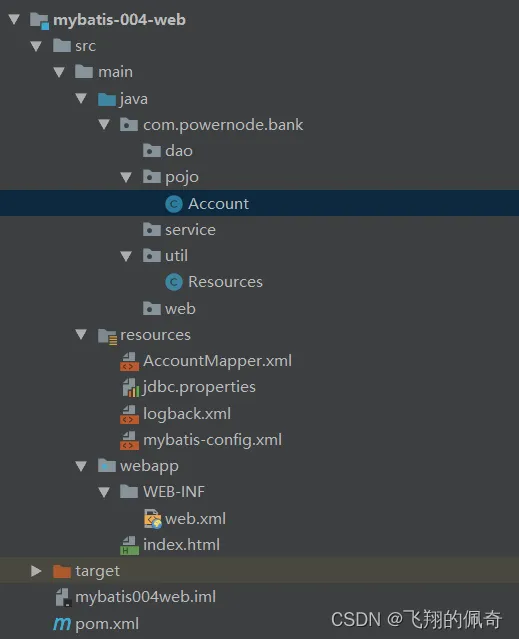

10、展示项目目录结构

三、后台代码实现

1、创建AccountServlet

package com.powernode.bank.web;
import com.powernode.bank.exceptions.MoneyNotEnoughException;
import com.powernode.bank.exceptions.TransferException;
import com.powernode.bank.service.AccountServiceImpl;
import com.powernode.bank.service.IAccount;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
@WebServlet("/transfer")
public class AccountServlet extends HttpServlet {
    private IAccount accountService = new AccountServiceImpl();
    protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        //获取表单数据
        String fromActno = request.getParameter("fromActno");
        String toActno = request.getParameter("toActno");
        double money = Double.parseDouble(request.getParameter("money"));
        try {
            //调用service的转账方法完成转账（调用业务层）
            accountService.transfer(fromActno,toActno,money);
            //调用视图层view展示结果
            response.sendRedirect(request.getContextPath() + "/success.html");
        } catch (MoneyNotEnoughException e) {
            response.sendRedirect(request.getContextPath() + "/error1.html");
        } catch (TransferException e) {
            response.sendRedirect(request.getContextPath() + "/error2.html");
        }
    }
}

2、创建业务接口IAccount

package com.powernode.bank.service;
import com.powernode.bank.exceptions.MoneyNotEnoughException;
import com.powernode.bank.exceptions.TransferException;
/**
 * 账户业务类
 */
public interface IAccount {
    //转账
    void transfer(String fromActno, String toActno, double money) throws MoneyNotEnoughException, TransferException;
}

3、创建业务接口实现类AccountServiceImpl

package com.powernode.bank.service;
import com.powernode.bank.dao.AccountDao;
import com.powernode.bank.dao.impl.AccountDaoImpl;
import com.powernode.bank.exceptions.MoneyNotEnoughException;
import com.powernode.bank.exceptions.TransferException;
import com.powernode.bank.pojo.Account;
public class AccountServiceImpl implements IAccount {
    private AccountDao accountDao = new AccountDaoImpl();
    @Override
    public void transfer(String fromActno, String toActno, double money) throws MoneyNotEnoughException, TransferException {
        Account fromAct = accountDao.selectByActno(fromActno);
        if(fromAct.getBalance() < money){
            throw new MoneyNotEnoughException("对不起，余额不足");
        }
        //先更新内存中java对象的余额
        Account toAct = accountDao.selectByActno(toActno);
        fromAct.setBalance(fromAct.getBalance() - money);
        toAct.setBalance(toAct.getBalance() + money);
        int count = accountDao.updateByActno(fromAct);
        count += accountDao.updateByActno(toAct);
        if(count != 2){
            throw new TransferException("对不起，转账异常");
        }
    }
}

4、创建持久层接口AccountDao，以及实现类AccountDaoImpl

package com.powernode.bank.dao;
import com.powernode.bank.pojo.Account;
public interface AccountDao {
    Account selectByActno(String actno);
    int updateByActno(Account act);
}

package com.powernode.bank.dao.impl;
import com.powernode.bank.dao.AccountDao;
import com.powernode.bank.pojo.Account;
import com.powernode.bank.util.SqlSessionUtil;
import org.apache.ibatis.session.SqlSession;
public class AccountDaoImpl implements AccountDao {
    @Override
    public Account selectByActno(String actno) {
        SqlSession sqlSession = SqlSessionUtil.openSqlSession();
        Account account = sqlSession.selectOne("account.selectByActno", actno);
        sqlSession.commit();
        sqlSession.close();
        return account;
    }
    @Override
    public int updateByActno(Account act) {
        SqlSession sqlSession = SqlSessionUtil.openSqlSession();
        int count = sqlSession.update("account.updateByActno", act);
        sqlSession.commit();
        sqlSession.close();
        return count;
    }
}

5、增加两个异常类

MoneyNotEnoughException

package com.powernode.bank.exceptions;
/**
 * 余额不足异常
 */
public class MoneyNotEnoughException extends Exception {
    public MoneyNotEnoughException() {
    }
    public MoneyNotEnoughException(String message) {
        super(message);
    }

TransferException

package com.powernode.bank.exceptions;
/**
 * 转账异常
 */
public class TransferException extends Exception {
    public TransferException() {
    }
    public TransferException(String message) {
        super(message);
    }
}

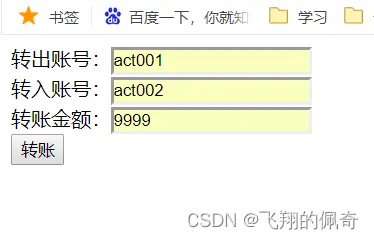

6、运行测试页面

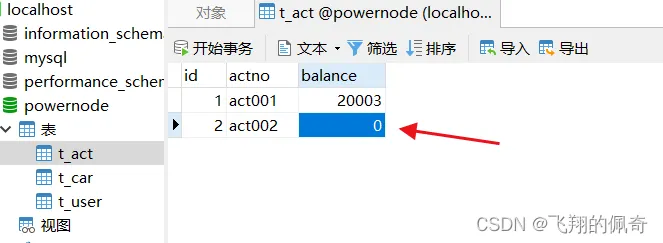

转账前

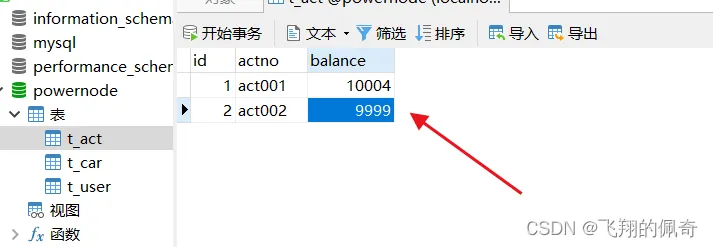

转账后

四、加入事务控制

如果转账过程中，出现了异常，此时代码是有问题的，我们对原有代码进行改造

SqlSessionUtil 改造

1、将SqlSession放到ThreadLocal中，确保同一个线程当中，获取到的SqlSession对象是同一个。
2、关闭连接的时候，记得从ThreadLocal中移除当前线程中的SqlSession对象，因为tomcat服务器是支持多线程的。

package com.powernode.bank.util;
import org.apache.ibatis.io.Resources;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;
import java.io.IOException;
public class SqlSessionUtil {
    private SqlSessionUtil(){};
    private static SqlSessionFactory sqlSessionFactory;
    static {
        try {
            sqlSessionFactory = new SqlSessionFactoryBuilder().build(Resources.getResourceAsStream("mybatis-config.xml"));
        } catch (IOException e) {
            e.printStackTrace();
        }
    }
    //全局的，服务器级别的，一个服务器当中定义一个即可
    private static ThreadLocal<SqlSession> threadLocal = new ThreadLocal<>();
    /**
     * 获取会话对象，
     * @return
     */
    public static SqlSession openSqlSession(){
        SqlSession sqlSession = threadLocal.get();
        if(sqlSession == null){
            sqlSession = sqlSessionFactory.openSession();
            threadLocal.set(sqlSession);
        }
        return sqlSession;
    }
    public static void close(SqlSession sqlSession){
        if(sqlSession != null){
            sqlSession.close();
            threadLocal.remove();
        }
    }
}

AccountServiceImpl

package com.powernode.bank.service;
import com.powernode.bank.dao.AccountDao;
import com.powernode.bank.dao.impl.AccountDaoImpl;
import com.powernode.bank.exceptions.MoneyNotEnoughException;
import com.powernode.bank.exceptions.TransferException;
import com.powernode.bank.pojo.Account;
import com.powernode.bank.util.SqlSessionUtil;
import org.apache.ibatis.session.SqlSession;
public class AccountServiceImpl implements IAccount {
    private AccountDao accountDao = new AccountDaoImpl();
    @Override
    public void transfer(String fromActno, String toActno, double money) throws MoneyNotEnoughException, TransferException {
        SqlSession sqlSession = SqlSessionUtil.openSqlSession();
        Account fromAct = accountDao.selectByActno(fromActno);
        if(fromAct.getBalance() < money){
            throw new MoneyNotEnoughException("对不起，余额不足");
        }
        //先更新内存中java对象的余额
        Account toAct = accountDao.selectByActno(toActno);
        fromAct.setBalance(fromAct.getBalance() - money);
        toAct.setBalance(toAct.getBalance() + money);
        int count = accountDao.updateByActno(fromAct);
        count += accountDao.updateByActno(toAct);
        if(count != 2){
            throw new TransferException("对不起，转账异常");
        }
        sqlSession.commit();
        SqlSessionUtil.close(sqlSession);
    }
}

AccountDaoImpl 改造

package com.powernode.bank.dao.impl;
import com.powernode.bank.dao.AccountDao;
import com.powernode.bank.pojo.Account;
import com.powernode.bank.util.SqlSessionUtil;
import org.apache.ibatis.session.SqlSession;
public class AccountDaoImpl implements AccountDao {
    @Override
    public Account selectByActno(String actno) {
        SqlSession sqlSession = SqlSessionUtil.openSqlSession();
        Account account = sqlSession.selectOne("account.selectByActno", actno);
        return account;
    }
    @Override
    public int updateByActno(Account act) {
        SqlSession sqlSession = SqlSessionUtil.openSqlSession();
        int count = sqlSession.update("account.updateByActno", act);
        return count;
    }
}

一文彻底搞懂Mybatis系列（六）之在WEB应用中使用Mybatis

一、实现功能

二、环境搭建

1、引入依赖

2、添加mybatis-config.xml核心配置文件

3、添加jdbc.properties文件

4、添加日志文件logback.xml

5、添加AccountMapper.xml文件

6、添加简单页面文件 index.html

7、增加工具类SqlSessionUtil

8、增加实体类 Account

9、mysql建表 t_act

10、展示项目目录结构

三、后台代码实现

1、创建AccountServlet

2、创建业务接口IAccount

3、创建业务接口实现类AccountServiceImpl

4、创建持久层接口AccountDao，以及实现类AccountDaoImpl

5、增加两个异常类

6、运行测试页面

四、加入事务控制

热门文章

最新文章

相关课程

相关电子书

探索云世界

热门

云计算

大数据

云原生

人工智能

数据库

开发与运维

活动广场

任务中心

训练营

直播

乘风者计划

下载

镜像站

技术资料

一文彻底搞懂Mybatis系列（六）之在WEB应用中使用Mybatis

一、实现功能

二、环境搭建

1、引入依赖

2、添加mybatis-config.xml核心配置文件

3、添加jdbc.properties文件

4、添加日志文件logback.xml

5、添加AccountMapper.xml文件

6、添加简单页面文件 index.html

7、增加工具类SqlSessionUtil

8、增加实体类 Account

9、mysql建表 t_act

10、展示项目目录结构

三、后台代码实现

1、创建AccountServlet

2、创建业务接口IAccount

3、创建业务接口实现类AccountServiceImpl

4、创建持久层接口AccountDao，以及实现类AccountDaoImpl

5、增加两个异常类

6、运行测试页面

四、加入事务控制

热门文章

最新文章

相关课程

相关电子书
