Pre
SpringBoot 最强大的功能就是把我们常用的场景抽取成了一个个starter(场景启动器),我们通过引入springboot 为我提供的这些场景启动器,再进行少量的配置就能使用相应的功能。
但有些时候,springboot也不能囊括我们所有的使用场景,往往我们需要自定义starter,来简化我们对springboot的使用。
那怎么搞呢?
自定义starter的套路
参照@WebMvcAutoConfiguration , 看看们需要准备哪些东西
@Configuration(proxyBeanMethods = false) @ConditionalOnWebApplication(type = Type.SERVLET) @ConditionalOnClass({ Servlet.class, DispatcherServlet.class, WebMvcConfigurer.class }) @ConditionalOnMissingBean(WebMvcConfigurationSupport.class) @AutoConfigureOrder(Ordered.HIGHEST_PRECEDENCE + 10) @AutoConfigureAfter({ DispatcherServletAutoConfiguration.class, TaskExecutionAutoConfiguration.class, ValidationAutoConfiguration.class }) public class WebMvcAutoConfiguration { ....... }
抽取以下
@Configuration //指定这个类是一个配置类 @ConditionalOnXXX //指定条件成立的情况下自动配置类生效 @AutoConfigureOrder //指定自动配置类的顺序 @Bean //向容器中添加组件 @ConfigurationProperties //结合相关xxxProperties来绑定相关的配置 @EnableConfigurationProperties //让xxxProperties生效加入到容器中
自动配置类要能加载需要将自动配置类,配置在META-INF/spring.factories中

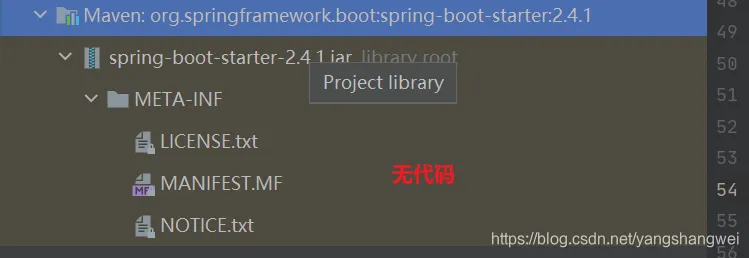

我们参考下 spring-boot-starter
点击maven进去

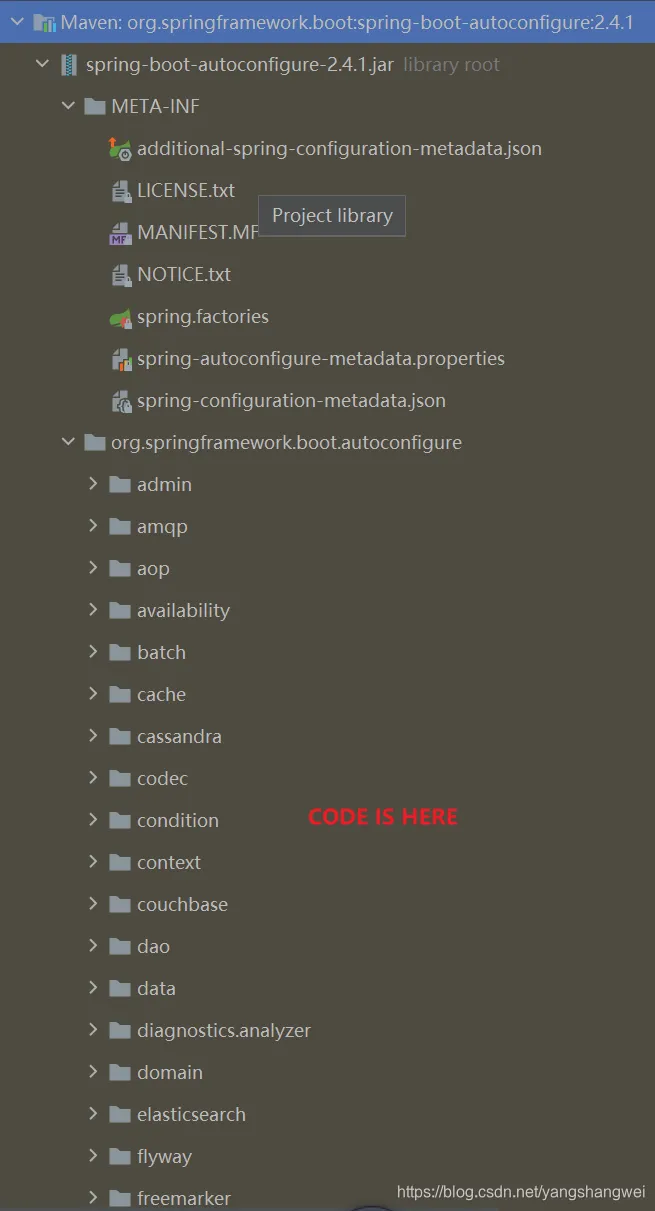

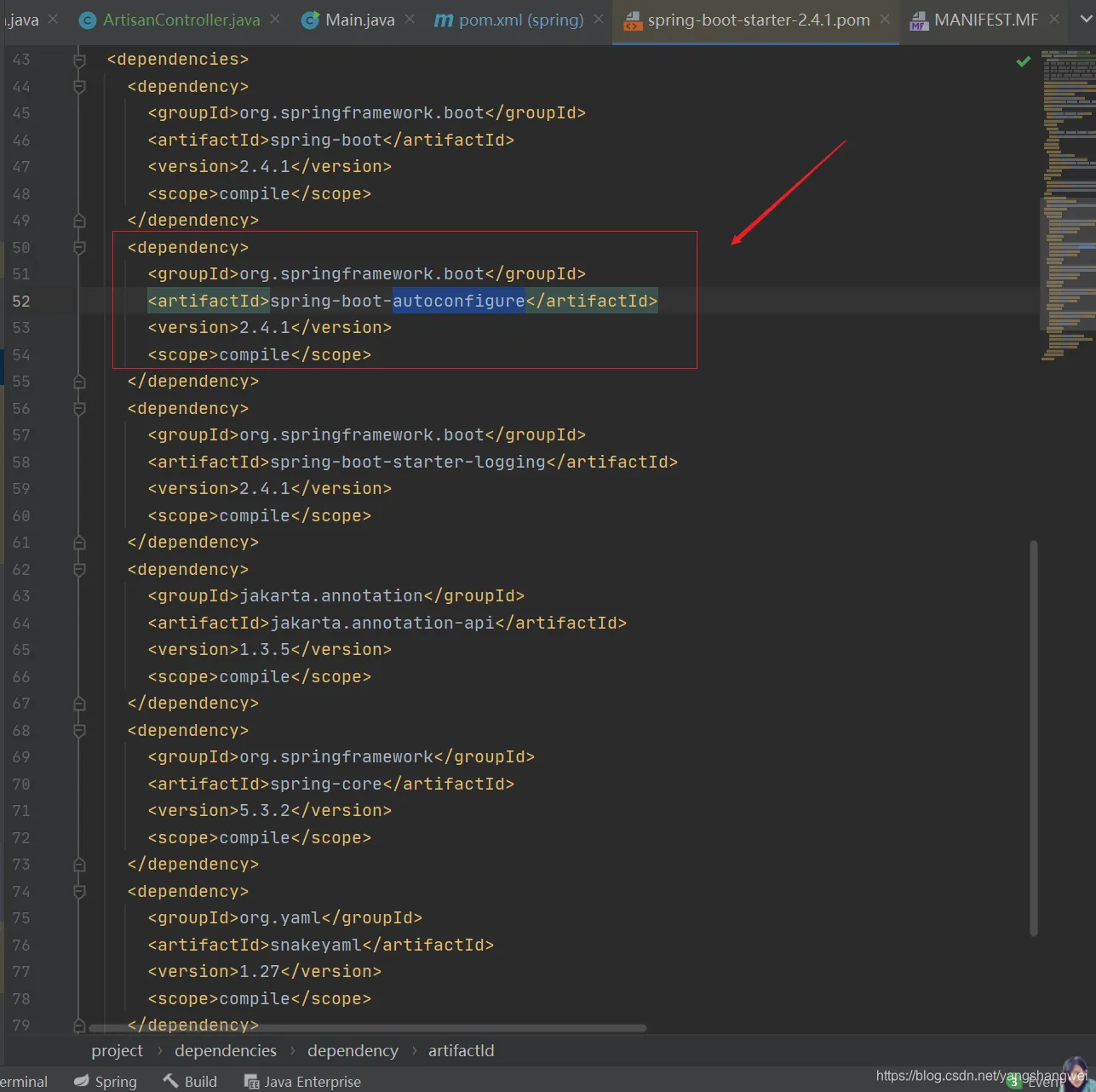

有个 spring-boot-autoconfigure的依赖
步骤
所以总结下
- 启动器(starter)是一个空的jar文件,仅仅提供辅助性依赖管理,这些依赖可能用于自动装配或其他类库。
- 需要专门写一个类似spring-boot-autoconfigure的配置模块
- 用的时候只需要引入启动器starter,就可以使用自动配置了
命名规范
官方命名空间
前缀:spring-boot-starter-
模式:spring-boot-starter-模块名
举例:spring-boot-starter-web、spring-boot-starter-jdbc
自定义命名空间
后缀:-spring-boot-starter
模式:模块-spring-boot-starter
举例:mybatis-spring-boot-starter
实战
创建一个父maven项目:springboot_custome_starter

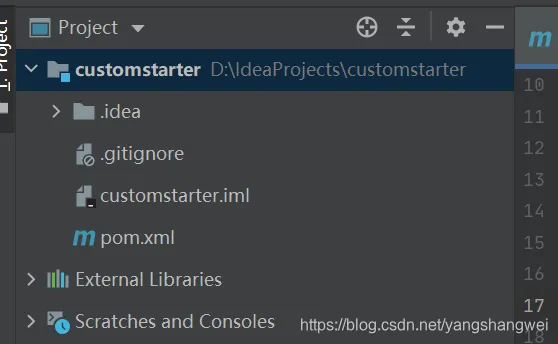

新建一个maven工程, 父工程,pom类型 , src 目录 和 IDEA自动创建的.md文件,删除掉
pom 如下
<?xml version="1.0" encoding="UTF-8"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <parent> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-parent</artifactId> <version>2.3.6.RELEASE</version> <relativePath/> <!-- lookup parent from repository --> </parent> <packaging>pom</packaging> <groupId>com.artisan.customstarter</groupId> <artifactId>starter</artifactId> <version>0.0.1-SNAPSHOT</version> <name>starter</name> <description>SpringBoot自定义starter</description> <properties> <java.version>1.8</java.version> </properties> <dependencies> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter</artifactId> </dependency> </dependencies> <build> <plugins> <!--提供source--> <plugin> <groupId>org.apache.maven.plugins</groupId> <artifactId>maven-source-plugin</artifactId> <configuration> <attach>true</attach> </configuration> <executions> <execution> <phase>compile</phase> <goals> <goal>jar</goal> </goals> </execution> </executions> </plugin> </plugins> </build> </project>

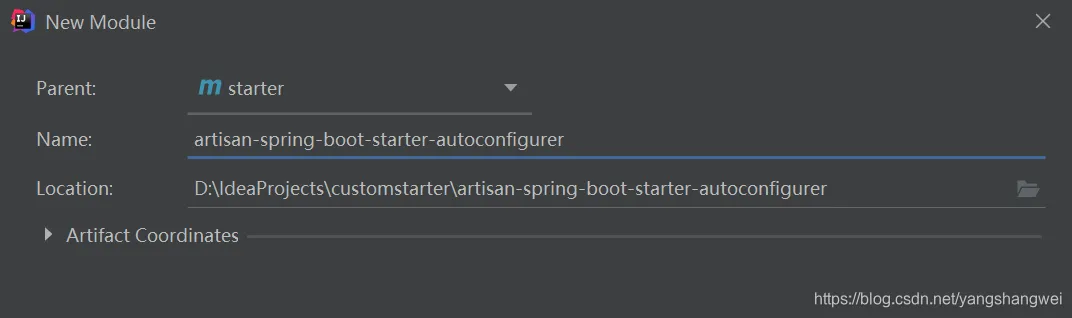

创建 两个Module: artisan-spring-boot-starter 和 artisan-spring-boot-starter-autoconfigurer

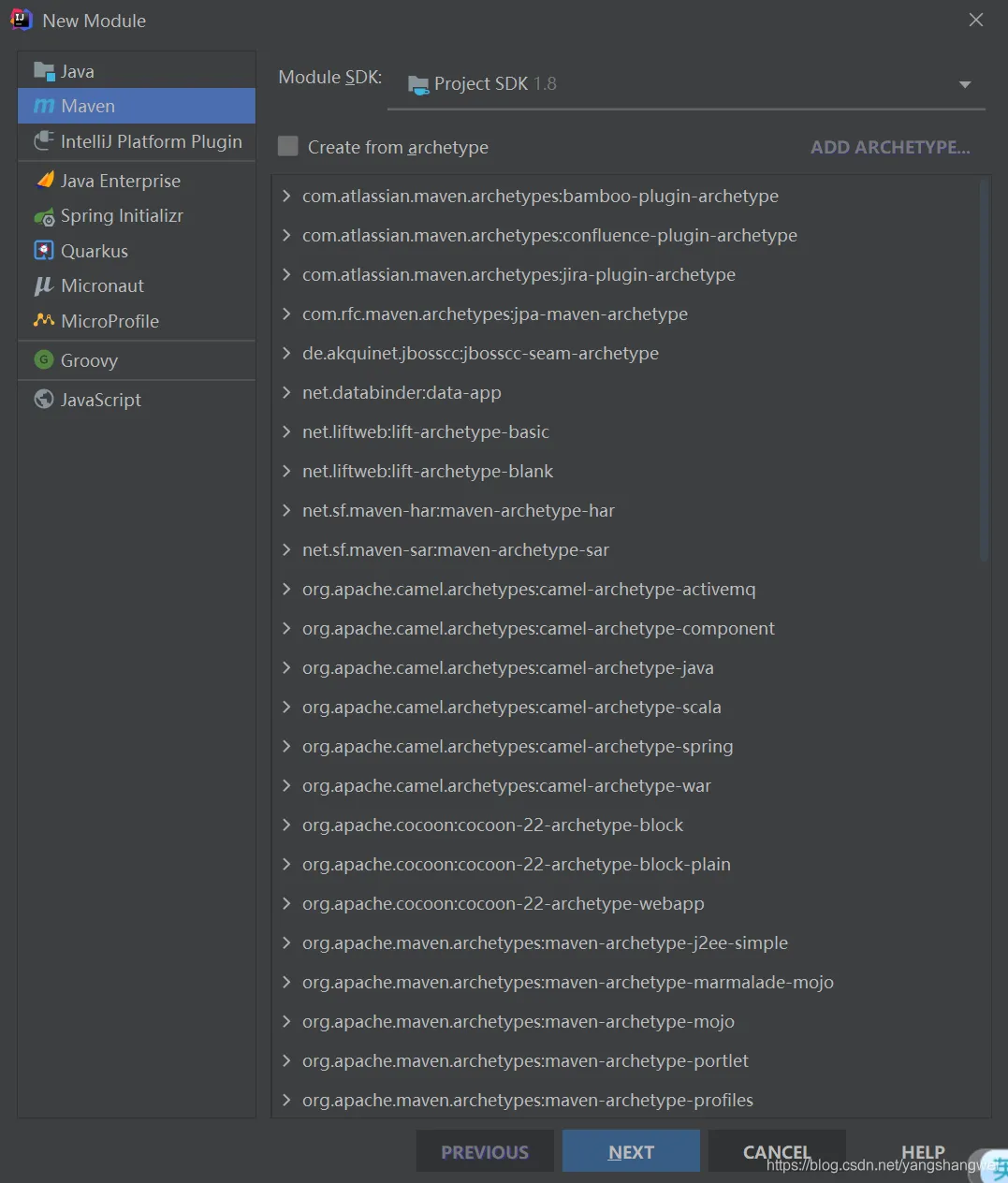

同样的方式创建
artisan-spring-boot-starter (空的jar文件,仅仅提供辅助性依赖管理)
pom
<?xml version="1.0" encoding="UTF-8"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"> <parent> <artifactId>starter</artifactId> <groupId>com.artisan.customstarter</groupId> <version>0.0.1-SNAPSHOT</version> </parent> <modelVersion>4.0.0</modelVersion> <description> 启动器(starter)是一个空的jar文件, 仅仅提供辅助性依赖管理, 这些依赖需要自动装配或其他类库。 </description> <artifactId>artisan-spring-boot-starter</artifactId> <dependencies> <!--引入autoconfigure--> <dependency> <groupId>com.artisan.customstarter</groupId> <artifactId>artisan-spring-boot-starter-autoconfigurer</artifactId> <version>0.0.1-SNAPSHOT</version> </dependency> <!--如果当前starter 还需要其他的类库就在这里引用--> </dependencies> </project>
如果使用spring Initializr创建的需要删除 启动类、resources下的文件,test文件。
artisan-spring-boot-starter-autoconfigurer
pom
<?xml version="1.0" encoding="UTF-8"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"> <parent> <artifactId>starter</artifactId> <groupId>com.artisan.customstarter</groupId> <version>0.0.1-SNAPSHOT</version> </parent> <modelVersion>4.0.0</modelVersion> <artifactId>artisan-spring-boot-starter-autoconfigurer</artifactId> <dependencies> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> </dependency> <!--‐导入配置文件处理器,配置文件进行绑定就会有提示--> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-configuration-processor</artifactId> <optional>true</optional> </dependency> </dependencies> </project>

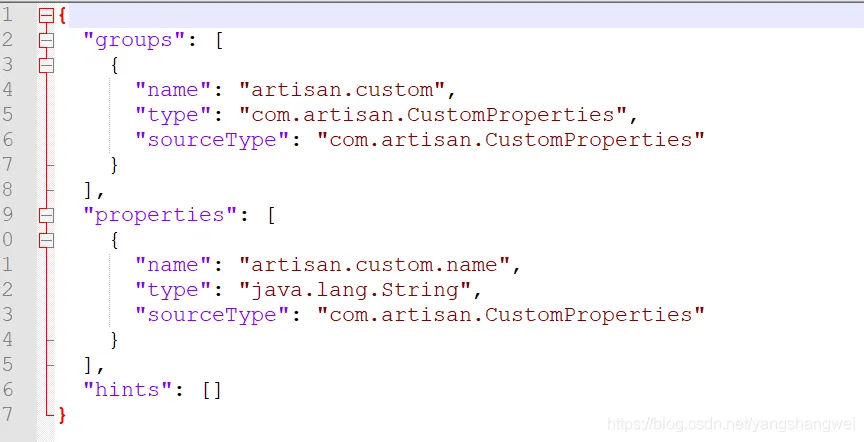

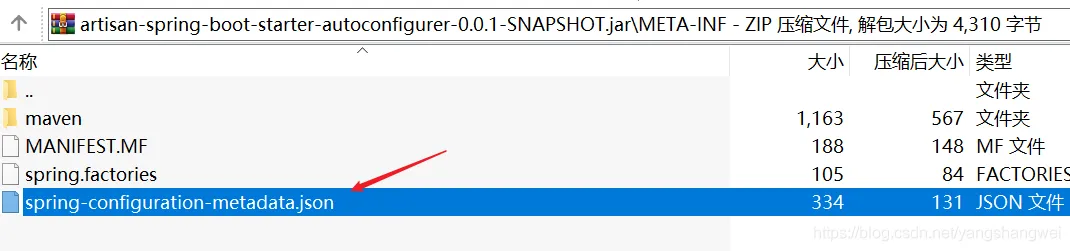

关于自动提示的jar ,引入spring-boot-configuration-processor之后, 编译之后就会在META-INF文件夹下面生成一个spring-configuration-metadata.json的文件。
内容如下

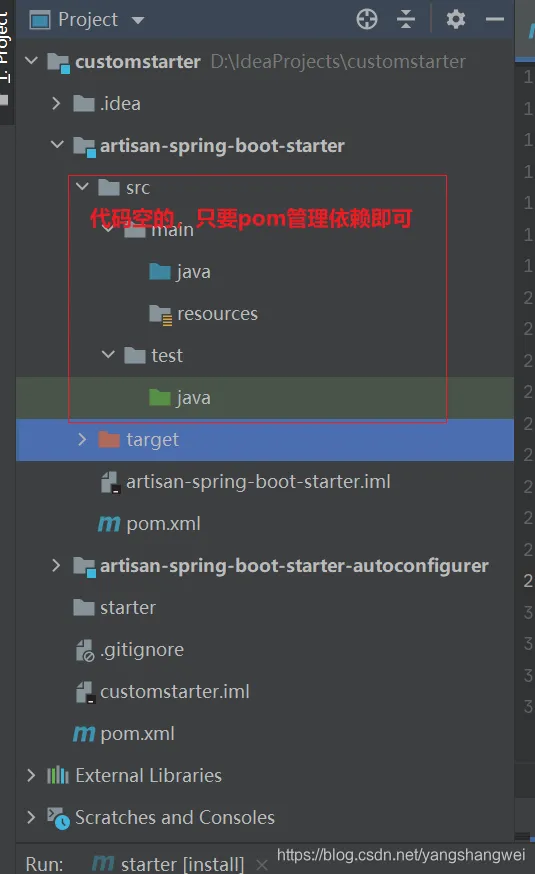

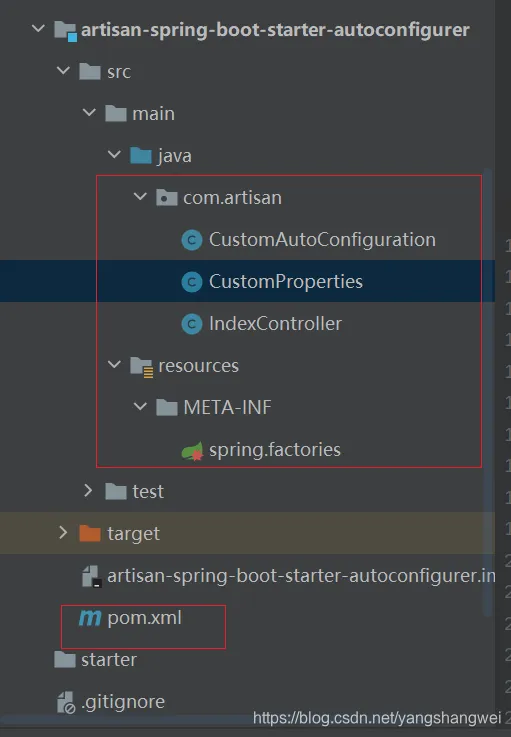

【工程结构】
CustomProperties
package com.artisan; import org.springframework.boot.context.properties.ConfigurationProperties; /** * @author 小工匠 * @version 1.0 * @description: 属性配置文件 * @date 2021/5/22 18:56 * @mark: show me the code , change the world */ @ConfigurationProperties("artisan.custom") public class CustomProperties { private String name; public String getName() { return name; } public void setName(String name) { this.name = name; } }
IndexController
package com.artisan; import org.springframework.web.bind.annotation.RequestMapping; import org.springframework.web.bind.annotation.RestController; /** * @author 小工匠 * @version 1.0 * @description: TODO * @date 2021/5/22 18:58 * @mark: show me the code , change the world */ @RestController public class IndexController { private CustomProperties customProperties; public IndexController(CustomProperties customProperties) { this.customProperties = customProperties; } @RequestMapping("/") public String index() { return customProperties.getName(); } }
CustomAutoConfiguration 自动配置类
package com.artisan; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.boot.autoconfigure.condition.ConditionalOnProperty; import org.springframework.boot.context.properties.EnableConfigurationProperties; import org.springframework.context.annotation.Bean; import org.springframework.context.annotation.Configuration; /** * @author 小工匠 * @version 1.0 * @description: 模拟给web应用自动添加一个首页 * @date 2021/5/22 18:55 * @mark: show me the code , change the world */ @Configuration @ConditionalOnProperty(value = "artisan.custom.name") @EnableConfigurationProperties(CustomProperties.class) public class CustomAutoConfiguration { @Autowired CustomProperties cus; @Bean public IndexController indexController() { return new IndexController(cus); } }
spring.factories
在 resources 下创建文件夹 META-INF 并在 META-INF 下创建文件 spring.factories ,内容如下:
org.springframework.boot.autoconfigure.EnableAutoConfiguration=\ com.artisan.CustomAutoConfiguration

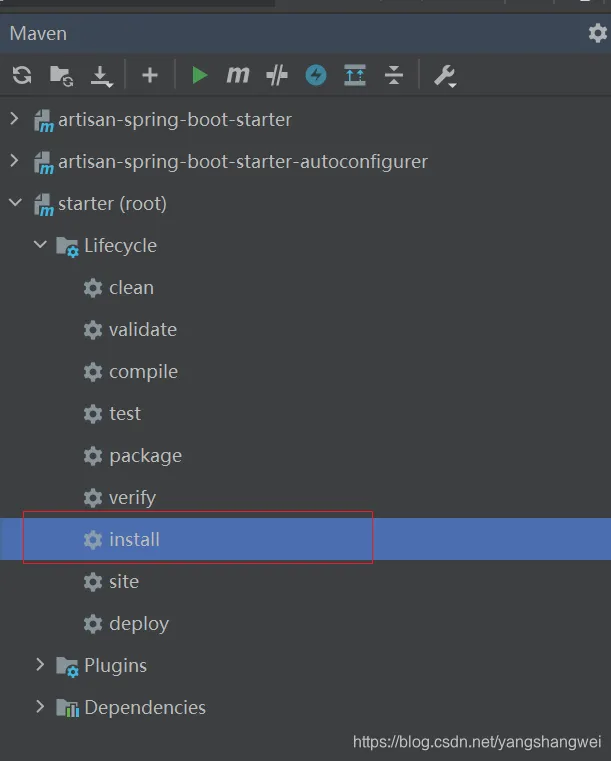

打包发布
到这儿,我们的配置自定义的starter就写完了 ,我们artisan-spring-boot-starter 和 artisan-spring-boot-starter-autoconfigurer 安装成本地jar包。
引用自定义starter测试

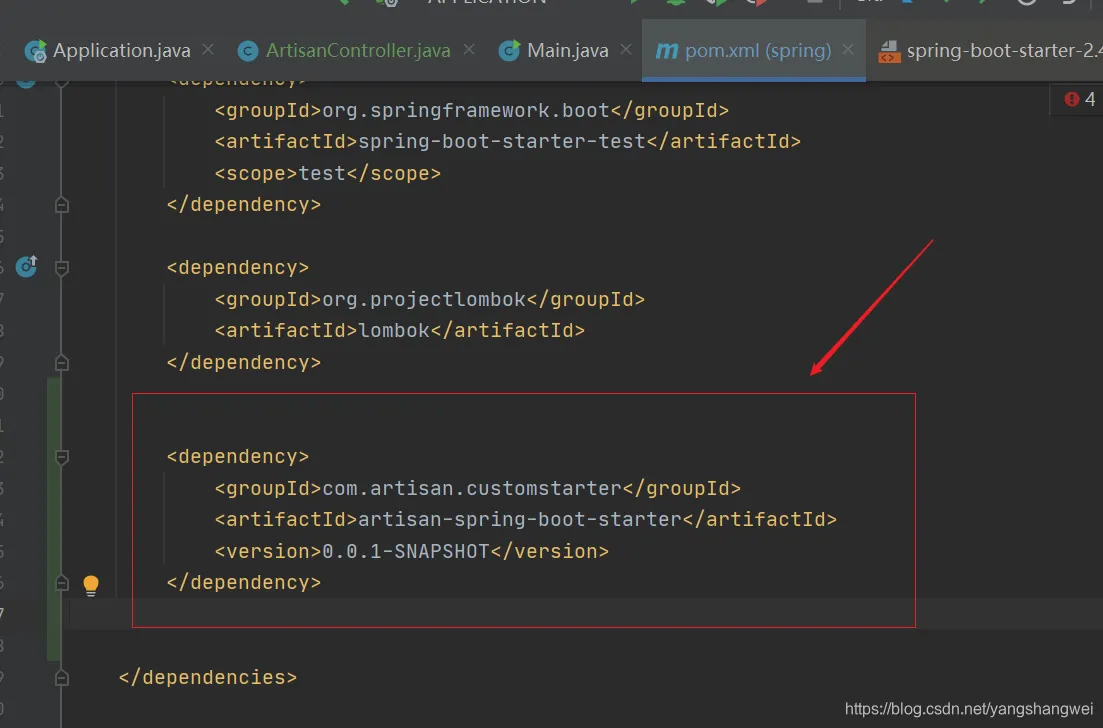

新建个spring boot 项目 ,引用刚才的starter

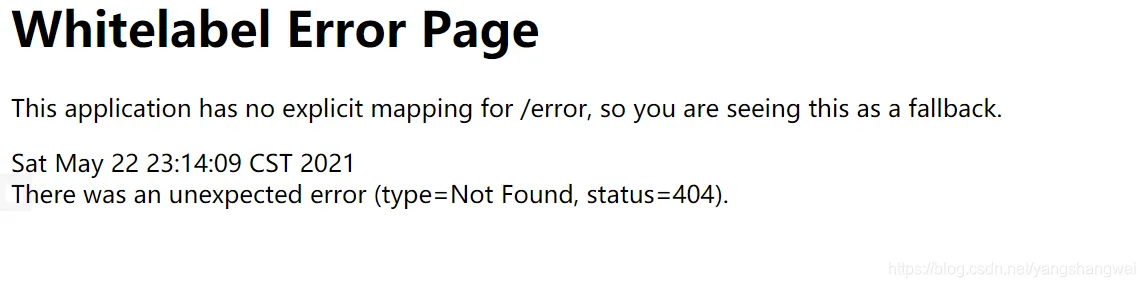

访问 http://localhost:8080/
咦 ,别忘了你自定义的属性
重启后,重新访问

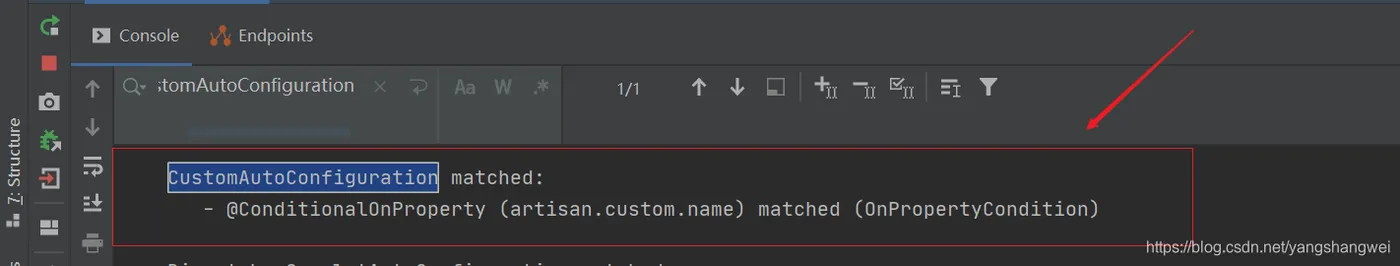

因为我们开启了debug=true .找找我们自动装配的类看看
