首先我们添加依赖
<dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-configuration-processor</artifactId> <optional>true</optional> </dependency>
并在maven-plugin中排除依赖，因为我们maven进行编译、打包等并不需要它
<project> <build> <plugins> <plugin> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-maven-plugin</artifactId> <configuration> <excludes> <exclude> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-configuration-processor</artifactId> </exclude> </excludes> </configuration> </plugin> </plugins> </build> </project>
如果在项目中使用AspectJ，则需要确保注释处理器仅运行一次，所以我们再配置
<plugin> <groupId>org.apache.maven.plugins</groupId> <artifactId>maven-compiler-plugin</artifactId> <configuration> <proc>none</proc> </configuration> </plugin>
完整的xml
<?xml version="1.0" encoding="UTF-8"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <parent> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-parent</artifactId> <version>2.3.2.RELEASE</version> <relativePath/> <!-- lookup parent from repository --> </parent> <groupId>com.ruben</groupId> <artifactId>simple-springboot</artifactId> <version>0.0.1-SNAPSHOT</version> <name>simple-springboot</name> <description>Demo project for Spring Boot</description> <properties> <java.version>1.8</java.version> </properties> <dependencies> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-validation</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-thymeleaf</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> </dependency> <!--引入AOP依赖--> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-aop</artifactId> </dependency> <dependency> <groupId>org.projectlombok</groupId> <artifactId>lombok</artifactId> <optional>true</optional> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-test</artifactId> <scope>test</scope> <exclusions> <exclusion> <groupId>org.junit.vintage</groupId> <artifactId>junit-vintage-engine</artifactId> </exclusion> </exclusions> </dependency> <dependency> <groupId>com.aliyun</groupId> <artifactId>aliyun-java-sdk-core</artifactId> <version>4.1.1</version> </dependency> <dependency> <groupId>com.aliyun</groupId> <artifactId>aliyun-java-sdk-green</artifactId> <version>3.6.1</version> </dependency> <dependency> <groupId>com.alibaba</groupId> <artifactId>fastjson</artifactId> <version>1.2.51</version> </dependency> <dependency> <groupId>com.aliyun.oss</groupId> <artifactId>aliyun-sdk-oss</artifactId> <version>2.8.3</version> </dependency> <dependency> <groupId>commons-io</groupId> <artifactId>commons-io</artifactId> <version>2.4</version> </dependency> <dependency> <groupId>commons-codec</groupId> <artifactId>commons-codec</artifactId> <version>1.10</version> </dependency> <!-- https://mvnrepository.com/artifact/org.springframework.boot/spring-boot-starter-data-redis --> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-data-redis</artifactId> </dependency> <dependency> <groupId>com.auth0</groupId> <artifactId>java-jwt</artifactId> <version>3.4.0</version> </dependency> <dependency> <groupId>me.zhyd.oauth</groupId> <artifactId>JustAuth</artifactId> <version>1.15.6</version> </dependency> <dependency> <groupId>org.jsoup</groupId> <artifactId>jsoup</artifactId> <version>1.10.2</version> </dependency> <!-- https://mvnrepository.com/artifact/org.mybatis.spring.boot/mybatis-spring-boot-starter --> <dependency> <groupId>org.mybatis.spring.boot</groupId> <artifactId>mybatis-spring-boot-starter</artifactId> <version>2.1.3</version> </dependency> <!-- sqlite驱动 --> <!-- https://mvnrepository.com/artifact/org.xerial/sqlite-jdbc --> <dependency> <groupId>org.xerial</groupId> <artifactId>sqlite-jdbc</artifactId> <version>3.32.3.2</version> </dependency> <!-- mysql驱动 --> <dependency> <groupId>mysql</groupId> <artifactId>mysql-connector-java</artifactId> <version>8.0.11</version> </dependency> <!-- https://mvnrepository.com/artifact/javax.mail/javax.mail-api --> <dependency> <groupId>com.sun.mail</groupId> <artifactId>javax.mail</artifactId> <version>1.5.4</version> </dependency> <!-- mybatis-plus --> <dependency> <groupId>com.baomidou</groupId> <artifactId>mybatis-plus-boot-starter</artifactId> <version>3.1.0</version> </dependency> <!-- https://mvnrepository.com/artifact/org.apache.commons/commons-lang3 --> <dependency> <groupId>org.apache.commons</groupId> <artifactId>commons-lang3</artifactId> <version>3.11</version> </dependency> <dependency> <groupId>com.alibaba.cloud</groupId> <artifactId>spring-cloud-alicloud-oss</artifactId> </dependency> <dependency> <groupId>com.aliyun.oss</groupId> <artifactId>aliyun-sdk-oss</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter</artifactId> </dependency> <!-- 拼音转换 --> <dependency> <groupId>com.belerweb</groupId> <artifactId>pinyin4j</artifactId> <version>2.5.0</version> </dependency> <!-- html转图片 --> <dependency> <groupId>com.github.xuwei-k</groupId> <artifactId>html2image</artifactId> <version>0.1.0</version> </dependency> <!-- 操作word --> <dependency> <groupId>e-iceblue</groupId> <artifactId>spire.doc.free</artifactId> <version>3.9.0</version> </dependency> <!-- quartz --> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-quartz</artifactId> </dependency> <!-- https://mvnrepository.com/artifact/com.google.code.gson/gson --> <dependency> <groupId>com.google.code.gson</groupId> <artifactId>gson</artifactId> <version>2.8.6</version> </dependency> <!-- apache http前置依赖 --> <dependency> <groupId>com.sun.jersey</groupId> <artifactId>jersey-servlet</artifactId> <version>1.19</version> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-configuration-processor</artifactId> <optional>true</optional> </dependency> </dependencies> <dependencyManagement> <dependencies> <dependency> <groupId>com.alibaba.cloud</groupId> <artifactId>spring-cloud-alibaba-dependencies</artifactId> <version>2.2.0.RELEASE</version> <type>pom</type> <scope>import</scope> </dependency> </dependencies> </dependencyManagement> <!-- 设定仓库 --> <repositories> <repository> <id>com.e-iceblue</id> <url>http://repo.e-iceblue.cn/repository/maven-public/</url> </repository> <repository> <id>aliyun-repos</id> <url>https://maven.aliyun.com/repository/public</url> <releases> <enabled>true</enabled> </releases> <snapshots> <enabled>false</enabled> </snapshots> </repository> <repository> <id>sonatype-repos-s</id> <name>Sonatype Repository</name> <url>https://oss.sonatype.org/content/repositories/snapshots</url> <releases> <enabled>false</enabled> </releases> <snapshots> <enabled>true</enabled> </snapshots> </repository> </repositories> <pluginRepositories> <pluginRepository> <id>aliyun-repos</id> <url>https://maven.aliyun.com/repository/public</url> </pluginRepository> </pluginRepositories> <build> <resources> <!-- maven项目中src源代码下的xml等资源文件编译进classes文件夹， 注意：如果没有这个，它会自动搜索resources下是否有mapper.xml文件， 如果没有就会报org.apache.ibatis.binding.BindingException: Invalid bound statement (not found): com.pet.mapper.PetMapper.selectByPrimaryKey--> <resource> <directory>src/main/java</directory> <includes> <include>**/*.xml</include> </includes> </resource> <!--将resources目录下的配置文件编译进classes文件 --> <resource> <directory>src/main/resources</directory> </resource> </resources> <plugins> <plugin> <groupId>org.apache.maven.plugins</groupId> <artifactId>maven-compiler-plugin</artifactId> <configuration> <proc>none</proc> </configuration> </plugin> <plugin> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-maven-plugin</artifactId> <configuration> <mainClass>com.ruben.SimpleSpringbootApplication</mainClass> <excludes> <exclude> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-configuration-processor</artifactId> </exclude> </excludes> </configuration> </plugin> <plugin> <groupId>com.google.cloud.tools</groupId> <artifactId>jib-maven-plugin</artifactId> <version>2.4.0</version> <configuration> <container> <mainClass>com.ruben.SimpleSpringbootApplication</mainClass> </container> <allowInsecureRegistries>true</allowInsecureRegistries> <!-- 相当于 Dockerfile 中的 FROM --> <from> <image>openjdk:8-jre-alpine</image> </from> <to> <!--构建镜像名称，这里我使用maven中定义的项目名称--> <image>vampireachao/${project.name}</image> <!--私有仓库的账号密码--> <auth> <username>vampireachao</username> <password></password> </auth> <!--Docker 镜像的 tag 这里使用maven定义的版本号--> <tags> <tag> ${project.version} </tag> </tags> </to> </configuration> </plugin> </plugins> </build> </project>

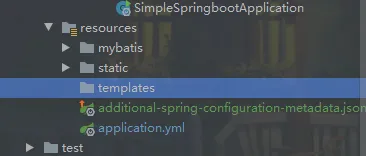

然后是开始配置注释，在resources下新建文件additional-spring-configuration-metadata.json

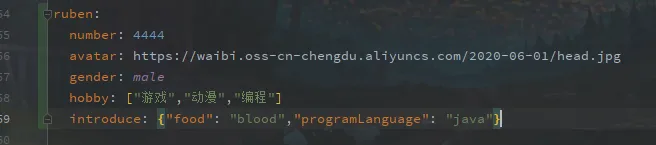

例如我们这里如果需要配置这样的提示
我们就可以在additional-spring-configuration-metadata.json里这样写
{ "properties": [ { "name": "ruben.number", "defaultValue": 4444 }, { "name": "ruben.avatar", "defaultValue": "/imgs/oss/2020-06-01/head.jpg" }, { "name": "ruben.gender", "type": "com.ruben.enumeration.GenderEnum", "defaultValue": "MALE" }, { "name": "ruben.hobby", "defaultValue": [ "游戏", "动漫", "编程" ] }, { "name": "ruben.introduce", "defaultValue": { "food": "blood", "programLanguage": "java" } } ] }
然后我们就能看到配置的提示生效了
关于这里参数的具体含义
| 名称 | 类型 | 作用 |
name |
String | 属性的全名。名称以小写的句点分隔（例如server.address）。此属性是必需的。 |
type |
String | 属性的数据类型的完整签名（例如java.lang.String），还包含完整的通用类型（例如java.util.Map<java.lang.String,acme.MyEnum>）。您可以使用此属性指导用户输入的值的类型。为了保持一致性，通过使用原始包装的对应对象来指定原始类型（例如，boolean变为java.lang.Boolean）。请注意，此类可能是一个复杂的类型，当String绑定值时会从转换为此类。如果类型未知，则可以省略。 |
description |
String | 可以显示给用户的属性的简短描述。如果没有可用的描述，则可以省略。建议使用简短的描述，第一行提供简要的摘要。说明的最后一行应以句点（.）结尾。 |
sourceType |
String | 贡献此属性的源的类名。例如，如果属性来自带有注释的类@ConfigurationProperties，则此属性将包含该类的完全限定名称。如果源类型未知，则可以省略。 |
defaultValue |
Object | 默认值，如果未指定该属性，则使用该默认值。如果属性的类型是数组，则它可以是值的数组。如果默认值未知，则可以省略。 |
deprecation |
Deprecation | 指定是否不推荐使用该属性。如果不建议使用该字段，或者该信息未知，则可以将其省略。 |
deprecation每个properties元素的属性中包含的JSON对象可以包含以下属性：
| 名称 | 类型 | 作用 |
level |
String | 弃用级别，可以是warning（默认值）或error。当某个属性具有warning弃用级别时，它仍应绑定在环境中。但是，当它具有error弃用级别时，该属性将不再受管理且不受约束。 |
reason |
String | 关于不推荐使用该属性的原因的简短描述。如果没有理由，则可以省略。建议使用简短的描述，第一行提供简要的摘要。说明的最后一行应以句点（.）结尾。 |
replacement |
String | 替换此不推荐使用的属性的属性的全名。如果无法替代此属性，则可以省略 |
更多配置可以看springboot官方文档
