在游戏中,我们经常会实现背景无限滚动的效果。那这些效果是怎么实现的呢?
原理很简单,就是使用多张背景图,每张图,每一帧都同时移动,当图移出屏幕外时,将其位置设置到下一张图的初始位置,最后一张图位置设置为第一张图的初始位置,如此循环即可。
下面以 实现背景 1920*1080 的背景图,垂直方向无限滚动为例,进行详细说明。
⚠️ 文末附 BgMoveView.ts 完整源码, 可直接拿去使用。
具体实现方法:

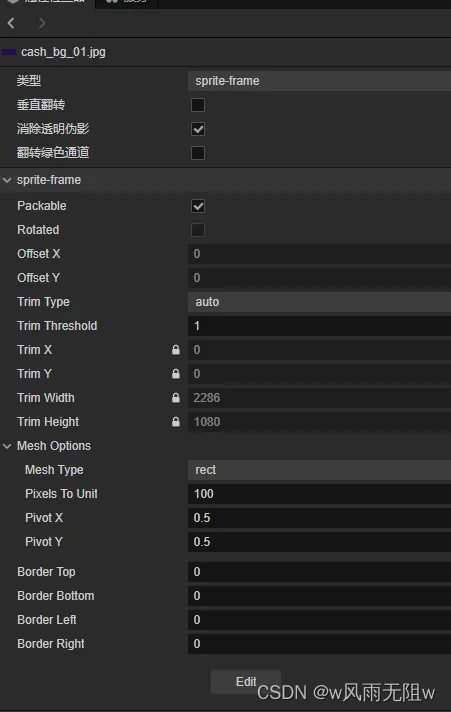

step 1 ,在cocoscrearor 资源管理器中,添加多张背景图资源,并设置为sprite-frame类型。
注意:最好每张图的尺寸一致。
如下:

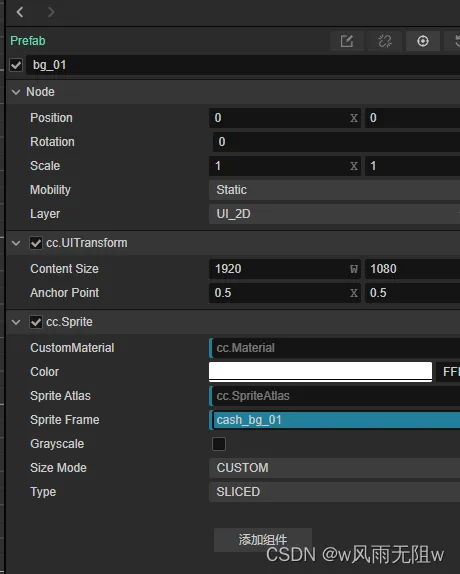

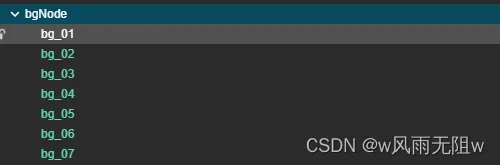

step 2 ,在cocoscrearor 层级管理器中,首先添加 bgNode 节点,用于背景图的根节点,然后再添加多个sprite节点 ,并设置sprite frame 资源 以及位置。
注意位置:
第一张图 0 ,0

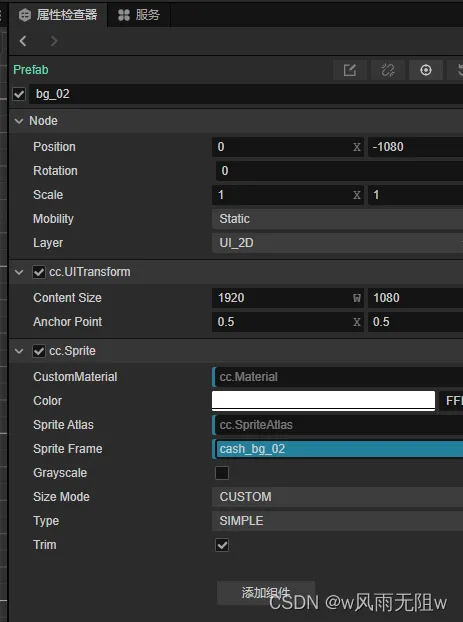

第一张图 0 ,-1080
第三张图 0 ,-1080 *2
第四张图 0 ,-1080 *3
第五张图 0 ,-1080 *4
第六张图,以此类推…

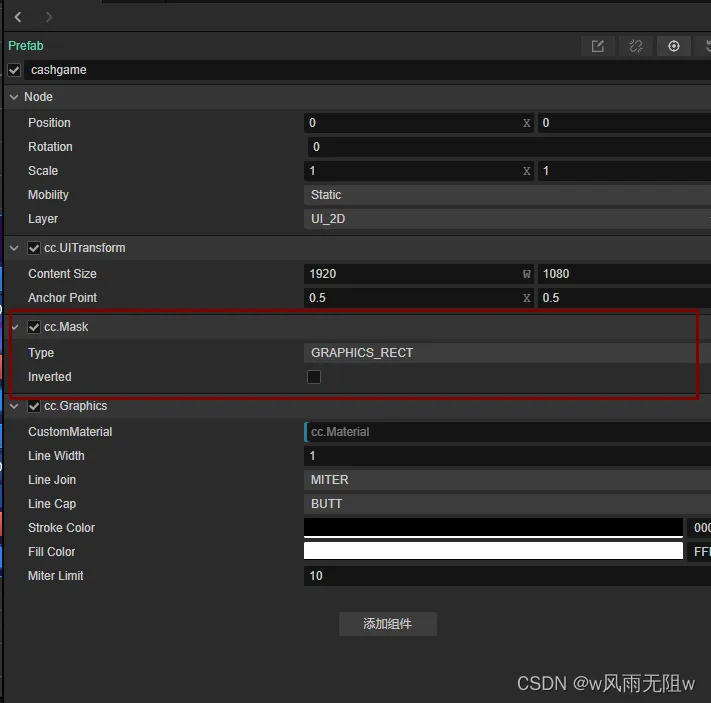

step 3 ,为根节点 设置蒙版(Mask)组件。

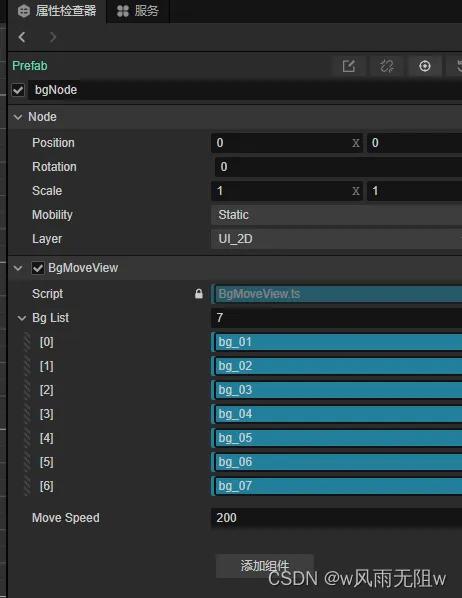

step 4 ,为bgNode节点 挂载背景滚动脚本,并配置背景节点数组、滚动速度。
Step 5 、脚本 BgMoveView.ts 完整源码
/** * * 背景无限滚屏效果实现 * * * */ import { _decorator, Component, Node,UITransform } from 'cc'; const { ccclass, property } = _decorator; @ccclass('BgMoveView') export class BgMoveView extends Component { /**背景数组 */ @property({type: Node}) bgList:Node[] = []; /**移动速度 */ @property({type: Number}) moveSpeed:number = 200; /**背景图片滚出屏幕的位置*/ bottomPosition:number = 0; /**背景图片高度*/ bgHeight:number = 0; onLoad () { /**注意是负值*/ this.bottomPosition = -this.bgList[0].getComponent(UITransform).height; this.bgHeight = this.bgList[0].getComponent(UITransform).height; } start() { } update(deltaTime: number) { for(let i = 0; i < this.bgList.length; i++) { /**达到触发条件,改变背景图片位置*/ if(this.bgList[i].position.y <= this.bottomPosition) { this.bgList[i].setPosition(this.bgList[i].position.x, this.bgList[i+1<this.bgList.length?i+1:0].position.y + this.bgHeight); } /**背景的移动*/ this.bgList[i].setPosition(this.bgList[i].position.x, this.bgList[i].position.y - this.moveSpeed*deltaTime); } } }
