晚上睡不着，想着白天工作上的事，解决一个现场读卡问题就需要出趟差值得吗。想着在公司就能把现场的卡给读写诊断了，能让数据跑路就别让人跑路，说干就干。
本工具是在浏览器中以Lua脚本的形式对CPU卡,M1卡就行读、写等各种操作，配和使用改造过后的E711读卡器。
远端把读卡器接到电脑上，并运行读写卡服务。告知客户端IP地址和端口，并放上卡。客户端调用相关指令，运行脚本，输出结果。
远程读卡器就是一个普通usb口或串口的读卡器，如E711读卡器。配合一个电脑软件作为tcp读写卡服务。这样可以在公司电脑上运行客户端程序连到服务器上,服务器端操控现场的读卡器。之前做保定公交老卡兼容，让现场寄卡过来，结果拖了好久，卡也没寄过来。说是卡片管理严格，老年卡，学生卡需要从系统上从新办卡。于是让现场同事配合抓下包，读取一下卡上数据，但现场同事连串口助手都没听说过，指望不上了。最后没办法，还是出差跑去一趟，做了些很简单的事。回来想想，其实可以做一个远程读卡器，在公司把现场的卡给操作了。再封装一些读卡的客户端接口，可以实现远程仿真调试程序读卡消费逻辑 ，或者实现一完全软件模拟的pos机。之前用java做过一个读写卡工具，但是只能在本地电脑上读写卡。
交通部卡测试消费成功的lua脚本指令：
--192.168.157.135/test3/runcode.php --读卡服务地址 ip= "192.168.157.135" --读卡服务端口 port = 5050 --连接到读卡服务 ret = CONNECT(ip,port) --建立连接 ------------------------------------------- CPU卡操作 ret,rcv = S_SFI("\x3F\x00",1) --选择PSAM卡应用3F00 ret,rcv = R_BFile(0x15,0,0,1) --读取PSAM卡15文件 ret,rcv = R_BFile(0x16,0,0,1) --读取PSAM卡16文件 if ret == 0x9000 then PasmTID = string.sub(rcv,1,12) print("pasmTID:"..PasmTID) end ret,rcv = S_AID("\xA0\x00\x00\x06\x32\x01\x01\x05",0x08,0) --选择交通部应用 ret,rcv = R_BFile(0x15,0,0,0) --读取卡片0x15文件 if ret == 0x9000 then MakeCardId = string.sub(rcv,1,16) CardASN = string.sub(rcv,25,25+16-1) print(rcv) print("MakeCardId:"..MakeCardId) print("CardASN:"..CardASN) end ret,rcv = R_BFile(0x16,0,0,0) ret,rcv = R_BFile(0x17,0,0,0) ret,rcv = S_SFI("\x80\x11",1) --选择交通部PSAM卡应用 ret,rcv = APDU("805C030204",0) --读取余额 --消费初始化 cmd = '805001020B' index = '01' money = '00000001' cmdstr = cmd..index..money..PasmTID print("xiao fei chu shi hua:") ret,rcv = APDU(cmdstr,0) --消费初始化 if ret == 0x9000 then PullCTC = string.sub(rcv,9,9+4-1) --脱机交易序号 KeyVer = string.sub(rcv,19,19+2-1) KeyDrk = string.sub(rcv,21,21+2-1) Icc = string.sub(rcv,23,23+8-1) --随机数 print("PullCTC:"..PullCTC) print("KeyVer:"..KeyVer) print("KeyDrk:"..KeyDrk) print("Icc:"..Icc) end cmd = '8070000024' time ='20161128170231' cmdstr = cmd..Icc..PullCTC..money..'06'..time..KeyVer..KeyDrk..CardASN..MakeCardId ret,rcv = APDU(cmdstr,1) --PSAM卡算MAC if ret == 0x9000 then TTC = string.sub(rcv,1,8) --脱机交易序号 MAC1 = string.sub(rcv,9,9+8-1) print("TTC:"..TTC) print("MAC1:"..MAC1) end cmd = '805401000F' cmdstr = cmd..TTC..time..MAC1 ret,rcv = APDU(cmdstr,0) DISCONNECT() --断开连接
要远程读写卡得有个后台服务去操控远程的读卡器。有了后台读写卡服务，客户端不能只是接口，得简单好用，于是有了这个web端。
附截图：

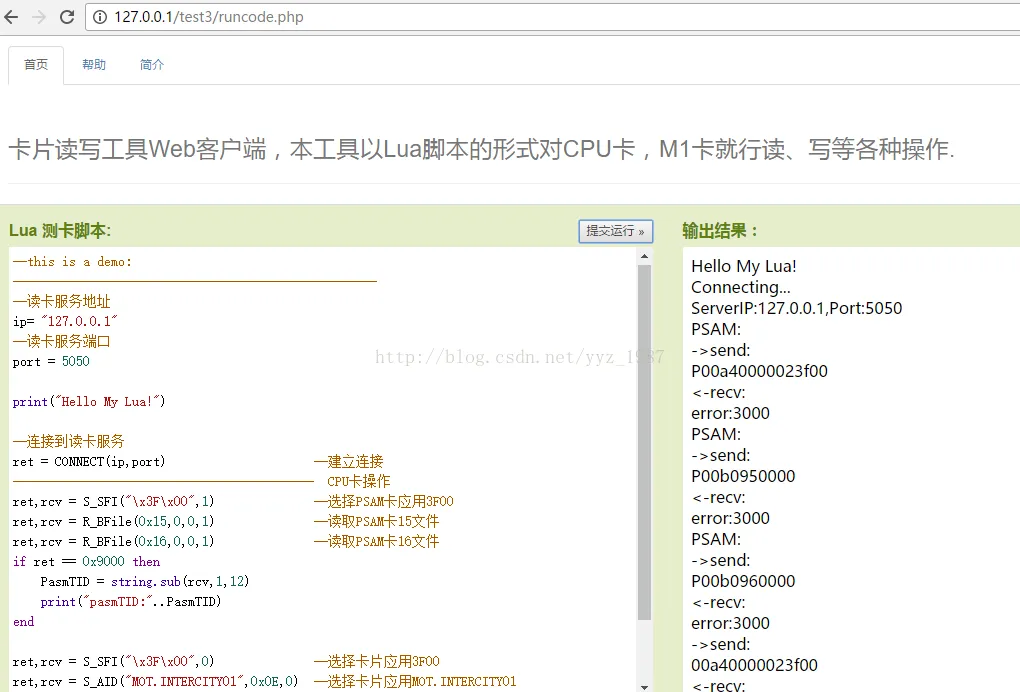

截图1，运行效果
截图2，相关指令介绍：

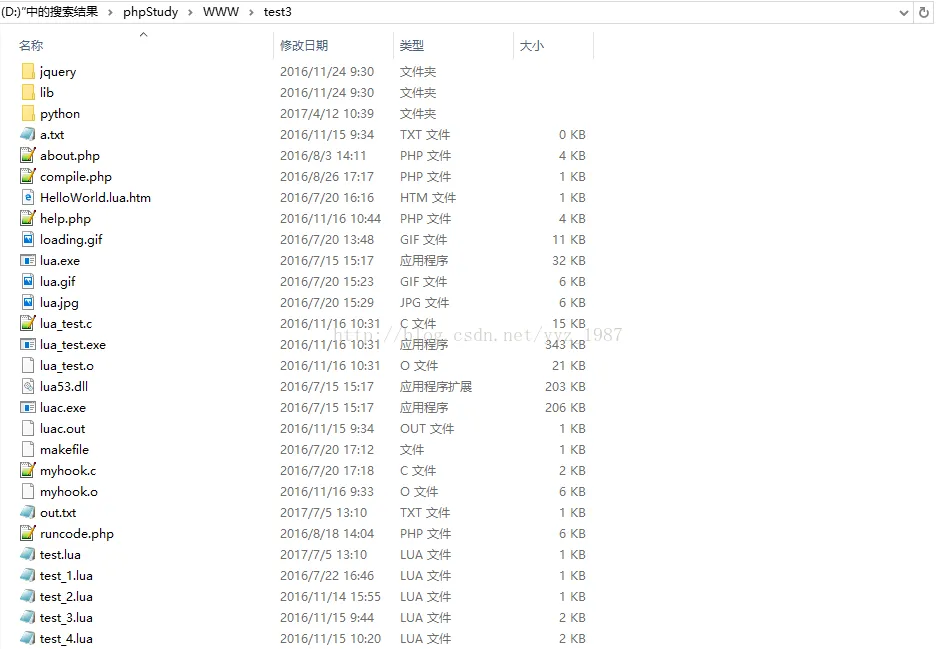

截图3，后台文件

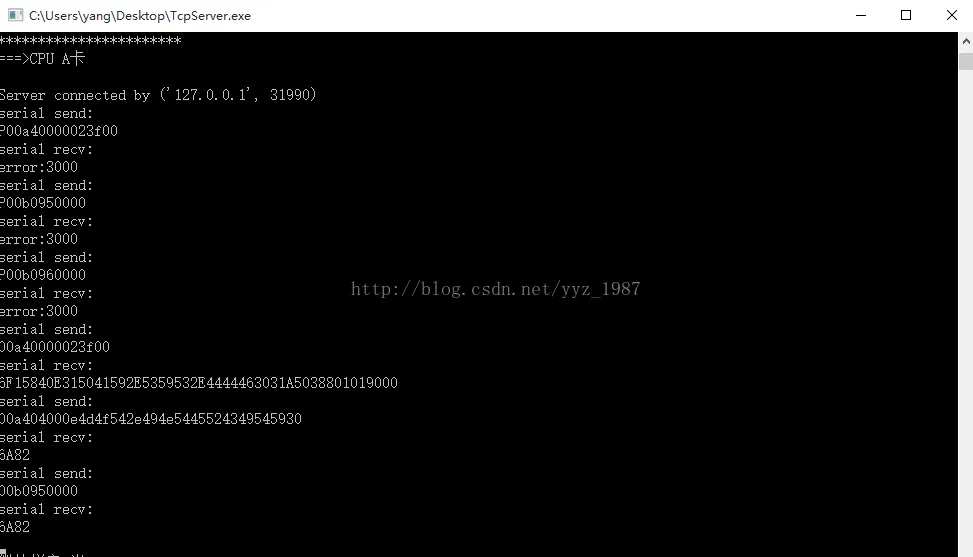

截图4，后台读写卡服务显示的收发日志：
后台的解析lua脚本的文件lua_test.c
//包含LUA的头文件，用来支持脚本 #include <stdio.h> #include "lib/lua-5.3.1/lua.h" #include "lib/lua-5.3.1/lualib.h" #include "lib/lua-5.3.1/lauxlib.h" #include "lib/includes.h" #define PICC_ADD 0xC1 //加 #define PICC_SUB 0xC0 //减 #define PICC_RESTORE 0xC2 //恢复 #define PICC_KEYA 0x60 //KEY A #define PICC_KEYB 0x61 //KEY B #define PICC_NULL 0x00 //不校验KEY lua_State* L; U08 gCardSN[8]; //物理卡号 U32 ICF_SelectAID( const char *AID, U32 ilen, U32 ich ) { U32 rcode; gCmdBuffer[0] = 0x00; //CLA gCmdBuffer[1] = 0xA4; //INS gCmdBuffer[2] = 0x04; //P1 gCmdBuffer[3] = 0x00; //P2 gCmdBuffer[4] = ilen; //Lc CurCalc_DataCpy( gCmdBuffer+5, (U08*)AID, ilen ); rcode = ICC_APDU_Exchange( ich, gCmdBuffer, ilen+5, gpRcvBuffer, &Grcv_Len, 260 ); if( rcode != 0 ) { return rcode; } if( Grcv_Len < 2 ) { return 2;} rcode = ( ( gpRcvBuffer[ Grcv_Len - 2 ] << 8 ) | gpRcvBuffer[ Grcv_Len - 1 ] ); return rcode; } U32 ICF_SelectSFI( const char *SFI, U32 ich ) { U32 rcode; gCmdBuffer[0] = 0x00; //CLA gCmdBuffer[1] = 0xA4; //INS gCmdBuffer[2] = 0x00; //P1 gCmdBuffer[3] = 0x00; //P2 gCmdBuffer[4] = 0x02; //Lc CurCalc_DataCpy( gCmdBuffer+5, (U08*)SFI, 2 ); rcode = ICC_APDU_Exchange( ich, gCmdBuffer, 2+5, gpRcvBuffer, &Grcv_Len, 260 ); if( rcode != 0 ) { return rcode; } if( Grcv_Len < 2 ) { return 2;} rcode = ( ( gpRcvBuffer[ Grcv_Len - 2 ] << 8 ) | gpRcvBuffer[ Grcv_Len - 1 ] ); return rcode; } U32 ICF_ReadBinaryFile( U08 SFI, U08 Offset, U08 BytesToRead, U32 ich ) { unsigned short rcode; gCmdBuffer[0] = 0x00; //CLA gCmdBuffer[1] = 0xB0; //INS gCmdBuffer[2] = 0x80 | ( SFI & 0x1F ); //P1 gCmdBuffer[3] = Offset; //P2 gCmdBuffer[4] = BytesToRead; //Le rcode = ICC_APDU_Exchange( ich, gCmdBuffer, 5, gpRcvBuffer, &Grcv_Len, 260 ); if( rcode != 0 ) { return rcode; } if( Grcv_Len < 2 ) //长度判断 { return 2;} rcode = ( ( gpRcvBuffer[ Grcv_Len - 2 ] << 8 ) | gpRcvBuffer[ Grcv_Len - 1 ] ); return rcode; } int LConnect(lua_State* L) { int ret = 0; size_t le = 0; printf("Connecting...\n"); const char * ipaddr = luaL_checklstring(L,1,&le); //printf("cmd is %s,le is %d\n",aid,le); //从L栈中取出索引为2的数值，并检查 int port = luaL_checkinteger(L,2); printf("ServerIP:%s,Port:%d\n", ipaddr,port); ret = Connect(ipaddr,port); lua_pushnumber(L,ret); return 1; } int LDisConnect(lua_State* L) { printf("Close connect!\n"); Com_Dev_Disconnect( 0 ); return 1; } int LTxData(lua_State* L) { int ret = 0; unsigned int len = 0; size_t le = 0; unsigned char buf[1024]; unsigned char outbuf[2048]; memset(buf, 0, 1024); memset(outbuf, 0, 2048); //从L栈中取出索引为1的数值，并检查 const char * txdata = luaL_checklstring(L,1,&le); //printf("tx is %s,le is %d\n",txdata,le); StrToHex( (char*)txdata, le, buf ); ret = Com_Dev_TxData( buf, le/2, 0, 0 ); if( ret != 0 ) { DEF_SysCard_Debug; return ret; } ret = Com_Dev_RxData( buf, &len, 1024, 0, 0 ); if( ret != 0 ) { DEF_SysCard_Debug; return ret; } HexToStr(buf,len,(char*)outbuf); lua_pushinteger(L,ret); lua_pushlstring(L,(char*)outbuf,strlen((char*)outbuf)); return 2; } int LTxData1(lua_State* L) { int ret = 0; unsigned int len = 0; size_t le = 0; unsigned char buf[1024]; unsigned char outbuf[2048]; memset(buf, 0, 1024); memset(outbuf, 0, 2048); //从L栈中取出索引为1的数值，并检查 const char * txdata = luaL_checklstring(L,1,&le); // printf("tx is %s,le is %d\n",txdata,le); //StrToHex( (char*)txdata, le, buf ); ret = Com_Dev_TxData1( (unsigned char*)txdata, le, 0, 0 ); if( ret != 0 ) { DEF_SysCard_Debug; return ret; } ret = Com_Dev_RxData1( buf, &len, 1024, 0, 0 ); if( ret != 0 ) { DEF_SysCard_Debug; return ret; } //HexToStr(buf,len,(char*)outbuf); lua_pushinteger(L,ret); lua_pushlstring(L,(char*)buf,len); return 2; } int LAPDU_Exchange(lua_State* L) { int ret = 0; size_t le = 0; unsigned char buf[520]; memset(buf, 0, 520); //从L栈中取出索引为1的数值，并检查 const char * cmd = luaL_checklstring(L,1,&le); //printf("cmd is %s,le is %d\n",aid,le); //从L栈中取出索引为2的数值，并检查 int ich = luaL_checkinteger(L,2); StrToHex( (char*)cmd, le, gCmdBuffer ); ret = ICC_APDU_Exchange( ich, gCmdBuffer, le/2, gpRcvBuffer, &Grcv_Len, 260 ); if( Grcv_Len < 2) { return 1;} ret = ( ( gpRcvBuffer[ Grcv_Len - 2 ] << 8 ) | gpRcvBuffer[ Grcv_Len - 1 ] ); HexToStr(gpRcvBuffer,Grcv_Len,(char*)buf); lua_pushinteger(L,ret); lua_pushlstring(L,(char*)buf,strlen((char*)buf)); return 2; } int LSelectAID(lua_State* L) { int ret = 0; size_t le = 0; unsigned char buf[520]; memset(buf, 0, 520); //从L栈中取出索引为1的数值，并检查 const char * aid = luaL_checklstring(L,1,&le); //printf("aid is %s,le is %d\n",aid,le); //从L栈中取出索引为2的数值，并检查 int len = luaL_checkinteger(L,2); int ich = luaL_checkinteger(L,3); ret = ICF_SelectAID( aid, len, ich ); HexToStr(gpRcvBuffer,Grcv_Len,(char*)buf); lua_pushinteger(L,ret); lua_pushlstring(L,(char*)buf,strlen((char*)buf)); return 2; } int LSelectSFI(lua_State* L) { int ret = 0; size_t le = 0; unsigned char buf[520]; memset(buf, 0, 520); //从L栈中取出索引为1的数值，并检查 const char * sfi = luaL_checklstring(L,1,&le); //printf("aid is %s,le is %d\n",aid,le); //从L栈中取出索引为2的数值，并检查 int ich = luaL_checkinteger(L,2); ret = ICF_SelectSFI( sfi, ich ); HexToStr(gpRcvBuffer,Grcv_Len,(char*)buf); lua_pushinteger(L,ret); lua_pushlstring(L,(char*)buf,strlen((char*)buf)); return 2; } int LReadBinaryFile( lua_State* L ) { int ret = 0; unsigned char buf[520]; memset(buf, 0, 520); //从L栈中取出索引为1的数值，并检查 int sfi = luaL_checkinteger(L,1); int oft = luaL_checkinteger(L,2); int rlen = luaL_checkinteger(L,3); int ich = luaL_checkinteger(L,4); ret = ICF_ReadBinaryFile(sfi,oft,rlen,ich); HexToStr(gpRcvBuffer,Grcv_Len,(char*)buf); lua_pushinteger(L,ret); lua_pushlstring(L,(char*)buf,strlen((char*)buf)); //stackDump(L); return 2; } //获取CPU或M1卡的物理卡号 int LGetPhySn( lua_State* L ) { int ret = 0; unsigned char buf[20]; unsigned char buf1[20]; memset(buf,0,20); memset(buf1,0,20); ret = ICC_MiOne_GetPhySn(buf); memcpy(gCardSN,buf,8);//保存全局物理卡号 HexToStr(buf,8,(char*)buf1); lua_pushinteger(L,ret); lua_pushlstring(L,(char*)buf1,strlen((char*)buf1)); //stackDump(L); return 2; } //M1卡扇区读 int LBlkRead( lua_State* L ) { int ret = 0; size_t le = 0; unsigned char rbuf[50]; unsigned char sbuf[50]; unsigned char key[16]; unsigned char cmd=0; int block = luaL_checkinteger(L,1); const char * keys = luaL_checklstring(L,2,&le); int keytype = luaL_checkinteger(L,3); //密码类型,0,不校验 1,A码，2，B码 memset(rbuf,0,50); memset(sbuf,0,50); StrToHex( (char*)keys, le, key ); cmd = PICC_KEYA; if(keytype == 1) { cmd = PICC_KEYA; } else if(keytype == 2) { cmd = PICC_KEYB; } ret = ICC_MiOne_BlkRead(block,cmd,key, gCardSN, rbuf ); HexToStr(rbuf,16,(char*)sbuf); lua_pushinteger(L,ret); lua_pushlstring(L,(char*)sbuf,strlen((char*)sbuf)); //stackDump(L); return 2; } //M1卡扇区写 int LBlkWrite( lua_State* L ) { int ret = 0; size_t le = 0,le1 =0; unsigned char wbuf[50]; unsigned char key[16]; unsigned char cmd=0; int block = luaL_checkinteger(L,1); const char * wbufs = luaL_checklstring(L,2,&le); const char * keys = luaL_checklstring(L,3,&le1); int keytype = luaL_checkinteger(L,4); //密码类型,0,不校验 1,A码，2，B码 memset(wbuf,0,50); StrToHex( (char*)wbufs, le, wbuf ); StrToHex( (char*)keys, le1, key ); cmd = PICC_KEYA; if(keytype == 1) { cmd = PICC_KEYA; } else if(keytype == 2) { cmd = PICC_KEYB; } ret = ICC_MiOne_BlkWrite(block,cmd,key, gCardSN, wbuf ); lua_pushinteger(L,ret); //stackDump(L); return 1; } //DES加密 int LDES_Encrypt( lua_State* L ) { // int ret = 0; size_t le = 0,le1 =0; unsigned char inkey[16]; unsigned char indata[16]; unsigned char outdata[16]; unsigned char str_out[50]; const char * str_inkey = luaL_checklstring(L,1,&le); const char * str_indata = luaL_checklstring(L,2,&le1); StrToHex( (char*)str_inkey, le, inkey ); StrToHex( (char*)str_indata, le1, indata ); CurCalc_DES_Encrypt( inkey, indata, outdata ); HexToStr(outdata,8,(char*)str_out); //lua_pushinteger(L,ret); lua_pushlstring(L,(char*)str_out,16); //stackDump(L); return 1; } //DES解密 int LDES_Decrypt( lua_State* L ) { // int ret = 0; size_t le = 0,le1 =0; unsigned char inkey[16]; unsigned char indata[16]; unsigned char outdata[16]; unsigned char str_out[50]; const char * str_inkey = luaL_checklstring(L,1,&le); const char * str_indata = luaL_checklstring(L,2,&le1); StrToHex( (char*)str_inkey, le, inkey ); StrToHex( (char*)str_indata, le1, indata ); CurCalc_DES_Decrypt( inkey, indata, outdata ); HexToStr(outdata,8,(char*)str_out); //lua_pushinteger(L,ret); lua_pushlstring(L,(char*)str_out,16); //stackDump(L); return 1; } //3DES加密 int LDES_3Encrypt( lua_State* L ) { // int ret = 0; size_t le = 0,le1 =0; unsigned char inkey[16]; unsigned char indata[16]; unsigned char outdata[16]; unsigned char str_out[50]; const char * str_inkey = luaL_checklstring(L,1,&le); const char * str_indata = luaL_checklstring(L,2,&le1); StrToHex( (char*)str_inkey, le, inkey ); StrToHex( (char*)str_indata, le1, indata ); CurCalc_3DES_Encrypt( inkey, indata, outdata ); HexToStr(outdata,16,(char*)str_out); //lua_pushinteger(L,ret); lua_pushlstring(L,(char*)str_out,32); //stackDump(L); return 1; } //3DES解密 int LDES_3Decrypt( lua_State* L ) { // int ret = 0; size_t le = 0,le1 =0; unsigned char inkey[16]; unsigned char indata[16]; unsigned char outdata[16]; unsigned char str_out[50]; const char * str_inkey = luaL_checklstring(L,1,&le); const char * str_indata = luaL_checklstring(L,2,&le1); StrToHex( (char*)str_inkey, le, inkey ); StrToHex( (char*)str_indata, le1, indata ); CurCalc_3DES_Decrypt( inkey, indata, outdata ); HexToStr(outdata,16,(char*)str_out); //lua_pushinteger(L,ret); lua_pushlstring(L,(char*)str_out,32); //stackDump(L); return 1; } U32 MathDesMac( U08 *pbuf, U32 length, U08 *key,U08 checktype ) { U32 len ; U08 mac[8], mac1[8]; len = length ; if( checktype == 0 ) { CurCalc_DES_MAC64( (SINGLE_DES_ENCRYPTION|ZERO_CBC_IV), key, 0, pbuf, len , mac ); memcpy( pbuf+len, mac, 8 ); return 0 ; } else { //暂存源校验码 memcpy( mac1, pbuf+len-8, 8 ) ; CurCalc_DES_MAC64( (SINGLE_DES_ENCRYPTION|ZERO_CBC_IV), key, 0, pbuf, len-8 , mac) ; if ( memcmp( mac, mac1, 8 ) == 0x00 ) { return 0 ; //校验产生的校验码和原校验码相等, 校验成功 } else { return 1 ; //校验产生的校验码和原校验码不等, 校验失败 } } } int LMathDesMac( lua_State* L ) { int ret = 0; size_t le = 0,le1 =0; unsigned char inkey[16]; unsigned char indata[1024]; unsigned char str_out[2048]; const char * str_indata = luaL_checklstring(L,1,&le); int inlen = luaL_checkinteger(L,2); const char * str_inkey = luaL_checklstring(L,3,&le1); int type = luaL_checkinteger(L,4); StrToHex( (char*)str_indata, le, indata ); StrToHex( (char*)str_inkey, le1, inkey ); ret = MathDesMac( indata, inlen,inkey,type ); memset(str_out,0,2048); HexToStr(indata,inlen+8,(char*)str_out); lua_pushinteger(L,ret); lua_pushlstring(L,(char*)str_out,strlen((char*)str_out)); //stackDump(L); return 1; } int main( void ) { //初始化全局L L = luaL_newstate(); //创建lua的栈 //打开库 luaL_openlibs(L); //把函数压入栈中 //lua_pushcfunction(L, add); //设置全局ADD //lua_setglobal(L, "ADD"); //lua_register(L,"ADD",add); lua_pushcfunction(L, LConnect); //设置全局ADD lua_setglobal(L, "CONNECT"); lua_register(L,"DISCONNECT", LDisConnect); lua_register(L,"TxData",LTxData); lua_register(L,"TxData1",LTxData1); lua_register(L,"APDU", LAPDU_Exchange); lua_register(L,"S_AID",LSelectAID); lua_register(L,"S_SFI",LSelectSFI); lua_register(L,"R_BFile",LReadBinaryFile); lua_register(L,"G_SN",LGetPhySn); lua_register(L,"R_Block",LBlkRead); lua_register(L,"W_Block",LBlkWrite); lua_register(L,"DES_Enc",LDES_Encrypt); lua_register(L,"DES_Dec",LDES_Decrypt); lua_register(L,"DES_3Enc",LDES_3Encrypt); lua_register(L,"DES_3Dec",LDES_3Decrypt); lua_register(L,"MathDesMac",LMathDesMac); //加载我们的lua脚本文件 if(luaL_loadfile(L,"test.lua")) //载入lua脚本，是通过fopen打开的， { printf("error,failed to analysis script!\nmaybe syntax error!\n"); } //安全检查 lua_pcall(L,0,0,0); //这个函数会执行lua脚本 //push进lua函数 // lua_getglobal(L, "mylua1"); // lua_pcall(L,0,0,0); printf("end my lua script,finish!\n"); lua_close(L); //关闭lua的栈 return 0; }
php后台的处理原理：
compile.php
<?php header('Content-Type:json; charset=UTF-8'); set_time_limit(0); //var_dump($_POST); $str= $_POST['code']; //echo $str; file_put_contents("test.lua",$str); $flv_cmd="lua_test.exe >out.txt"; exec($flv_cmd); if(file_exists("out.txt")) { $txt1 = file_get_contents("out.txt"); $err ="ok"; $txt =iconv("GB2312","UTF-8//IGNORE",$txt1); //将编码从GB2312转成UTF-8 //echo $txt; } else { $txt ="output err!\n"; $err ="exec err!\n"; } $json = array("output"=>$txt,"langid"=>"17","code"=>"print(\"Hello World!\")","errors"=>$err,"time"=>"01\n"); //var_dump($json); $result = json_encode($json); //var_dump($result); $output = $result; echo $output; ?>
后台库文件的makefile:
######################################## #makefile ######################################## #编译主程序 BINARY := lua_test OBJ_DIR := CC= gcc LD= ld CFLAGS= -std=c99 -Wall -g LDSCRIPT= -lmycom -lws2_32 -liconv -lmyfile -lmycard -lmyup -lmycalc -lmyblkfile -llua LDFLAGS= -Llib SRC = $(wildcard *.c) DIR = $(notdir $(SRC)) OBJS = $(patsubst %.c,$(OBJ_DIR)%.o,$(DIR)) #OBJS= main.o myutils.o inirw.o cmdpboc.o cputest.o bustcp.o ansrec.o m1cmd.o m1api.o m1test.o upcash.o myother.o getsys.o #CFLAGS=-std=c99 #@echo Building lib... #$(call make_subdir) .PHONY: clean lib all: prebuild $(BINARY).exe prebuild: @echo Building app... $(BINARY).exe : $(OBJS) @echo Generating ... $(CC) -o $(BINARY).exe $(OBJS) $(LDFLAGS) $(LDSCRIPT) @echo OK! $(OBJ_DIR)%.o : %.c $(CC) -c $(CFLAGS) $< -o $@ clean: rm -f $(OBJ_DIR)*.o @echo Removed!
