# Cross complie path
#****************************************************************************
PRJ := ${PWD}
GCC_PATH=c:\tools\arm2013.05
CROSS_COMPILE=$(GCC_PATH)\bin\arm-none-eabi-
CC     := $(CROSS_COMPILE)gcc
CXX    := $(CROSS_COMPILE)g++
AS   := $(CROSS_COMPILE)as
AR     := $(CROSS_COMPILE)ar rc
LD     := $(CROSS_COMPILE)ld
RANLIB := $(CROSS_COMPILE)ranlib
OBJDUMP:= $(CROSS_COMPILE)objdump
OBJCOPY:= $(CROSS_COMPILE)objcopy
STRIP  := $(CROSS_COMPILE)strip
BINARY = main
CFLAGS= -O0  -g -mcpu=cortex-m3 -mthumb -nostartfiles  -D STM32F10X_HD -D USE_STDPERIPH_DRIVER
ASFLAG= -g -mcpu=cortex-m3 -mthumb
LDSCRIPT = stm32f103VET6.ld
LDFLAGS =   -Llib -T $(LDSCRIPT)
#****************************************************************************
# Targets of the build
#****************************************************************************
TARGET   := .\Output\A303_GJXF
all: prebuild $(TARGET).elf
SRC_C=$(shell gfind . -name "*.c")
SRC_S=$(shell gfind . -name "*.s")
OBJ_C=$(patsubst %.c, %.o, $(SRC_C))
OBJ_S=$(patsubst %.s, %.o, $(SRC_S))
OBJS := $(OBJ_C) $(OBJ_S)
#****************************************************************************
# Libs
#****************************************************************************
LIB_C         := $(GCC_PATH)\arm-none-eabi\lib\libc.a
LIB_GCC       := $(GCC_PATH)\lib\gcc\arm-none-eabi\4.7.3\libgcc.a
LIBS = $(LIB_C) $(LIB_GCC)
INCS = -I HARDWARE\LED -I SYSTEM\delay -I SYSTEM\sys -I SYSTEM\usart -I USER -I STM32F10x_FWLib\inc -I CORE
# OBJS = stm32f10x_gpio.o stm32f10x_rcc.o isr.o
# OBJS += $(BINARY).o
# OBJS += core_cm3.o
# OBJS += system_stm32f10x.o
#****************************************************************************
# TARGET
#****************************************************************************
prebuild:

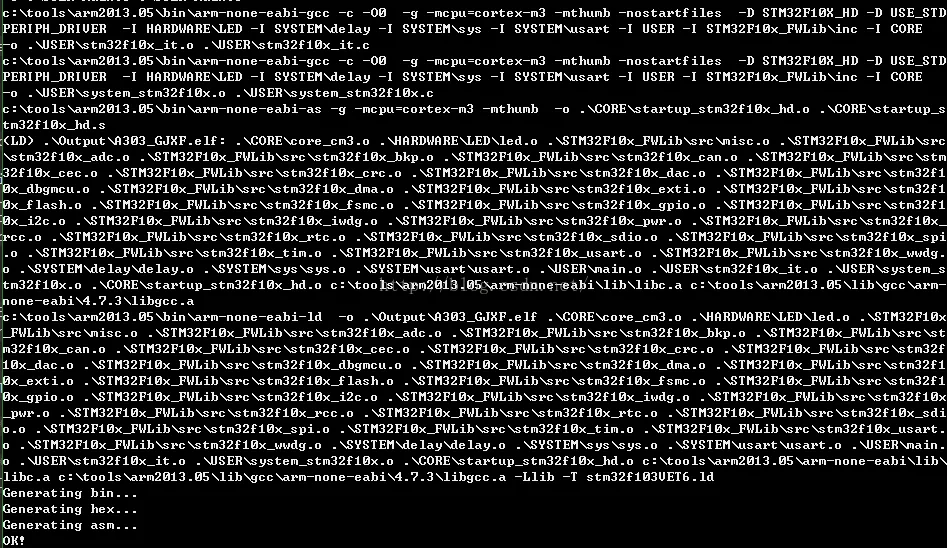

@echo Building app...
$(TARGET).elf : $(OBJS) $(LIBS)
@echo (LD) $@: $^
-${LD}  -o $@ $^ ${LDFLAGS}
@echo Generating bin...
@$(OBJCOPY) -O binary $(TARGET).elf $(TARGET).bin
@echo Generating hex...
@$(OBJCOPY) -O ihex $@ $(TARGET).hex
@echo Generating asm...
@$(OBJDUMP) -D -S $@ > $(TARGET).asm
@echo OK!
%.o : %.c
${CC} -c ${CFLAGS} ${INCS} -o $@ $<
%.o : %.s
$(AS) $(ASFLAG) -o $@ $<
clean:
@echo The following files:
rm  -f  $(TARGET) *.o
gfind . -name "*.[od]" |xargs rm
@echo Removed!
#====================end
/*
Default linker script for STM32F10x_1024K_1024K
Copyright RAISONANCE S.A.S. 2008
*/
/* include the common STM32F10x sub-script */
/* Common part of the linker scripts for STM32 devices*/
/* default stack sizes.
These are used by the startup in order to allocate stacks for the different modes.
*/
__Stack_Size = 512 ;
PROVIDE ( _Stack_Size = __Stack_Size ) ;
__Stack_Init = _estack  - __Stack_Size ;
/*"PROVIDE" allows to easily override these values from an object file or the commmand line.*/
PROVIDE ( _Stack_Init = __Stack_Init ) ;
/*
There will be a link error if there is not this amount of RAM free at the end.
*/
_Minimum_Stack_Size = 0x100 ;
/* include the memory spaces definitions sub-script */
/*
Linker subscript for STM32F10x definitions with 1024K Flash and 1024K External SRAM */
/* Memory Spaces Definitions */
MEMORY
{
  RAM (xrw) : ORIGIN = 0x60000000, LENGTH = 512K
  FLASH (rx) : ORIGIN = 0x8000000, LENGTH = 512K
  FLASHB1 (rx) : ORIGIN = 0x00000000, LENGTH = 0
  EXTMEMB0 (rx) : ORIGIN = 0x00000000, LENGTH = 0
  EXTMEMB1 (rx) : ORIGIN = 0x00000000, LENGTH = 0
  EXTMEMB2 (rx) : ORIGIN = 0x00000000, LENGTH = 0
  EXTMEMB3 (rx) : ORIGIN = 0x00000000, LENGTH = 0
}
/* higher address of the user mode stack */
_estack = 0x60080000;
/* include the sections management sub-script for FLASH mode */
/* Sections Definitions */
SECTIONS
{
    /* for Cortex devices, the beginning of the startup code is stored in the .isr_vector section, which goes to FLASH */
    .isr_vector :
    {
        . = ALIGN(4);
        KEEP(*(.isr_vector))            /* Startup code */
        . = ALIGN(4);
    } >FLASH
    /* for some STRx devices, the beginning of the startup code is stored in the .flashtext section, which goes to FLASH */
    .flashtext :
    {
        . = ALIGN(4);
        *(.flashtext)            /* Startup code */
        . = ALIGN(4);
    } >FLASH
    /* the program code is stored in the .text section, which goes to Flash */
    .text :
    {
        . = ALIGN(4);
        *(.text)                   /* remaining code */
        *(.text.*)                   /* remaining code */
        *(.rodata)                 /* read-only data (constants) */
        *(.rodata*)
        *(.glue_7)
        *(.glue_7t)
        . = ALIGN(4);
         _etext = .;
        /* This is used by the startup in order to initialize the .data secion */
        _sidata = _etext;
    } >FLASH
    /* This is the initialized data section
    The program executes knowing that the data is in the RAM
    but the loader puts the initial values in the FLASH (inidata).
    It is one task of the startup to copy the initial values from FLASH to RAM. */
    .data  : AT ( _sidata )
    {
        . = ALIGN(4);
        /* This is used by the startup in order to initialize the .data secion */
        _sdata = . ;
        *(.data)
        *(.data.*)
        . = ALIGN(4);
        /* This is used by the startup in order to initialize the .data secion */
        _edata = . ;
    } >RAM
    /* This is the uninitialized data section */
    .bss :
    {
        . = ALIGN(4);
        /* This is used by the startup in order to initialize the .bss secion */
        _sbss = .;
        *(.bss)
        *(COMMON)
        . = ALIGN(4);
        /* This is used by the startup in order to initialize the .bss secion */
        _ebss = . ;
    } >RAM
    PROVIDE ( end = _ebss );
    PROVIDE ( _end = _ebss );
    /* This is the user stack section
    This is just to check that there is enough RAM left for the User mode stack
    It should generate an error if it's full.
     */
    ._usrstack :
    {
        . = ALIGN(4);
        _susrstack = . ;
        . = . + _Minimum_Stack_Size ;
        . = ALIGN(4);
        _eusrstack = . ;
    } >RAM
    /* this is the FLASH Bank1 */
    /* the C or assembly source must explicitly place the code or data there
    using the "section" attribute */
    .b1text :
    {
        *(.b1text)                   /* remaining code */
        *(.b1rodata)                 /* read-only data (constants) */
        *(.b1rodata*)
    } >FLASHB1
    /* this is the EXTMEM */
    /* the C or assembly source must explicitly place the code or data there
    using the "section" attribute */
    /* EXTMEM Bank0 */
    .eb0text :
    {
        *(.eb0text)                   /* remaining code */
        *(.eb0rodata)                 /* read-only data (constants) */
        *(.eb0rodata*)
    } >EXTMEMB0
    /* EXTMEM Bank1 */
    .eb1text :
    {
        *(.eb1text)                   /* remaining code */
        *(.eb1rodata)                 /* read-only data (constants) */
        *(.eb1rodata*)
    } >EXTMEMB1
    /* EXTMEM Bank2 */
    .eb2text :
    {
        *(.eb2text)                   /* remaining code */
        *(.eb2rodata)                 /* read-only data (constants) */
        *(.eb2rodata*)
    } >EXTMEMB2
    /* EXTMEM Bank0 */
    .eb3text :
    {
        *(.eb3text)                   /* remaining code */
        *(.eb3rodata)                 /* read-only data (constants) */
        *(.eb3rodata*)
    } >EXTMEMB3
    /* after that it's only debugging information. */
    /* remove the debugging information from the standard libraries */
    DISCARD :
    {
     libc.a ( * )
     libm.a ( * )
     libgcc.a ( * )
     }
    /* Stabs debugging sections.  */
    .stab          0 : { *(.stab) }
    .stabstr       0 : { *(.stabstr) }
    .stab.excl     0 : { *(.stab.excl) }
    .stab.exclstr  0 : { *(.stab.exclstr) }
    .stab.index    0 : { *(.stab.index) }
    .stab.indexstr 0 : { *(.stab.indexstr) }
    .comment       0 : { *(.comment) }
    /* DWARF debug sections.
       Symbols in the DWARF debugging sections are relative to the beginning
       of the section so we begin them at 0.  */
    /* DWARF 1 */
    .debug          0 : { *(.debug) }
    .line           0 : { *(.line) }
    /* GNU DWARF 1 extensions */
    .debug_srcinfo  0 : { *(.debug_srcinfo) }
    .debug_sfnames  0 : { *(.debug_sfnames) }
    /* DWARF 1.1 and DWARF 2 */
    .debug_aranges  0 : { *(.debug_aranges) }
    .debug_pubnames 0 : { *(.debug_pubnames) }
    /* DWARF 2 */
    .debug_info     0 : { *(.debug_info .gnu.linkonce.wi.*) }
    .debug_abbrev   0 : { *(.debug_abbrev) }
    .debug_line     0 : { *(.debug_line) }
    .debug_frame    0 : { *(.debug_frame) }
    .debug_str      0 : { *(.debug_str) }
    .debug_loc      0 : { *(.debug_loc) }
    .debug_macinfo  0 : { *(.debug_macinfo) }
    /* SGI/MIPS DWARF 2 extensions */
    .debug_weaknames 0 : { *(.debug_weaknames) }
    .debug_funcnames 0 : { *(.debug_funcnames) }
    .debug_typenames 0 : { *(.debug_typenames) }
    .debug_varnames  0 : { *(.debug_varnames) }
}
